TAP200 Wi-Fi 5 Access Point

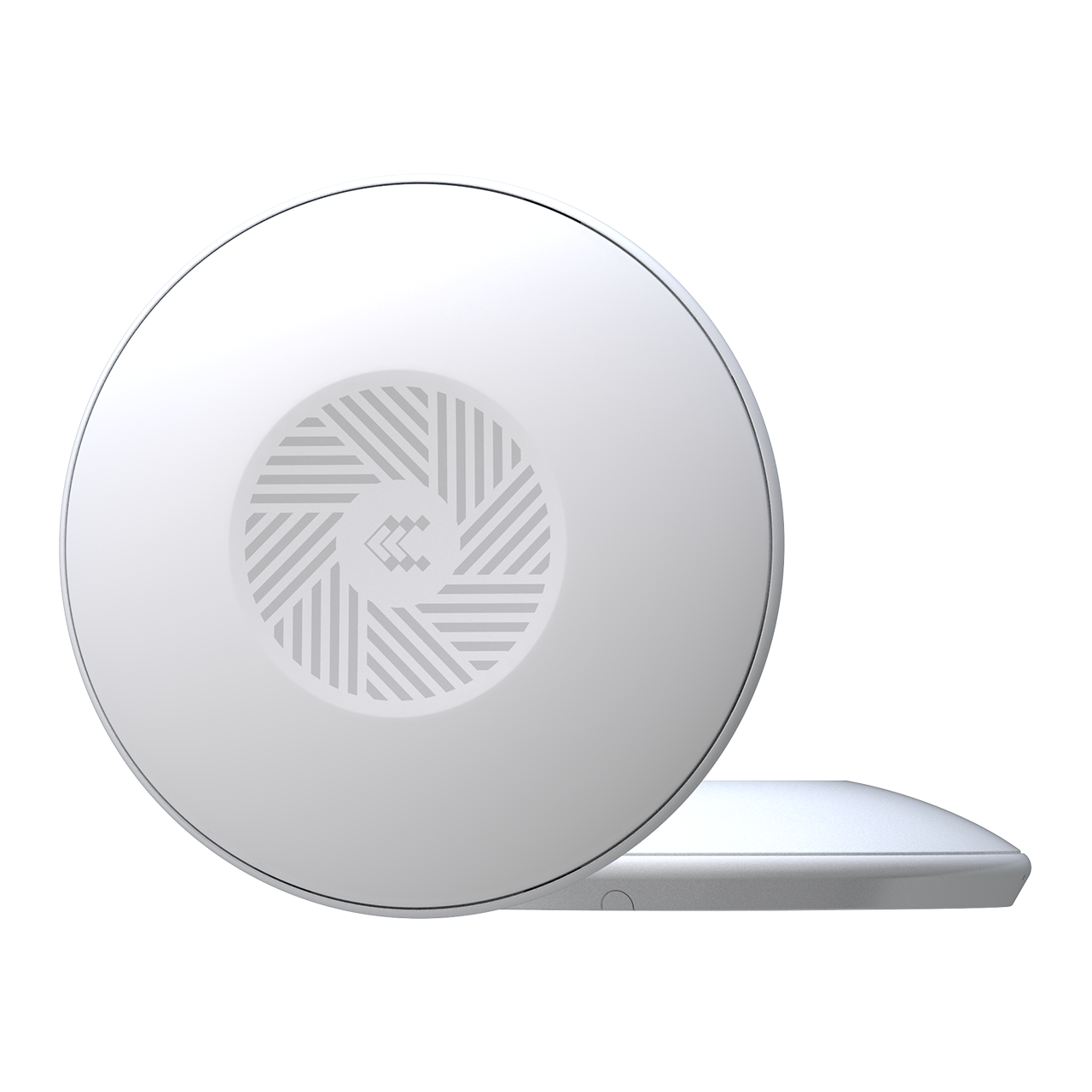

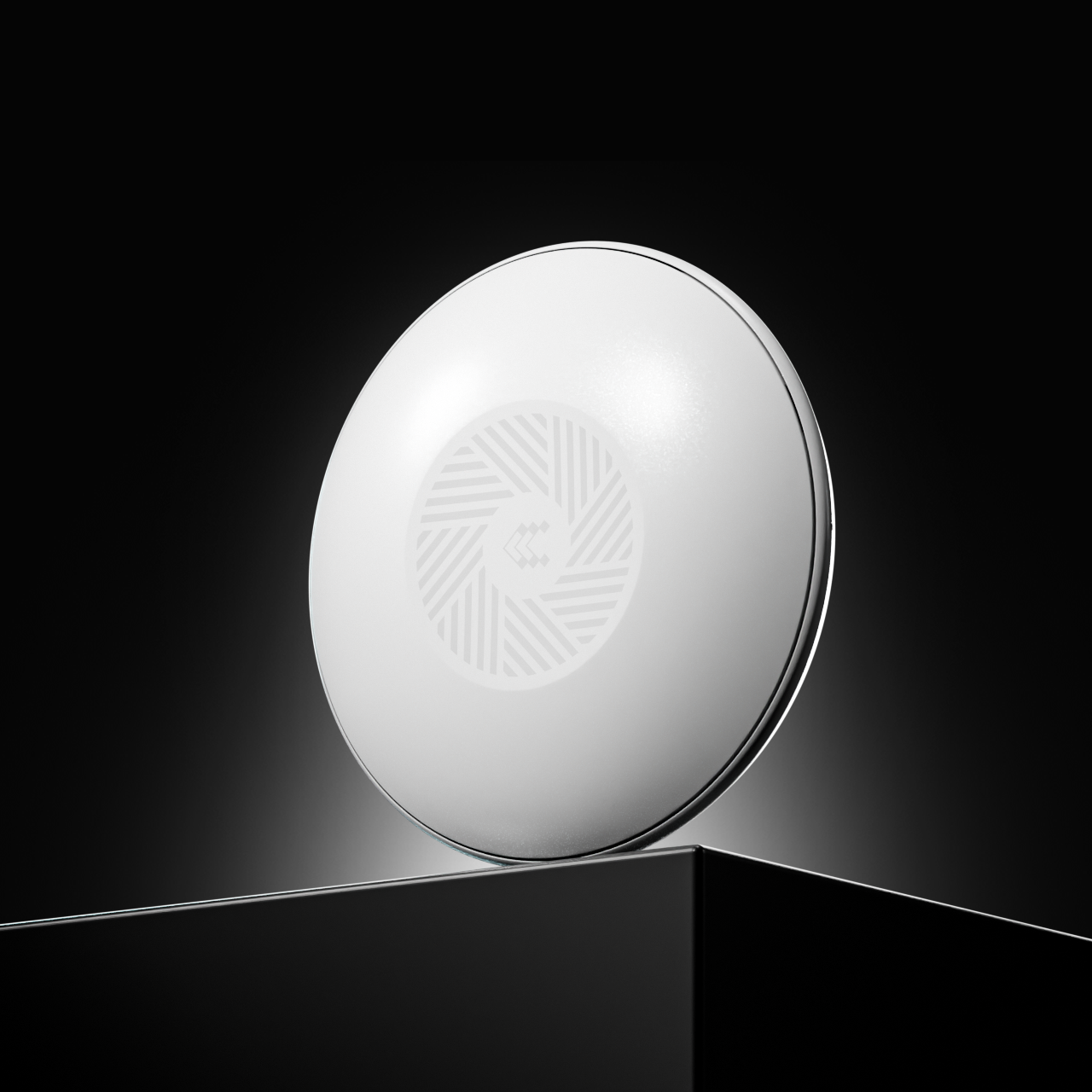

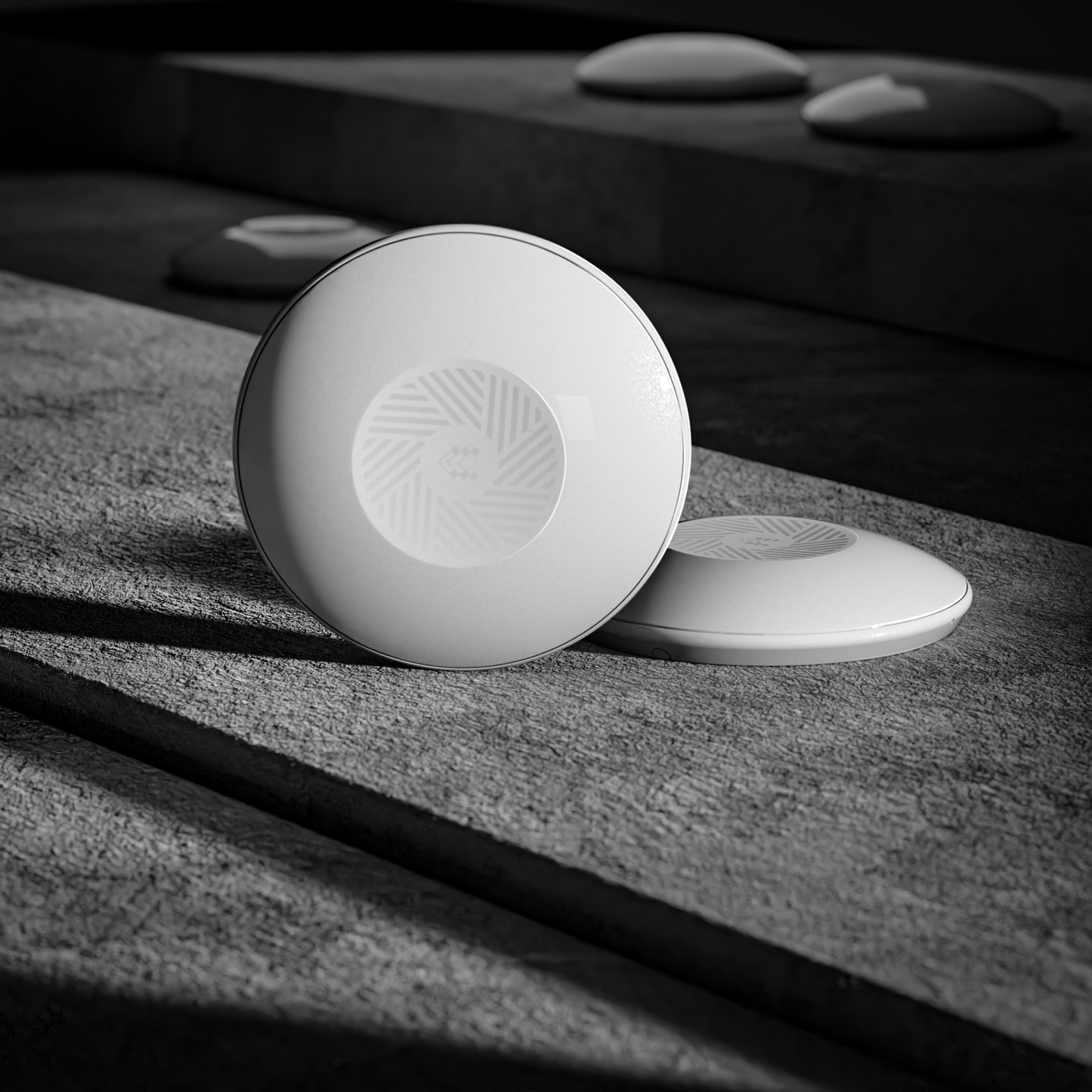

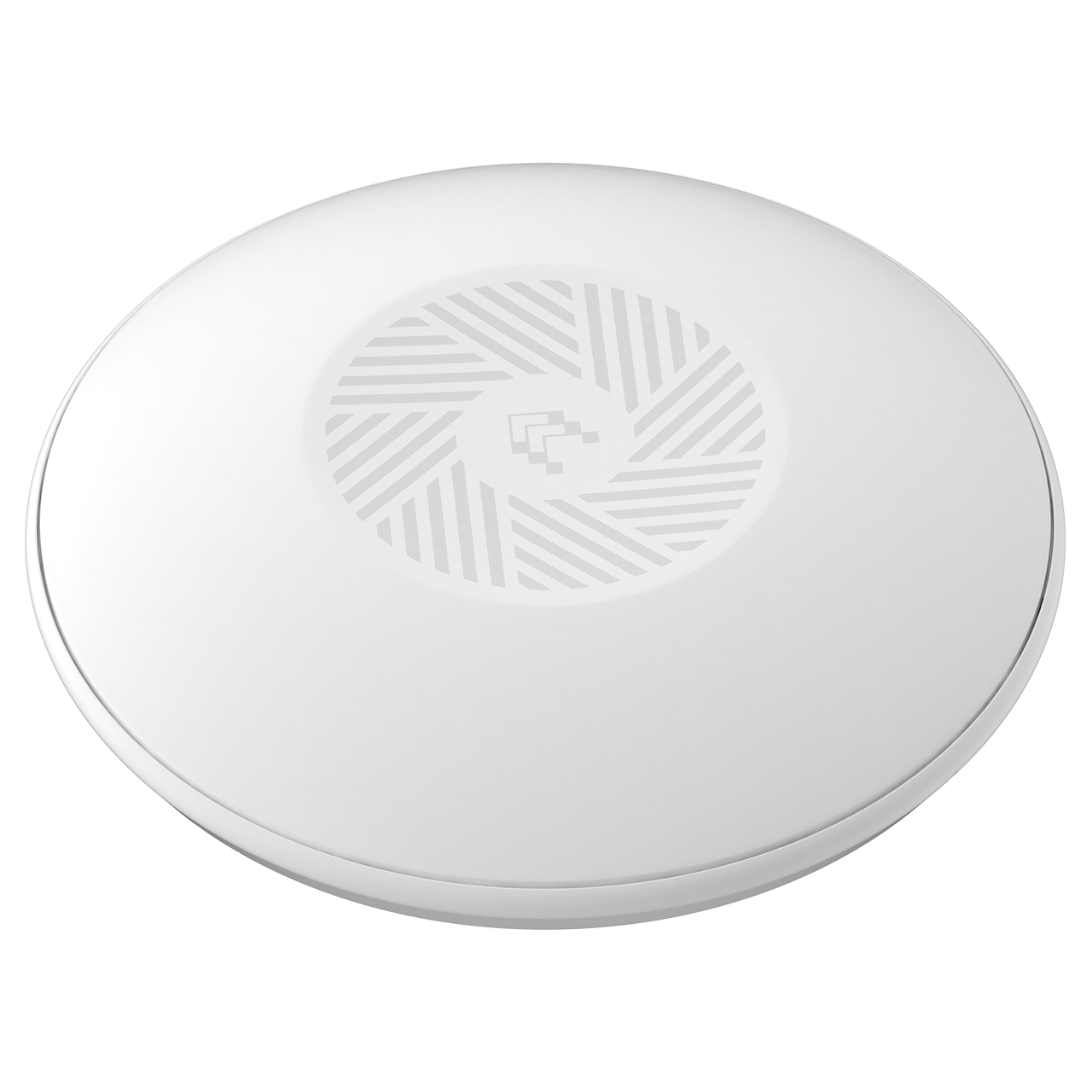

Teltonika TAP200 Wi-Fi 5 Access Point
SKU:TAP200
Regular price
$99.00
Regular price
$104.00
Sale price
$99.00
Unit price
per
Taxes included.
EOFY Sale. Limited promotional stock available — don’t miss out!
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

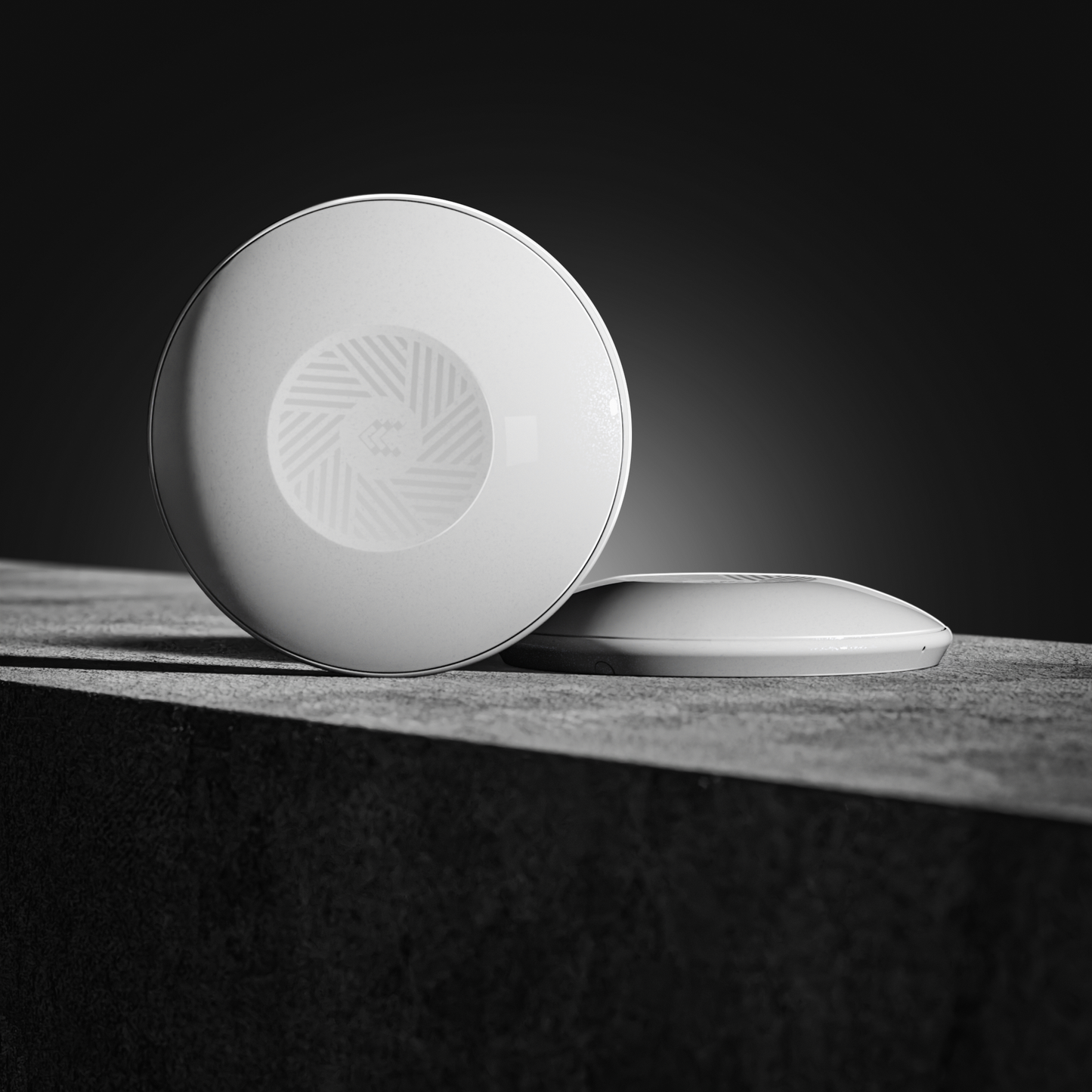

Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.
Wi-Fi 5: Wave-2 802.11 b/g/n/ac Dual Band Wi-Fi.

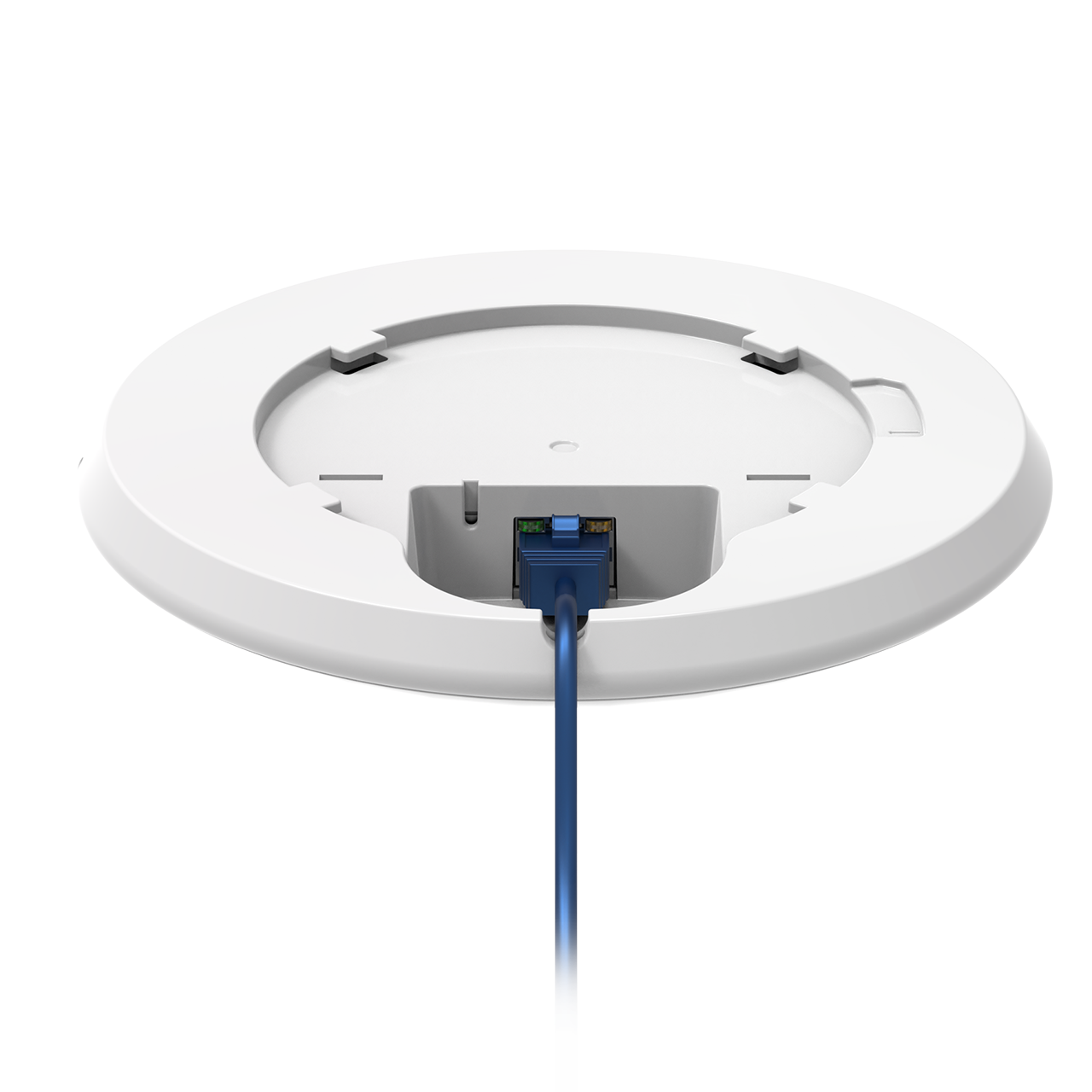

RJ45 & POE-IN: Supporting speeds of up to 1000 Mbps and PoE-in functionality.

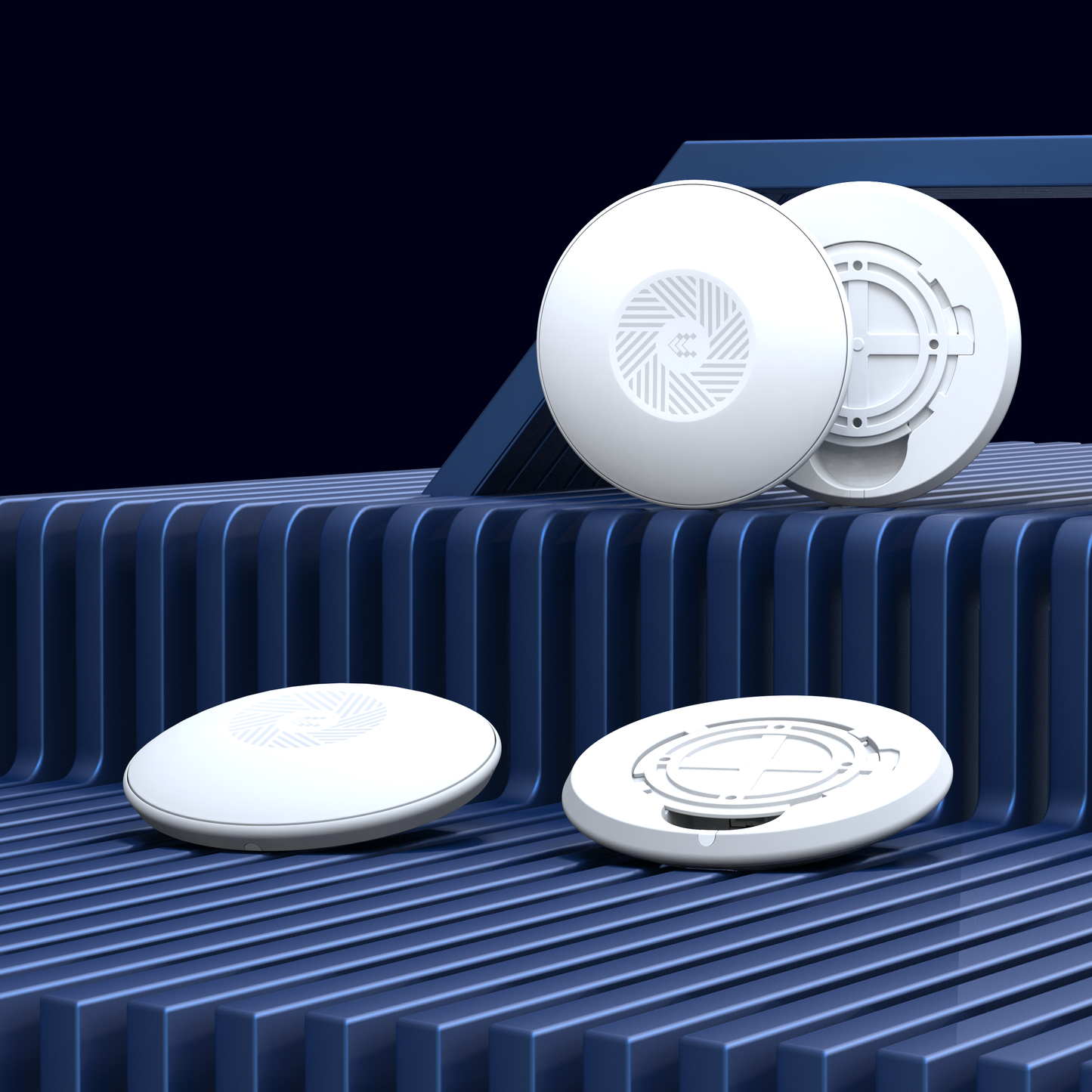

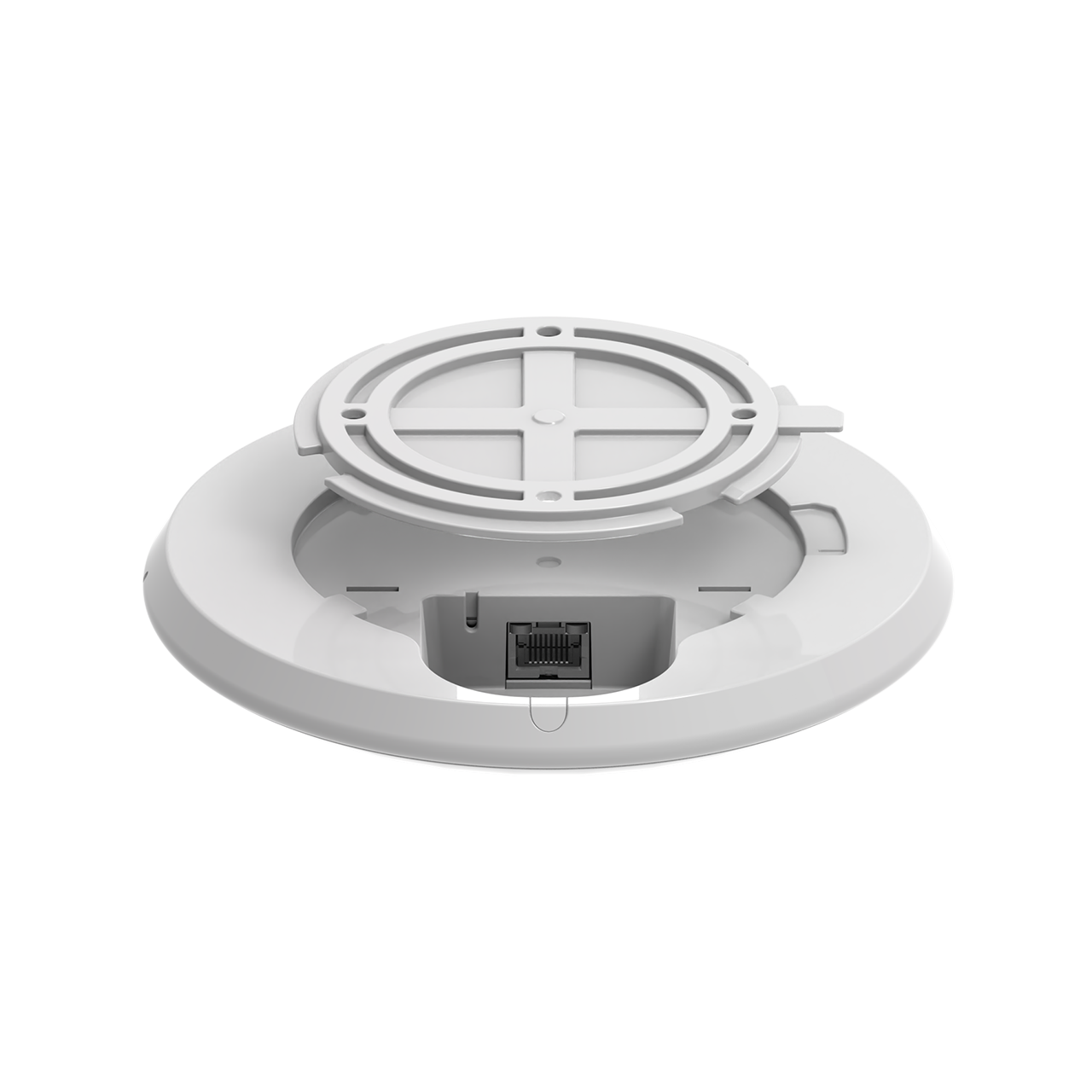

RESILIENT & EASY TO INSTALL: UV-stabilised housing for lasting colour with a mounting bracket for quick setup.
RMS MANAGEMENT: Free RMS Management access for 24 months.
| Wireless | |
|---|---|
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) |
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | ESSID stealth mode (Hide SSID) |
| Wi-Fi users | Up to 100 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Whitelist, blacklist |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information. |
| Ethernet | |
| Ethernet | 1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network | |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH |
| DNS over HTTPS | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
| Hotspot | Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
| Security | |
| 802.1x | Port-based network access control client |
| Authentication | SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator |
| VLAN | Tag-based VLAN separation |
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
| API | |
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| Receive email message status alerts of various services | |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| System Characteristics | |
| CPU | MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc |
| RAM | 256 MB, DDR3 |
| FLASH storage | 16MB, SPI NOR Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
| FIRMWARE CUSTOMISATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| GPL customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs |
| Package Manager | The Package Manager is a service used to install additional software on the device |
| Power | |
| Connector | RJ45 Socket |
| Input voltage range | 44.0 – 57.0 V |
| PoE standards | 802.3af PoE Class 1 |
| Power consumption | Idle: < 4 W / Max: < 5.5 W |
| Physical Interfaces | |
| Ethernet | 1 x RJ45 port, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED (can be turned off from web-UI) |
| Antennas | 2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi |
| Antennas specifications |
2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional 2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional |
| Reset | Reboot/User default reset/Factory reset button |
| Physical Specification | |
| Casing material | UV stabilized plastic |
| Dimensions | Ø 158 mm x 30 mm |
| Weight | 190 g |

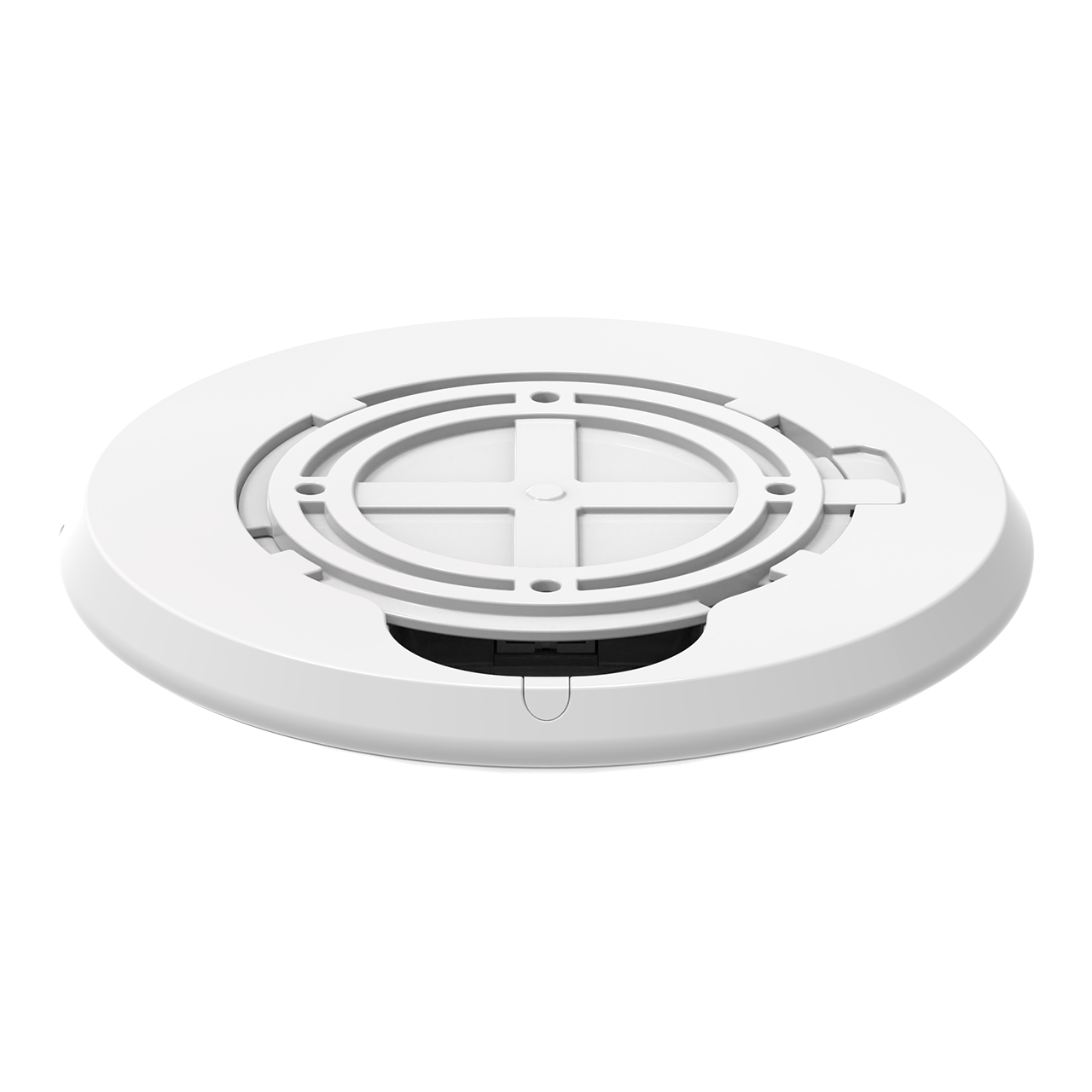

| Mounting options | AP mounting bracket (for ceiling mount) |
| Operating Environment | |
| Operating temperature | -40 °C to 50 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, RoHS, REACH, WEEE, SDPPI (POSTEL) |
| EMC Emissions & Immunity | |
| Standards |
EN 55032:2015 + A11:2020 EN 55035:2017 + A11:2020 EN 61000-3-3:2013+A1:2019 + A2:2021 EN IEC 61000-3-2:2019 + A1:2021 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| RF | |
| Standards |
EN 300 328 V2.2.2 EN 300 893 V2.1.1 EN 300 440 V2.2.1 |
| Safety | |
| Standards |
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
What's in the box?
- Access Point TAP200
- QSG (Quick Start Guide)
- Wi-Fi Information sticker
- Packaging box
