RGB LED Fan Hub Controller — Black

Six (6) port RGB LED hub for CORSAIR RGB fans

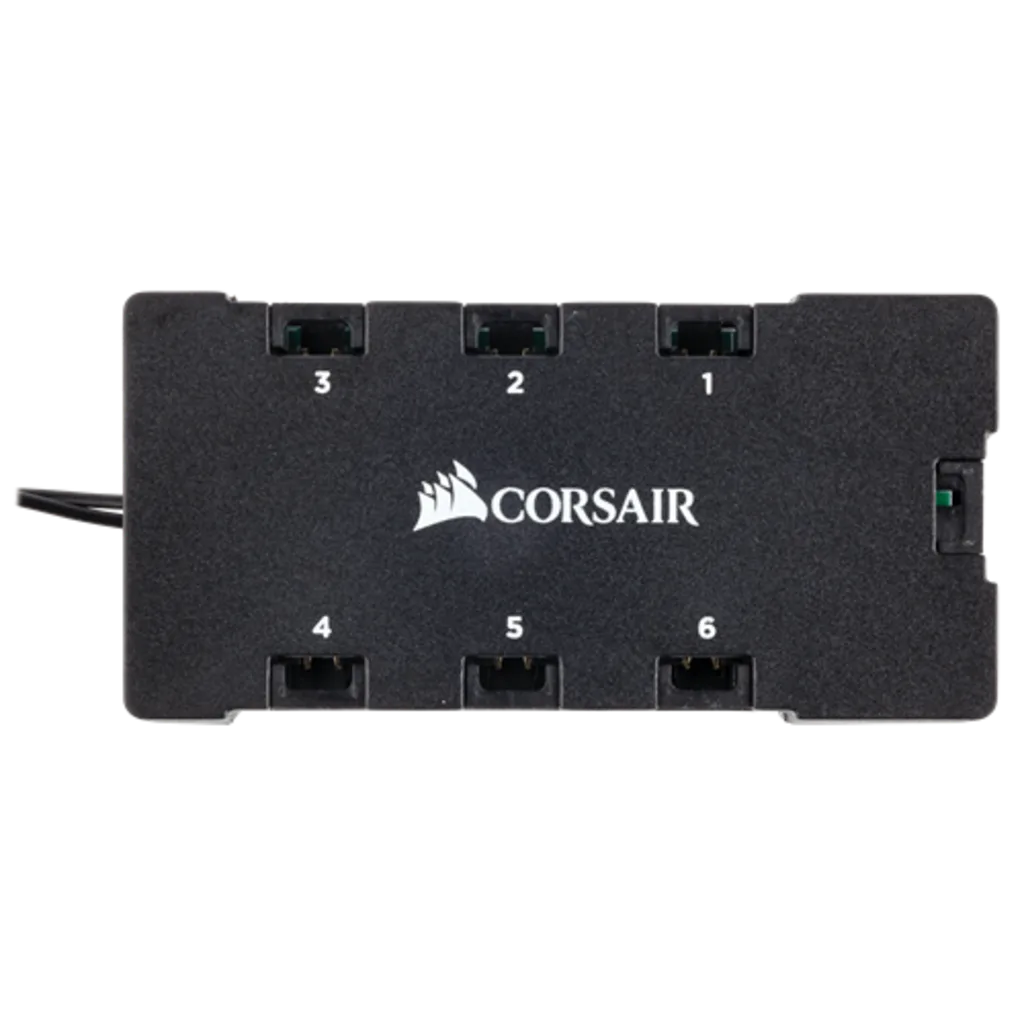

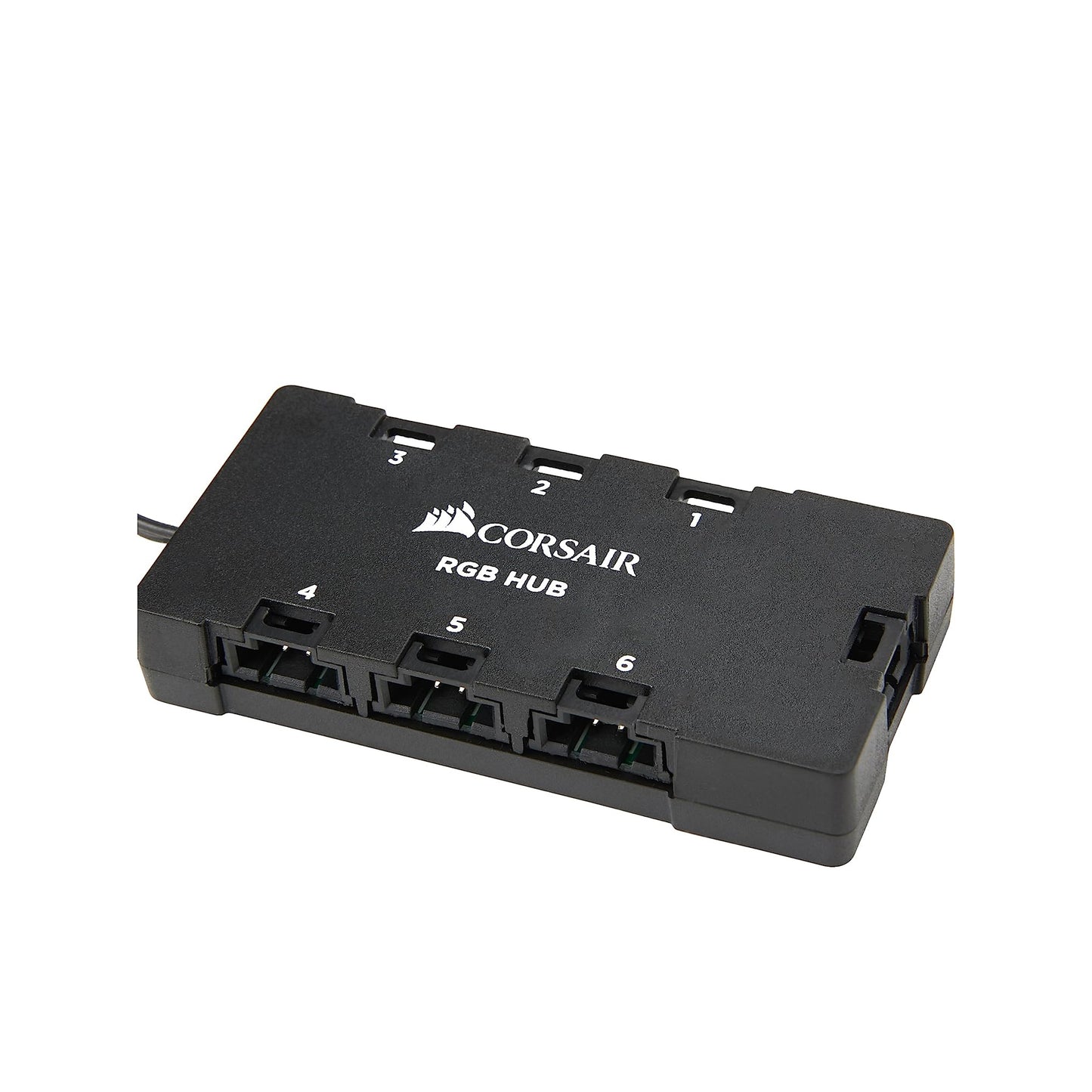

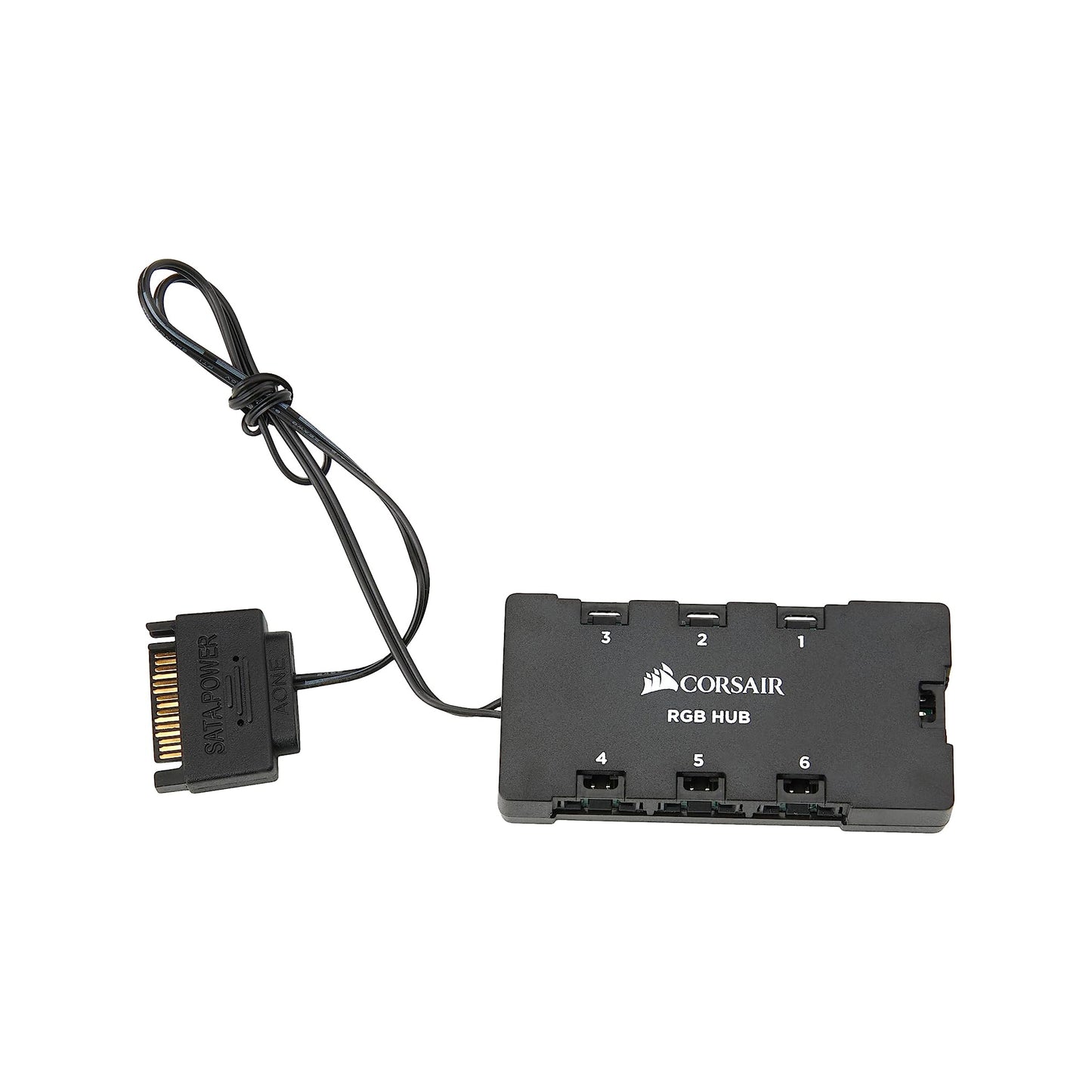

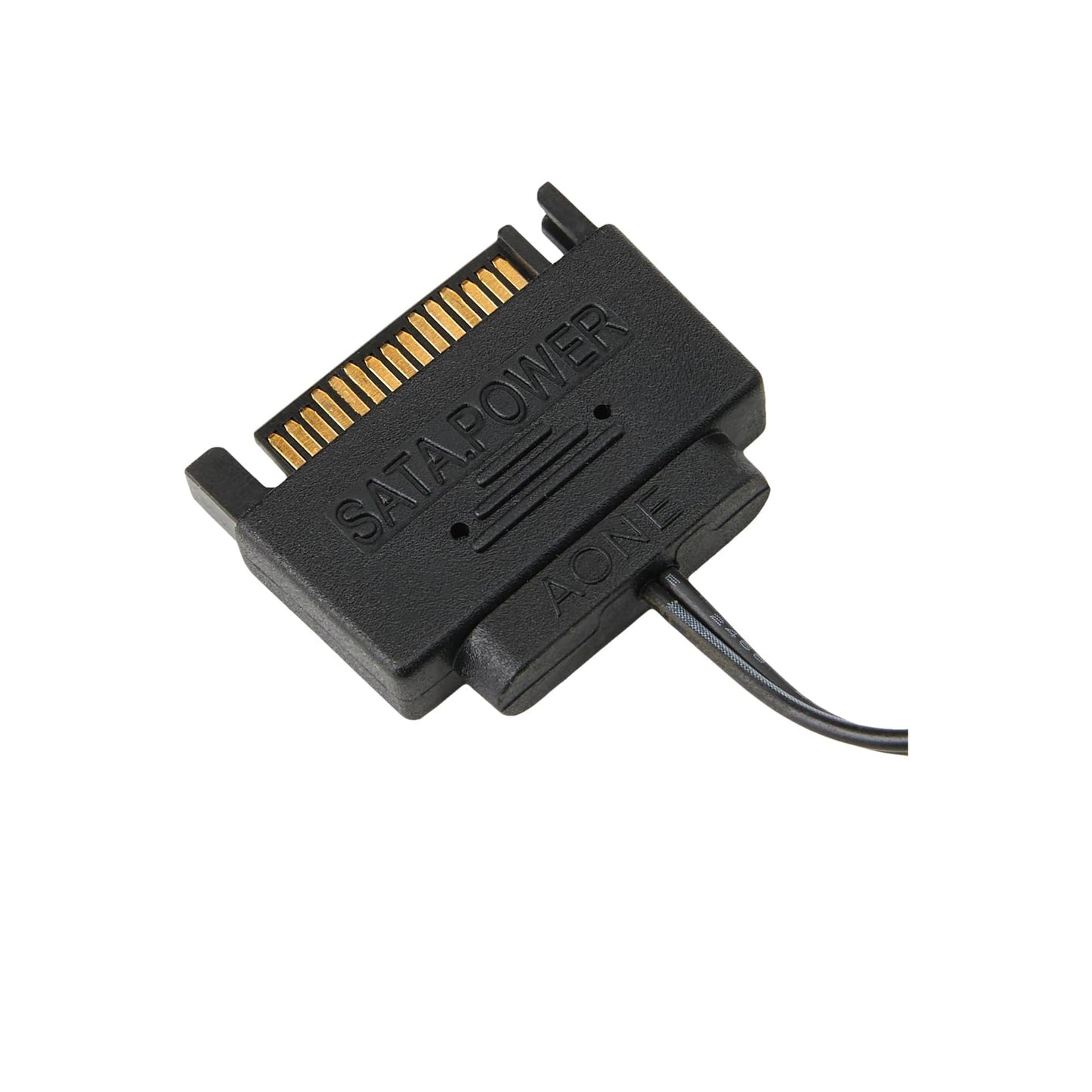

The Corsair RGB Fan Hub is, as the name implies, specialised in the control of the RGB illumination of the fans of the manufacturer Corsair. In each case, one of a total of six 4-pin connections can be plugged in, for example, the fans from Corsair's HD, LL, ML or SP-RGB series. An integrated SATA connector powers the hub and the RGB LEDs. A 3-pin slot on the opposite side connects the hub to Corsair's Commander Pro RGB LED Controller (LULS-271). Alternatively, the optional wired remote control for Corsair's RGB fans can be connected to the slot, or the Corsair RGB Fan Hub can be connected to one via an optional cable JCORSAIR header of an appropriately equipped motherboard.

On the back is an M3 strip that allows the hub to be attached anywhere. Note: Remote control and cables for connecting to the Corsair Commander Pro RGB LED Controller or to the JCORSAIR header of a motherboard are not included in the package. Specification: Dimensions: approx. 70 x 50 x 38 mm (L x W x D) Weight: approx. 45 g Colour: Black Connectors: 6x 4-pin (for fan) 1x 3-pin (for controller / remote control / JCORSAIR header) 1x SATA (for power connection) Compatibility: Corsair Commander Pro RGB LED Corsair HD Fan Series Corsair LL Fan Series Corsair ML Fan Series Corsair SP-RGB Fan Series.

Specifications

• Channel Attribute: RMA
• Case Accessory Warranty: Two years
• Case Accessory Weight: 0.045
• Model: RGB LED Fan Hub
• Weight: 0.045
