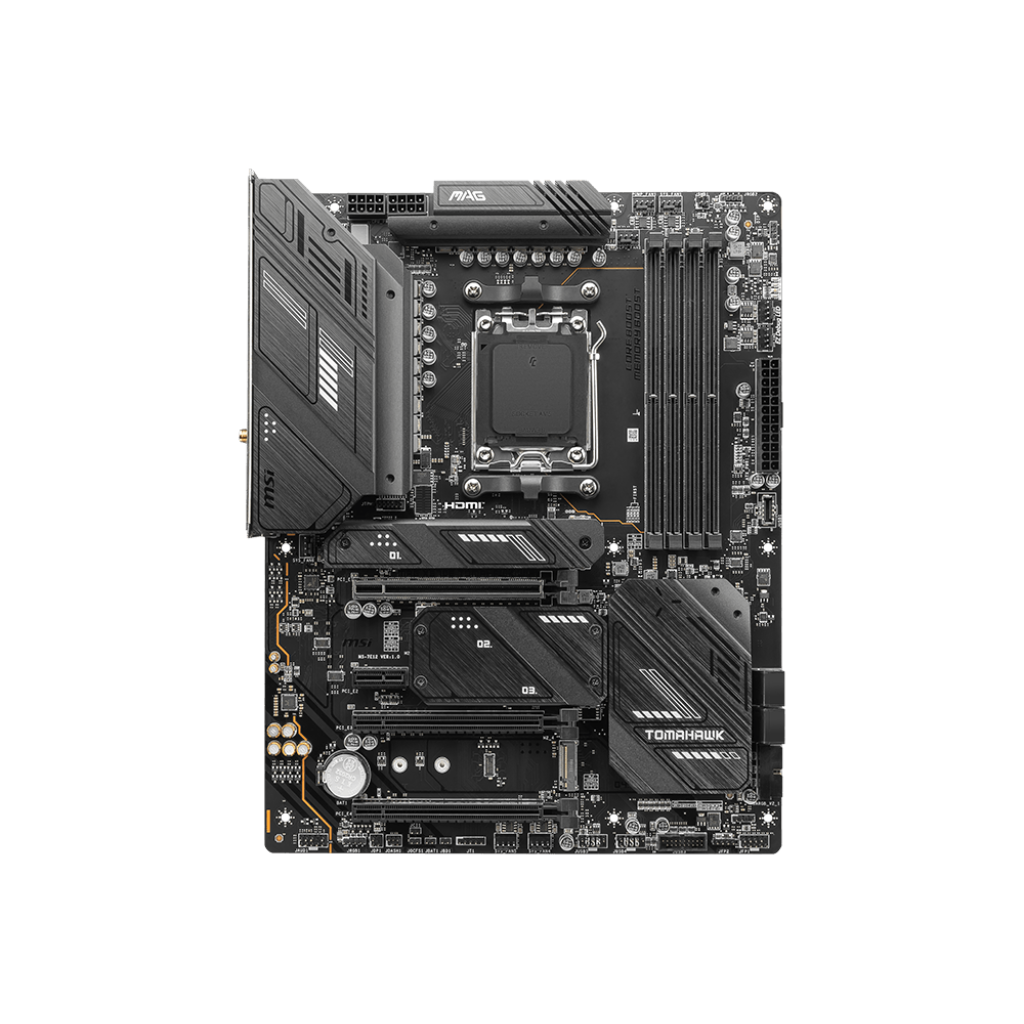

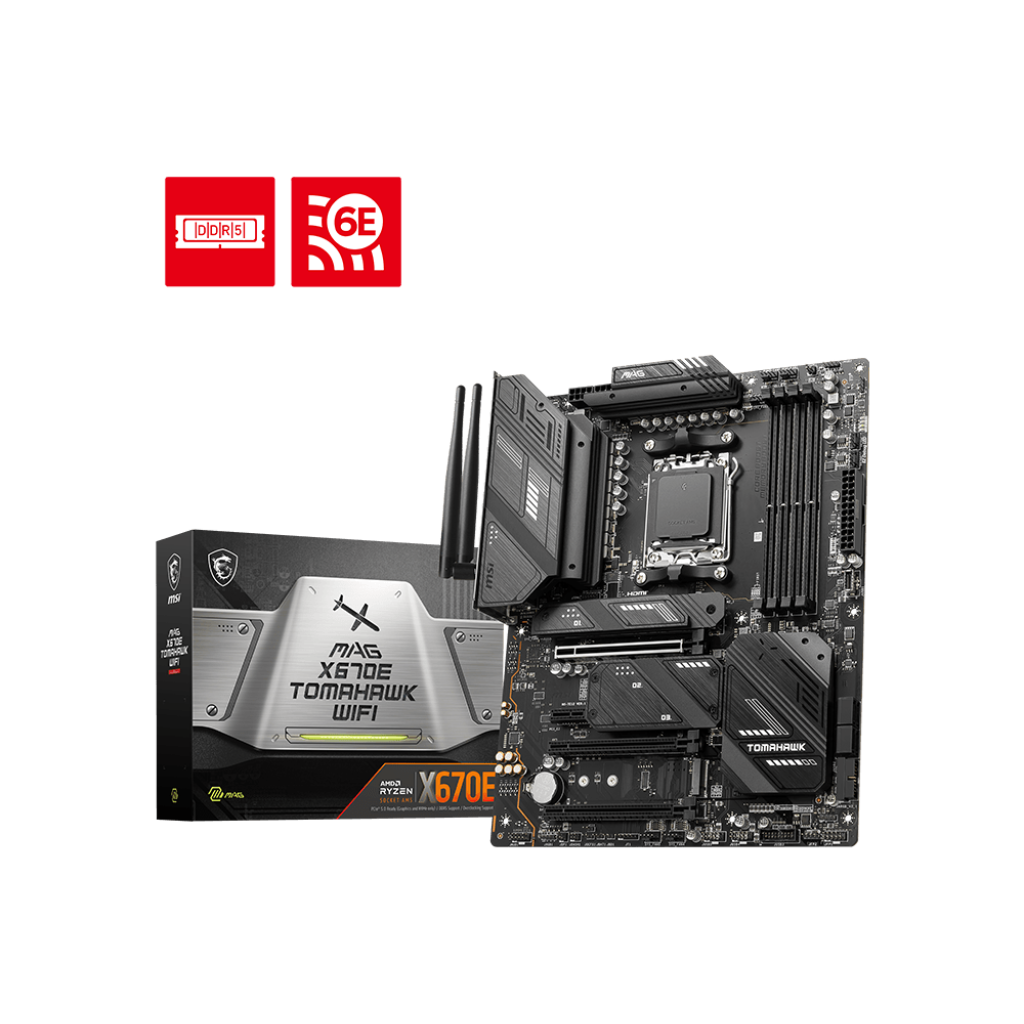

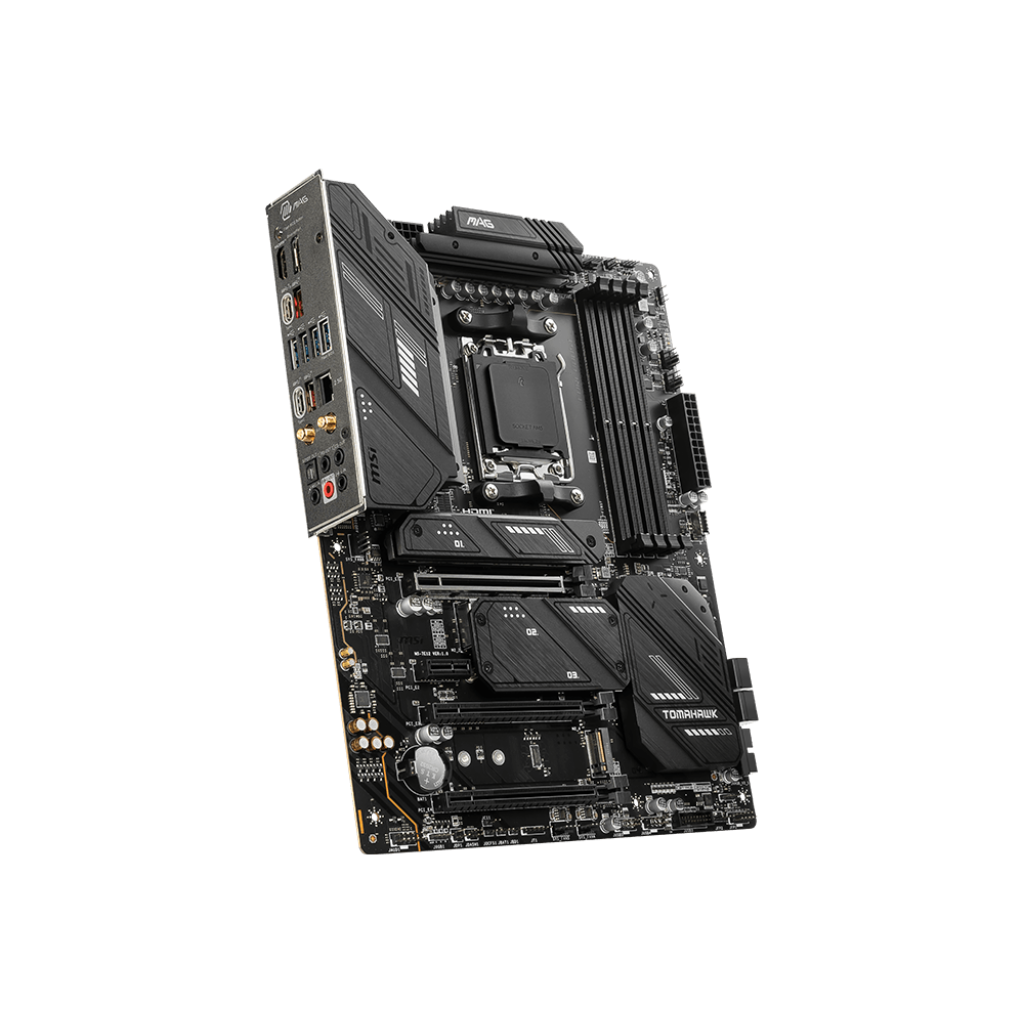

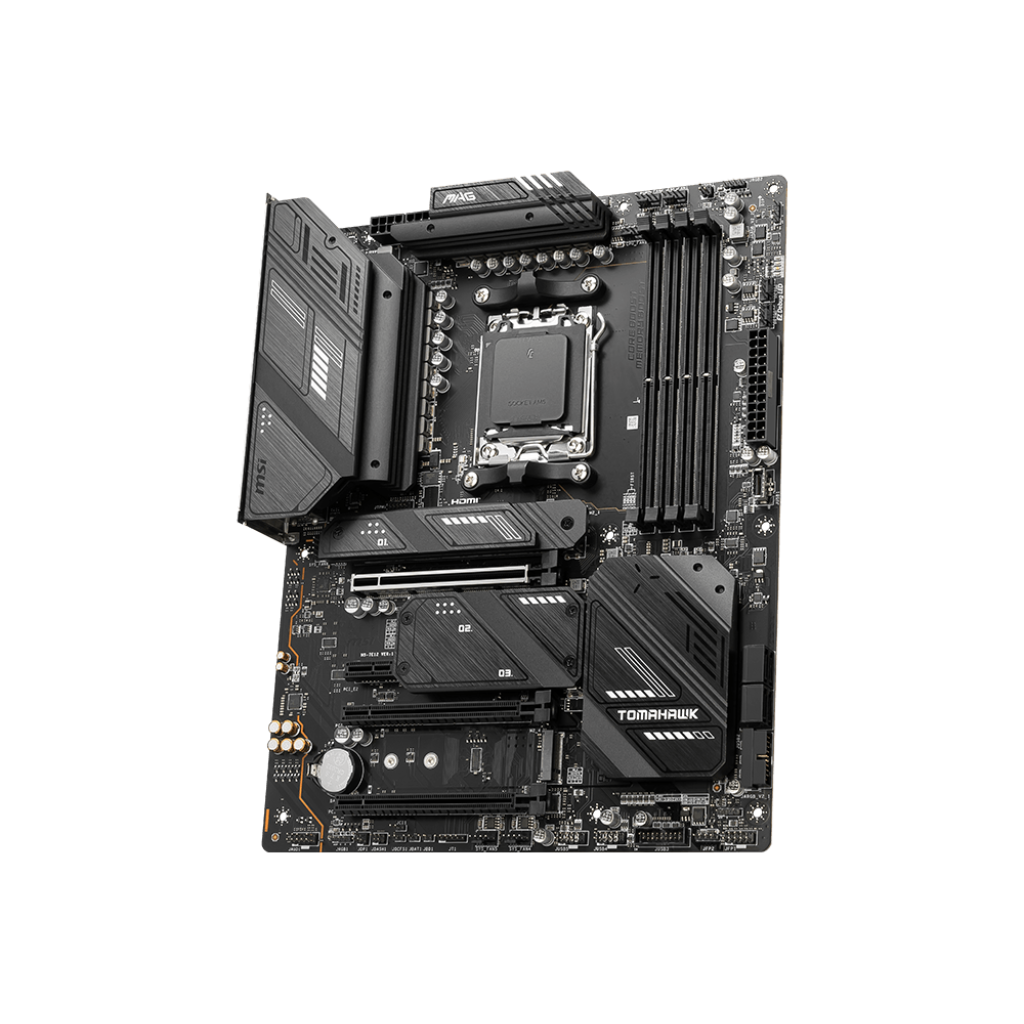

MAG X670E TOMAHAWK WIFI — DDR5 Motherboard

AMD X670

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:

• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

• 1x HDMI
• Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz ¹
• 1x DisplayPort
• Support DP 1.4, the maximum resolution of 4K 60Hz ¹
• 1x Type-C DisplayPort
• Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz

• ¹ Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)

• ¹ PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing the device in the PCI_E4 slot.

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
4x SATA 6G

• ¹ PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing the device in the PCI_E4 slot.

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

Realtek RTL8125BG 2.5Gbps LAN

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz ¹ bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3 ²

• ¹ Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
• ² Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

4x EZ Debug LED

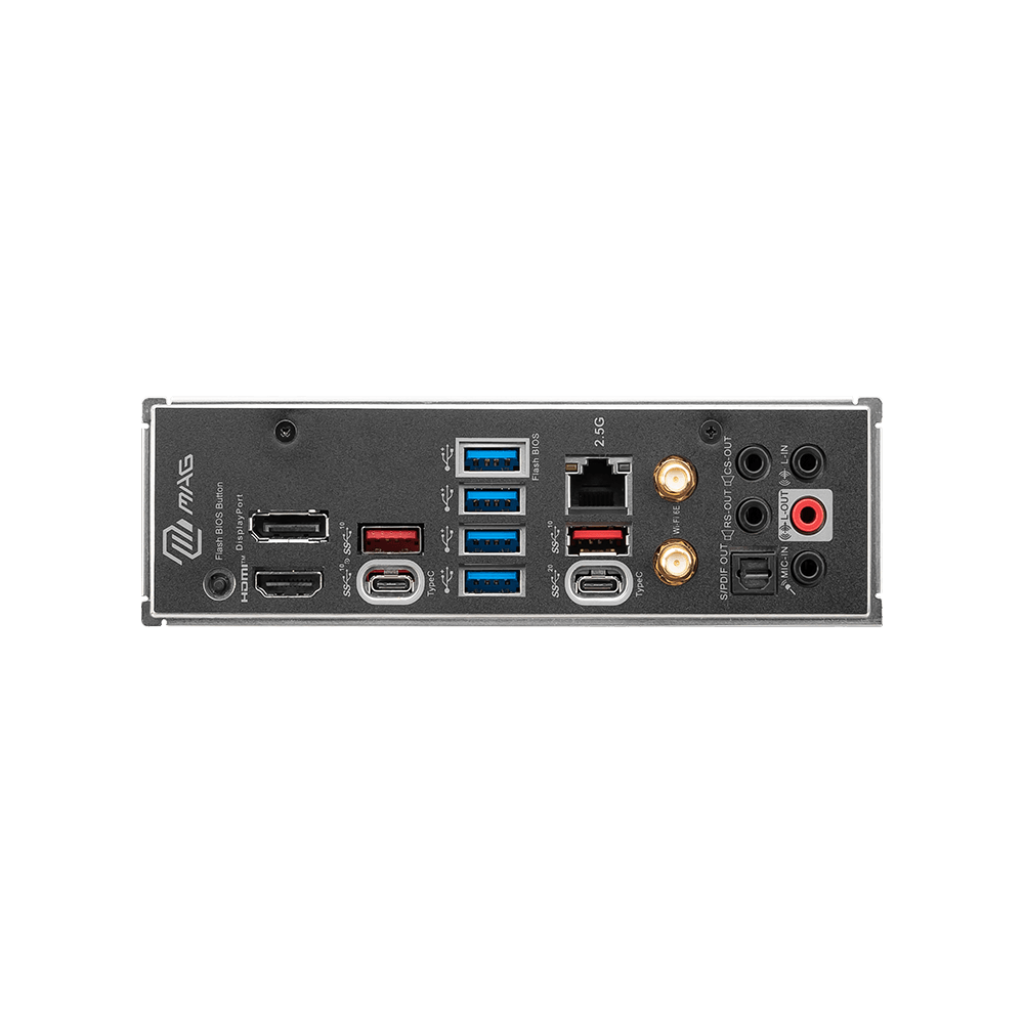

1. DisplayPort
2. USB 3.2 Gen 2 10Gbps (Type-A)
3. USB 3.2 Gen 2 5Gbps (Type-A)
4. 2.5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. Flash BIOS Button
8. HDMI
9. USB 3.2 Gen 2 10Gbps (Type-C Display port)
10. USB 3.2 Gen 2x2 20Gbps (Type-C)
11. S/PDIF-Out

Support for Windows 11 64-bit, Windows 10 64-bit

ATX
243.84mm x 304.8mm
