PRO B650M-A WIFI — DDR5 Motherboard
PRO B650M-A WIFI — DDR5 Motherboard
SKU:PRO B650M-A WIFI
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
PRO B650M-A is designed with tons of flexible tools with a DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users with an incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
EXCLUSIVE FEATURES
- 2.5G Network Solution
- Latest Wi-Fi 6E
- M.2 Shield Frozr
- DDR5 Support
- Lightning Gen 4
PRO B650M-A WIFI
- Supports AMD Ryzen 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Enhanced Power Design: 8+2+1 Duet Rail Power System, 8 pin + 4 pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for a high-performance system and non-stop works
- High-quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x 4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
| CHIPSET |
|---|
| AMD B650 |
| CPU SUPPORT |
| Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| MEMORY |
| 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency:
Supports non-ECC, un-buffered memory Supports AMD EXPO |
| ONBOARD GRAPHICS |
|
1x HDMI 1 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT |
| 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| STORAGE |
| 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
| RAID |
| Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
| 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN |
| Realtek 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH |
|
AMD Wi-Fi 6E 1 Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11. |
| AUDIO |
| Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL I/O |
| 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LED FEATURE |
| 4x EZ Debug LED |

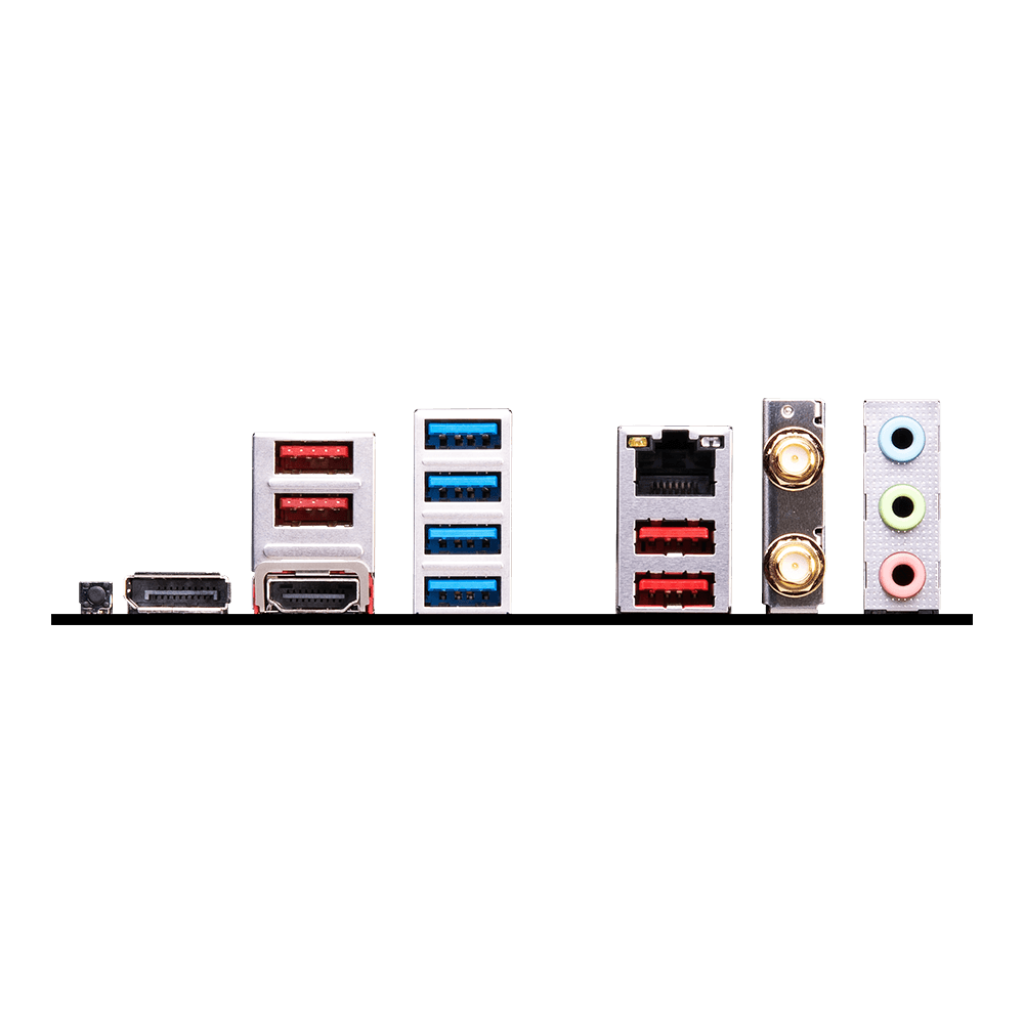

| BACK PANEL PORTS |
|
| OPERATING SYSTEM |
| Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB DIMENSION (W x L) |
| mATX 243.84mm x 243.84mm |
| BOX CONTENT |
 |
