MSI
MSI

PRO B760M-A WIFI — DDR5 Motherboard

PRO B760M-A WIFI — DDR5 Motherboard

$296.00
$328.90 $296.00
10% Off | Save $32.90 Sold out
Tax included. Shipping calculated at checkout.

PRO B760M-A WIFI

In stock
View full details

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users an incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

EXCLUSIVE FEATURES

  • Extended Heatsink
  • 2.5G Network Solution
  • Latest Wi-Fi 6E
  • Memory Boost
  • Lightning Gen 4

PRO B760M-A WIFI

  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for a high-performance system and non-stop gaming experience
  • High-quality PCB: 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Chipset

INTEL B760
CPU Support

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:

  • 1DPC 1R Max speed up to 6800+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics

2x HDMI
Support HDMI 2.1, a maximum resolution of 4K 60Hz 1
2x DisplayPort
Support DP 1.4, a maximum resolution of 4K 60Hz 1

  • 1 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

  • 1 SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
LAN

Realtek RTL8125BG 2.5G LAN
Wireless / Bluetooth

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz 1 (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3 2, FIPS, FISMA

  • 1 Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
  • 2 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
LED Feature

4x EZ Debug LED
Operating System

Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W x L)

mATX
243.84mm x 243.84mm

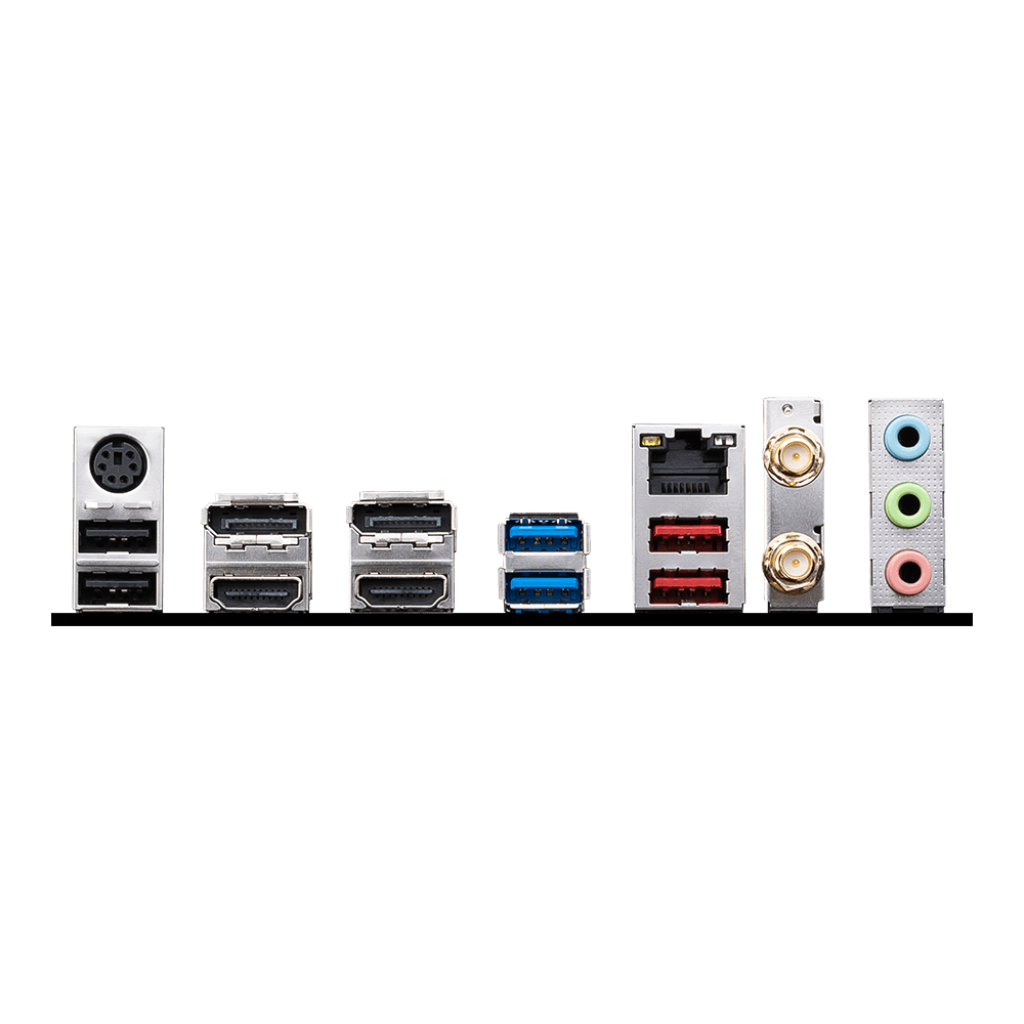

BACK PANEL PORTS
MSI PRO B760M-A WIFI — DDR5 Motherboard - Panel
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen 2 10Gbps (Type-A)
MSI PRO B760M-A WIFI — DDR5 Motherboard - Contents
