PRO Z790-P WiFi — DDR4 Motherboard

PRO Z790-P WiFi — DDR4 Motherboard

PRO Z790-P WIFI DDR4

$367.00
$379.00 $367.00
3% Off | Save $12.00 Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

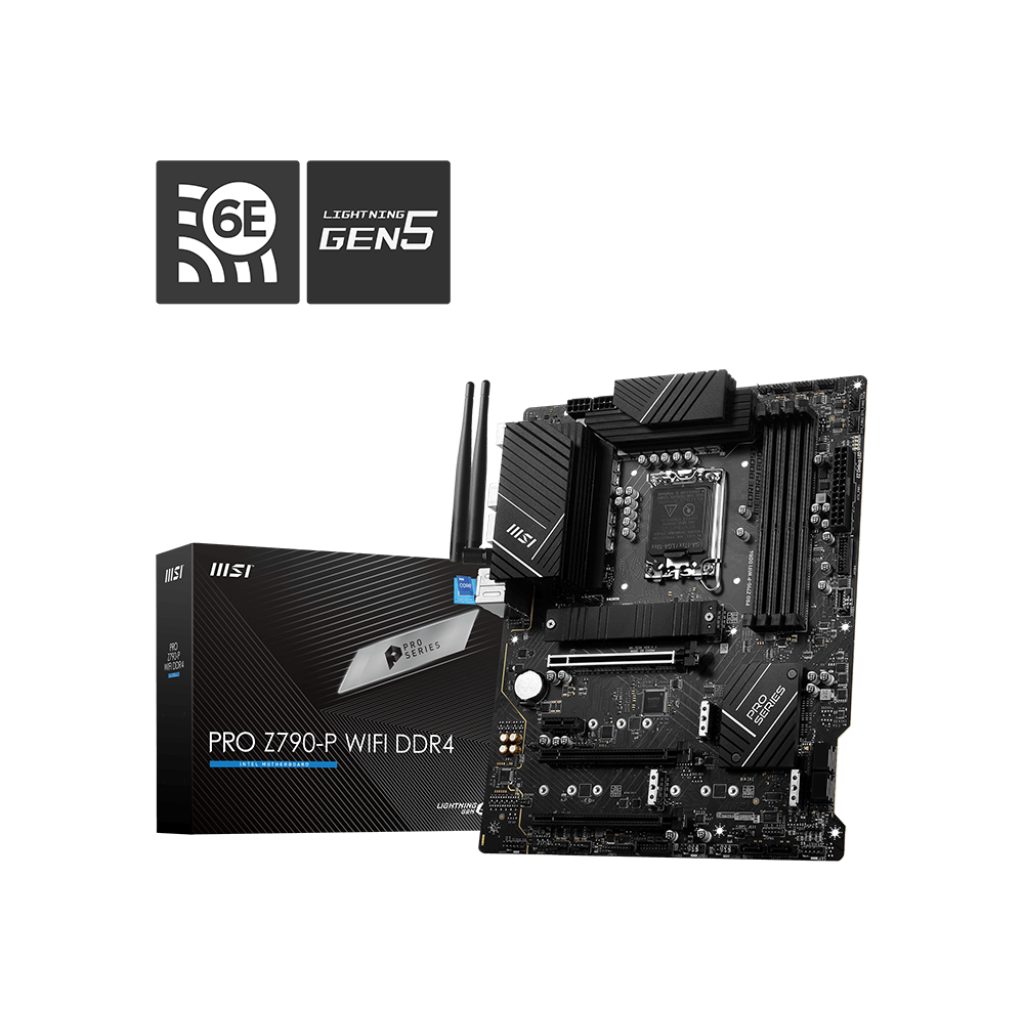

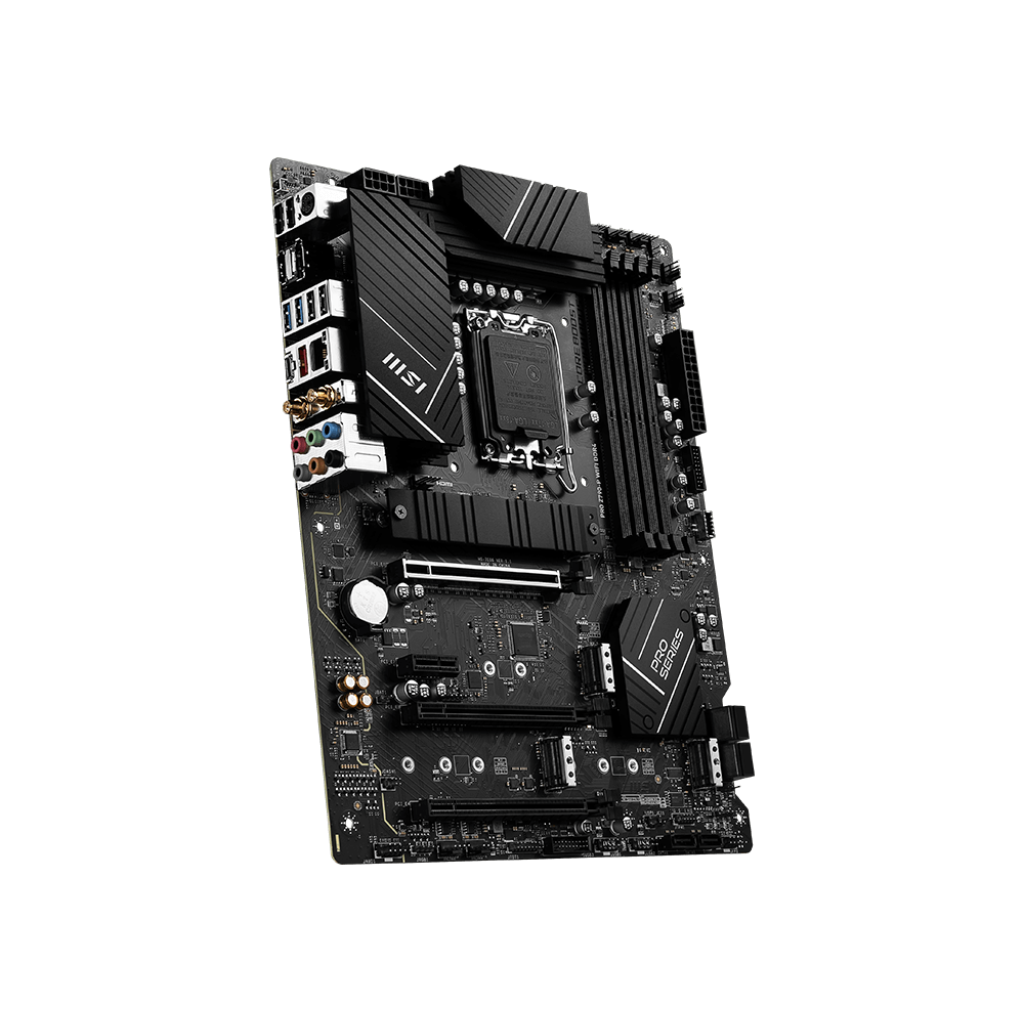

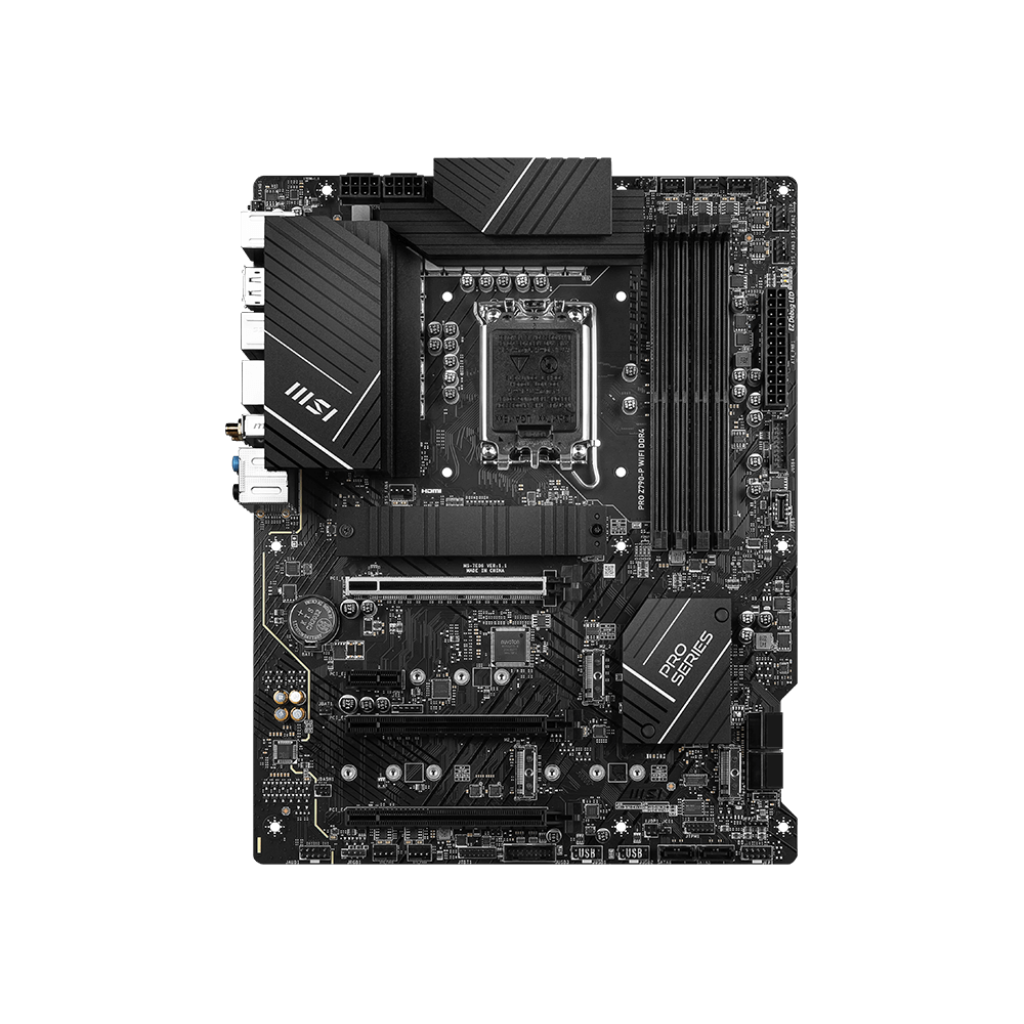

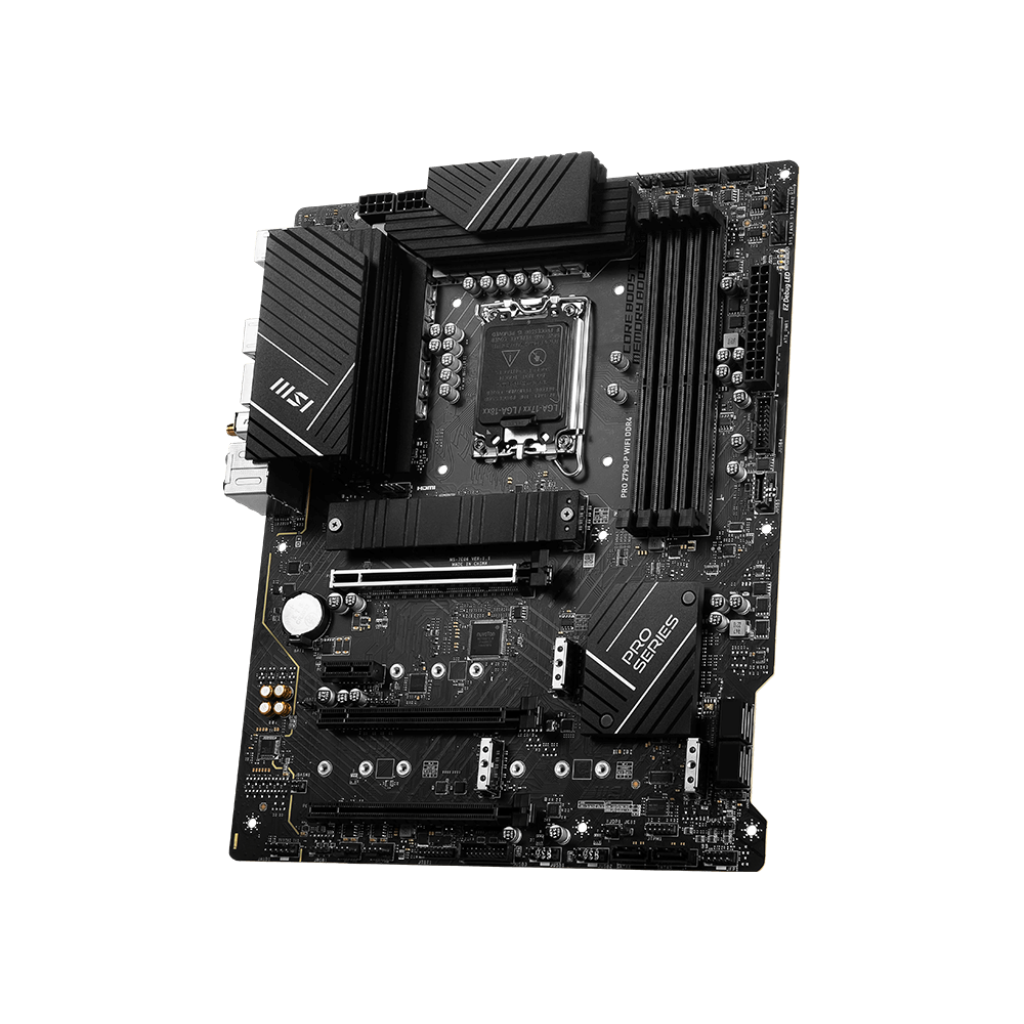

MSI PRO Z790-P WIFI DDR4 LGA1700 ATX Desktop Motherboard supports 12th/13th Gen Intel Core processors. Experience fast gaming with PCIe 5.0, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2. Enjoy premium thermal solutions, 2.5G LAN with Wi-Fi 6E, and enhanced power design for non-stop performance.

Features

  • Lightning Gen 5. The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
  • Wi-Fi 6E. The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
  • Lightning USB 20G. Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
  • Extended Heatsink Design. MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
  • M.2 Shield FROZR. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • 2.5G Network Solution. Featuring premium 2.5G LAN to deliver better network experience.
  • EZ Debug LED. Easiest way to troubleshoot.
  • Frozr AI Cooling. Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
  • Memory Boost. Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
  • Core Boost. With premium layout and fully digital power design to support more cores and provide better performance.
CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)

Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 3.2 Gen1 Type A (Rear)
4 x USB 3.2 Gen1 Type A (Front)
1 x USB 3.2 Gen2 Type A (Rear)
1 x USB 3.2 Gen2 Type C (Front)
1 x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
* Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O 1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
6 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x TBT connector (JTBT, supports RTD3)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED

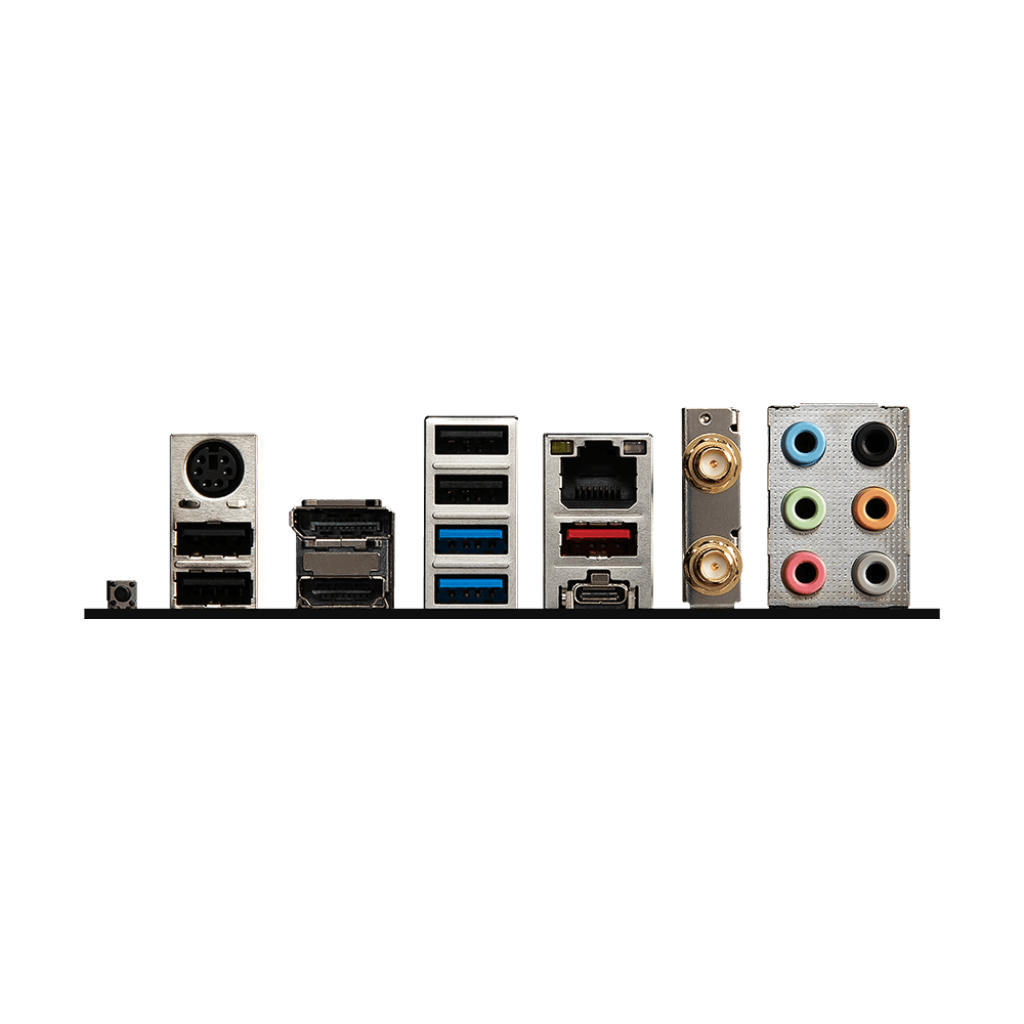

BACK PANEL PORTS Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W x L) ATX
243.84mm x 304.8mm
