NZXT

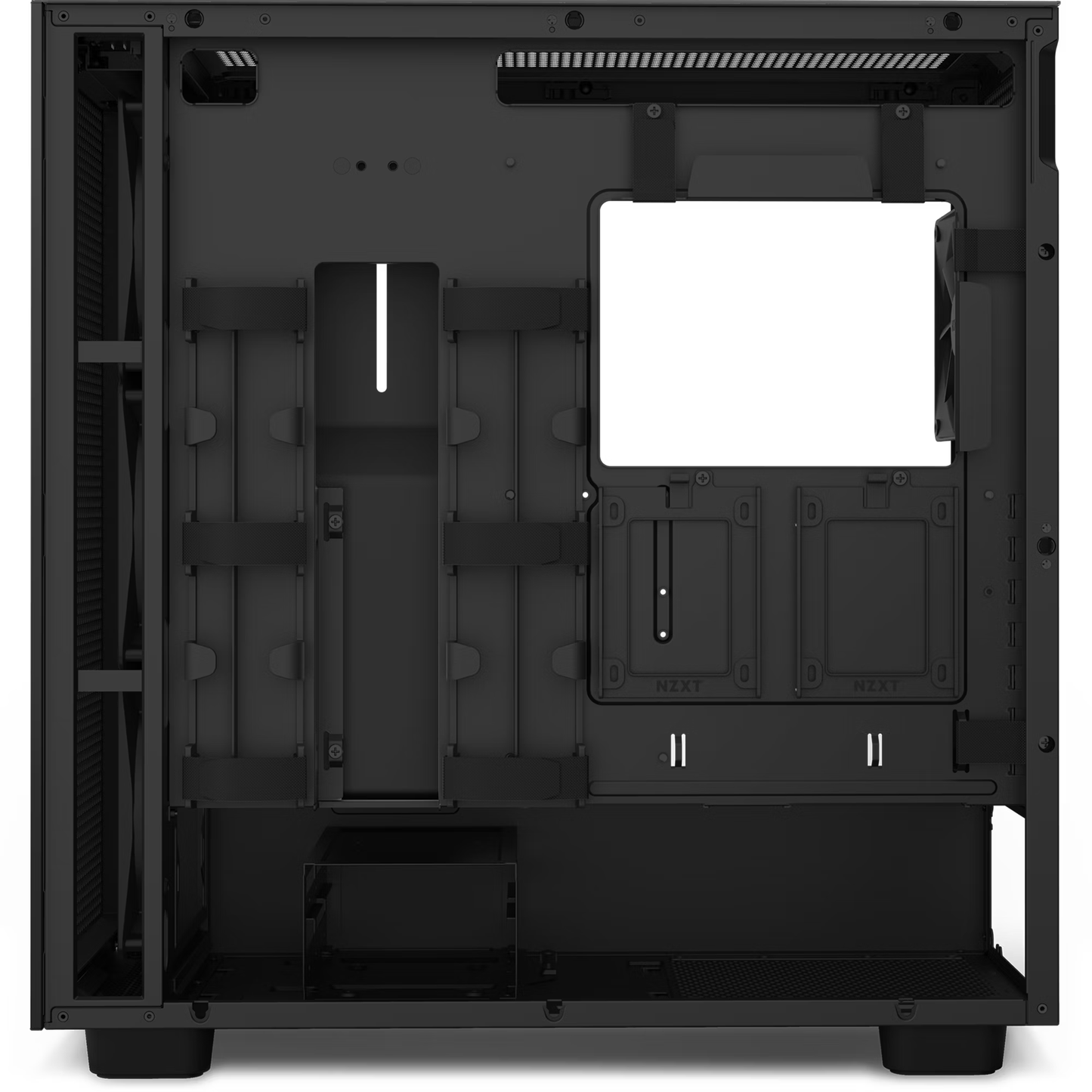

H7 Flow RGB ATX Mid-Tower with RGB Fans
H7 Flow RGB ATX Mid-Tower with RGB Fans
SKU:CM-H71FB-R1
Regular price
$246.00
Regular price
$284.90
Sale price
$246.00
Unit price
per
Out of stock
Authorised Reseller | Australian Stock | Australian Warranty
The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
- Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
- Perforated front & top panels enable maximum thermal performance
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels (tinted panels on black variant only)
- Front & top support radiators up to 360mm
- Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
- Supports vertical GPU mounting (Sold Separately)
- Two color options (Matte Black, Matte White)
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
Inside the Box
- 1 x H7 Flow Case with fans (see specs)
- 3 x F140 RGB Core Fan (pre-installed)
- 1 x F120Q Airflow Fan (pre-installed)
- 1 x Installation Accessories
- 1 x Manual
KEY SPECS | |
---|---|
Motherboard Support | Mini-ITX, Micro-ATX, ATX |
Enclosure Type | Mid-Tower |
Case Material (White) | SGCC Steel, Ultra-clear Tempered Glass |
Case Material (Black) | SGCC Steel, Dark Tinted Tempered Glass |
DIMENSIONS | |
Height (With Feet) | 505mm |
Height (Without Feet) | 480mm |
Width | 230mm |
Depth | 480mm |
Weight | 10.57kg |
COMPATIBILITY & CLEARANCE | |
Max CPU Cooler Clearance | Up to 185mm |
Max GPU Clearance | Up to 400mm |
Front Radiator Clearance | 60mm |
Top Radiator Clearance | 30mm |
Cable Management | 18-22mm |
PSU Clearance | Up to 200mm |
FRONT I/O PORTS | |
USB 3.2 Gen 1 Type-A | 2 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
EXPANSION SLOTS | |
Standard | 7 |
Vertical | 0 |
DRIVE BAYS | |
2.5" | 4+2 |
3.5" | 2 |
FAN SUPPORT | |
Front | 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included) |
Top | 3 x 120mm / 2 x 140mm |
Rear | 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included) |
Filters | All Air Intakes |
RADIATOR SUPPORT | |
Front | Up to 360mm with Push/Pull |
Top | Up to 360mm |
Rear | Up to 140mm |
FAN SPECS | |
Model | F140 RGB Core Fan (Case Version) |
Speed | 1200 ± 120 RPM |
Airflow | 61.74 CFM |
Static | 2.06mm-H2O |
Noise | 29.05 dBA |
Fan Connector | 3-pin |
FAN SPECS | |
Model | F120Q (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 62.18 CFM |
Static | 1.05 mm - H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
GENERAL | |
Warranty | 2 Years |
