UniFi Dream Machine Beast
Launched first in Australia by BITSmart
SKU:UDM-Beast
EOFY Sale. Limited promotional stock available — don’t miss out!
144 in stock and ready to ship
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
View Installation Guide| Overview | |

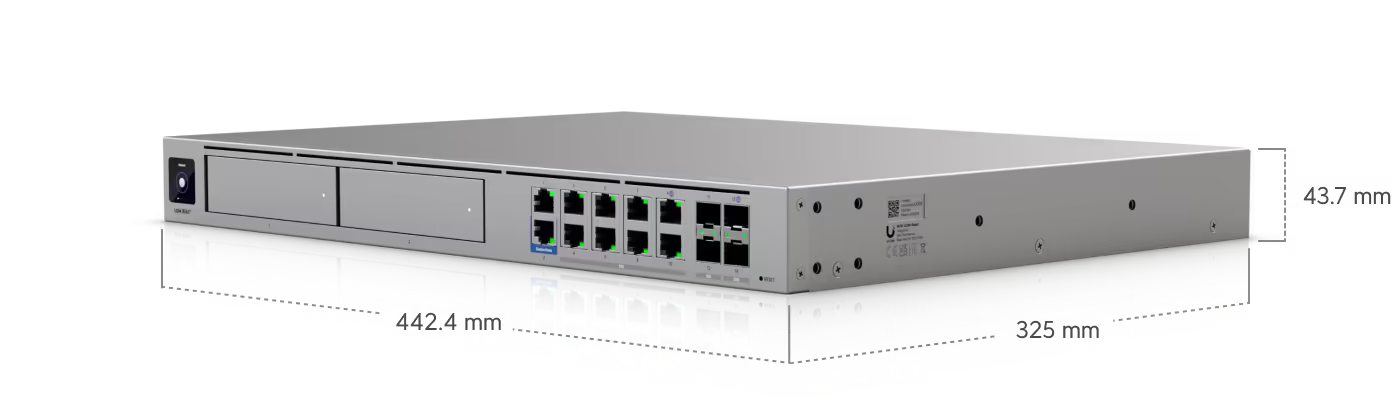

| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| UniFi Application Suite | |
| Network | ✓ |
| Protect | ✓ |
| Access | ✓ |
| Talk | ✓ |
| Connect | ✓ |
| Managed UniFi Devices | 750+ |
| Managed Cameras | (100) HD, (60) 2K, (40) 4K |
| Managed Access Hubs | 200 |
| Simultaneous Users Connected | 7,500+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 25G SFP28, (1) 10 GbE RJ45 |

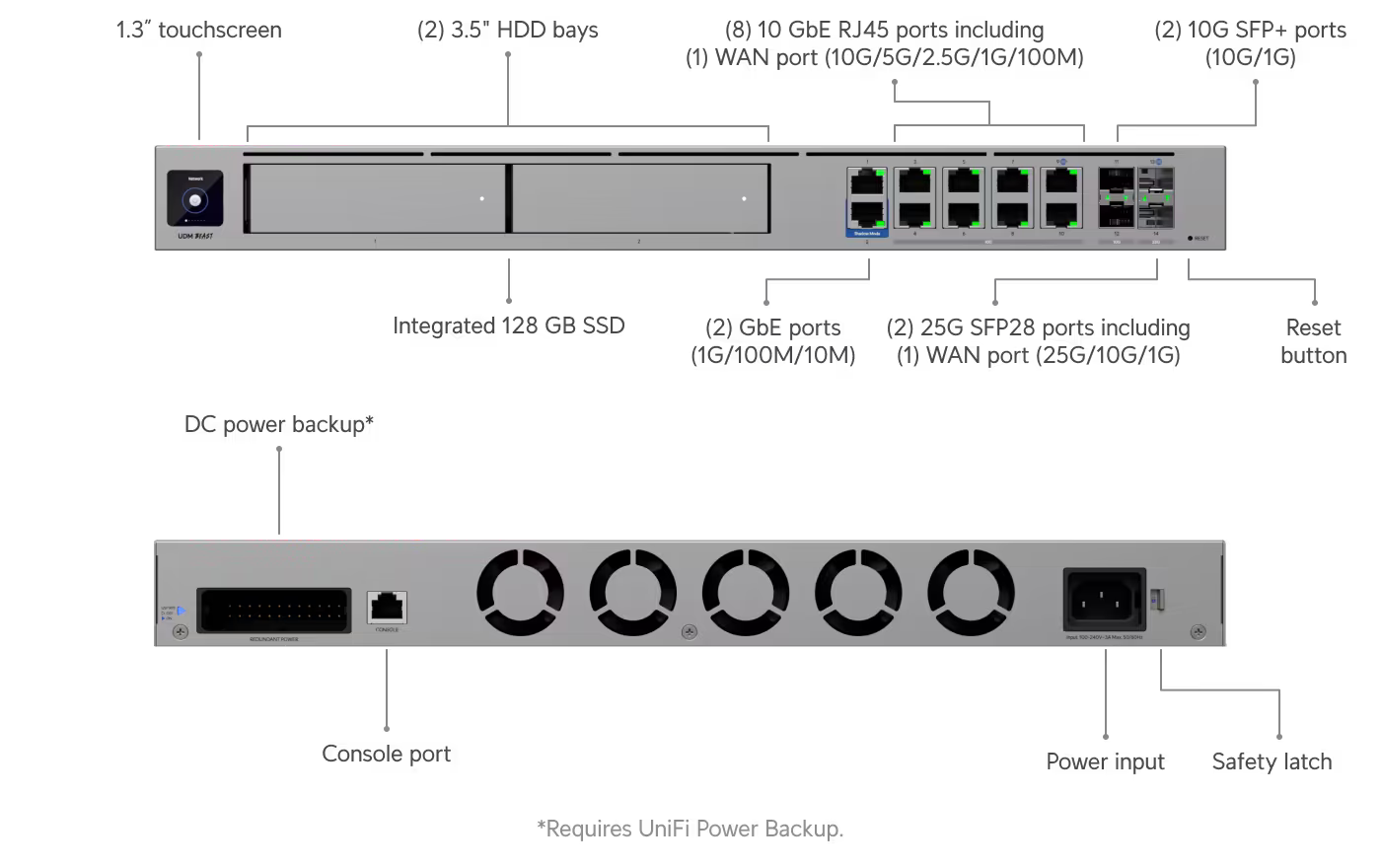

| Port Layout | |
| 1 GbE RJ45 | 2 (1G/100M/10M) |
| 10 GbE RJ45 | 8 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| 25G SFP28 | 2 (25G/10G/1G) |
| Console | 1 |
| IDS/IPS Throughput | 25 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover, DC Power Backup |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | |
| Site Magic | ✓ |
| IPsec | ✓ |
| OpenVPN | ✓ |
| VPN Server | |
| Identity Endpoint One-Click VPN | ✓ |
| Teleport Zero-Configuration VPN | ✓ |
| WireGuard | ✓ |
| OpenVPN | ✓ |
| L2TP | ✓ |
| VPN Client | |
| OpenVPN | ✓ |
| WireGuard | ✓ |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Shadow Mode (VRRP) High Availability | ✓ |
| LACP Port Aggregation | ✓ |
| Dynamic Routing | |
| OSPF | ✓ |
| BGP | ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 32,000 |
| Policy-based WAN and VPN Routing | ✓ |
| Customizable DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| IGMP Proxy | ✓ |
| All Traffic Flows | ✓ |
| Hardware | |
| NVR Storage | (2) 3.5" NVR HDD bays; Built-in 128 GB SSD for Faster Experience |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz; (1) USP-RPS DC input, 11.5V DC, 13.05A |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 342 BTU/hr |
| Processor | Octa-core ARM® v9 at 2.1 GHz |
| System Memory | 16 GB |
| On-board Storage | Integrated 128 GB SSD |
| Weight | 5.5 kg (12.13 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet, Bluetooth |
| LEDs | |
| Ethernet | ✓ |
| SFP+ | ✓ |
| SFP28 | ✓ |
| RPS | ✓ |
| HDD | ✓ |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | |
| Mobile App | UniFi iOS™: Version 10.34.0 and later; UniFi Android™: Version 10.37.1 and later |
Visit Ubiquiti for more information.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Frequently Asked Questions
What is the Dream Machine Beast?
Dream Machine Beast combines high-capacity routing, security, and 25G connectivity in a single solution alongside redundant NVR storage and the full UniFi application suite for centralised management.
Does the Dream Machine Beast support High Availability?
Yes. The Dream Machine Beast supports Shadow Mode High Availability, which ensures uninterrupted connectivity by seamlessly transferring gateway and management functions to a secondary unit in the event of a primary unit failure.
It also includes DC power backup to maintain operation during power outages. A second Dream Machine Beast is required to enable Shadow Mode High Availability and a UniFi RPS is required for DC power backup.
Does the Dream Machine Beast support SD-WAN and VPNs?
Yes. The Dream Machine Beast supports Site Magic SD-WAN, as well as WireGuard, OpenVPN, IPsec, and Teleport Zero-Configuration VPN for secure remote access.
How many WANs are supported on the Dream Machine Beast?
The Dream Machine Beast supports up to 8 WANs.
Which security features are available on the Dream Machine Beast?
The Dream Machine Beast offers robust security capabilities, including an Application-Aware Layer 7 Stateful Firewall, Intrusion Detection and Prevention (IDS/IPS), Content Filtering, and Ad Blocking for enhanced network protection.
What is the Console port used for?
The console port provides direct serial access to the gateway’s command-line interface (CLI) for troubleshooting and recovery. It enables administrators to access the Dream Machine Beast even when network-based management is unavailable.
Can the Dream Machine Beast be used as a standalone gateway managed by a remote UniFi Network application?
No. The Dream Machine Beast operates as an all-in-one UniFi Console, with the UniFi Network application running locally on the device. It cannot be managed by a CloudKey, Official UniFi Hosting or UniFi OS Server.
UDM-BEAST
Dream Machine Beast
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
-
Includes full UniFi application suite for device management
-
Managed Cameras - (100) HD, (60) 2K, (40) 4K
-
Managed UniFi Devices - 750+
-
Simultaneous Users Connected - 7,500+
-
Max. WAN Port Count - 8
-
(2) 3.5" NVR HDD bays*
128 GB SSD for detection recordings
*With RAID data protection.
Overview
A New Era of UniFi Cloud Gateways
The Dream Machine, powered by UniFi OS, has transformed how organisations approach IT by combining networking, security, and centralised management into one cohesive solution. This unified approach removes complexity while increasing visibility and control across the entire environment.
Enterprise level design
Built on Datacenter Principles
Inspired by datacenter grade compute architecture, the Dream Machine Beast brings enterprise level design into a solution accessible to a much broader audience. It leverages powerful processing capabilities to ensure consistent and reliable performance under demanding workloads, now and into the future.
Security
Unmatched Firewall Performance
The Dream Machine Beast introduces a new class of firewall capability, delivering exceptional throughput and advanced protection without compromising user or admin experience. It sets a new benchmark for what users can expect from a security gateway.
Features
Designed to Be the Last Gateway You Need
This is not just an upgraded UniFi gateway: it is a long term solution built to evolve alongside your needs. With its powerful hardware and UniFi software at its core, the Dream Machine Beast is engineered to remain a cornerstone of your network for years to come.
Full UniFi Suite Support
Runs the full UniFi application suite with support for 750+ managed UniFi devices and 7,500+ simultaneously connected users.
Multi-WAN and SLA Ready
Utilise up to 8 WAN ports with intelligent failover, traffic distribution, and performance monitoring.
Integrated 25G Connectivity
Support demanding clients and high-bandwidth applications with integrated 25G and 10G ports (25G SFP28, 10G SFP+ and 10 GbE RJ45).
Continuous Operation
Maintain uninterrupted connectivity with Shadow Mode High Availability, DC Power Backup, and 3.5” dual-bay redundant NVR storage protection.

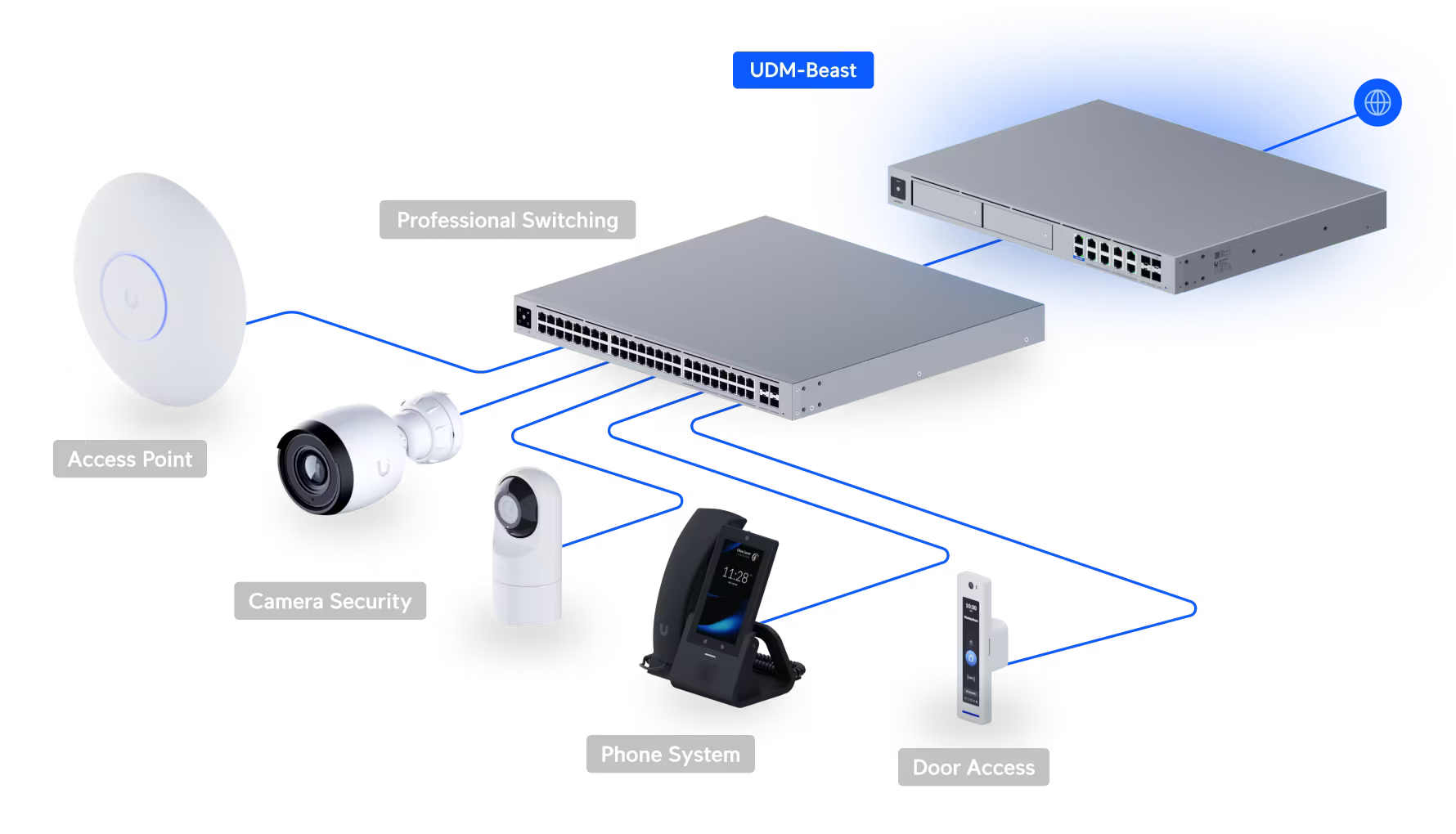

Deployment & Features
