UniFi Access Hub
Ubiquiti UA-Hub UniFi Access Hub
SKU:UA-Hub
Regular price
$438.00
Regular price
$602.00
Sale price
$438.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Sale ending soon! Limited promotional stock available — don’t miss out!
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
A single-door mechanism that provides complete entry and exit control via connected Access Readers.

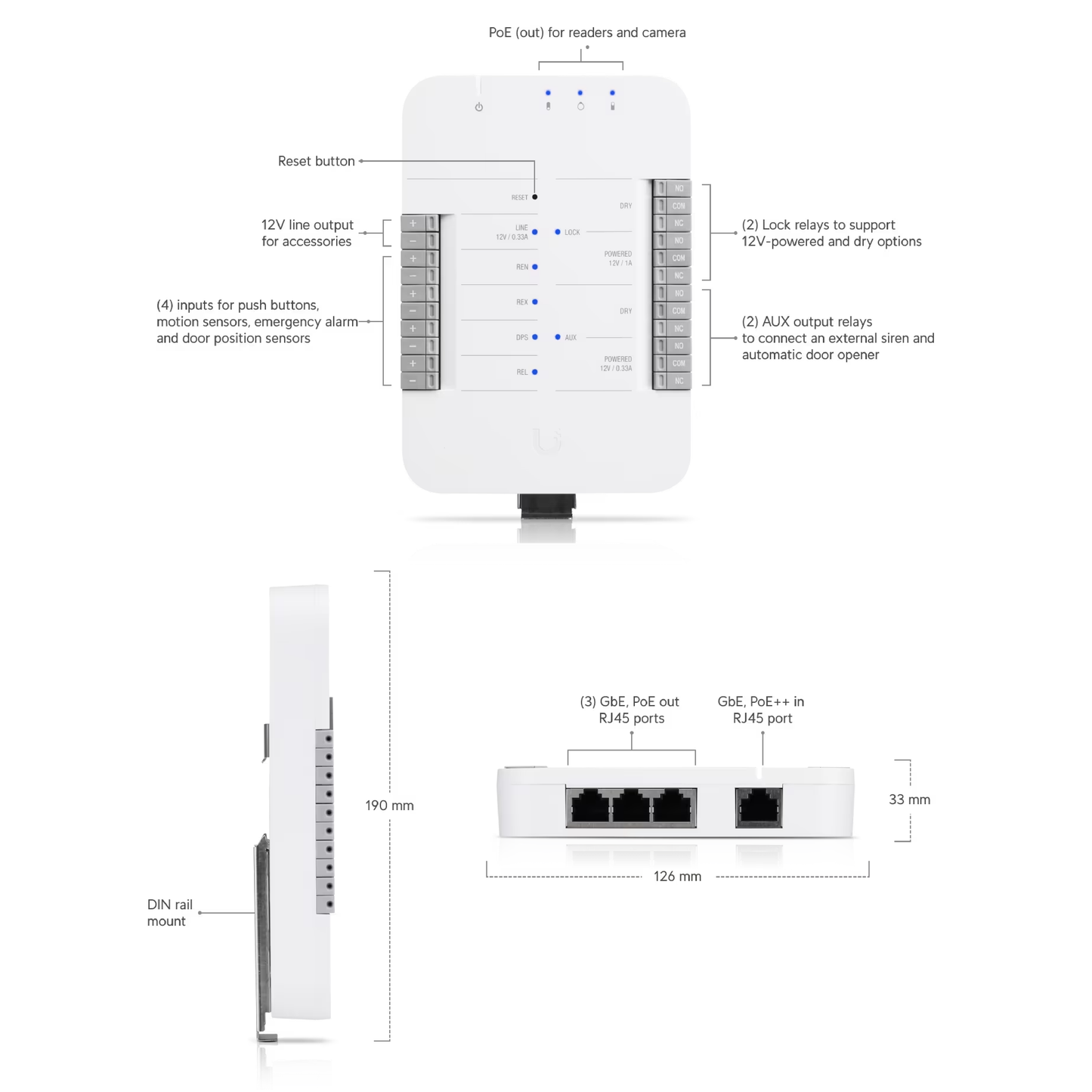

- (2) Lock terminals (12V and Dry).
- (2) AUX terminals for an external siren and automatic door opener.
- (4) Additional inputs (sensors and buttons).
- Connect and power using PoE++.
- Connect to two UniFi Access readers and one UniFi Protect camera or UniFi Protect Chime.
| Mechanical | |
|---|---|
| Dimensions | 190 x 126 x 30.5 mm (7.48 x 4.96 x 1.2") |
| Weight | 457 g (16.12 oz) |
| Enclosure material | Plastic Enclosure with Metal Mount Plate |
| Mounting options | DIN rail |
| Hardware | |
| Networking interface | (4) 1GbE |
| Max. power consumption | 51W |
| Power method | PoE++ |
| Input terminals |
REX - request to exit REN - request to enter REL - remote release DPS - door position sensor |
|
Dry output relay Lock Aux |
Rated 30VDC, up to 1A Rated 30VDC, up to 1A |
|
Powered output relay Lock Aux Line |
12VDC, up to 1A 12VDC, up to 0.33A 12VDC, up to 0.33A |
| LEDs |
(1) System, (3) PoE out, (4) Input (2) Output Relays, (1) 12VDC Out |
| Buttons | (1) Factory reset |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 5 - 90% noncondensing |
| Certifications | CE, FCC, IC |
Visit Ubiquiti for more information.
