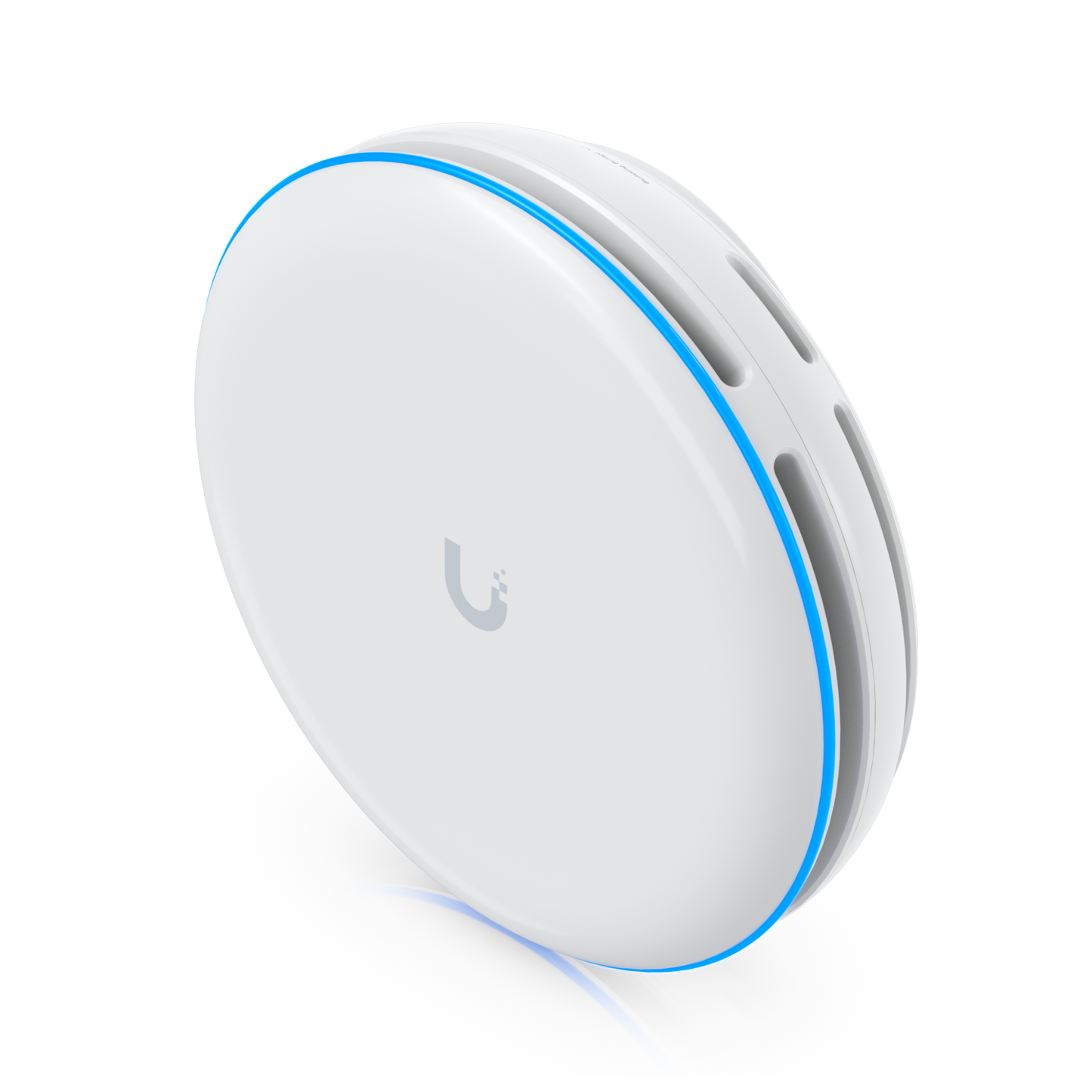

UniFi Building Bridge XG
SKU:UBB-XG
Regular price
$2,549.00
Regular price
$2,549.00
Sale price
$2,549.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
Out of stock
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

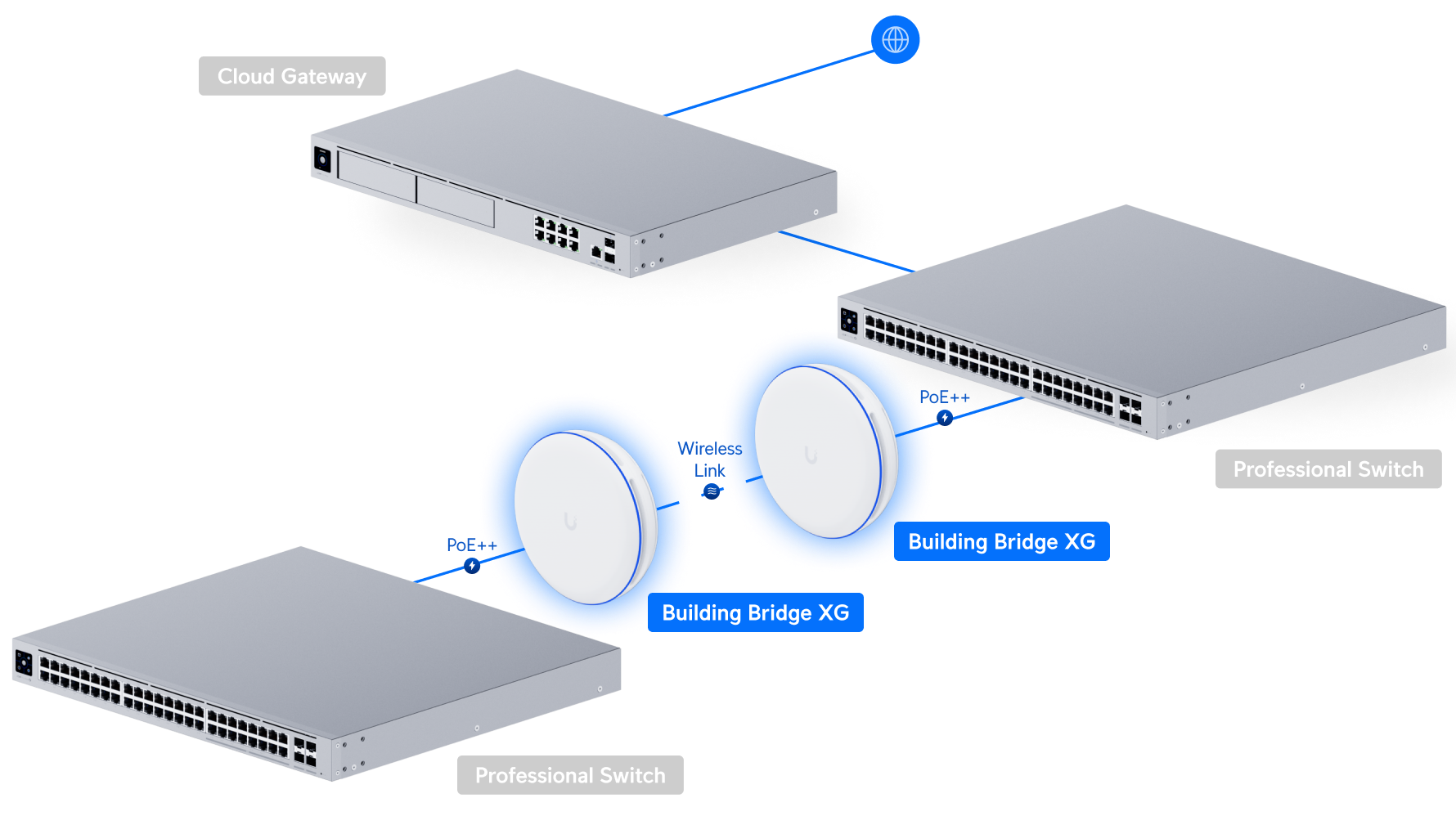

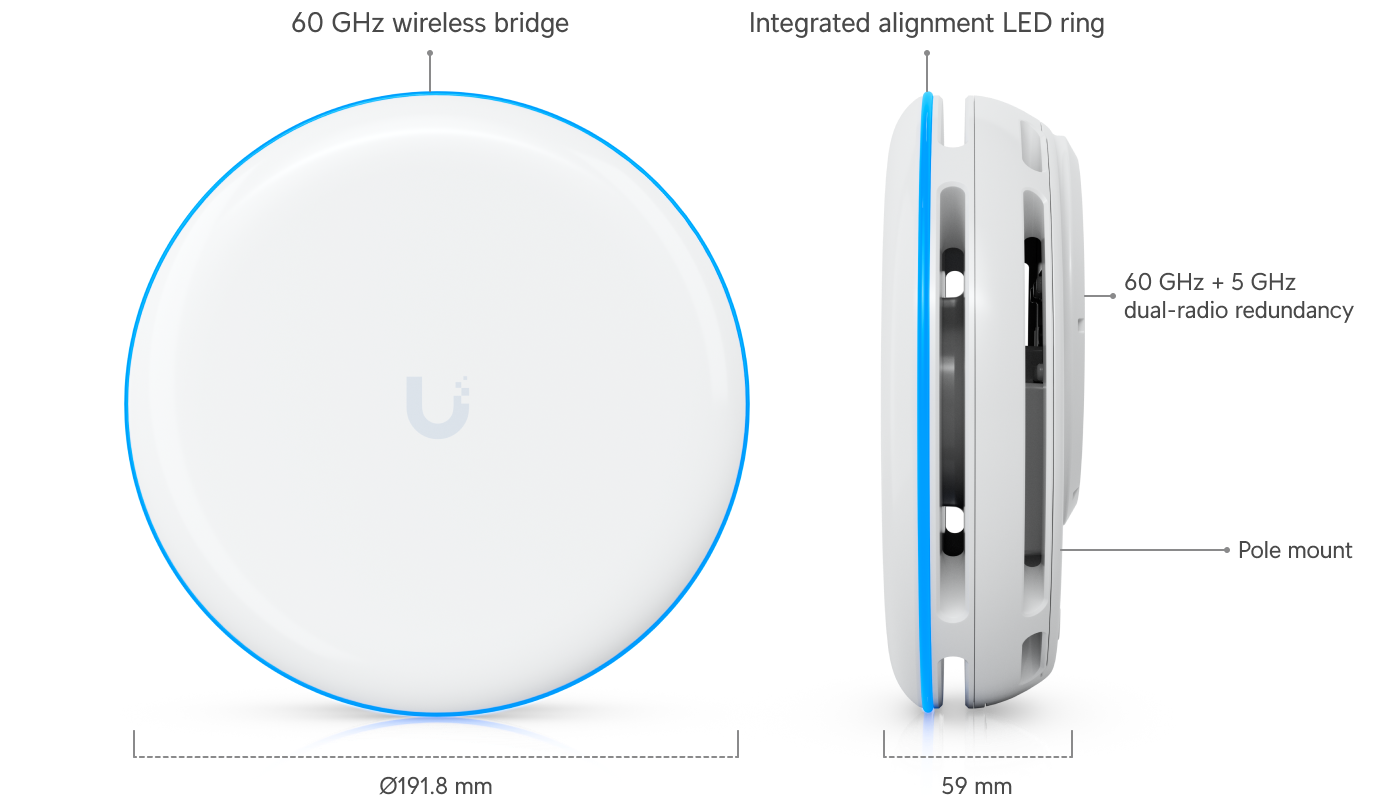

60 GHz wireless point-to-point bridge with a 10G SFP+ uplink for maximum performance and a 5 GHz backup radio.
Note:

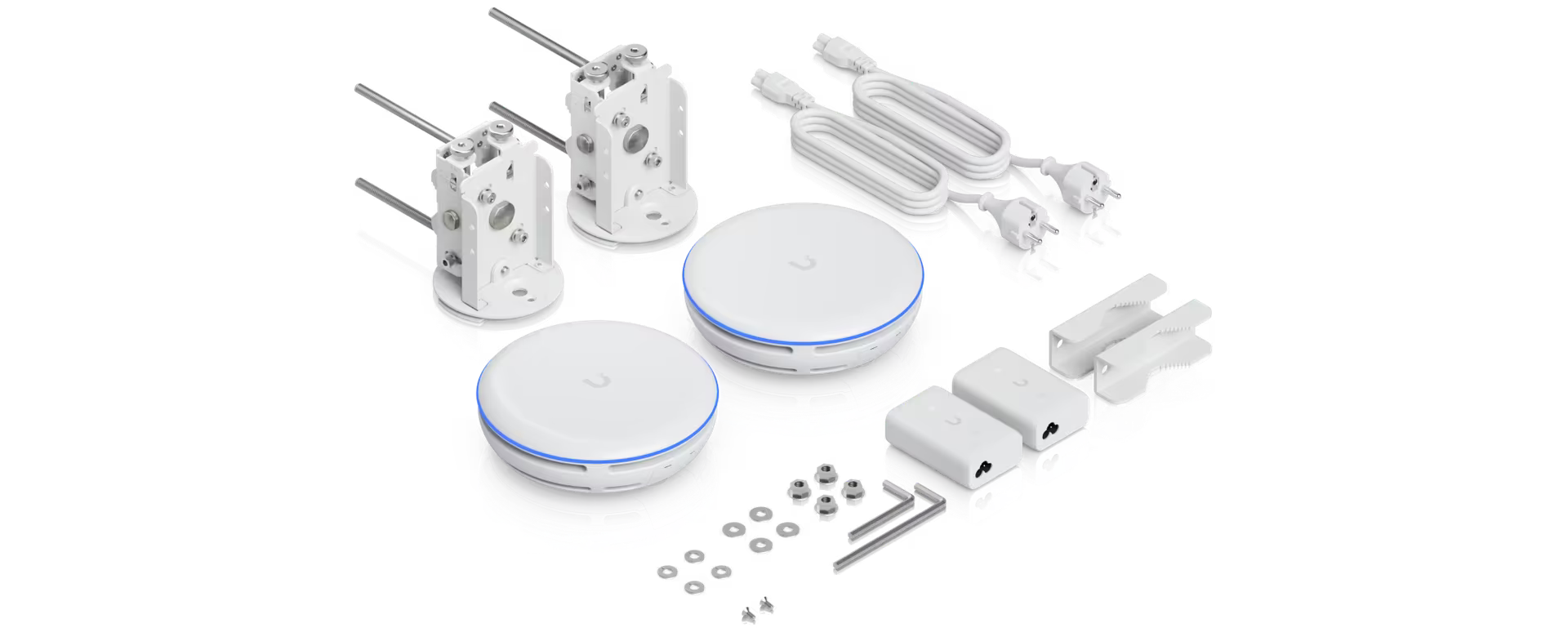

- 2-pack Building Bridge XG is paired out of the box; includes (2) PoE power adapters.

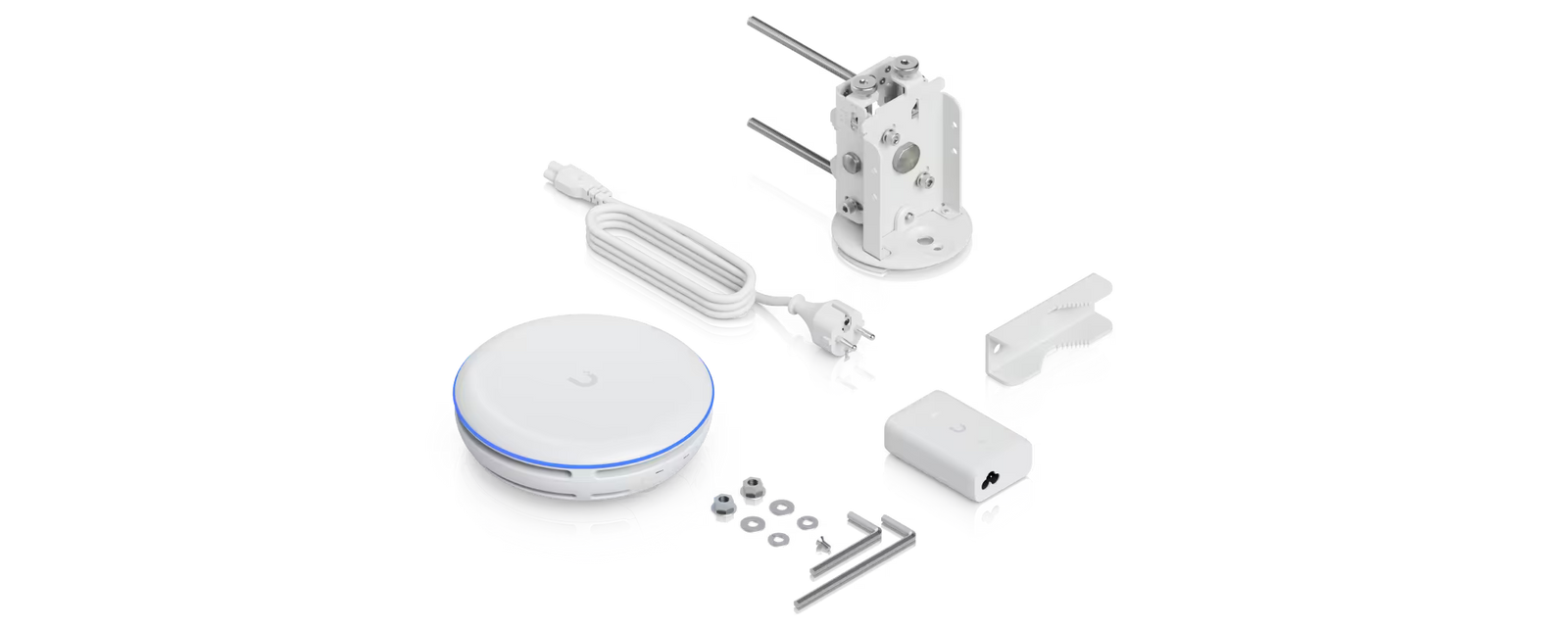

- Single unit ideal for replacement/spare; includes (1) PoE power adapter.
- Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
| Overview | |
| Dimensions | ⌀191.8 x 59 mm (⌀7.6 x 2.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 500 m (1,640 ft) |

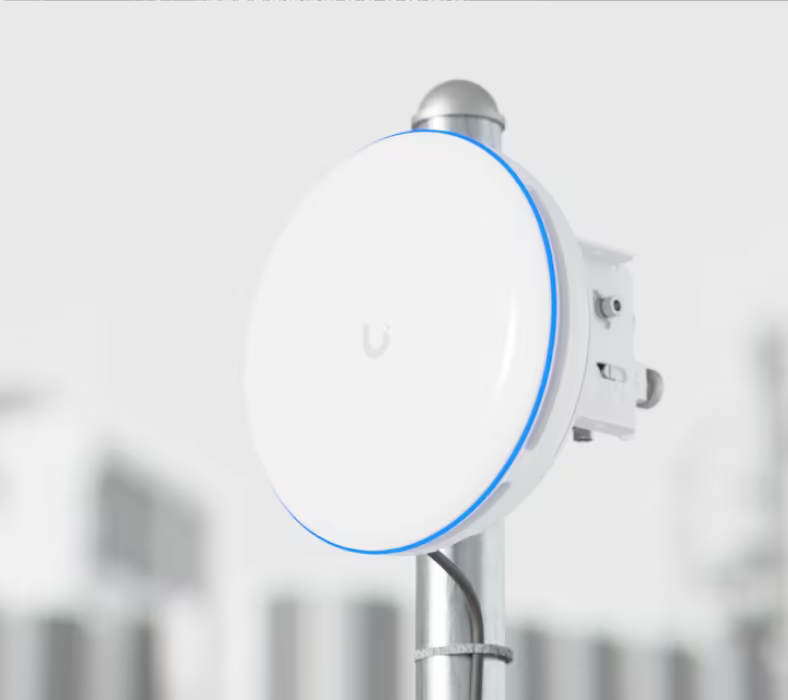

| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | PoE++, Passive PoE |
| Performance | |
| MIMO | |
| 5 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate | |
| 60 GHz | 6 Gbps |
| 5 GHz | 866.6 Mbps (BW80) |
| Antenna Gain | |
| 60 GHz | 21 dBi |
| 5 GHz | 14 dBi |
| 2.4 GHz | 2 dBi (BLE) |
| Max. TX Power | |
| 60 GHz | 16 dBm |
| 5 GHz | 23 dBm |
| Supported Data Rates | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 29W |
| Includes PoE Adapter | ✓ |
| Supported Voltage Range | 48V DC ± 10% |

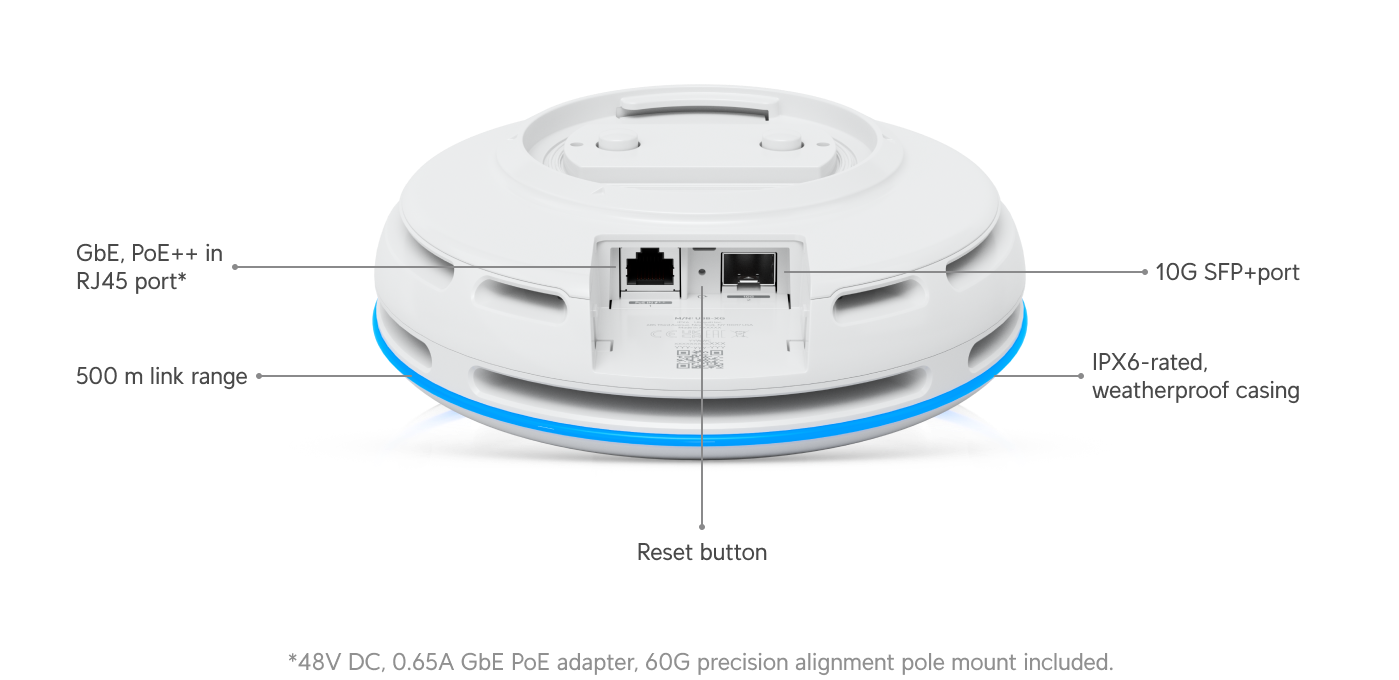

| Networking Interface | (1) GbE RJ45 port, (1) 1/10G SFP+ port |
| Weight | Device: 1.7 kg (3.8 lb); With mount: 2.9 kg (6.3 lb) |
| Operating Modes | PtP |
| Wind Loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |

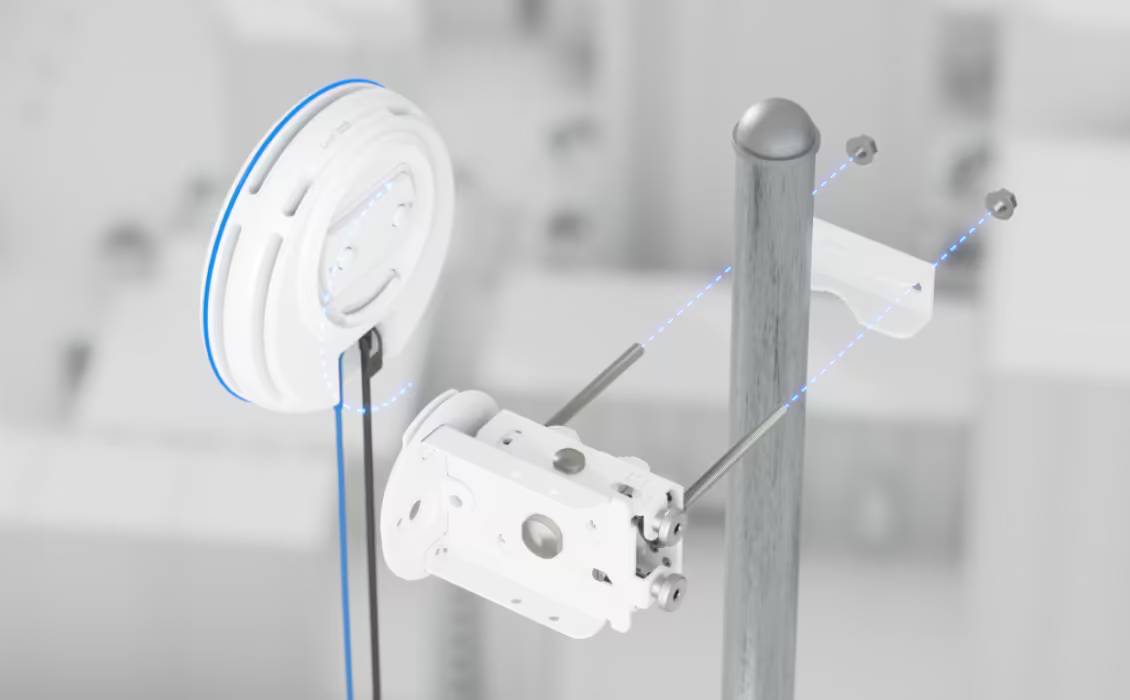

| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet, Bluetooth |
| Channel Bandwidth | Main radio (60 GHz): 1,080/2,160 MHz; Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material | Stainless steel |
| Button | (1) Factory reset |
| LEDs | |
| System | R/G/B |
| Operating Frequency | Main radio (60 GHz): 57 - 66 GHz Backup radio (5 GHz): US/CA — U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz Worldwide: 5150 - 5850 MHz |
| Bluetooth (MHz) | Worldwide: 2400 - 2483.5 MHz |
| Ambient Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Terragraph |
Visit Ubiquiti for more information.
