UniFi Building Bridge XG
Ubiquiti UBB-XG UniFi Building Bridge XG
SKU:UBB-XG
Regular price
$2,031.00
Regular price
$2,399.00
Sale price
$2,031.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-year warranty coverage (12 months extended)
Learn more
BOXING DAY DEALS LIVE NOW. Limited promotional stock available — don’t miss out!
65 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Buying for your business? Earn Store Credits

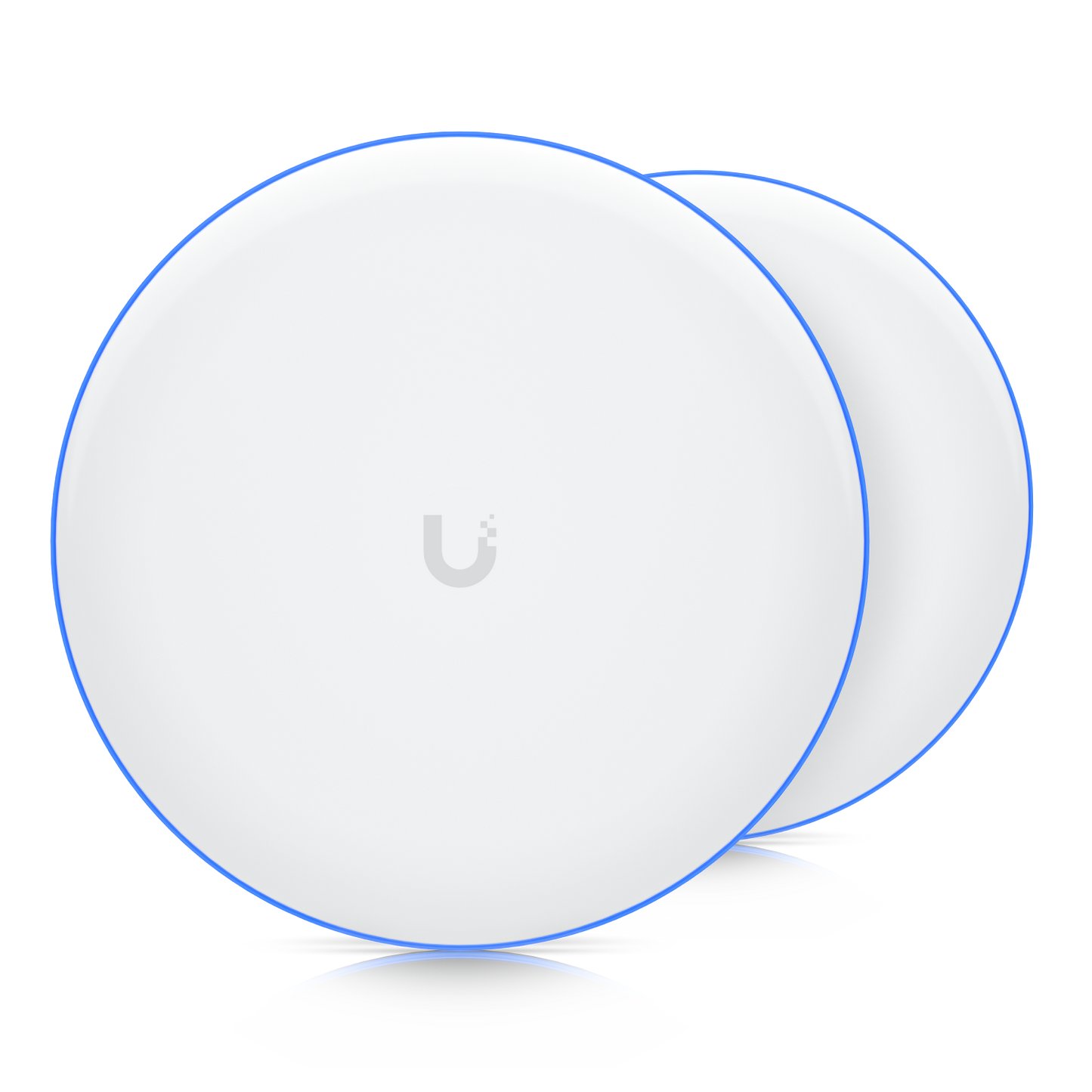

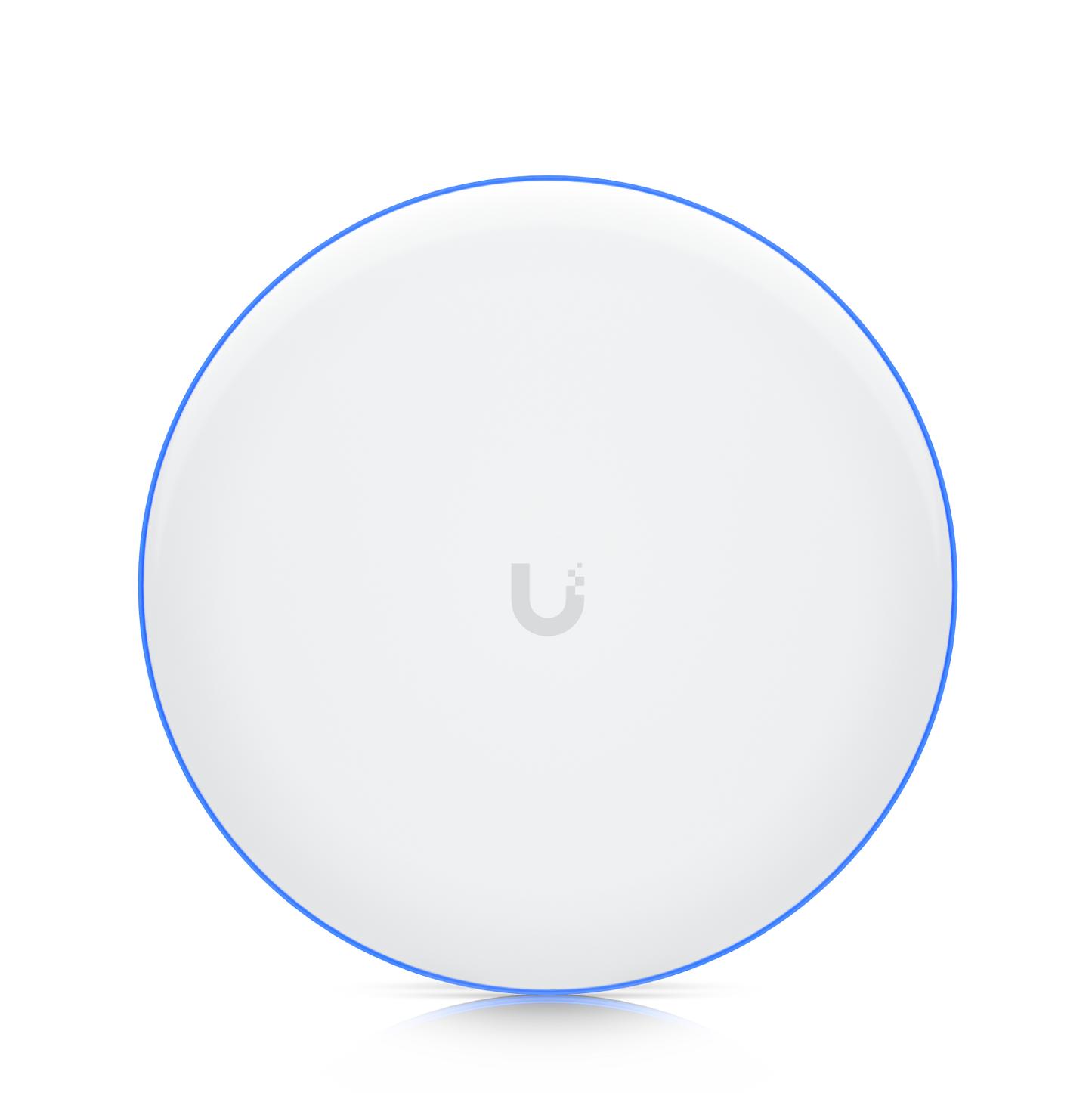

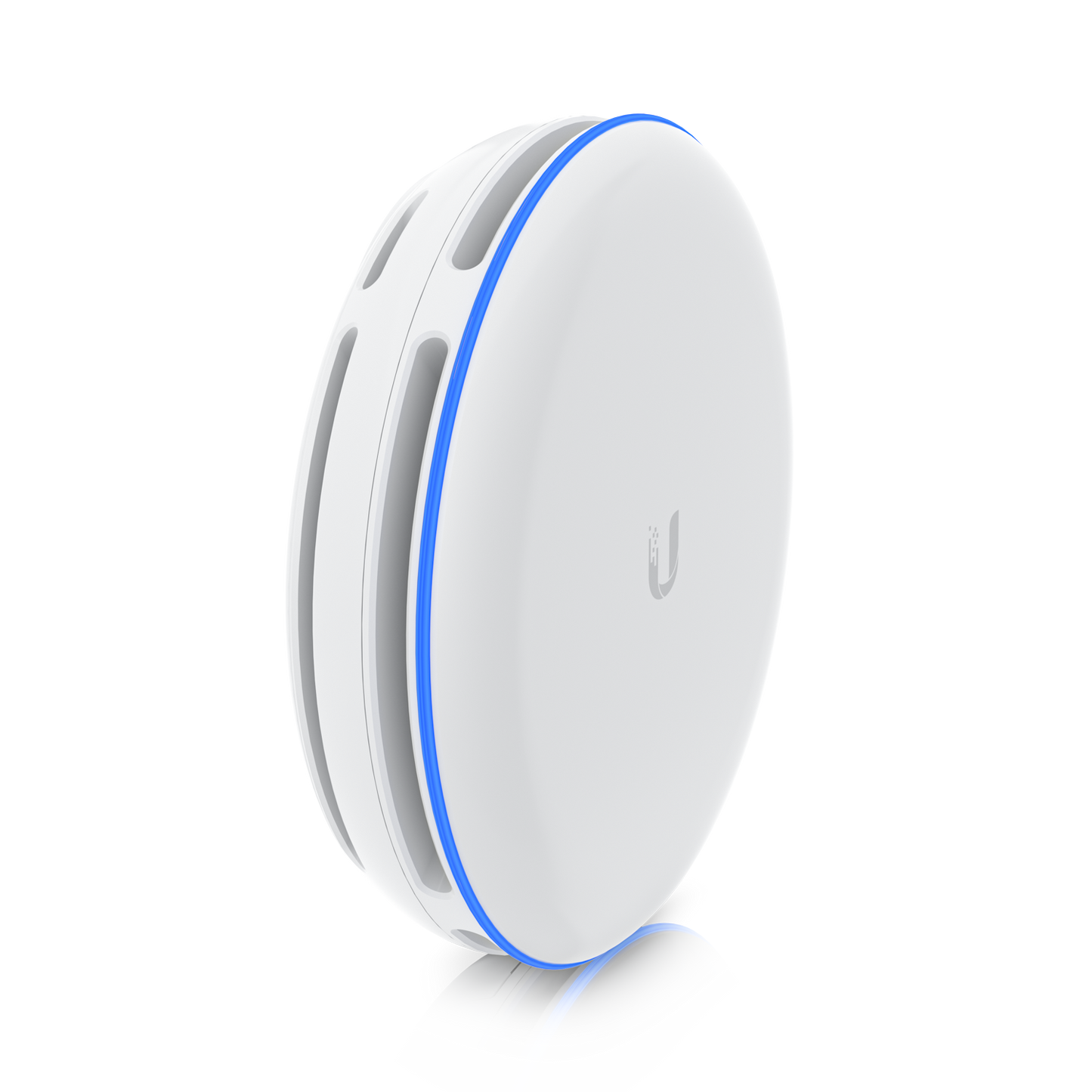

A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.
- 500 m (1,640 ft) maximum range.
- 60 GHz & 5 GHz dual-radio redundancy.

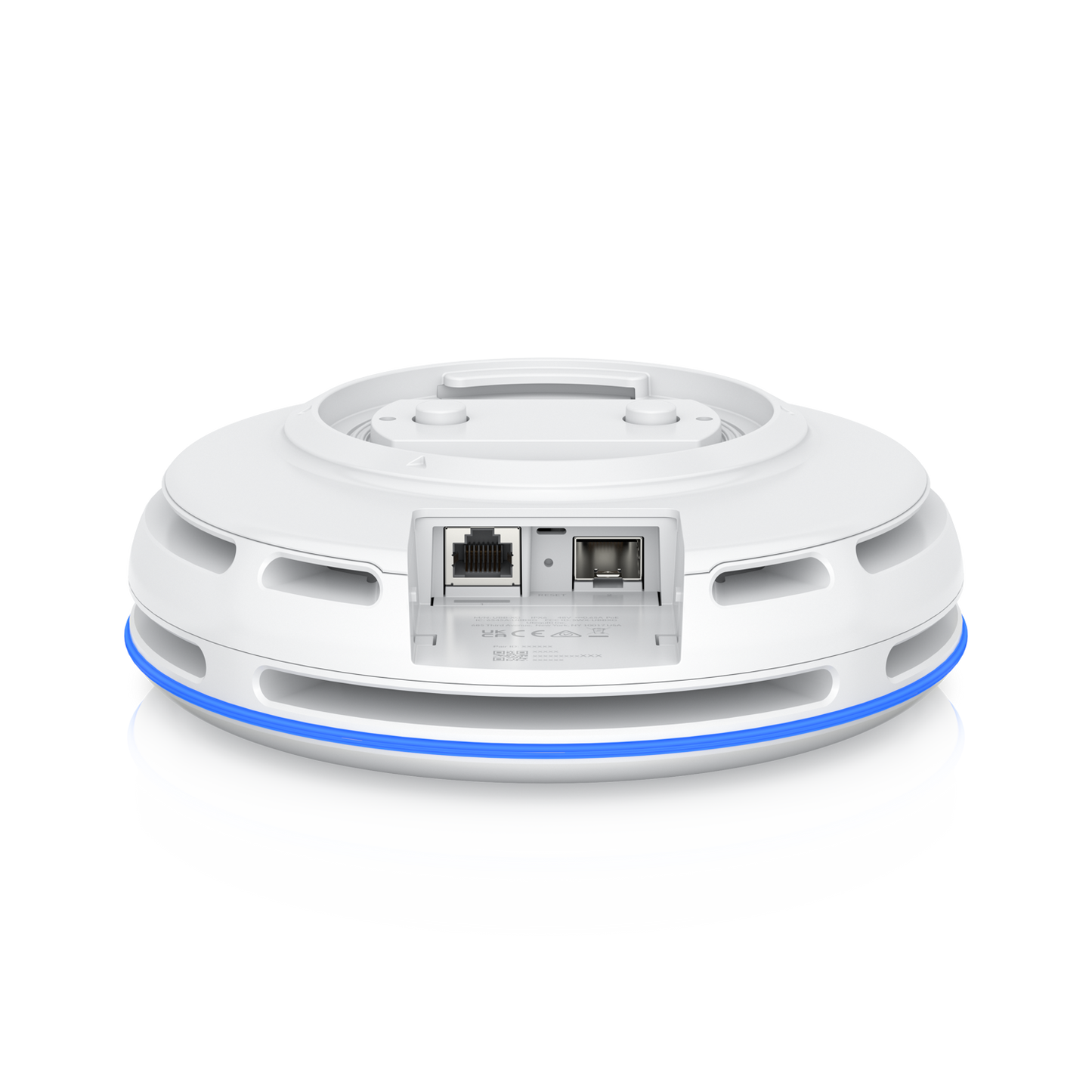

- (1) 10G SFP+ and (1) GbE PoE++ port.
- Powered using PoE++.
- Built-in LED alignment indicators.
- Sold as 2-pack.
Note: Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server. Includes PoE power adapter.
| Mechanical | |
|---|---|

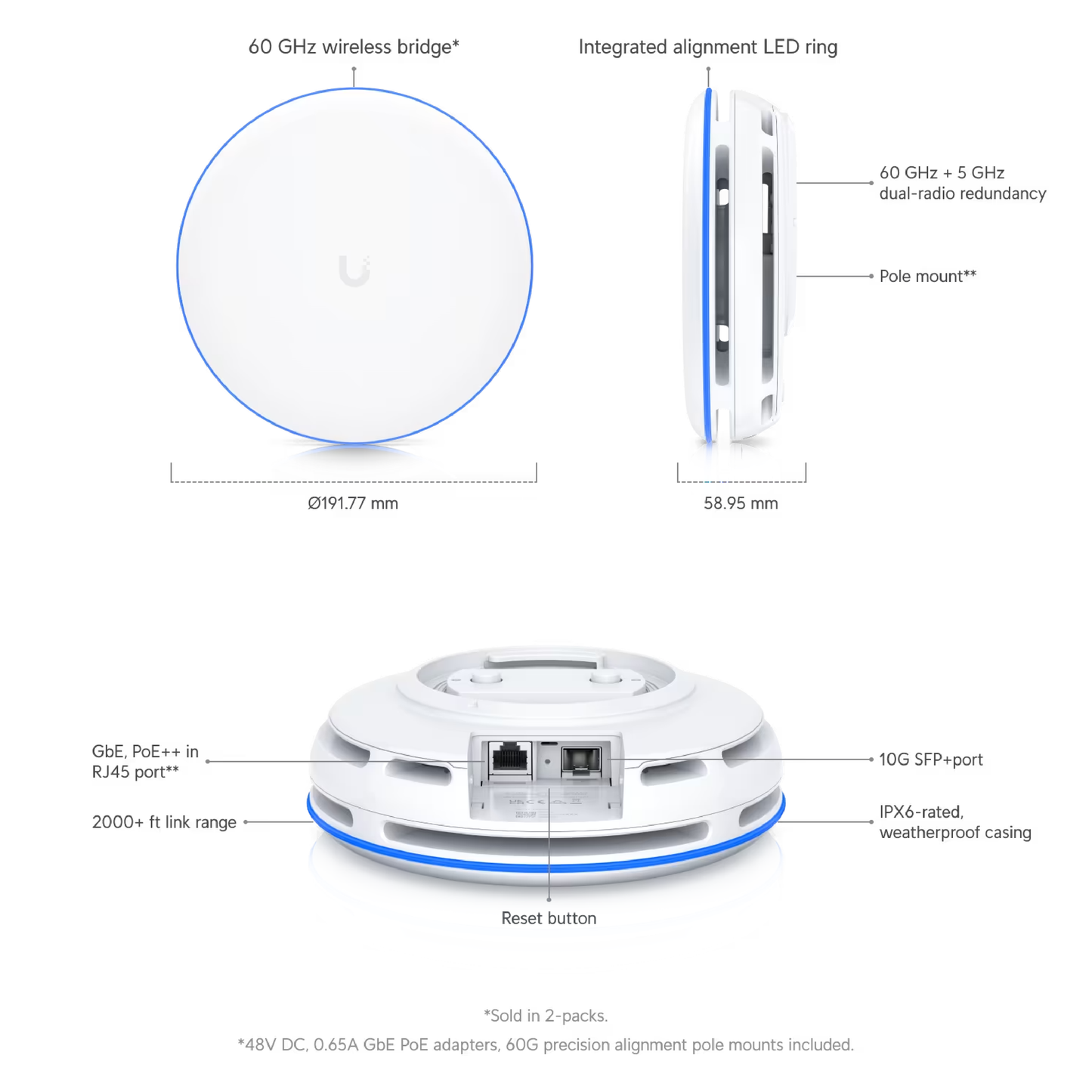

| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3") |
| Weight |
Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure material | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Pole mount diameter | 1-2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface |
(1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface |
Ethernet Bluetooth |
| Power method |
PoE++ Passive PoE: 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) 2-pairs (4, 5+; 7, 8-) |
| Power supply |
UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
|
Max. TX power 2.4 GHz 5 GHz 6 GHz |
– 23 dBm – 16 dBm (60 GHz) |
|
Throughput rate 2.4 GHz 5 GHz 6 GHz |
– 866.6 Mbps – 6 Gbps (60 GHz) |
|
Antenna gain 2.4 GHz 5 GHz 6 GHz |
– 14 dBi – 21 dBi (60 GHz) |
| Maximum range | 500 m (1,640 ft) |
| LEDs | R/G/B |
| Button | Factory-reset |

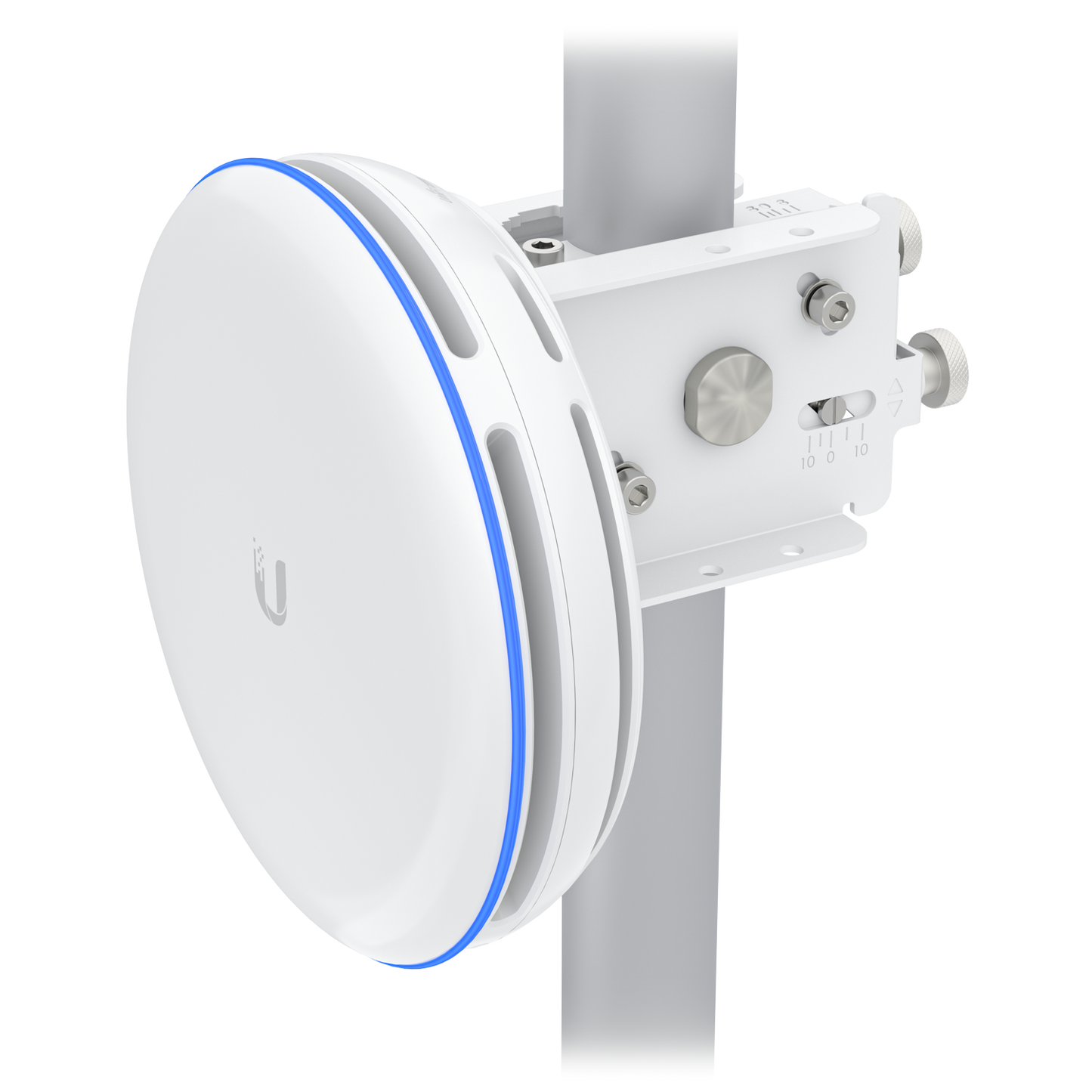

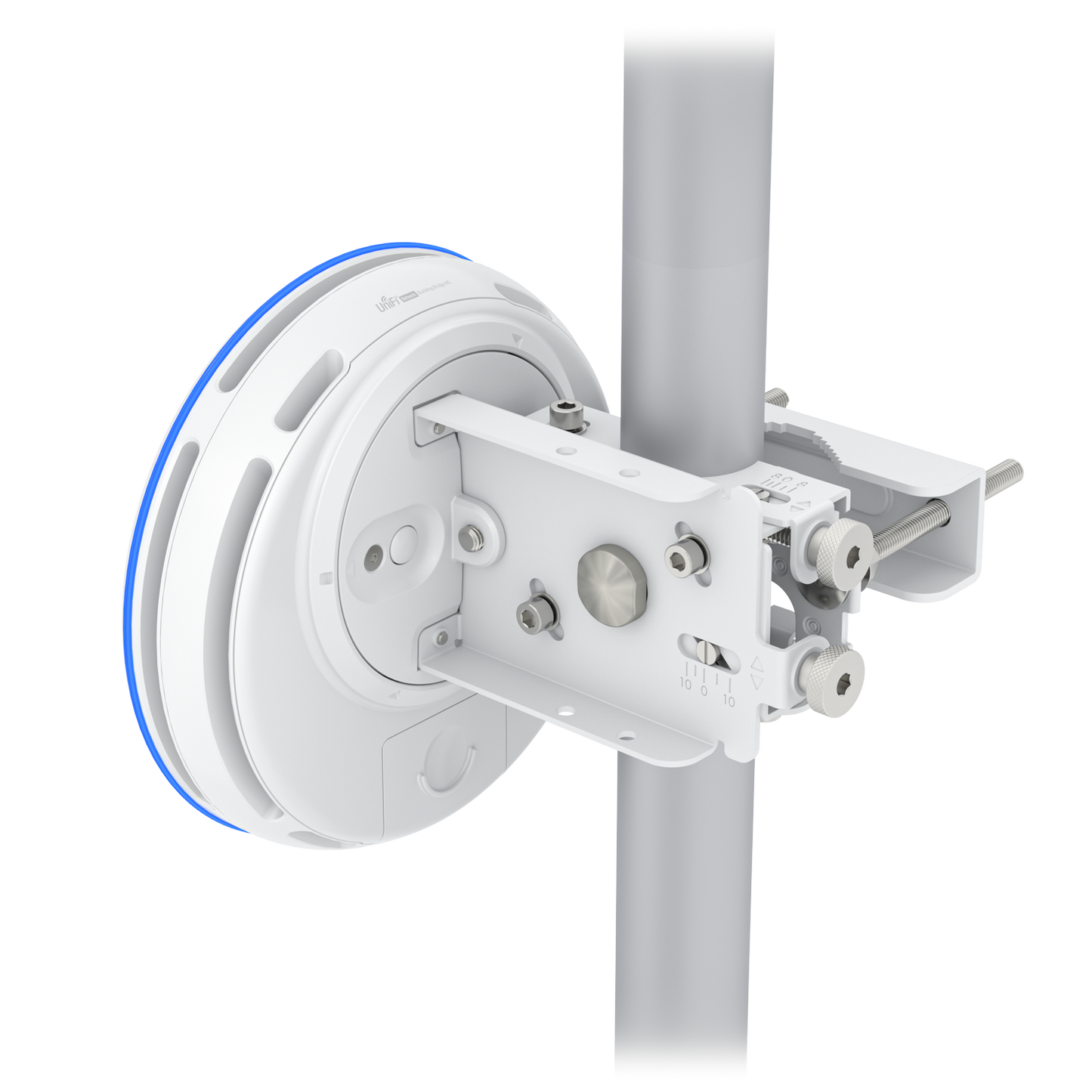

| Mounting | 60G precision alignment pole mount (Included) |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11ac/ad/ay |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* |
57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* |
58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
|
Operating frequency* US/CA Worldwide |
U-NII-1: 5,150 - 5,250 MHz U-NII-2A: 5,250 - 5,350 MHz U-NII-2C: 5,470 - 5,725 MHz U-NII-3: 5,725 - 5,850 MHz 5,150 - 5,725 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
Visit Ubiquiti for more information.
