UniFi Swing 12U Rack Cabinet with Perforated Front Door

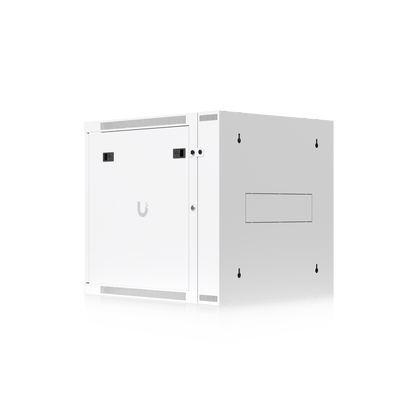

Free up floor space without giving up rack space. The UniFi 12U Swing Rack Cabinet mounts flat to the wall, cools 12U of gear with two pre-installed 120 mm fans, and opens from the rear on a swing-out door so you can reach every cable. Arrives fully assembled and ready to hang.

Key Features

• Swing-out rear door — full access to cabling and rear ports without dismounting the cabinet.

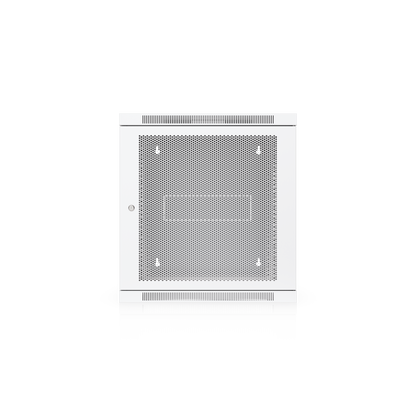

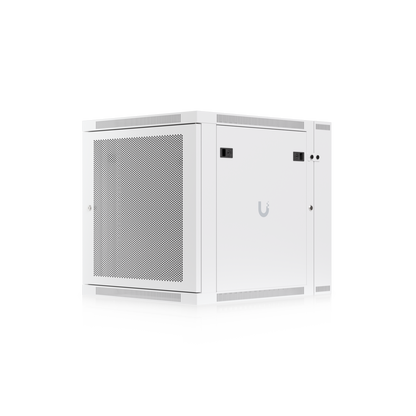

• Perforated front door — passive airflow across your equipment, reversible left or right.
• Two pre-installed 120 mm AC fans — active cooling at ≤ 50 dB(A).
• 12U, 4-post enclosed cabinet — 80 kg (176 lb) capacity for switches, gateways, patch panels and UPS.
• Adjustable mounting depth — 434 mm to 559 mm in 25 mm steps, square-hole rails.
• Six locks, two keys — front door, swing-out door and four removable side panels.
• Multi-point cable entry — rear, top and bottom openings plus eight 35 mm knockouts.

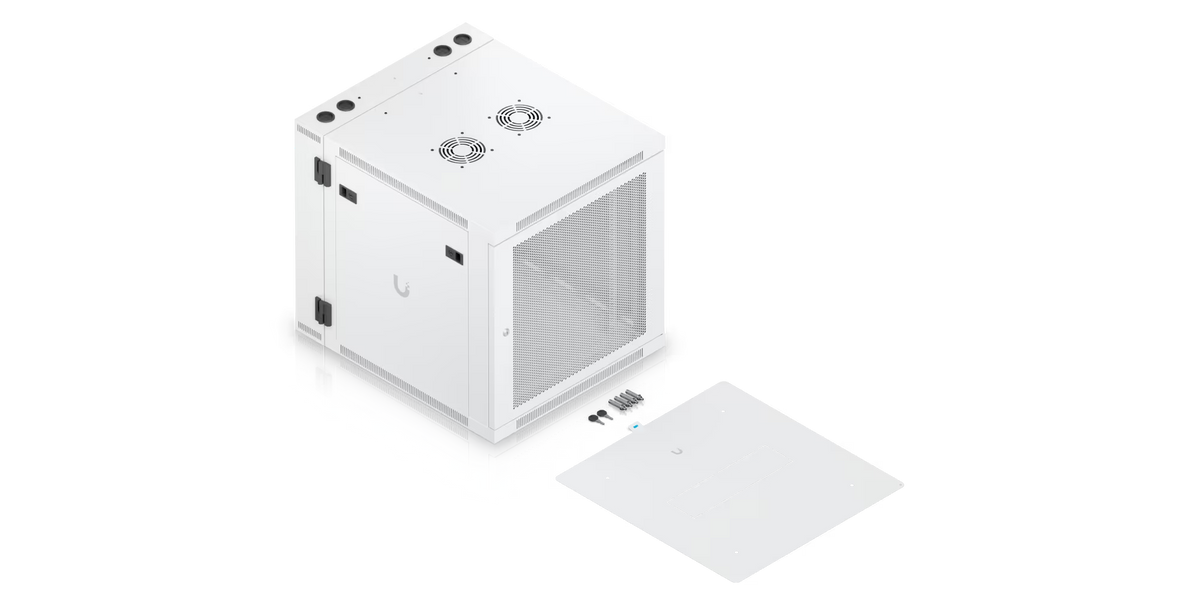

• Ships fully assembled — mount and load, no build time.
• SPCC steel, powder-coated white — 2 mm posts, 1.2 mm panels.
• CE, EIA/ECA-310-E, RoHS certified and NDAA compliant.

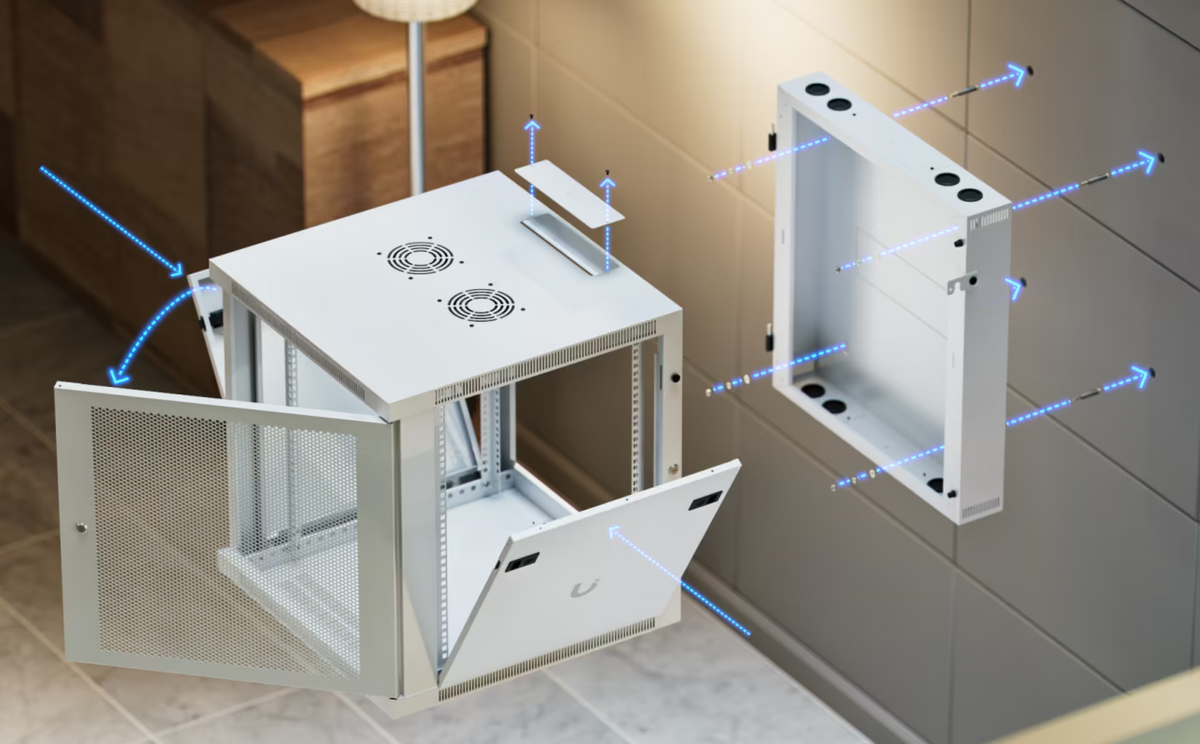

A wall-mounted 12U cabinet built for real-world service access

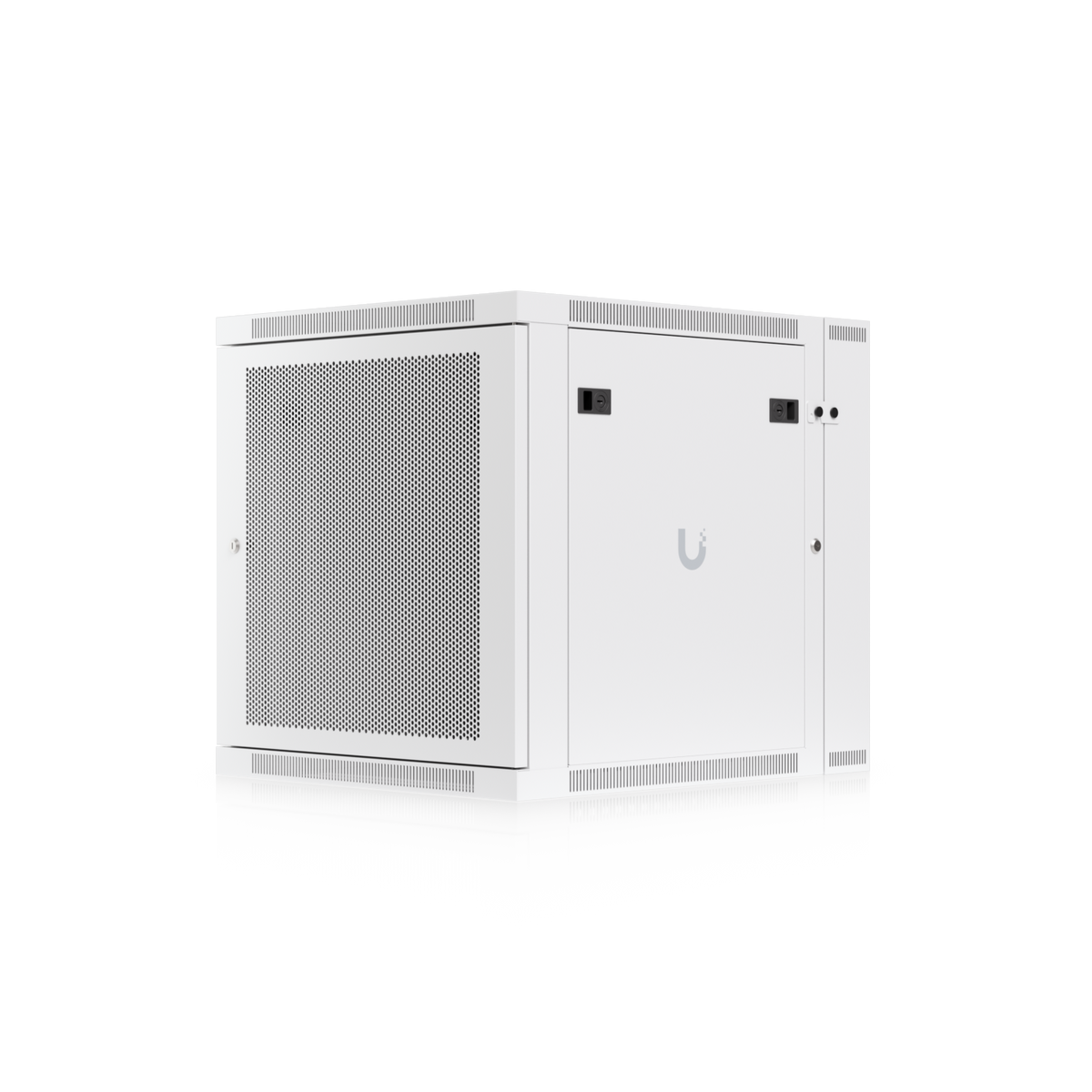

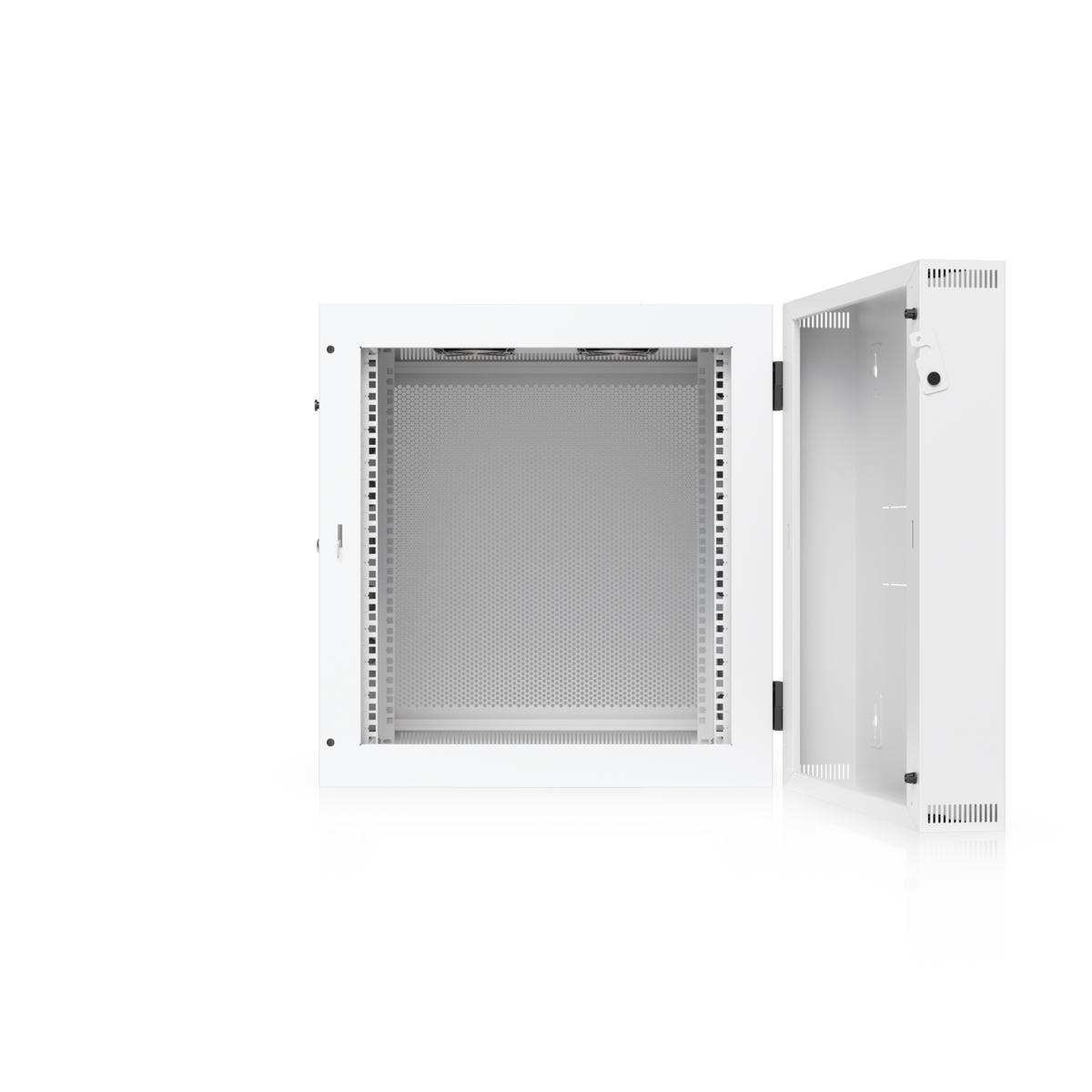

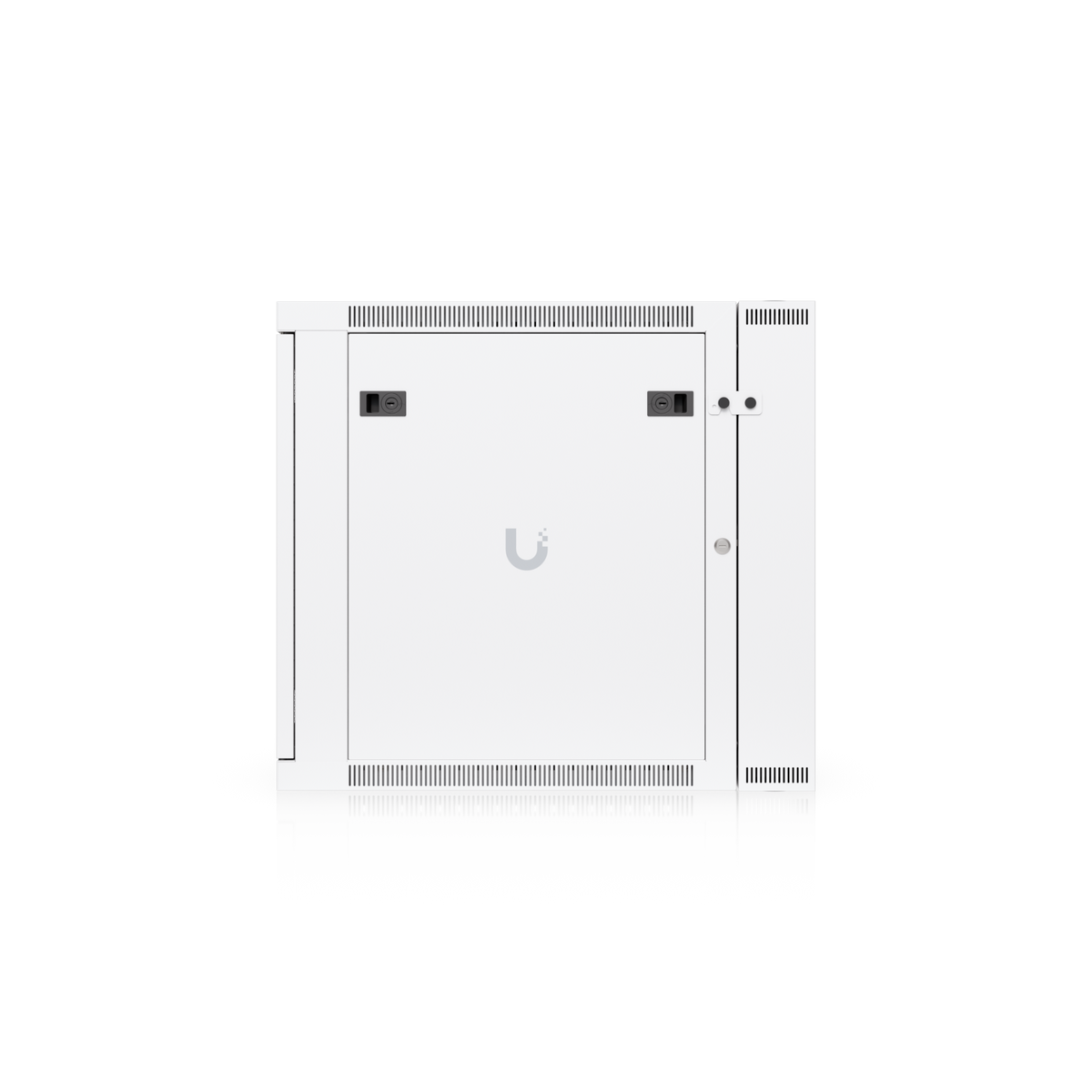

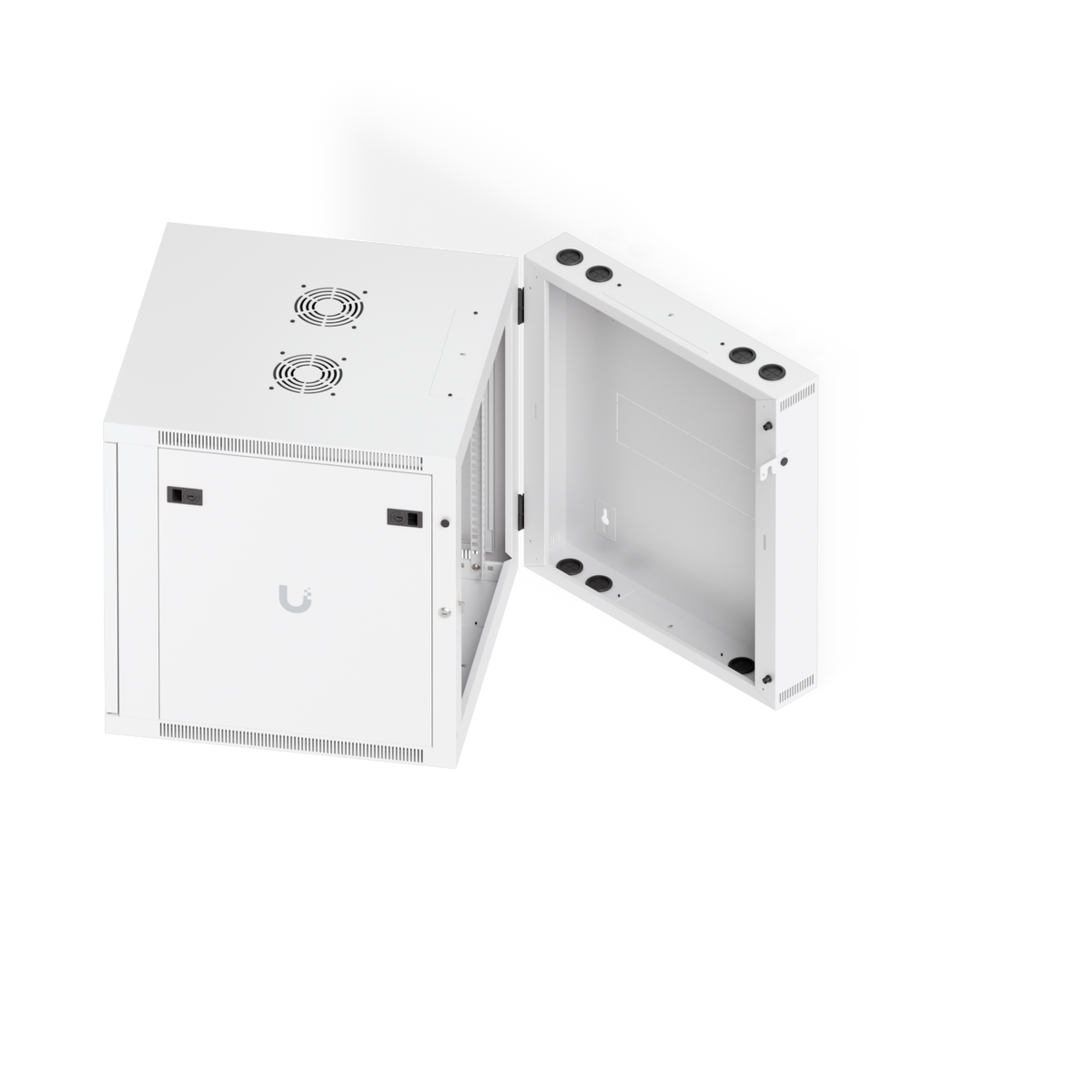

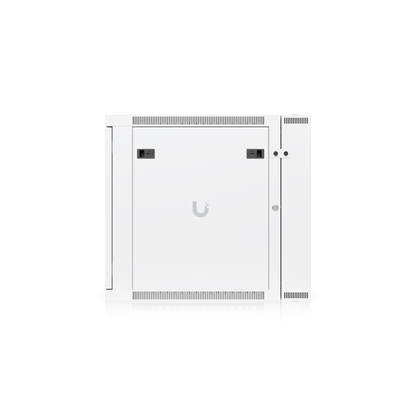

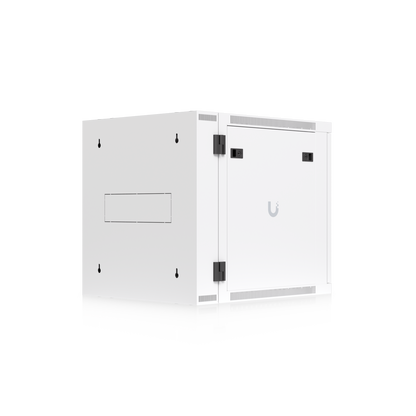

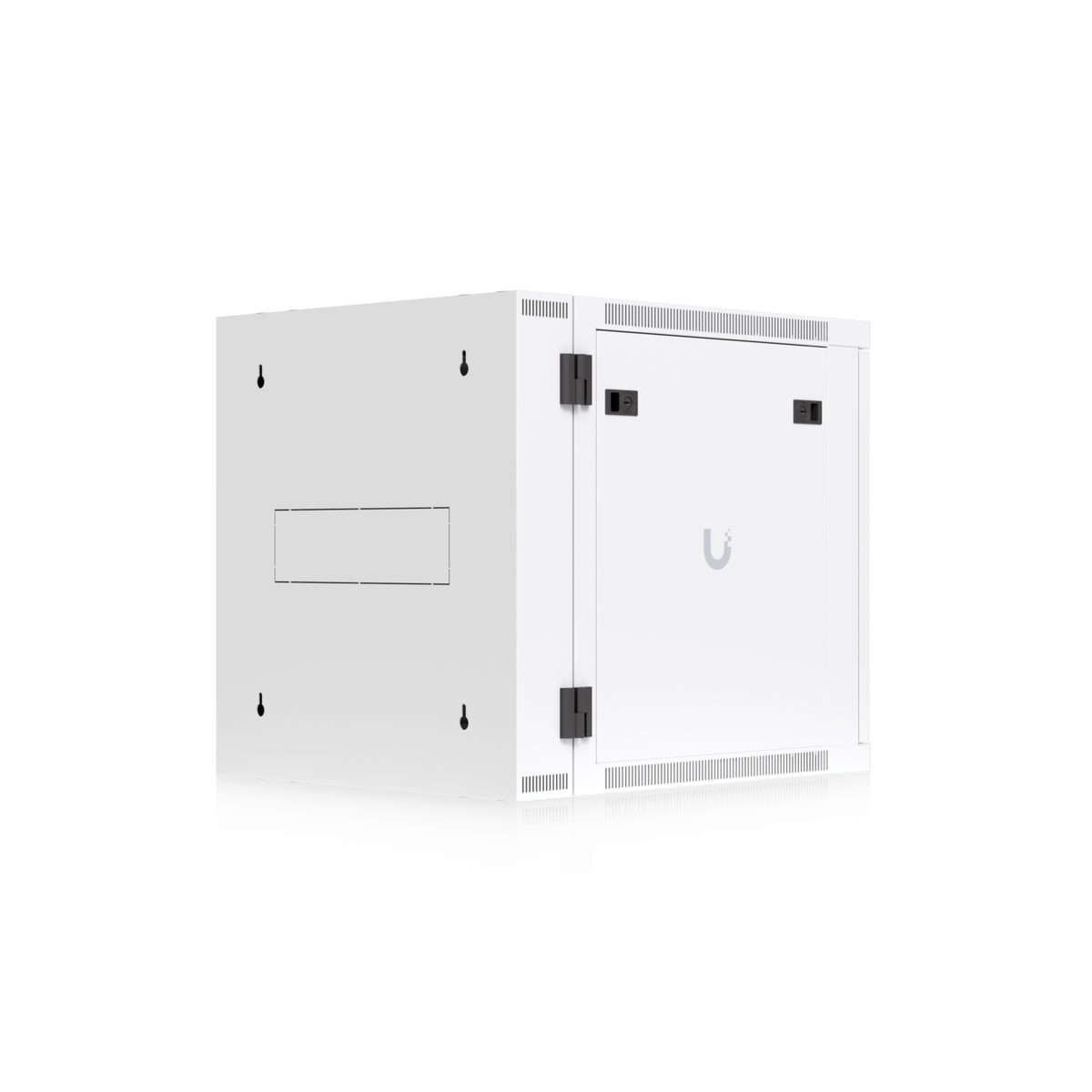

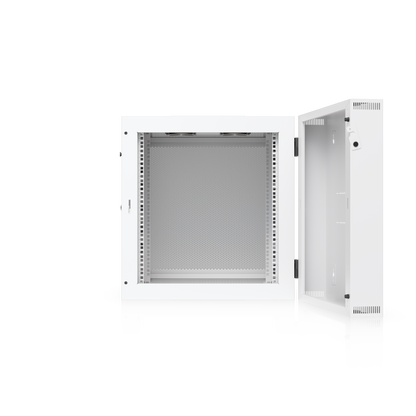

Wall racks are easy to install and miserable to maintain — until you need to trace a patch lead behind a switch. The Ubiquiti UACC-Rack-12U-Wall-SW-P solves that with a solid swing-out rear door, giving you hands-on access to cabling and rear-facing ports without unbolting a thing. Both side panels are removable and individually lockable, so a cramped comms cupboard still works as a service position.

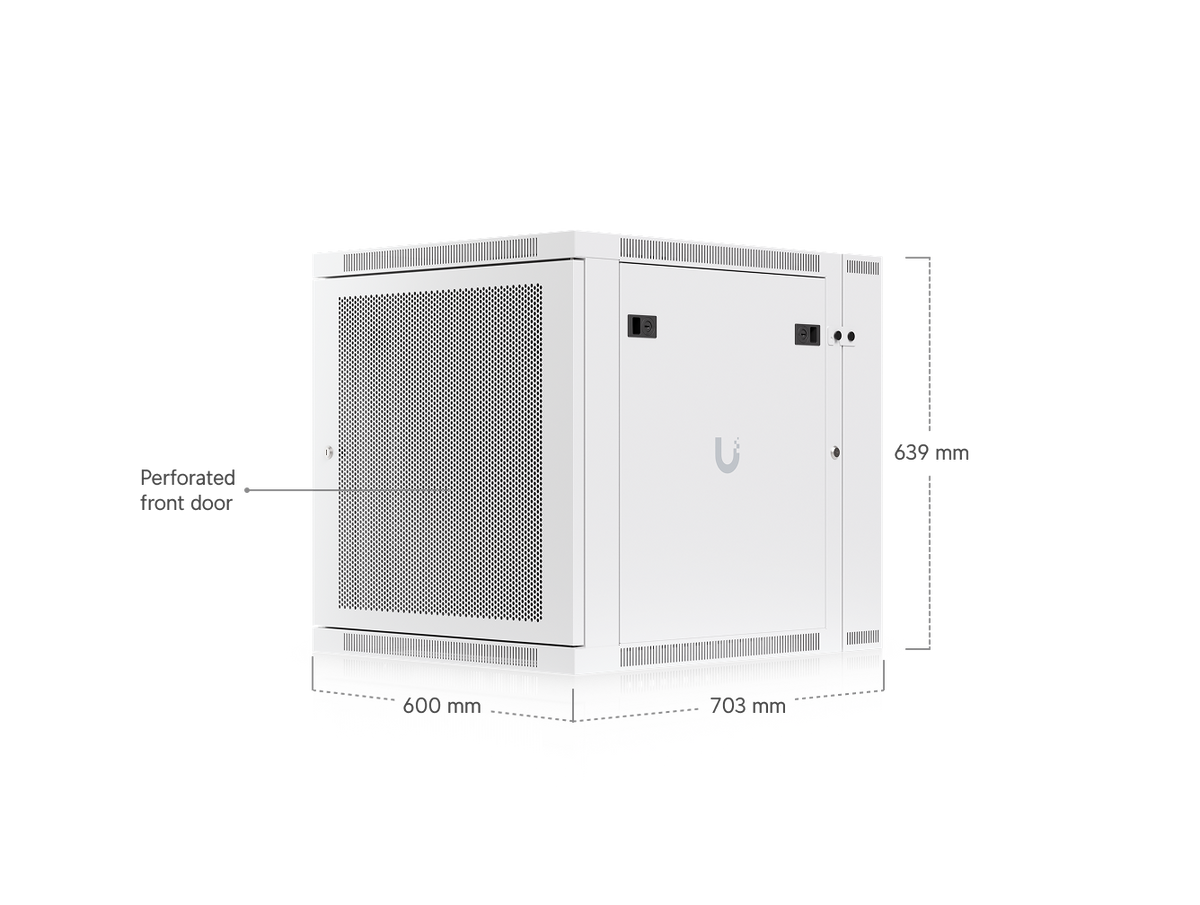

At 600 × 700 × 639 mm, it holds 12U of 19-inch equipment on a 4-post frame with an 80 kg (176 lb) weight capacity — comfortably enough for a UniFi Cloud Gateway, a PoE switch or two, a patch panel and a small UPS.

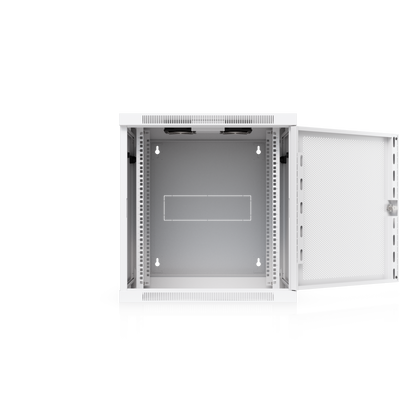

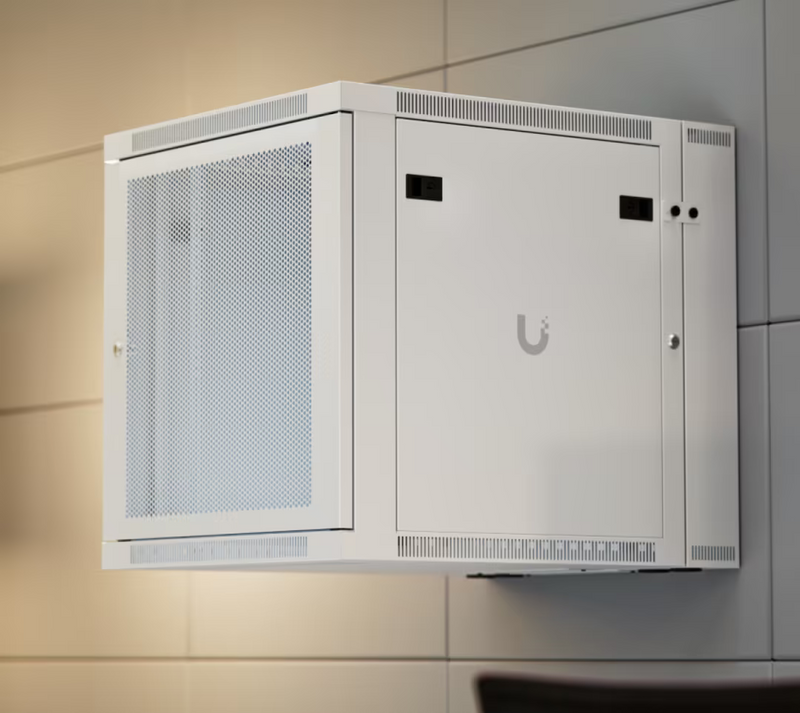

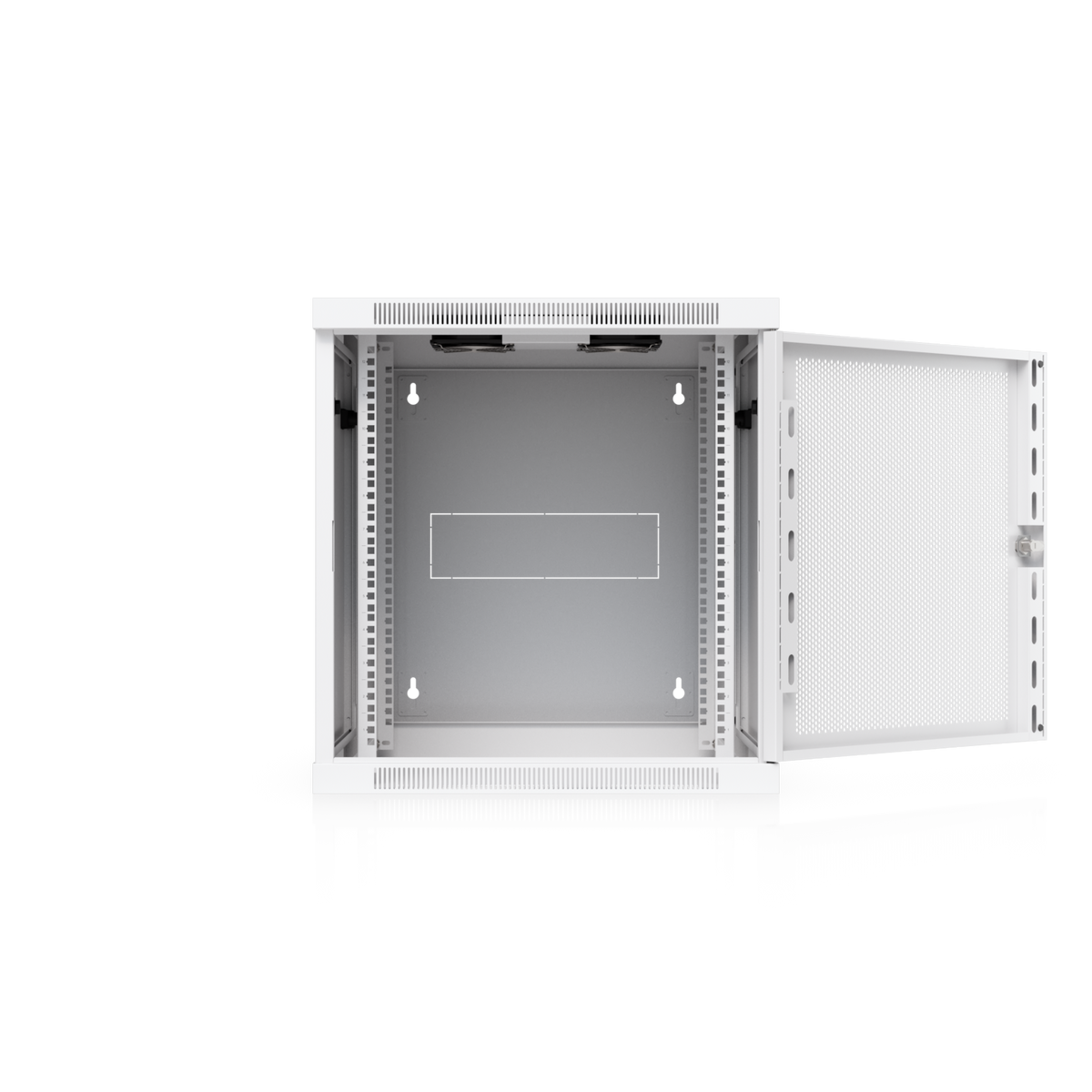

Perforated front door for passive airflow, dual fans for active cooling

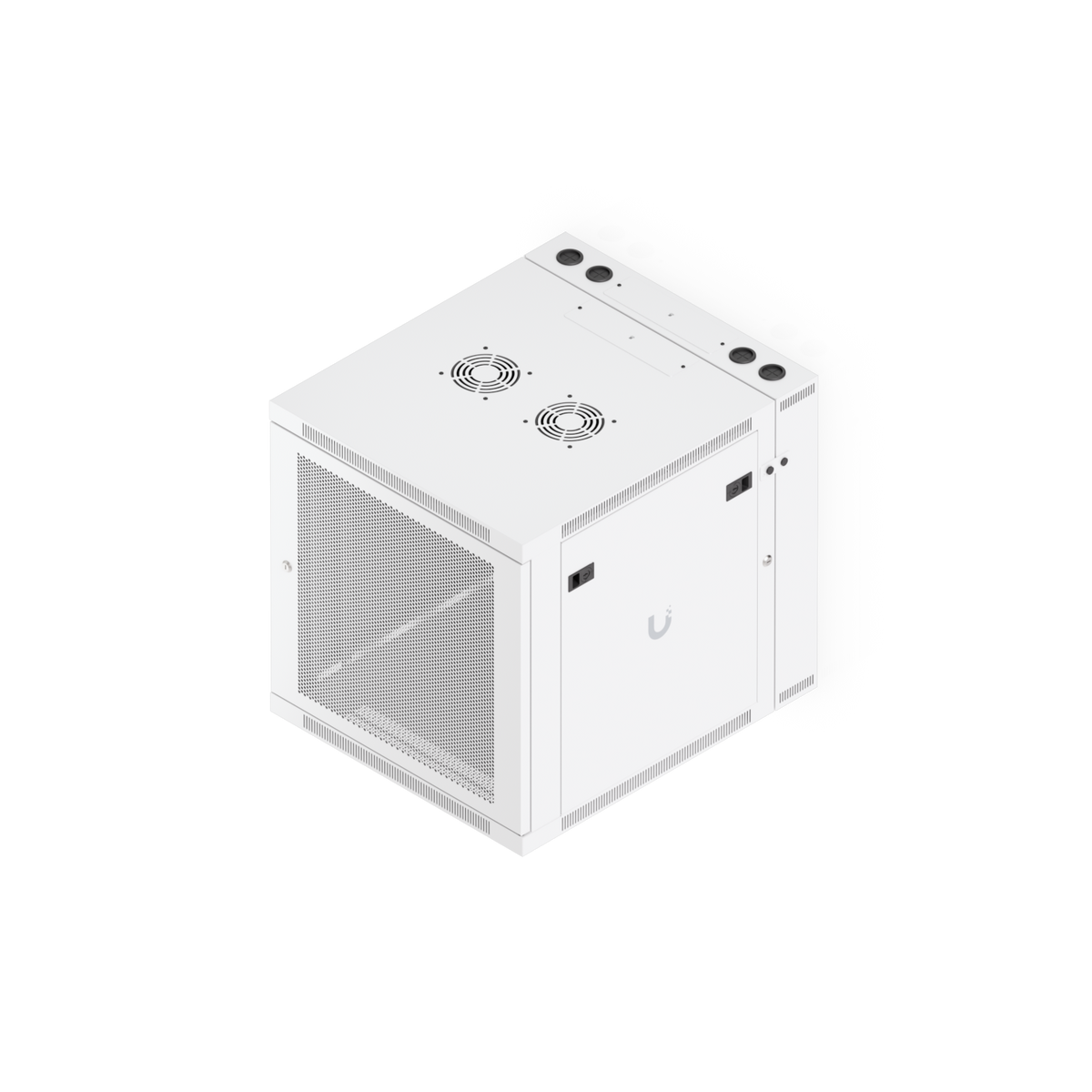

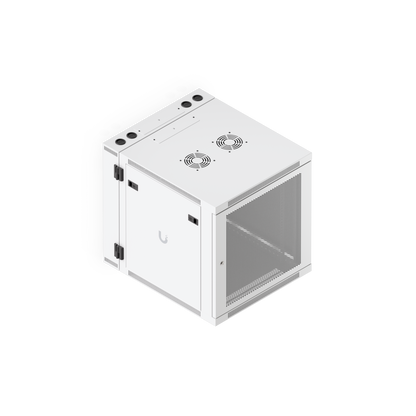

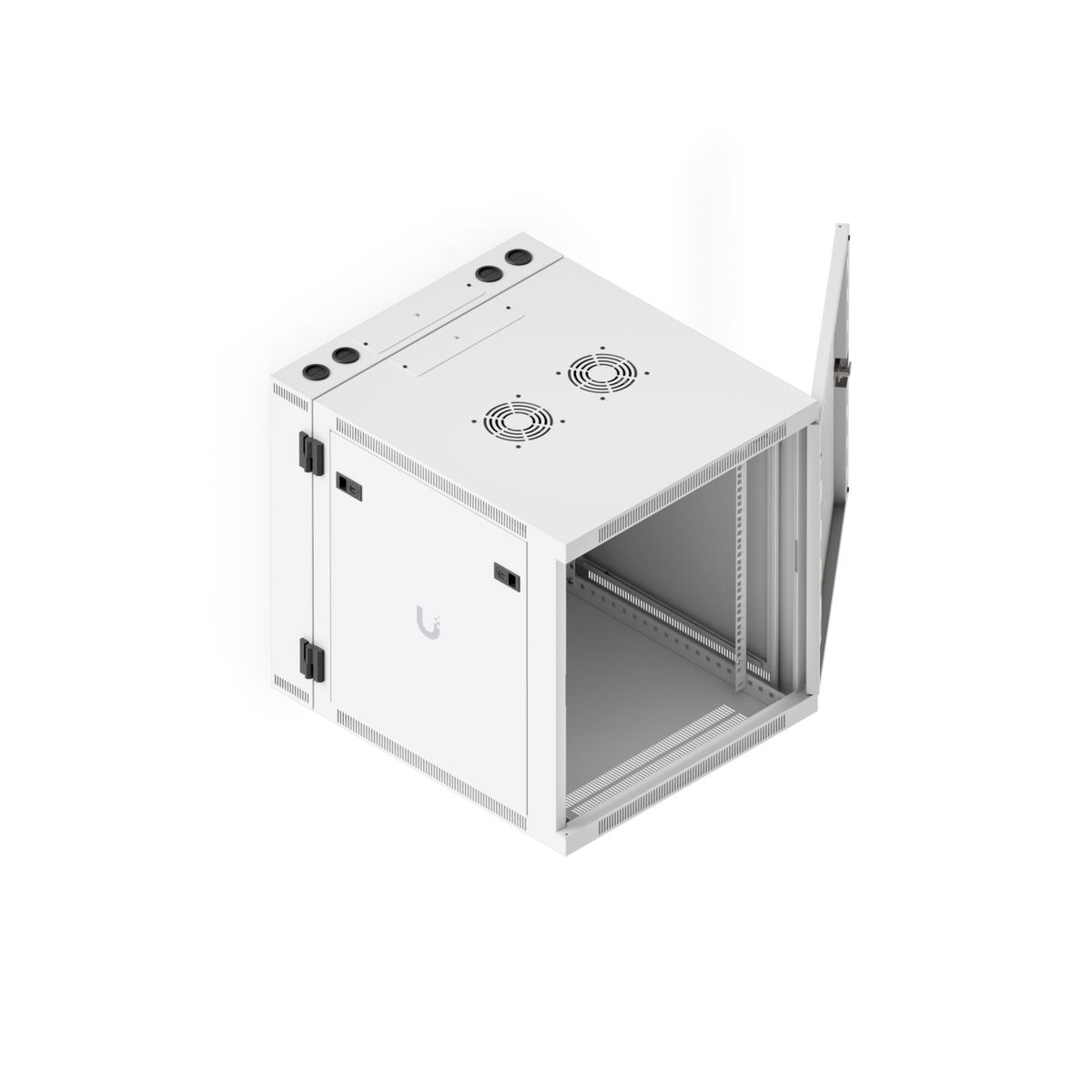

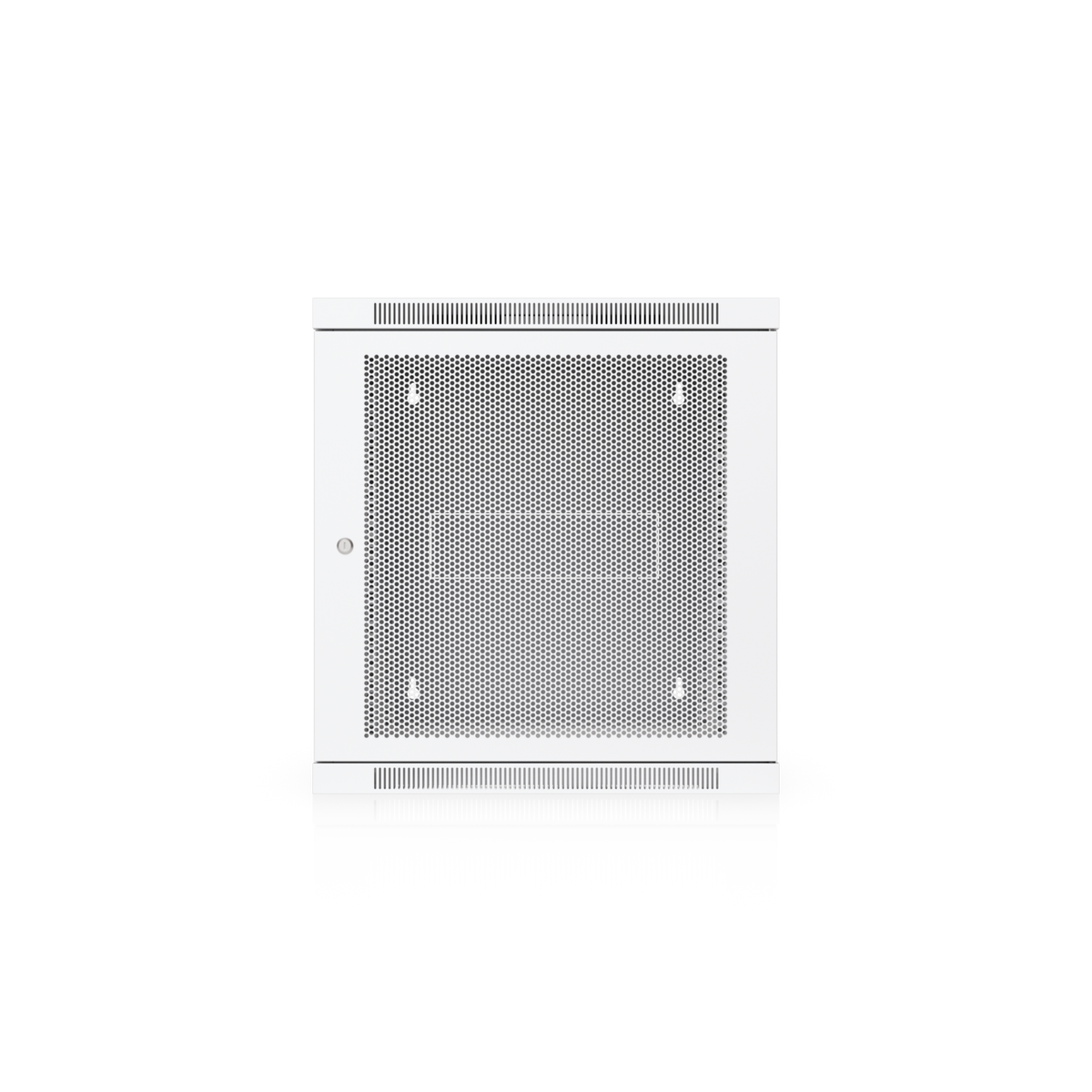

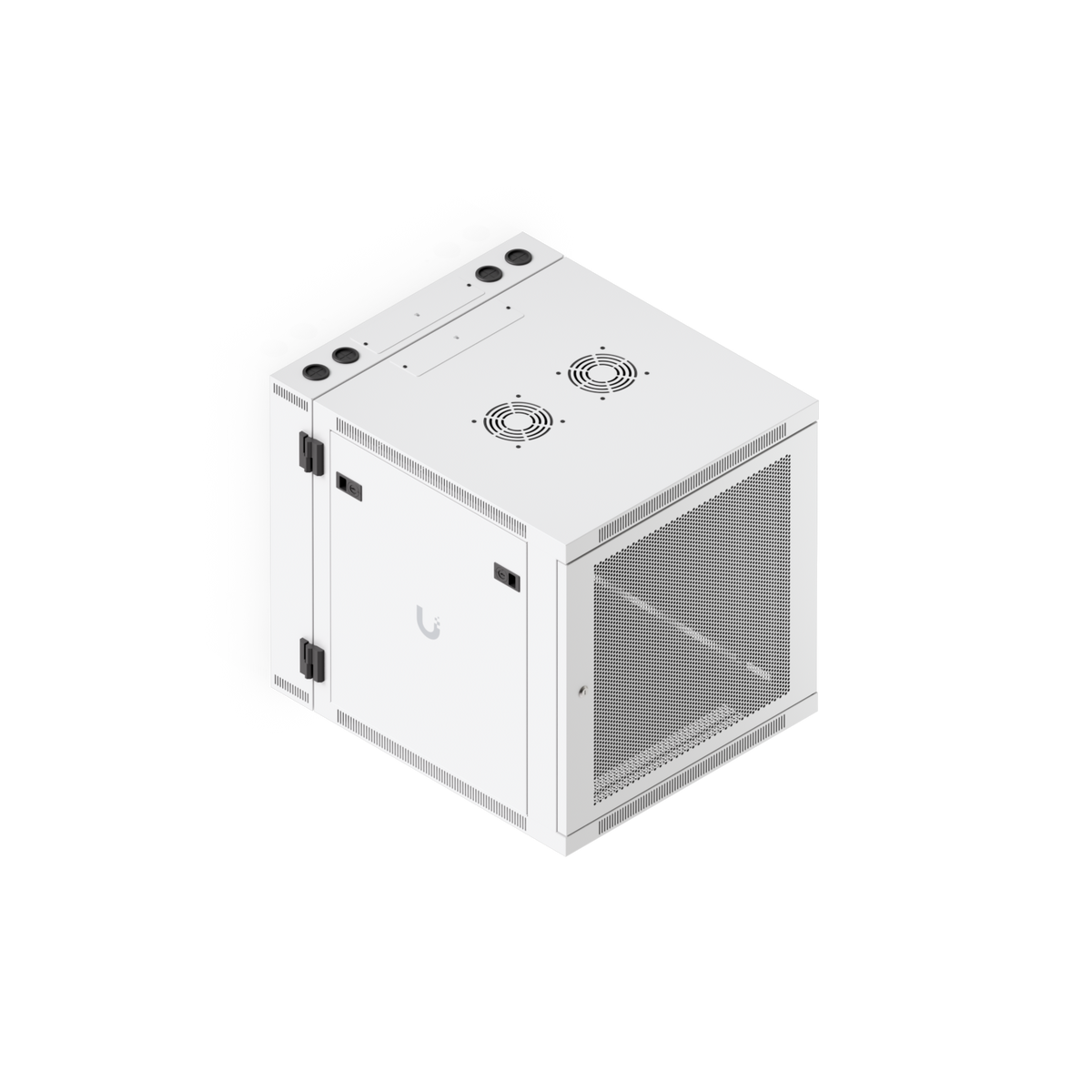

The perforated steel front door lets ambient air move straight across your equipment instead of trapping it behind glass — the right choice when you're running PoE switches at load. Backing that up, two 120 × 120 × 38 mm AC fan modules come pre-installed, running at ≤ 50 dB(A): quiet enough for an office cupboard or a retail back room.

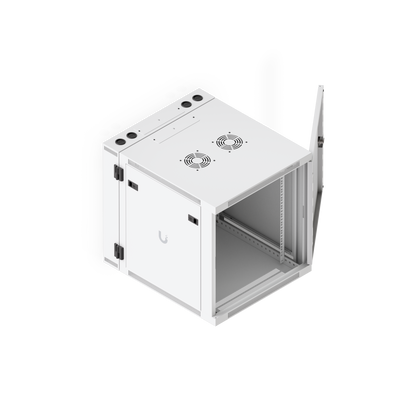

The front door ships as a left-hand outswing and is fully reversible, so the cabinet fits the corner you actually have rather than the one you wish you had.

Locked down, four ways

Security is built in rather than bolted on: one front door lock, one swing-out door lock and four side panel locks, with two keys supplied. Grounding lugs are fitted as standard for safe, compliant bonding.

Adjustable depth for mixed hardware

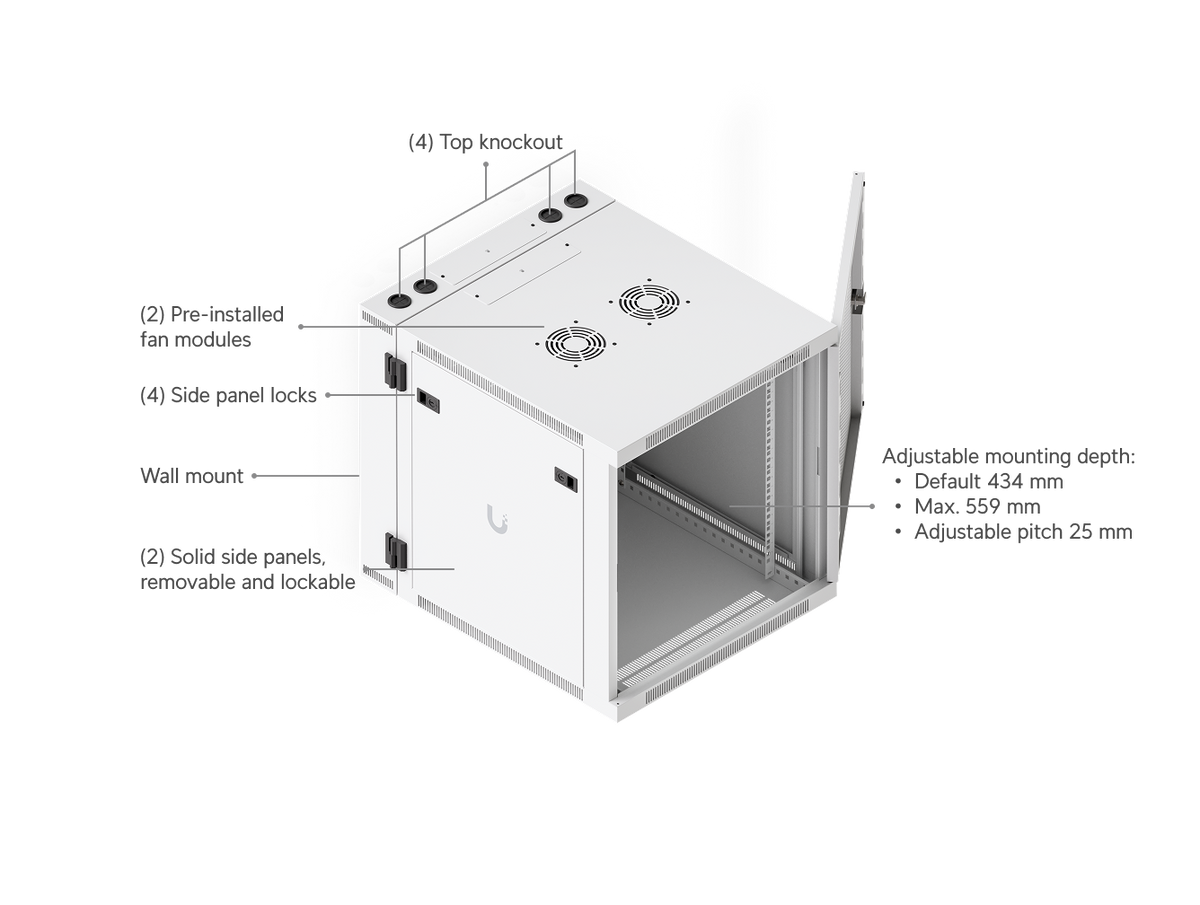

Rack rails adjust from a default 434 mm (17.1") to a maximum 559 mm (22") in 25 mm (1") increments, using square mounting holes with standard cage nuts. Deeper gateways, shallow patch panels and everything between all mount properly.

Generous cable entry, front and back

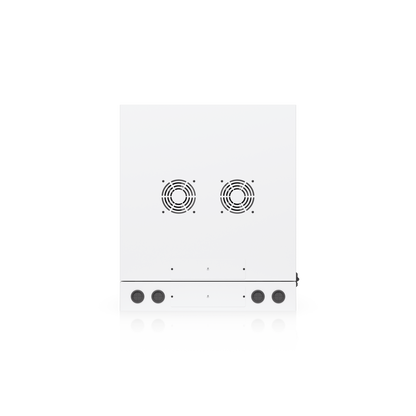

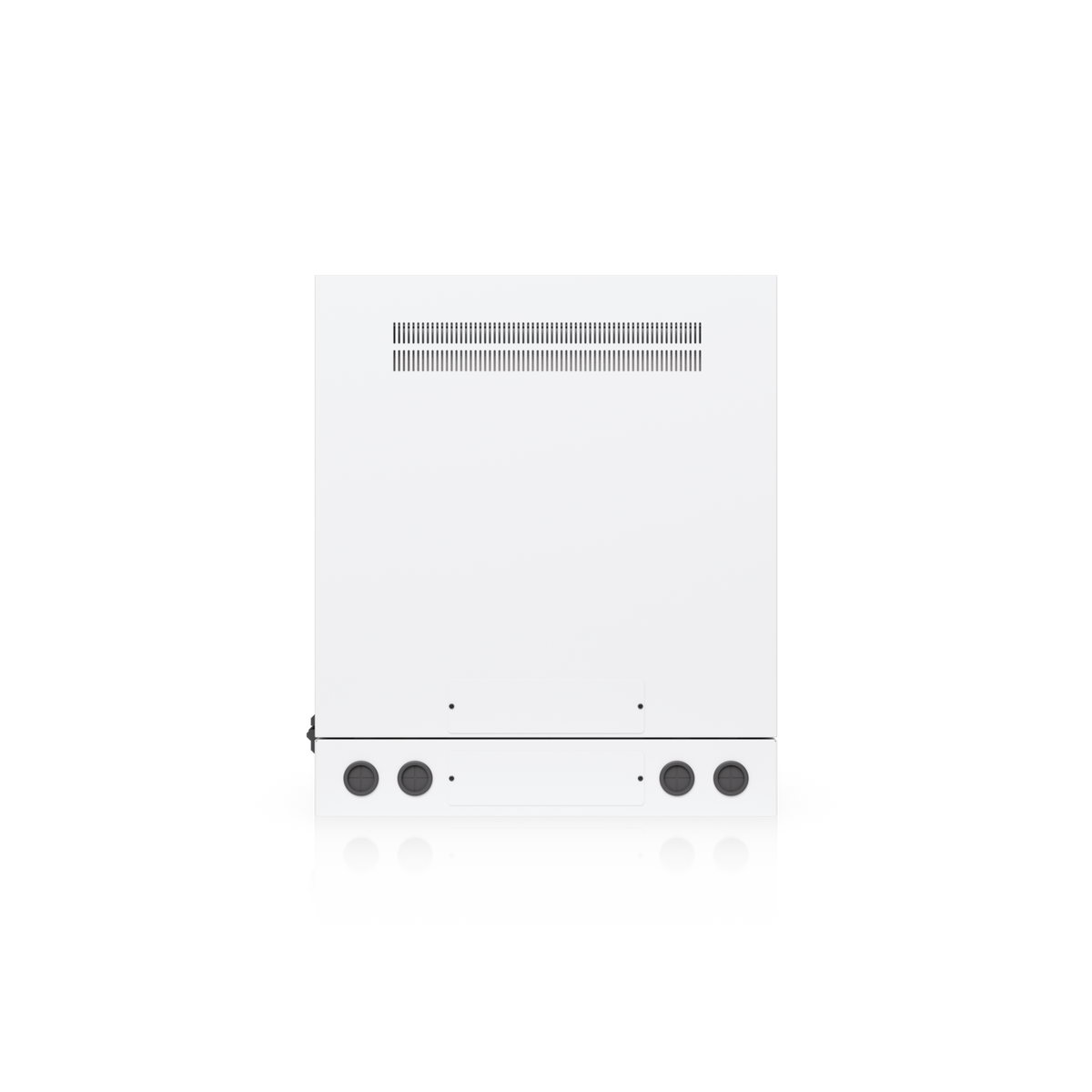

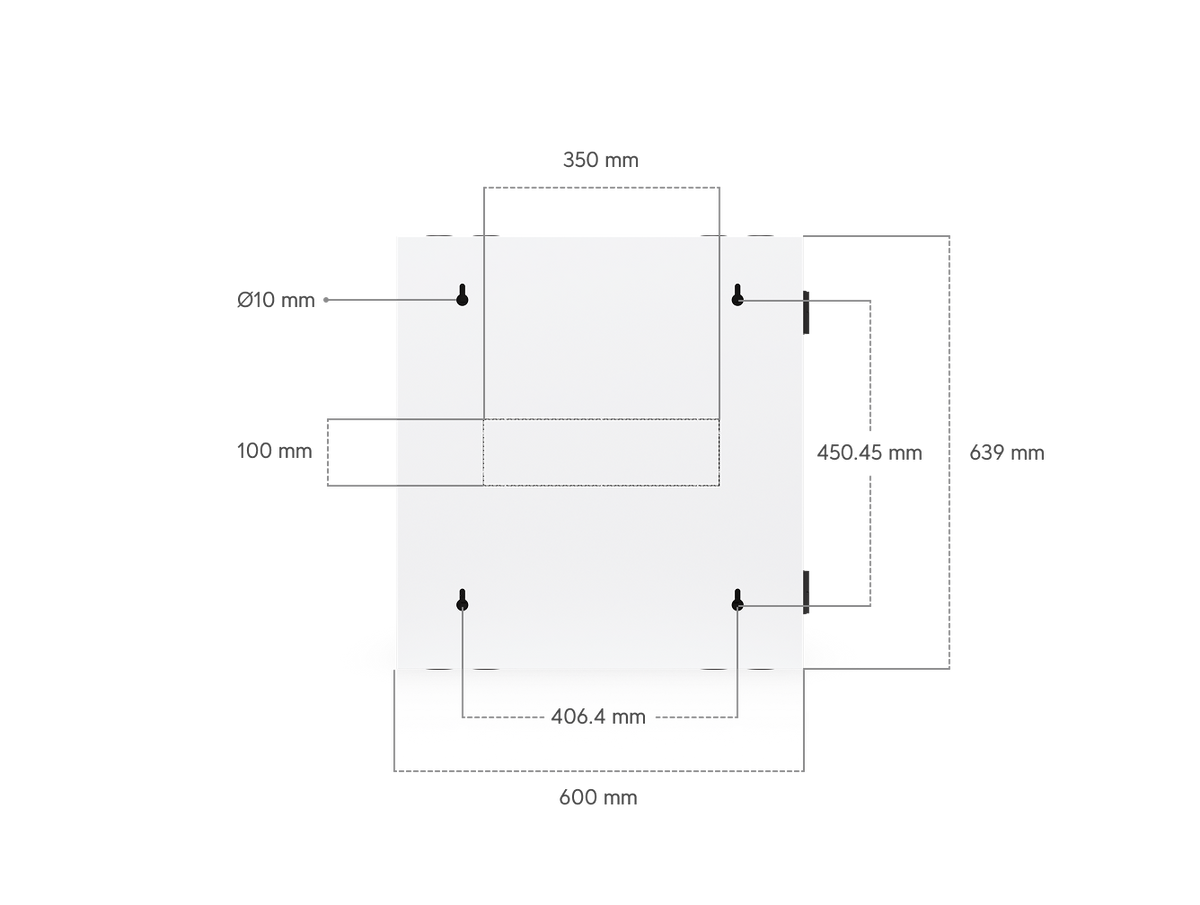

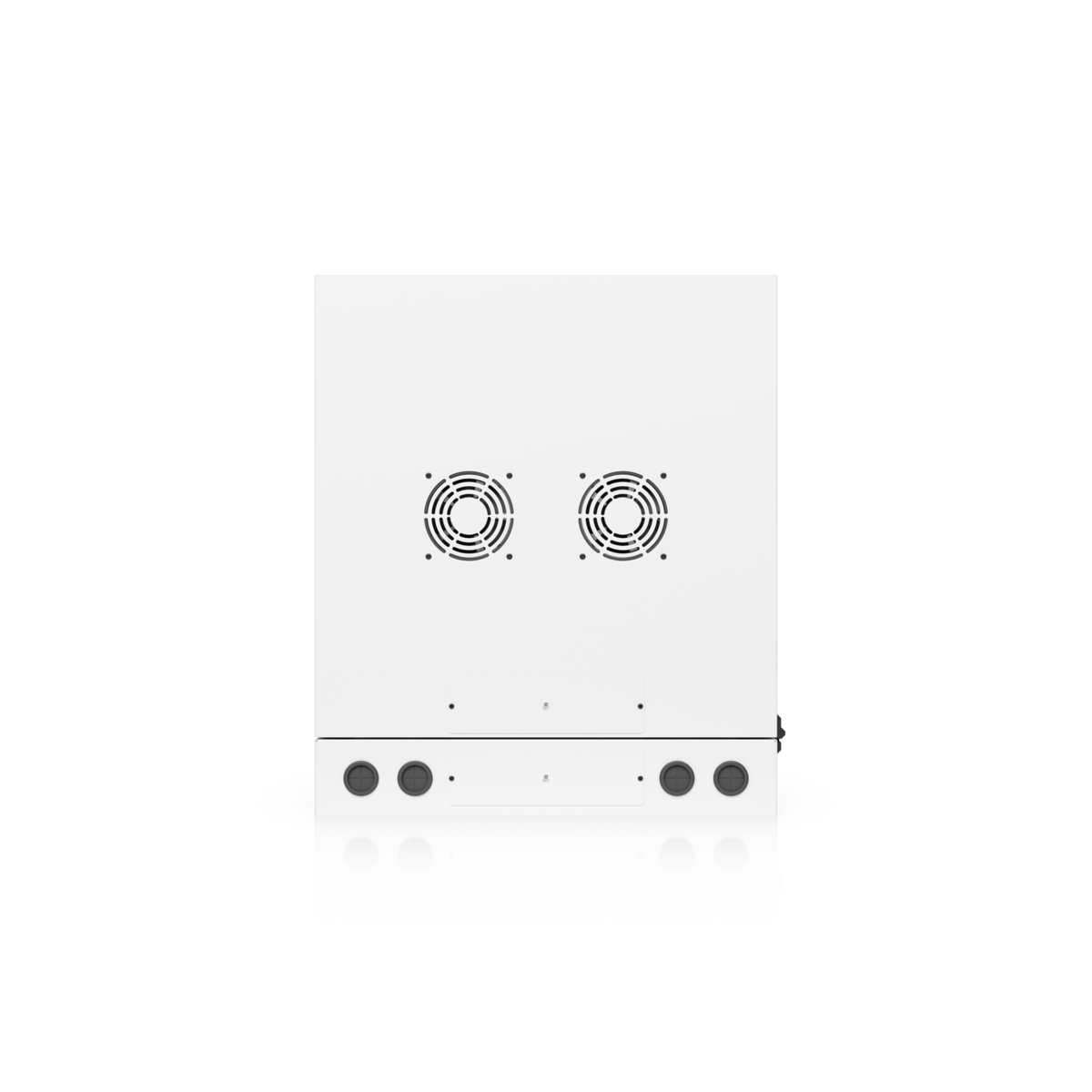

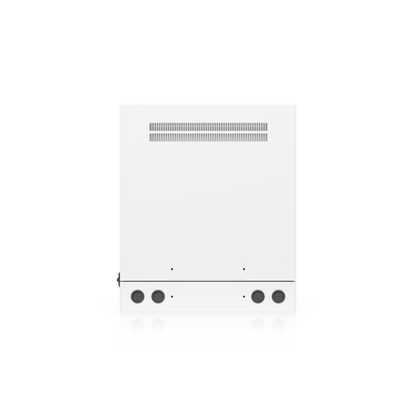

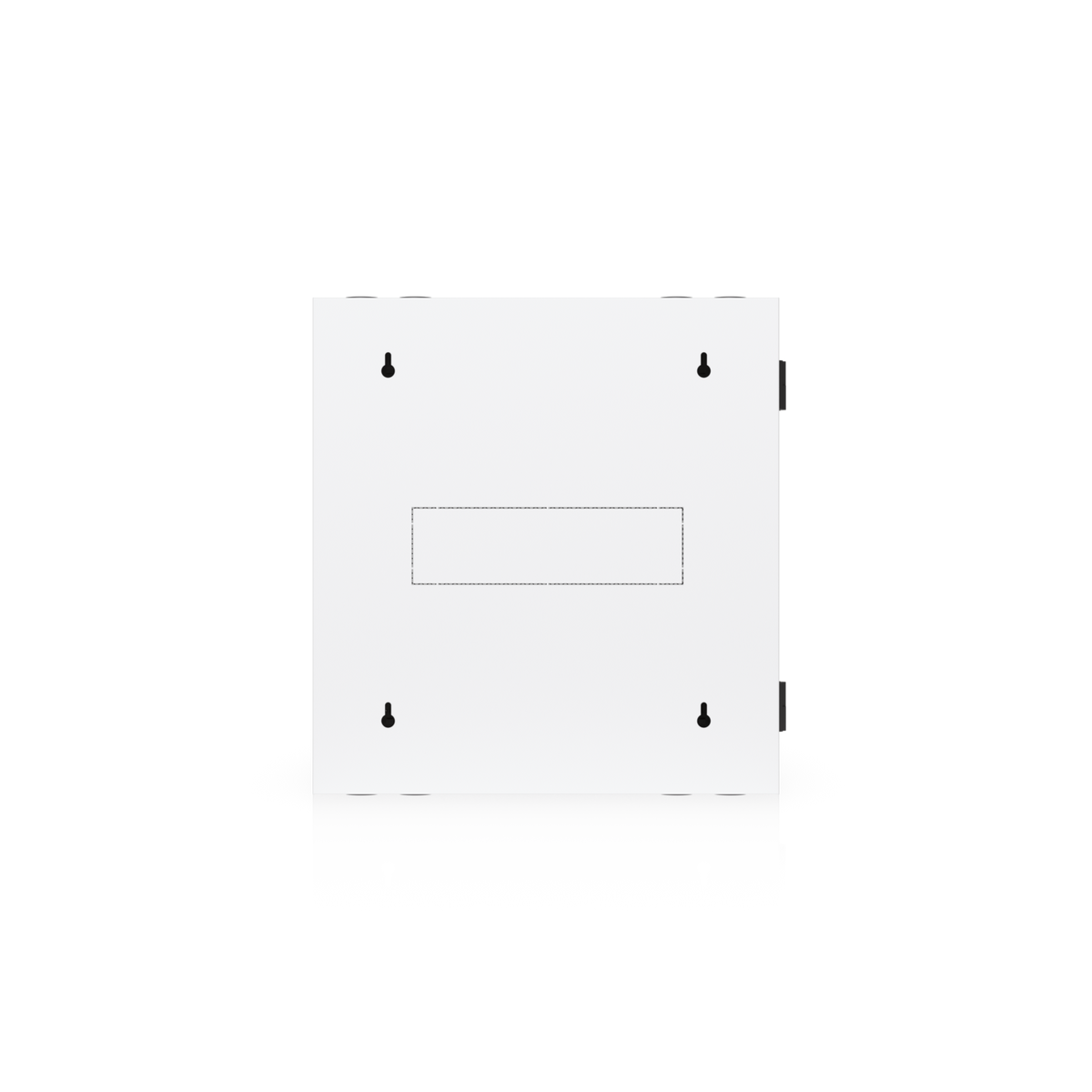

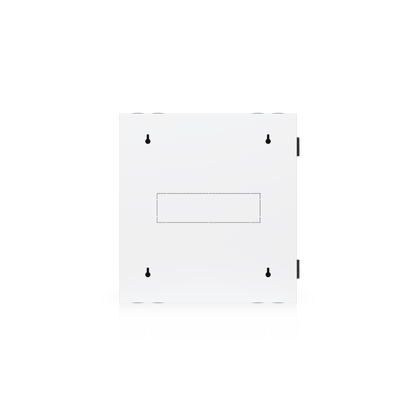

Route cleanly from any direction: a 350 × 100 mm rear-wall opening, two 235 × 62 mm top openings, one 235 × 62 mm bottom opening, and eight 35 mm knockouts split between the top and bottom panels.

Ships fully assembled

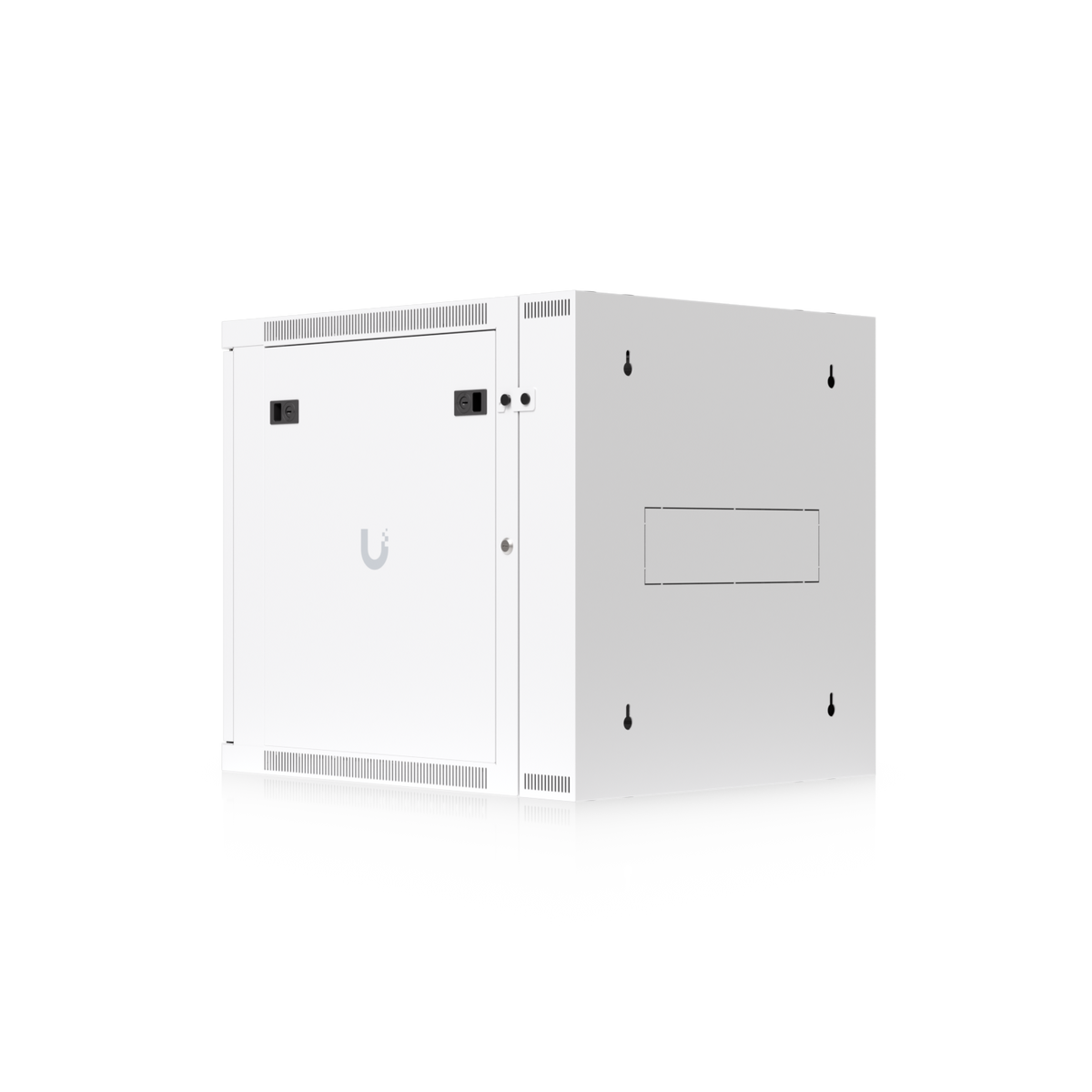

No flat-pack, no missing bolts, no hour lost on the floor of a comms room. The cabinet arrives built at 25.8 kg (56.9 lb) — mount it to a solid wall, load your gear, close the doors.

Built to standard, built to spec

SPCC cold-rolled steel throughout — 1.2 mm doors, side panels and main body, with 2 mm posts — finished in white powder coating. Certified to CE, EIA/ECA-310-E and RoHS, and NDAA compliant for government, education and defence-adjacent procurement.

Who It's For

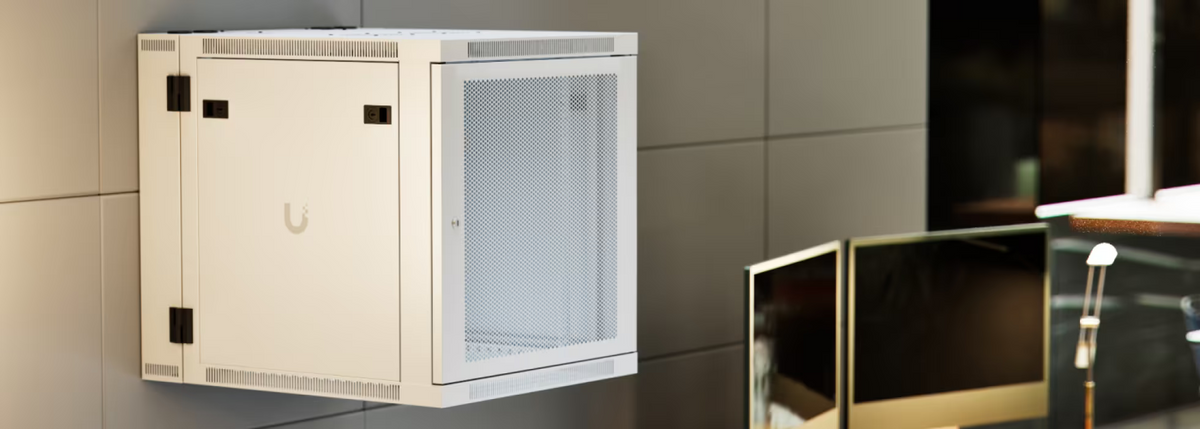

Small offices and branch sites — a complete network stack off the floor and out of reach, in a cupboard or plant room.

Retail and hospitality — POS switching, gateways and NVR gear secured behind six locks in a back-of-house space.

Schools and classrooms blocks — NDAA-compliant procurement, lockable panels, quiet enough for occupied rooms.

Home labs and residential AV — 12U of properly cooled, properly cabled rack space in a garage, utility room or study.

MDU and comms risers — wall-mounted footprint with rear access, where a floor-standing 42U cabinet won't fit.

Shipping Note

Due to size and weight, delivery may be restricted to some residential addresses. This cabinet ships fully assembled and may need extra handling and processing time before dispatch.
