UniFi SnapMount Rack Kit 20-Pack
UniFi SnapMount Rack Kit 20-Pack
SKU:UACC-Rack-PM-Kit
Regular price
$96.00
Regular price
$114.00
Sale price
$96.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
117 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

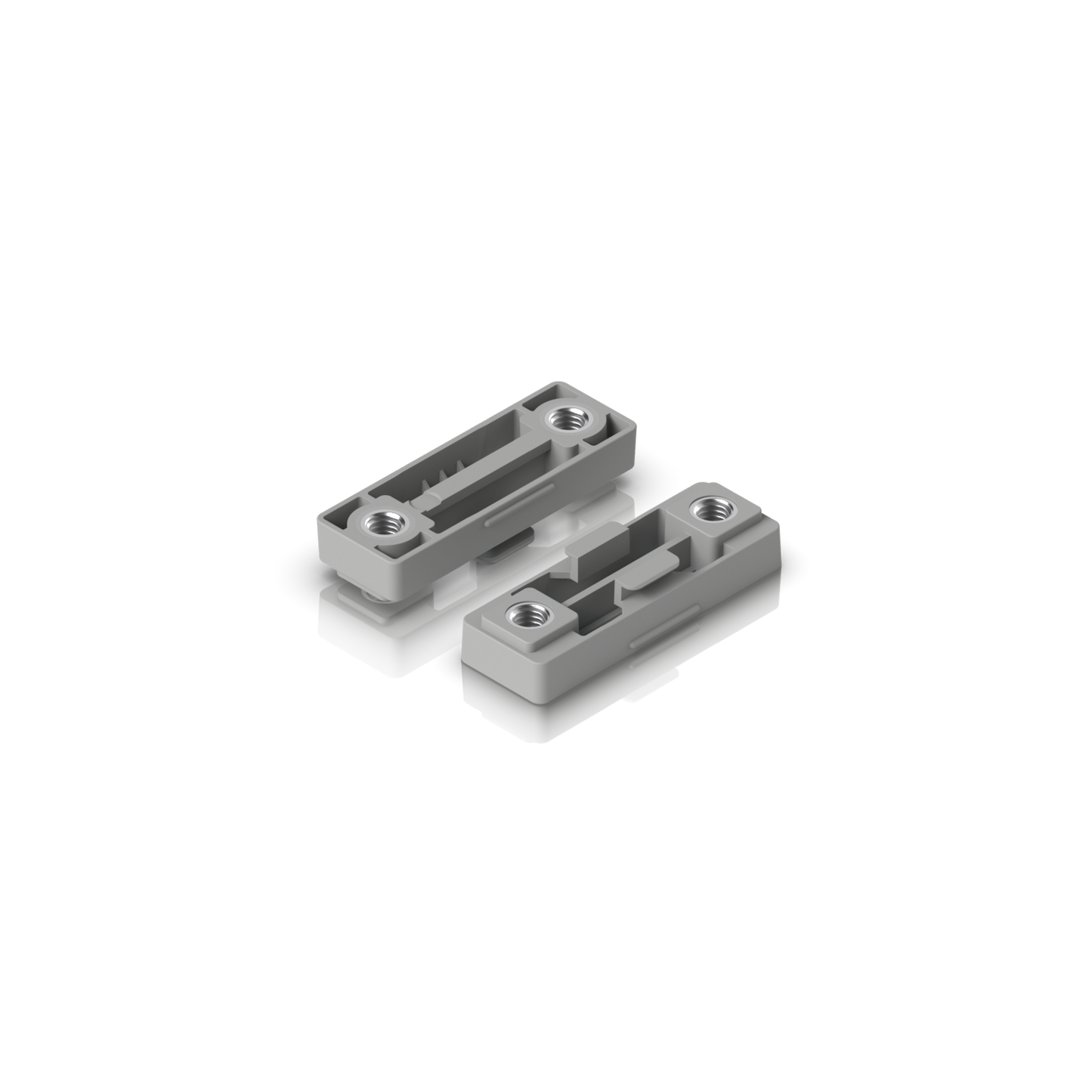

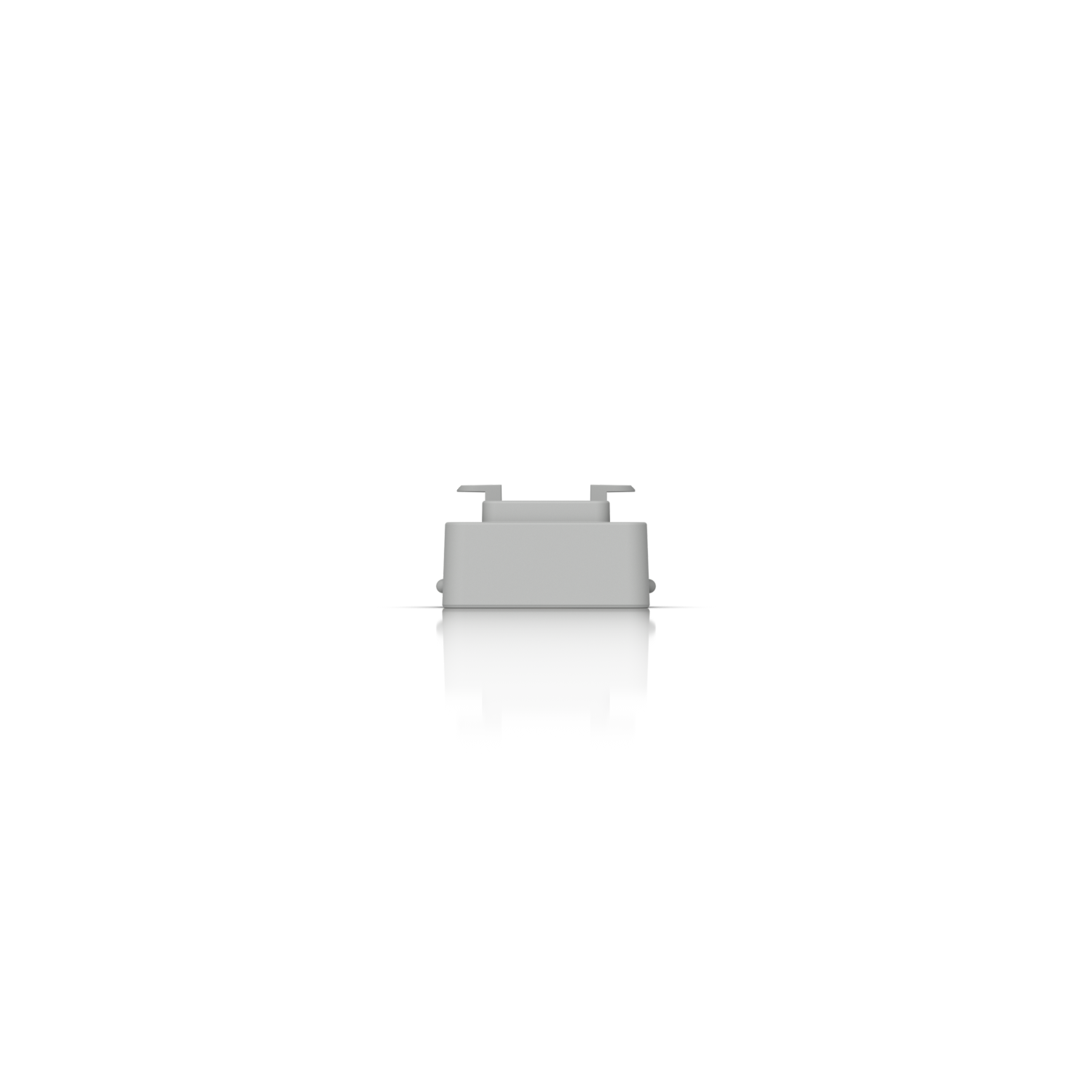

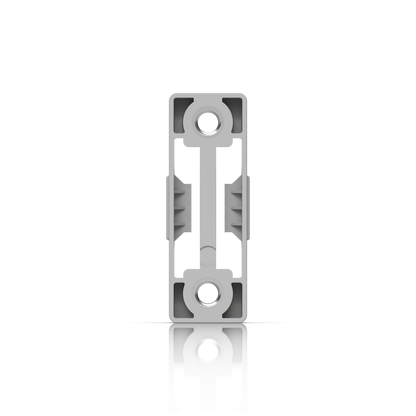

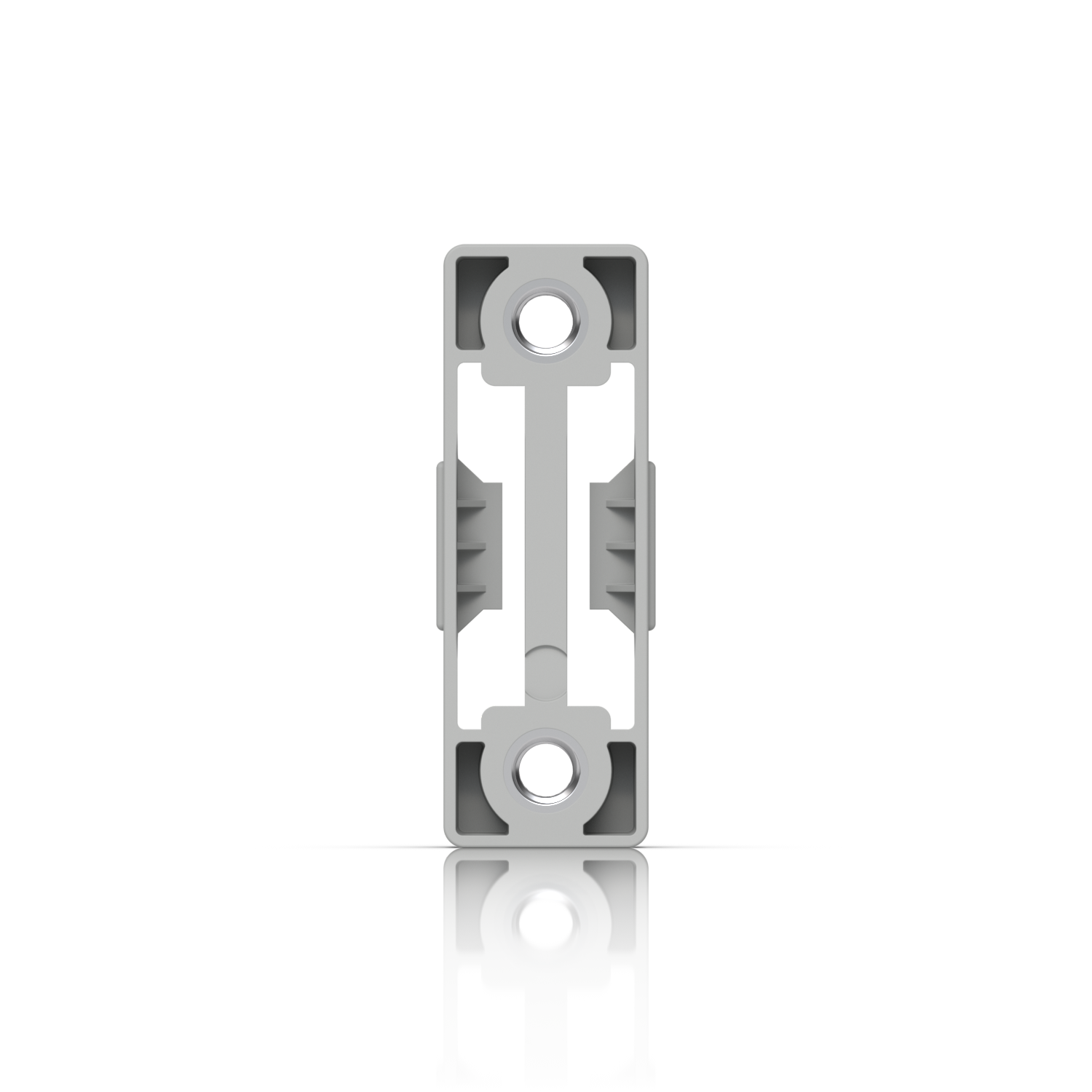

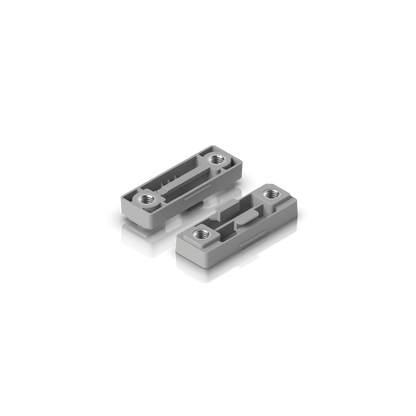

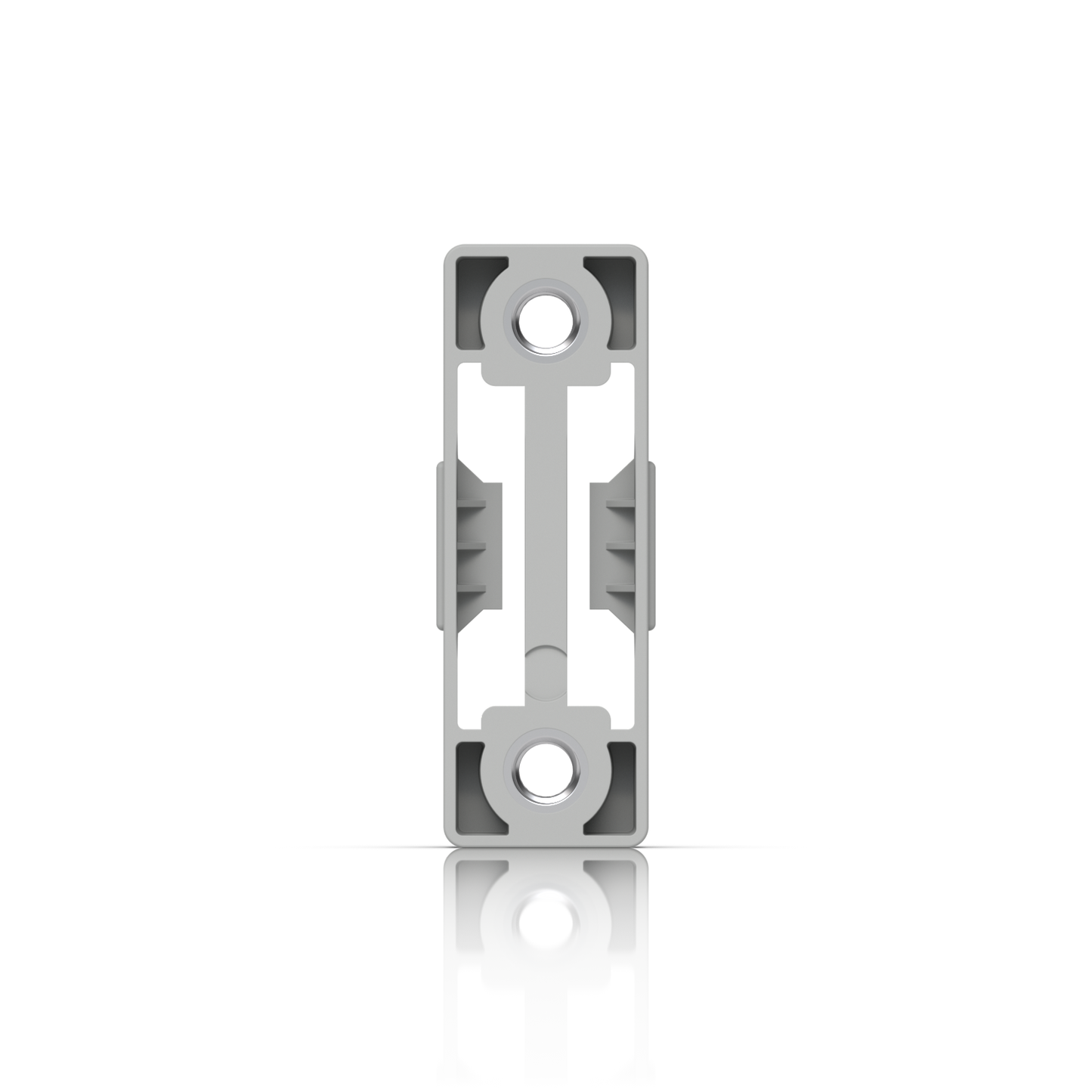

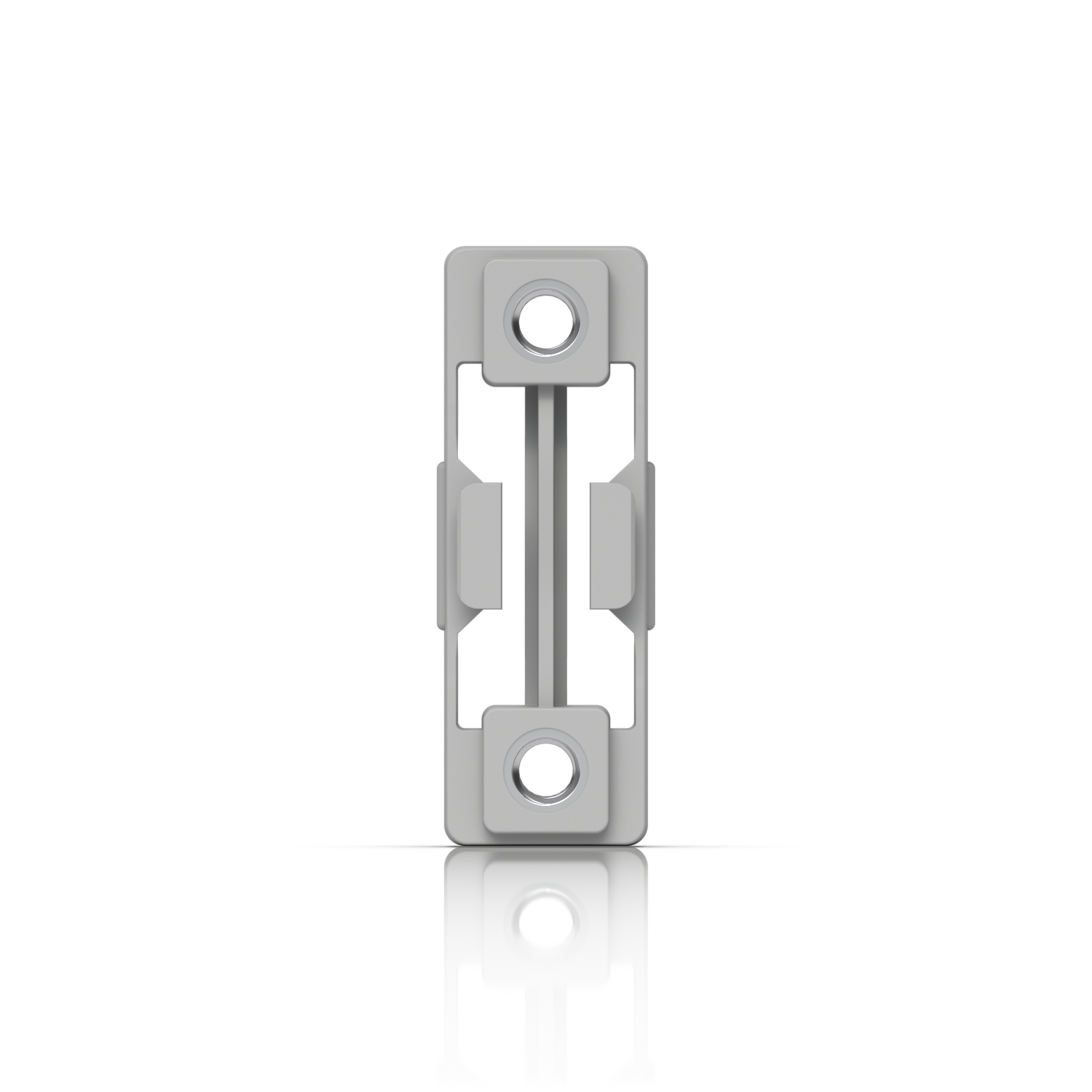

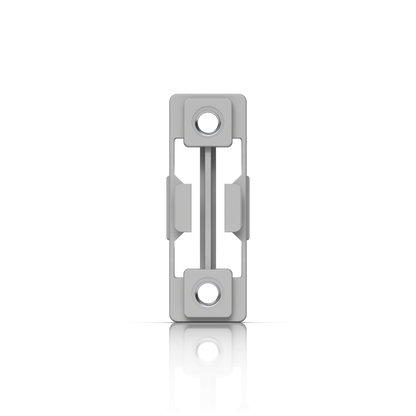

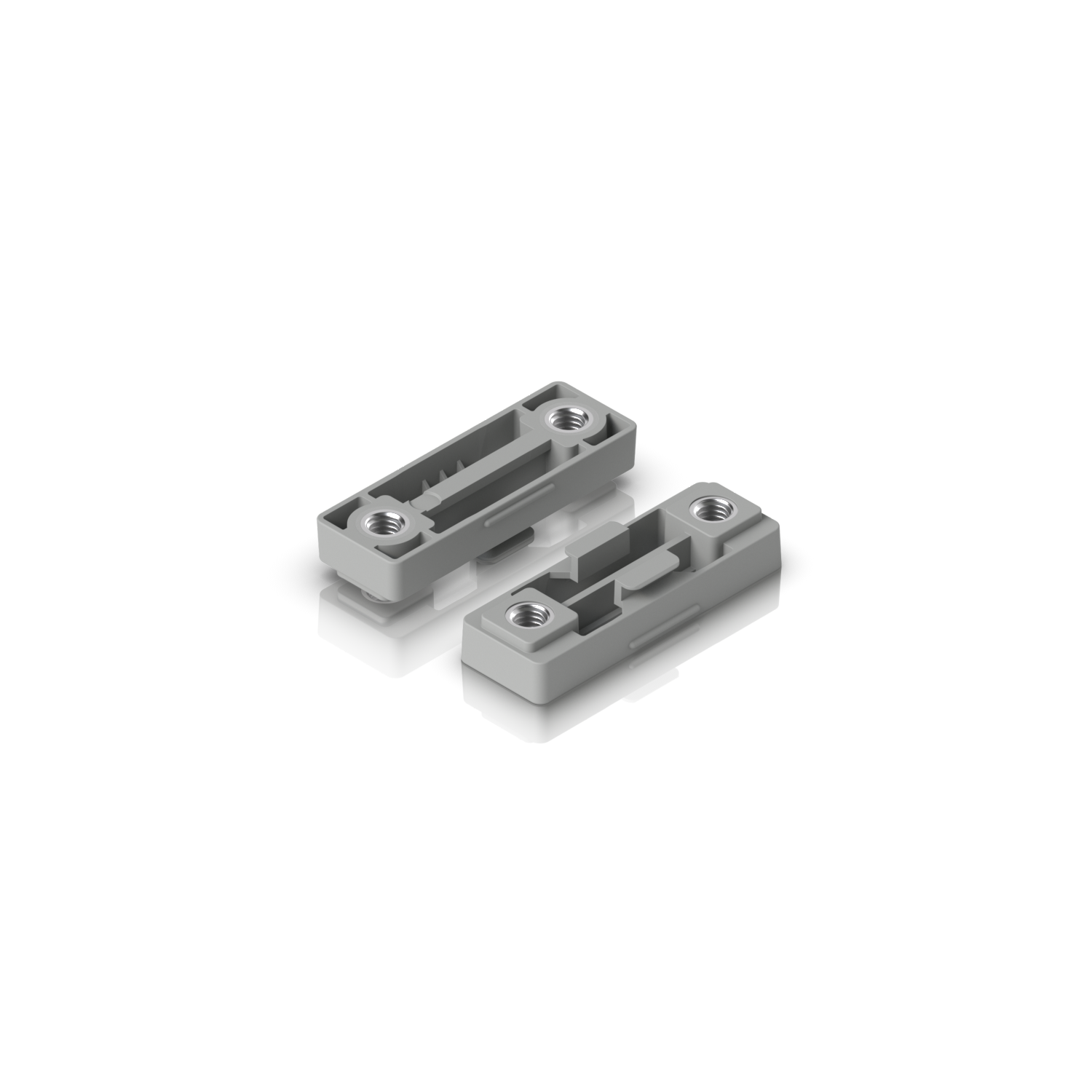

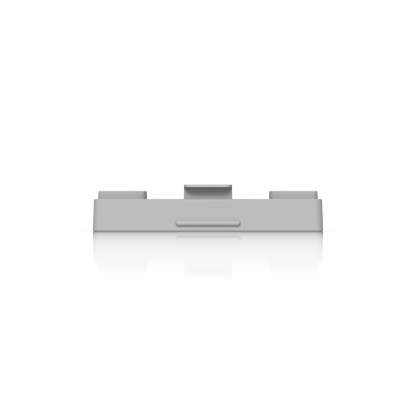

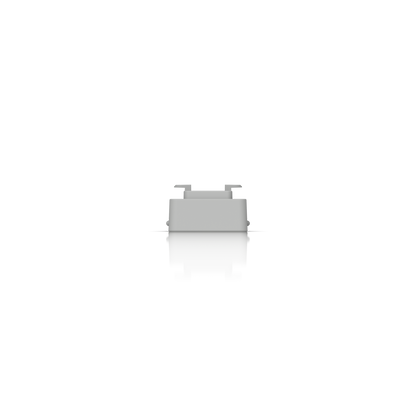

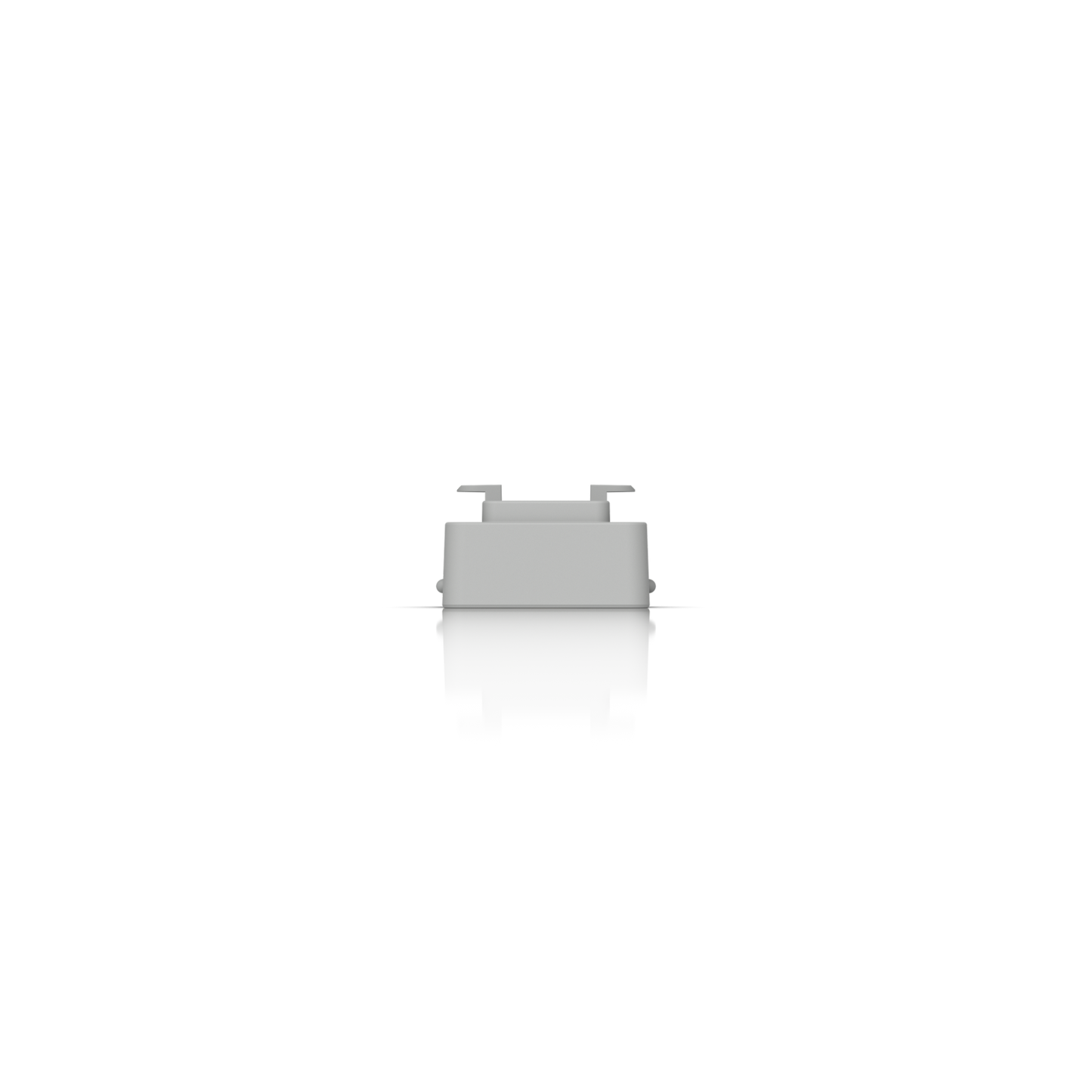

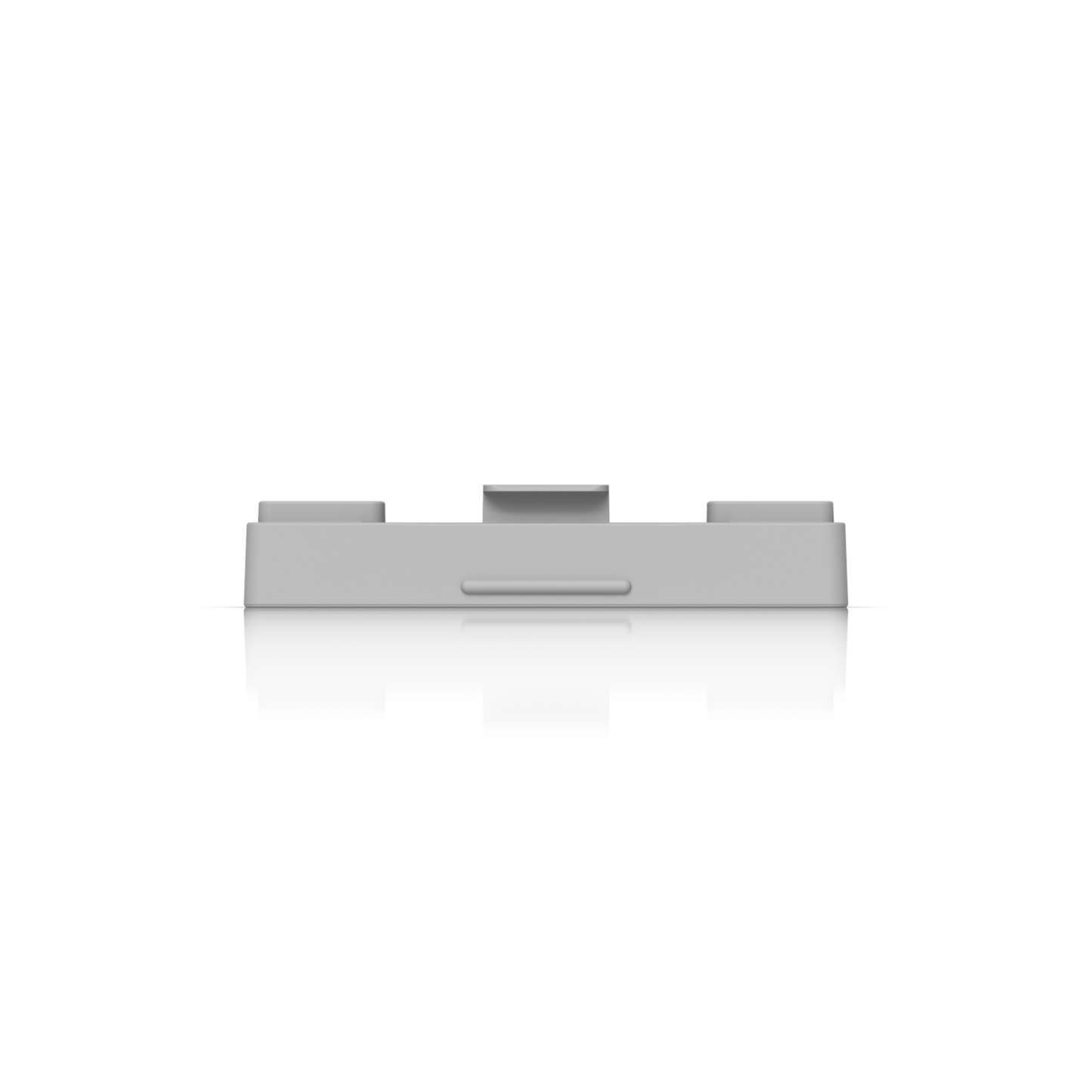

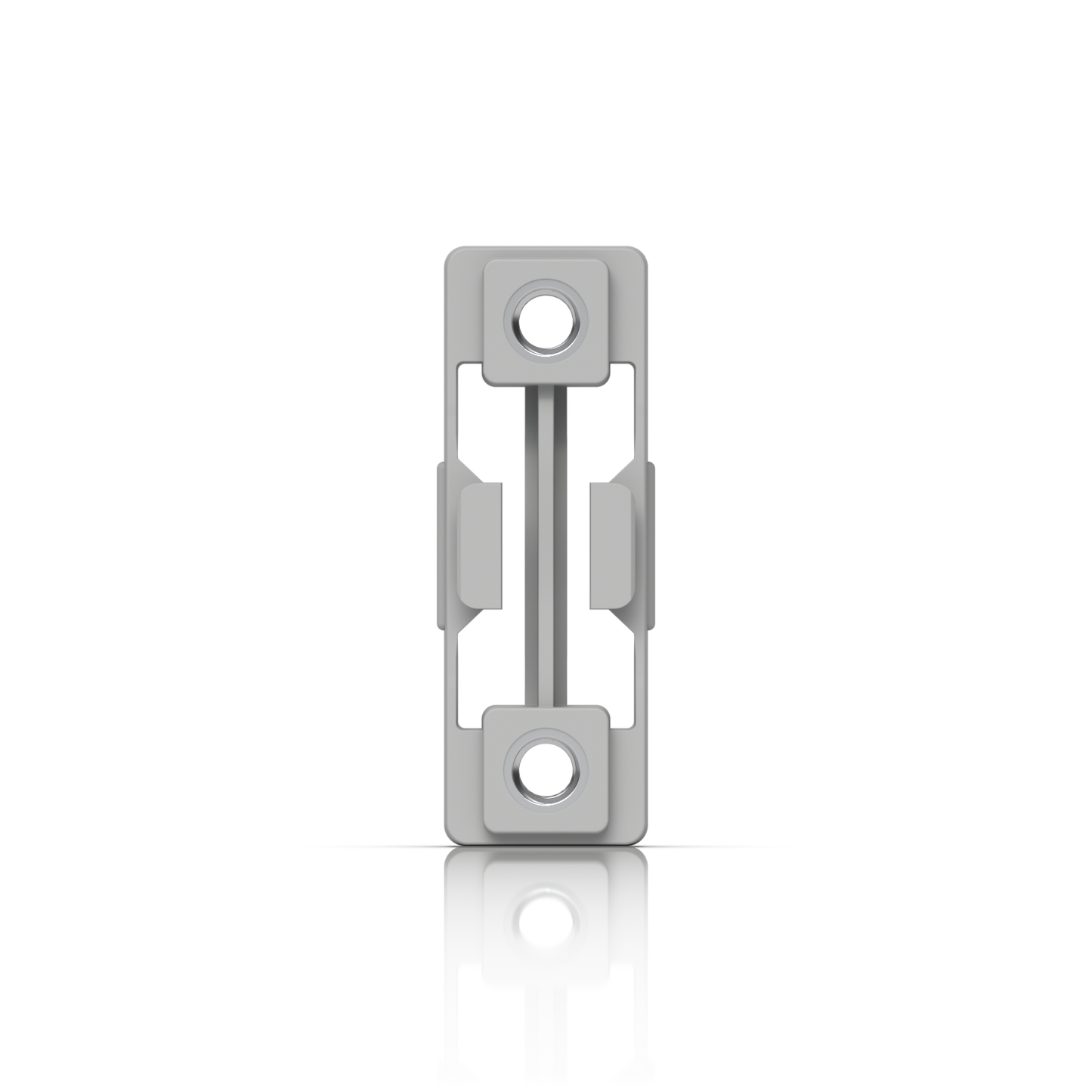

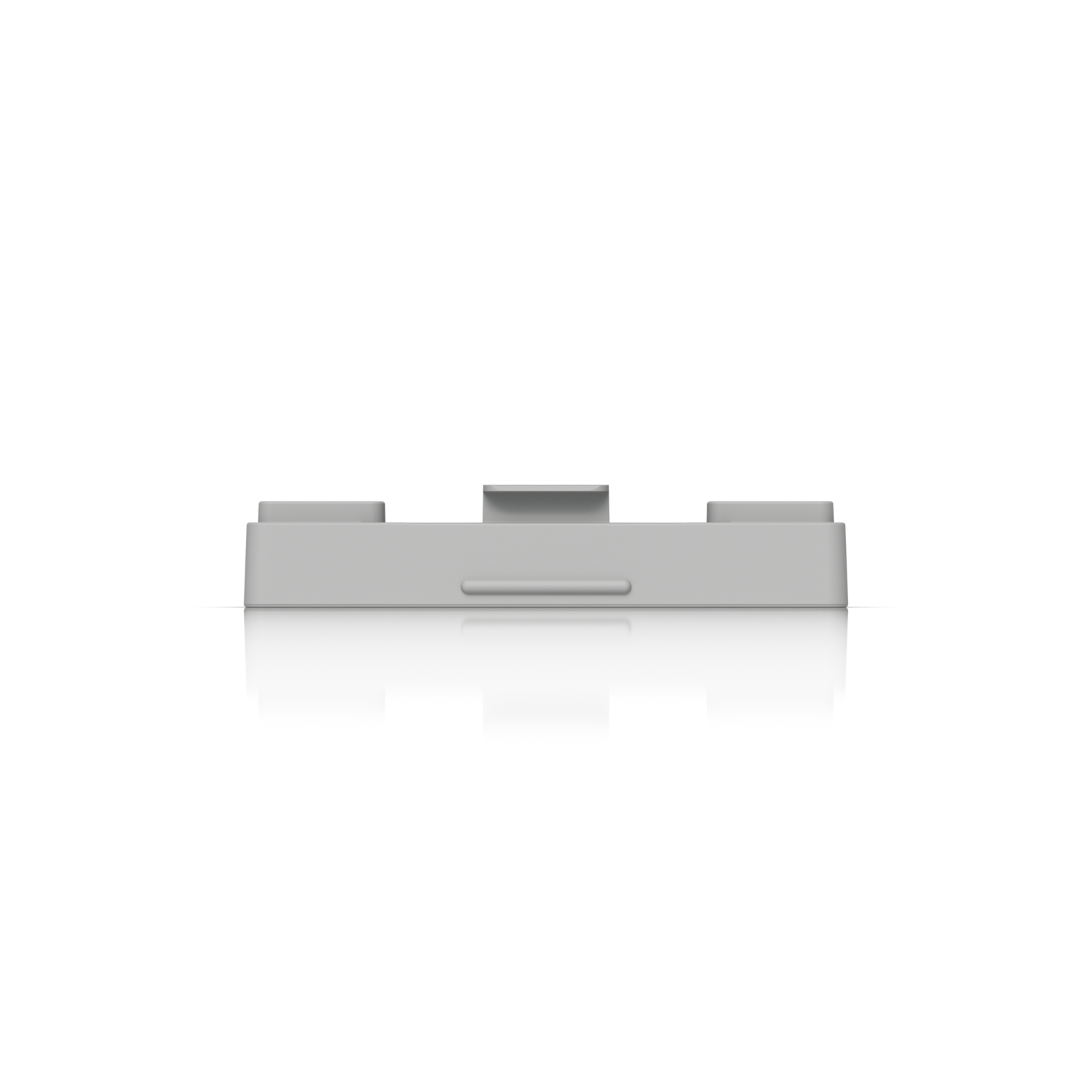

1U snap-in inserts with two vertically aligned cage nuts designed to ensure uniform rack installations.
- Easy installation and removal
- Pair multiple inserts to mount larger devices

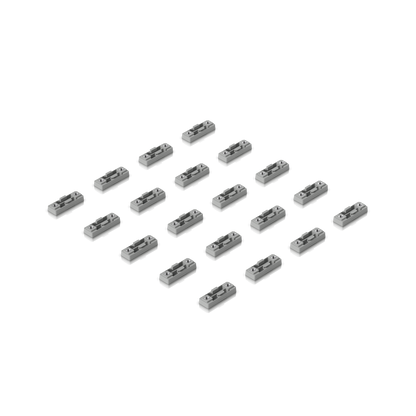

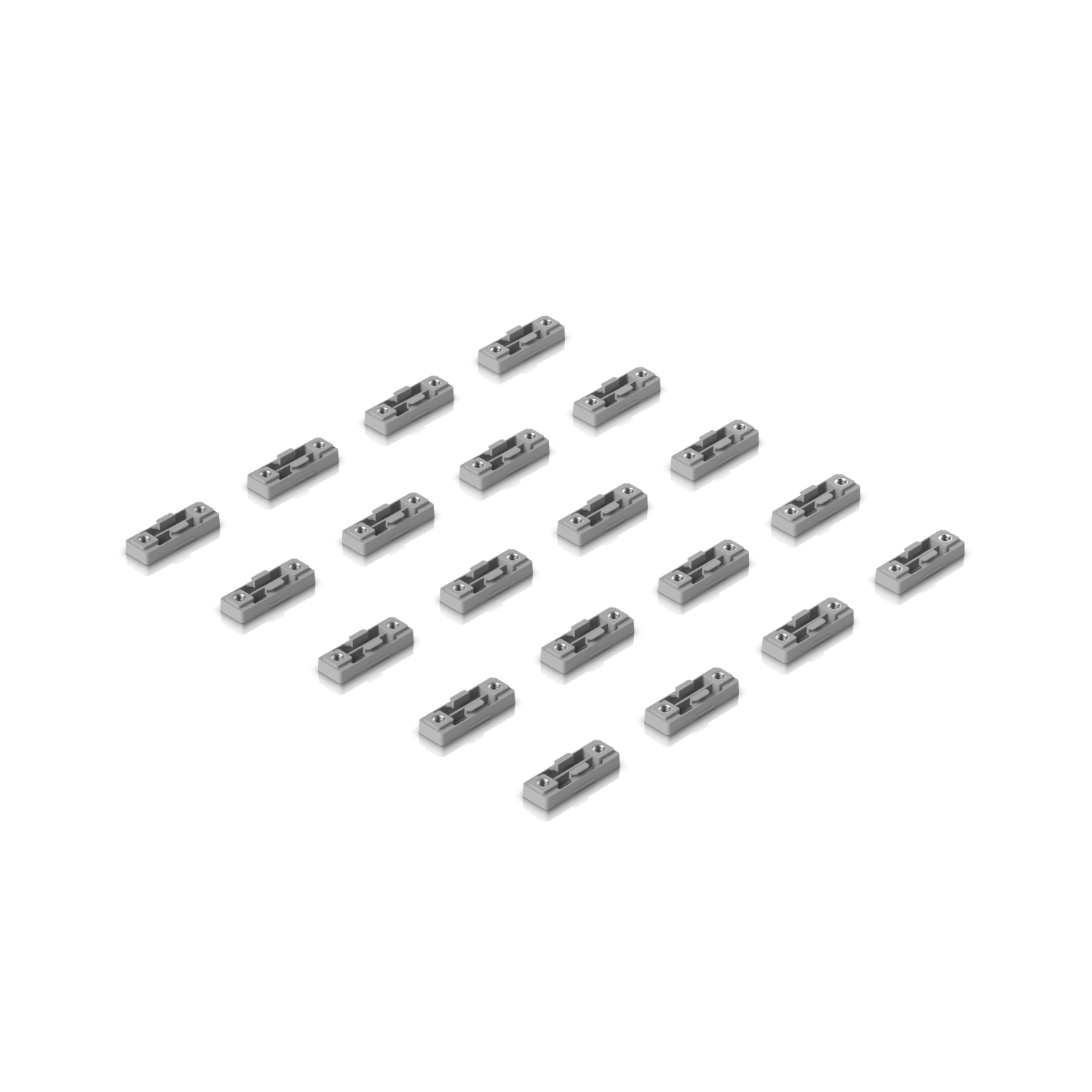

- (20) SnapMount rack inserts per kit
Compatibility:
- UACC-Rack-12U-Wall,
- UACC-Rack-12U-Wall-Slim,
- UACC-Rack-12U-Wall-450-P,
- UACC-Rack-12U-Wall-450-G,
- UACC-Rack-12U-Wall-600-P,
- UACC-Rack-12U-Wall-600-G,
- UACC-Rack-12U-Wall-SW-P,
- UACC-Rack-12U-Wall-SW-G,
- UACC-Rack-42U-800-P,
- UACC-Rack-42U-800-G,
- UACC-Rack-42U-1000-P,
- UACC-Rack-42U-1000-G,
- UACC-Rack-42U.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Specification
| Overview | |
|---|---|
| Dimensions | 42.7 x 15.5 x 8.7 mm (1.7 x 0.6 x 0.34″) |
| Weight | 4 g (0.03 oz) |
| Material | Thermoplastic (PA66) |
| Treatment | Texture |
| Rack Rail Thickness | Up to 2.2 mm (0.08") |
| Screws | #10-32 |
| Strength |
Precision Rack Mount inserts have been tested and qualified with the following shear forces: 1U: Supports devices with a depth of up to 400 mm and a maximum weight of 10 kg. 2U: Supports devices with a depth of up to 325 mm and a maximum weight of 20 kg. It is recommended to support installed devices from the rear if depth exceeds 400 mm for 1U or 325 mm for 2U. |
| Pack Options | 20-Pack (for 10U installation) |
