UniFi SuperLink Gateway for Protect Sensors
Ubiquiti UP-SuperLink UniFi SuperLink Gateway for Protect Sensors
SKU:UP-SuperLink
Regular price
$269.00
Regular price
$289.00
Sale price
$269.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Sale ending soon! Limited promotional stock available — don’t miss out!
Low stock: 2 left
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty

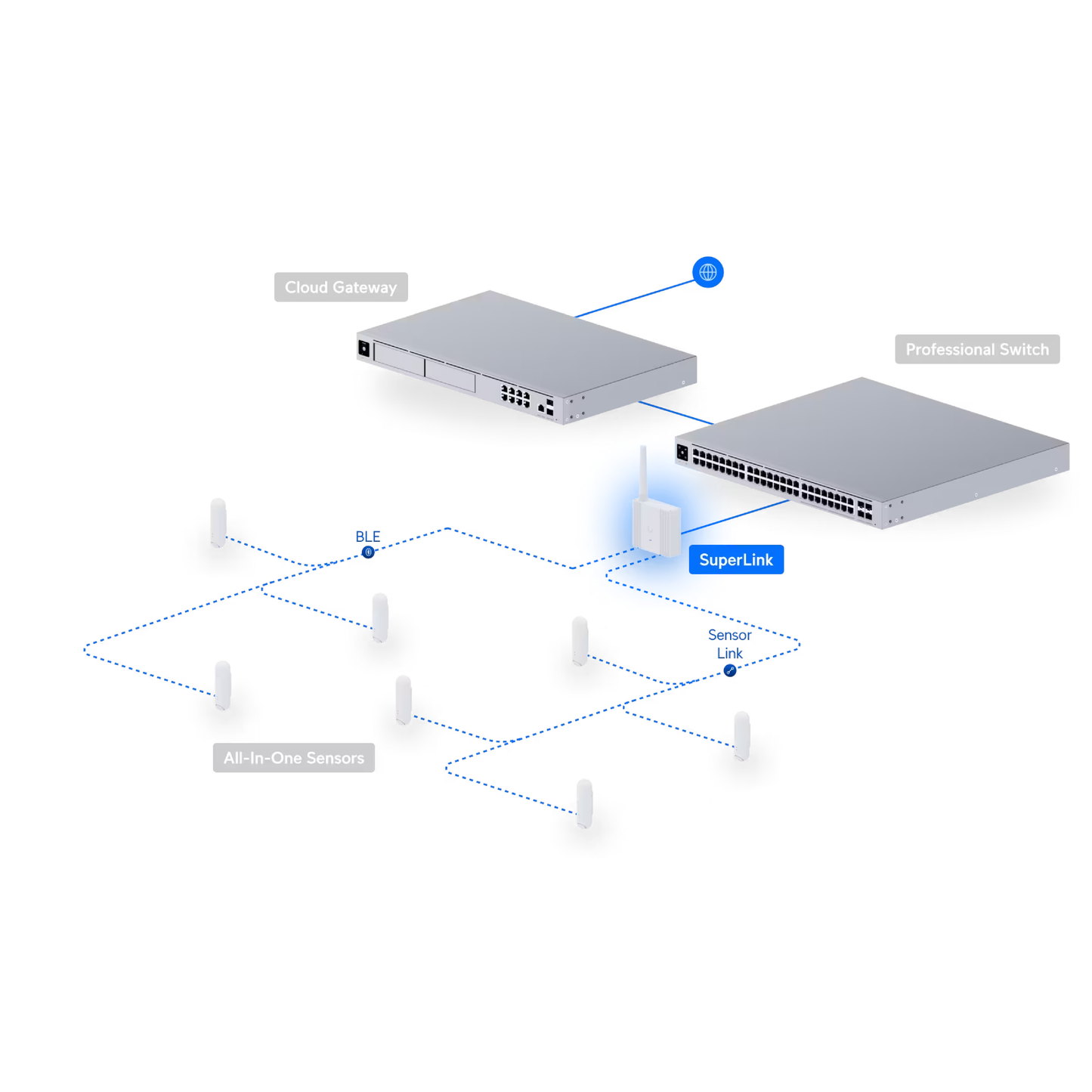

Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
- 96 SuperLink clients with up to 2 km link range (line of sight).
- 7 UP-Sense (BLE) devices with improved long-range connectivity.
- Powered using PoE or USB Type-C.

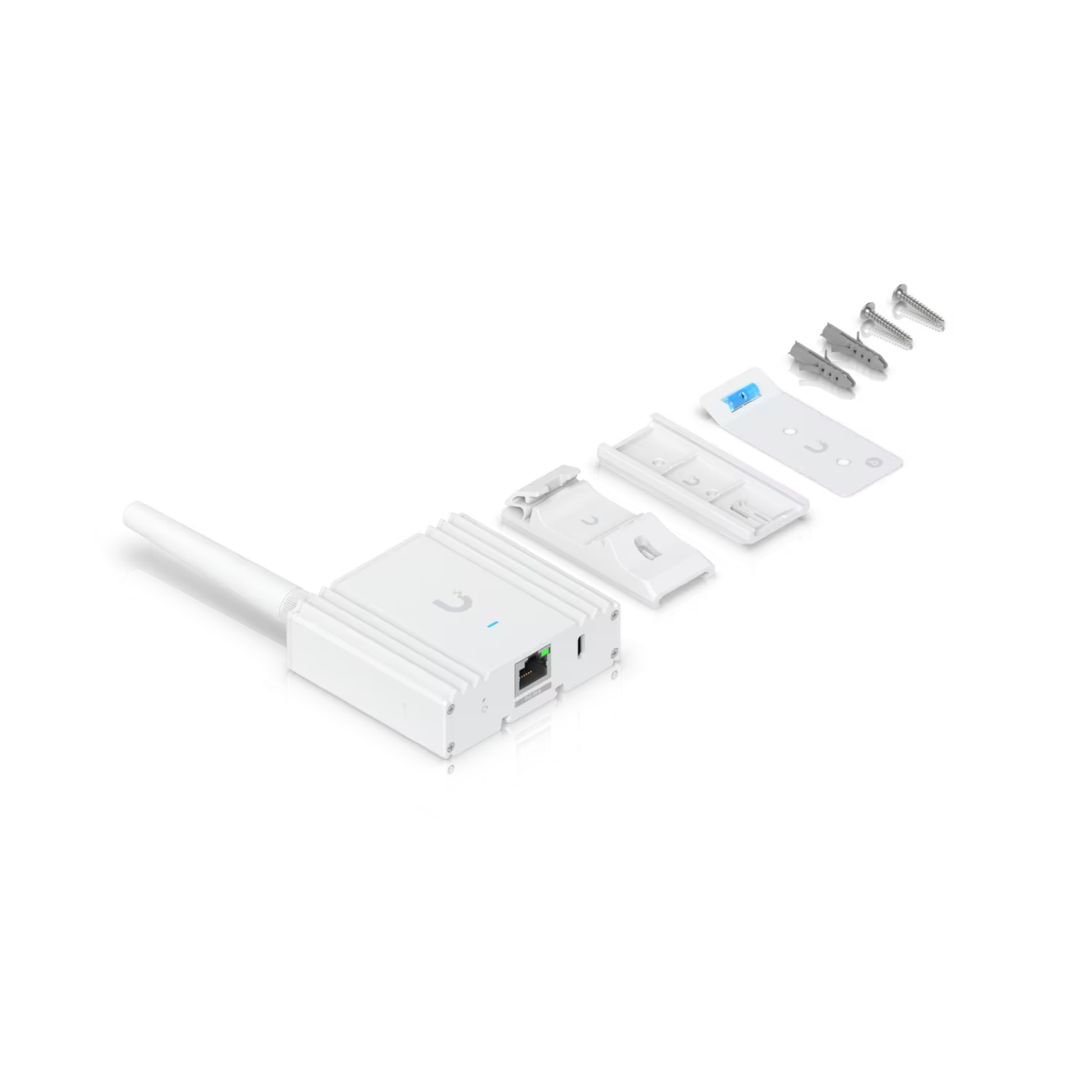

- Wall and DIN rail mount options.
| Mechanical | |
|---|---|
| Dimensions |

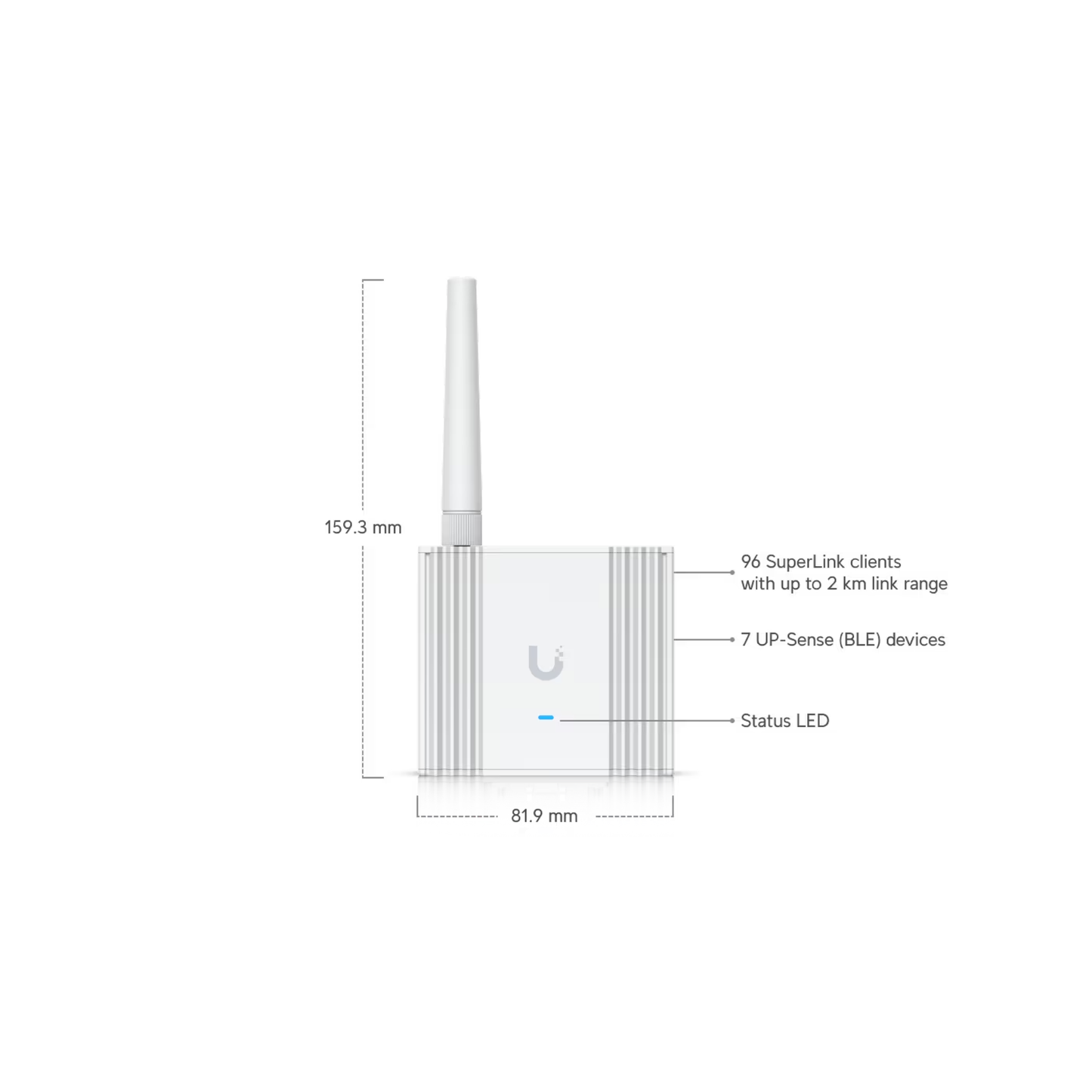

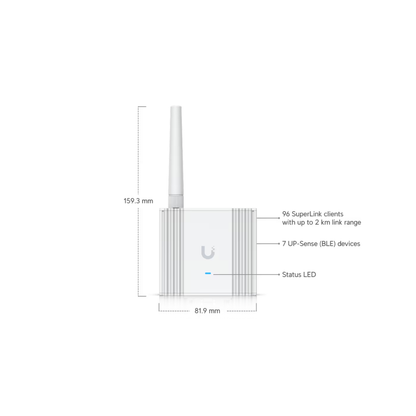

With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Weight | 179 g (6.3 oz) |
| Enclosure material | Polycarbonate, aluminum alloy |
| Mount material | Polycarbonate |
| Hardware | |

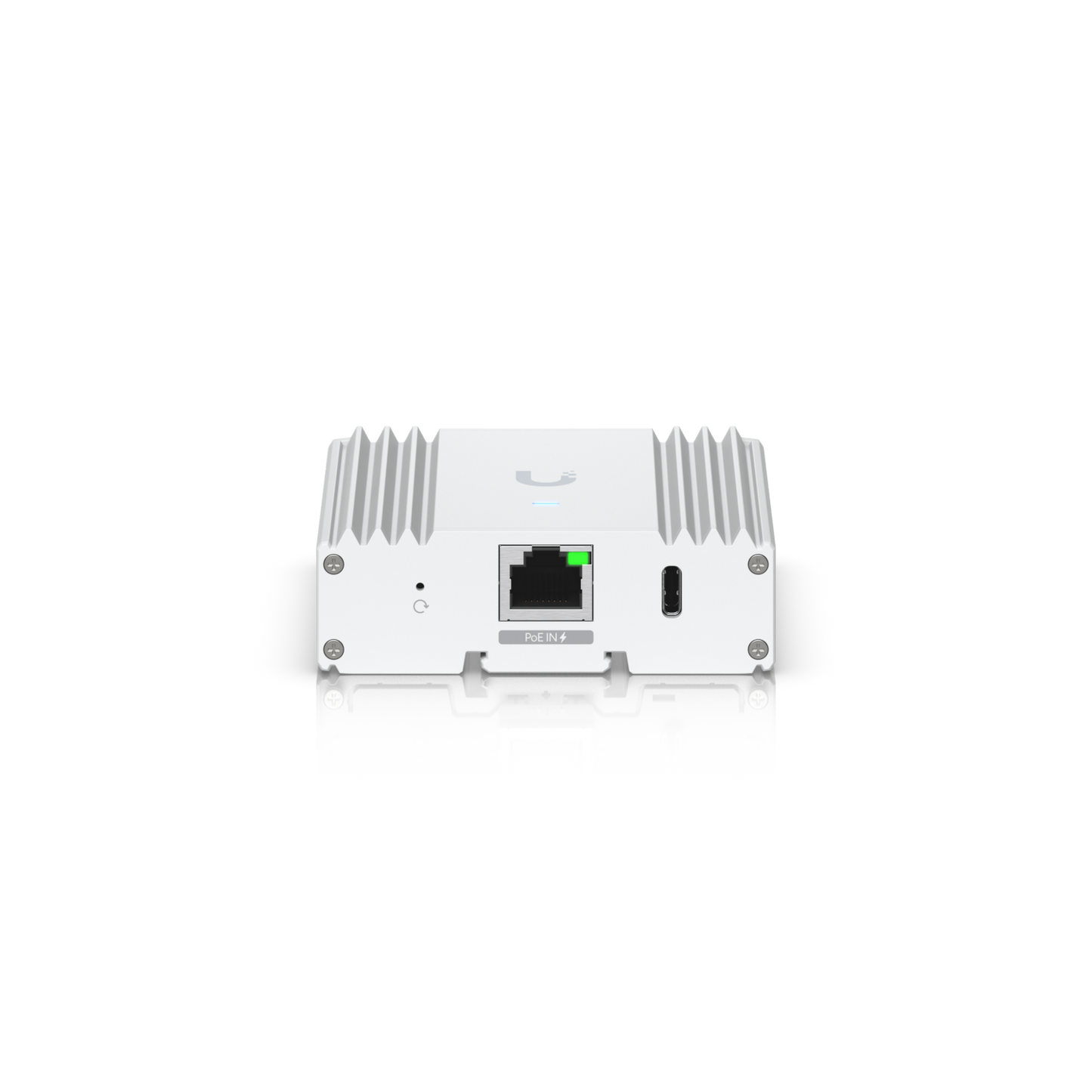

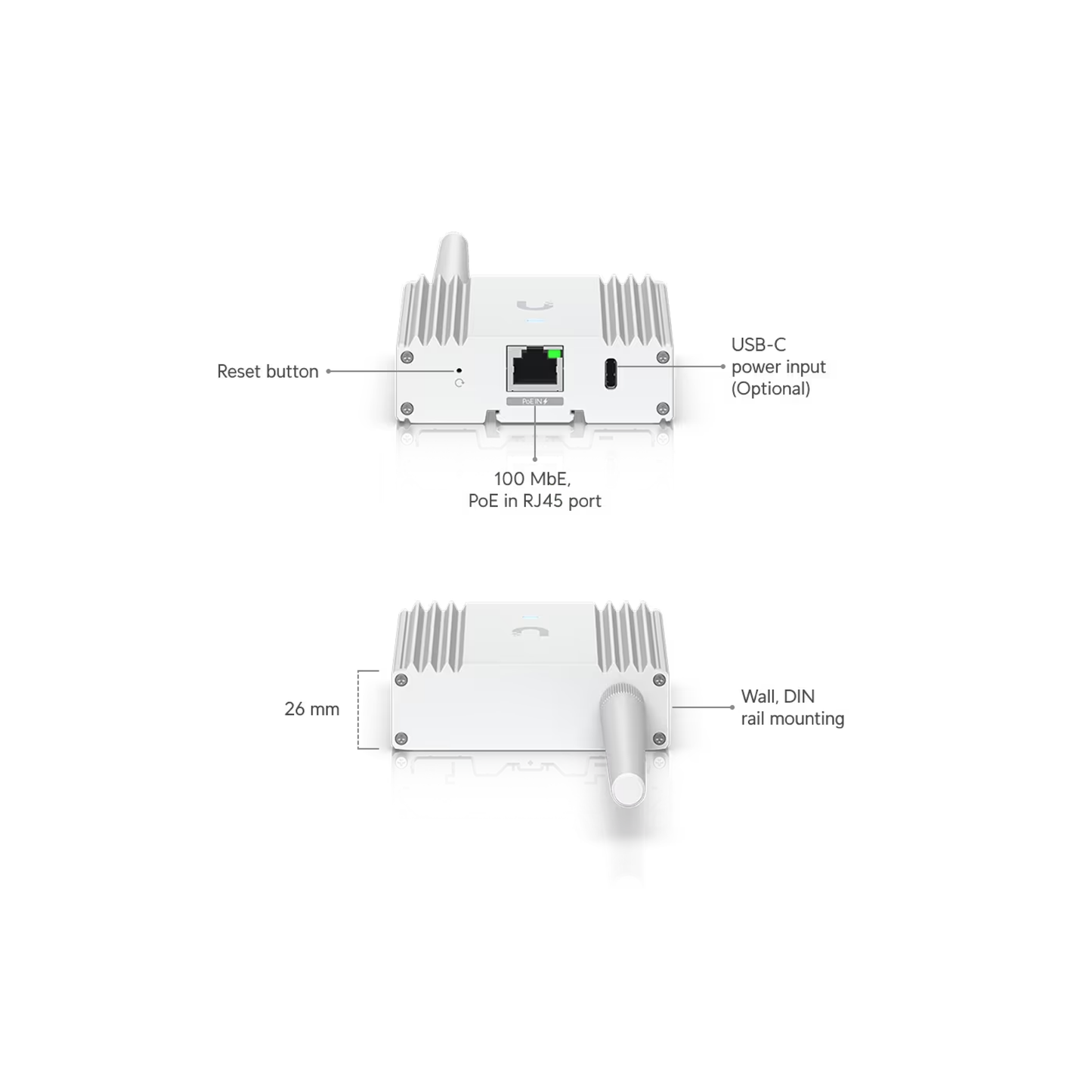

| Networking interface | (1) 10/100 MbE RJ45 port |
| Management interface |
Bluetooth® 5.2 SuperLink (Proprietary) |
| Power method |
PoE USB Type-C, 5V, 1A (Optional) |
| Max. power consumption | 3.4W |
| ESD/EMP protection |
Air: ± 8kV Contact: ± 4kV |
| Antenna gain |
Bluetooth: 3 dBi SuperLink: 1 dBi |
| Max. TX power |
Bluetooth: 10 dBm SuperLink: 27 dBm |
| Max. client count |
Bluetooth: 7 SuperLink: 96 (SuperLink sensors are coming soon.) |
| LED | (1) Blue/white |
| Button | (1) Factory reset |
| Mounting | Wall, DIN rail |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Visit Ubiquiti for more information.
