airFiber 2X — UISP PtP Wireless
airFiber 2X — UISP PtP Wireless
Regular price
$866.00
Regular price
$866.00
Sale price
$866.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Business purchase? Contact us below for bulk discounts!
SKU:AF-2X
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
![Ubiquiti airFiber 2X](http://bits-mart.com/cdn/shop/files/ubiquiti-airfiber-2x-uisp-ptp-wireless-1.png?v=1701828071&width=1445)
![Ubiquiti airFiber 2X](http://bits-mart.com/cdn/shop/files/ubiquiti-airfiber-2x-uisp-ptp-wireless-2.png?v=1701828070&width=1445)
![Ubiquiti airFiber 2X](http://bits-mart.com/cdn/shop/files/ubiquiti-airfiber-2x-uisp-ptp-wireless-3.png?v=1701828071&width=1445)
![Ubiquiti airFiber 2X](http://bits-mart.com/cdn/shop/files/ubiquiti-airfiber-2x-uisp-ptp-wireless-4.png?v=1701855478&width=1445)

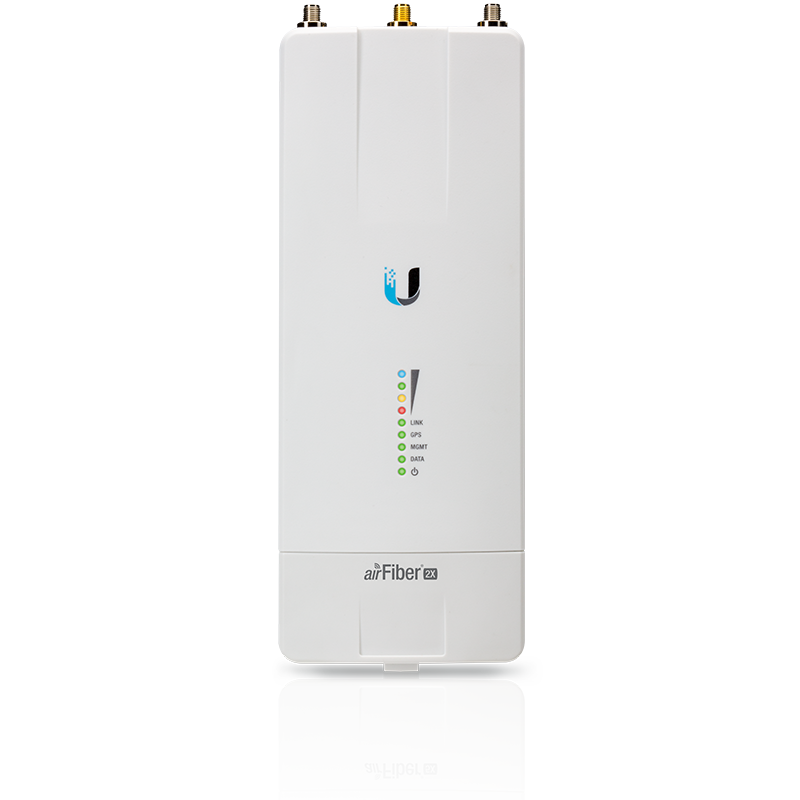

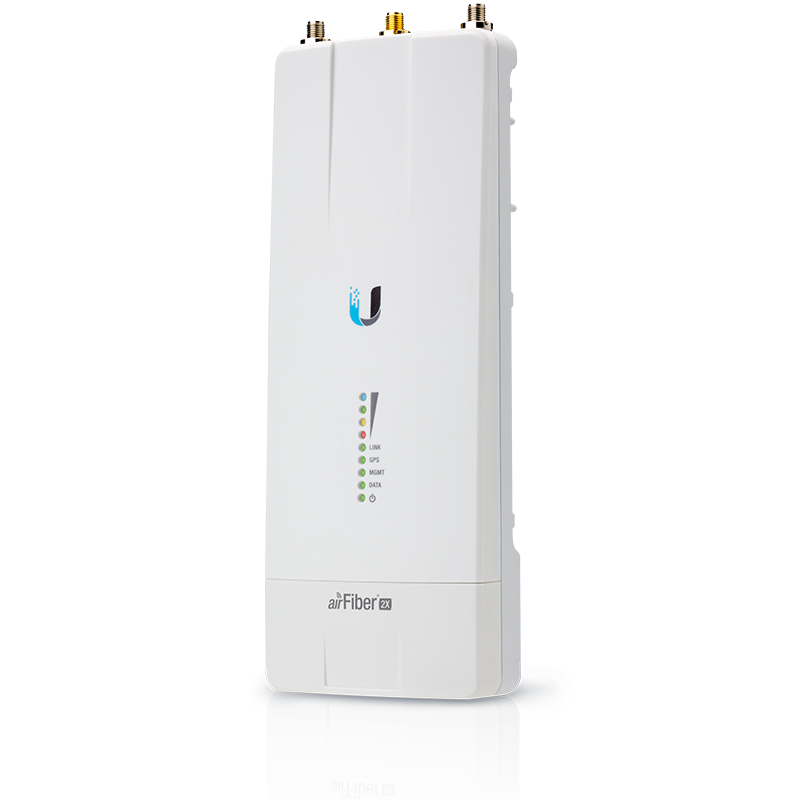

Establish a high-capacity, Point-to-Point (PtP) bridge or backbone network link with efficiency.
- 2.4 GHz frequency, over 200 km link range
- Throughput exceeding 680 Mbps
- Built-in GPS synchronisation
- Capability of processing more than 1 million packets per second
Mechanical | |
---|---|

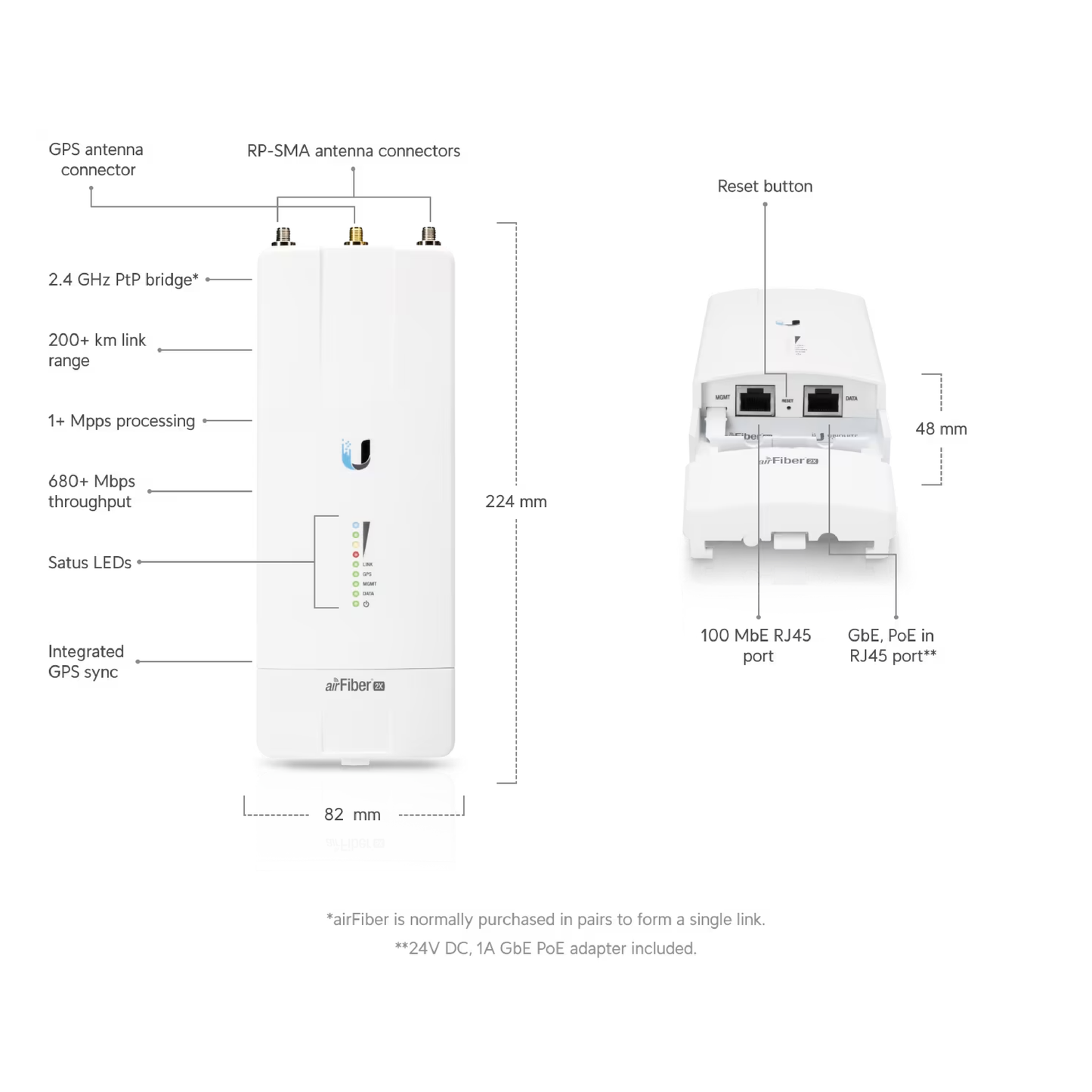

Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
Weight | 0.35 kg (0.77 lb) |
Mounting | airFiber X mount (Rocket mount compatible) GPS pole mount (Included) |
Hardware | |

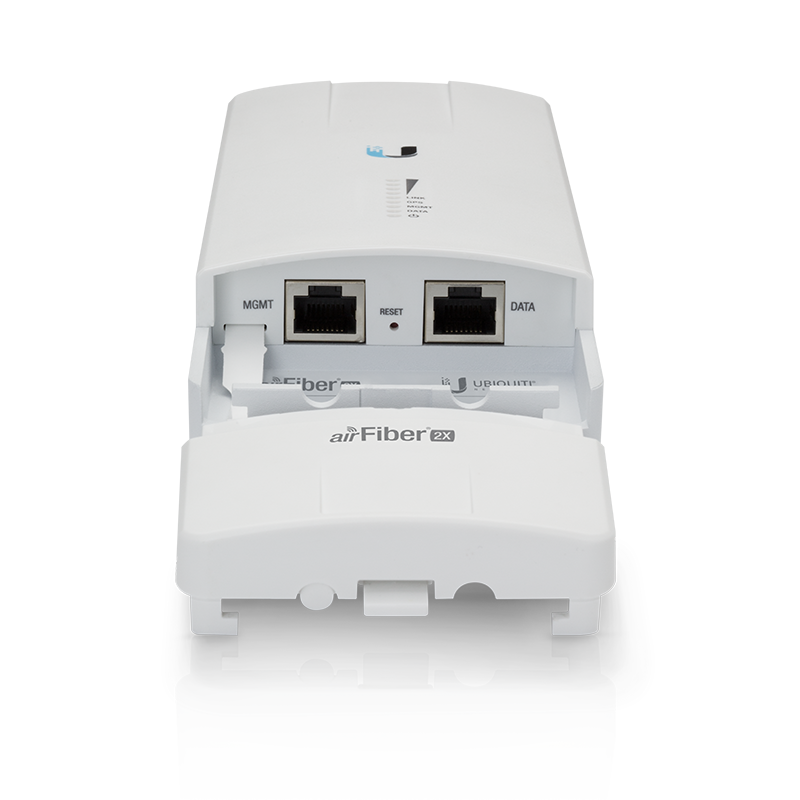

Networking Interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
Power method | Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) |
Power supply | 24V, 1A PoE Gigabit adapter (Included) |
Max. power consumption | 17W at power/duty cycle |
Supported voltage range | 19-29V DC |
GPS antenna | External, magnetic base |
Operating temperature | -40 to 55° C (-40 to 131° F) |
Certifications | CE, FCC, IC |
Software | |
Modes | PtP Master/Slave |
System | |
Max. throughput | 525 Mbps |
Max. range | 200+ km |
Encryption | 128-bit AES |
RF | |
Operating frequency | 2.4 GHz |
Max TX power* | 30 dBm *Depends on regional regulations. |
Frequency accuracy | ± 2.5 ppm without GPS synchronization ± 0.2 ppm with GPS synchronization |
Channel bandwidth* | 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable Programmable Uplink and Downlink duty cycles Independently programmable TX and RX frequencies * Channel widths may vary according to country/region regulations. |
