Ubiquiti

UniFi PoE+ Adapter

Ubiquiti U-POE-at UniFi PoE+ Adapter

U-POE-at

$30.00
$44.00 $30.00
32% Off | Save $14.00 Sold out
Taxes included. Shipping calculated at checkout.

939 in stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

An adapter that can power UniFi PoE+ devices with wireless mesh applications, or offload PoE switch power dependencies.

  • Delivers up to 30W of PoE+.
  • Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR, and other PoE+ devices.
  • Surge, peak pulse, and overcurrent protection.
  • Contains RJ45 data input, AC cable with earth ground, and PoE+ output.

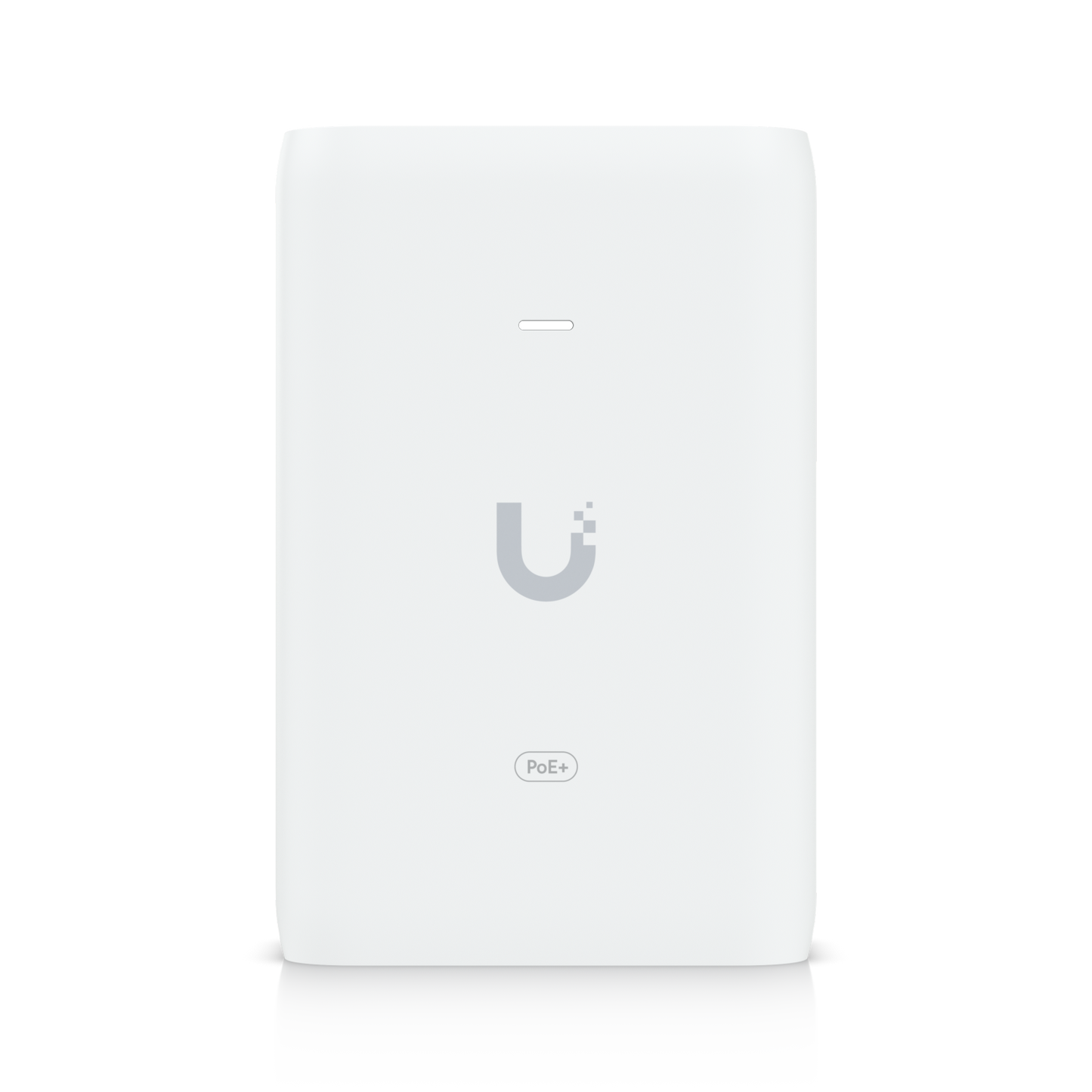

  • LED indicator for status monitoring.

Compatibility:

  • U7-Pro,
  • U7-Pro-Wall,
  • U7-Outdoor,
  • U6-Enterprise,
  • U6-LR,
  • U6-Enterprise-IW,
  • U6-IW,
  • UTP-TouchMax,
  • UVC-AI-DSLR,
  • UVC-AI-Pro.
Specifications
Model U-POE-at
Dimensions 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight 156 g (5.5 oz)
Output voltage 48V DC @ 0.65A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 0.75A Max.
Inrush current <100A peak at 26_
Efficiency 87%
Output ripple 1% max.
Switching frequency 70 kHz max.
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and 7, 8 (-)
4-pair powering No

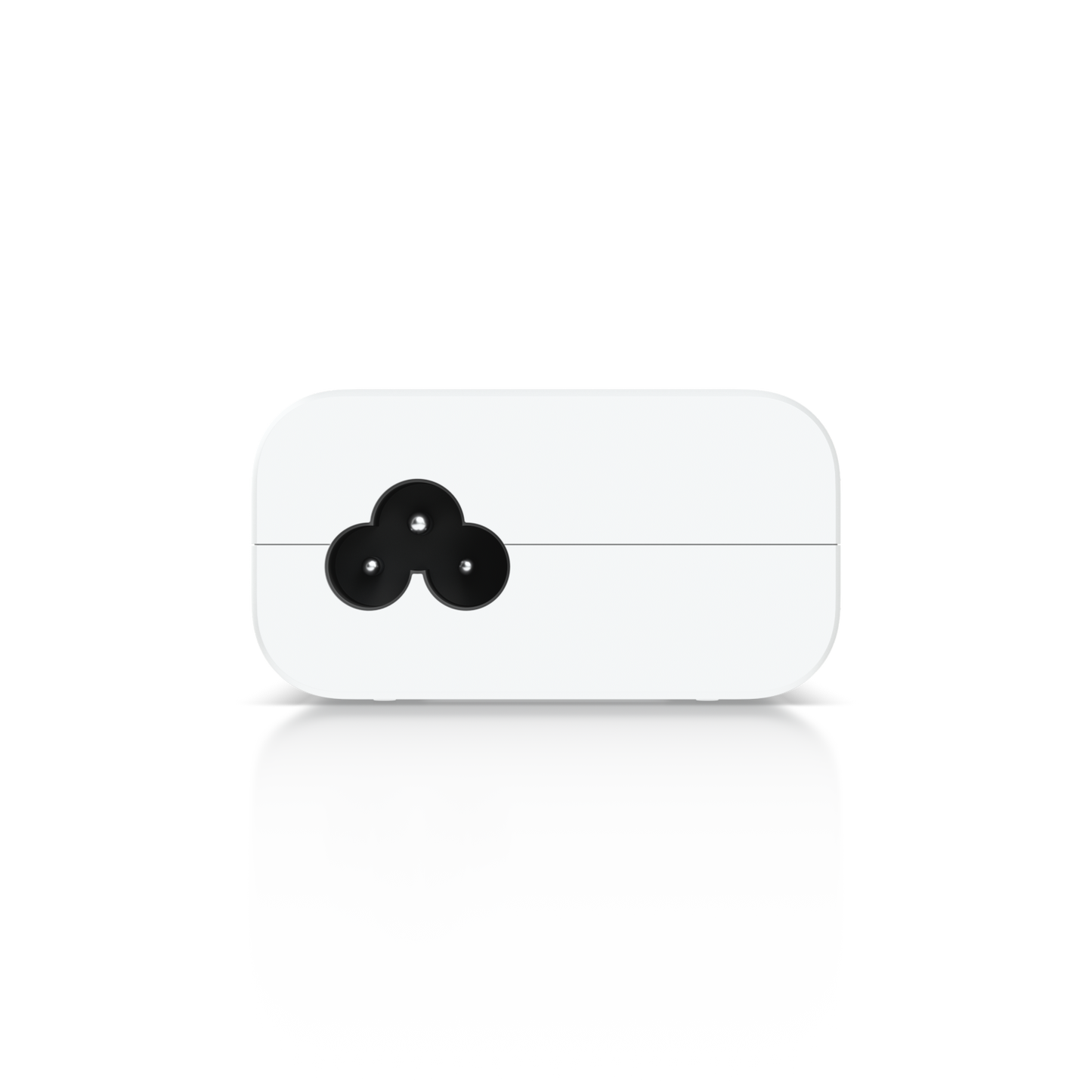

AC connector IEC-320 C6

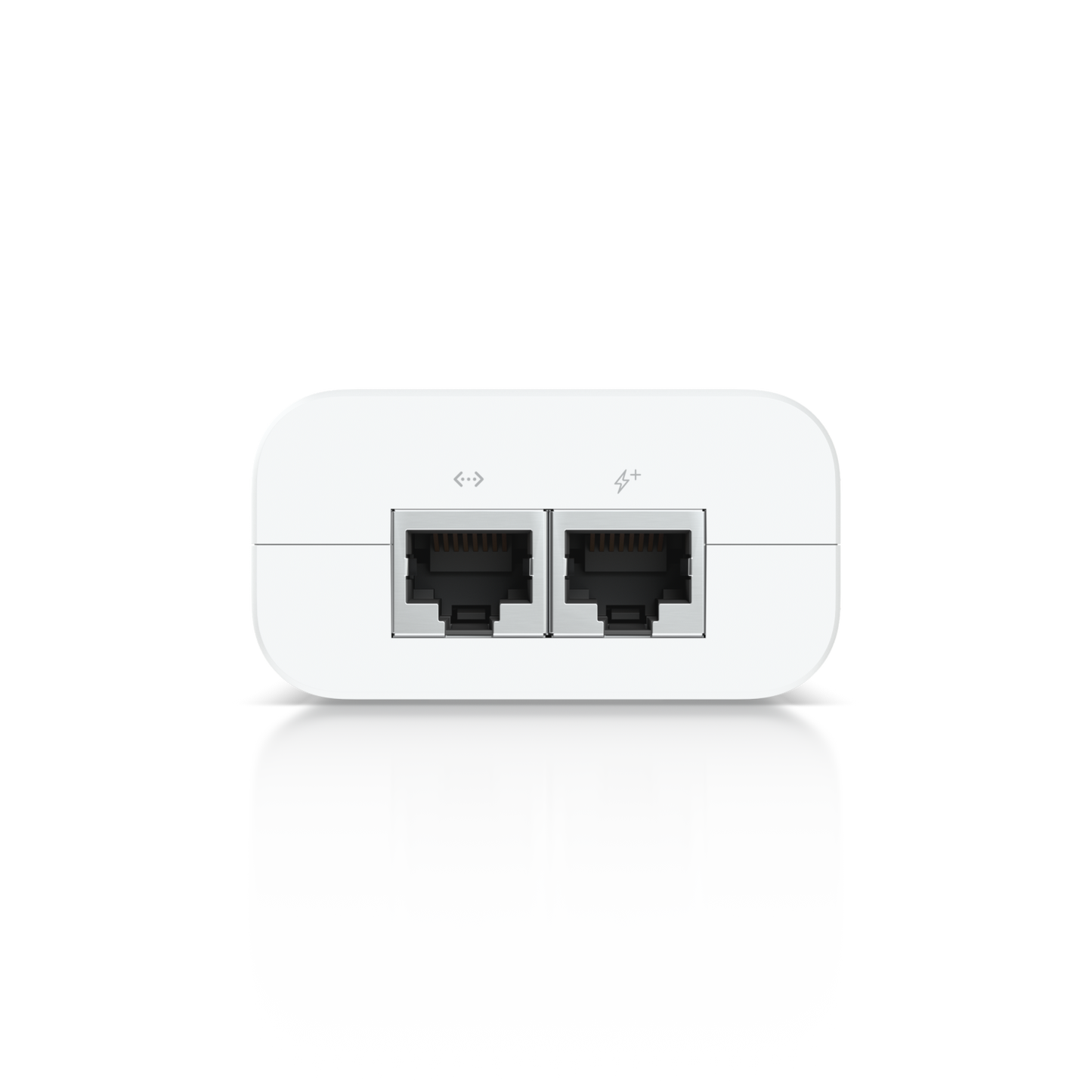

Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 _s) power
Peak pulse current 36A (10/1000 _s) data
Shunt capacitance <5 pF data
Response time <1 ns
Operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Operating humidity 10 to 95% noncondensing

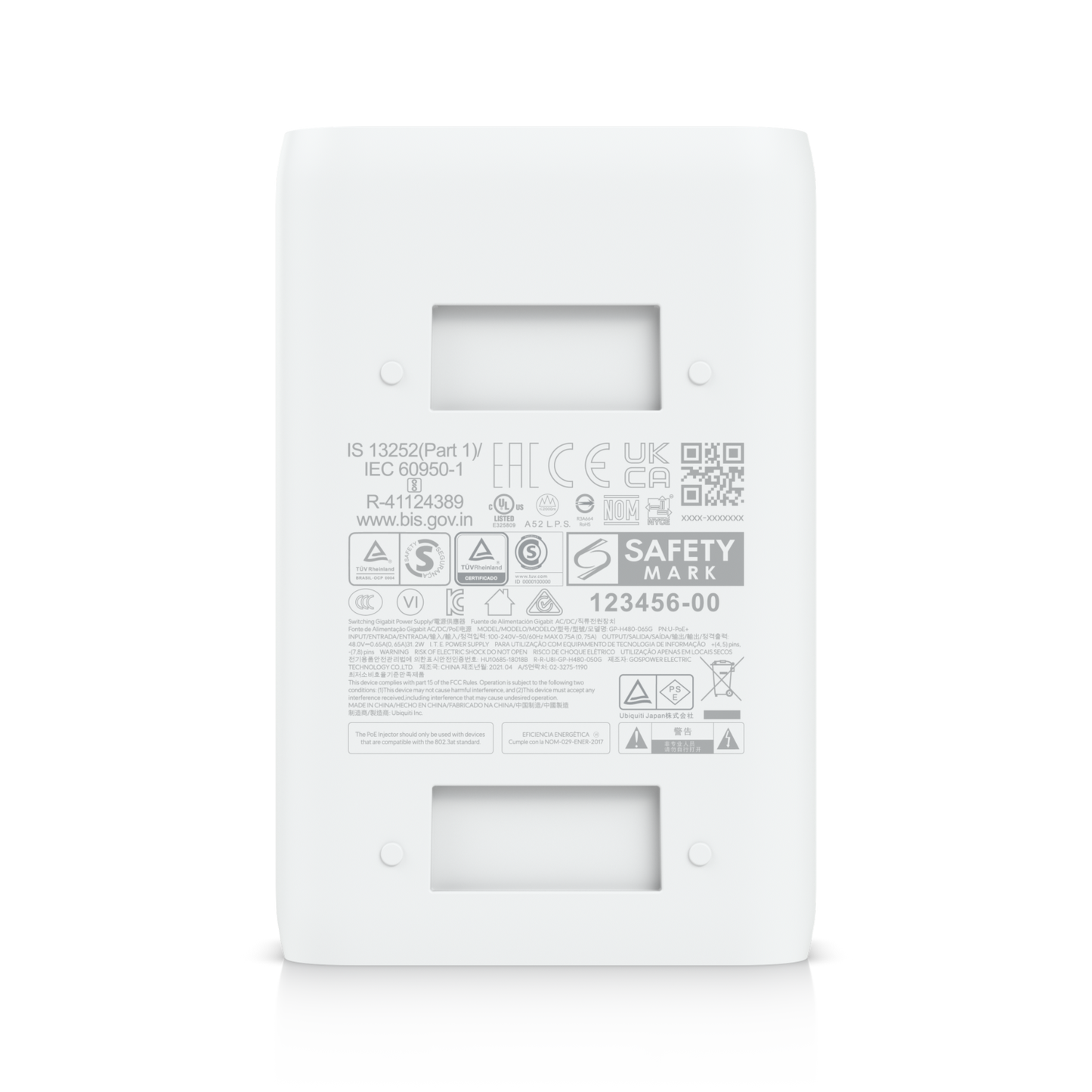

Certifications CE, FCC, IC, UL

Visit Ubiquiti for more information.
