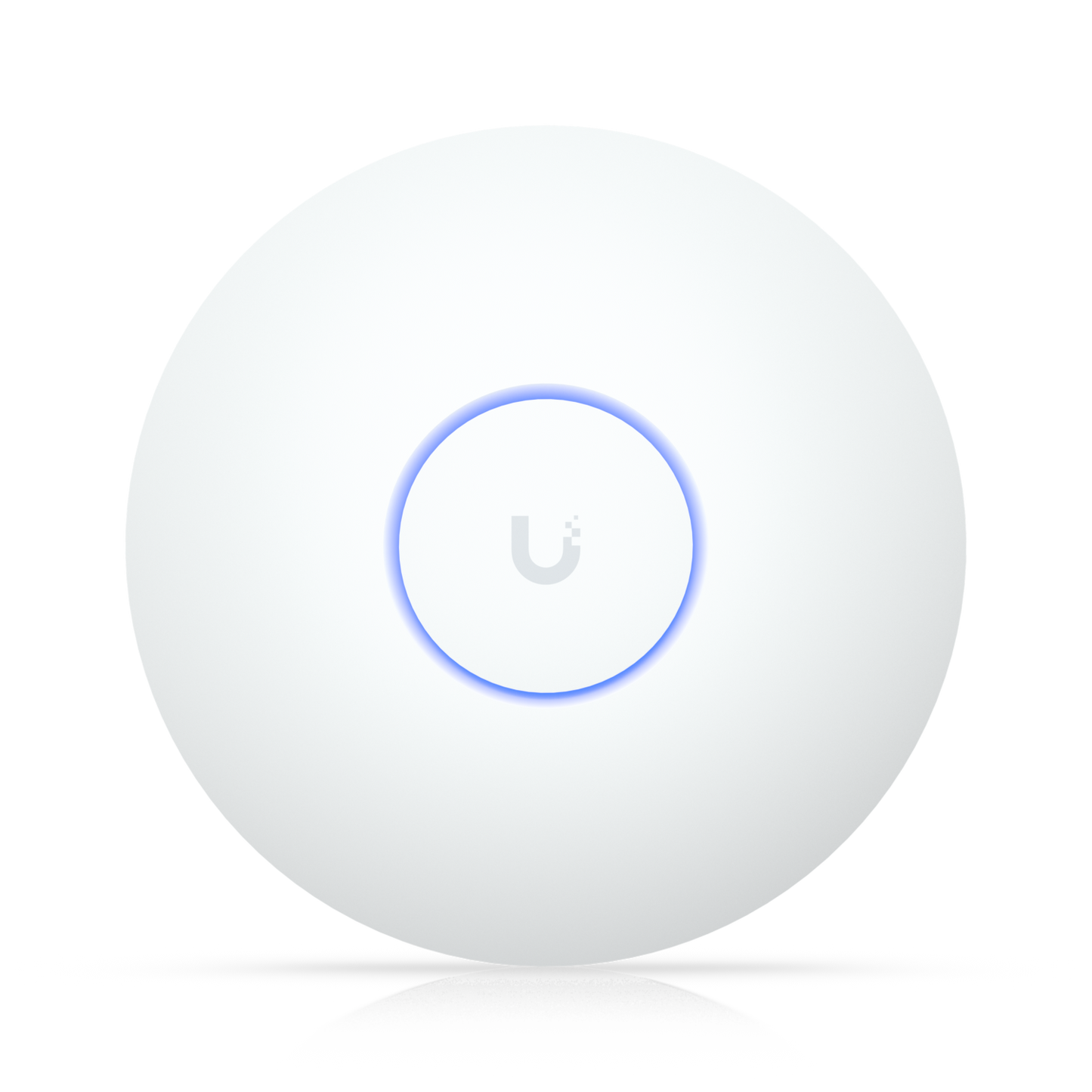

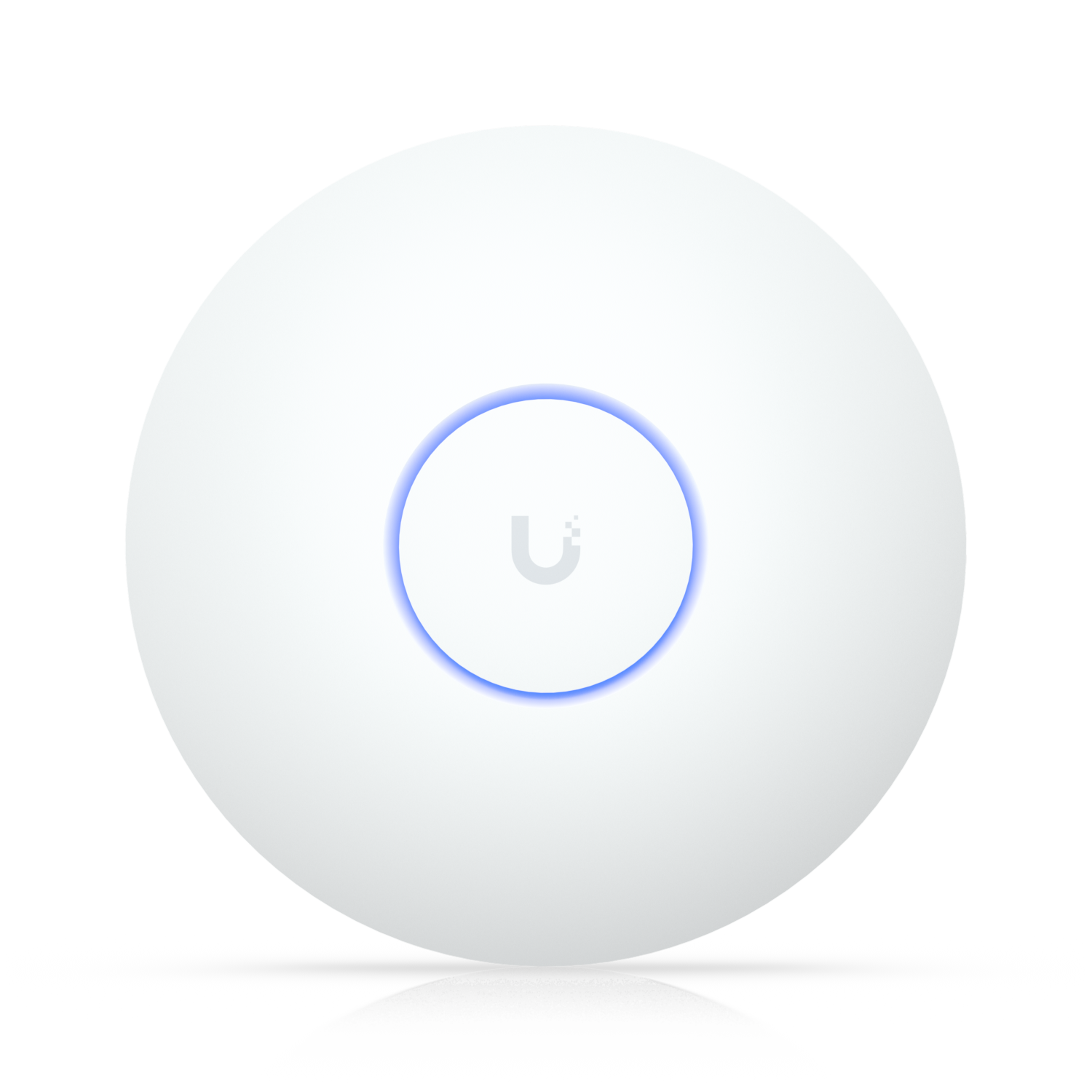

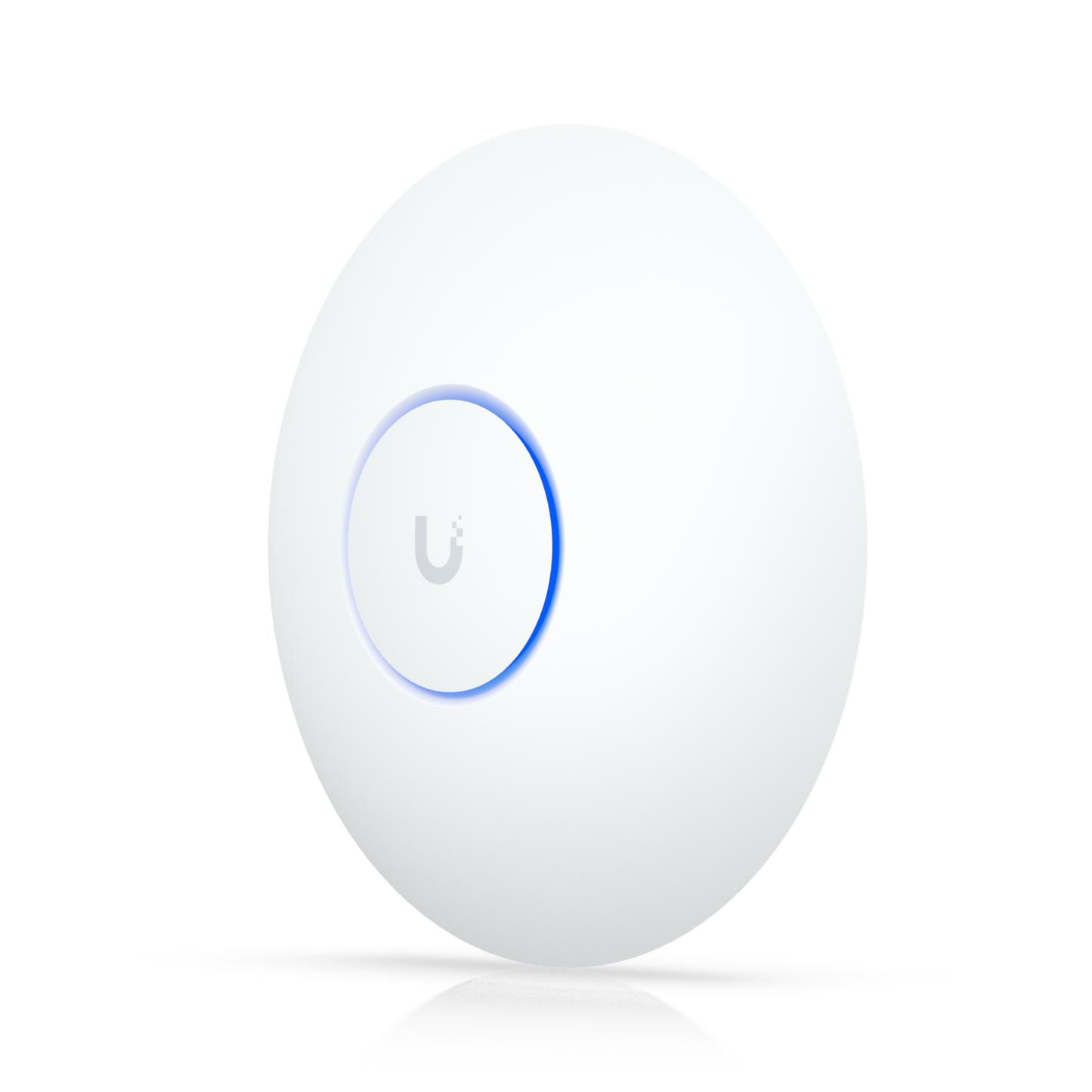

  • Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point shown in a front view with the outer housing visible.

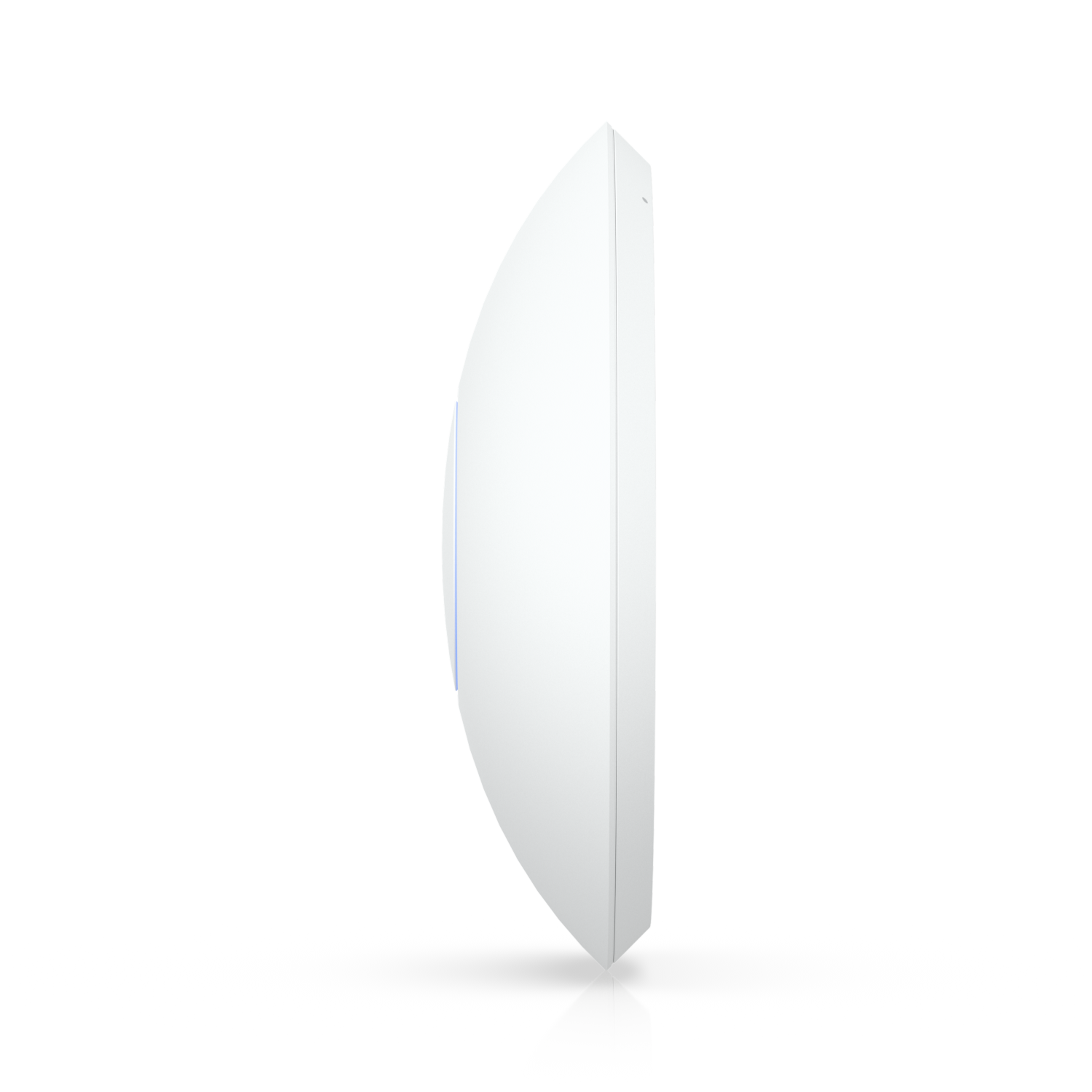

  • Outer housing of the Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point seen in a side profile.

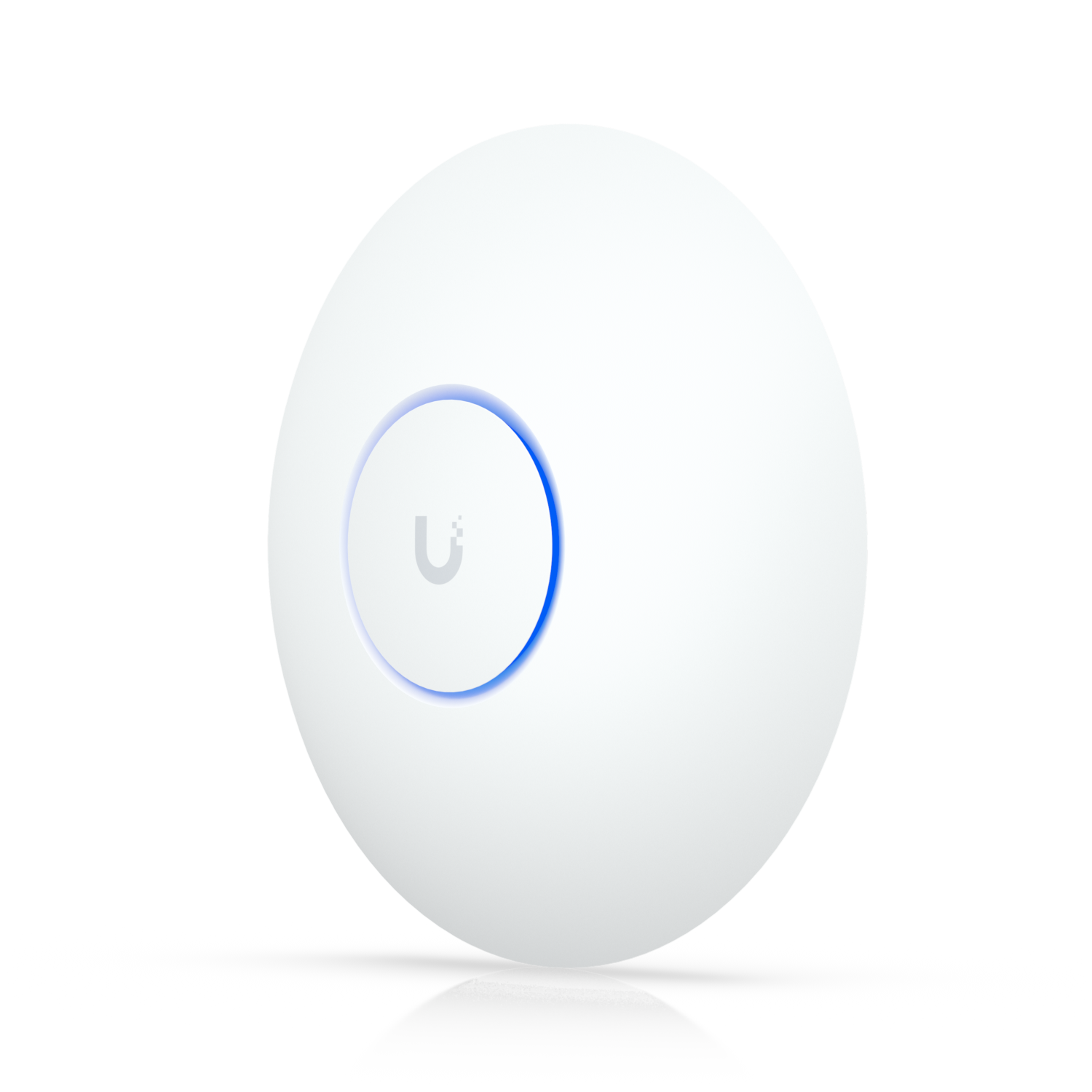

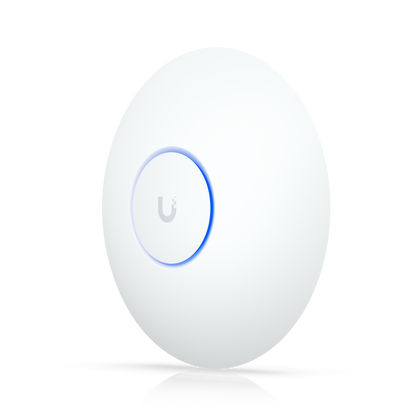

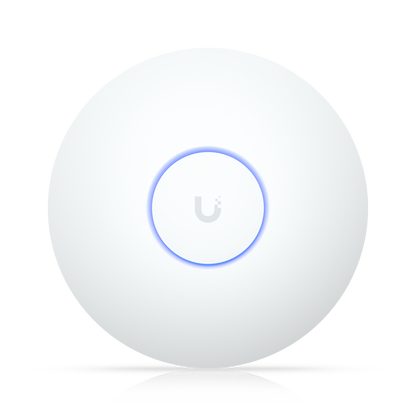

  • Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point viewed from the front with the outer housing visible.

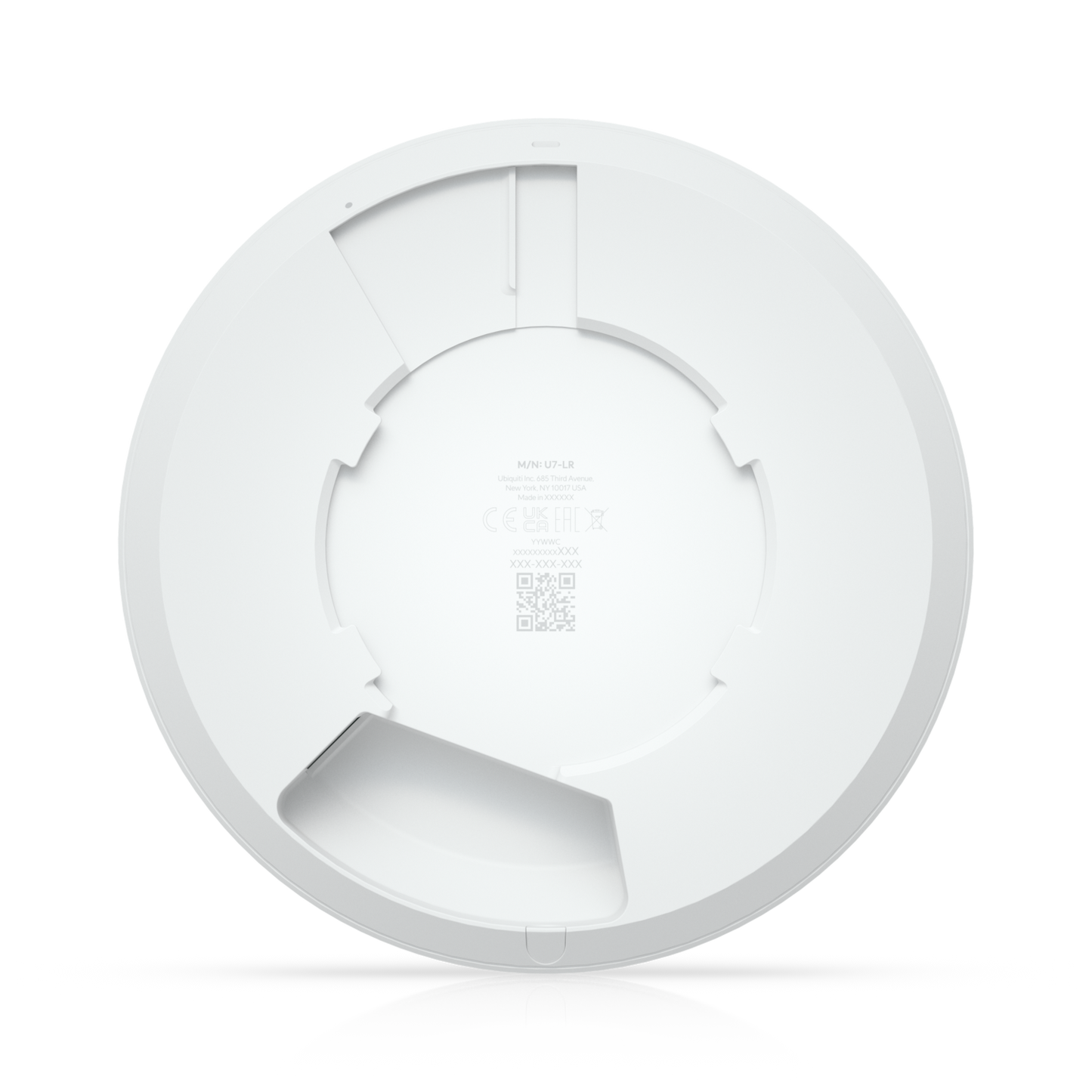

  • Straight-on front view of the Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point with the enclosure open and internal components visible.
  • Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point shown in a straight-on front view with the external antennas visible.

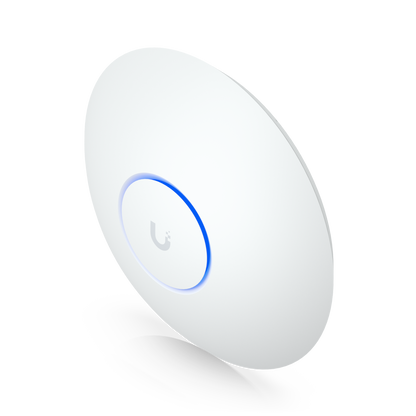

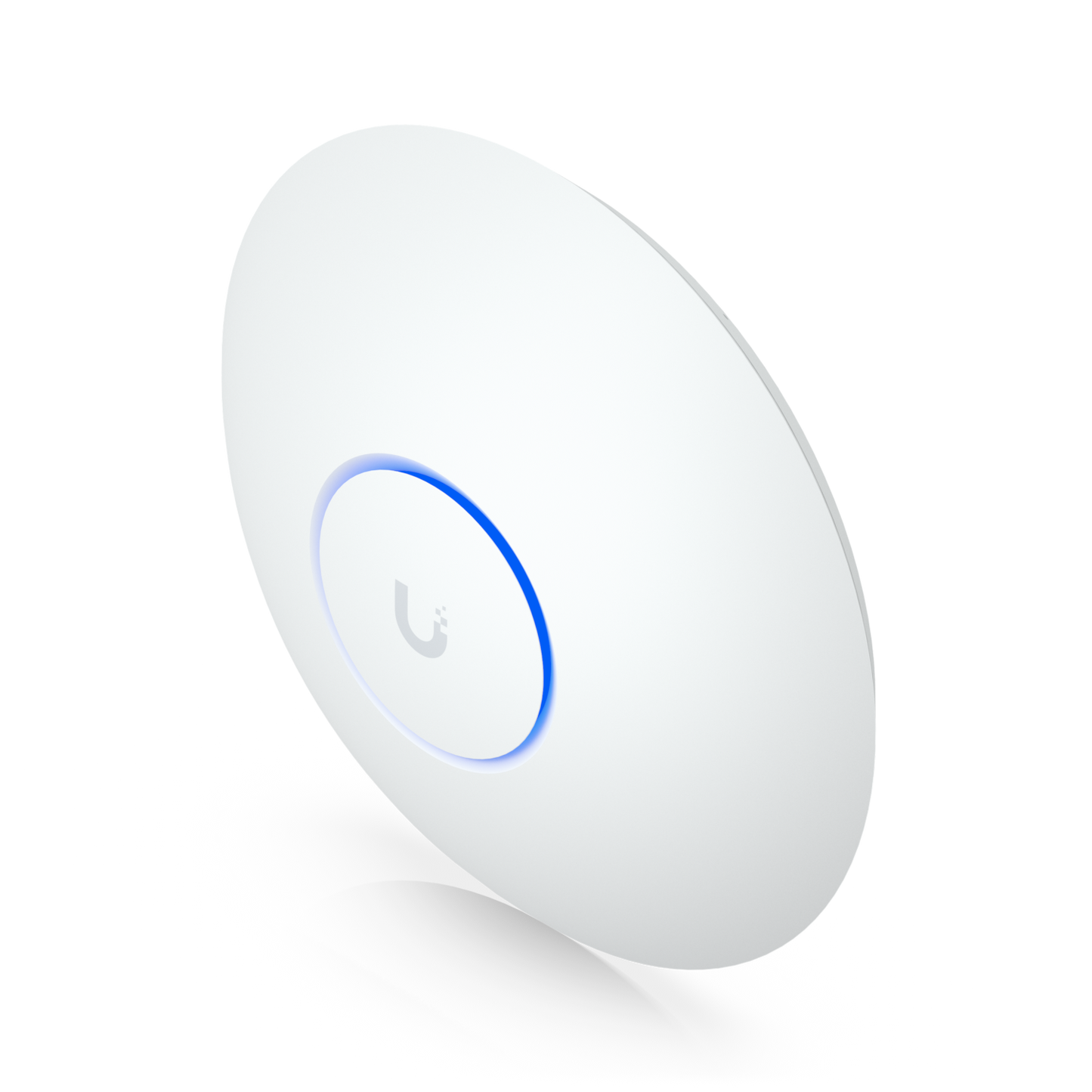

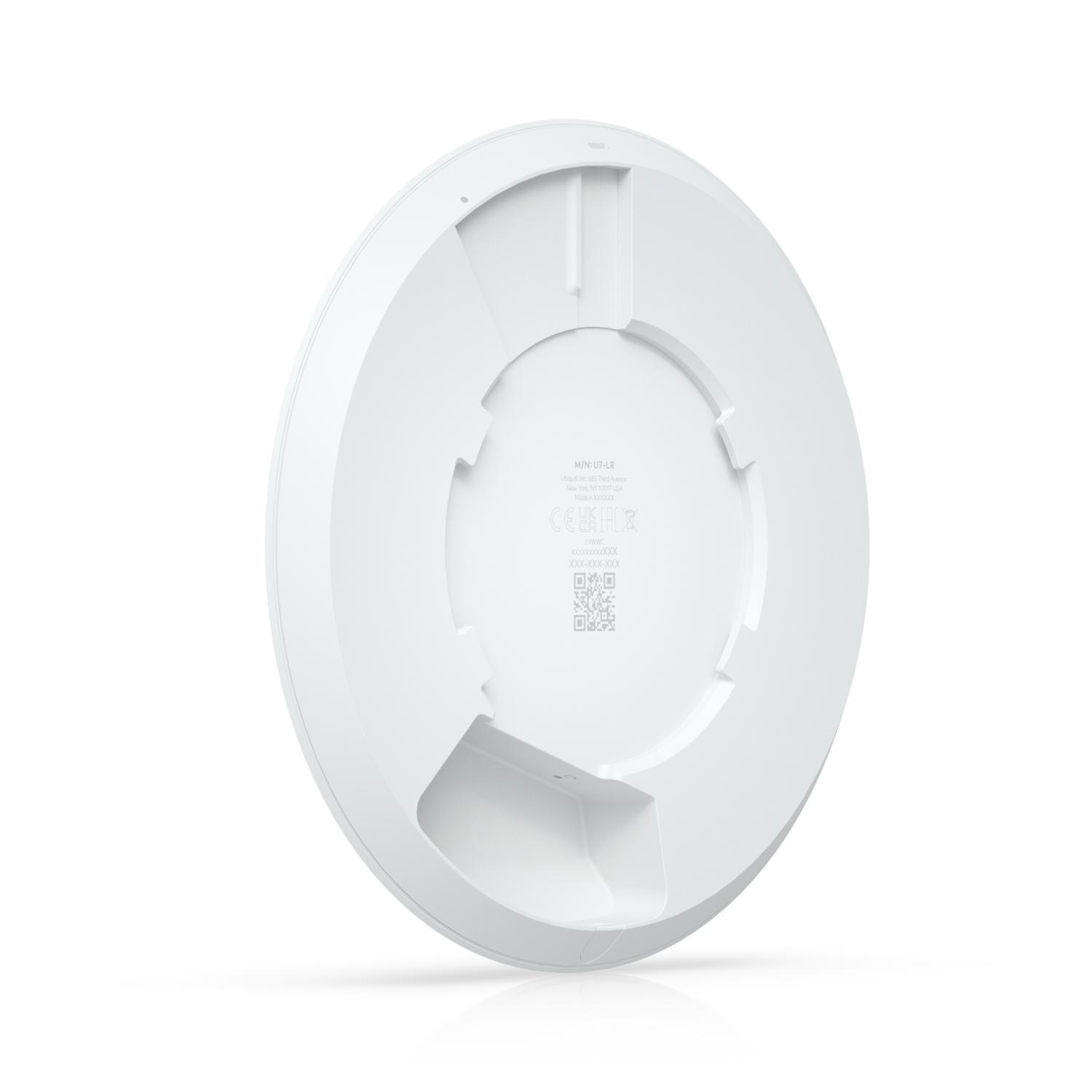

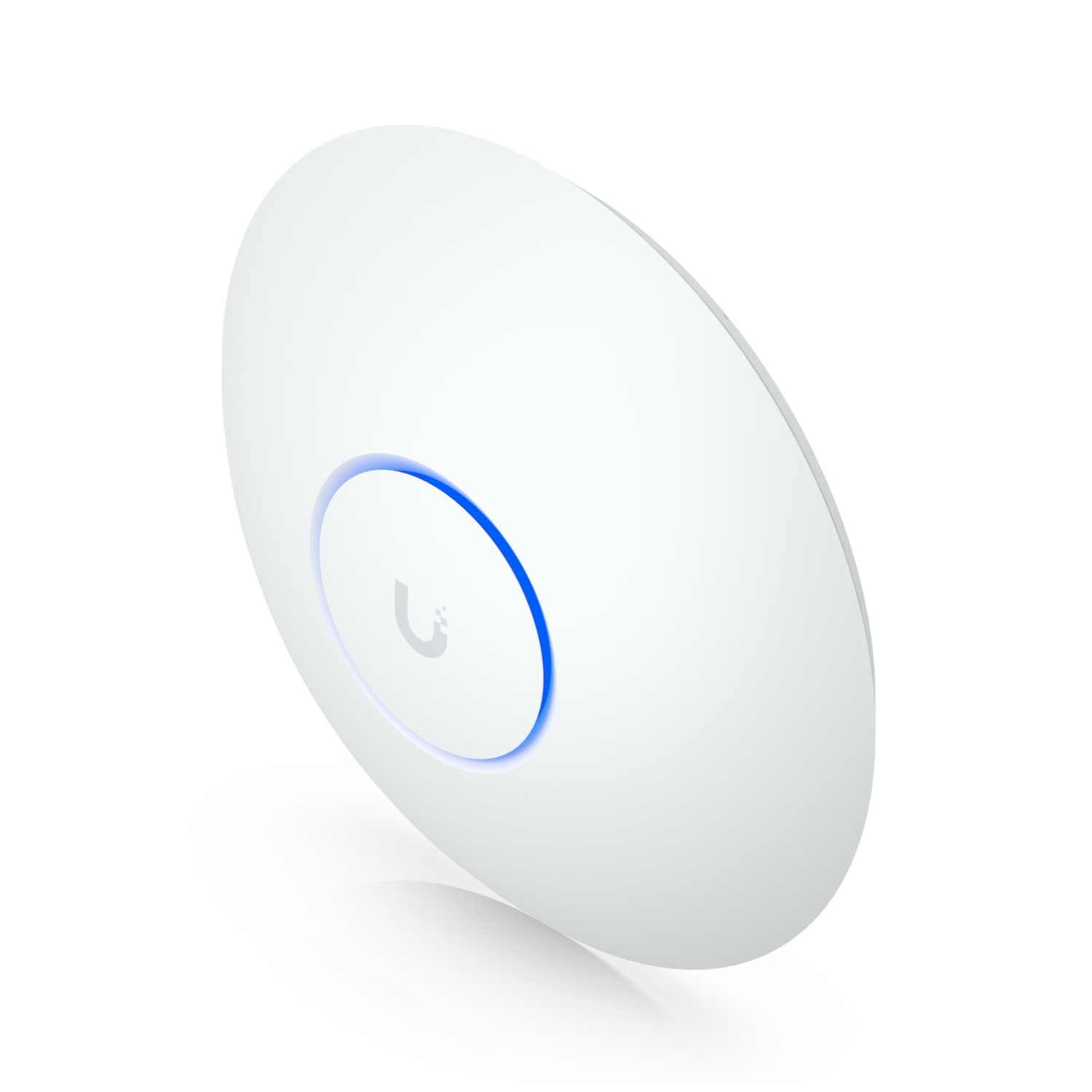

  • Outer housing of the Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point seen in an angled view.
  • Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point viewed from a measured outline with dimensions and the product outline marked.

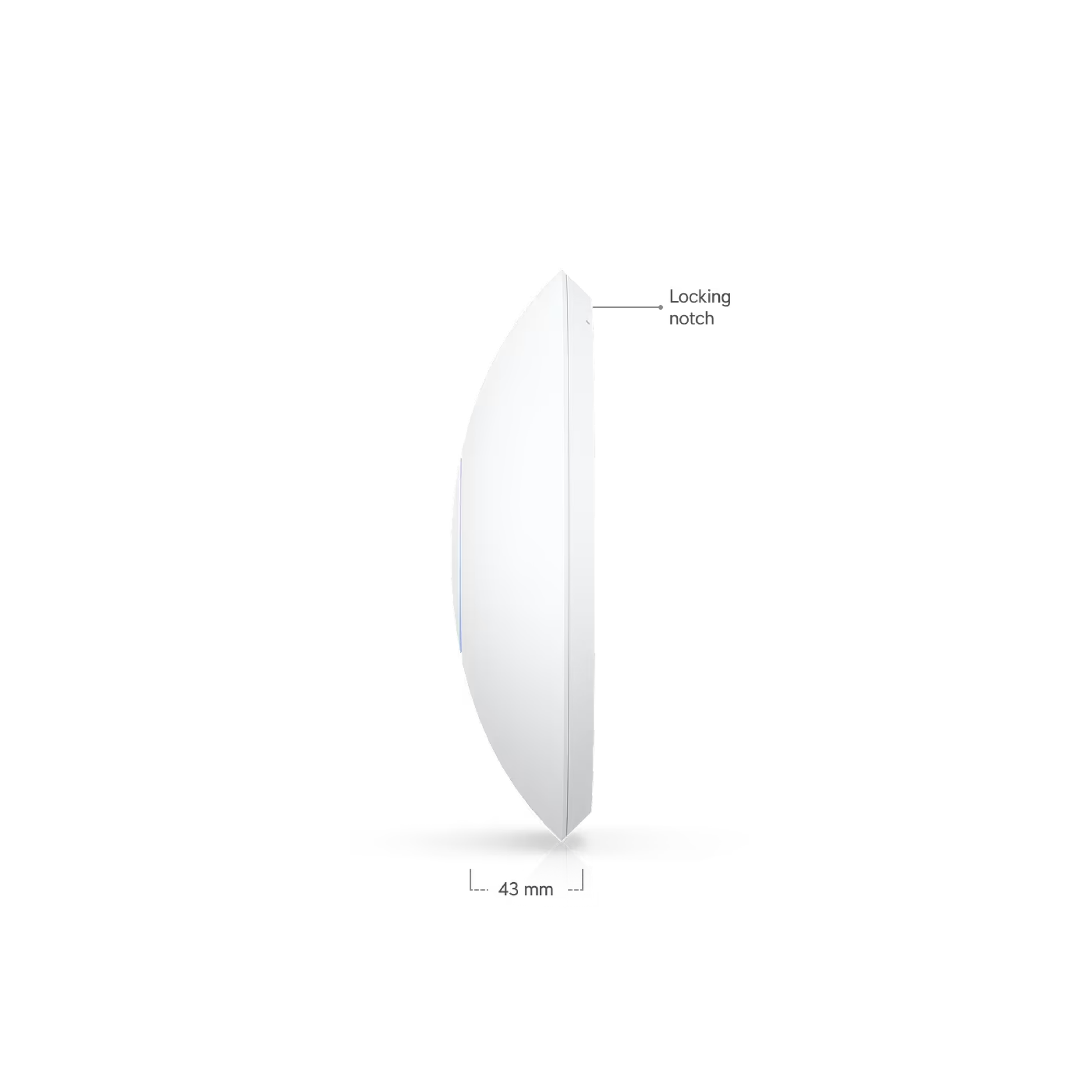

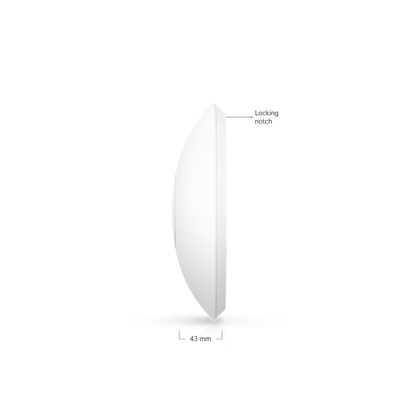

  • Slim side view of the Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point with the outer housing visible.
  • Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point shown in a measured product outline with dimensions and the product outline marked.
  • Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point

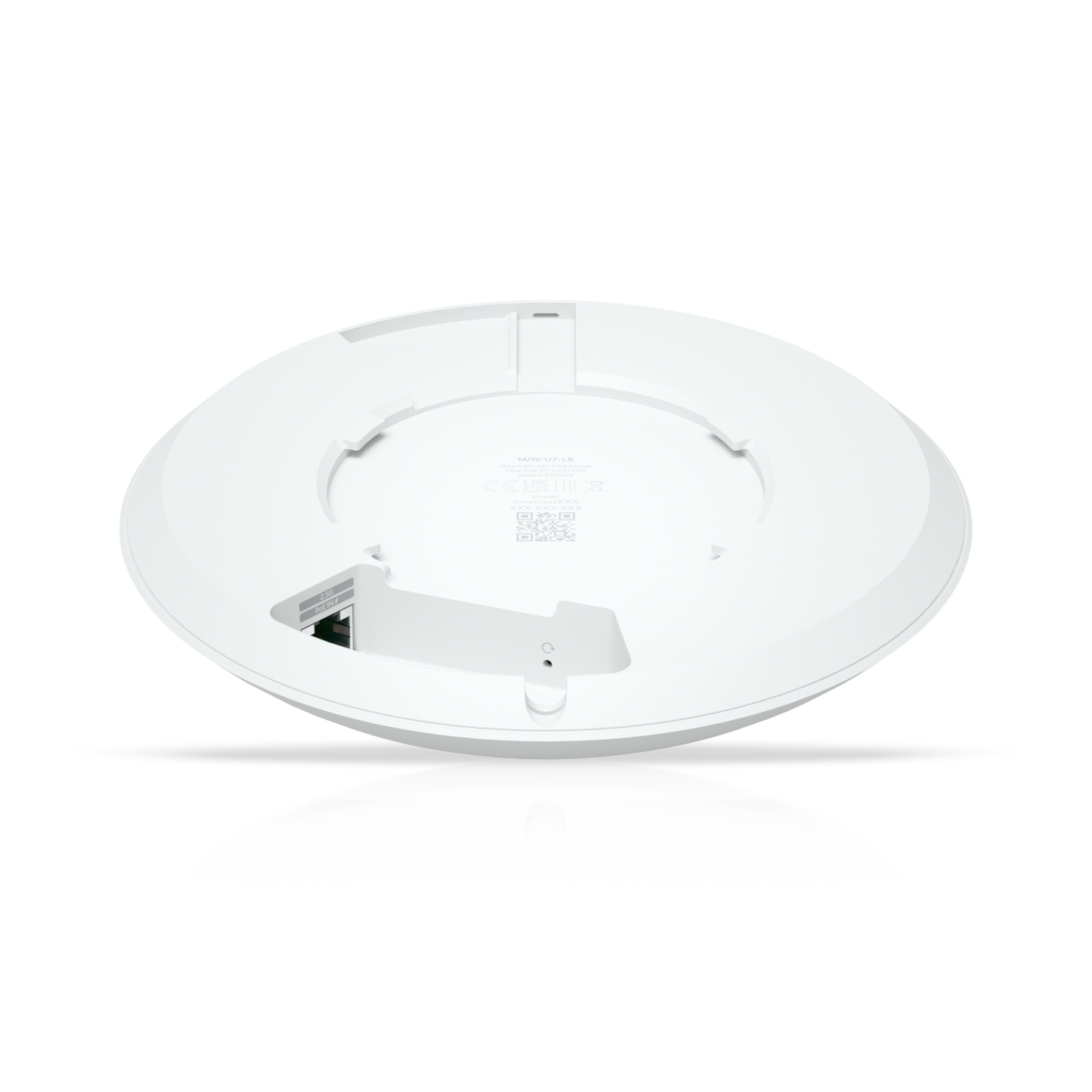

  • Ubiquiti U7-LR UniFi U7 Long-Range WiFi 7 Access Point viewed from an overhead position showing visible ports and connection sockets.
1 12

Ubiquiti

2-Year Warranty

UniFi U7 Long-Range WiFi 7 Access Point

UniFi U7 Long-Range WiFi 7 Access Point

U7-LR

$295.00
$368.00 $295.00
20% Off | Save $73.00 Sold out
Taxes included.

Sale Live Now. Limited promotional stock available — don’t miss out!

612 in stock and ready to ship

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

  • WiFi 7.
  • 5 spatial streams.
  • 160 m² (1,750 ft²) coverage.
  • 300+ connected devices.
  • Powered using PoE.
  • 2.5 GbE uplink.

Specification

Overview

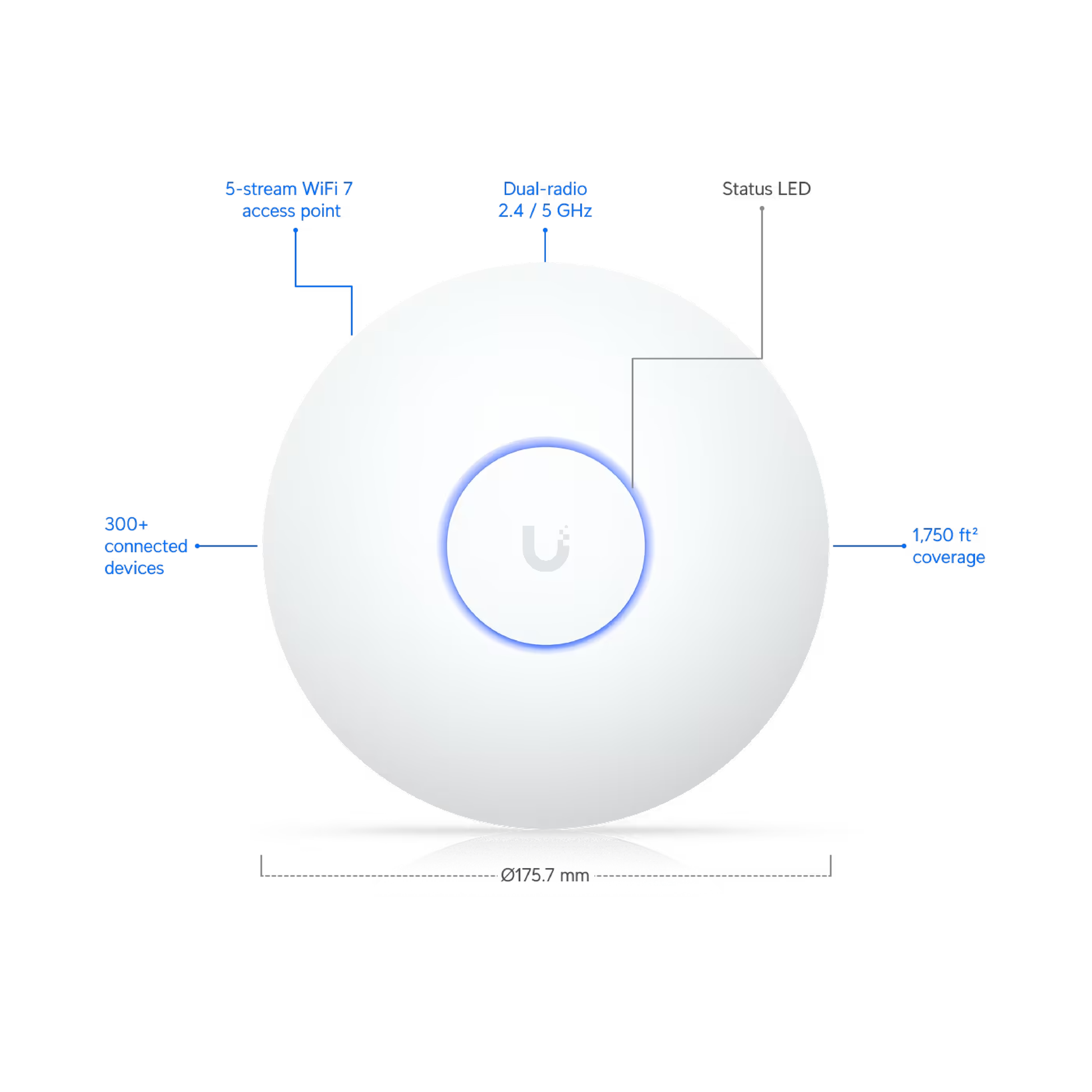

Dimensions Ø175.7 x 43 mm
(Ø6.9 x 1.7")
WiFi Standard WiFi 7
Spatial Streams 5
Coverage Area 160 m² (1,750 ft²)
Max. Client Count 300+
Uplink 2.5 GbE

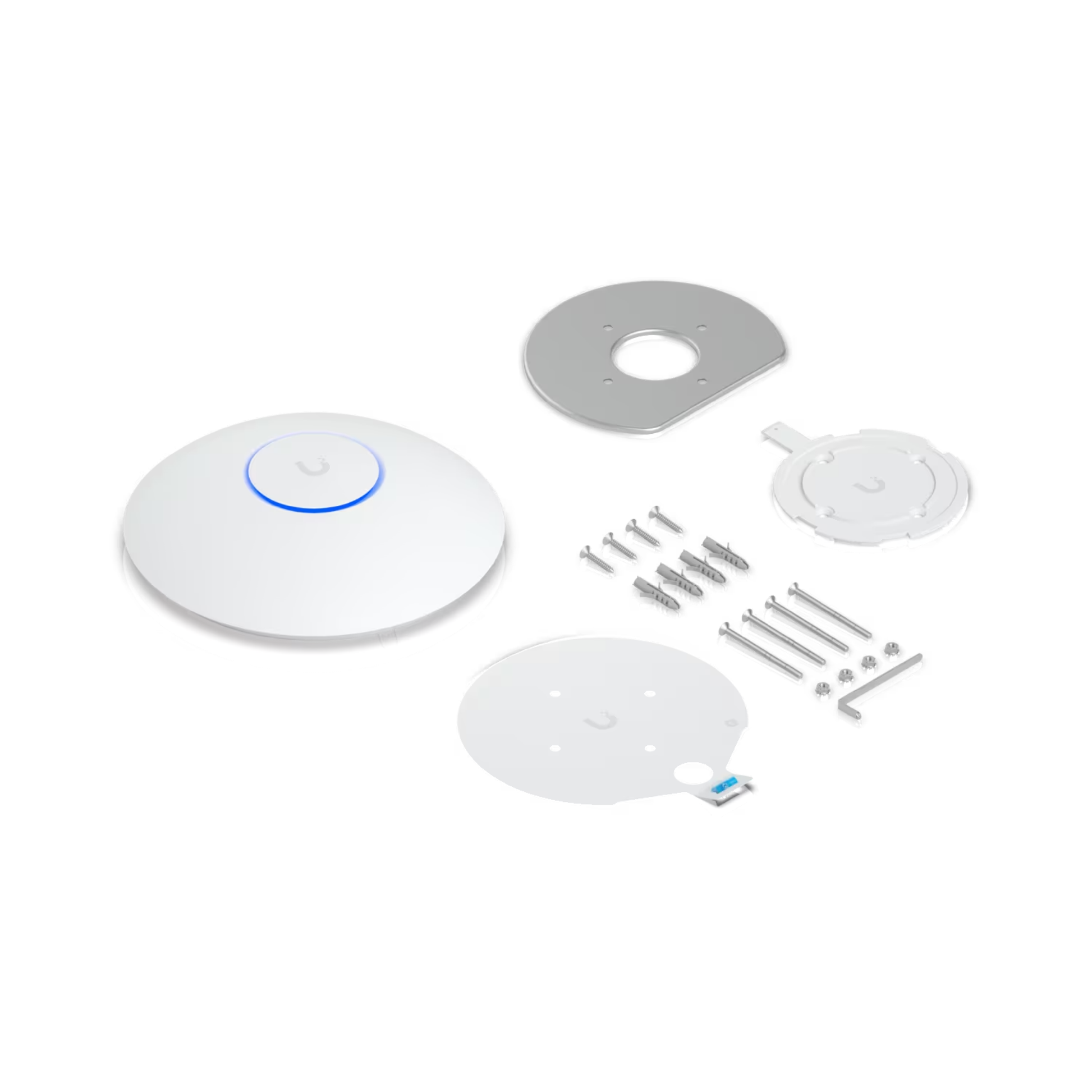

Mounting Ceiling, Wall (Plastic Mounting Plate included)
Power Method PoE
Performance
MIMO 5 GHz: 3 x 3 (DL/UL MU-MIMO)
2.4 GHz :2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz: 4.3 Gbps (BW160)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain 5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max. TX Power 5 GHz: 27 dBm
2.4 GHz: 26 dBm
Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Features
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓
Captive Hotspot Portal Custom Branding Landing Page: ✓
Voucher Authentication: ✓
Payment-Based Authentication: ✓
External Portal Server Support: ✓
Password Authentication: ✓
Guest Network Isolation: ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓
Hardware
Max. Power Consumption 14W
Supported Voltage Range 42.5—57V DC

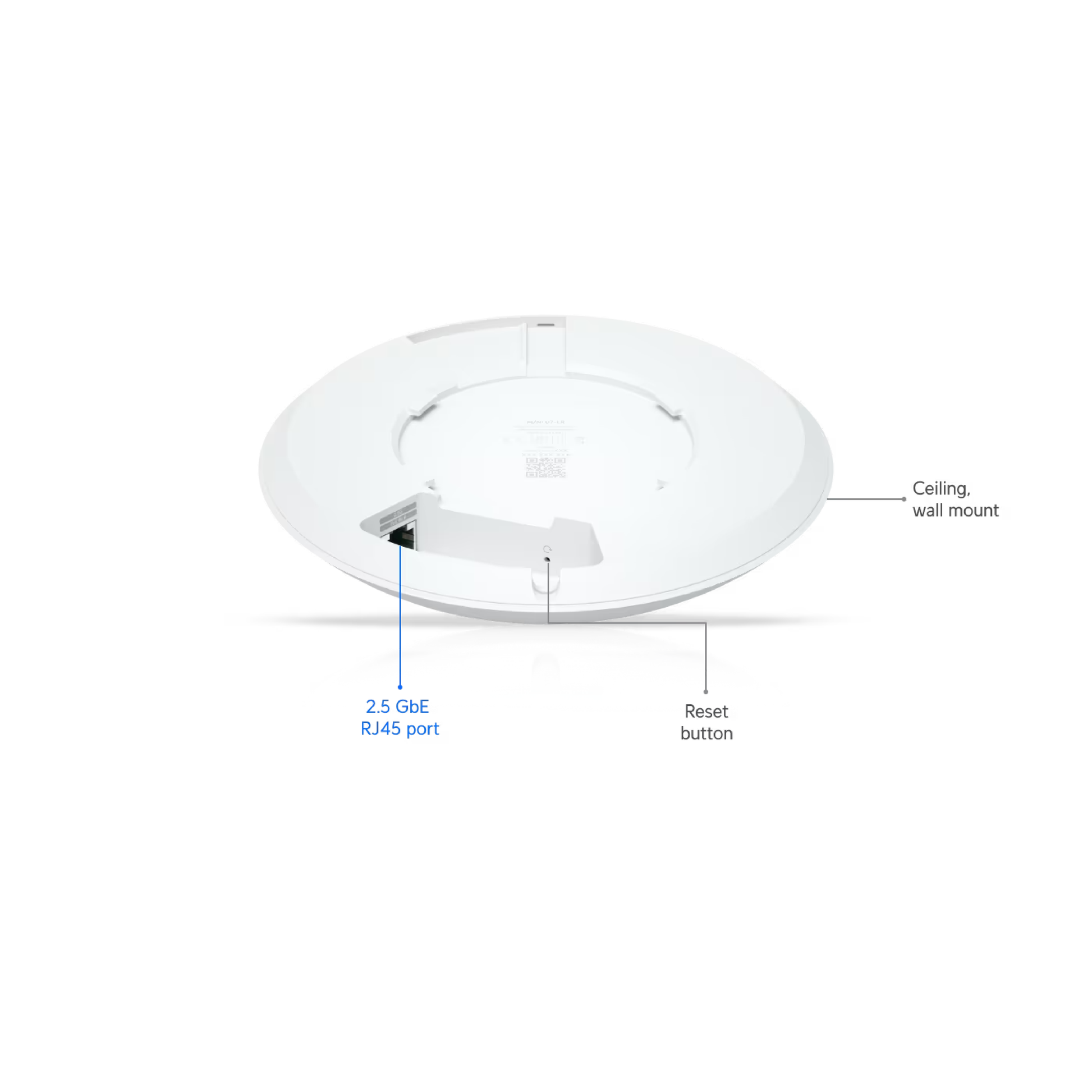

Networking Interface (1) 2.5 GbE RJ45 port
Weight 448 g (15.8 oz)
Management Ethernet
Enclosure Material Polycarbonate, aluminum alloy
Mount Material Polycarbonate, galvanized steel (SGCC)
LEDs System: White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant ✓
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity 5 to 95% noncondensing
Software
Application Requirements UniFi Network: Version 9.1.120 and later
Mobile App: iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
