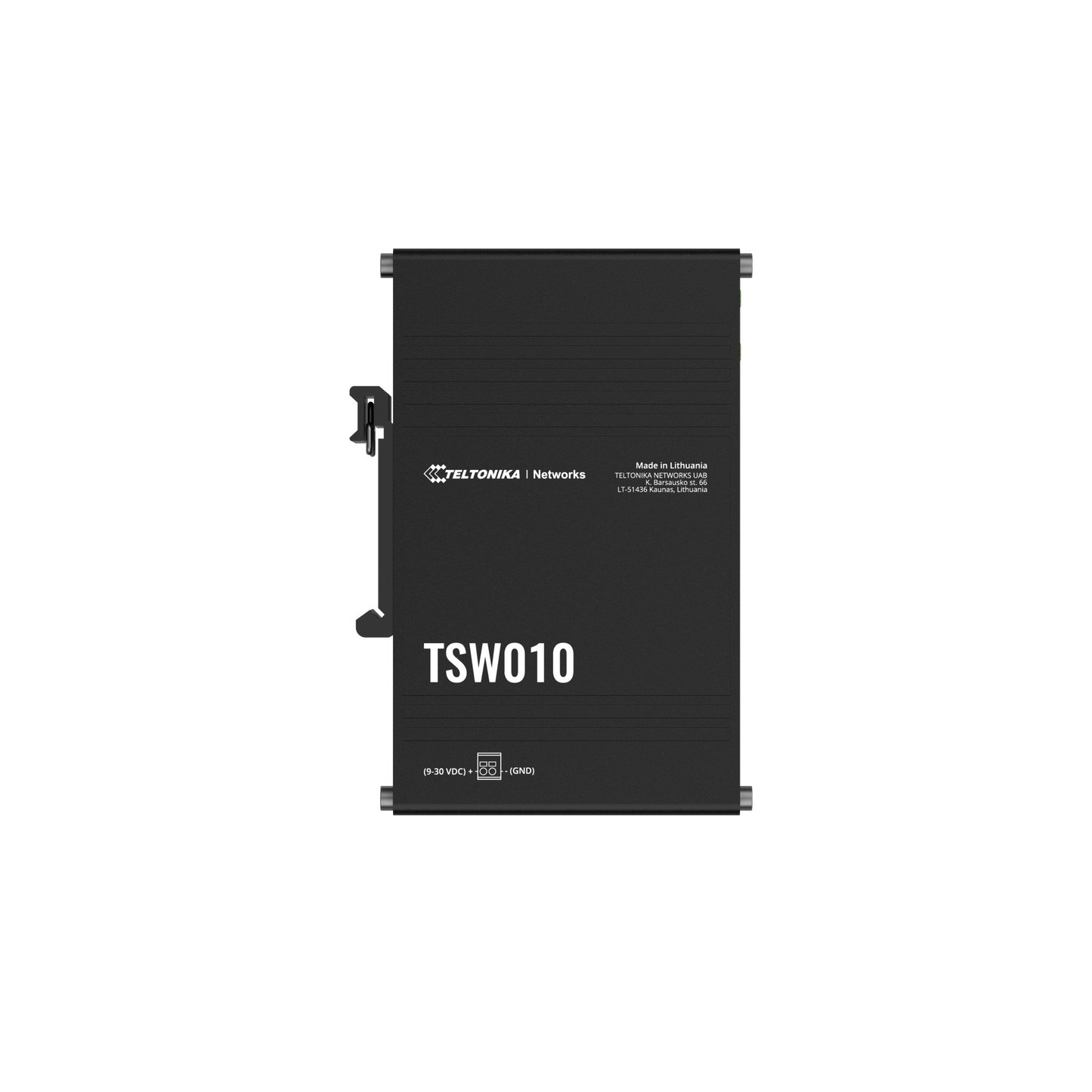

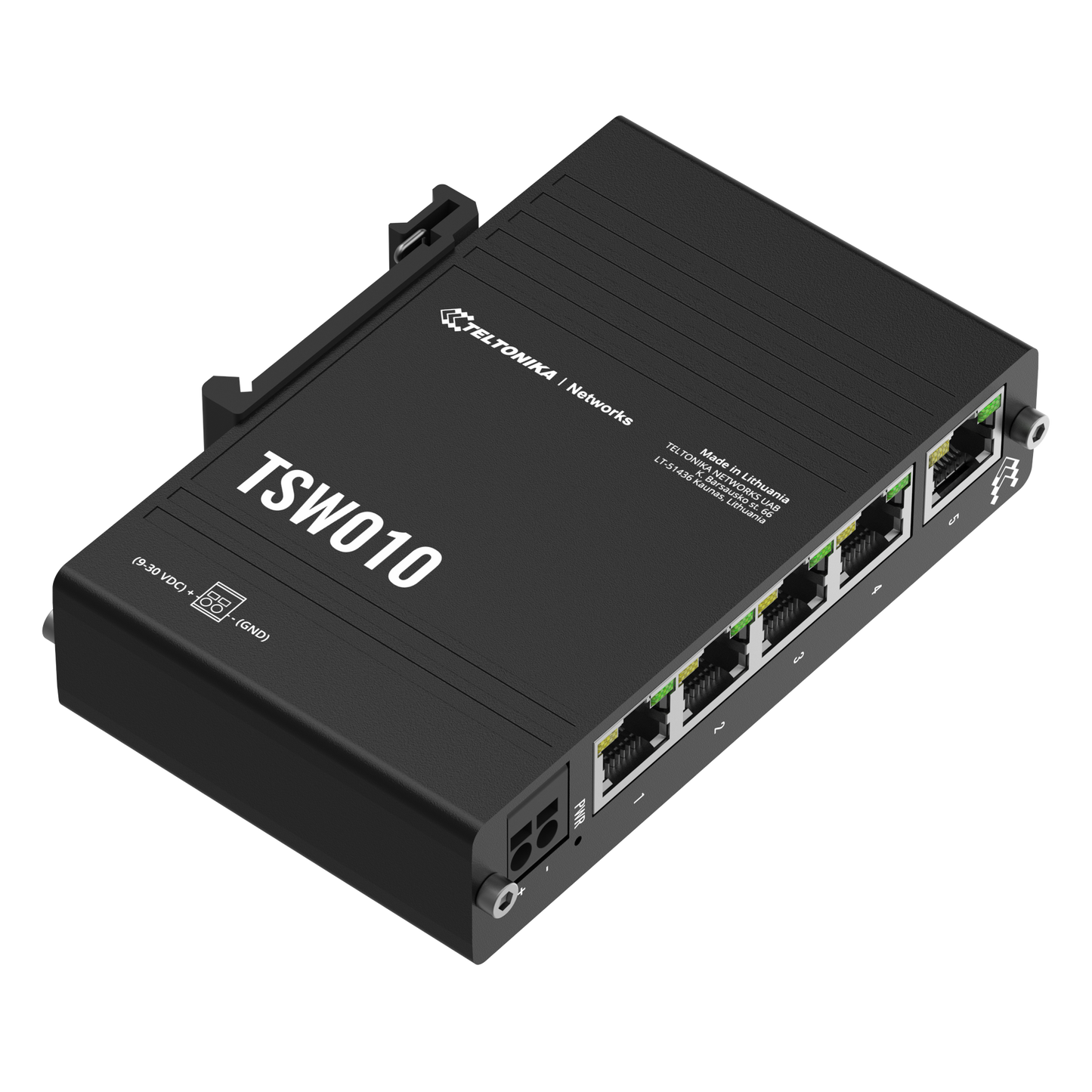

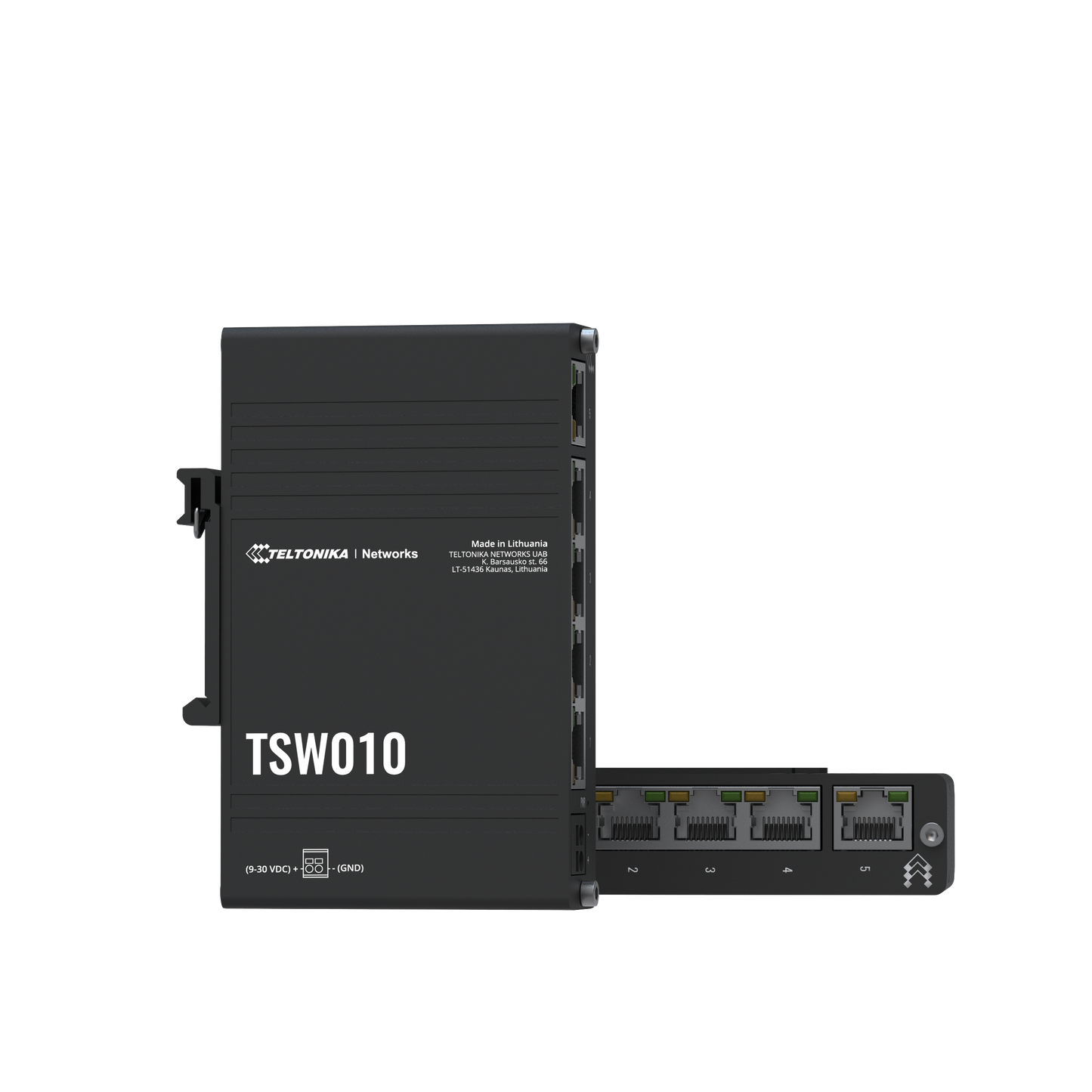

TSW010 Din Rail Ethernet Switch

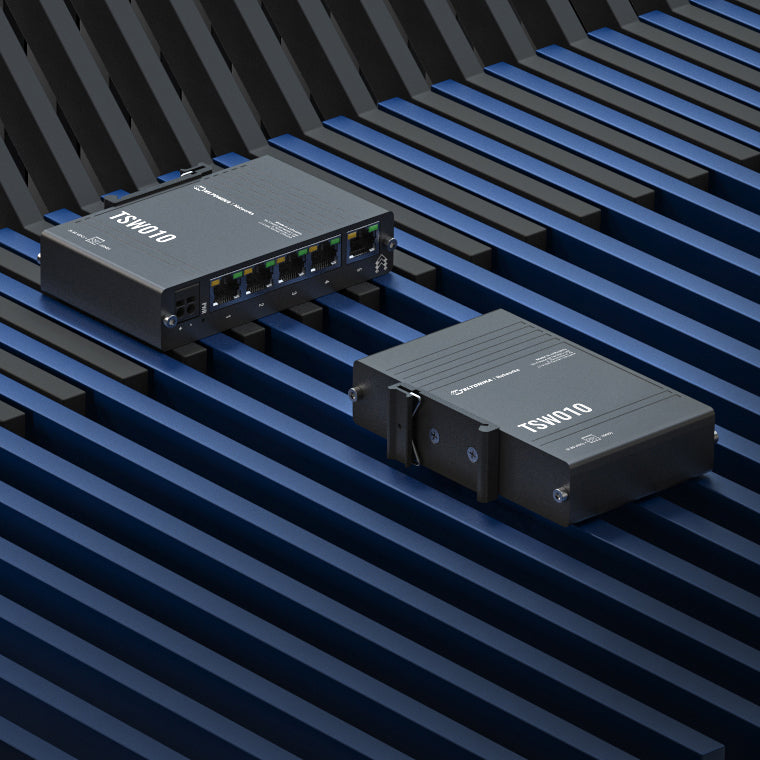

Teltonika TSW010 Din Rail Ethernet Switch
SKU:TSW010
Extended Warranty • Price Match
Sale ending soon! Limited promotional stock available — don’t miss out!
63 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
PLUG AND PLAY: No additional configuration needed.

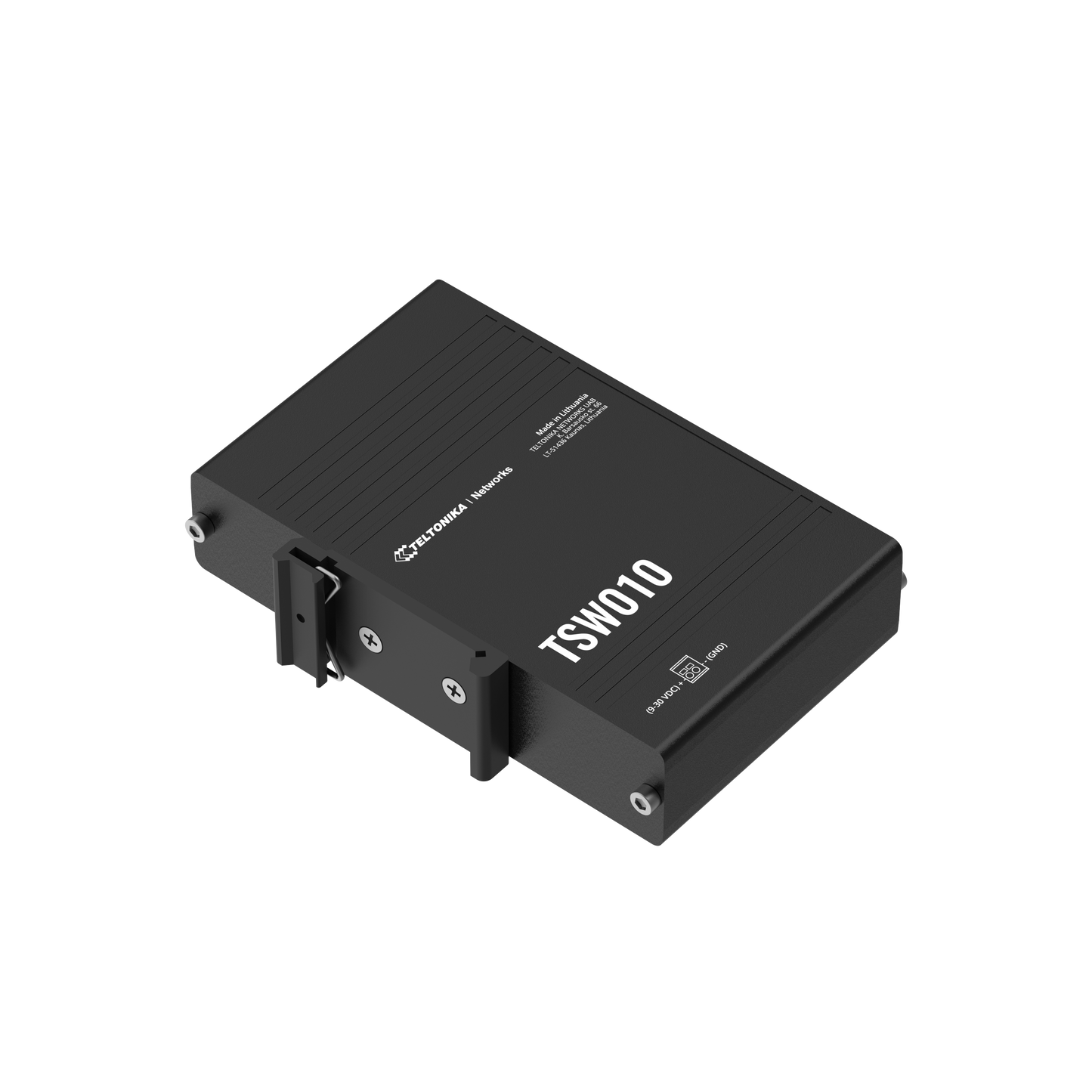

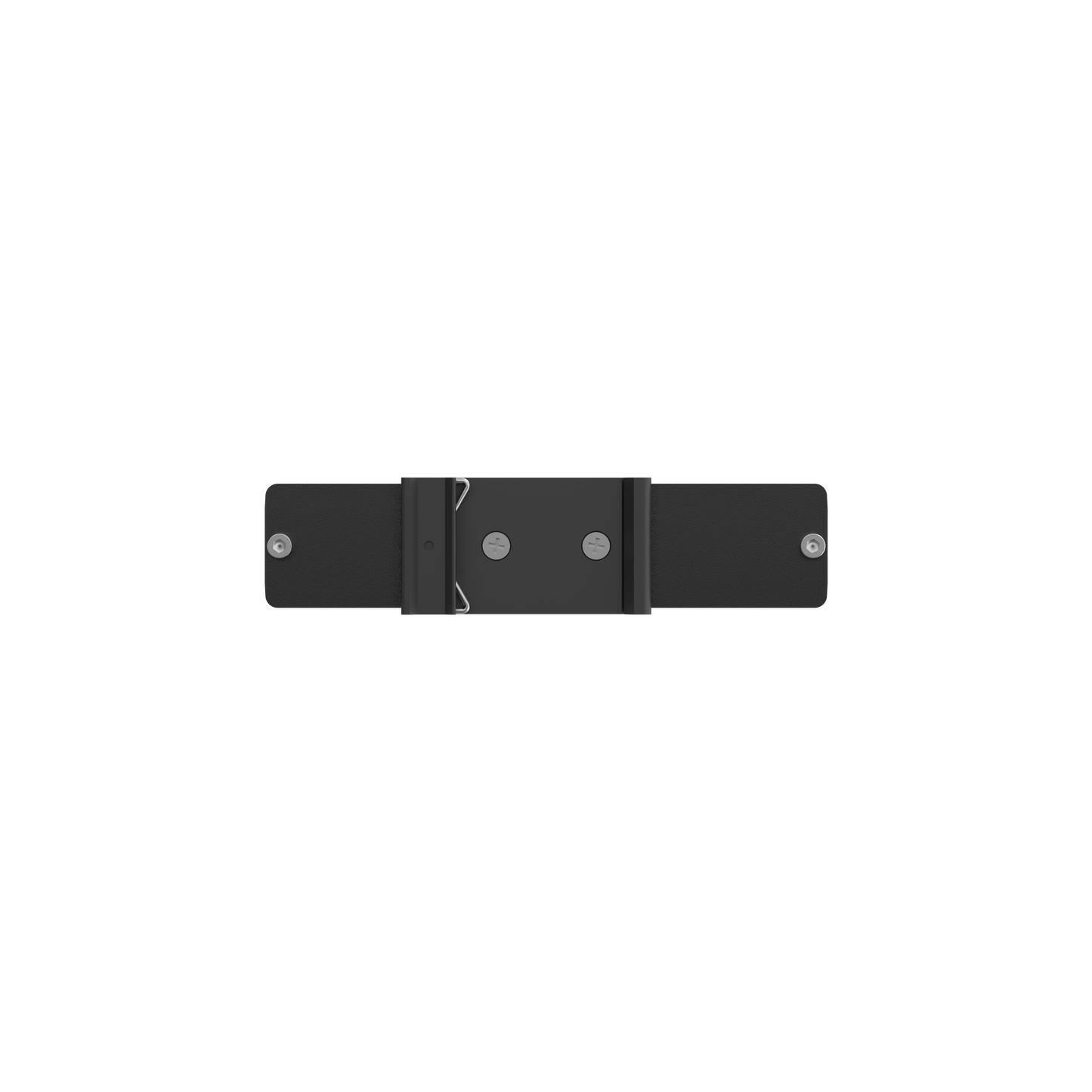

MOUNTING: Integrated DIN rail bracket and surface mounting options.
INDUSTRIAL DESIGN: Anodised aluminium housing and panels.

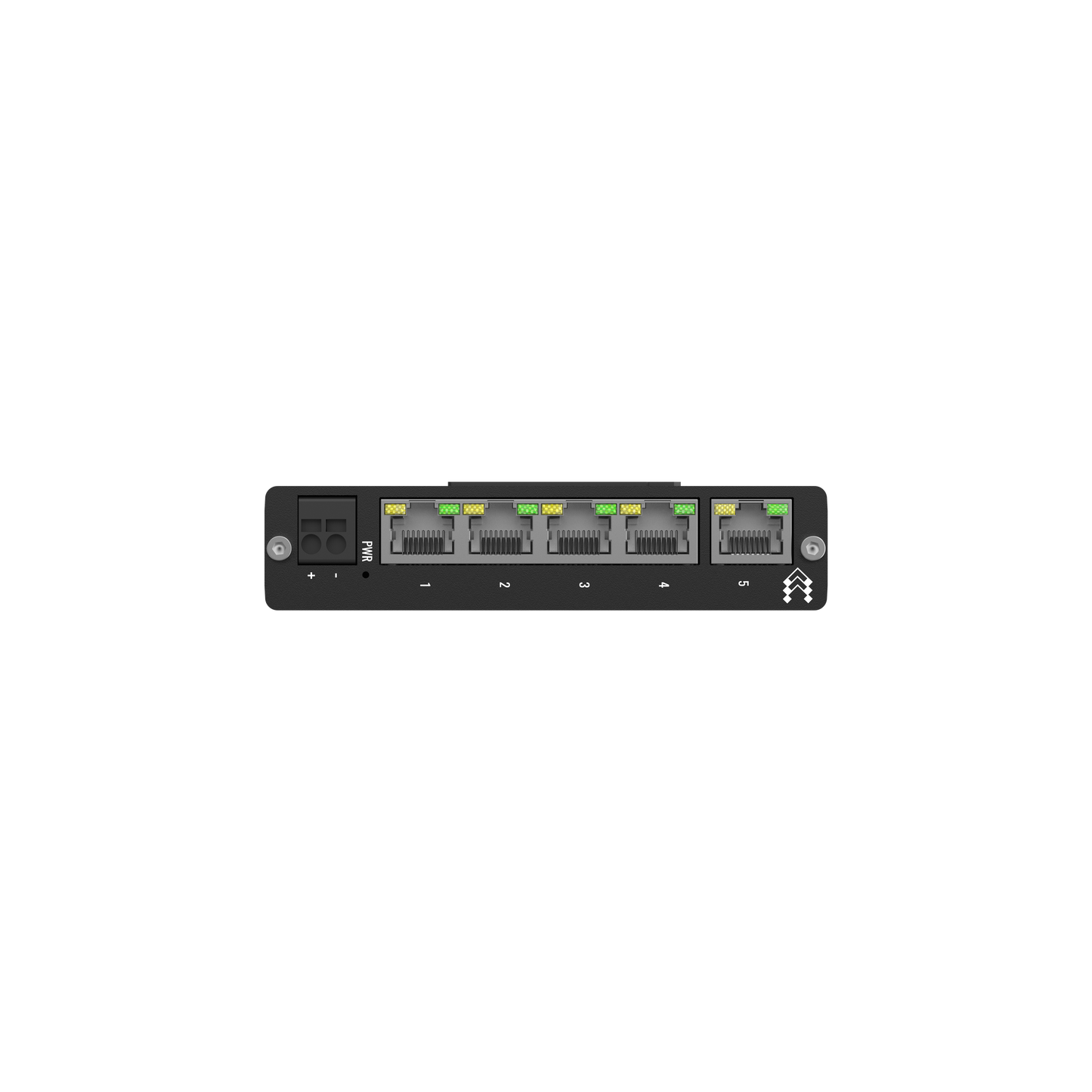

ETHERNET: 5 x Ethernet ports with speeds of up to 100 Mbps.
| Ethernet | |
|---|---|
| ETH | 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3x, 802.3az |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 1 Gbps |
| MAC address table size | 2K entries |
| Jumbo frame support | 2048 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | Idle: 0.3 W / Max: 0.9 W |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Physical Specification | |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 146.5 g |
| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE |
| EMC Emissions & Immunity | |
| Standards |
EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| Safety | |
| Standards |
CE: EN IEC 62368-1:2020 + A11:2020 RCM:AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
What's in the box?
- TSW010
- QSG (Quick Start Guide)
- Packaging box
Visit Teltonika for more information.
