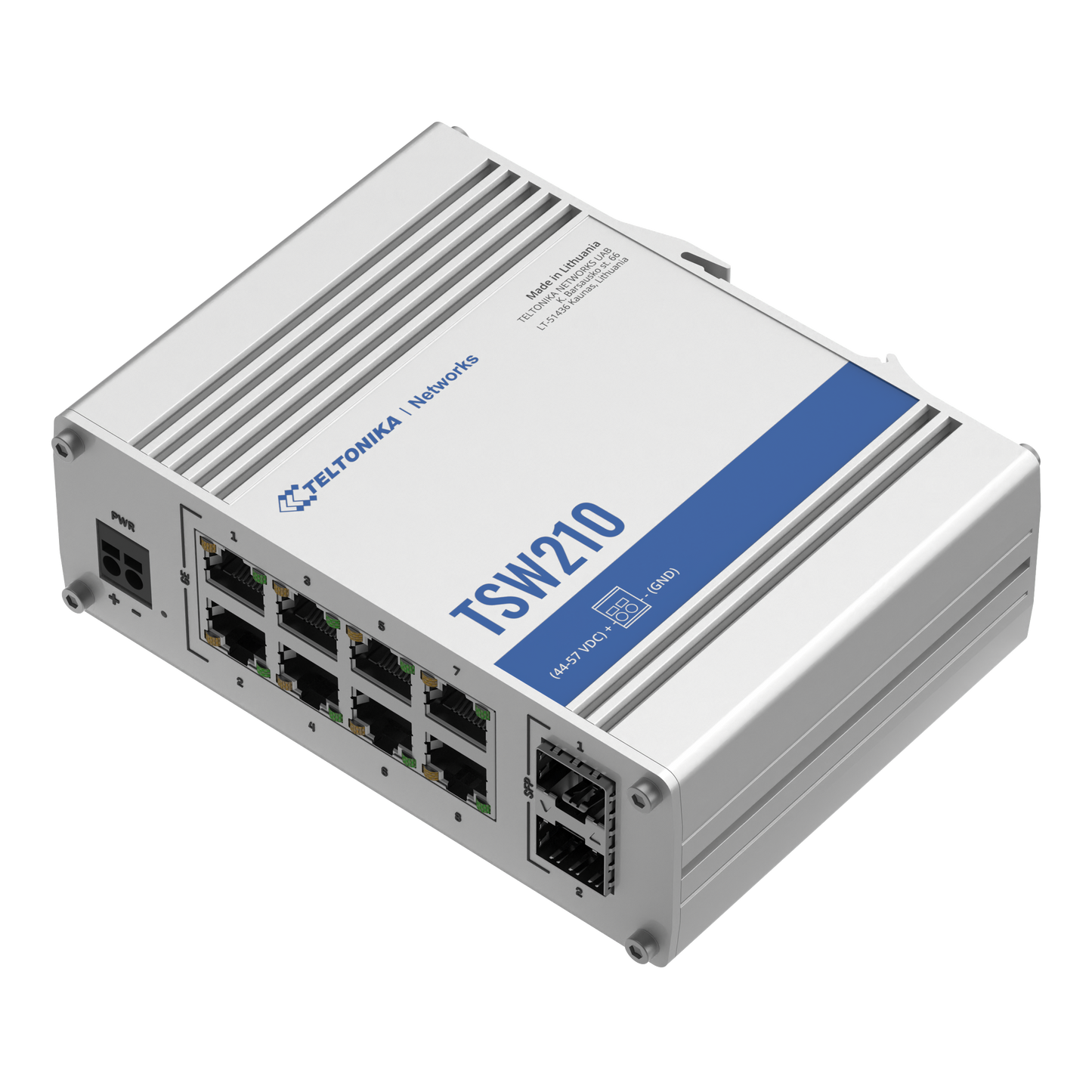

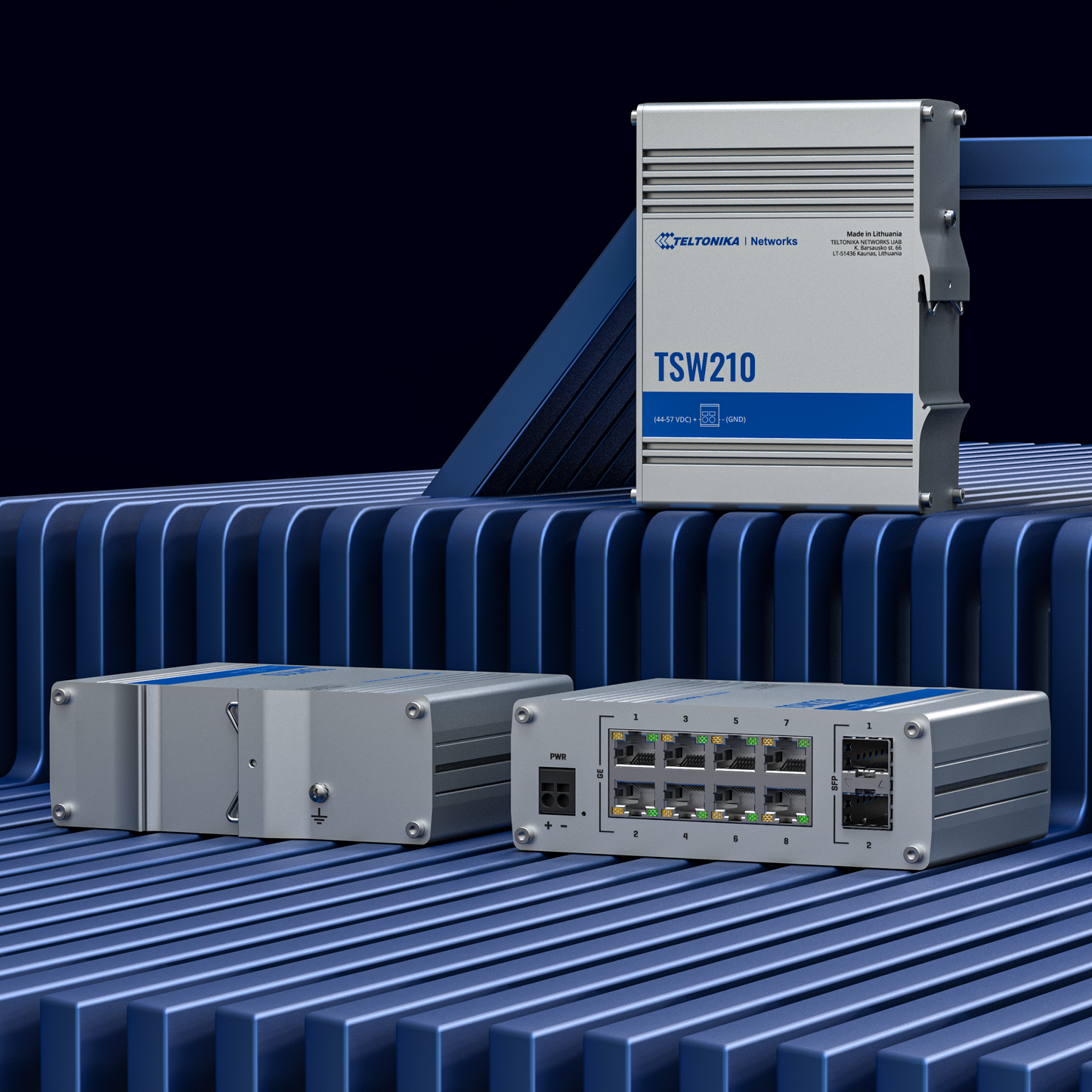

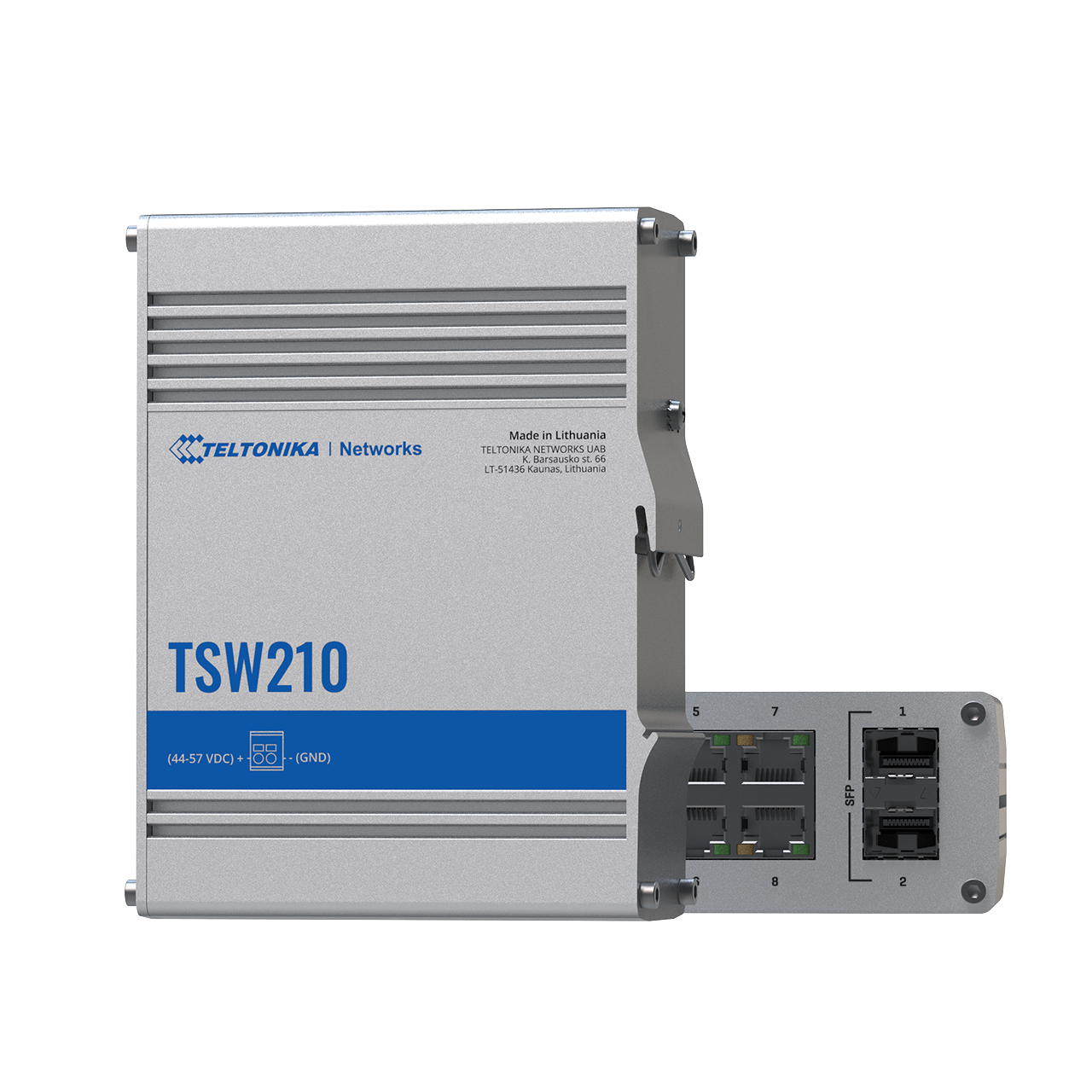

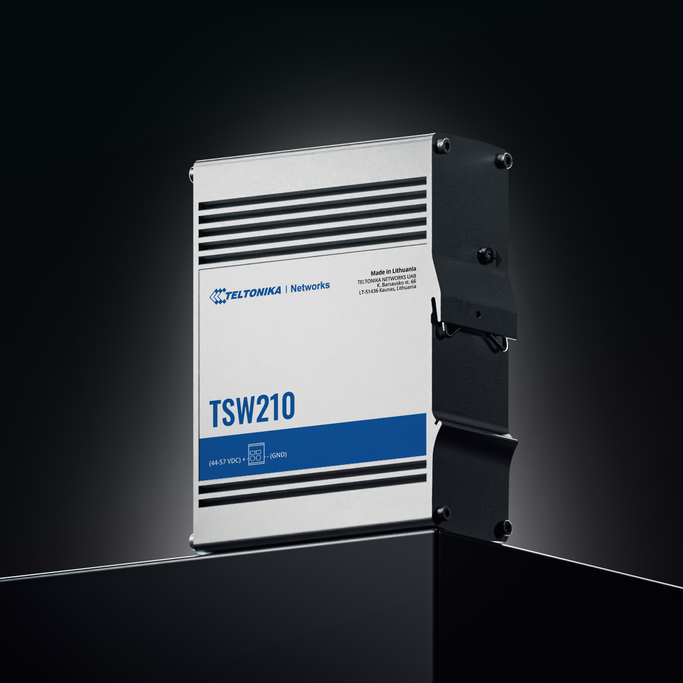

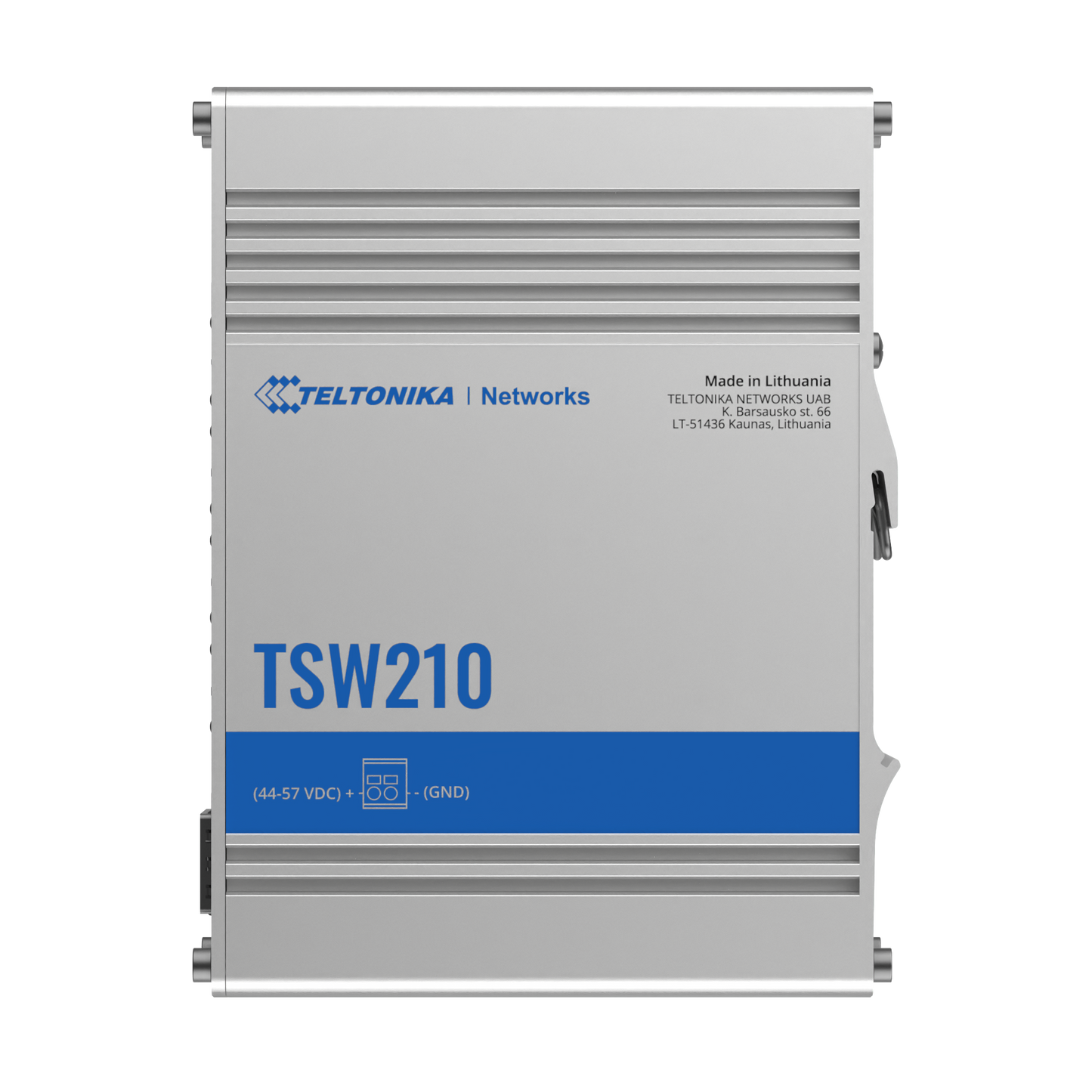

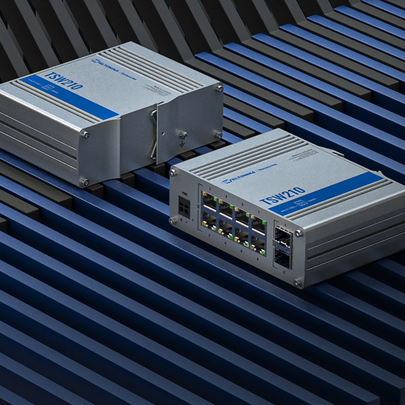

TSW210 Industrial Ethernet Switch
Teltonika TSW210 Industrial Ethernet Switch
SKU:TSW210
14 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
ETHERNET: 8 x Gigabit Ethernet ports with speeds of up to 1000 Mbps.
PLUG AND PLAY: No additional configuration needed.
MOUNTING: DIN rail and surface mounting options.
SFP: 2 x SFP ports for long-range fiber-optic communication.
| Ethernet | |
|---|---|
| ETH | 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fibre | 2 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packer buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: ~1.03 W / Max: 3.71 W |
| Physical Interfaces | |

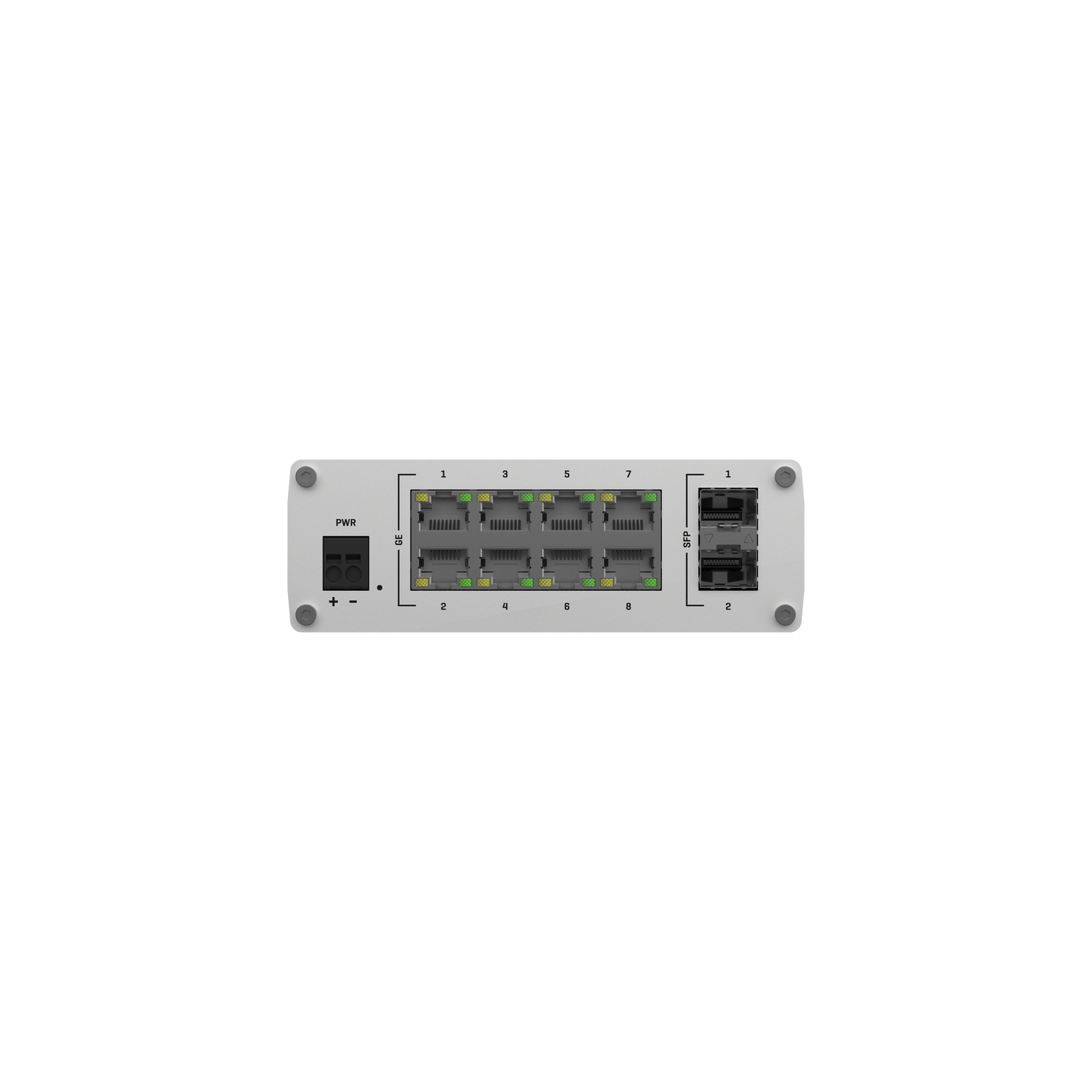

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |

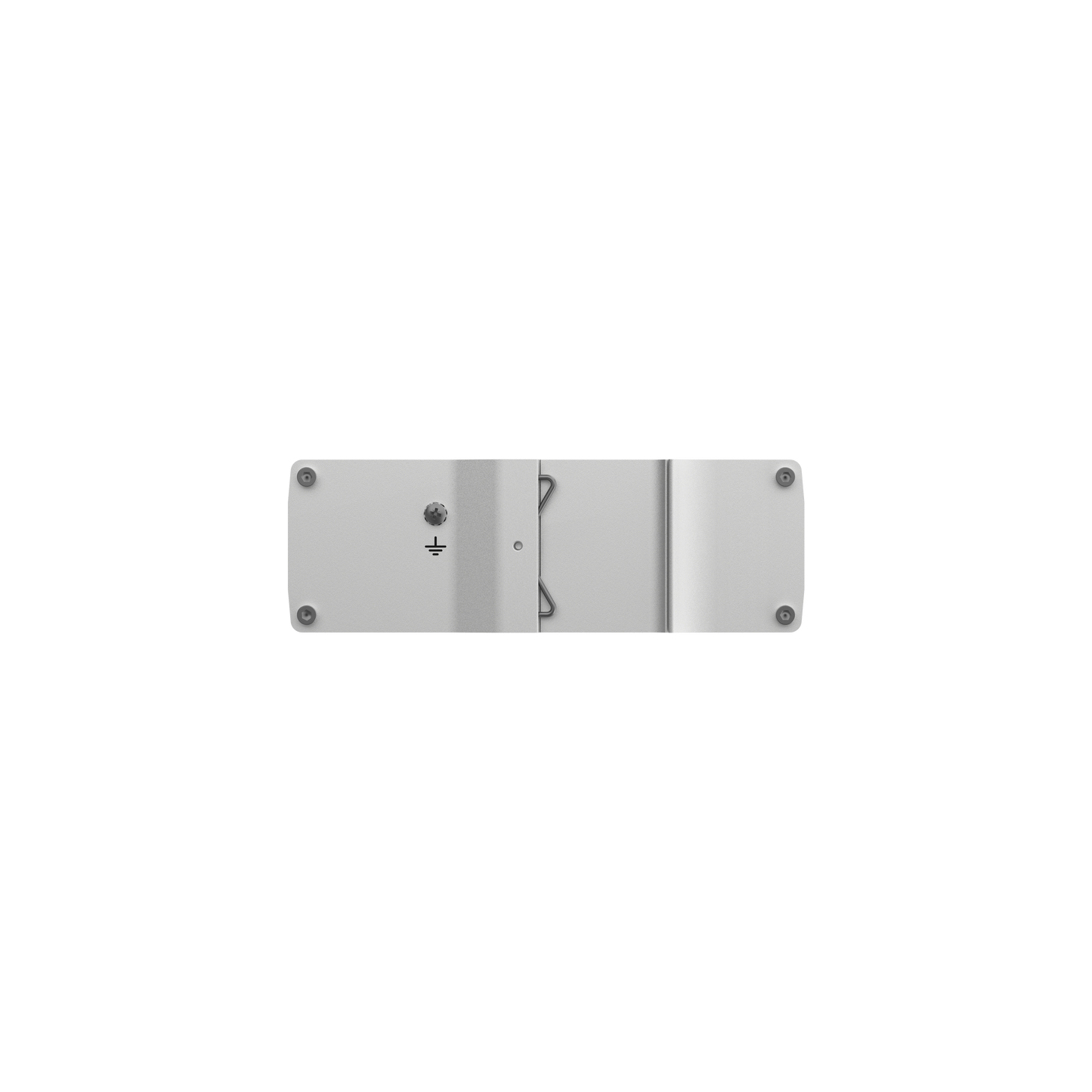

| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 500 g |

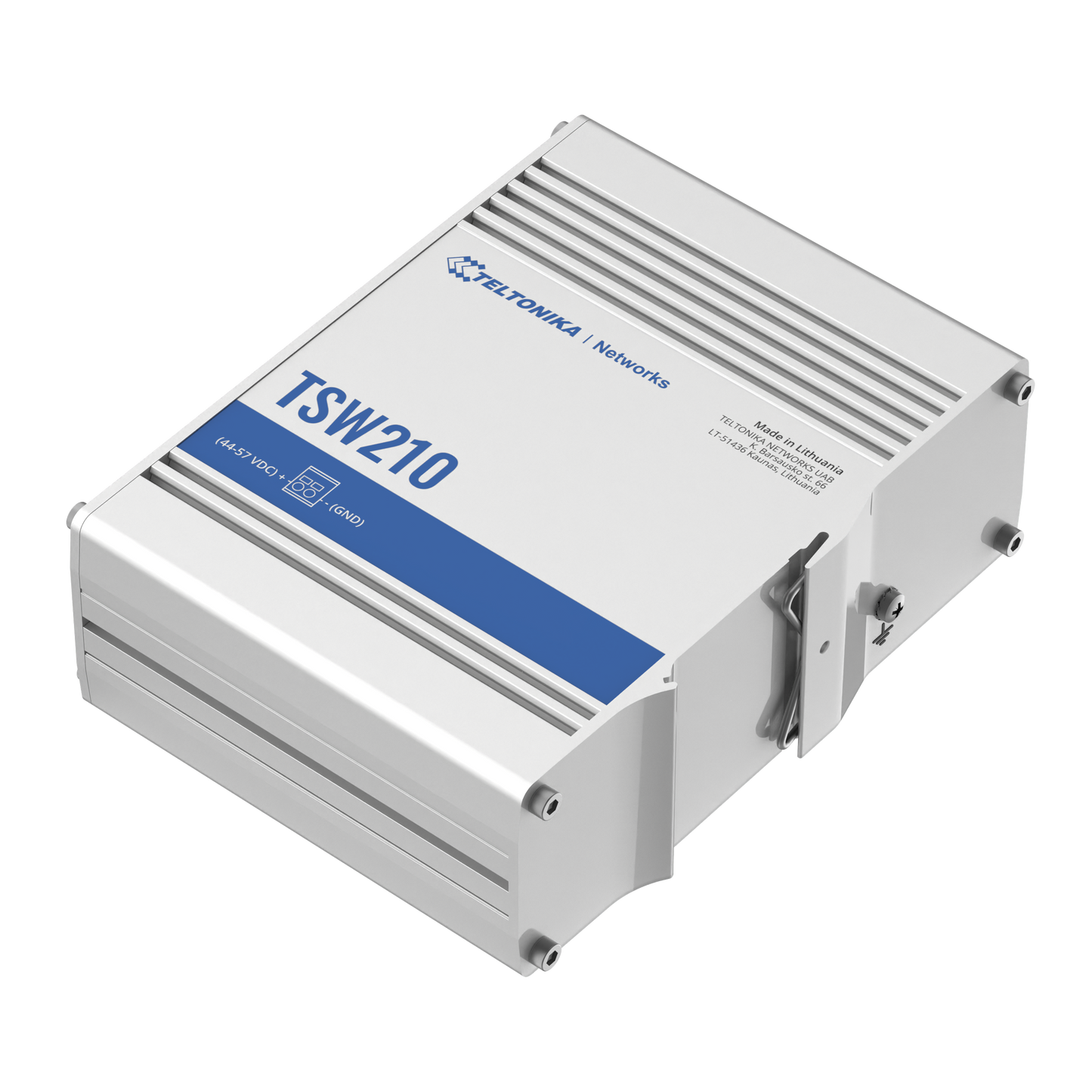

| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB |
| EMC Emissions & Immunity | |
| Standards |
EN 55032:2015 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019 |
| ESD | EN 61000-4-2:2009 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| Safety | |
| Standards |
IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 |
What's in the box?
- TSW210
- QSG (Quick Start Guide)
- Packaging box
Visit Teltonika for more information.
