TSW212 Managed Ethernet Switch

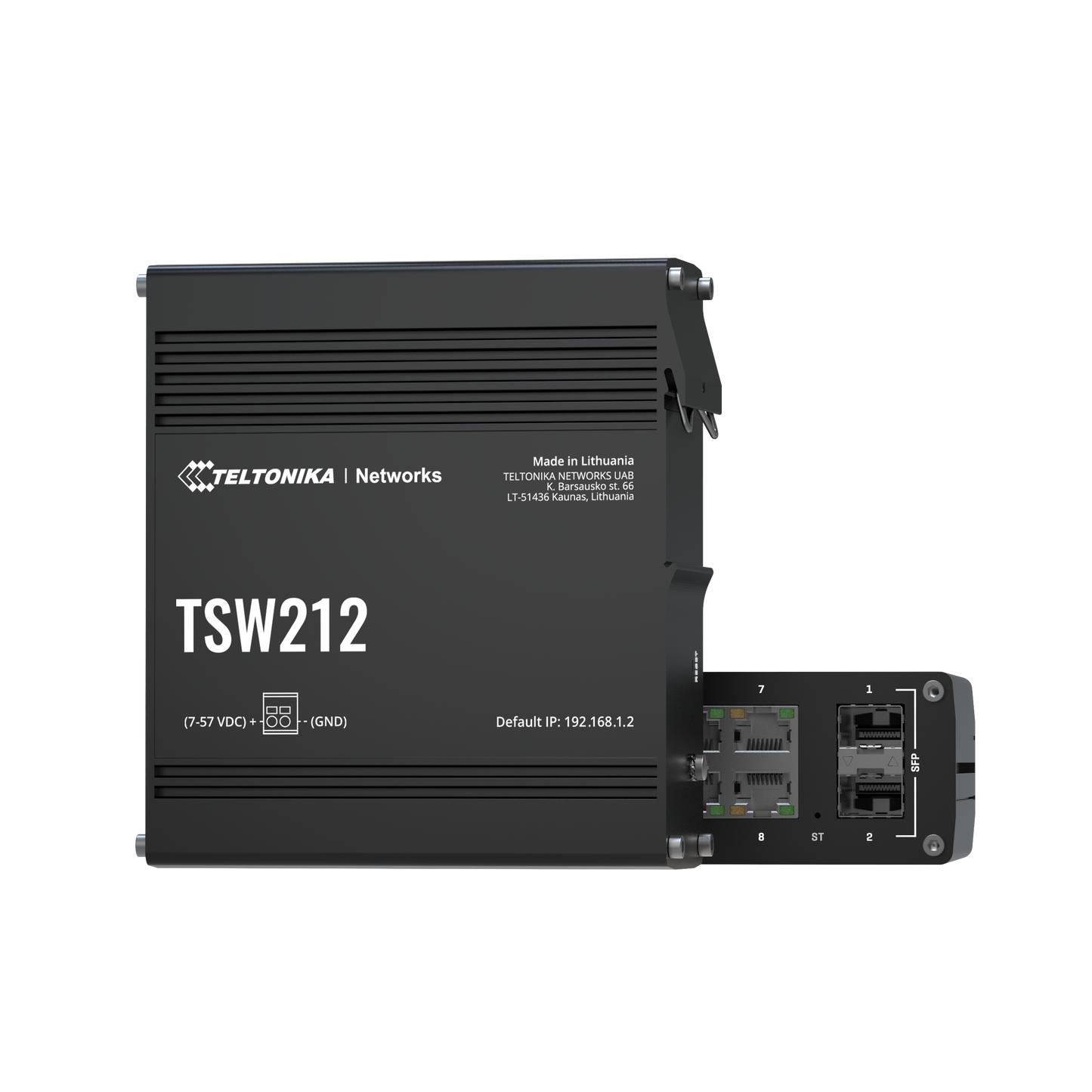

Teltonika TSW212 Managed Ethernet Switch
SKU:TSW212
84 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
MANAGED SWITCH: L2 with additional L3 features for advanced management capabilities.
PROFINET & MORE: Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP.
ETHERNET & SFP: 8 x Gigabit Ethernet ports and 2 x SFP ports for fibre optic communication.
WitchOS: Teltonika Networks OS for switches, intuitively designed for infinite configurations.
| Ethernet | |
|---|---|
| ETH | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
| Fibre | 2 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z |
| Services | |
| EtherNet/IP | Yes |
| PROFINET (class B) | Yes |
| SNMP V2, V3 | Yes |
| LLDP | Yes |
| Network Management | 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN |
| Network | |
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| Security | |
| Authentication | PAM — preshared key, Radius & TACACS+, IP & login attempts block |
| QoS | |
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
| Traffic Shaper | Port-based shaping |
| Diagnostics | |
| Tools | Cable diagnostic, ping, traceroute, nslookup |
| API | |
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com |
| System Characteristics | |
| RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| FIRMWARE CUSTOMISATION | |
| Operating system | TSWOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: < 2.5 W / Max: 6 W |
| Physical Interfaces | |

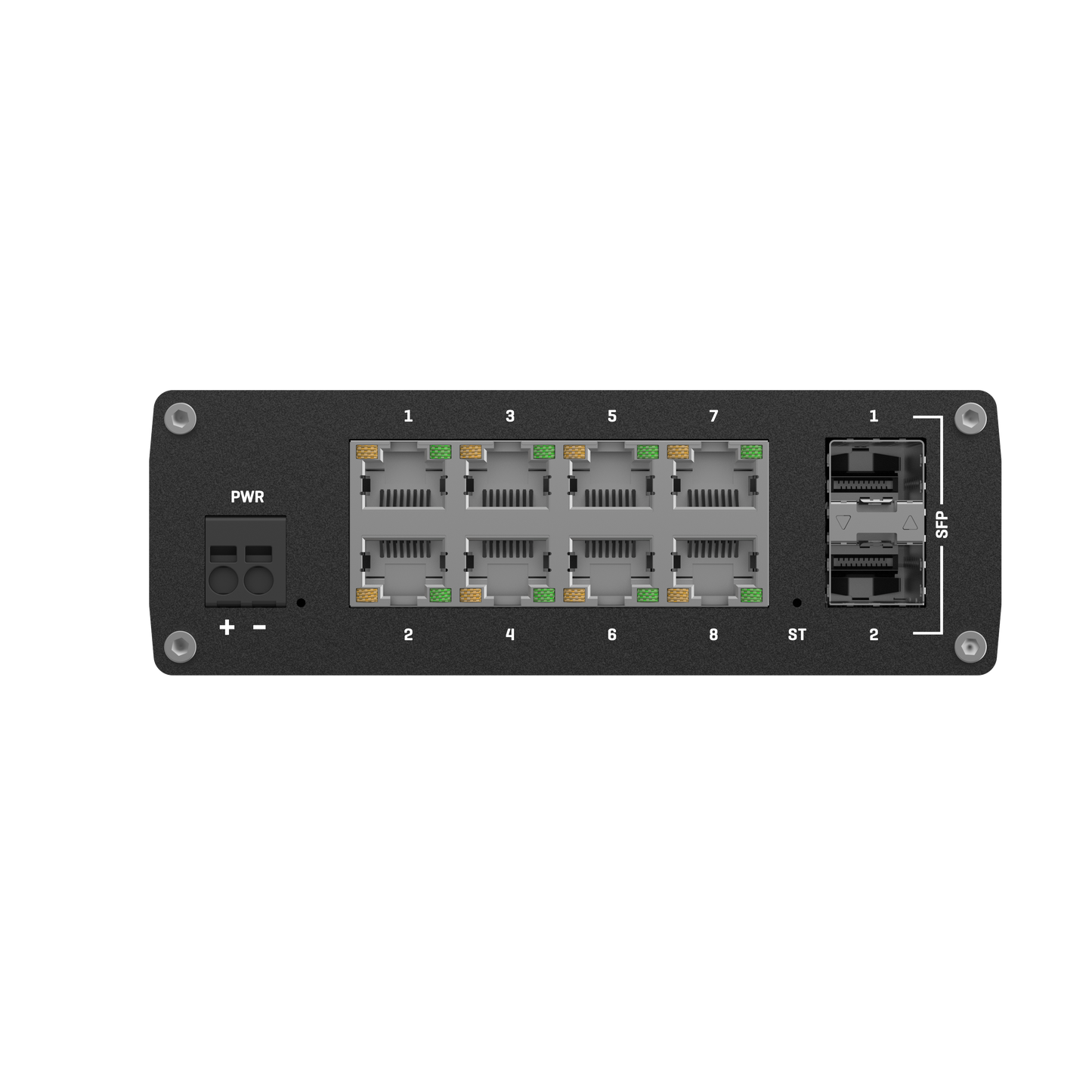

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |

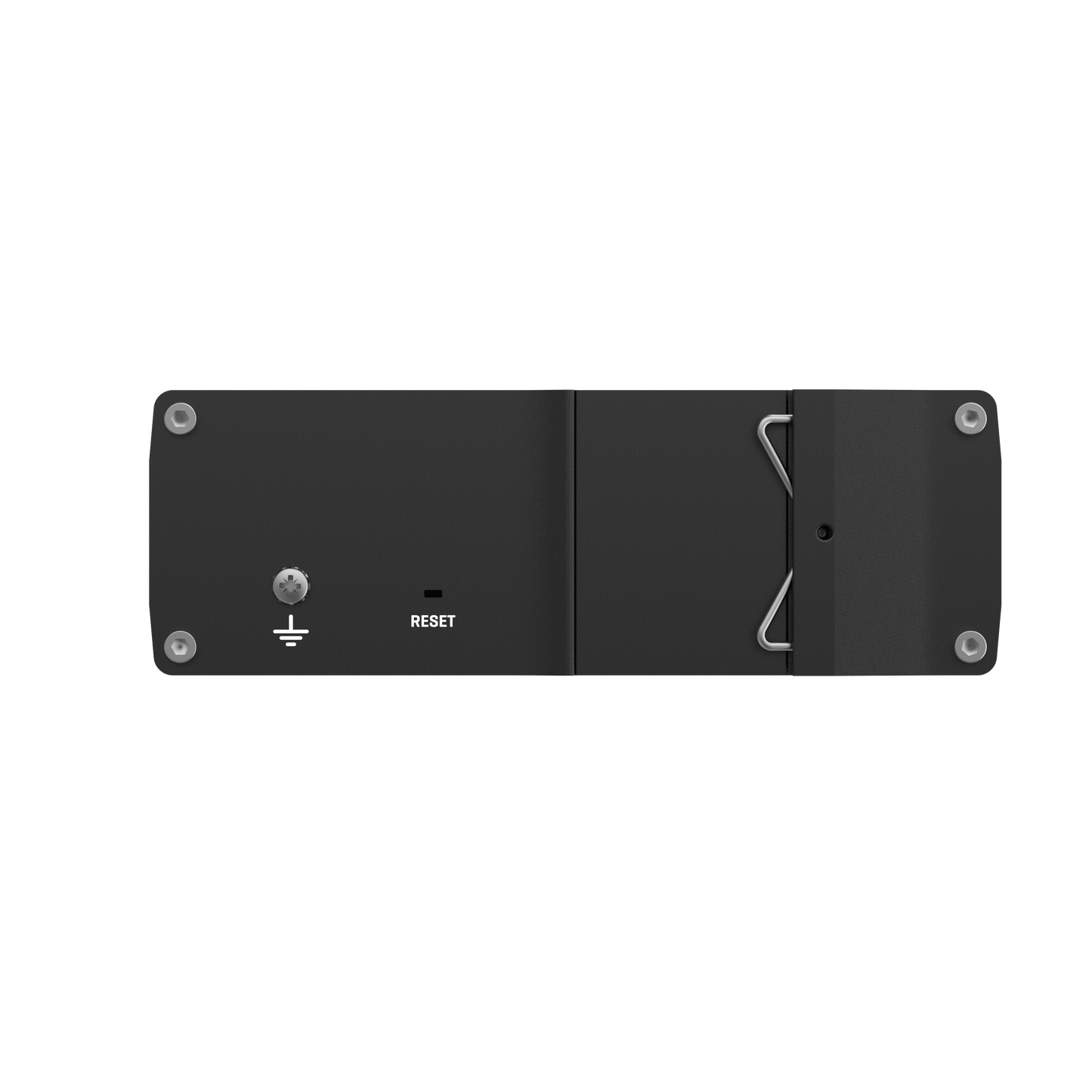

| Reset | Software reset button |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 615 g |
| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI (POSTEL) |
| EMC Emissions & Immunity | |
| Standards |
EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2: 2019 + A1:2021 EN 61000-3-3: 2013 + A1:2019 + A2:2021 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2020 |
| Safety | |
| Standards |
CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
What's in the box?
- TSW212
- QSG (Quick Start Guide)
- Packaging box
