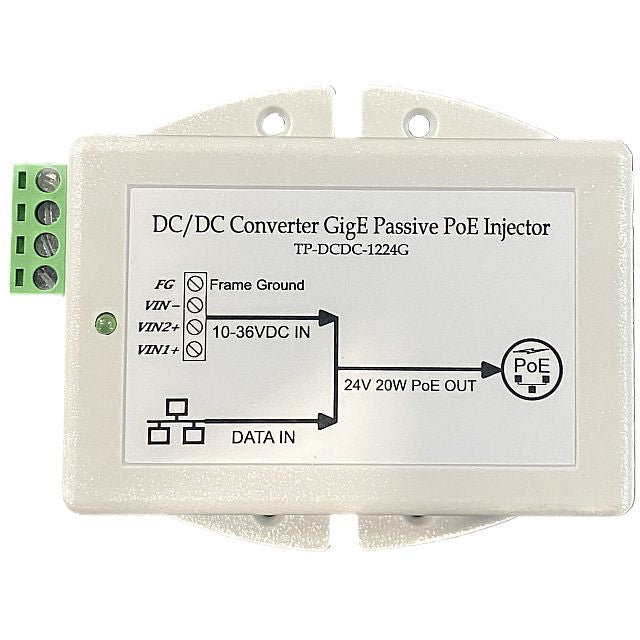

TP-DCDC-1224G

10-36VDC Input, 24V Passive Gigabit PoE Output, 20W

Overview

• Input Voltage 9-36VDC; Output 24VDC (Passive)
• Built-in Gigabit PoE Inserter
• Robust 24W Output Power
• Comprehensive Safety Features: Short Circuit, Over Current, and Over Voltage Protection
• Operates Reliably in High-Temperature Environments
• Wire Terminal Input for up to 12AWG wires allows for easy and secure connections
• Certified I.T.E. Power Supply, UL Listed for safety and reliability

The TP-DCDC-1224G delivers a cost-effective and high-efficiency solution for those needing Passive Power over Ethernet from a 12VDC source such as battery systems or vehicles. It includes an integrated POE injector that combines power and data output onto a CAT5/6 Ethernet cable. The output voltage is consistently regulated and safeguarded.

This unit supports a common (-) and two (+) terminals for connecting dual power sources, facilitating a primary and a backup power setup. A robust metal enclosure version is available for industrial environments.

The device accepts gigabit data through a shielded RJ45 jack, providing both gigabit data output and PoE power via the shielded RJ45 output jack. It ensures power delivery on Ethernet pins 4,5(V+) and 7,8(V-). The converter is fortified with multiple protective measures against surge, short circuits, and overload. Versions are available with power outputs extending to 24W.

Dimensions:
85 x 76 x 36mm (3.4 x 3 x 1.4in)
Weight: 134g (4.7oz)

Technical Details

• Input Voltage: 12/24 VDC
• Output Voltage/Type: 24V Passive PoE
• Output Power: 19W
• Network Speed: 10/100 Mb
• Temperature Range: -30C to +60C
