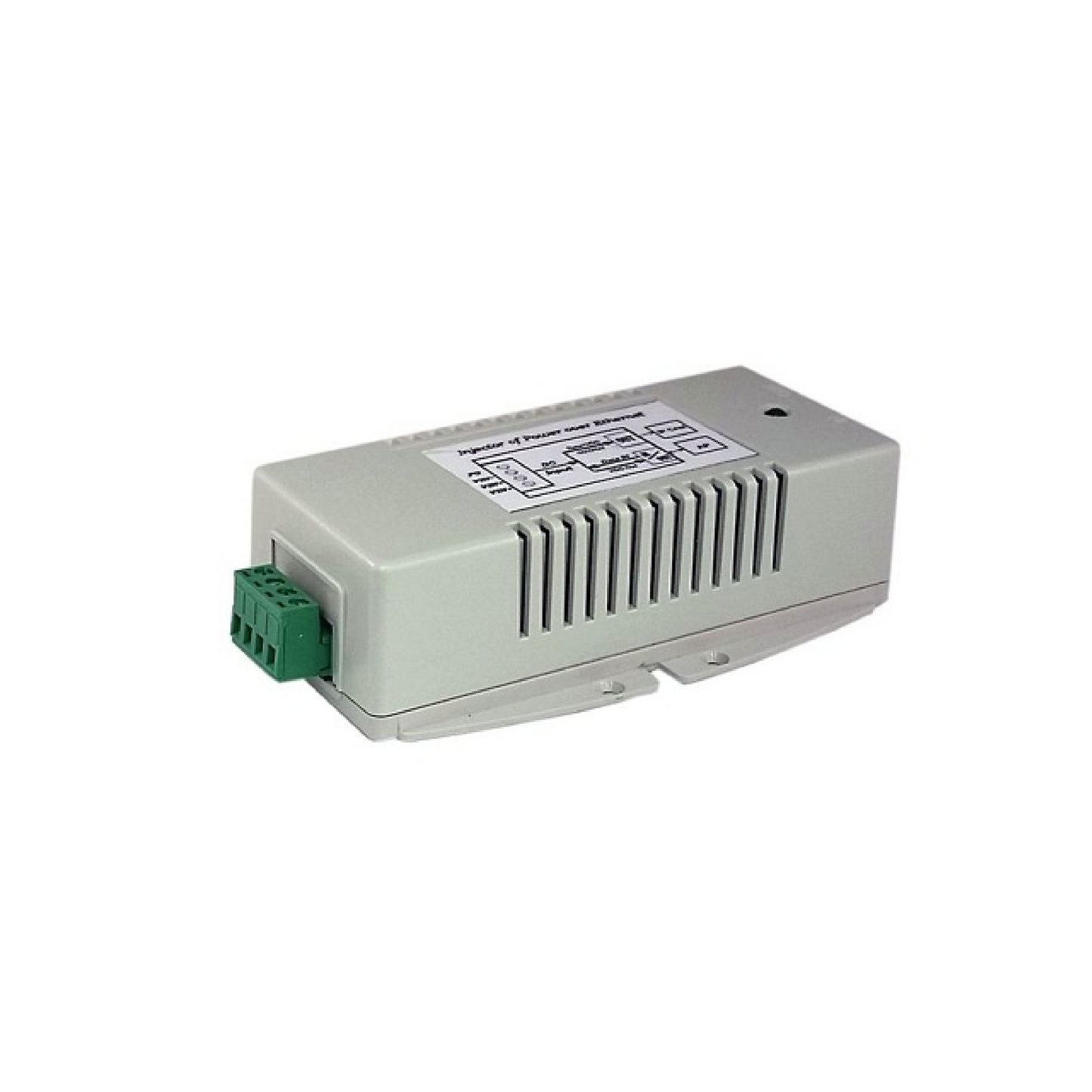

TP-DCDC-1224G-4P

10-36VDC Input, 24V 4Pair Gigabit Passive PoE Output, 24W

Features

• Input Voltage 9-36VDC

• 24V Gigabit Passive 4 Pair PoE Output

• Dual Inputs for Connecting 2 Power Sources

• Integrated 10/100/1000MB PoE Inserter

• High Power up to 24W

• Short Circuit, Over Current and Reverse/Over Voltage Protect

• High Temperature Operation to 70C

• Built-in Low Battery Disconnect and Surge Protection

• I.T.E. Power Supply, UL Listed

Applications

• 12V / 24V Battery Systems, Vehicle Applications

• UBNT Airfiber-X

• Wireless Access Points and Client Devices

The TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated 4 pair PoE injector to apply the power and data output to the CAT5/6 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. Input and outputs are isolated so + or – ground is OK. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 port PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W

Specification
