Ubiquiti

SKU:UAP-AC-M

Regular price $196.00
Regular price $212.00 Sale price $196.00
8% Off | Save $16.00 Sold out
Taxes included. Shipping calculated at checkout.

Bundle

120 in stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.

  • WiFi 5.
  • 4 spatial streams.
  • 140 m² (1,500 ft²) coverage.
  • 250+ connected devices.
  • Powered using PoE.
  • GbE uplink.
  • Versatile wall and pole mounting.
  • (2) RP-SMA connectors for optional external antennas.
  • Weatherproof (outdoor exposed).

PoE power adapter included with single unit purchase. UMA-D external antenna accessory offers directional coverage.

Mechanical

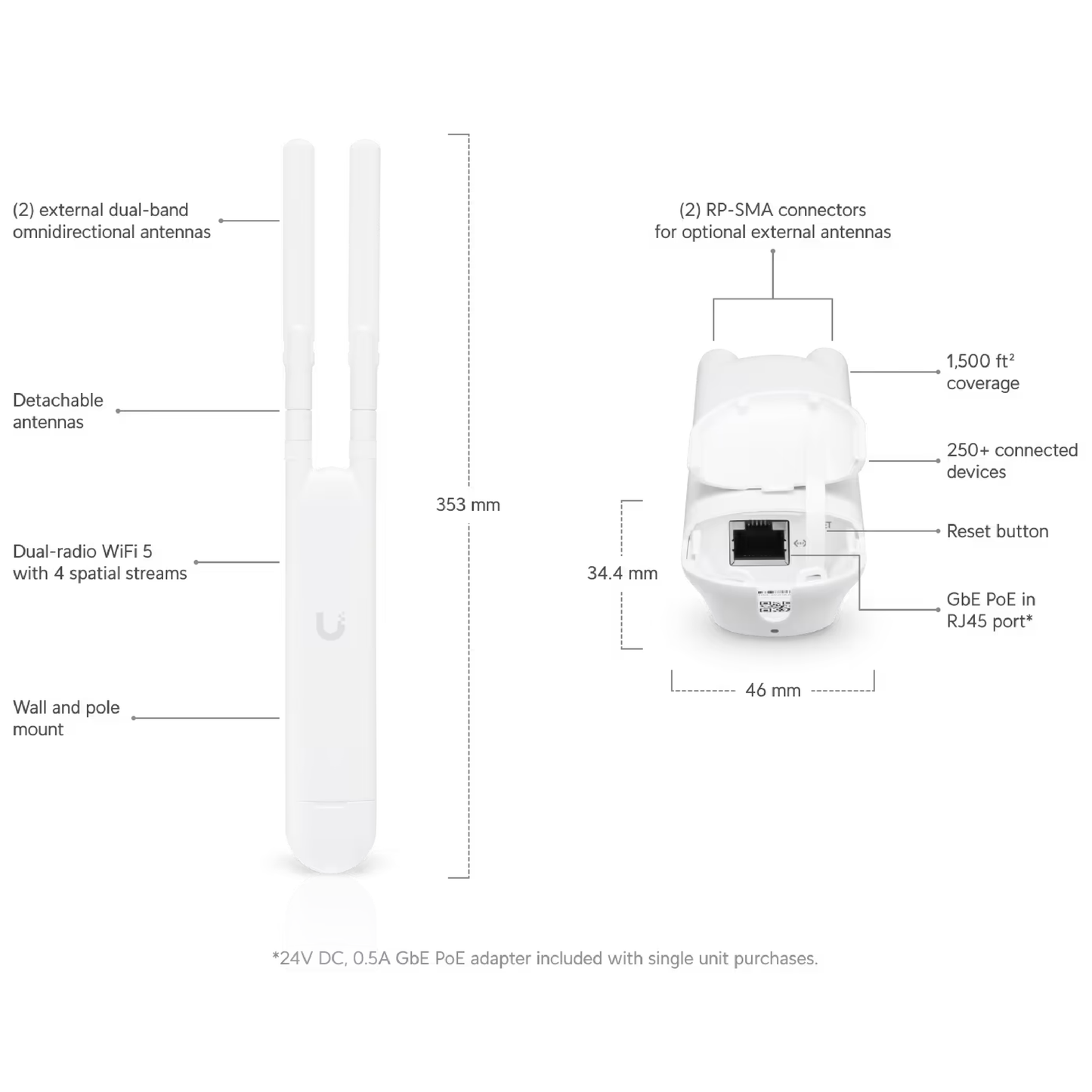

Dimensions 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight 152 g (5.4 oz)
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE
Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply Gigabit PoE adapter 24V, 0.5A*
*5-packs do not come with PoE adapters.
Supported voltage range 44—57V DC
Max. power consumption 8.5W
Max. TX power
2.4 GHz
5 GHz
6 GHz

20 dBm
20 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz

300 Mbps
867 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

3 dBi
4 dBi
Button Factory reset
Mounting Wall, pole, fast-mount (Included)
Operating temperature -30 to 70° C (-22 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, UKCA
Software
WiFi standards 802.11a/b/g/n/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN 802.1Q
BSSID Up to 4 per radio
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Visit Ubiquiti for more information.
