Ubiquiti

SKU:AF-5XHD

Regular price $682.00
Regular price $856.00 Sale price $682.00
20% Off | Save $174.00 Sold out
Taxes included. Shipping calculated at checkout.

108 in stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

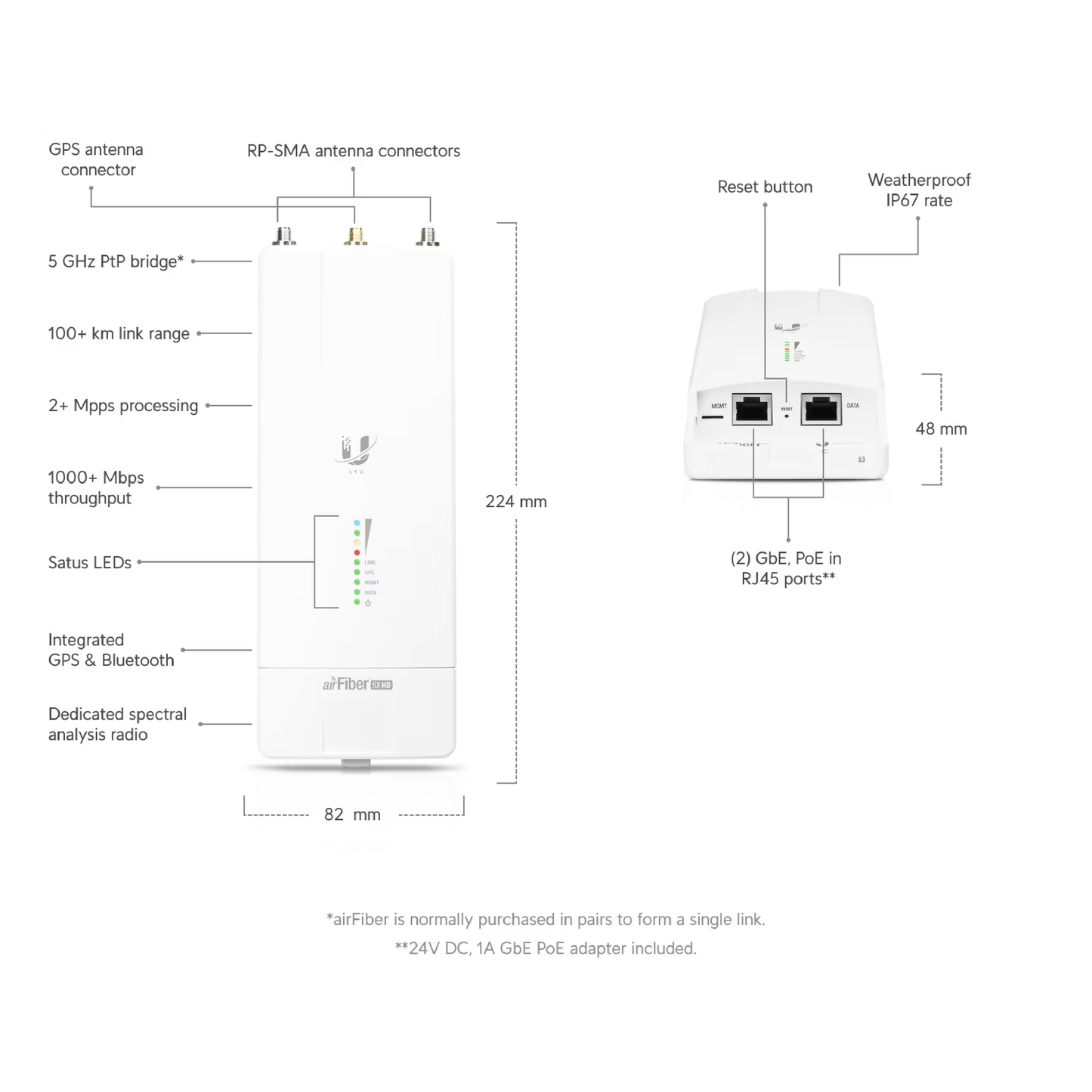

True 1+ Gbps spectrally efficient, noise resilient PTP technology specifically designed for WISP's.

  • 5 GHz, 100+ km link range.
  • 1000+ Mbps throughput.
  • Dedicated spectral analysis radio.
  • Integrated GPS sync.
  • 2+ Mpps processing.
Mechanical
Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight 0.35 kg (0.77 lb)
Mounting airFiber X mount (Rocket mount compatible)
GPS Pole Mount (Included)
Weatherproofing IP67*
* After installation of IP67 upgrade kit (included).
Hardware

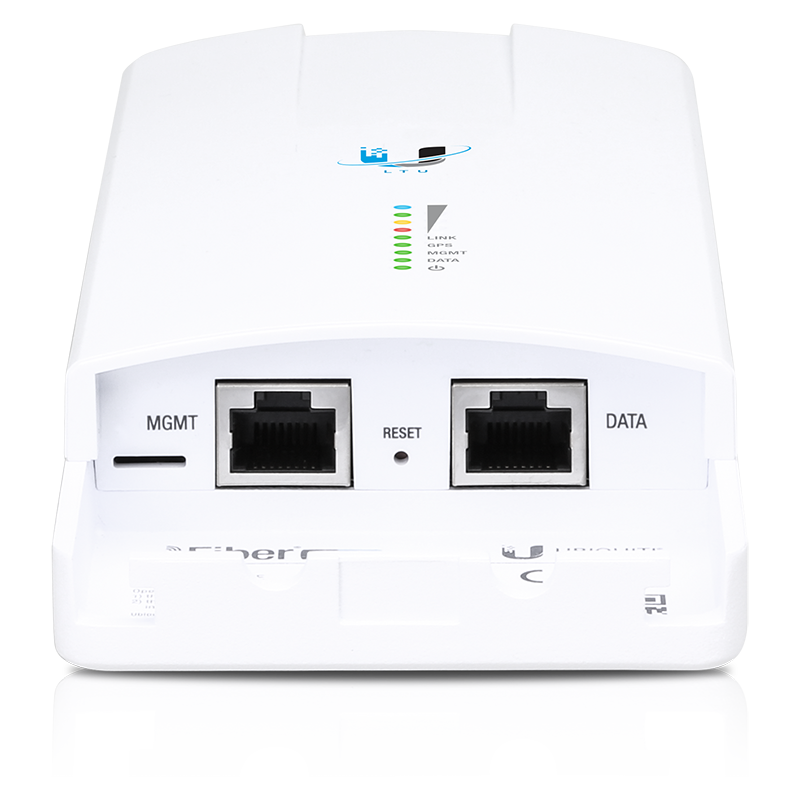

Networking Interface (1) GbE RJ45 port
Power method Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-))
Power supply 24V, 1A PoE Gigabit adapter (Included)
Supported voltage range 18—54V DC
Max. power consumption 12W
GPS antenna External, magnetic base
Operating temperature -40 to 55° C (-40 to 131° F)
Certifications CE, FCC, IC
Software
Modes PtP Master/Slave
Max. throughput 1+ Gbps
Max. range* 100+ km
* Throughput and range values may vary depending on the environmental conditions.
Encryption AES-256
RF
Max. TX power* 29 dBm
* Depends on regional regulations.
Frequency accuracy ± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization
Channel bandwidth 10/20/30/40/50/60/80/100 MHz selectable
Programmable Uplink and Downlink duty cycles
Operating Frequency (MHz)
Worldwide 4800 - 6200 MHz*
*Depends on regional regulations.
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

Visit Ubiquiti for more information.
