EdgeSwitch 48 PoE (500W) — Wired UISP EdgeMAX Switching
EdgeSwitch 48 PoE (500W) — Wired UISP EdgeMAX Switching
SKU:ES-48-500W
Regular price
$1,400.00
Regular price
$1,660.00
Sale price
$1,400.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Business purchase? Contact us below for bulk discounts!
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

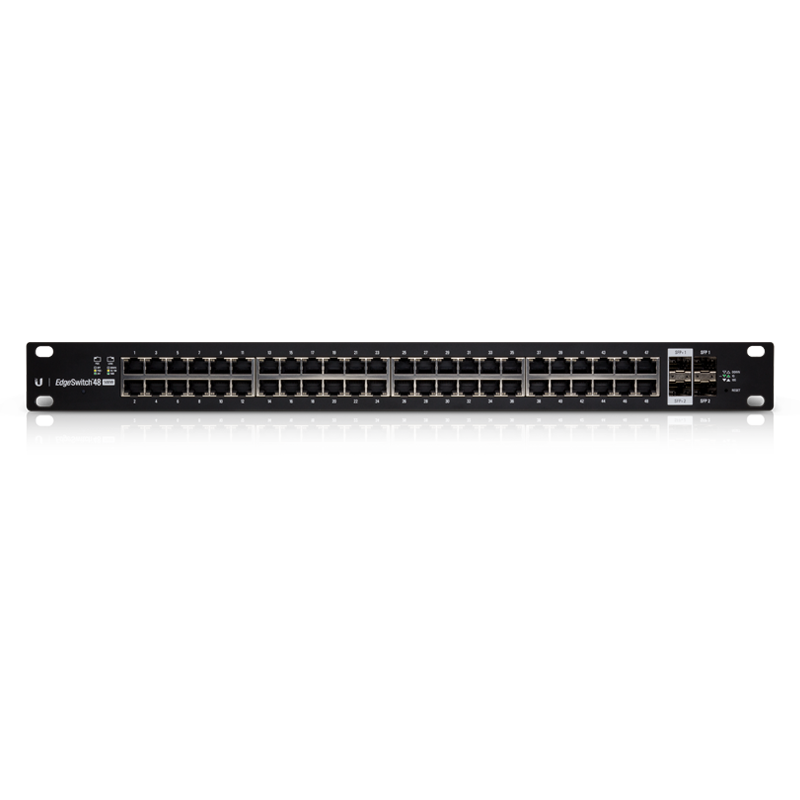

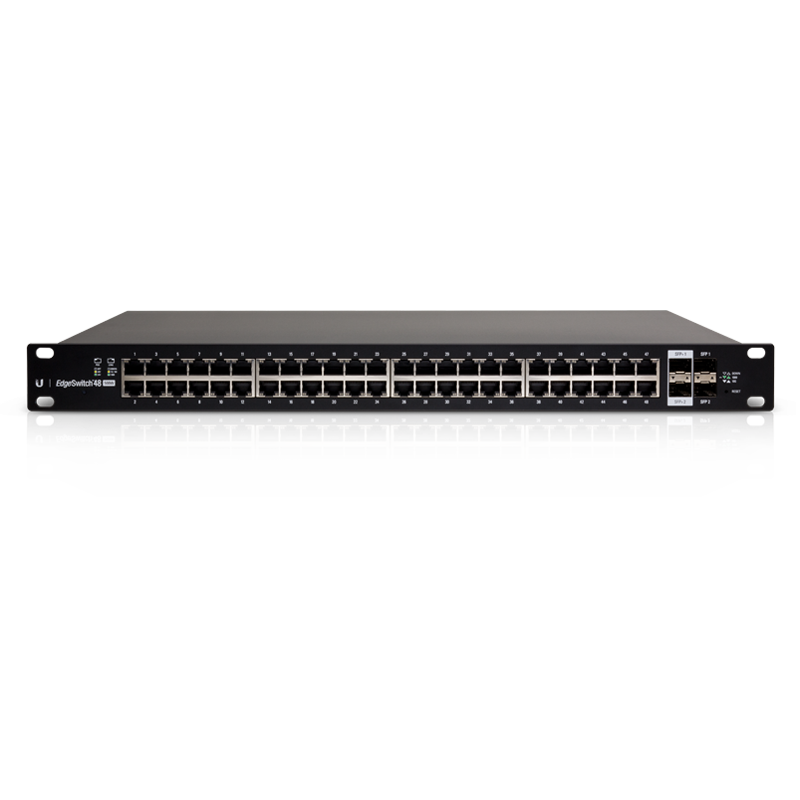

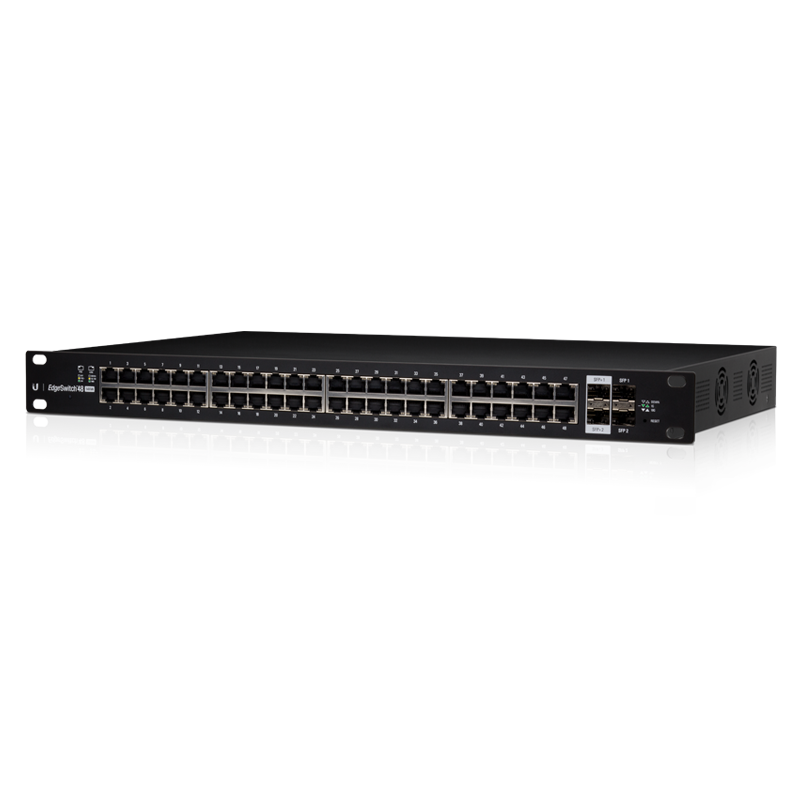

Experience superior networking with the Ubiquiti EdgeSwitch 48 PoE, a Gigabit Network Switch, featuring advanced Layer 2/3 capabilities. This robust PoE+ switch comes equipped with 48 Gigabit RJ45 ports, 2 SFP+ ports, and 2 SFP ports, all powered by a reliable 500W power supply. It's an ideal solution for high-performance network environments in Australia.
- 48 Gigabit Ethernet RJ45 ports for high-speed connectivity
- 4 high-capacity fibre ports (2 SFP and 2 SFP+) for uplinking
- 500 Watts of total PoE capacity to power your devices
- Easily rack-mountable in a standard 1U slot for convenient installation

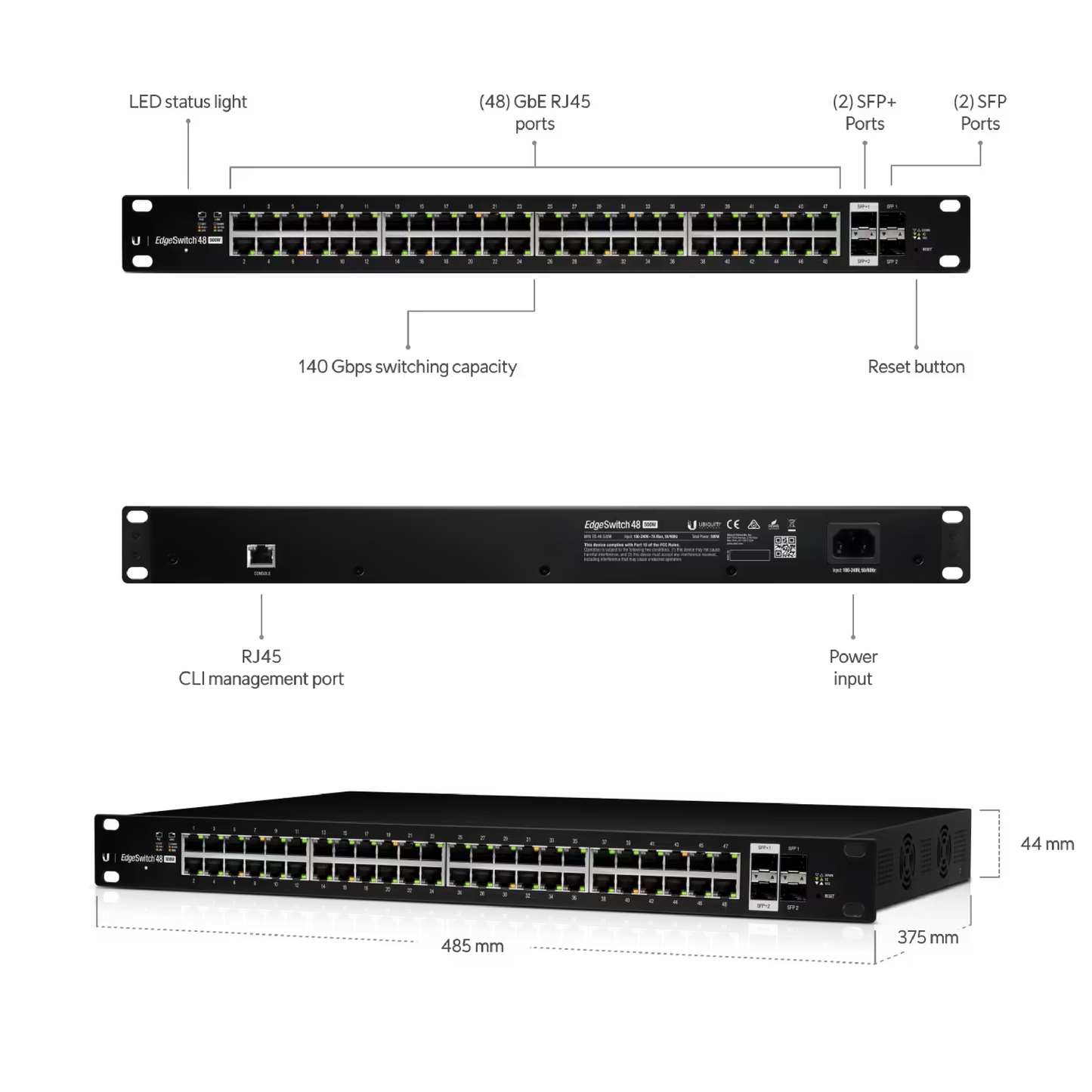

| Mechanical | |
|---|---|
| Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
| Weight | 6.1 kg (13.5 lb) |
| Hardware | |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Max. Power Consumption Includes PoE Output Excludes PoE Output |
500W 64W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500W DC |
| LEDs Per Port RJ45 Data Ports SFP+/SFP Data Ports |
PoE, Speed/Link/Activity Speed/Link/Activity |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE Per Port | |
| PoE Interfaces | PoE/PoE+ (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range PoE+ Mode | 50-57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
