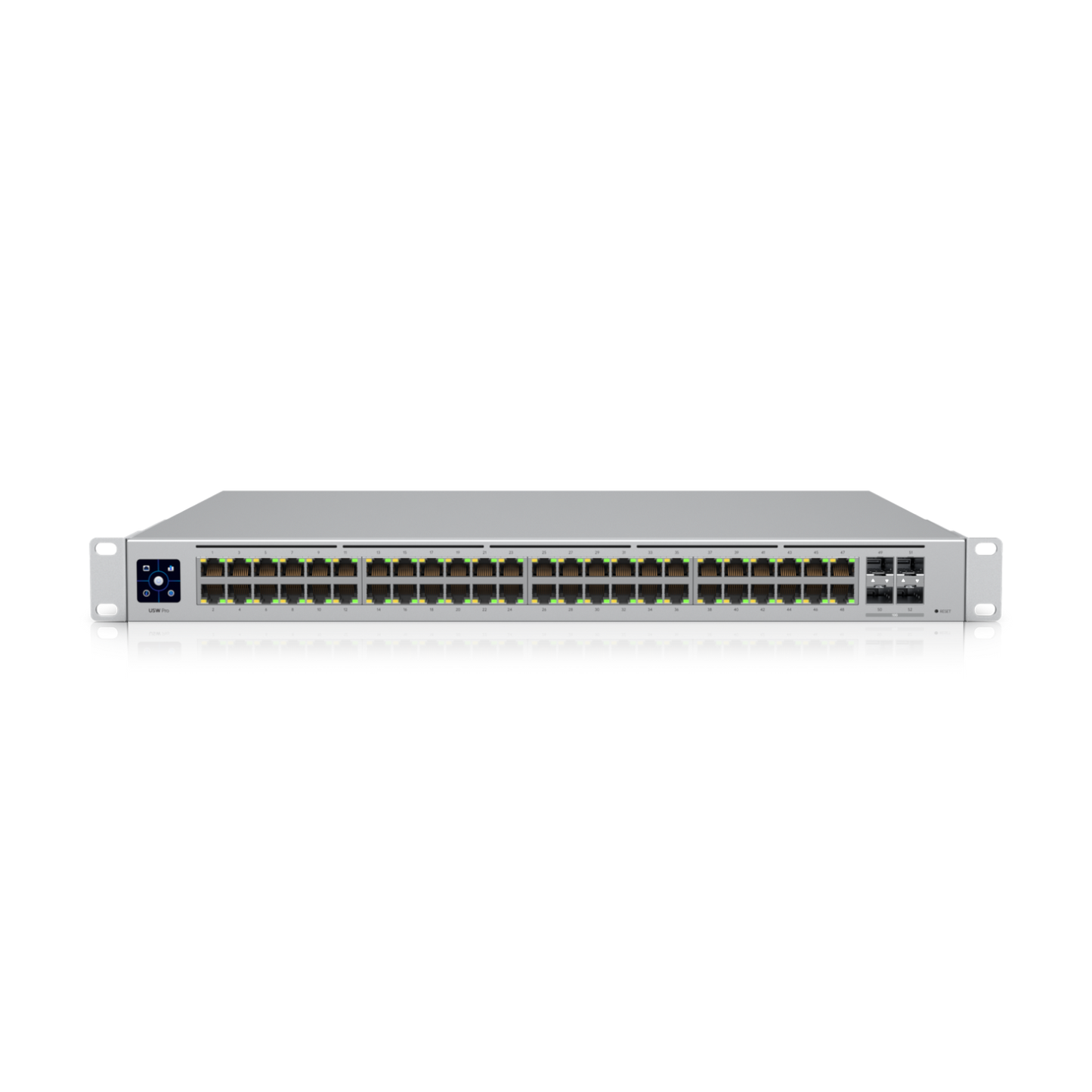

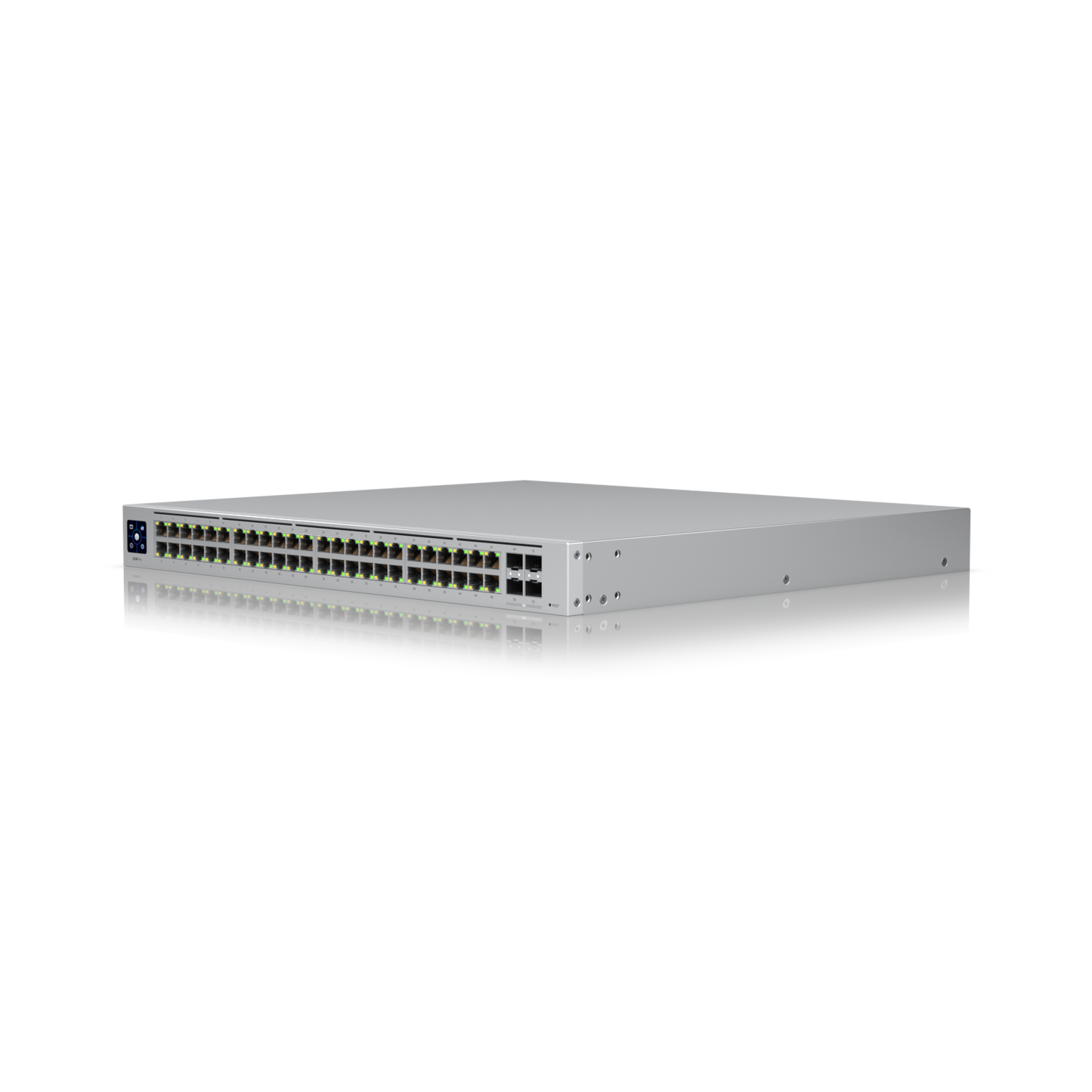

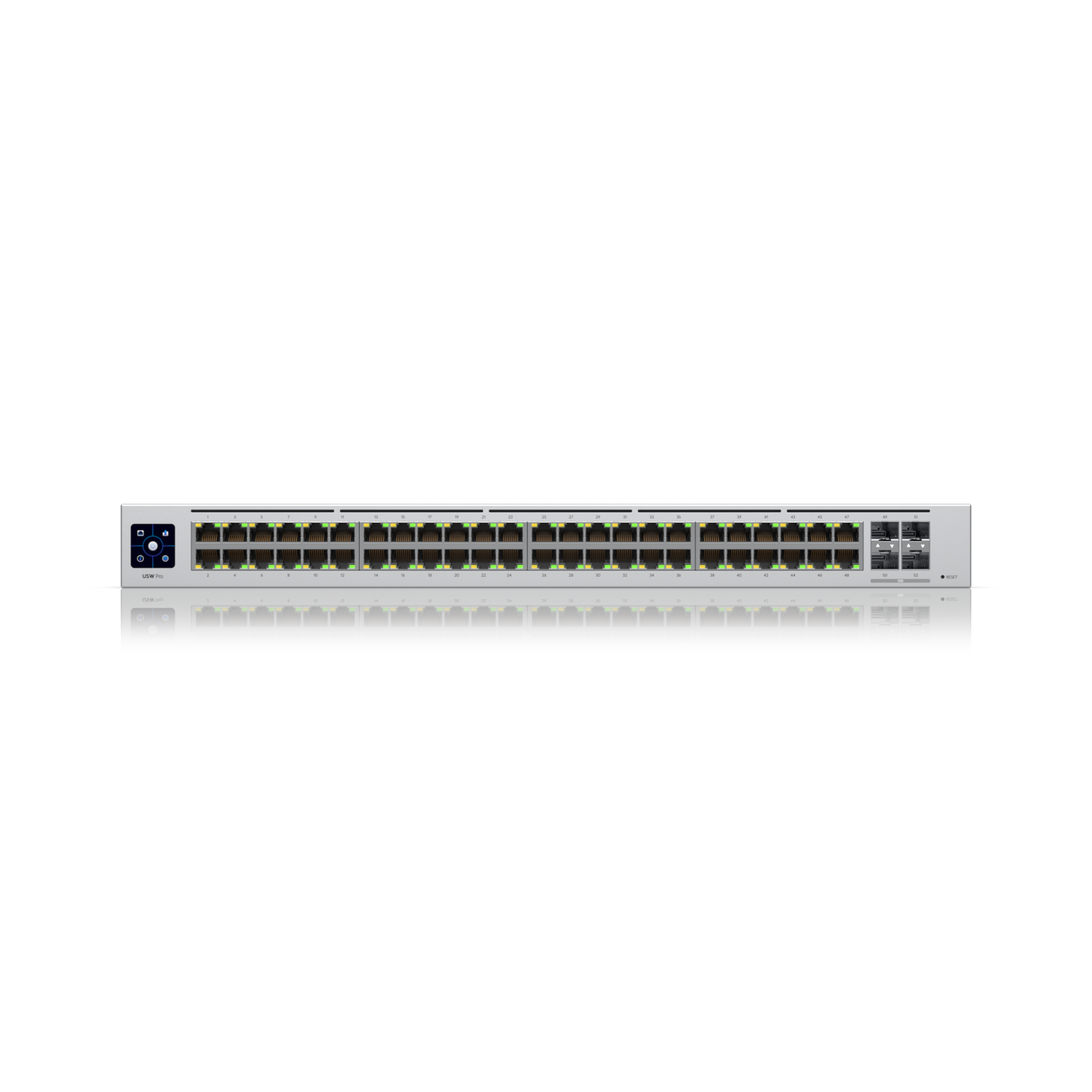

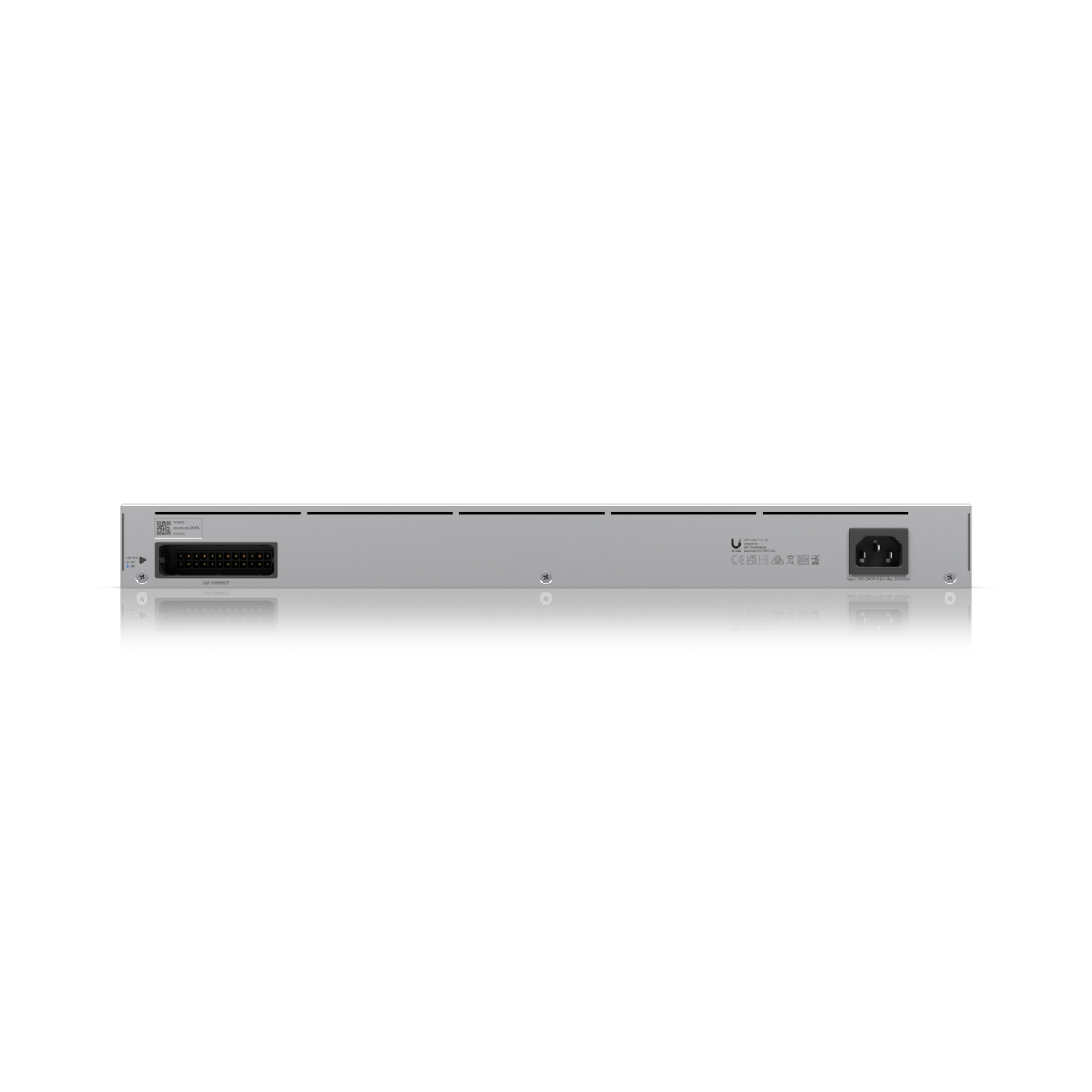

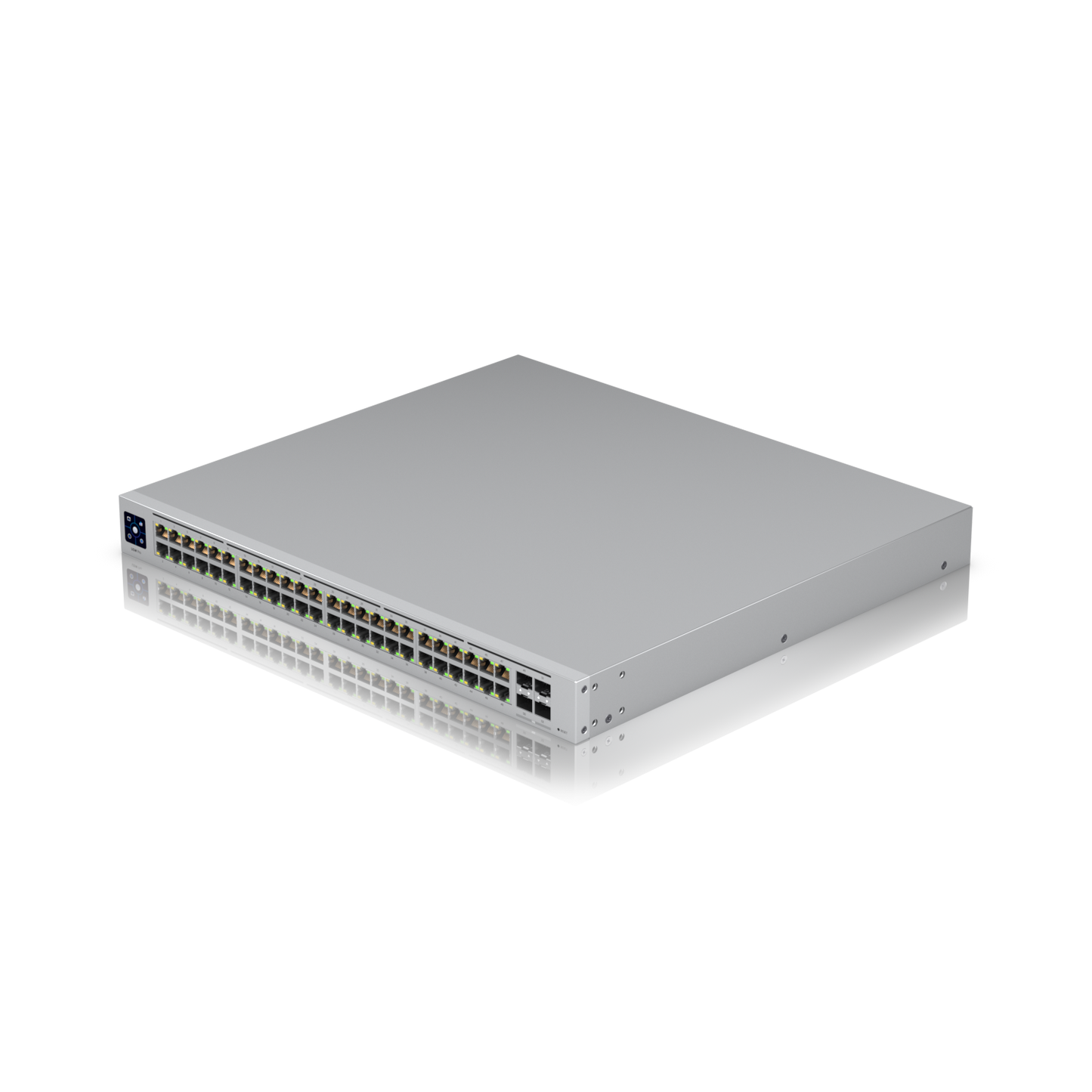

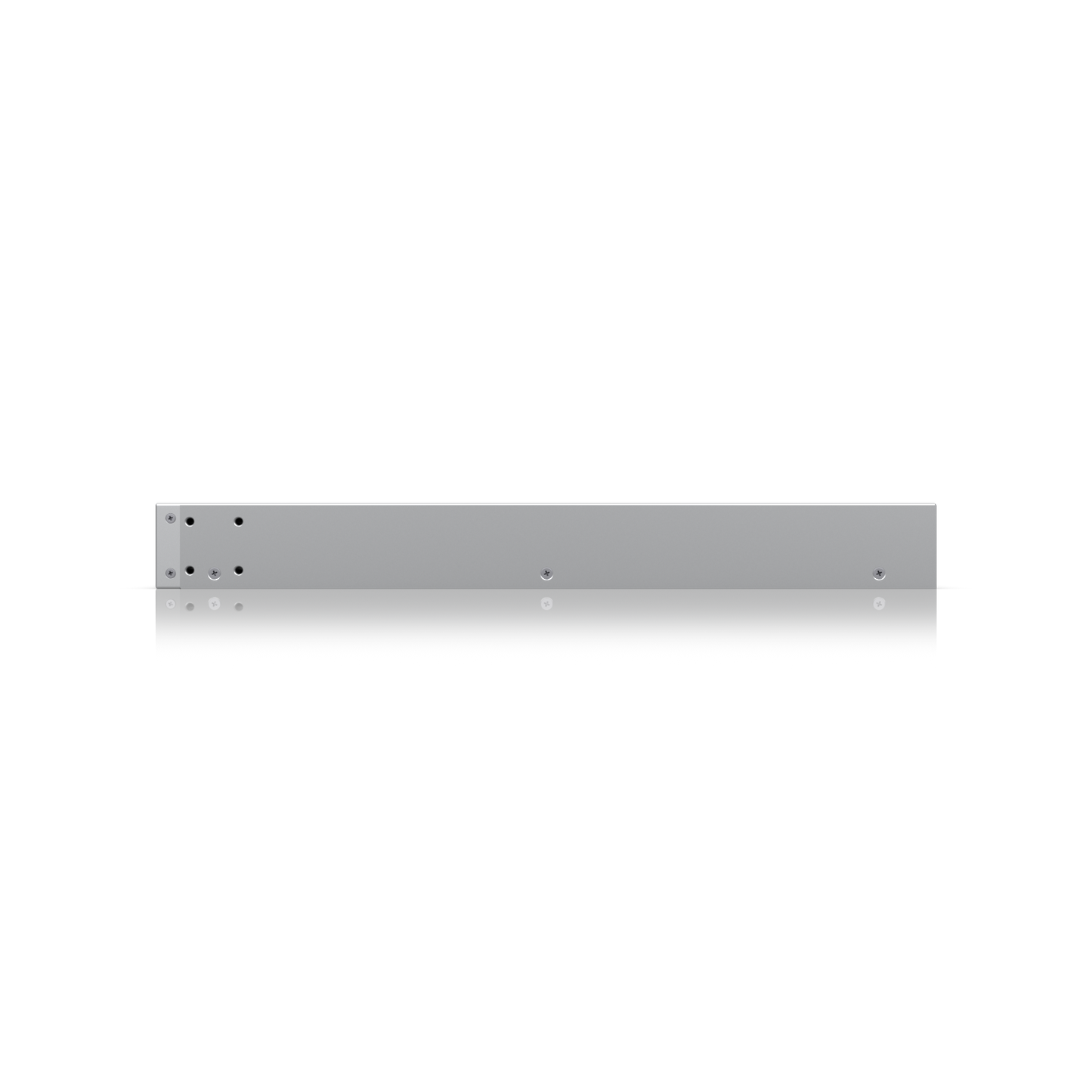

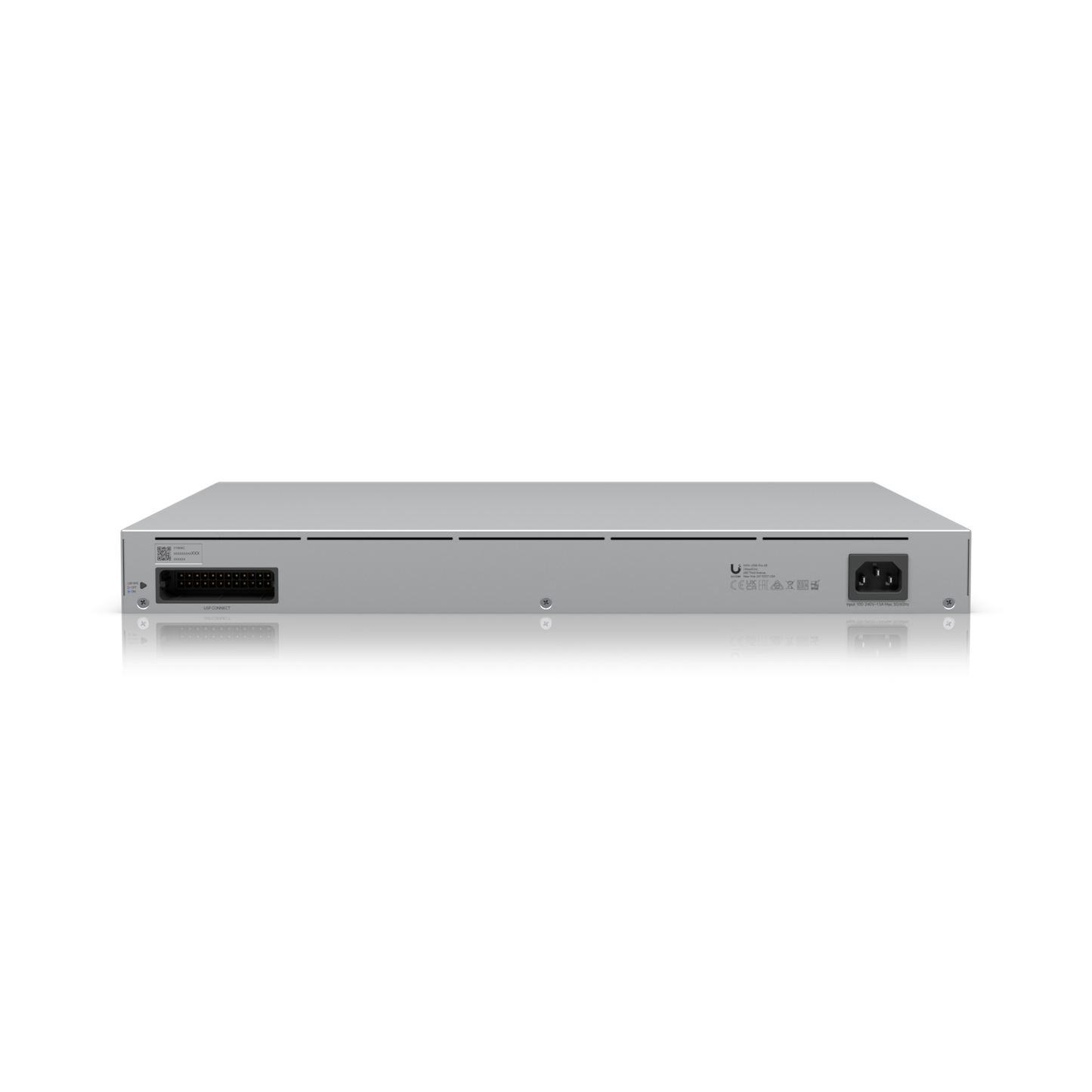

UniFi Professional 48 Layer 3 Switch
Ubiquiti USW-Pro-48 UniFi Professional 48 Layer 3 Switch
SKU:USW-Pro-48
Regular price
$1,062.00
Regular price
$1,276.00
Sale price
$1,062.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
33 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
A 48-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.
- (48) GbE ports.
- (4) 10G SFP+ ports.
- DC power backup-ready.
- Layer 3 switching.
- Silent cooling.
| Mechanical | |
|---|---|
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight |
Without mounting brackets: 4 kg (8.8 lb) With mounting brackets: 4.1 kg (9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface |
(48) GbE RJ45 ports (4) 1/10G SFP+ ports |
| Total non-blocking throughput | 88 Gbps |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.944 Mpps |
| Power method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 5.22A |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 60W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features |
IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features |
DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.12.11 and later |
Visit Ubiquiti for more information.
