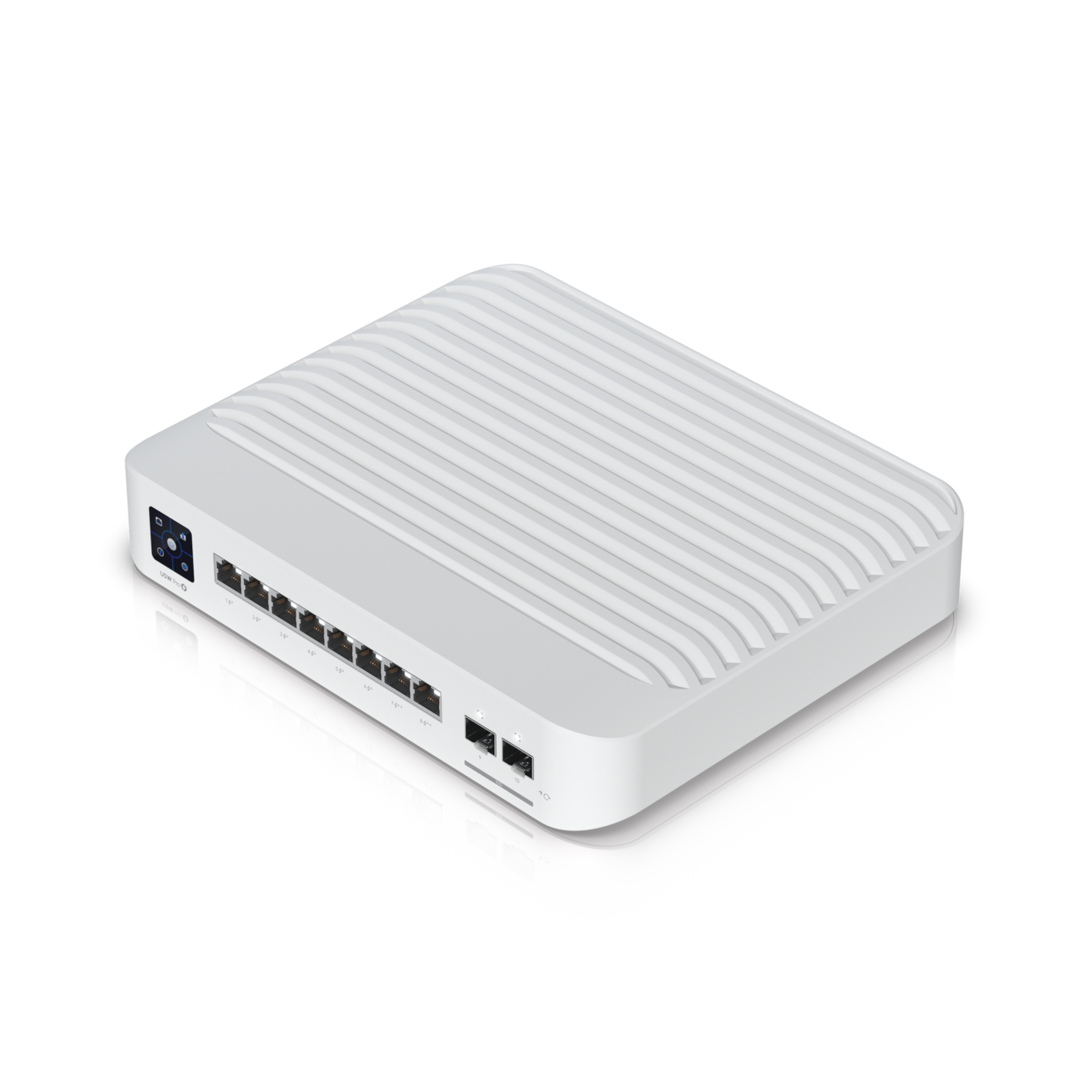

UniFi Pro 8 PoE Layer 3 Switch
Ubiquiti USW-Pro-8-PoE UniFi Pro 8 PoE Layer 3 Switch
SKU:USW-Pro-8-PoE
Regular price
$520.00
Regular price
$910.00
Sale price
$520.00
Unit price
per
99 in stock
Authorised Reseller | Australian Stock | Australian Warranty
An 8-port, Layer 3 switch with PoE+ and PoE++ output.
- (6) GbE PoE+ ports.
- (2) GbE PoE++ ports.
- (2) 10G SFP+ ports.
- 120W total PoE availability.
Managed with UniFi Network Application version 7.5.176 and later.
Mechanical | |
---|---|
Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
Weight | 2.1 kg (4.6 lb) |
Enclosure materials | Polycarbonate, metal |
Mount material | Polycarbonate |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface |
(8) GbE RJ45 ports (2) 10G SFP+ ports |
PoE interface |
(6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total non-blocking throughput | 28 Gbps |
Switching capacity | 56 Gbps |
Forwarding rate | 41.664 Gbps |
Power method | Universal input, 100—240V AC, 2A Max. |
Power supply | AC/DC, internal |
Supported voltage range | 100—240V AC |
Max. power consumption | 30W (Excluding PoE output) |
Total available PoE | 120W |
Max. PoE wattage per port by PSE |
PoE: 15W PoE+: 30W PoE++: 60W |
Voltage range PoE mode |
PoE: 44—57V PoE+: 50—57V PoE++: 50—57V |
LCM display | (1) 1.3" touchscreen |
LEDs | RJ45 ports: link/activity |
Button | Factory reset |
Ambient operating temperature | -5 to 45° C (23 to 113° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Switching Features | |
Layer 2 features |
IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
Layer 3 features |
DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
Application Requirements | |
UniFi Network | Version 7.5.176 and later |
Visit Ubiquiti for more information.
