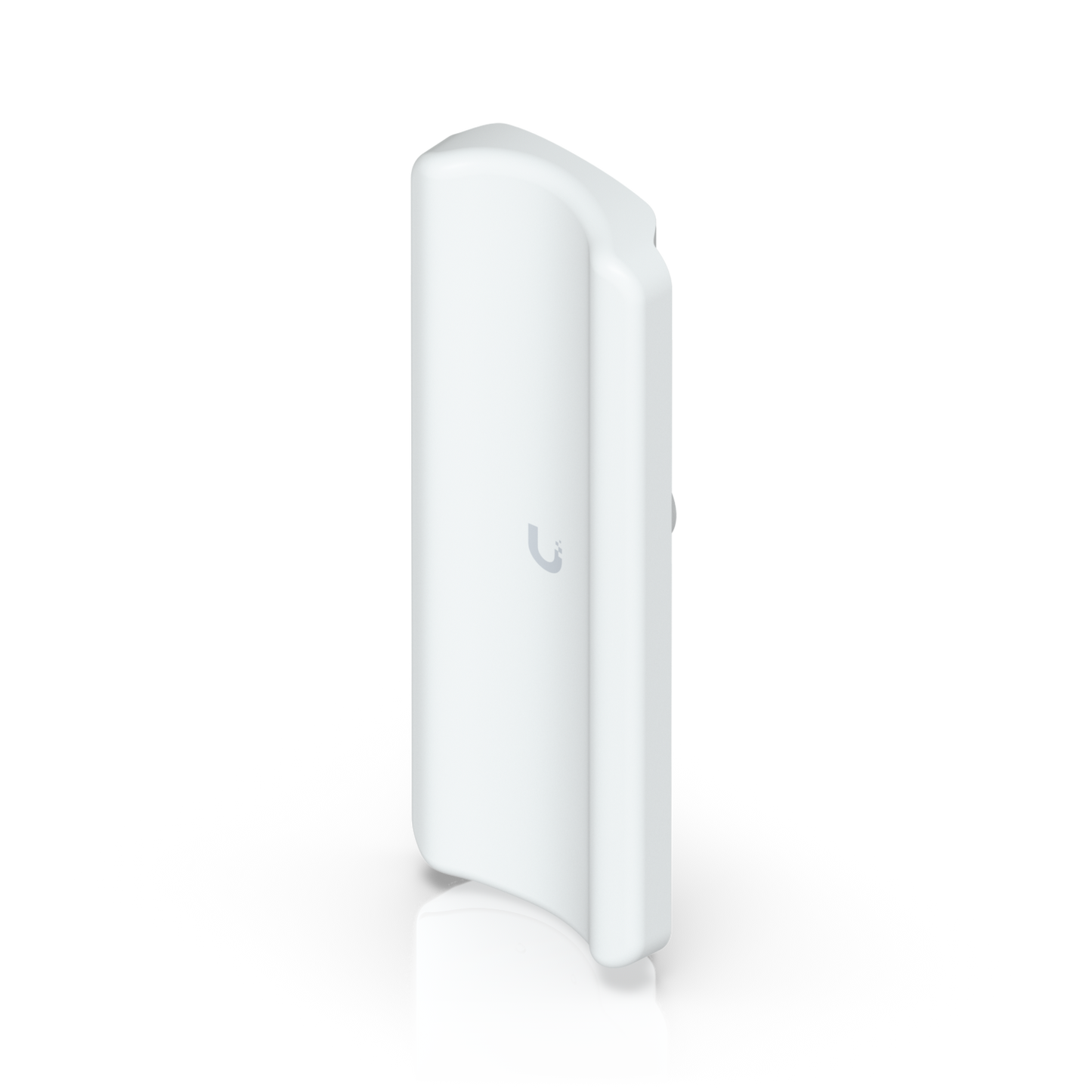

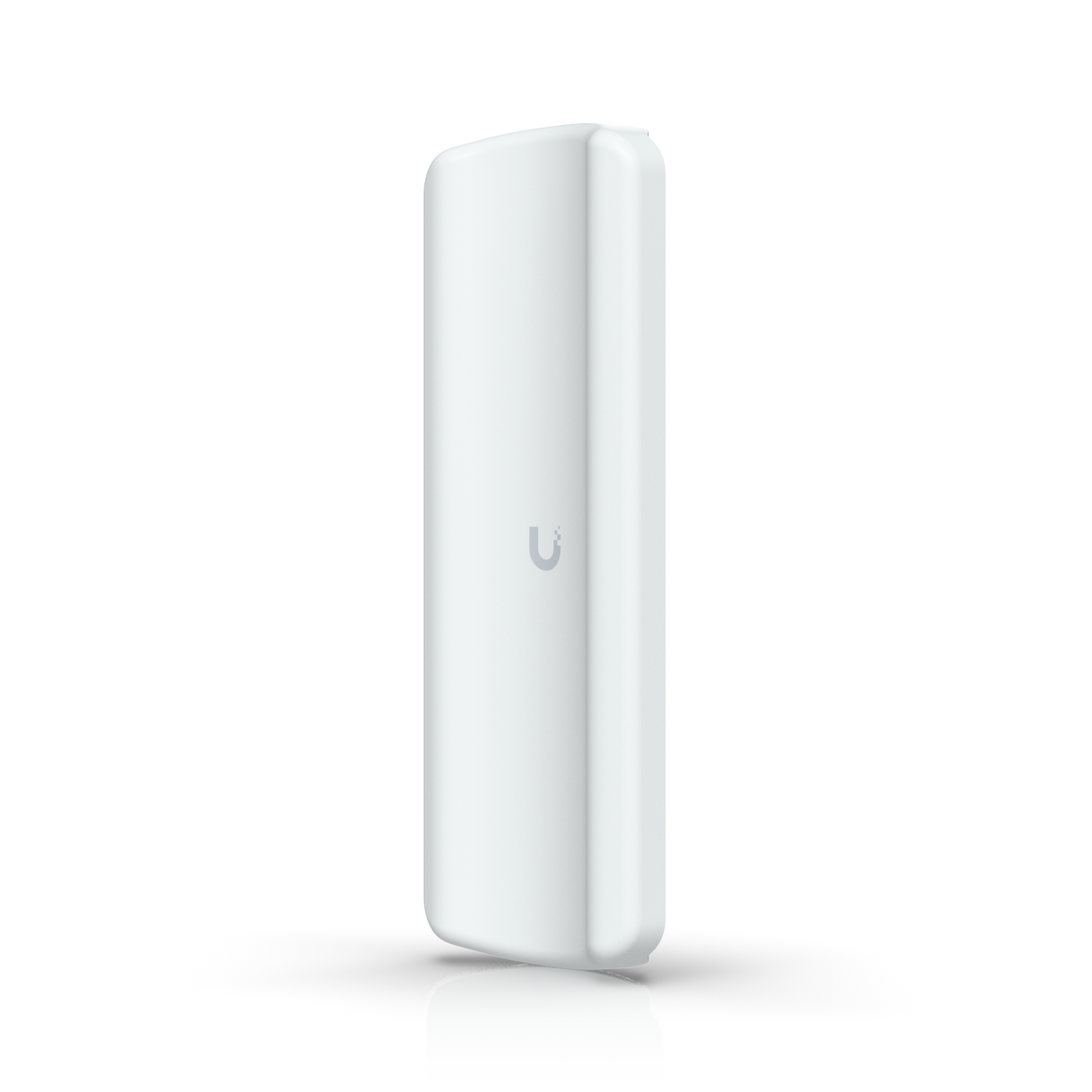

UniFi Device Bridge Pro Sector
Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector
SKU:UDB-Pro-Sector
Regular price
$384.00
Regular price
$489.00
Sale price
$384.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

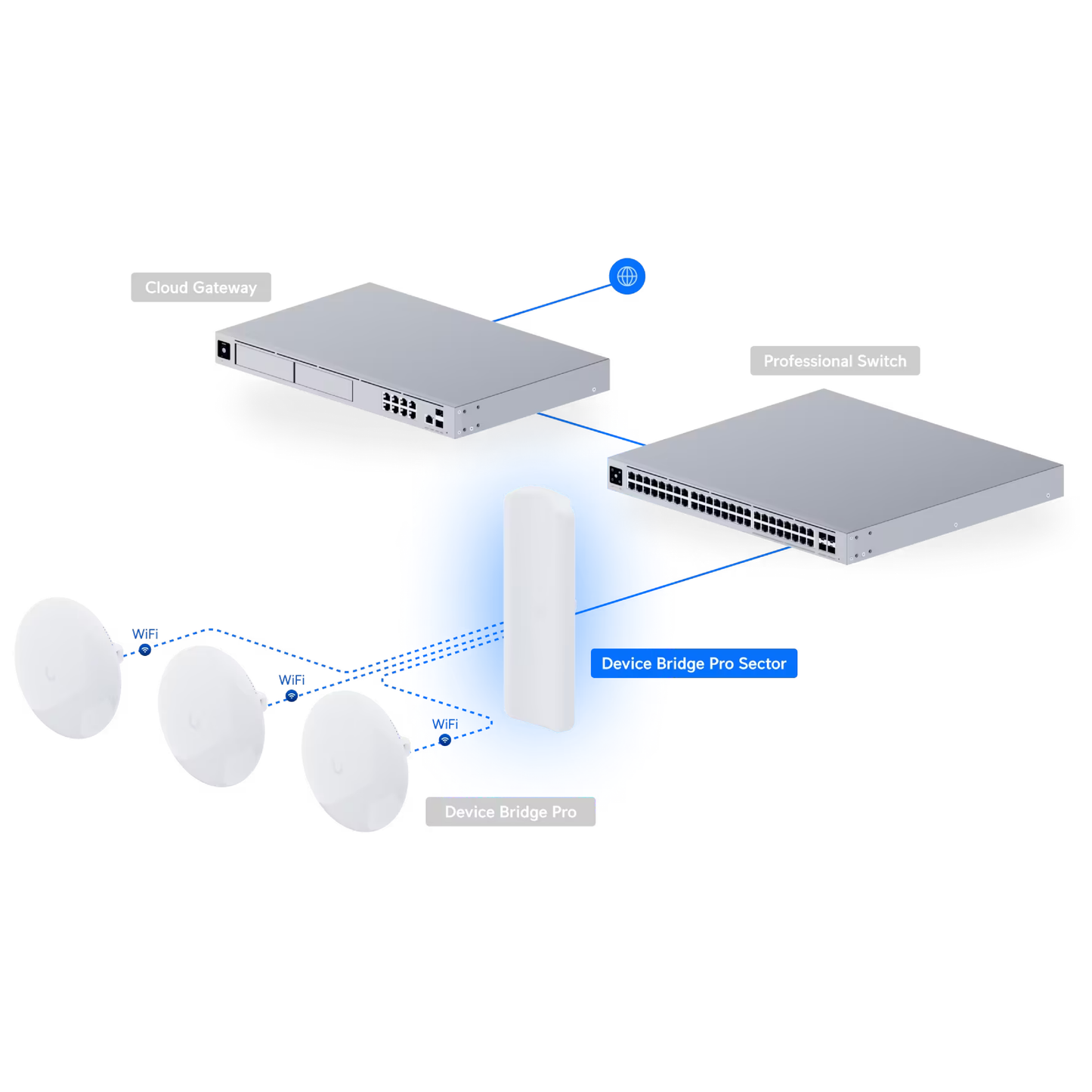

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.
- Enables Point-to-Multi-Point (PtMP connectivity) with 40+ UDB-Pro clients.
- 90° sector coverage.
- Powered using PoE.
- Pole mounting.
- Weatherproof (outdoor exposed).
| Overview | |
|---|---|

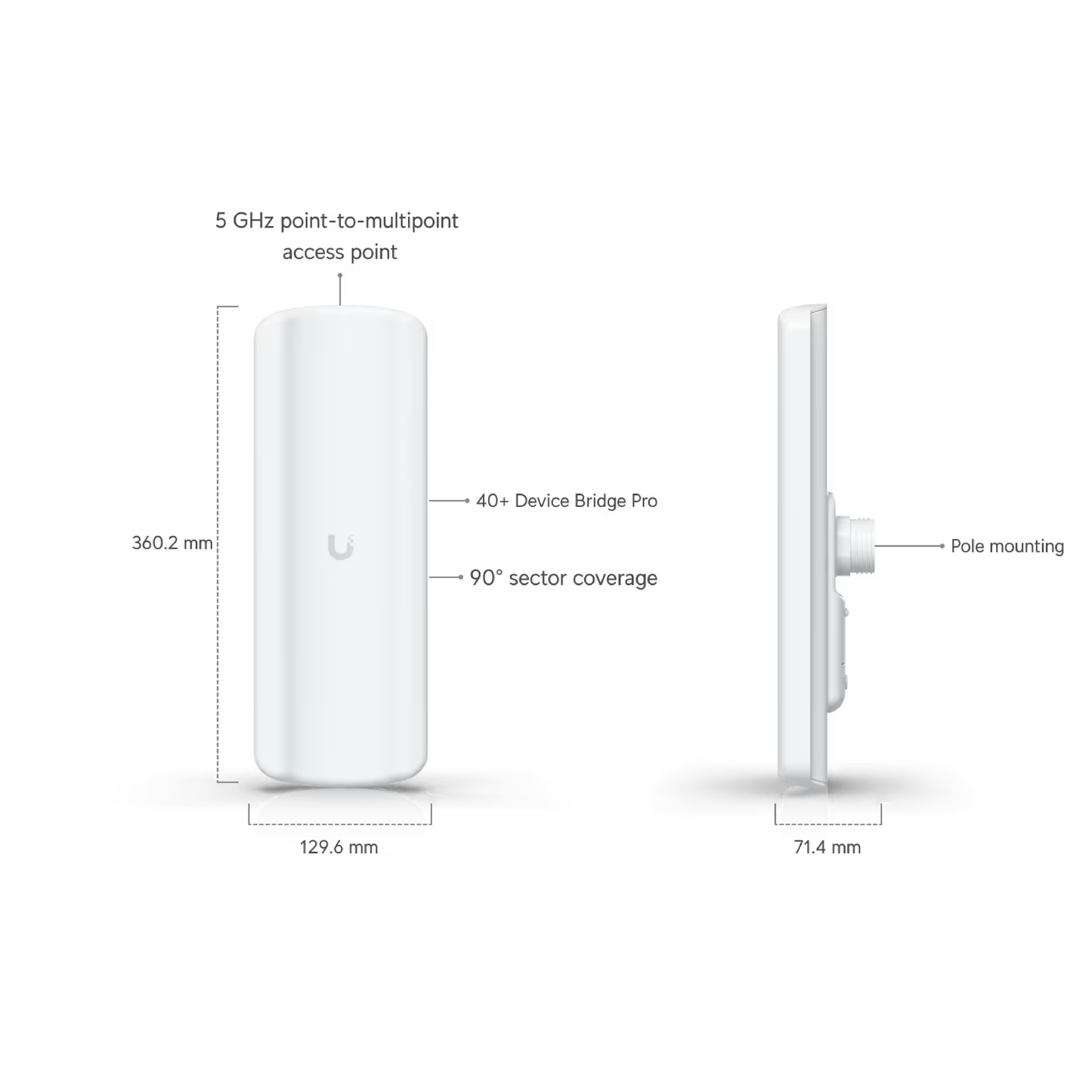

| Dimensions |
360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 2 x 2 |
| Max. Data Rate | 5 GHz: 400 Mbps (BW40) |
| Antenna Gain | 5 GHz: 17 dBi |
| Max. TX Power | 5 GHz: 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates |
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) |
| Wireless Security | WPA2 AES (Always On) |
| Hardware | |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5—57V DC |

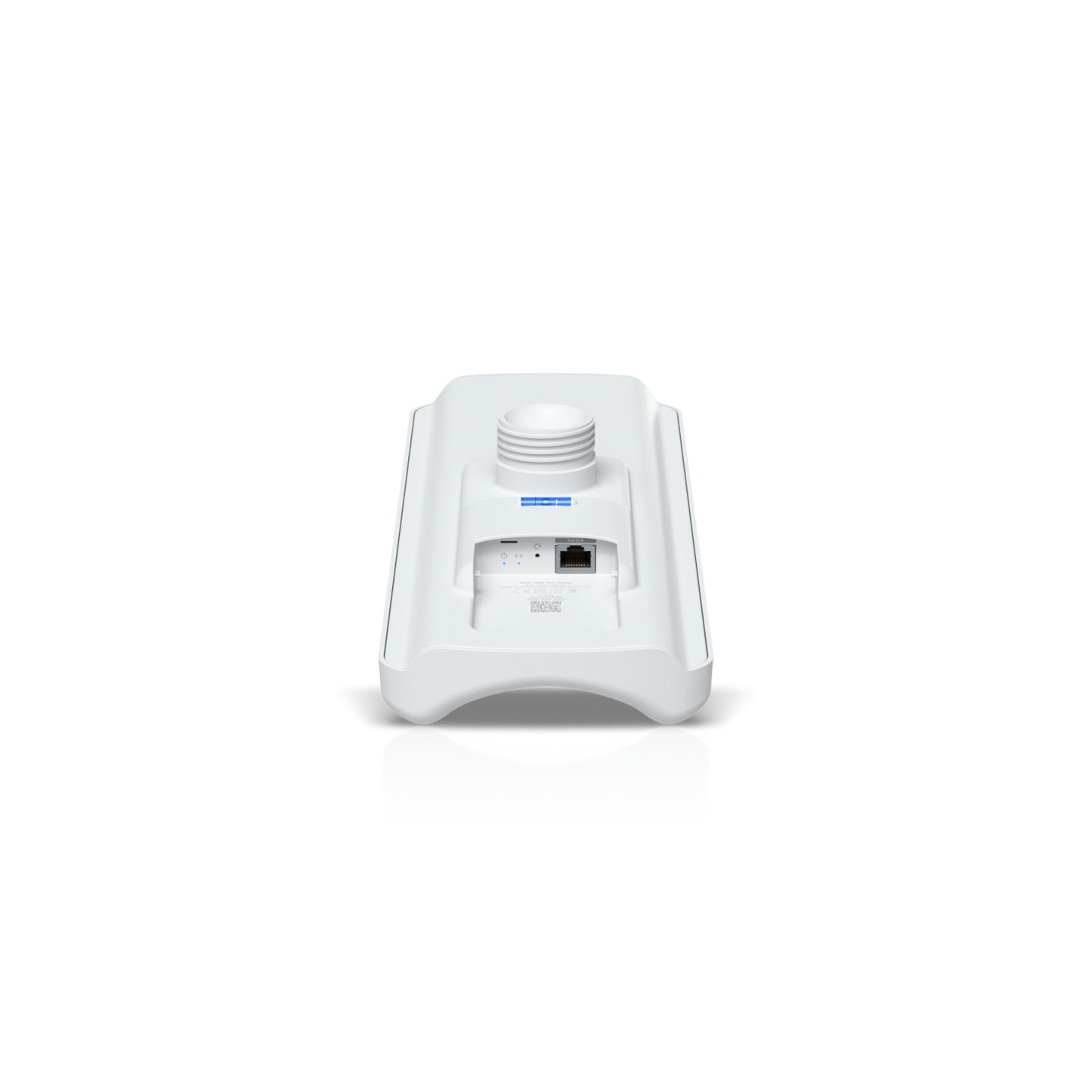

| Networking Interface | (1) GbE RJ45 ports |
| Antennas | Internal |
| Management |
Ethernet WiFi |
| Wind Loading | 128.2N at 200 km/h |
| Weight |
Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |

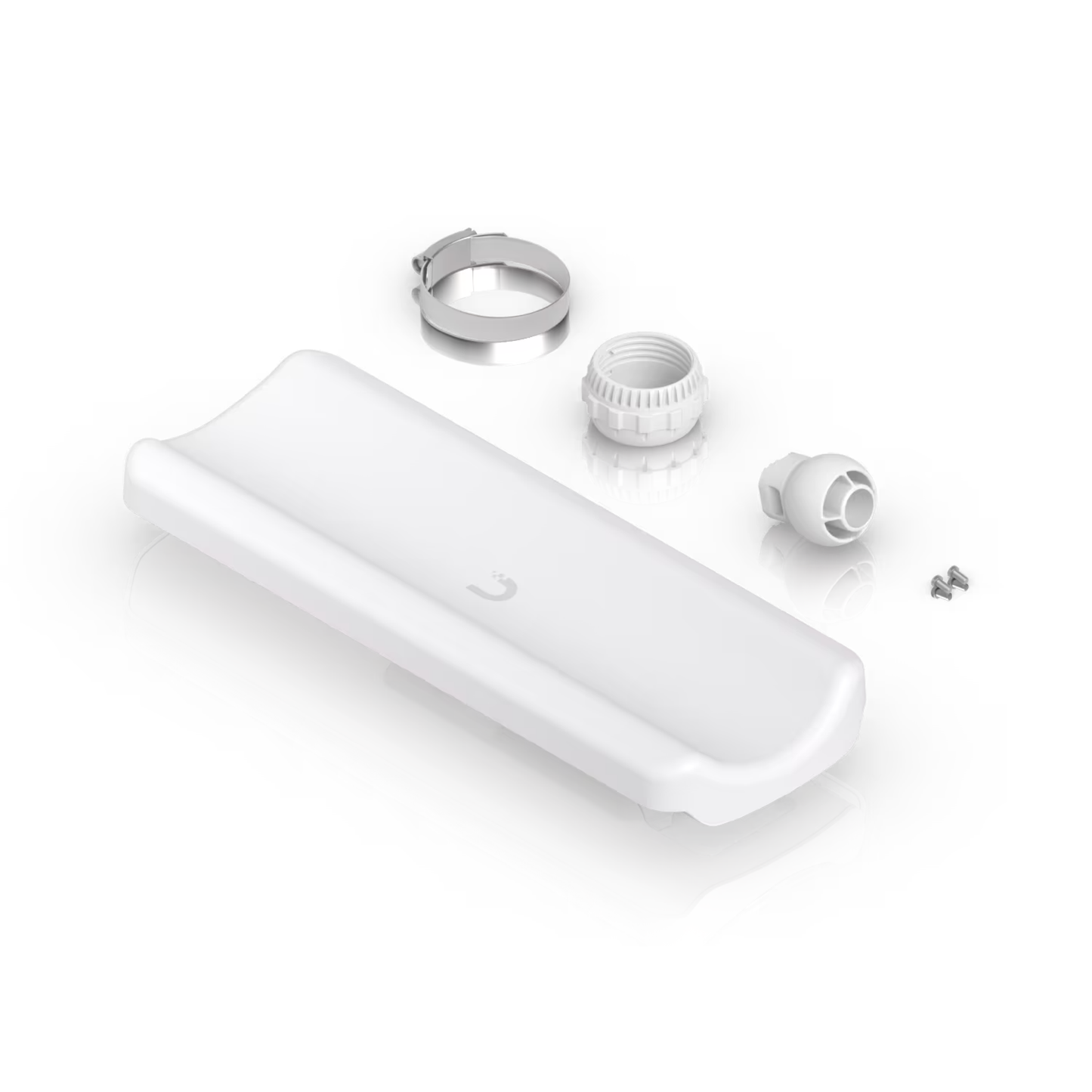

| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Enclosure Material | UV-stabilized polycarbonate |
| Pole Mount Diameter | 0.9—2.4" (24—60 mm) |
| Button | (1) Factory-reset |
| LEDs System | Power, Ethernet |
| Channel Bandwidth | 20/40 MHz |
| Certifications | CE, FCC, IC |
| Operating Frequency |
US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Visit Ubiquiti for more information.
