Ubiquiti

SKU:UACC-CWDM-4

Regular price $399.00
Regular price $409.00 Sale price $399.00
2% Off | Save $10.00 Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

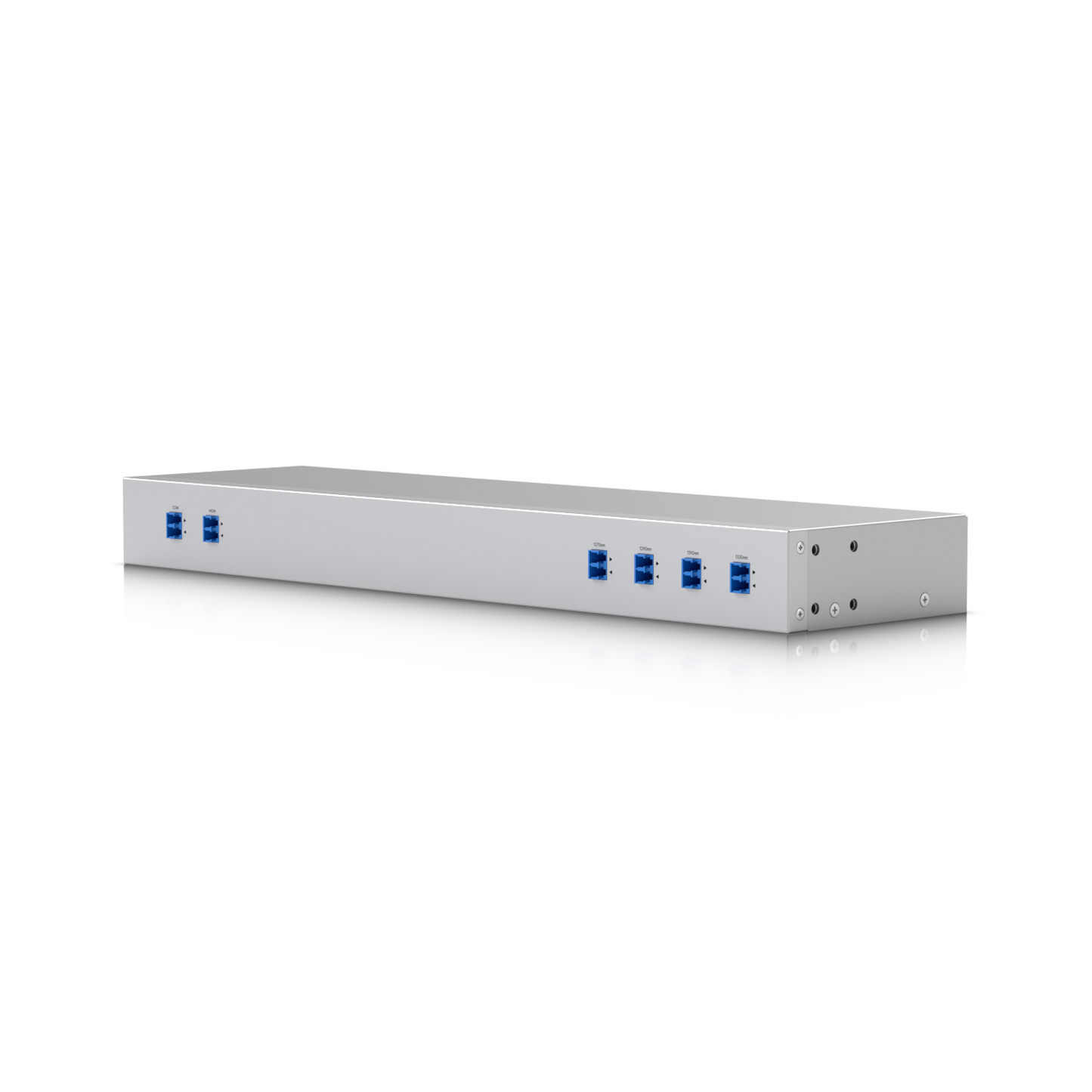

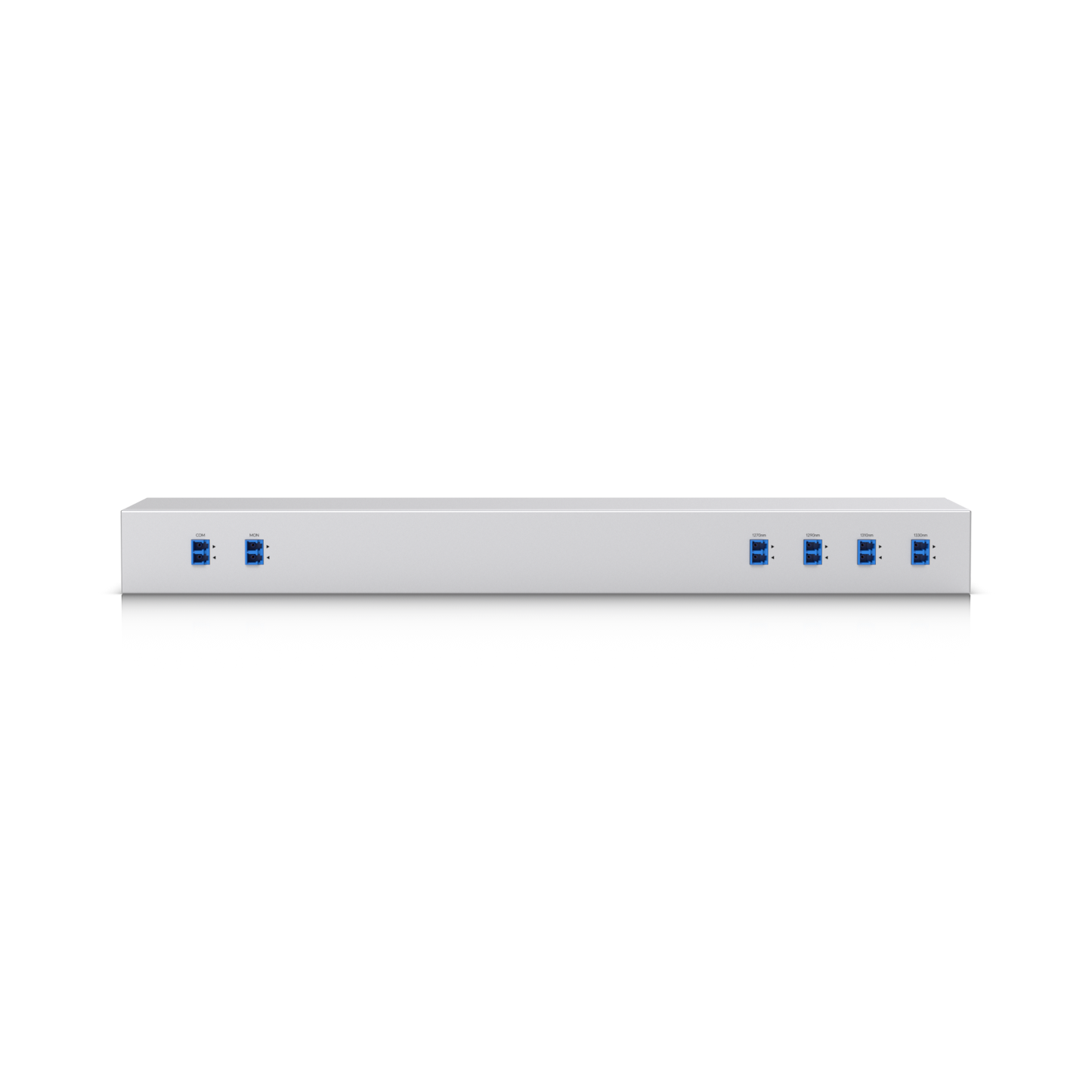

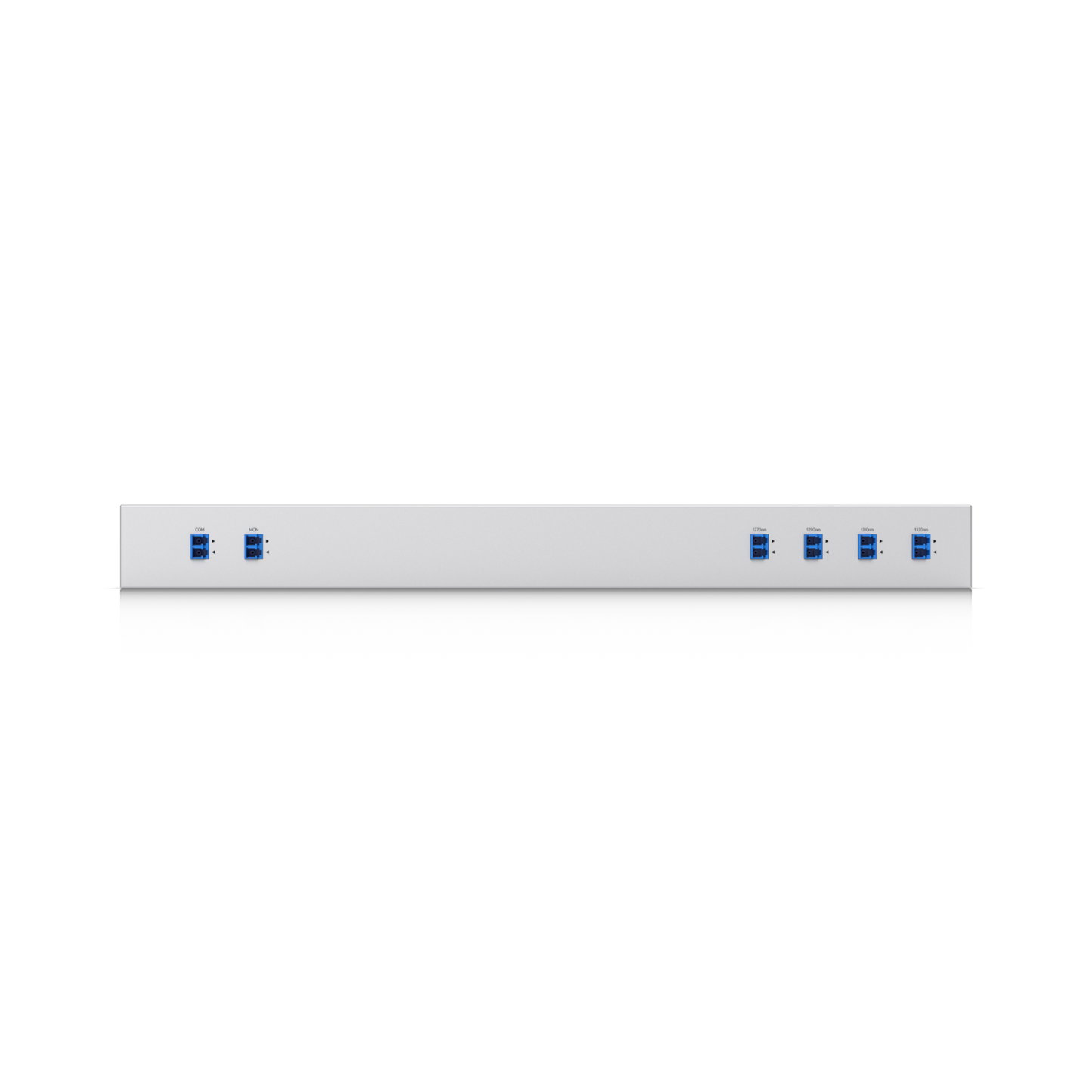

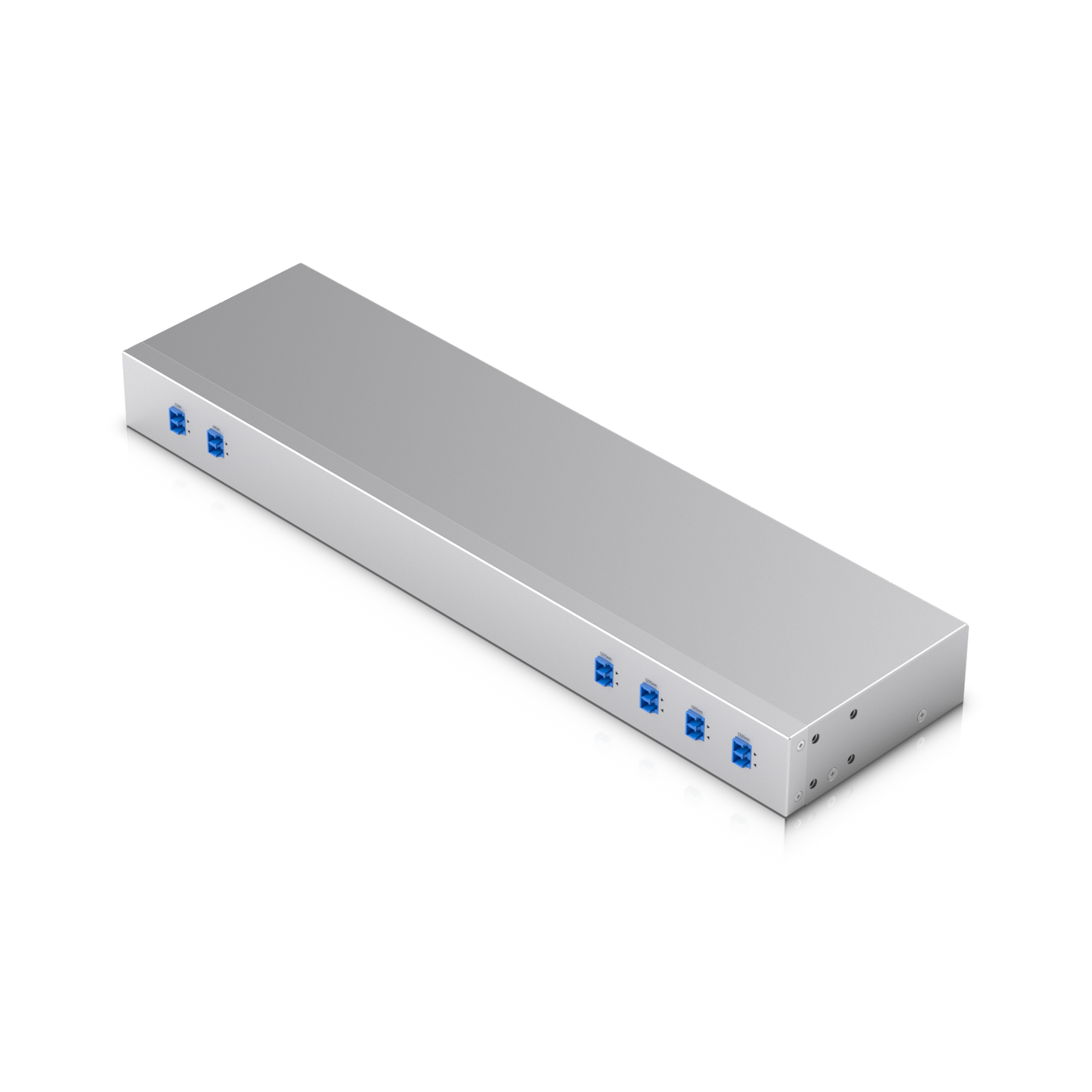

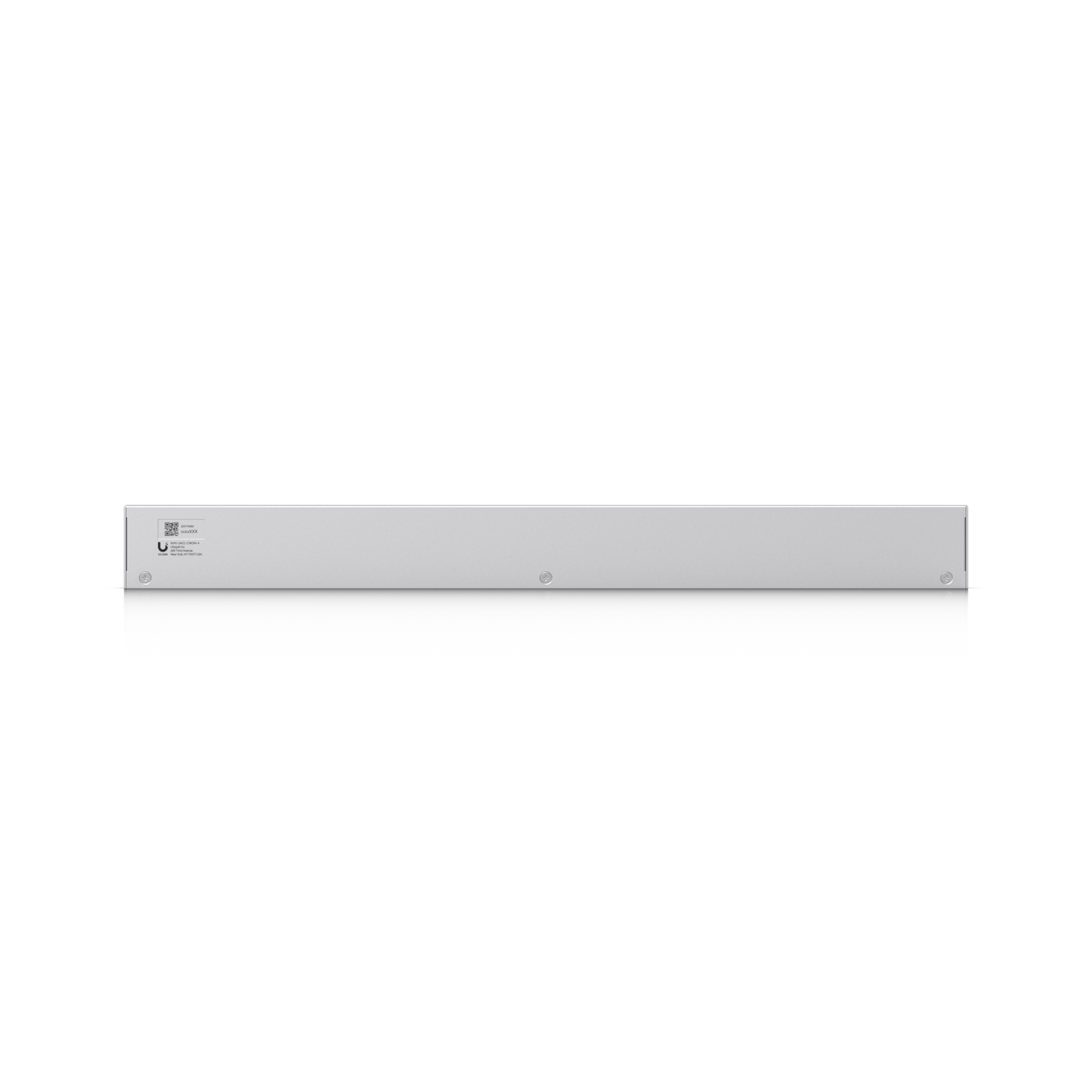

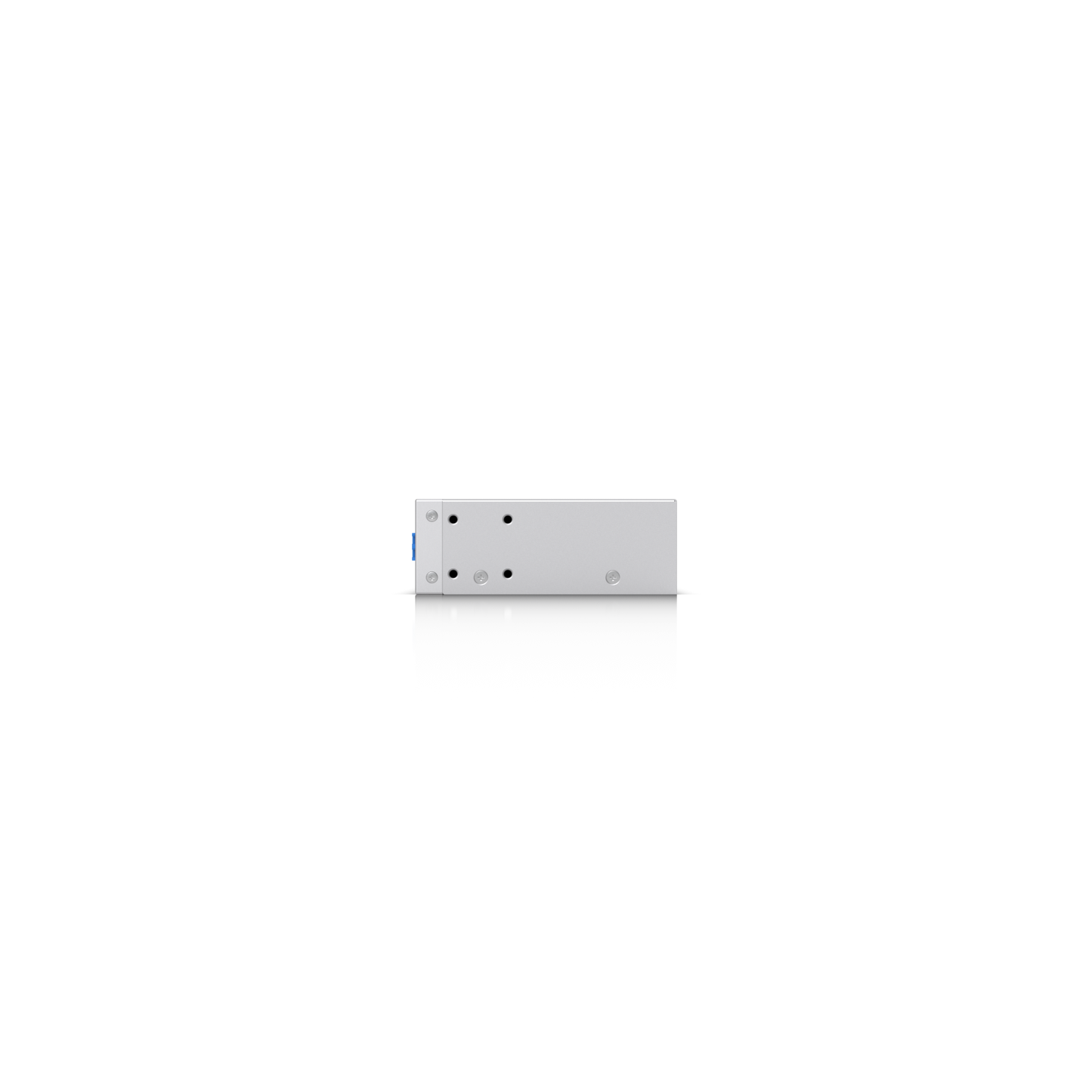

Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fibre infrastructure.

  • (4) 1270 to 1330 nm channel ports.
  • (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fibre cables.
  • (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyser.

Compatibility: USW-Aggregation, USW-Pro-Aggregation.

Mechanical
Dimensions 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7")
Weight 1.4 kg (3.2 lb)
Enclosure material Metal
Hardware
Connector type (1) COM (LC/UPC)
(1) MON (LC/UPC)
(1) 1270 to 1330 nm (LC/UPC)
Pigtail and connector type 0.9 mm white LC/UPC
Fiber type SMF-28e
Fiber length ≥0.5 to 1 m
Channel count 4 CH Mux/Demux
Channel center wavelength 1270/1290/1310/1330 nm
Min. channel passband ±6.5 nm
Max. insertion loss <1.5 dB
Isolation Adjacent channel: Max. 30 dB
Non-Adjacent channel: Min. 40 dB
Max. passband ripple 0.3 dB
Max. Polarization Dependent Loss 0.1 dB
Min. directivity 55 dB
Min. return loss 50 dB
Max. polarization mode dispersion 0.1 ps
Max. power handling 500 mW
Storage temperature -40 to 90° C (-40 to 194° F)
Ambient operating temperature -30 to 75° C (-22 to 167° F)

Visit Ubiquiti for more information.
