UISP airFiber 60 XG 60 GHz Bridge
Ubiquiti AF60-XG UISP airFiber 60 XG 60 GHz Bridge
SKU:AF60-XG
Regular price
$2,268.00
Regular price
$2,562.00
Sale price
$2,268.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

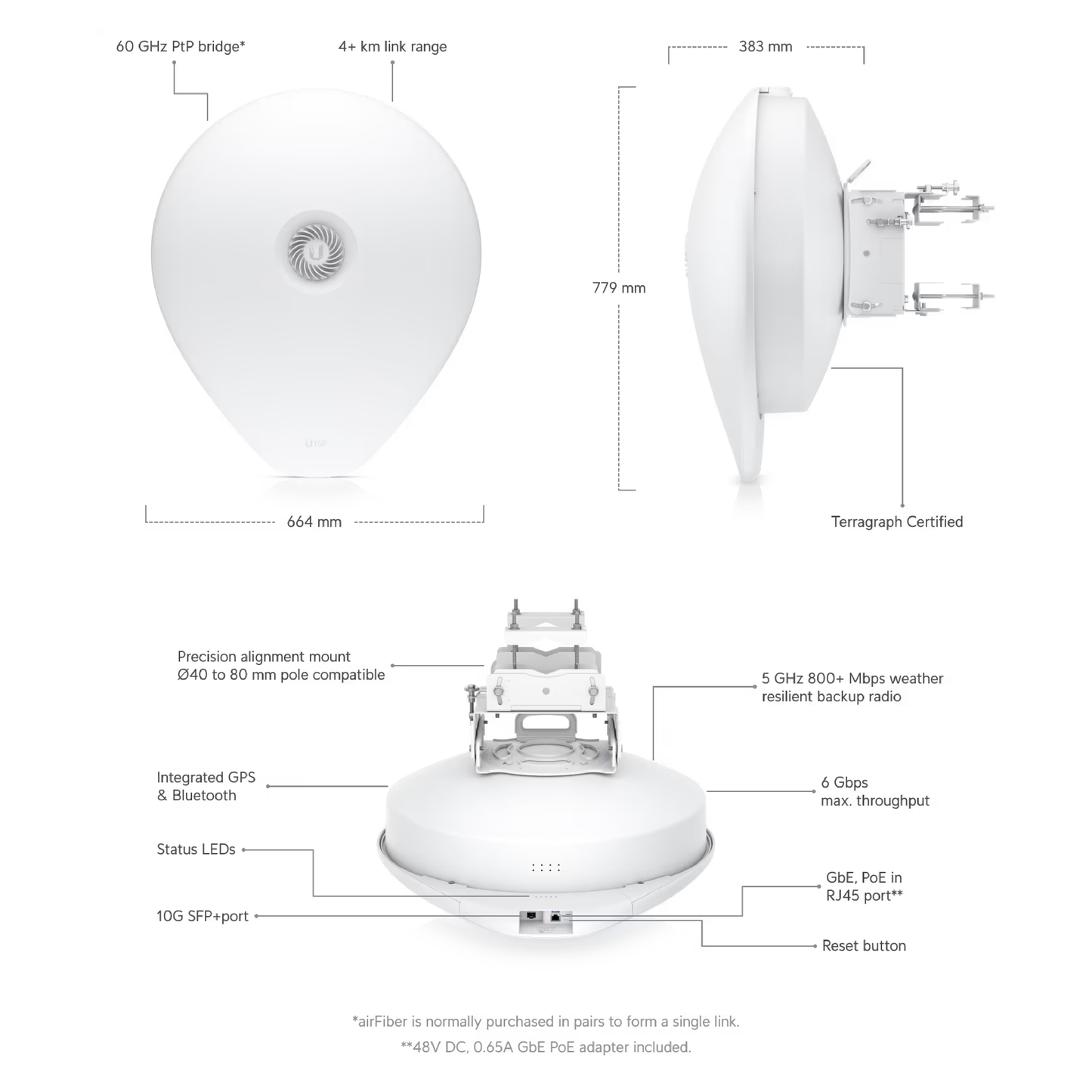

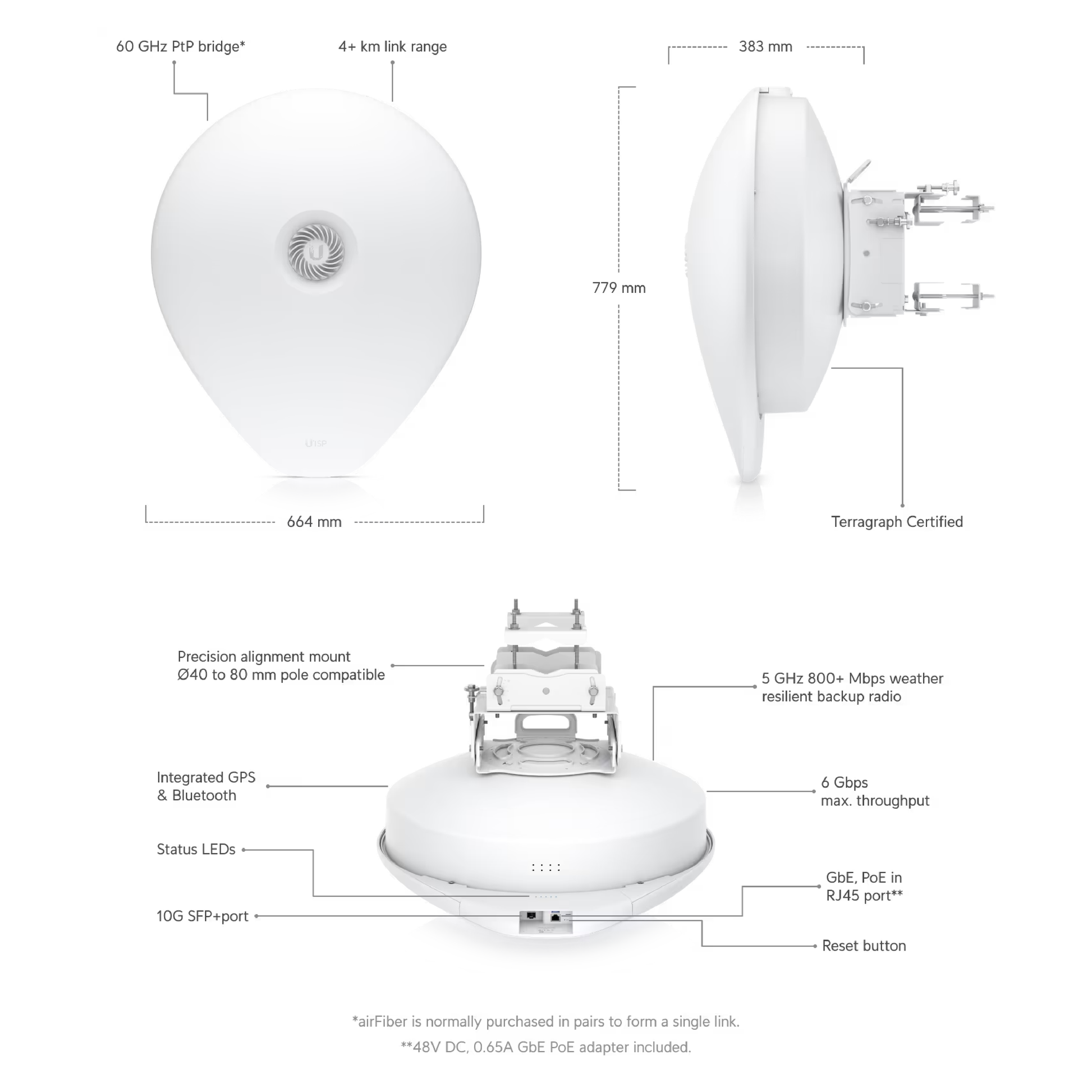

4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.
- 4+ km link range.
- 6 Gbps max. throughput.
- 5 GHz 800+ Mbps weather-resilient backup radio.
- (1) GbE and (1) 10G SFP+ port.

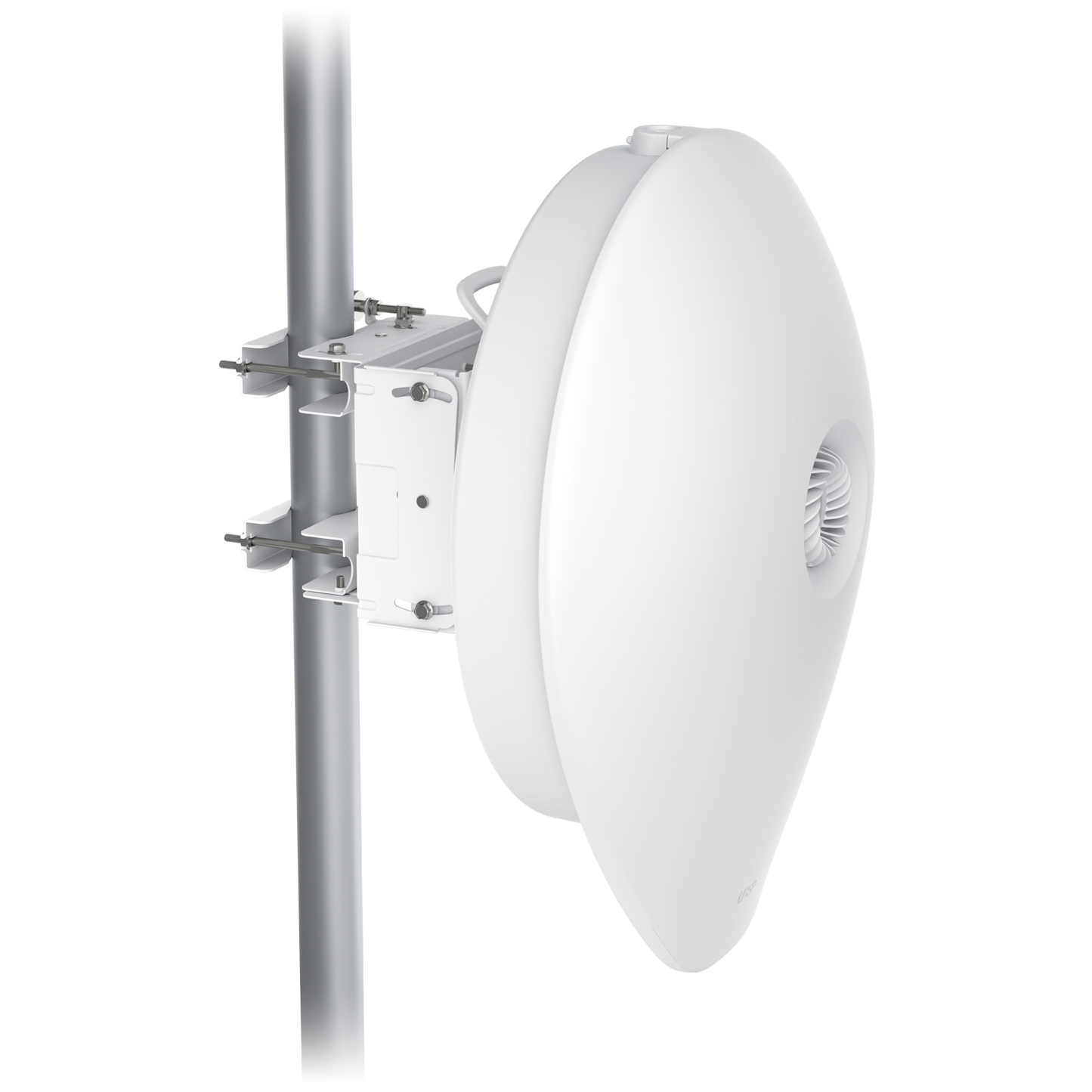

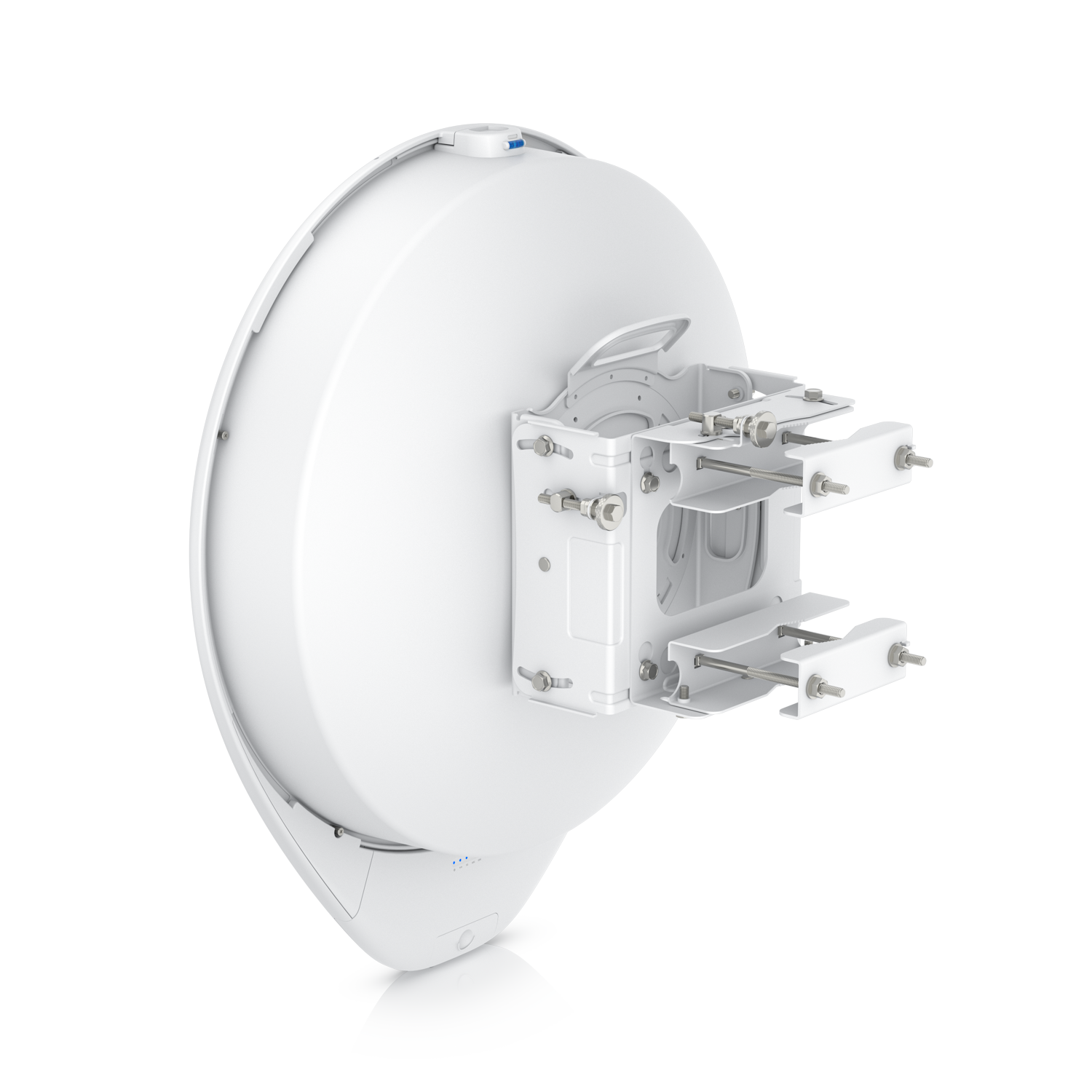

- Precision alignment mount.
- Integrated GPS and Bluetooth.
- Terragraph Certified.
This product should be purchased in pairs in order to form links.
| Mechanical | |
|---|---|
| Dimensions | 779 x 664 x 383 mm (30.68 x 26.14 x 15.06") |
| Weight |
Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |
| Enclosure materials | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |
| Mounting |
Precision alignment kit (included) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM Cortex A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking interface |
(1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. power consumption | 31.2W |
| Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range |
44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| Operating mode | PtP only |
| Services | UISP, ping watchdog, NTP client, system log |
| Utilities | Antenna alignment tool, discovery utility, ping, speed test |
| Management application |
UISP web: Version 1.4.3 and later UISP iOS and Android: Version 2.19 and later |
| System | |
| Max. throughput |
5 GHz: 866.6 Mbps 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled) |
| Max. range | 4 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* |
57–66 GHz * Depends on regulatory region. |
| Channel bandwidth | 2160 MHz/4320 MHz (With channel bonding enabled) |
| Operating channels |
58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* *Depends on the channel bandwidth. |
| Polarization | Vertically linear |
| Beamwidth |
Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
| Back-Up RF | |
|
Operating frequency* US/CA |
U-NII-1 5150 - 5250 MHz U-NII-3 5725 - 5850 MHz |
| Worldwide |
5150–5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20/40/80 MHz |
| Polarization | Dual-linear |
| Beamwidth |
Azimuth: 3 dB 5° Elevation: 3 dB 5° |
| LEDs | |
| Power |
Flashing white: bootup in progress White: not connected to UISP console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
| 5G | Blue: active connection |
Visit Ubiquiti for more information.
