Ubiquiti

SKU:AFi-ALN-R

Regular price $696.00
Regular price $934.00 Sale price $696.00
25% Off | Save $238.00 Sold out
Taxes included. Shipping calculated at checkout.

76 in stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

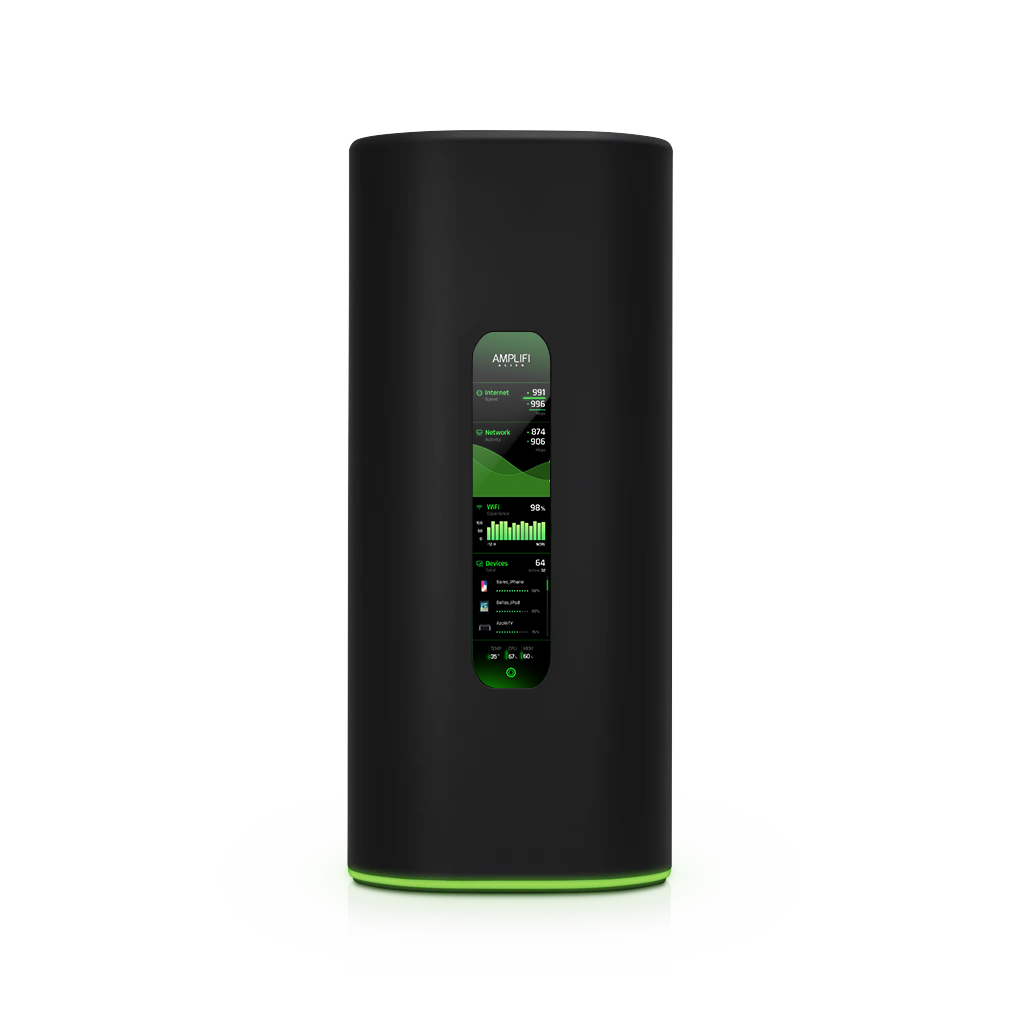

Experience out-of-this-world WiFi range and performance with the world's only 16-stream WiFi router.

  • WiFi 6.
  • 12 spatial streams.
  • 280 m² (3,000 ft²) coverage.
  • 120+ connected devices.

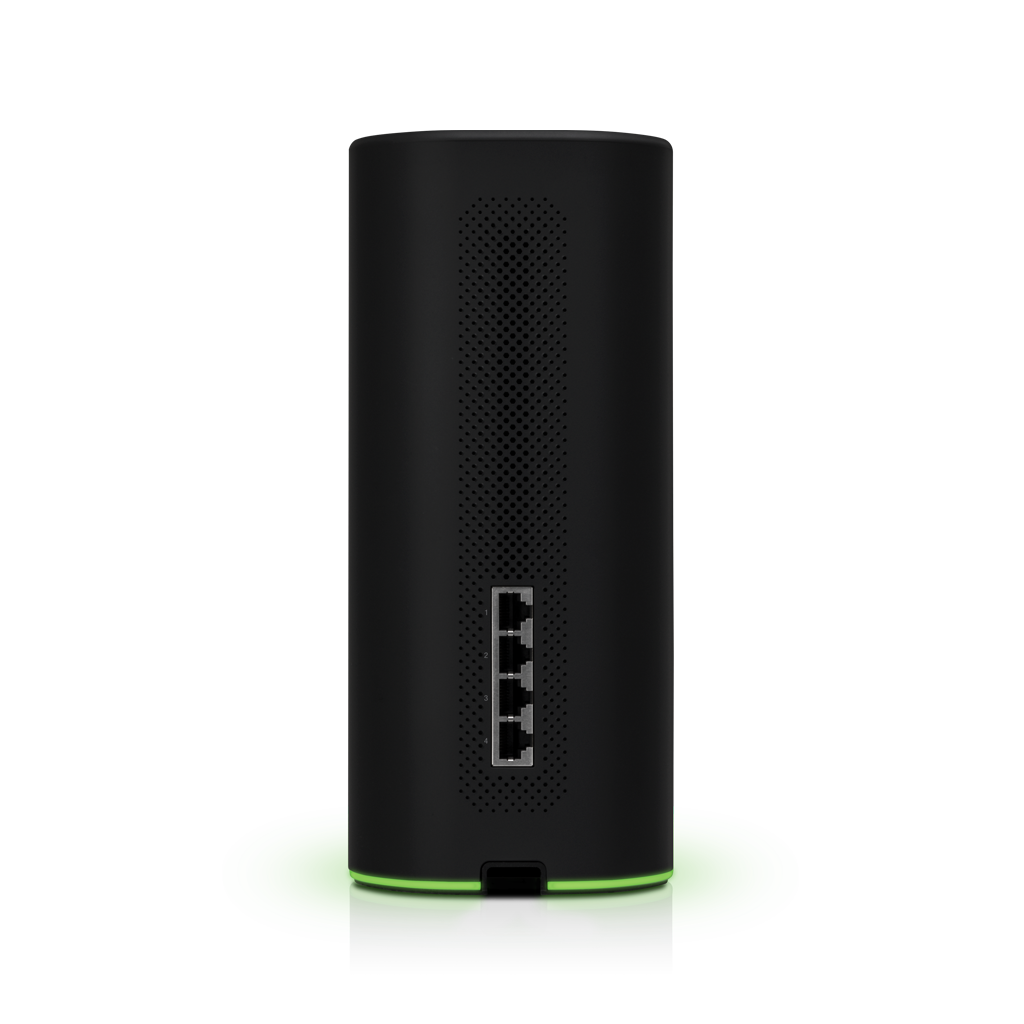

  • (4) GbE LAN and (1) GbE WAN port.
  • 4.7" LCM touchscreen.
Mechanical
Dimensions 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
Weight 1.2 kg (2.7 lb)
Enclosure material Polycarbonate
Hardware
Processor Quad-Core ARM Cortex A53s at 2.2 GHz
Memory 1GB DDR3L
Management interface WiFi
Ethernet
Networking interface (1) GbE RJ45 WAN
(4) GbE RJ45 LAN
Power method Universal AC input, 100-240V AC, 1A Max., 50/60 Hz
Max. power consumption 35W
ESD/EMP protection Air/contact: ± 24kV
Max. TX power
US:
2.4 GHz
5 GHz

International:
2.4 GHz
5 GHz


23 dBm
19 dBm (low band)/ 20 dBm (high band)


23 dBm*
20 dBm**
*Depends from the country selected, up to 30 dBm per chain.
**Depends from the country selected, up to 24 dBm per chain.
MIMO
US:
2.4 GHz
5 GHz

International:
2.4 GHz
5 GHz


4 x 4
4 x 4 (low band) / 8 x 8 (high band)


4 x 4
8 x 8
Speeds
US:
2.4 GHz
5 GHz

International:
2.4 GHz
5 GHz


1150 Mbps
1700 Mbps(low band) / 4800 Mbps (high band)


1148 Mbps
4800 Mbps
Antenna gain
2.4 GHz
5 GHz

3 dBi
6 dBi
Antenna Internal dual-band metal stamp with 12 polarity
Haptics Yes
Display 4.7" diagonal, 274 x 1268, 279 ppi, G+F touch, full color
LED Green ring
Button Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards Up to WiFi 6
WiFi functions MU-MIMO, OFDMA, TX-beamforming
Wireless security WPA2
VLAN Yes
Advanced QoS Yes
Guest traffic isolation Yes
Power save Yes
Supported data rates 802.11a: 54 Mbps
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 600 Mbps + 600 Mbps
802.11ac: 1733 Mbps + 800 Mbps
802.11ax: 4800 Mpbs Router-Mesh connection (Backbone)
802.11ax: 4800 Mbps + 1148 Mbps (Available to clients)
Operating frequency*
2.4 GHz
5 GHz

2412 - 2472 MHz
5150 - 5875 MHz
* Depends on regulatory region.

Visit Ubiquiti for more information.
