airMAX NanoStation M5 Loco — UISP 5 GHz Wireless
airMAX NanoStation M5 Loco — UISP 5 GHz Wireless
SKU:LocoM5
Regular price
$110.00
Regular price
$142.00
Sale price
$110.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
In stock and ready to ship
Business purchase? Contact us below for bulk discounts!
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
Cost-effective and high-performing 5 GHz CPE for broadband connectivity.
- Operates in the 5 GHz frequency spectrum
- Cost-efficient with superior performance
- Seamless plug-and-play integration with airMAX antennas
| LocoM5 | |
|---|---|
| Dimensions | 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") |
| Weight | 180 g (6.35 oz) |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |

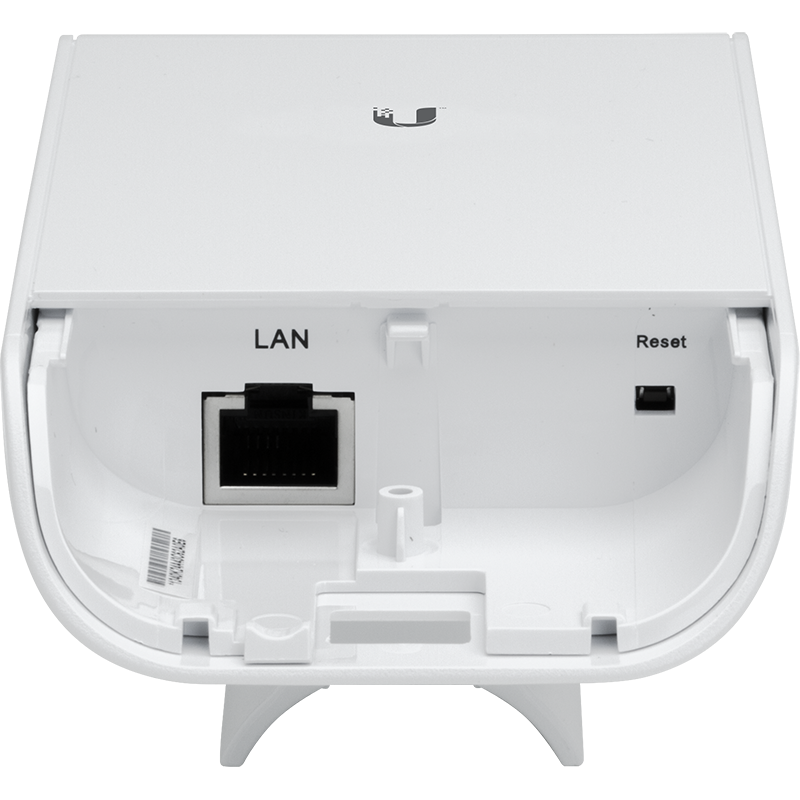

| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 24Kc, 400 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Power Supply (PoE) | 24V, 0.5A |
| Max. Power Consumption 5.5W | 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency MHz Worldwide US USA DFS |
5170-5875 5725-5850 5250-5850 |
| Gain | 13 dBi |
| Frequency | 5 GHz |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
