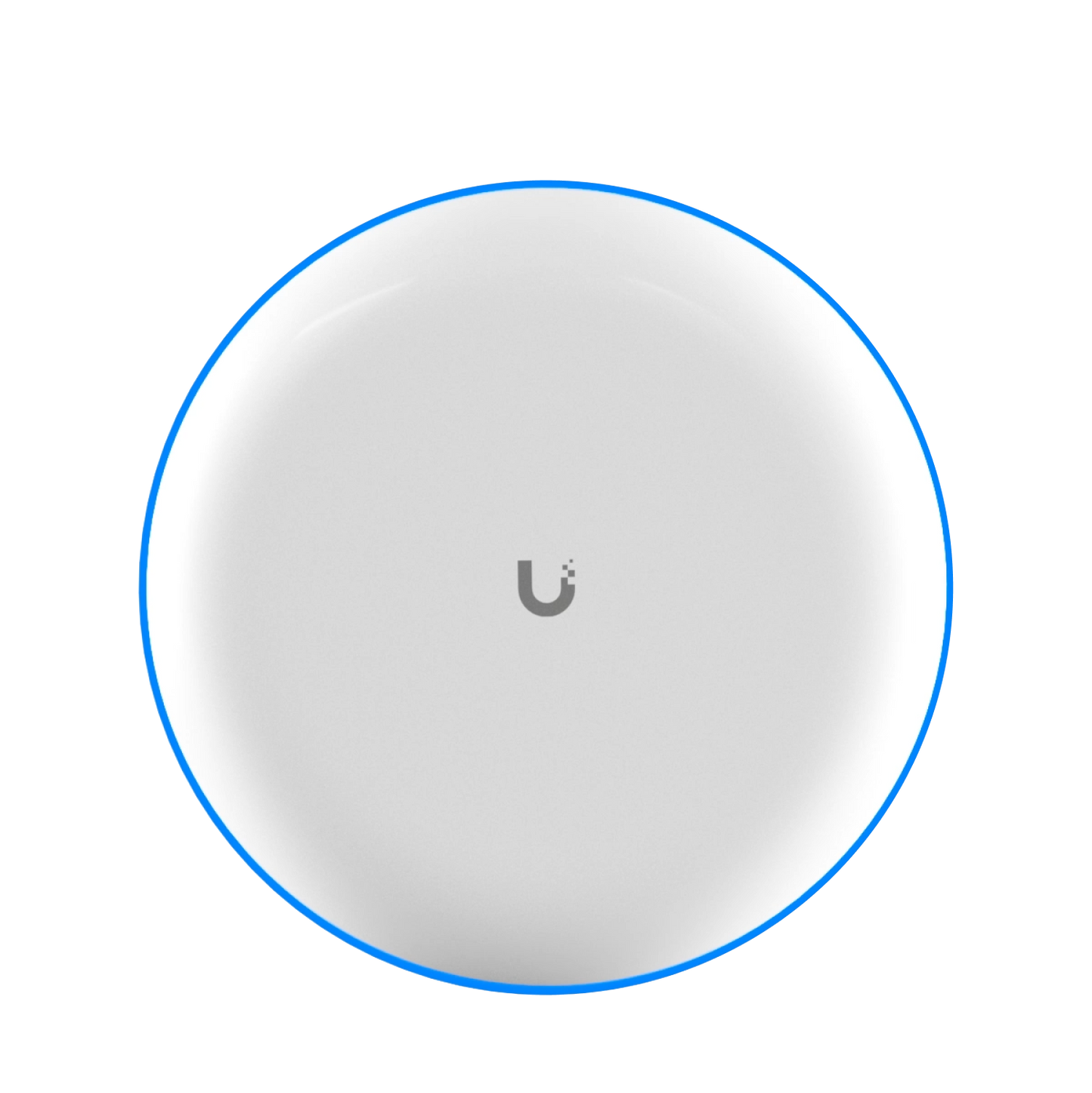

  • Ubiquiti UBB UniFi Building Bridge Single

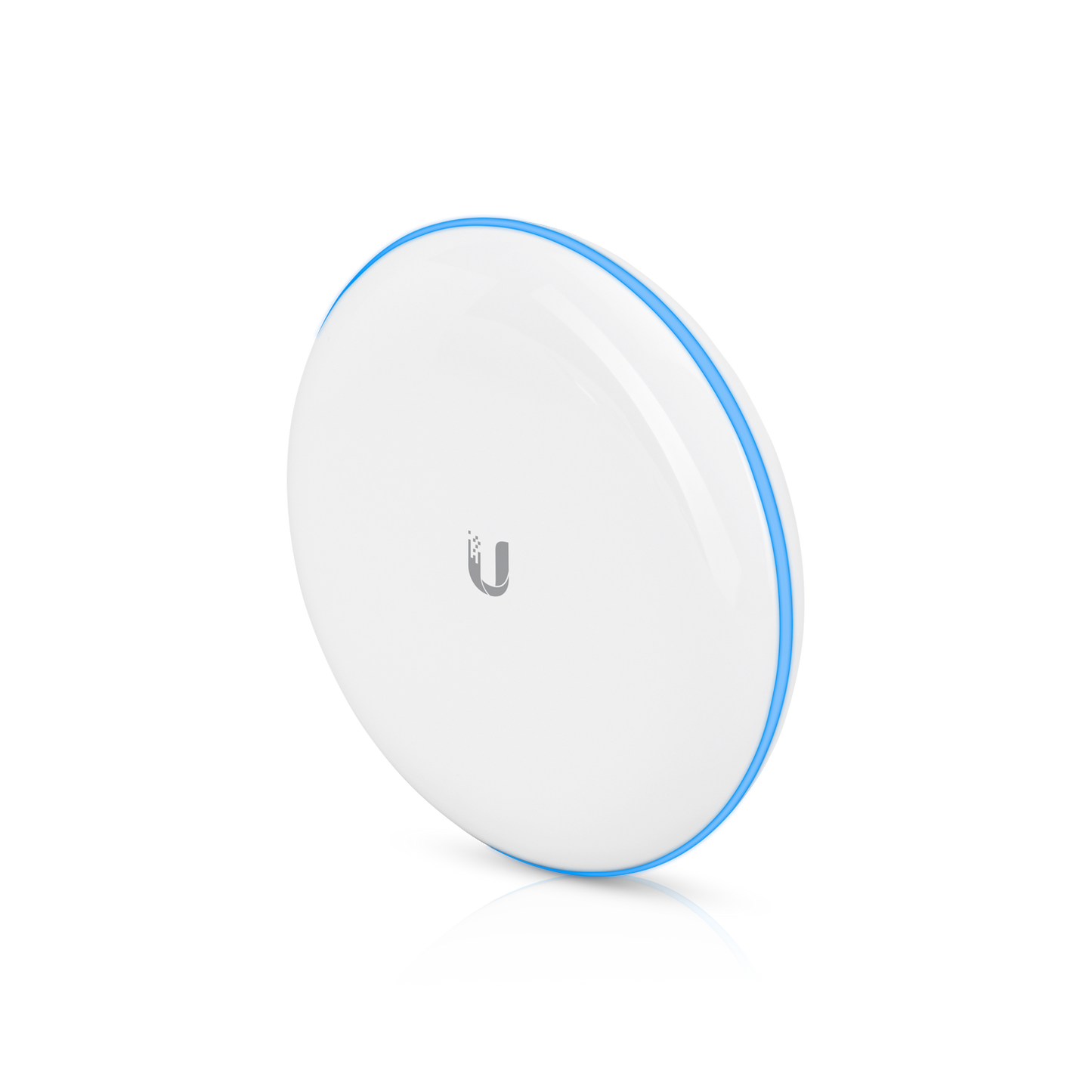

  • Angled front view of Ubiquiti UBB UniFi Building Bridge showing the UniFi logo and illuminated blue edge

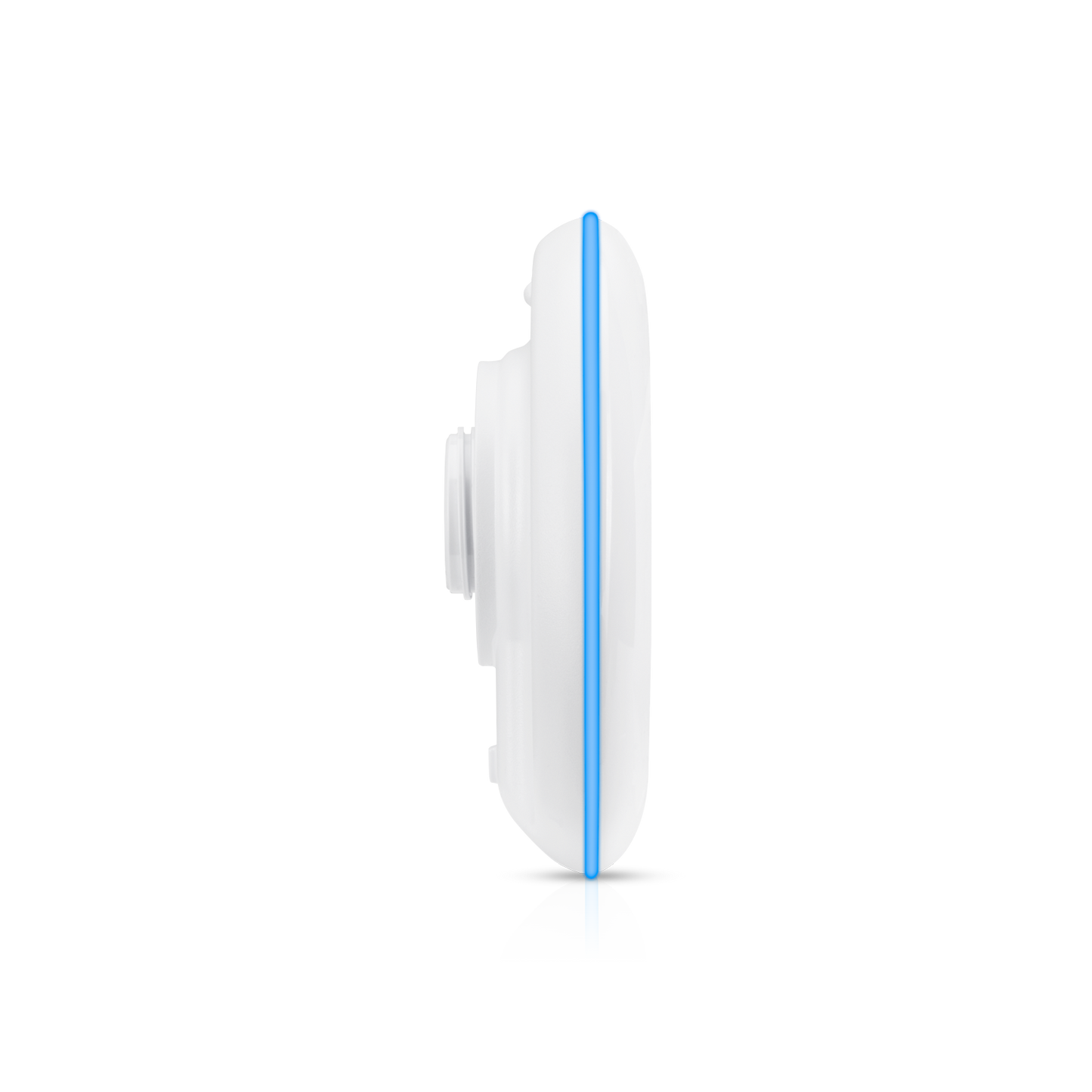

  • Side profile of Ubiquiti UBB UniFi Building Bridge showing its slim housing, blue LED ring and mounting point

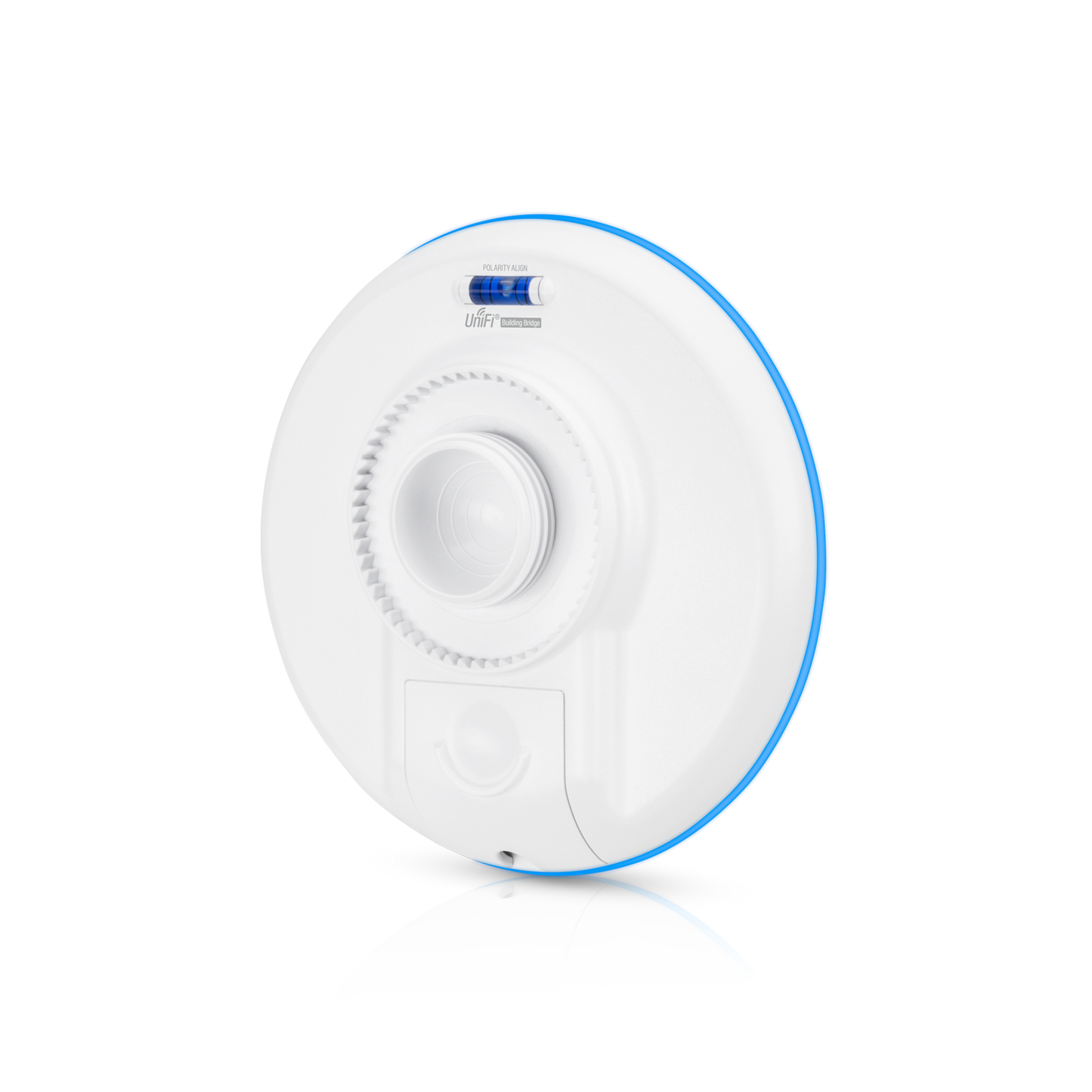

  • Rear angled view of Ubiquiti UBB UniFi Building Bridge with adjustable mounting interface and alignment level

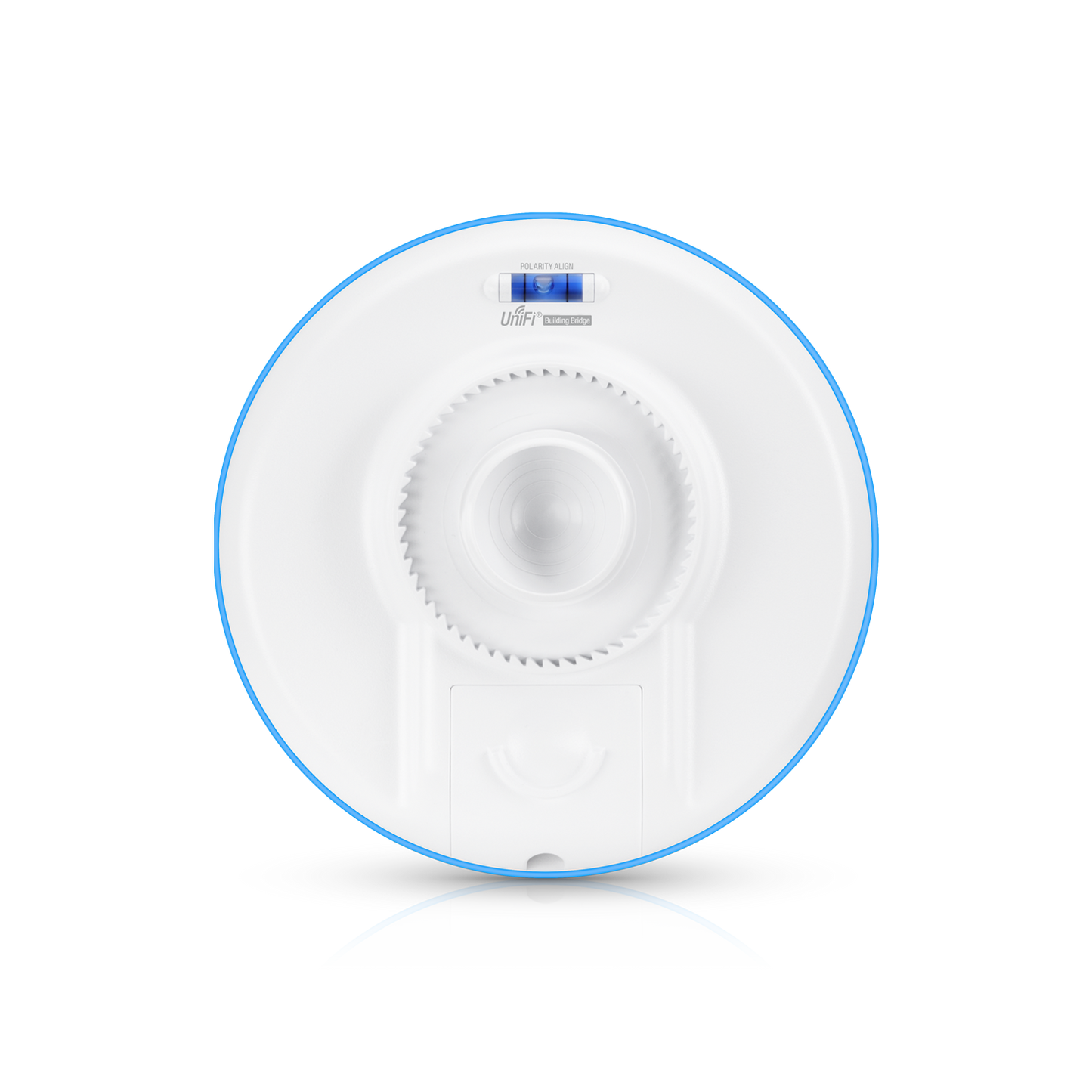

  • Rear view of Ubiquiti UBB UniFi Building Bridge showing the mounting interface, spirit level and port cover

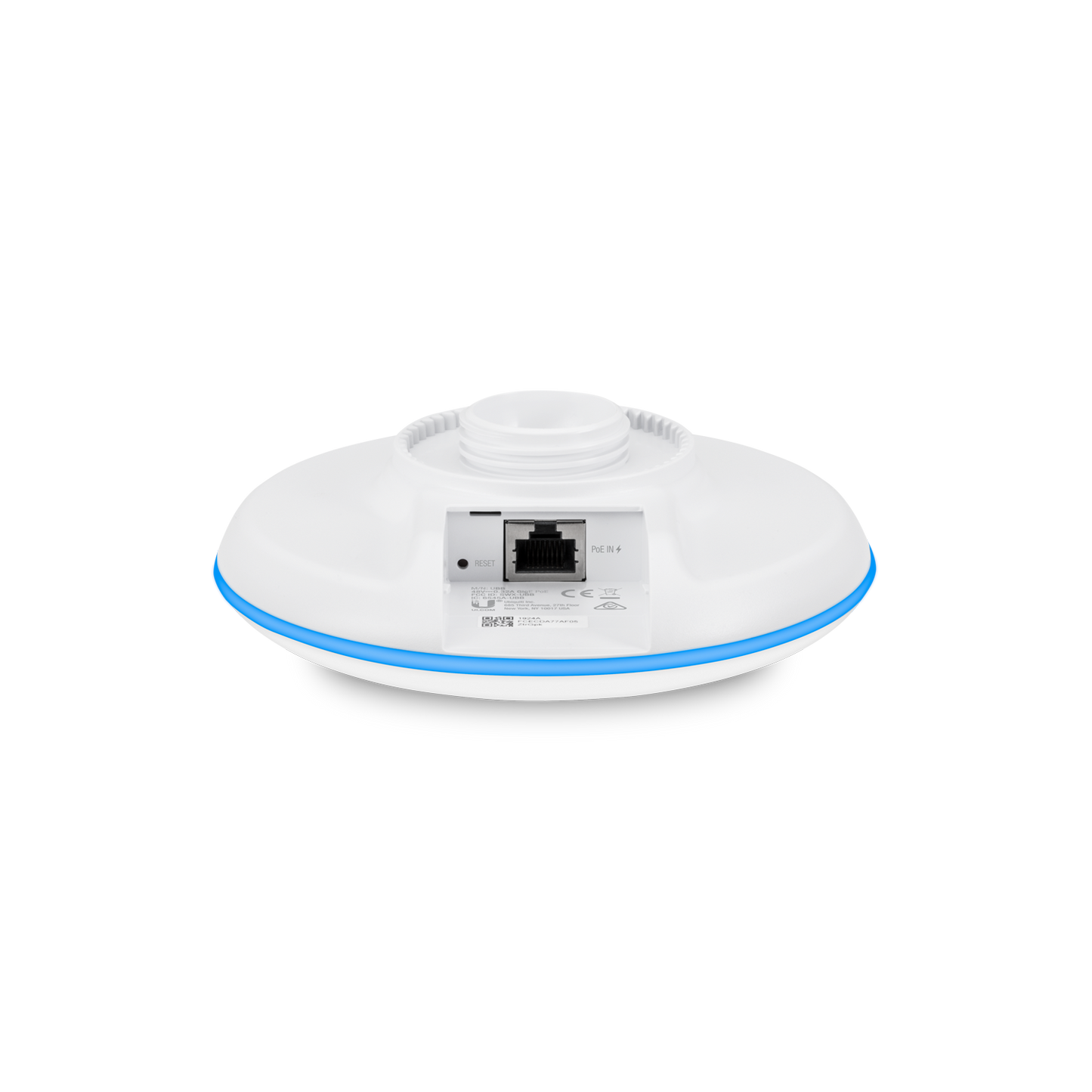

  • Ubiquiti UBB UniFi Building Bridge underside showing the PoE input port, reset button and mounting thread
  • Three-quarter front view of Ubiquiti UBB UniFi Building Bridge with circular antenna and blue LED ring
1 7

Ubiquiti

2-Year Warranty

UniFi Building Bridge

UBB-Single

$589.00
$599.00 $589.00
2% Off | Save $10.00 Sold out
Taxes included.

Sale Live Now. Limited promotional stock available — don’t miss out!

Bundle

Low stock: 1 left

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

60 GHz wireless point-to-point bridge with a 5 GHz backup radio.

Note:

  • 2-pack Building Bridge is paired out of the box; includes (2) PoE power adapters.
  • Single unit ideal for replacement/spare; includes (1) PoE power adapter.
  • Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Overview
Dimensions ⌀140 x 90 mm (⌀5.5 x 3.5")
WiFi Standard WiFi 5
Spatial Streams 2
Coverage Area 500 m (1,640 ft)
Mounting Locations Wall, pole
Weatherproofing IPX6
Power Method PoE
Performance
MIMO
5 GHz 2 x 2 (DL MU-MIMO)
Max. Data Rate
60 GHz 1.7 Gbps
5 GHz 866.6 Mbps (BW80)
Antenna Gain
60 GHz 17.2 dBi
5 GHz 10 dBi
2.4 GHz 2 dBi (BLE)
Max. TX Power
60 GHz 19 dBm
5 GHz 25 dBm
Supported Data Rates
802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security WPA2 AES
Hardware
Max. Power Consumption 11W
Includes PoE Adapter ✓
Supported Voltage Range 44–57V DC
Networking Interface (1) GbE RJ45 port
Weight 376 g (13.3 oz)
Operating Modes PtP
Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph)
Management Ethernet, Bluetooth
Channel Bandwidth Main radio (60 GHz): 1,080/2,160 MHz; Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
Enclosure Material UV-resistant polycarbonate
Button (1) Factory reset
LEDs
System R/G/B
Operating Frequency Main radio (60 GHz): 57 - 66 GHz
Backup radio (5 GHz):
US/CA — U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz
Worldwide: 5150 - 5850 MHz
Bluetooth (MHz) Worldwide: 2400 - 2483.5 MHz
Ambient Operating Temperature -40 to 70° C (-40 to 158° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC

Visit Ubiquiti for more information.

Ubiquiti UBB UniFi Building Bridge – What’s included in the box
Ubiquiti UBB UniFi Building Bridge Single
Ubiquiti UBB UniFi Building Bridge – What’s included in the box
Ubiquiti UBB UniFi Building Bridge 2-Pack

Customer Satisfaction

Check out some recent reviews and customer experiences shared on Trustpilot

Trustpilot

Datasheet, Deployment & Features

Ubiquiti UBB UniFi Building Bridge Deployment
Ubiquiti UBB UniFi Building Bridge Datasheet
Ubiquiti UBB UniFi Building Bridge Datasheet
Ubiquiti UBB UniFi Building Bridge Single

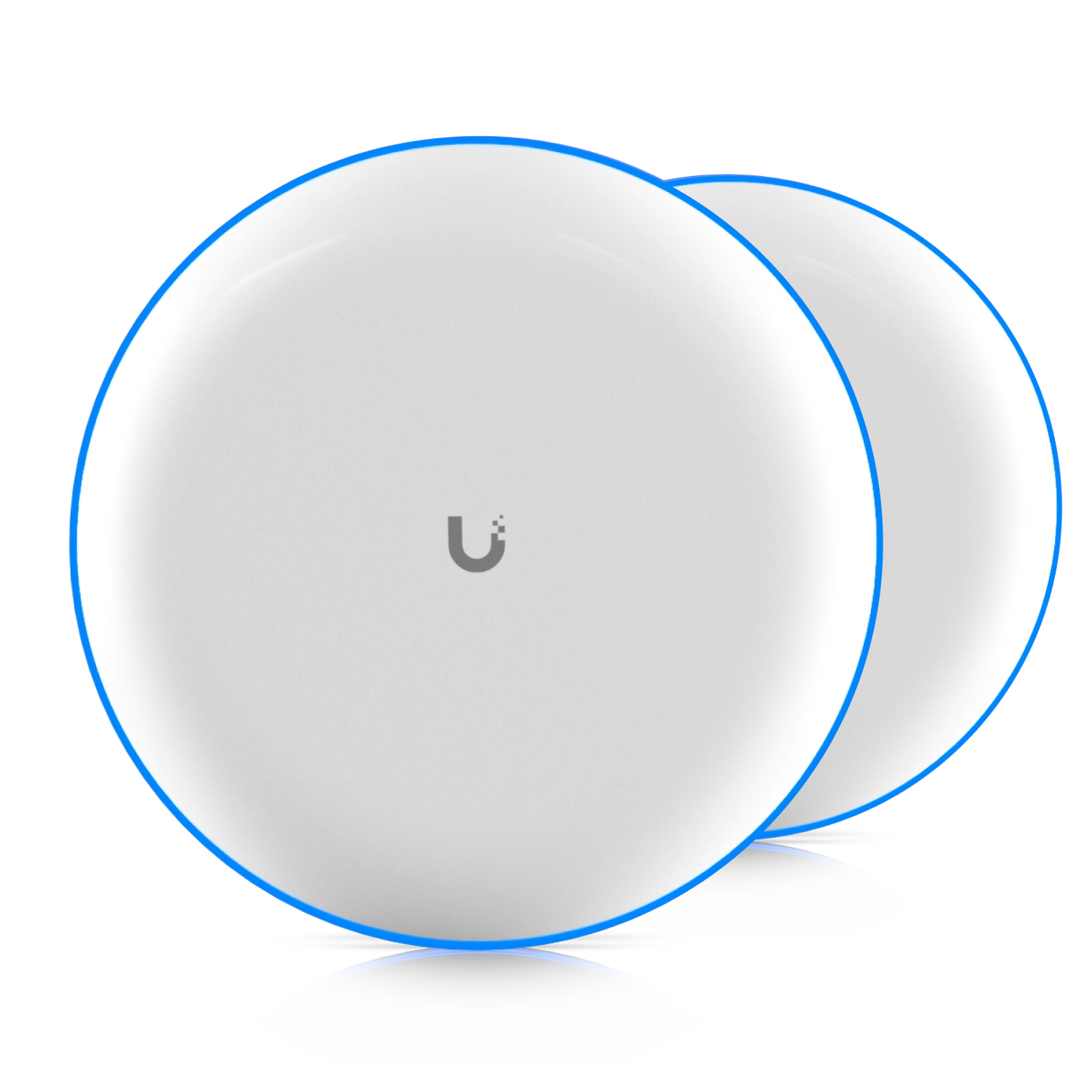

Ubiquiti UBB UniFi Building Bridge 2-Pack
Ubiquiti UBB UniFi Building Bridge installed on a metal pole with mounting strap and connected network cable
Ubiquiti UBB UniFi Building Bridge mounting assembly with adjustable bracket and pole attachment strap
