UniFi Enterprise Campus 24 PoE Layer 3 Switch

Name: Ubiquiti ECS-24-PoE UniFi Enterprise Campus 24 PoE Layer 3 Switch
Availability: OutOfStock

Ubiquiti ECS-24-PoE UniFi Enterprise Campus 24 PoE Layer 3 Switch

SKU:ECS-24-PoE

$4,799.00

~~$4,799.00~~ $4,799.00

0% Off | Save $0.00 Sold out

Taxes included. Shipping calculated at checkout.

Out of stock

Quantity

Authorised Reseller | Australian Stock | Australian Warranty

View full details

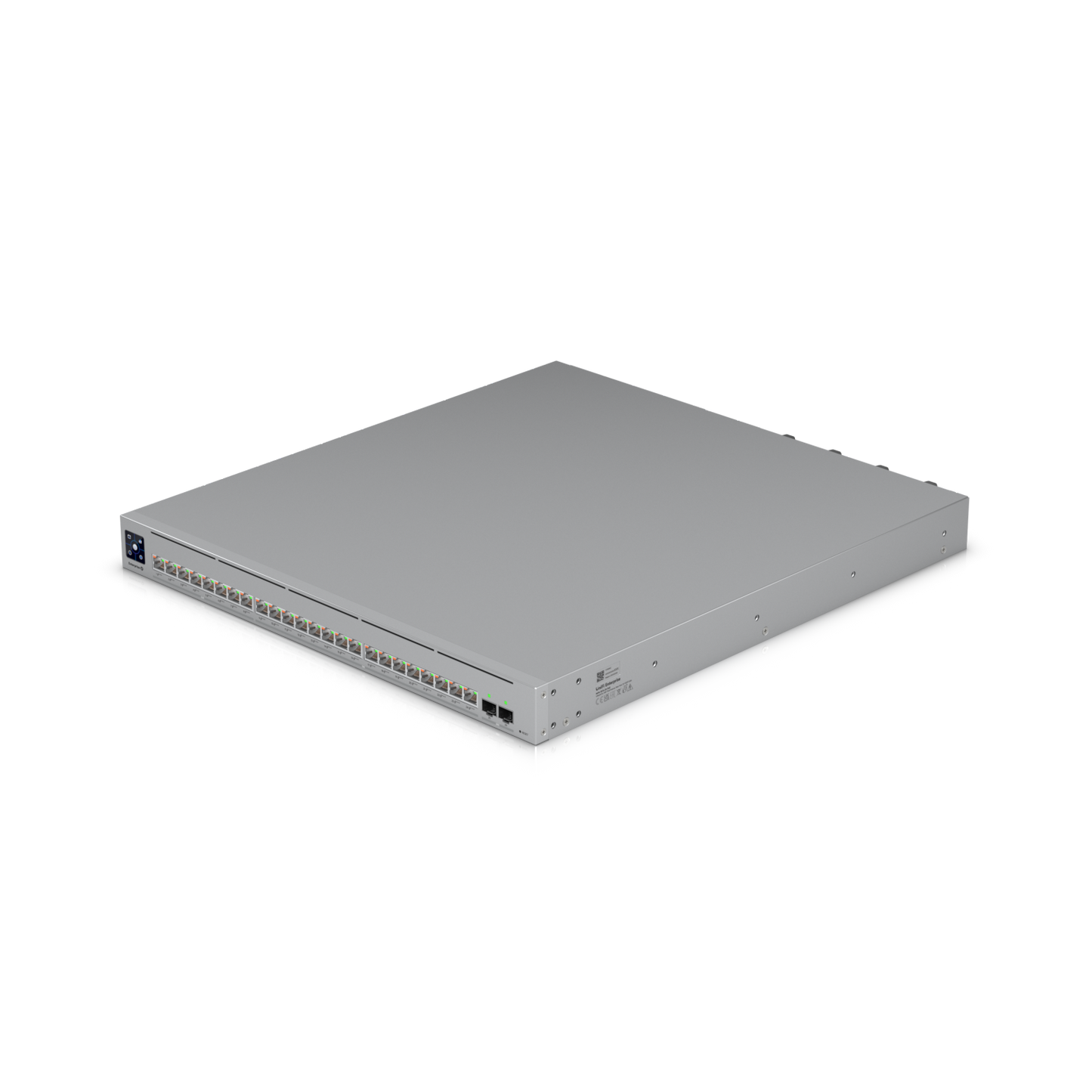

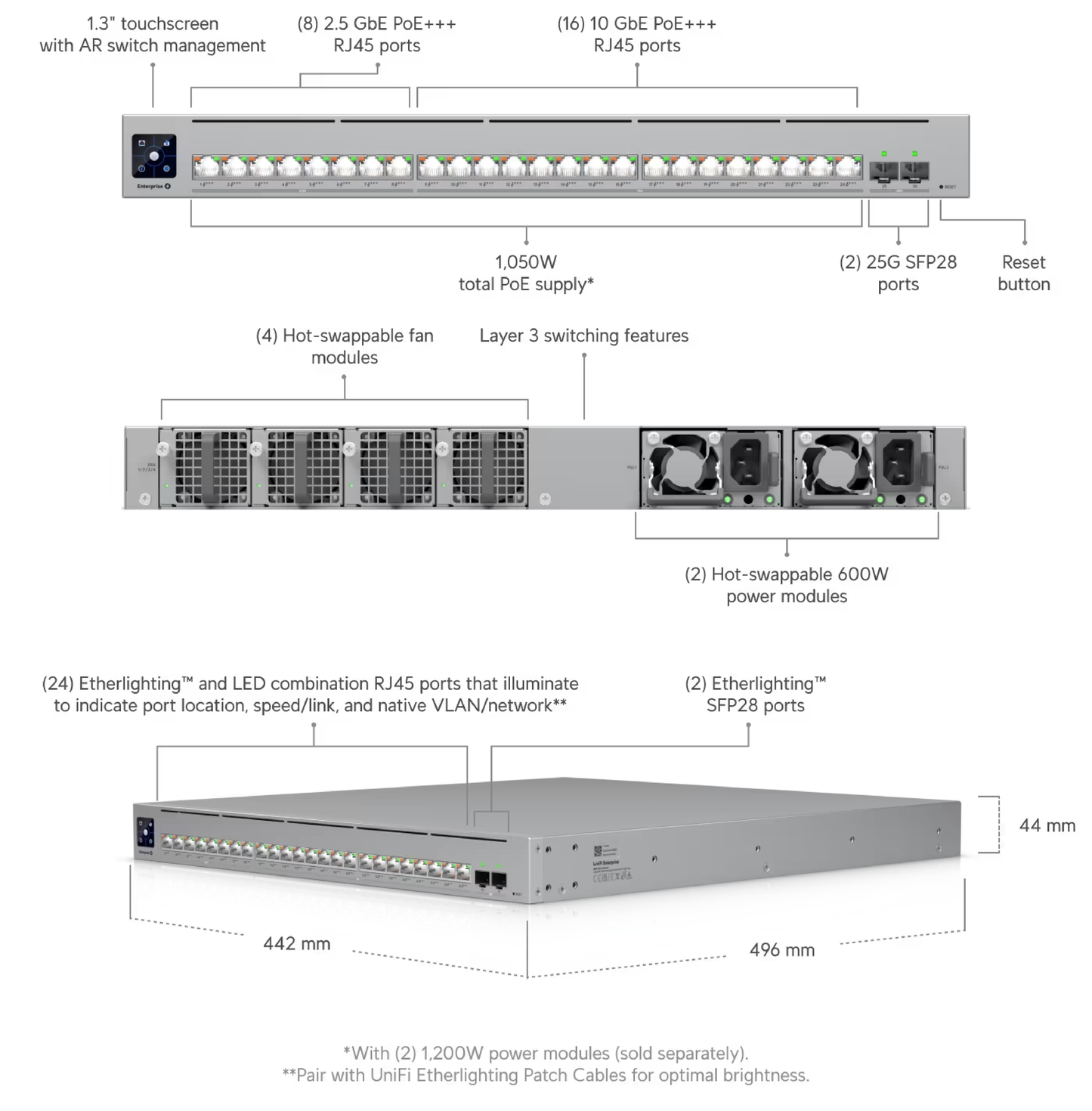

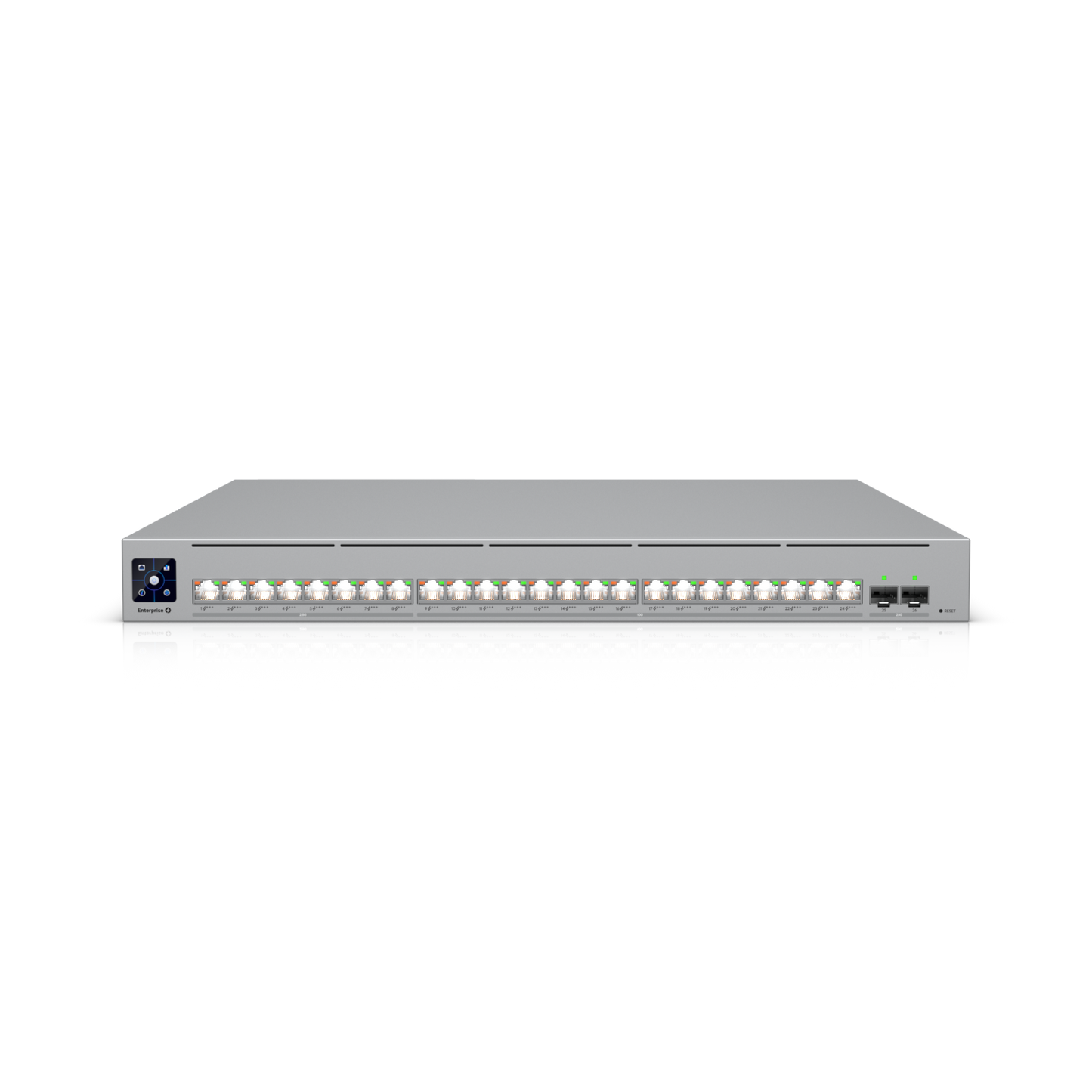

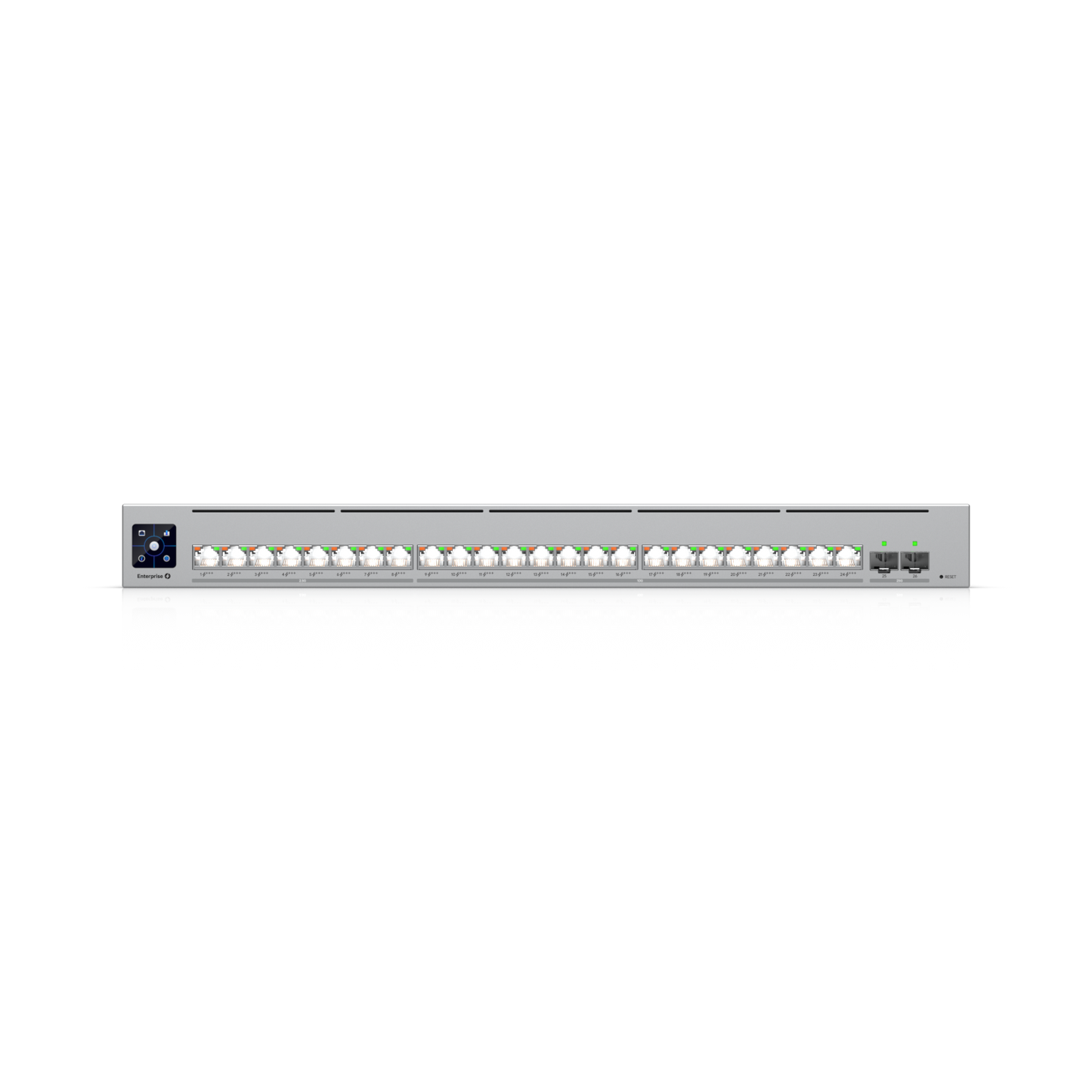

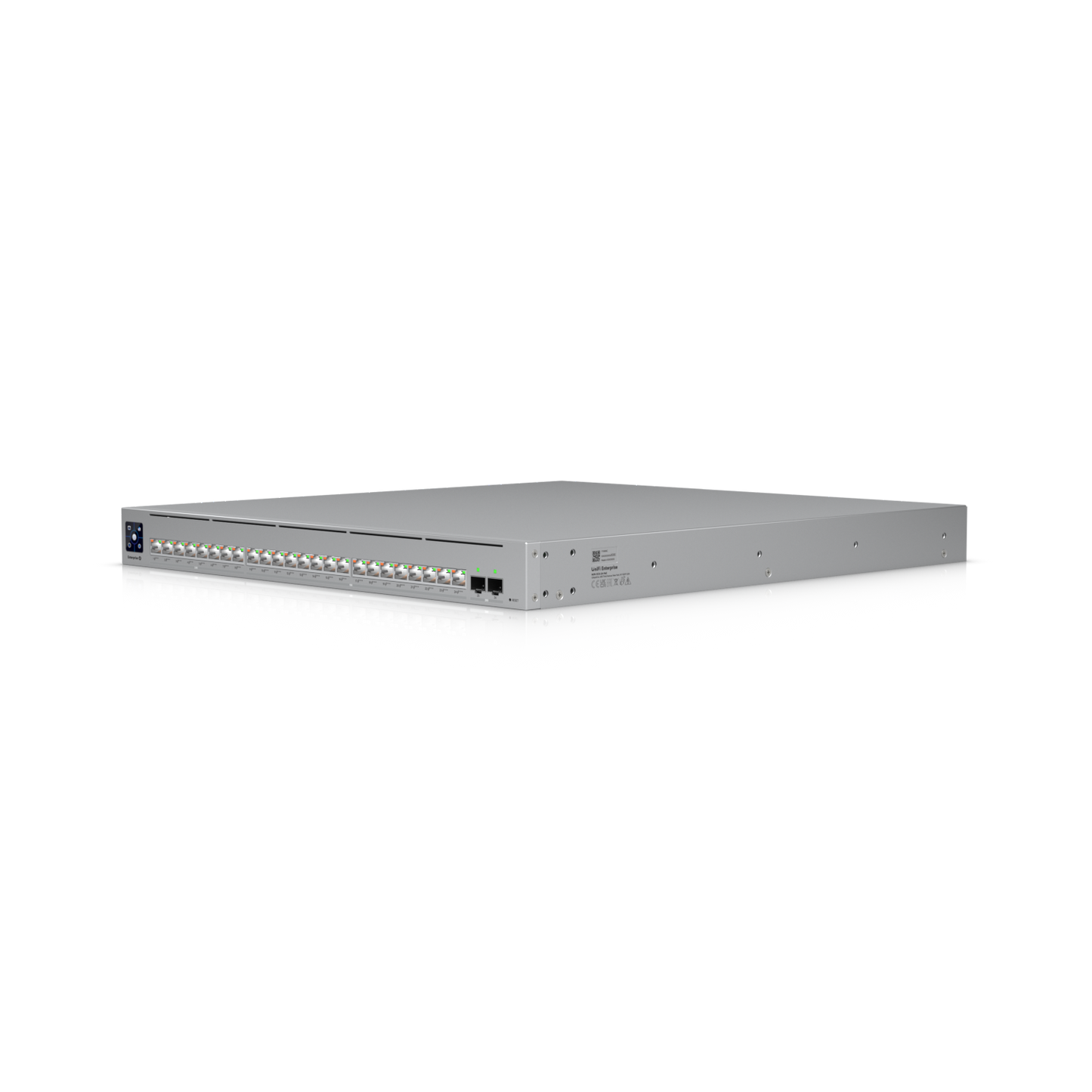

Enterprise-grade 24-port, Layer 3 Etherlighting PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

(16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable).
(2) 25G SFP28 ports.

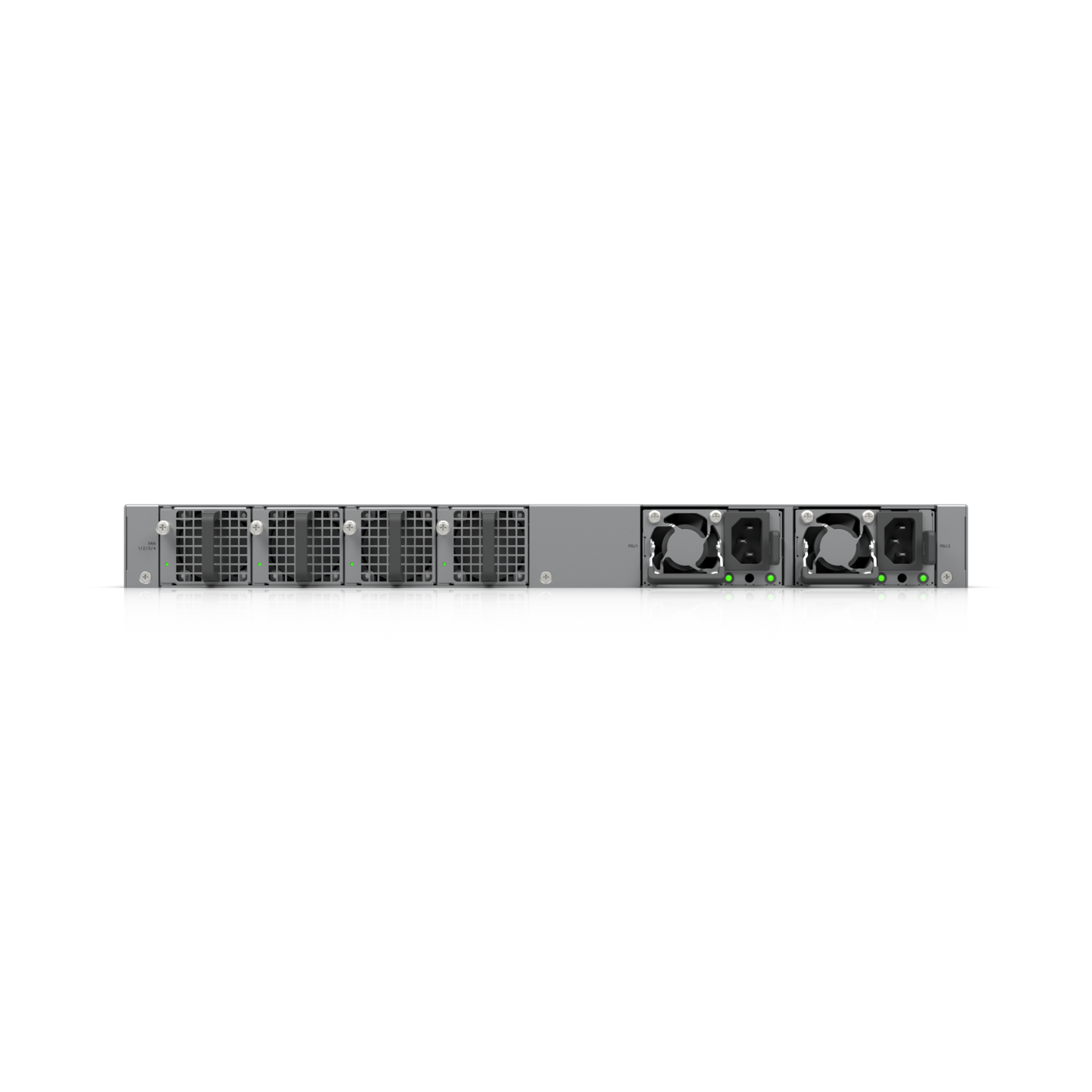

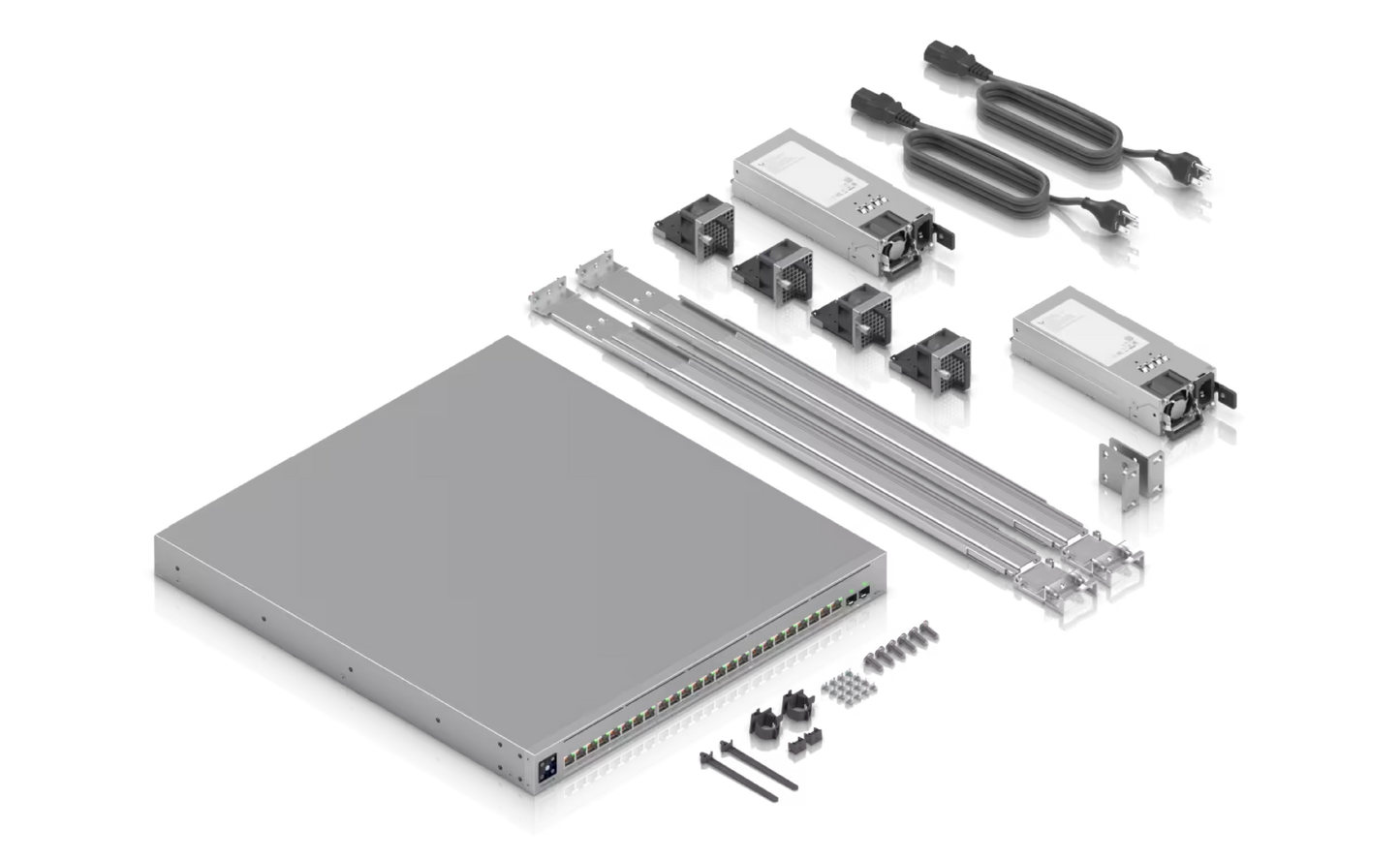

(2) included hot-swappable power modules for redundancy.
(4) included hot-swappable fan modules with one backup.

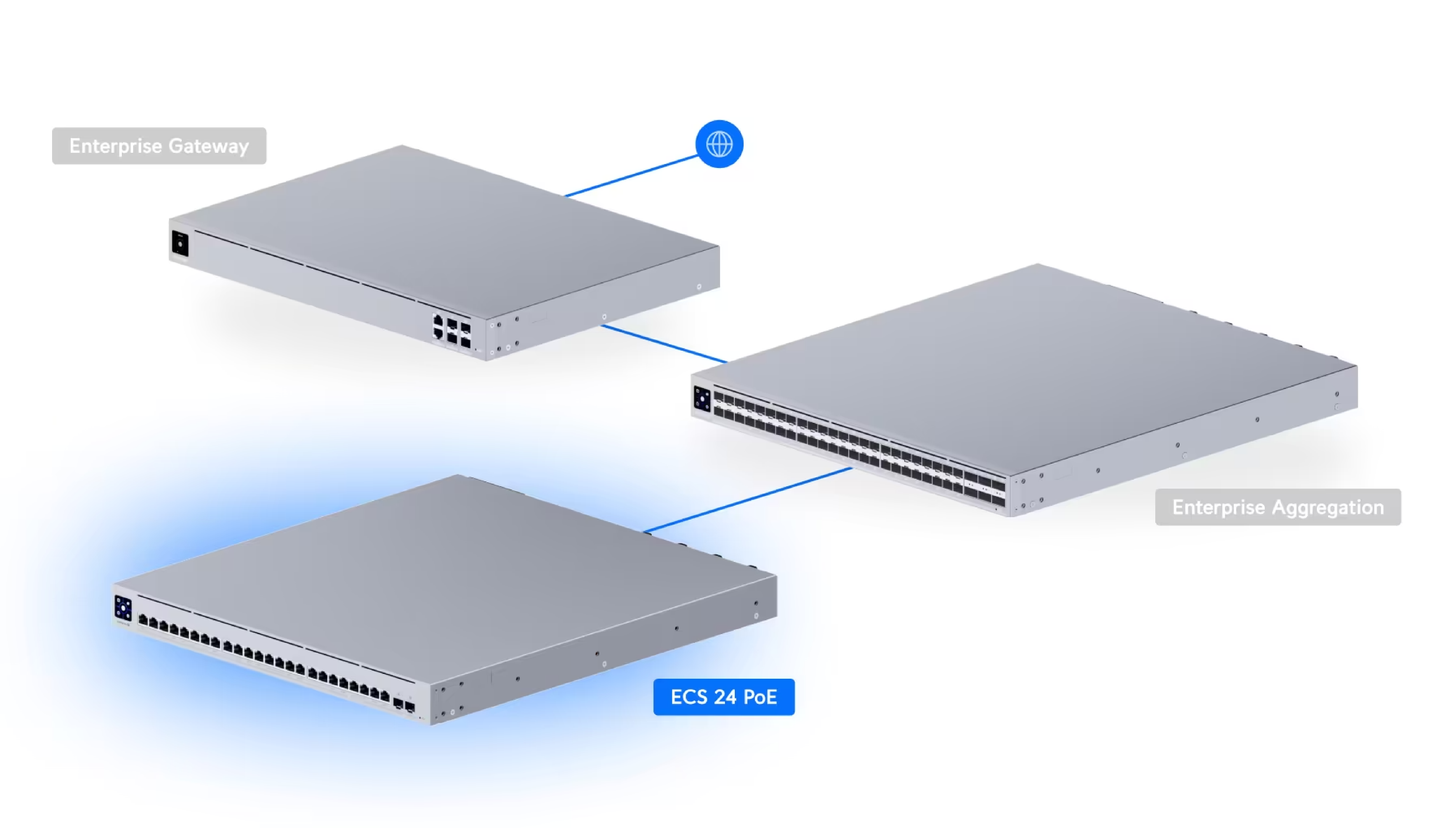

Note: Recommend being paired with Enterprise Campus Aggregation.

Mechanical
Dimensions	442 x 496 x 44 mm (17.4 x 19.5 x 1.7")
Weight	Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb)
Enclosure material	SGCC steel

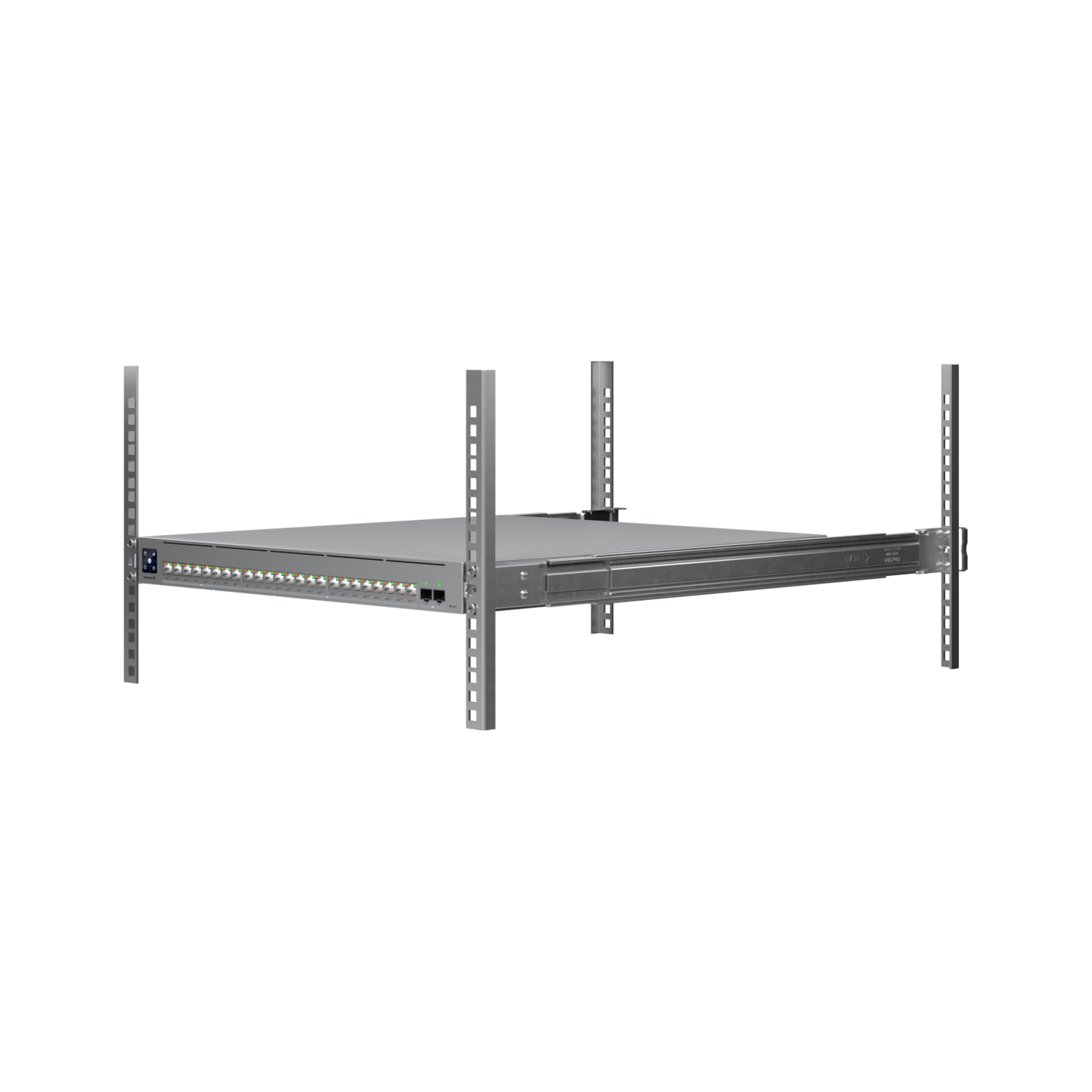

Slide rails support	The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
Hardware
Management interface	Ethernet In-Band
Networking interface	(16) 10/5/2.5/1 GbE, 100/10 MbE RJ45 ports (8) 2.5/1 GbE, 100/10 MbE RJ45 ports (2) 25/10/1G SFP28 ports
PoE interface	(24) 90W PoE+++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)* *802.3bt Type 4, Class 8
Total non-blocking throughput	230 Gbps
Switching capacity	460 Gbps
Forwarding rate	342.24 Mpps
Power method	(2) Universal input, 100—240V AC, 50/60 Hz
Power supply	(2) Hot-swappable AC/DC 600W power modules* _{*Power modules operate with 1 + 1 redundancy.}
Supported voltage range	100—240V AC
Max. power consumption	Excluding PoE output: 150W Including PoE output: 1,200W
Total available PoE	1,050W* _{*With (2) 1,200W power modules (sold separately). Total available PoE is 450W with (2) 600W modules.}
Max. PoE wattage per port by PSE	PoE+++: 90W
Voltage range PoE mode	50—57V
Fan method	(4) hot-swappable fan modules* *Fan modules operate with 3 + 1 redundancy.
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet	Locating Speed/link Native VLAN/network
SFP28	Locating Speed/link Native VLAN/network
LEDs
System	Status
Ethernet	Link/activity

Visit Ubiquiti for more information.
