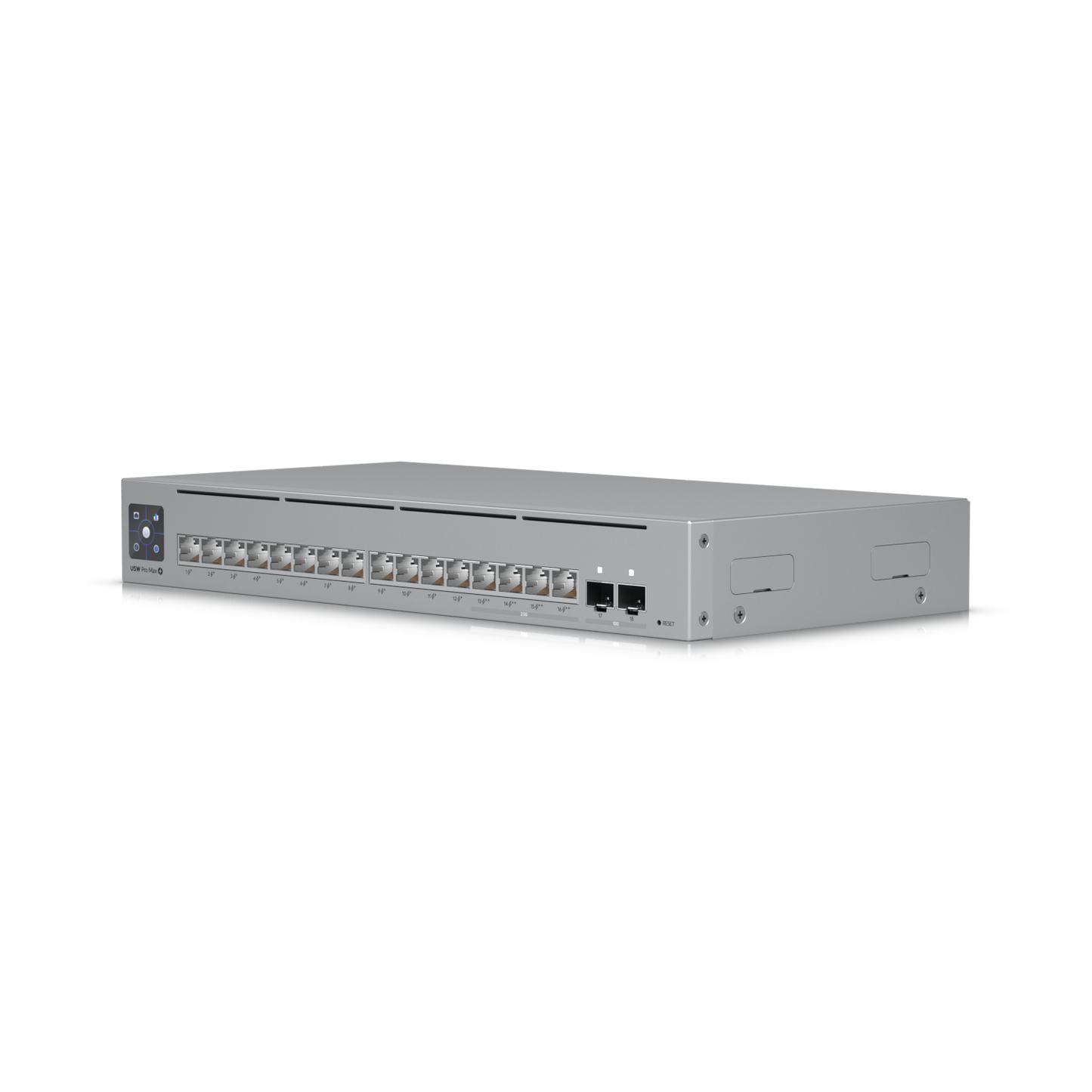

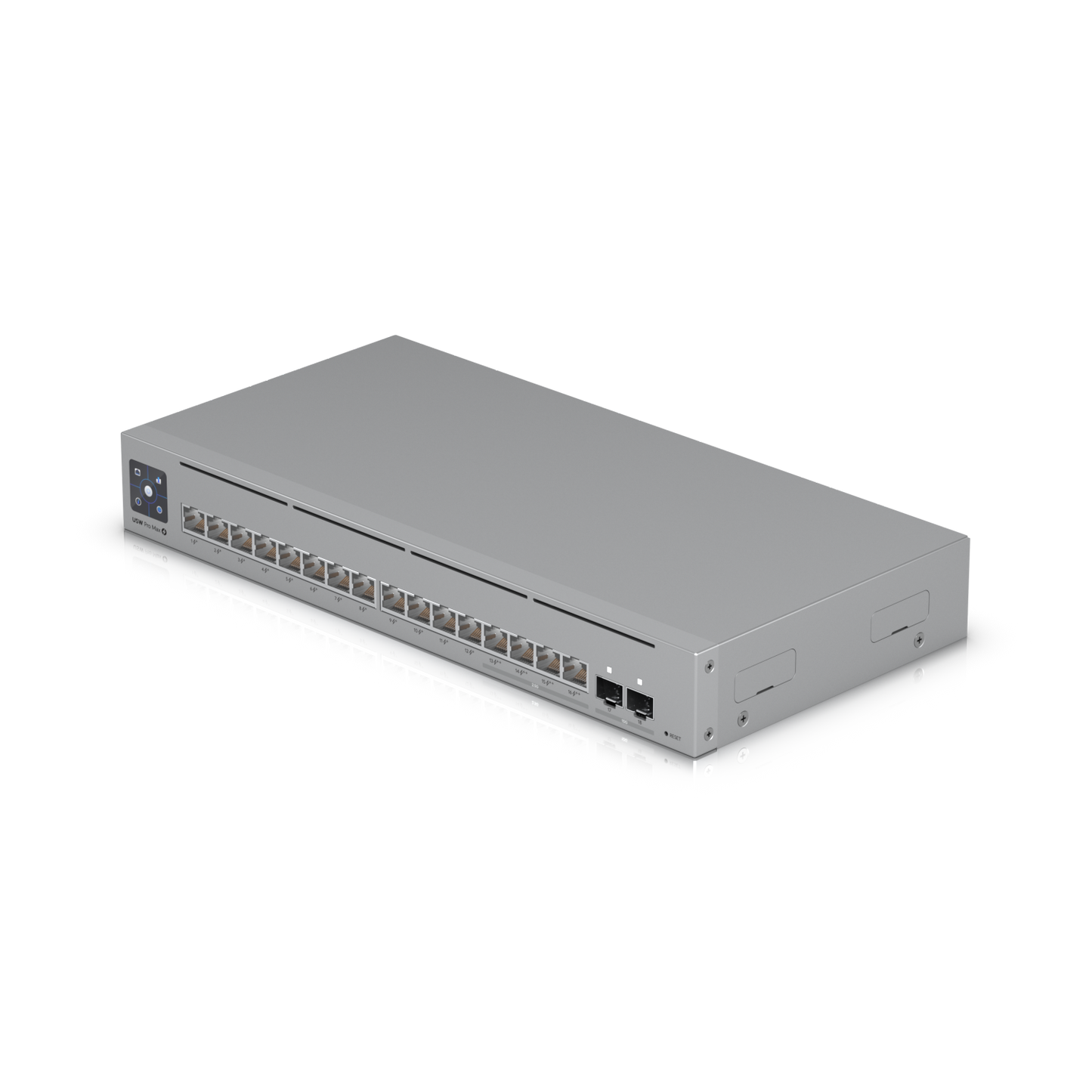

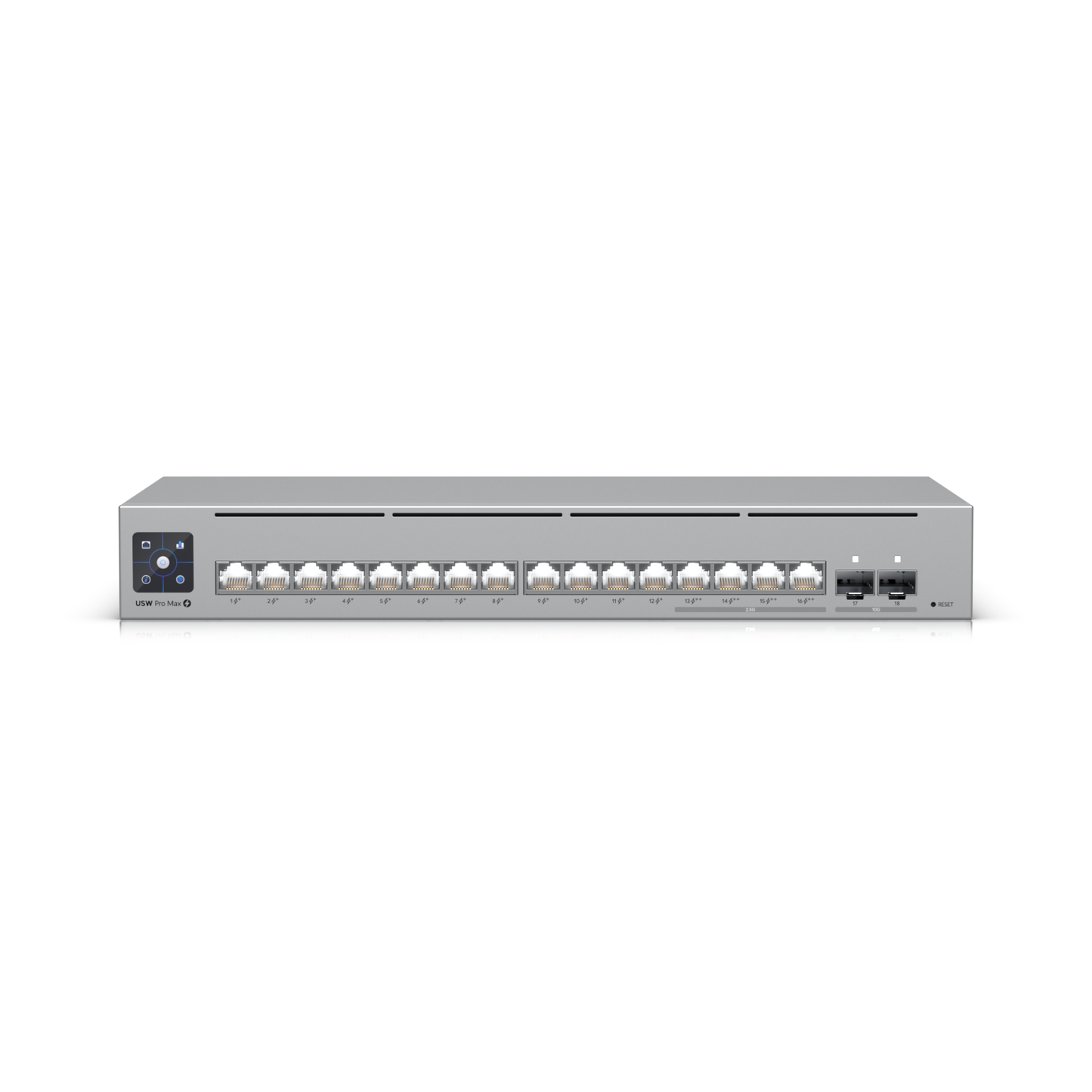

UniFi Pro Max 16 PoE Layer 3 Switch

Name: Ubiquiti USW-Pro-Max-16-PoE UniFi Pro Max 16 PoE Layer 3 Switch
Availability: InStock

Ubiquiti USW-Pro-Max-16-PoE UniFi Pro Max 16 PoE Layer 3 Switch

SKU:USW-Pro-Max-16-PoE

$772.00

~~$849.00~~ $772.00

9% Off | Save $77.00 Sold out

Taxes included. Shipping calculated at checkout.

109 in stock

Quantity

Authorised Reseller | Australian Stock | Australian Warranty

View full details

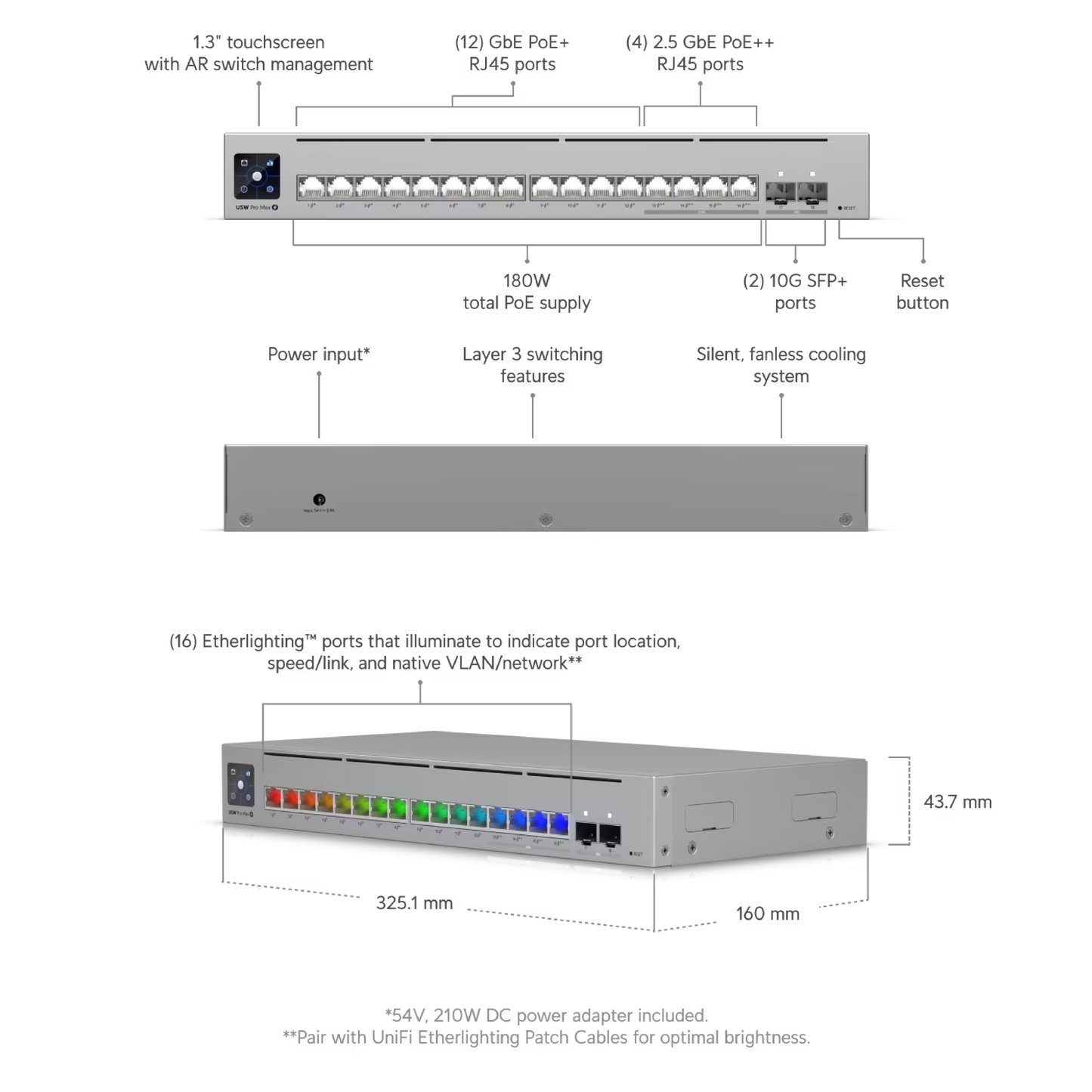

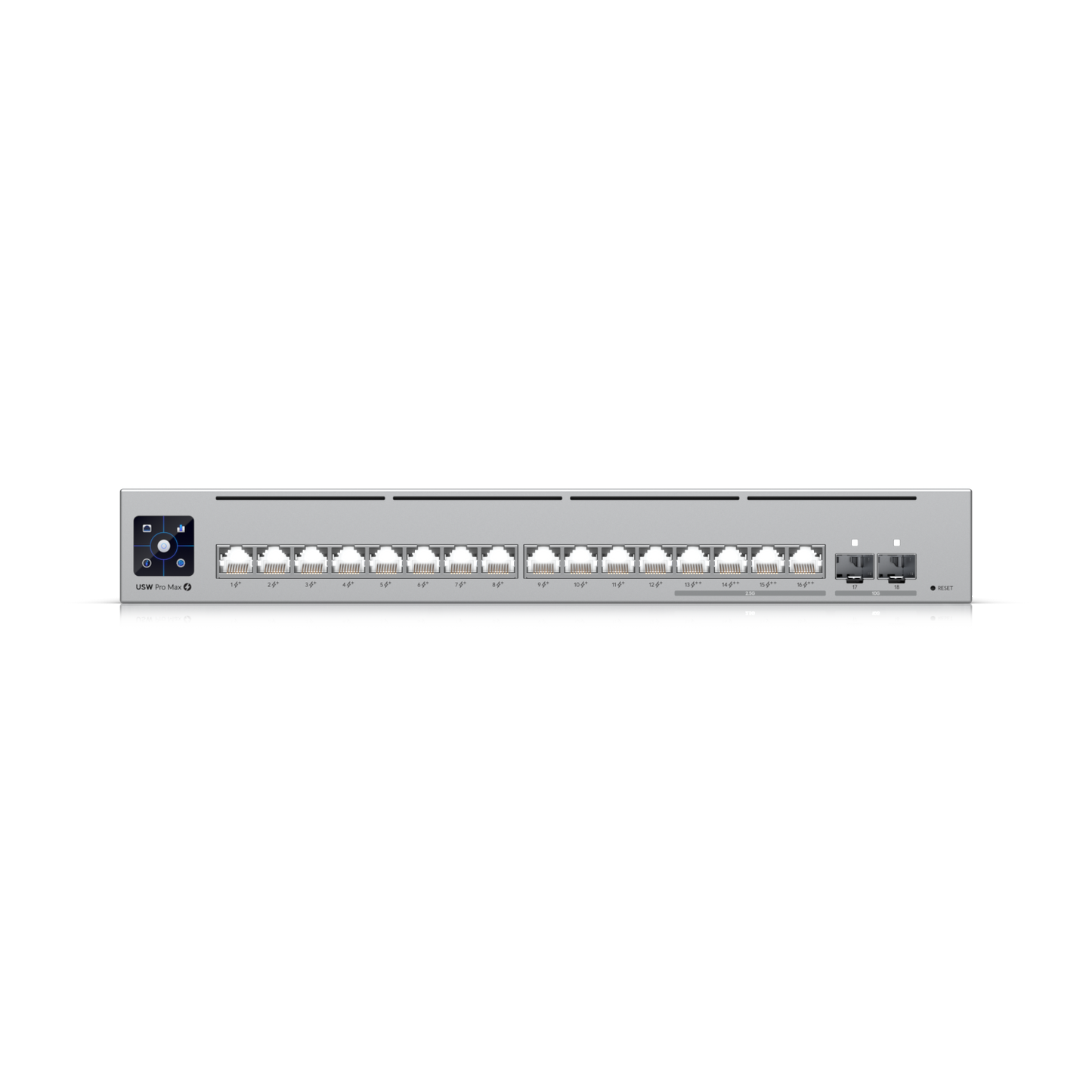

A 16-port, Layer 3 Etherlighting switch with 2.5 GbE, PoE++ output, and versatile mounting options.

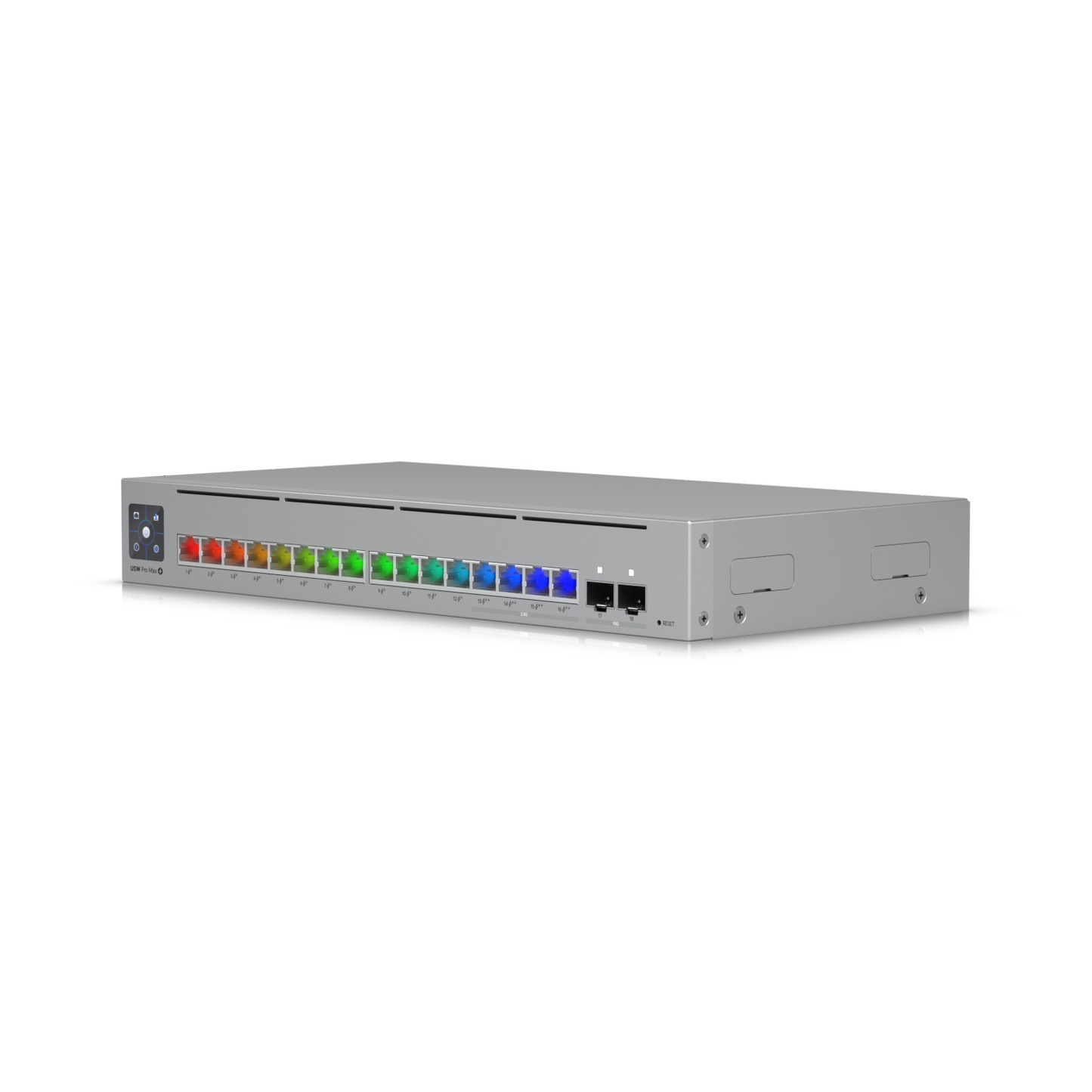

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network^*.
(4) 2.5 GbE PoE++ ports.
(12) GbE PoE+ ports.
(2) 10G SFP+ ports.
180W total PoE availability.

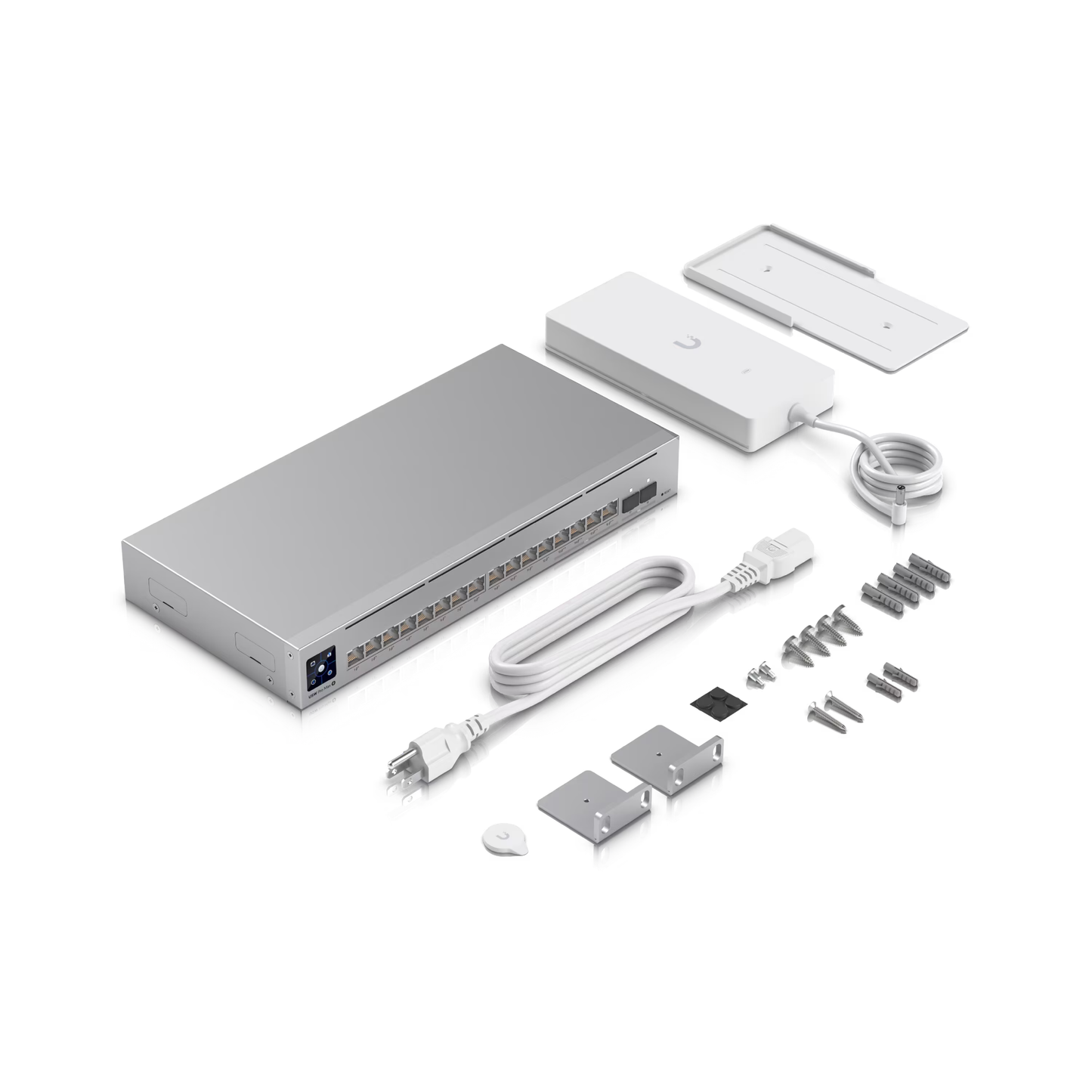

Versatile desktop, wall, and rack mounting^**.
Silent, fanless cooling system.

Note:

^* Pair with UniFi Etherlighting Patch Cables for optimal brightness.
^** Requires add-on Rack Mount accessory.

Mechanical
Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight	2.1 kg (4.6 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports
PoE interface	(12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	42 Gbps
Switching capacity	84 Gbps
Forwarding rate	62.496 Mpps

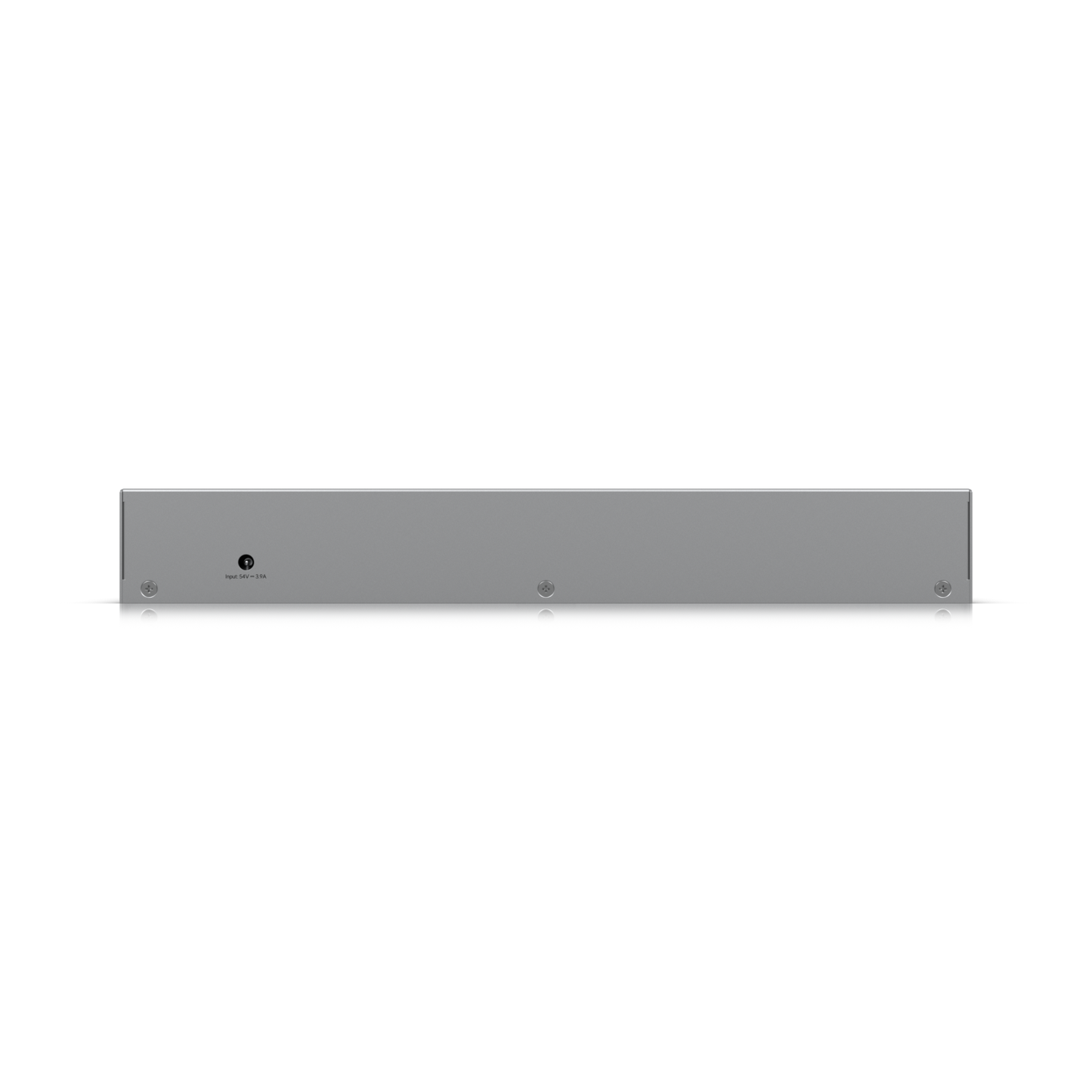

Power method	DC adapter
Power supply	54V, 210W
Max. power consumption	30W (Excluding PoE output)
Total available PoE	180W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 44—57V PoE+/PoE++: 50—57V
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting
Ethernet	Locating Speed/link Native VLAN/network
SFP+	Locating Speed/link Native VLAN/network
Application Requirements
UniFi Network	Version 8.1.127 and later

Visit Ubiquiti for more information.
