UniFi Access Elevator Starter Kit

Name: Ubiquiti UA-SK-Elevator UniFi Access Elevator Starter Kit
Availability: OutOfStock

Ubiquiti UA-SK-Elevator UniFi Access Elevator Starter Kit

SKU:UA-SK-Elevator

$1,878.00

~~$2,022.00~~ $1,878.00

7% Off | Save $144.00 Sold out

Taxes included. Shipping calculated at checkout.

Out of stock

Quantity

Authorised Reseller | Australian Stock | Australian Warranty

View full details

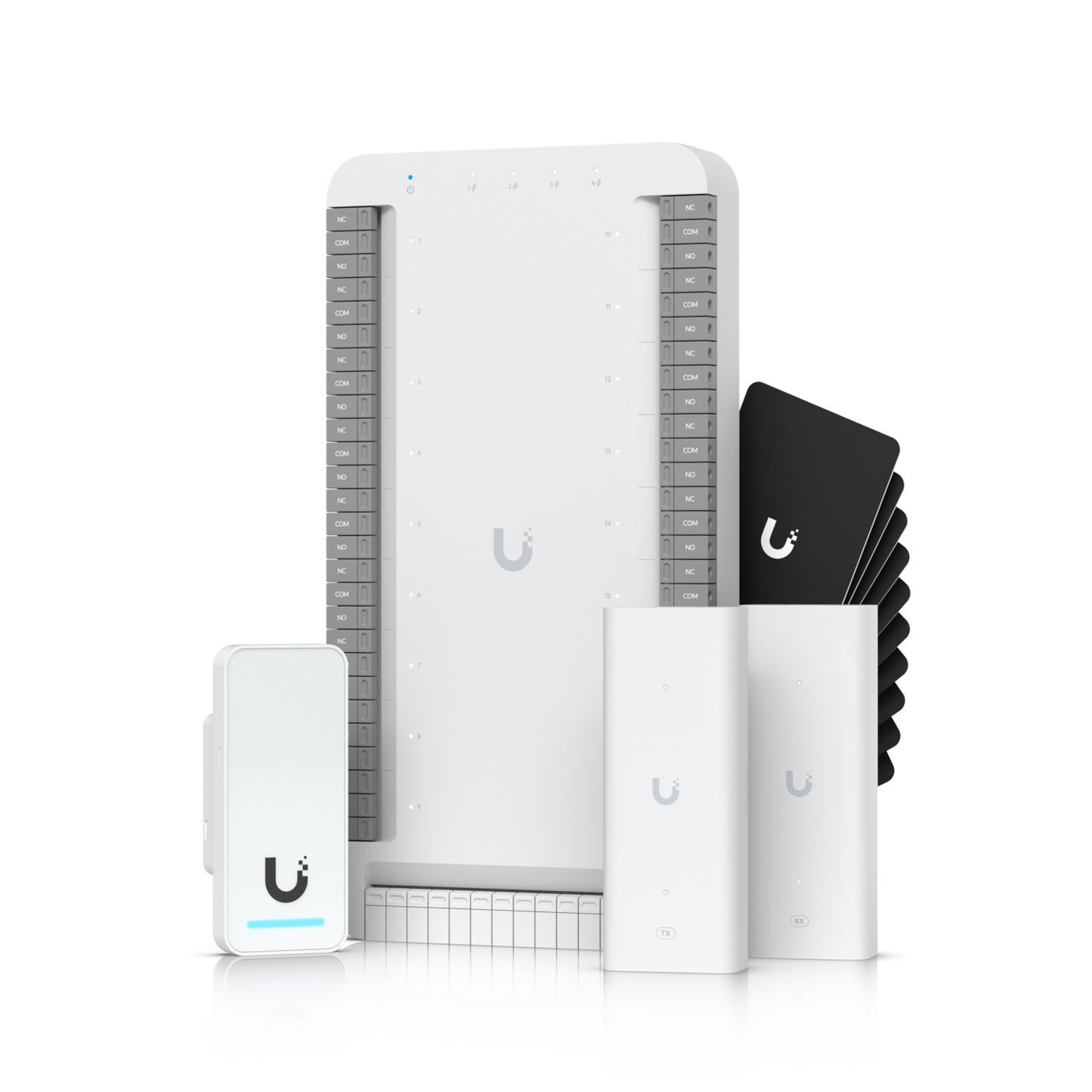

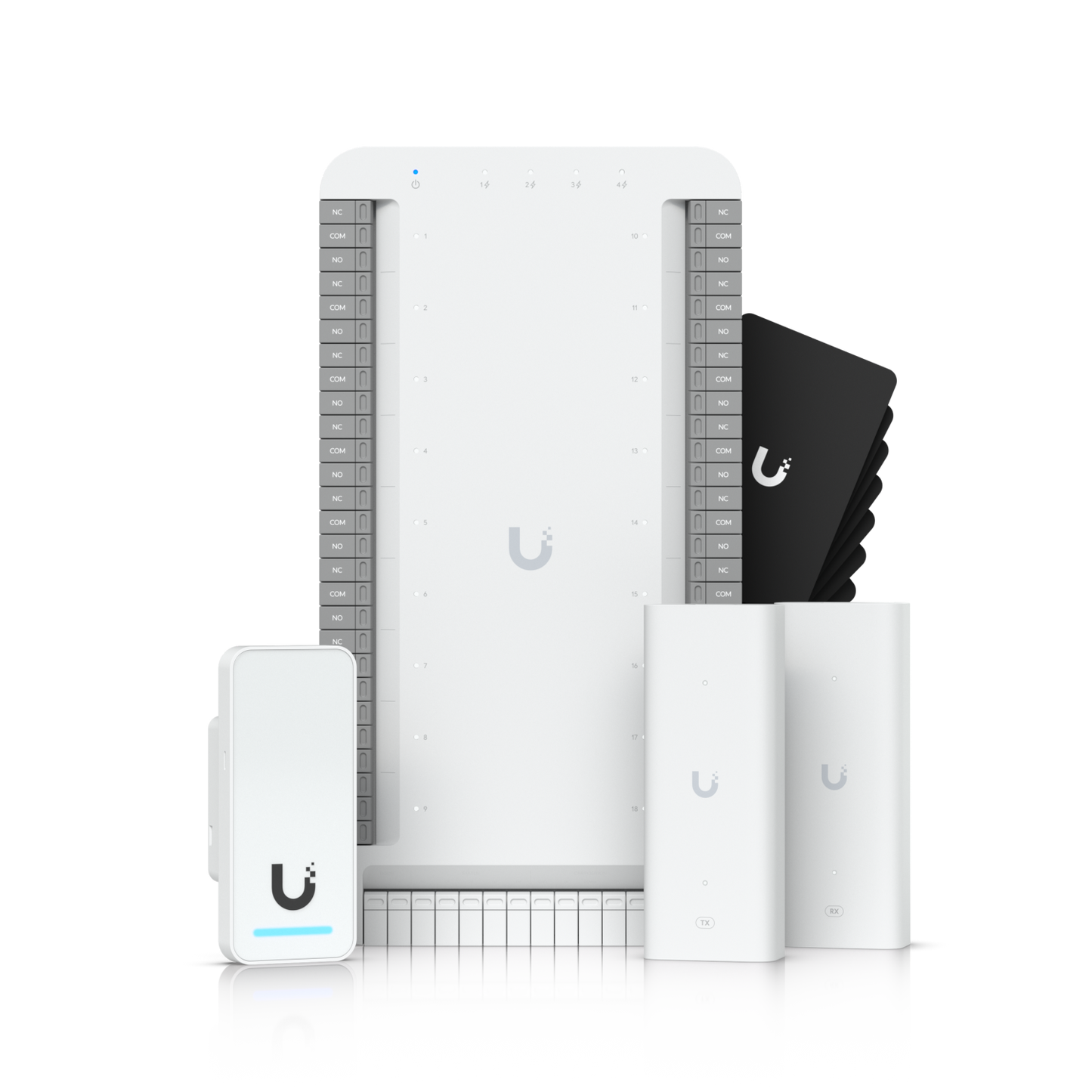

Connects to in-elevator readers with PoE to authorise floor selection. Supports up to 18 floors with digital inputs for elevator car status and emergency.

(1) Elevator Hub.
(1) G2 Reader.
(2) 2-wire PoE extenders.
(10) Access Cards.

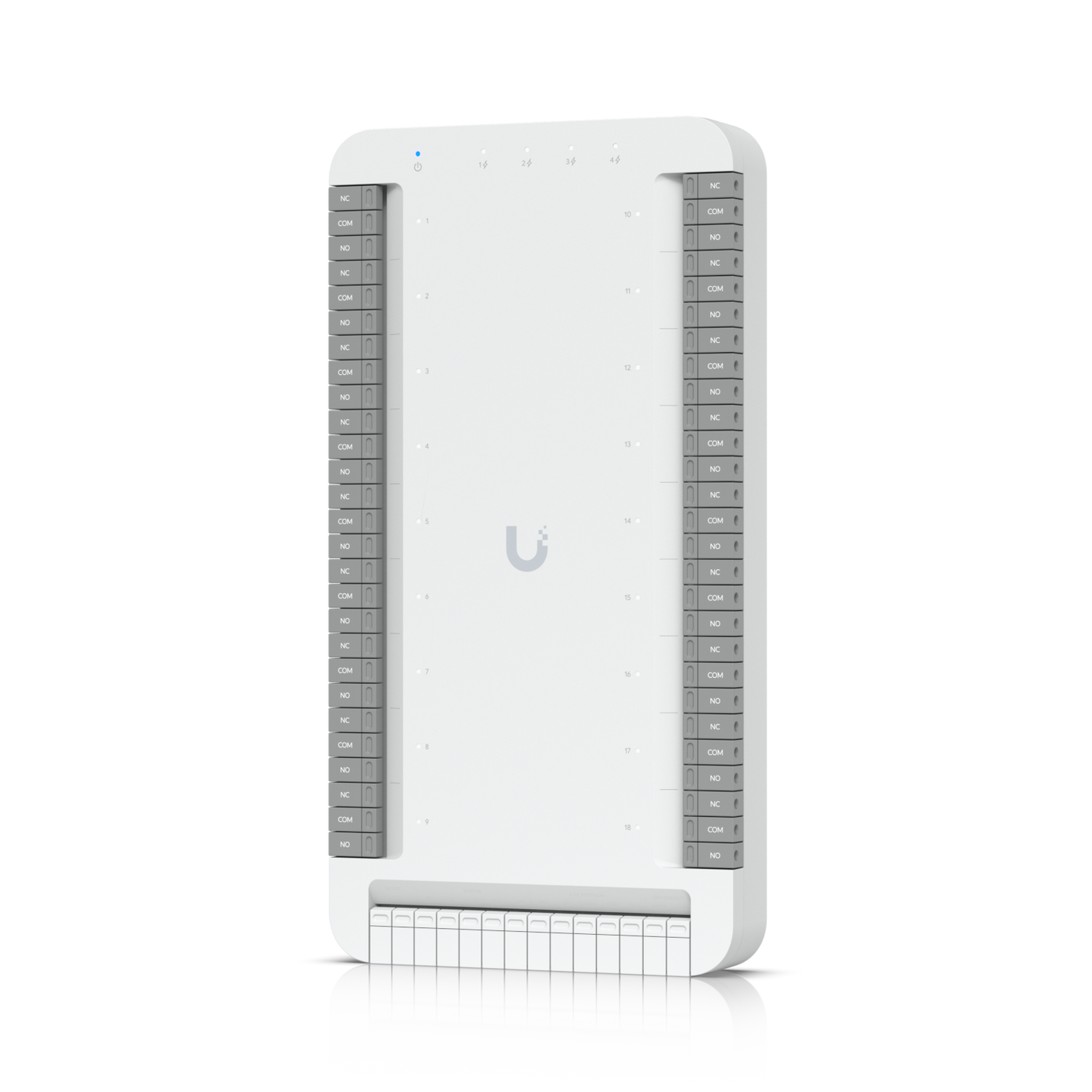

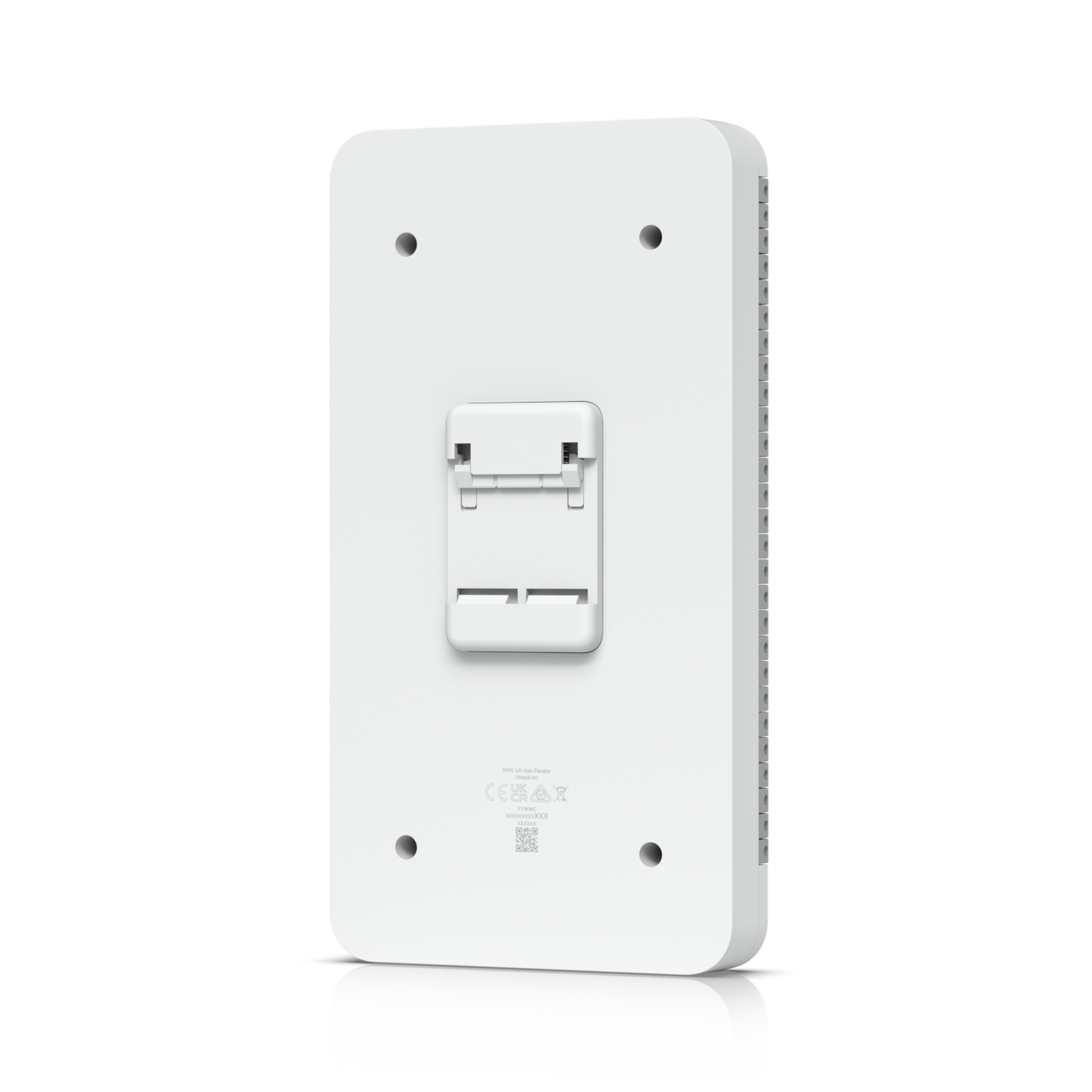

UA-Hub-Elevator Mechanical
Dimensions	129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
Weight	537 g (1.2 lb)
Enclosure material	Polycarbonate
Mounting material	Polycarbonate
Hardware
Networking interface	(4) 10/100/1000 Base-T
Management interface	(1) 10/100/1000 Base-T
Power method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. power consumption	7W (Without PoE output)
PoE input	(1) PoE++, 50V DC, 1.2A
PoE output	PoE passthrough, (4) PoE, 50V DC, total 42W
ESD/EMP protection	Air: ±8kV, contact: ±4kV
Digital input	(5) Car position (6) Car status; Up/down/stop/full/door open/door close (1) Emergency
Outputs	(18) Relays Rating 30V DC/2A
LEDs	System: white/blue/red Output relays: white
Buttons	(1) Factory-reset Terminal blocks
Ambient operating temperature	-10 to 40° C (14 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1

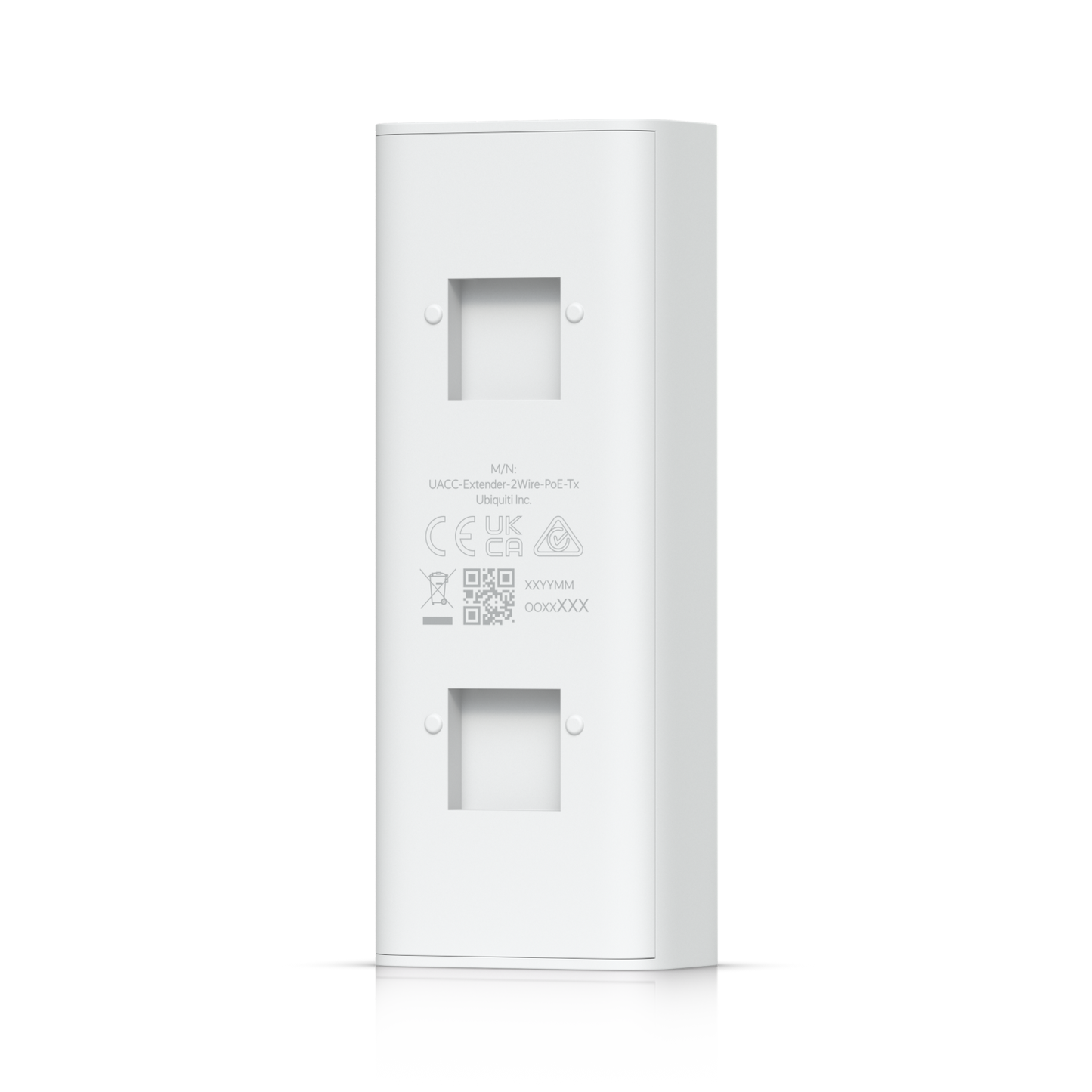

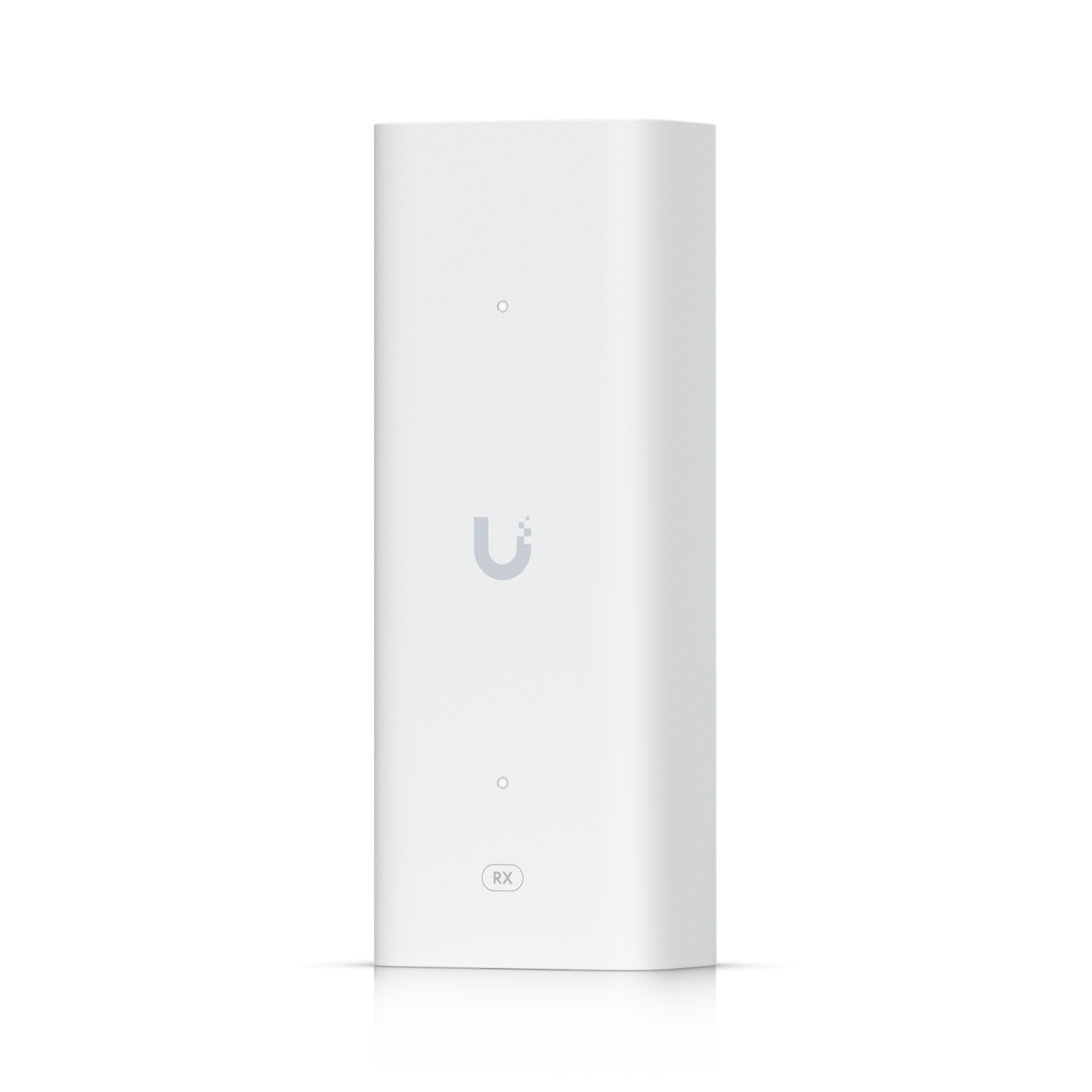

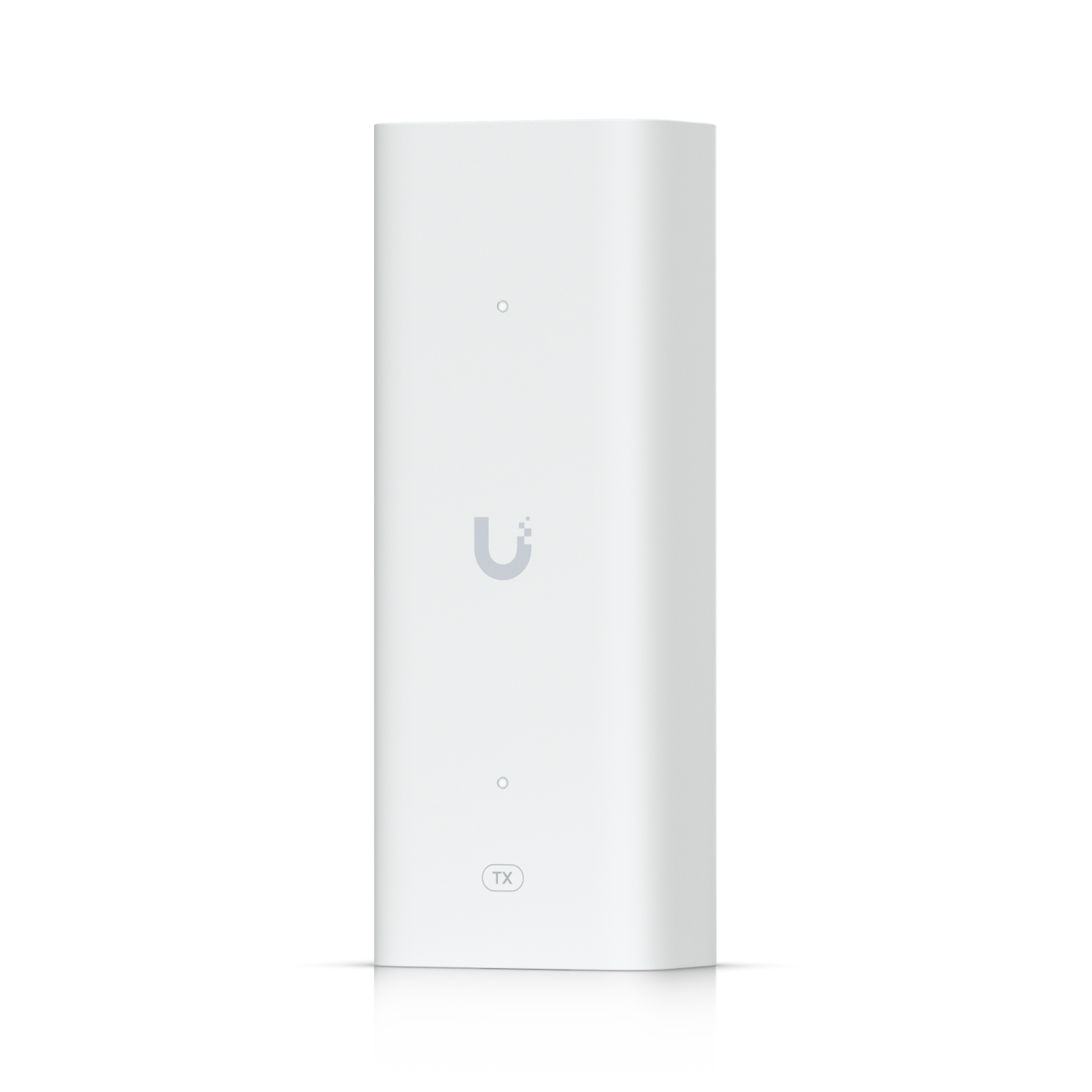

UACC-Extender-2Wire-Tx/Rx Mechanical
Dimensions	40 x 105 x 25 mm (1.6 x 4.1 x 1")
Weight	PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz)
Enclosure material	Polycarbonate
Mounting material	Polycarbonate
Hardware
Networking interface	(1) 10/100 MbE (1) Homeplug AV
Management interface	(1) 10/100 MbE
Power method	PoE++
Max. power consumption	3W (Without PoE output)
PoE input	(1) PoE++, 50V DC, Max. 1.2A
PoE output	(1) PoE+, 48V DC, 0.72A
ESD/EMP protection	Air: ±8kV, contact: ±4kV
LED	White
Ambient operating temperature	-10 to 40° C (14 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC

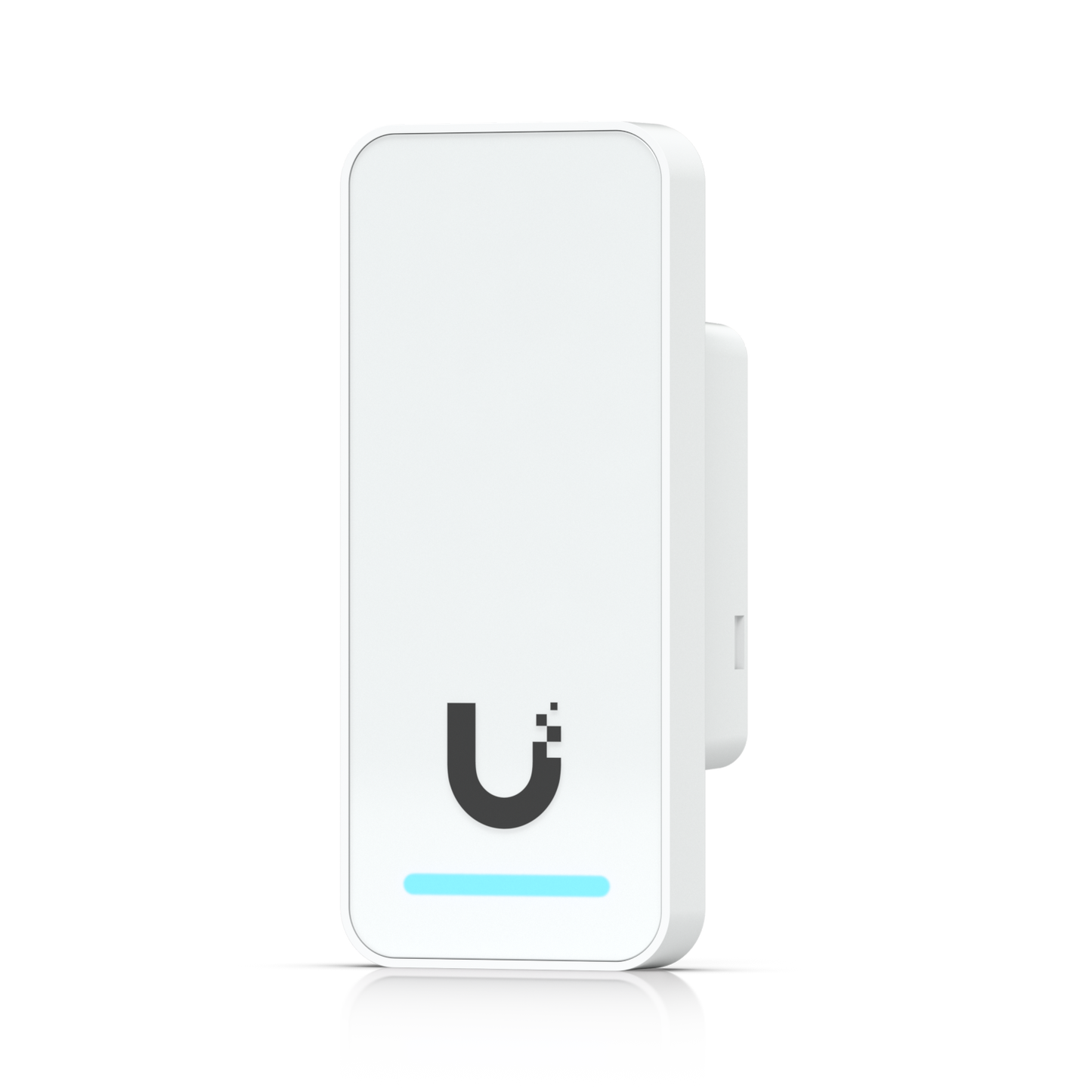

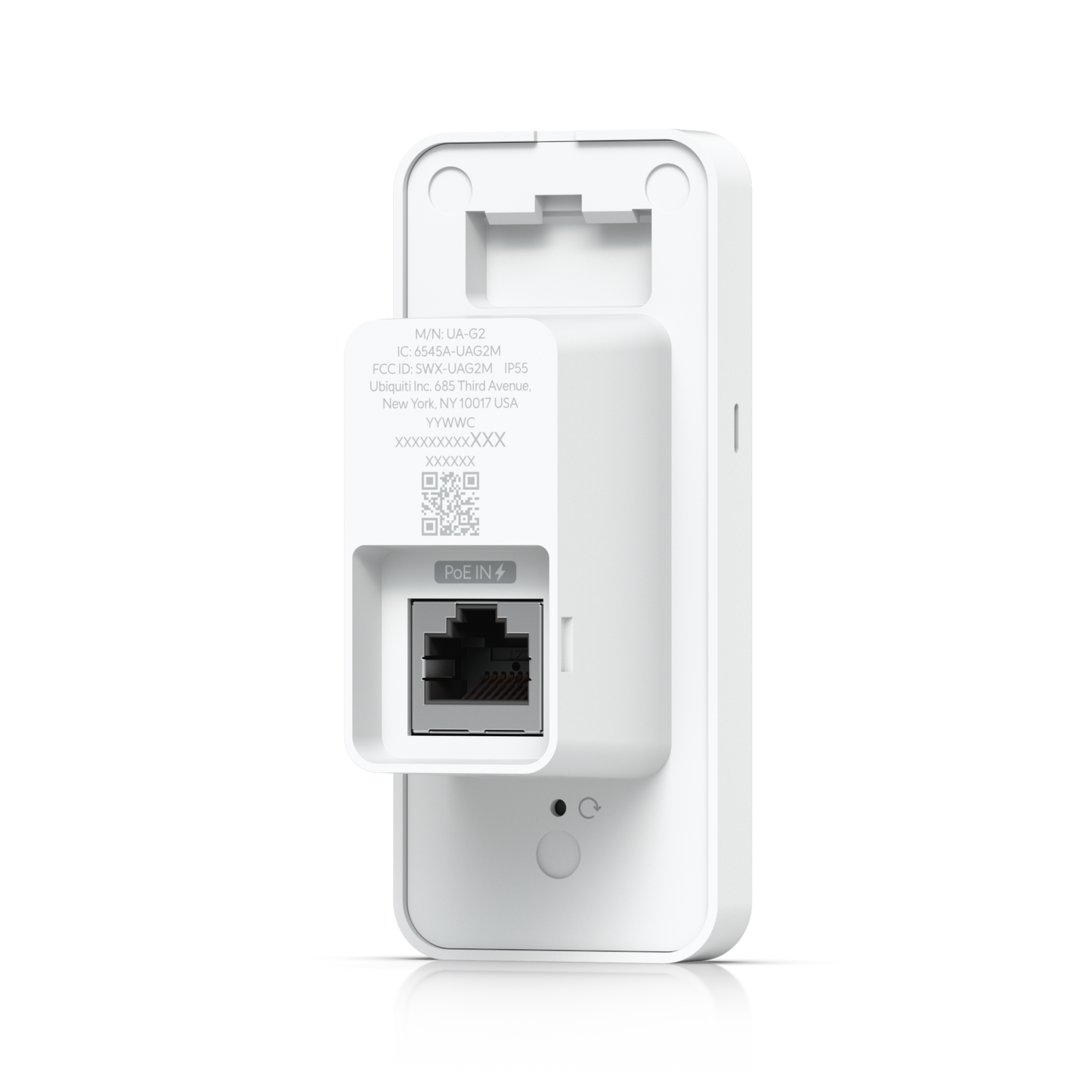

UA-G2 Mechanical
Dimensions	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight	82 g (2.9 oz)
Enclosure material	Polycarbonate, glass
Mounting	In wall, gang box
Weatherproofing	IP55
Hardware
Networking interface	(1) 10/100 MbE RJ45 port
Connectivity	BLE 4.1
Power method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range	48V DC
Max. power consumption	5W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensors	Proximity sensor
Speaker	(1) 8 ohm, 0.7W
LEDs	R/G/B/W
Button	(1) Factory-reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC standards	ISO 14443A, 14443B, 15693
NFC technology	NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire
Operating environment	Outdoor use
Ambient operating temperature	-30 to 45° C (-22 to 113° F)
Ambient operating humidity	5 to 90% noncondensing
Software information	The software version of a product can be checked at https://unifi.ui.com
UL 294 level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements	Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm ² ) for patch cords; 24 AWG (0.21 mm ² ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2/UA-G2-Black, V02
LED
System	Steady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware Strobing red: Emergency lockdown

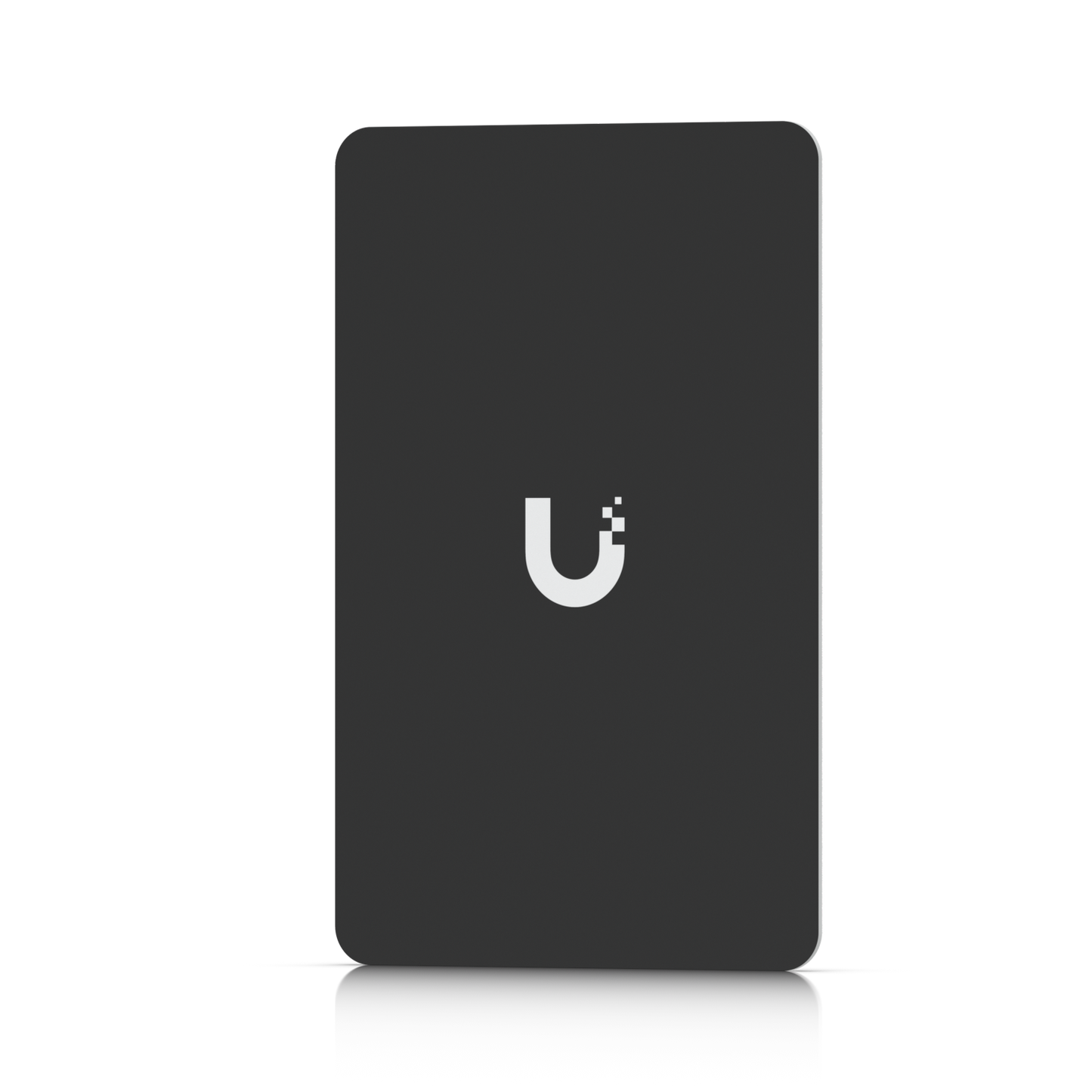

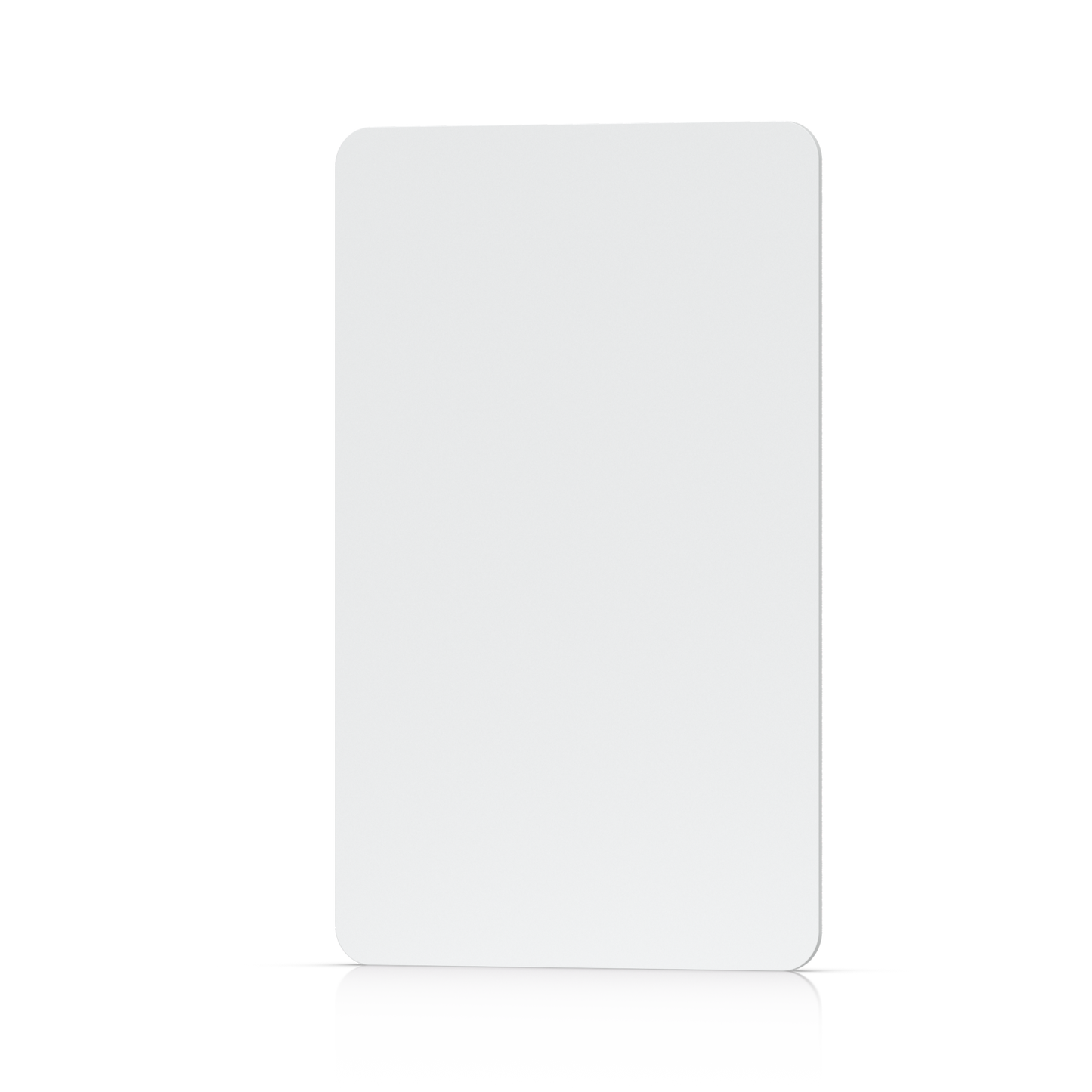

UA-Card Mechanical
Dimensions	85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03")
Weight	5 g (0.18 oz)
Format	ISO 7810 ID-1
NFC frequency	13.56 MHz
NFC technology	ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol

Visit Ubiquiti for more information.
