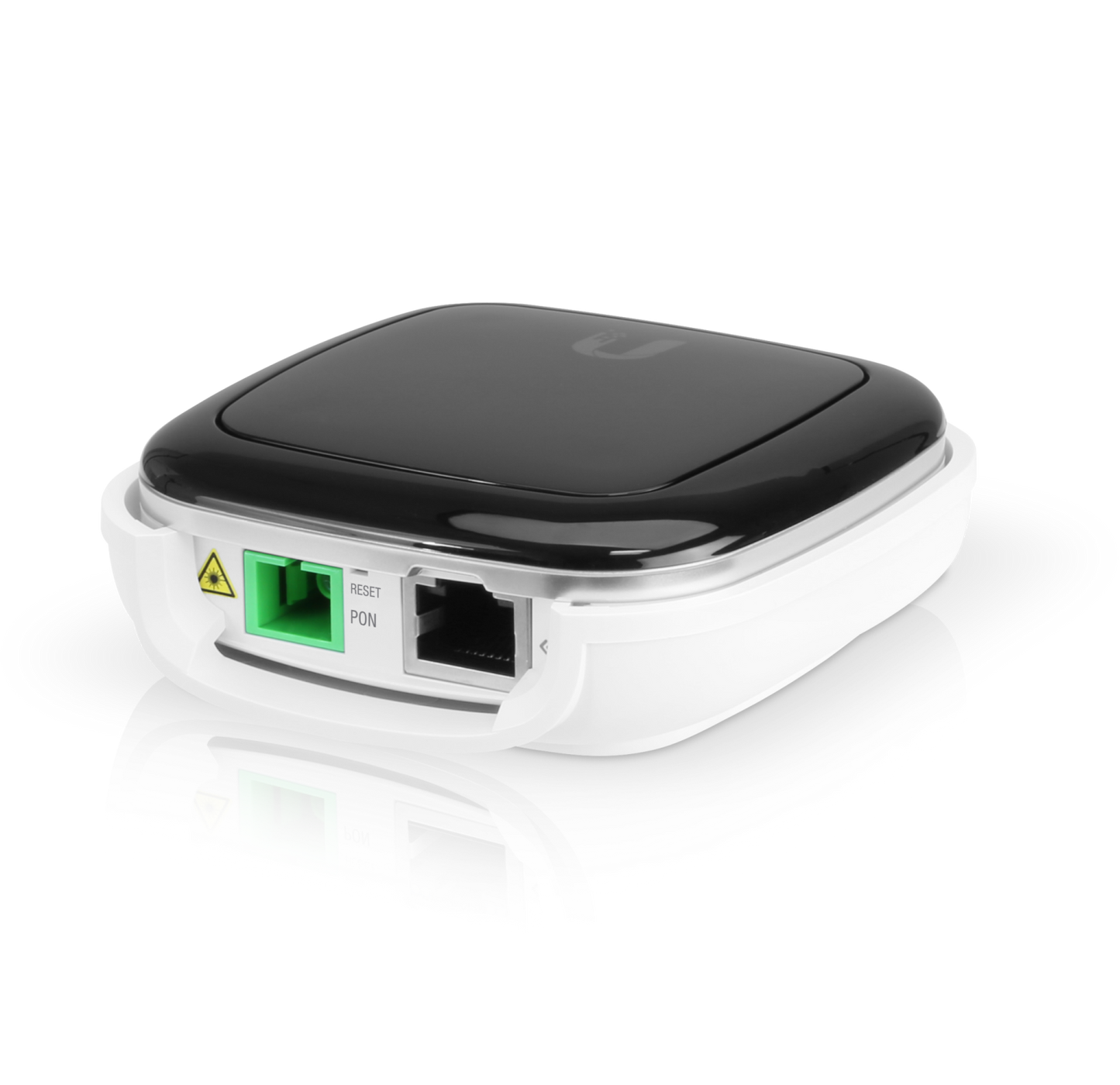

GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.

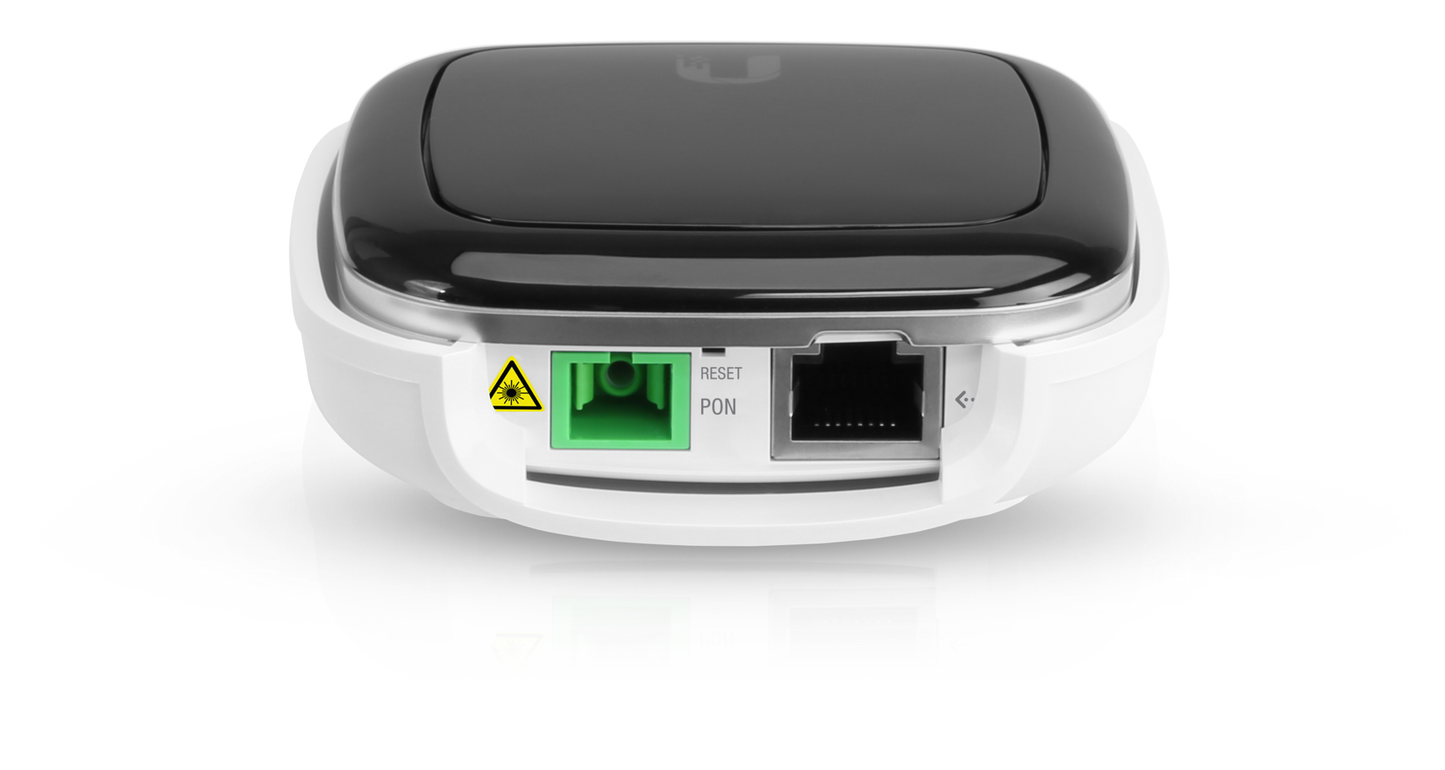

  • (1) GPON port.
  • (1) GbE RJ45 LAN port and 24V PoE in.
  • (1) Digital display.
  • Dying gasp support.

Note: This device is designed to be used with the Fiber OLT. Third-party OLTs may not be compatible or are unable to reliably connect to the ONU.

Mechanical

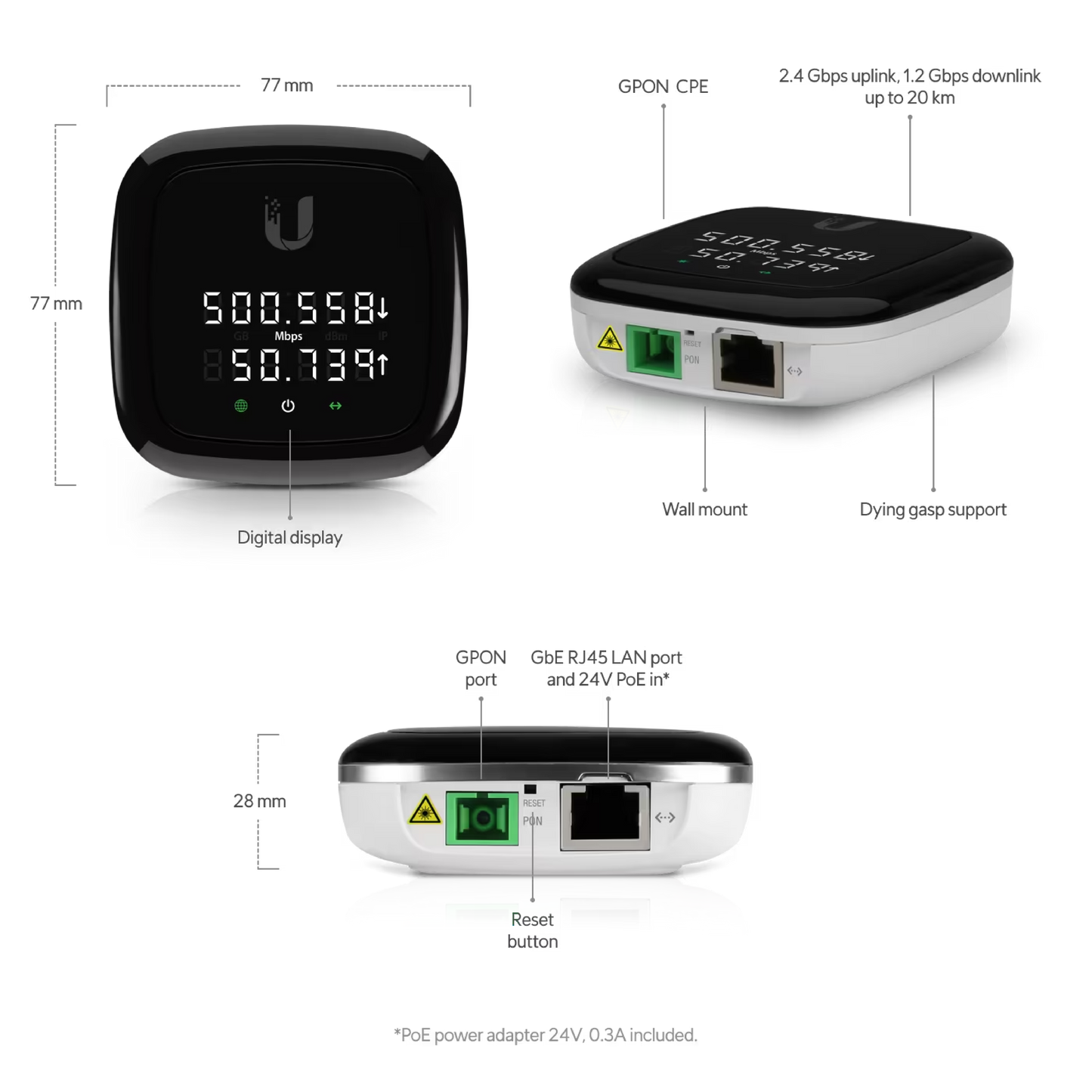

Dimensions 77 x 77 x 28 mm (3 x 3 x 1.1")
Weight 110 g (3.9 oz)
Enclosure material UV-stabilised polycarbonate (PC110U)
Hardware
Networking interface (1) SC/APC, ITU-G.984 GPON WAN port
(1) GbE RJ45 LAN ports
Management interface Ethernet In-Band
PON
Power method 24V Passive PoE (Pins 4, 5+; 7, 8-), 0.3A
Power supply UniFi PoE Switch
Supported voltage range 20–28V DC
Max. power consumption 7W
Total non-blocking line rate
Downstream
Upstream

2.488 Gbps
1.244 Gbps
Normal range of optical module
TX
RX

1.5 to 5 dBm
-8 to -28 dBm
Button (1) Factory reset
(1) Information
Ambient operating temperature -40 to 55° C (-40 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
LEDs
PON status (1) Steady white: powered up
(1) Blinking white: activity
(1) OFF: link down
(1) Red: no optical receive power, loss of signal
Ethernet Steady white: link up
Blinking white: activity
OFF: link down
Power White: ON
Software
Mode ONU/ONT layer 2/3 Ethernet switch
Services Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
Utilities Dashboard, monitoring, alarms, and logs
Other Remote reset, remote reboot, remote firmware upgrade, VLAN support
Security GEM Port Encryption
Ubiquiti specific features UISP Mobile App
Fiber
Operating wavelength
TX
RX

1310 nm
1490 nm
Line code Scrambled NRZ
Optical interface nominal bit rate
Downstream
Upstream

2488.32 Mbit/s
1244.16 Mbit/s
Physical reach 20 km

Visit Ubiquiti for more information.
