UISP Cable Pro Category 5e Ethernet Cable
UISP Cable Pro Category 5e Ethernet Cable
SKU:UISP-Cable-Pro
Regular price
$266.00
Regular price
$287.00
Sale price
$266.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
224 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage.
- Category 5e cable.
- Insulated, weatherproof cable jacket.
- Internal foil shielding and drain wire for increased ESD damage protection.
- Cable length 305 m.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Specification
| Mechanical | |
|---|---|

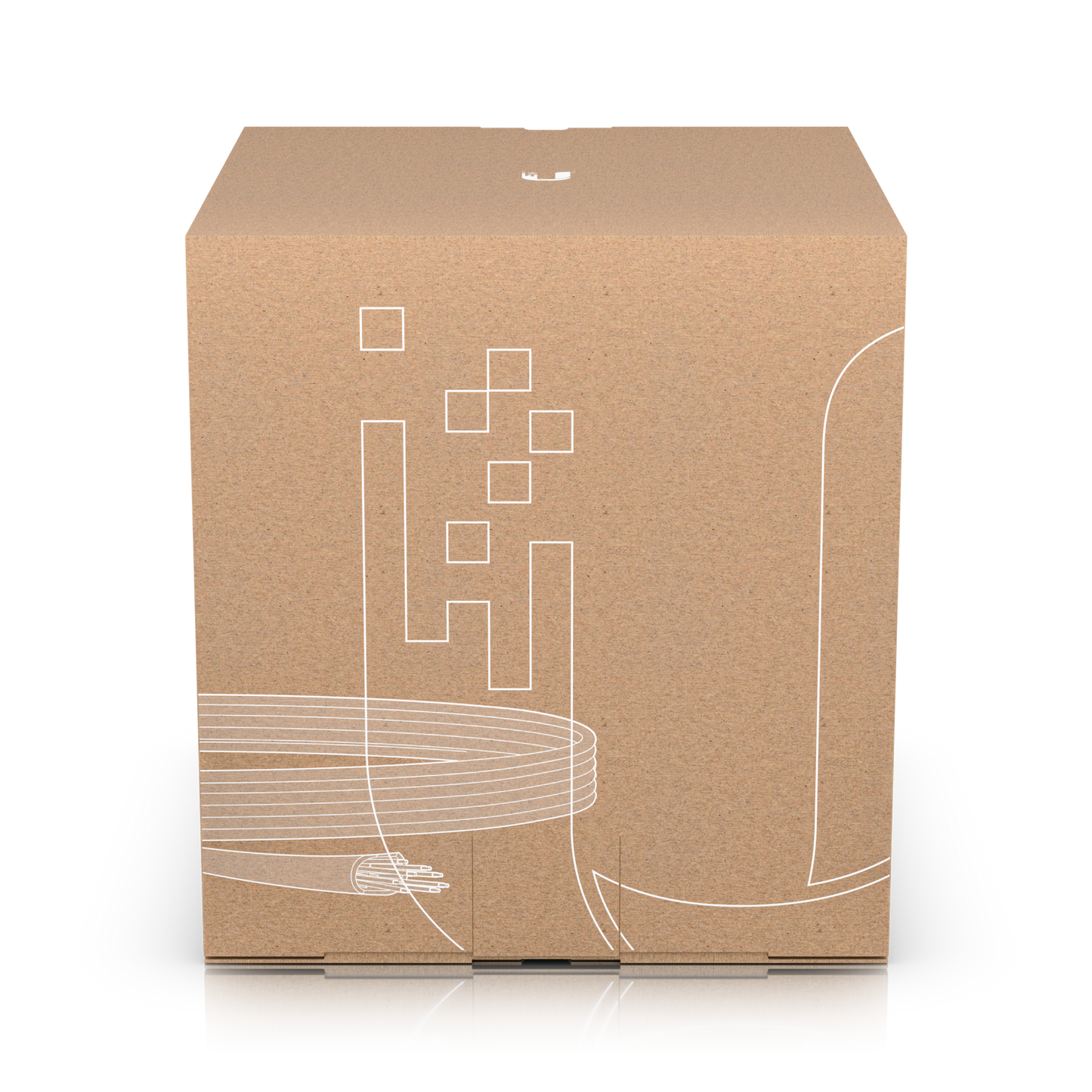

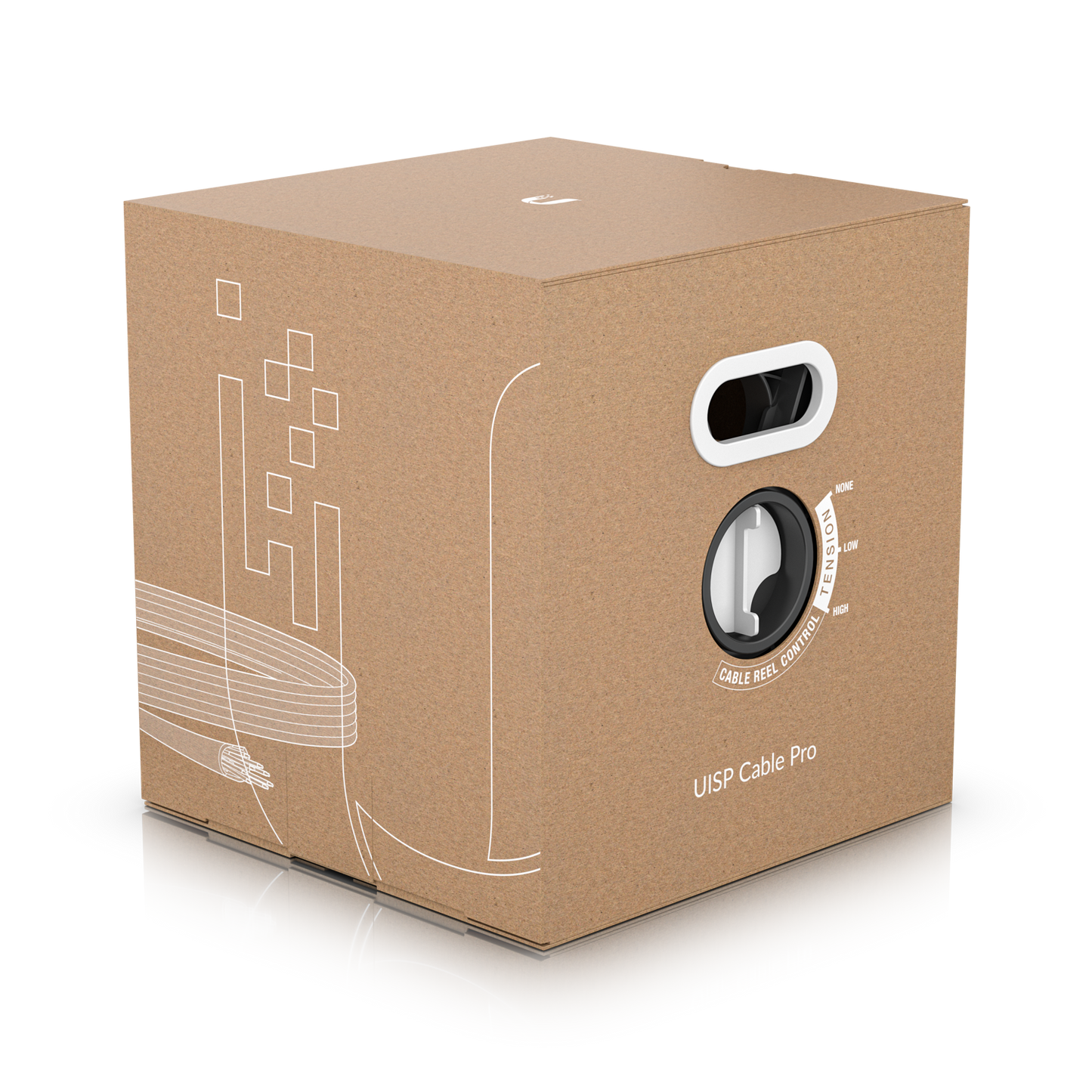

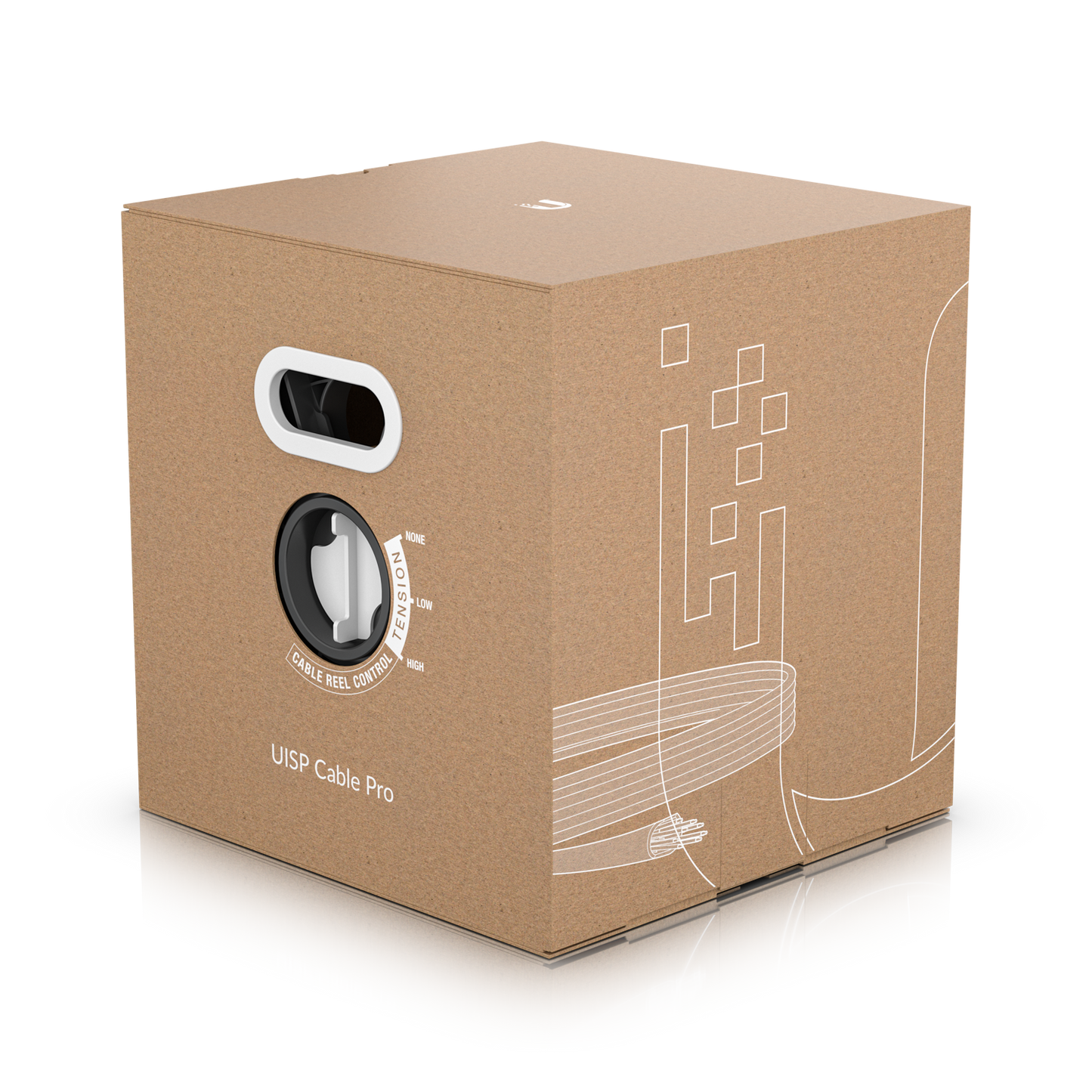

| Box dimensions | 330 x 330 x 340 mm (13 x 13 x 13.4") |
| Box weight | 12 kg (26.5 lb) |
| Cable length | 305 m (1,000 ft) |
| Cable color | Black |
| Cable type | CAT5e, shielded |
| Ethernet support | Up to 1 Gbps |
| Conductor wire gauge | 24 AWG |
| Conductor | Solid bare copper |
| Conductor diameter | 0.500 ± 0.005 mm |
| Insulation type | Solid polyethylene |
| Insulation thickness |
Avg. 0.26 mm Min. 0.25 mm |
| Insulation diameter | 1.04 ± 0.03 mm |
| Separation (Polyester wrapping) |
Thick: 0.025 mm Extent: 20 mm |
| Anti-crosstalk divider | None |
| Cable shield (Aluminum foil) |
Thick: 0.060 mm Extent: 18 mm |
| ESD drain wire | 0.4 CCS |
| Rip cord | Yes |
| Jacket material | Polyethylene |
| Jacket thickness |
Avg. 0.50 mm Min. 0.46 mm |
| Jacket outer diameter | 6.0 ± 0.30 mm |
| Jacket color | Black |
| Storage temperature | -30 to 75° C (-22 to 167° F) |
| Installation temperature | -20 to 60° C (-4 to 140° F) |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Standards |
ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
