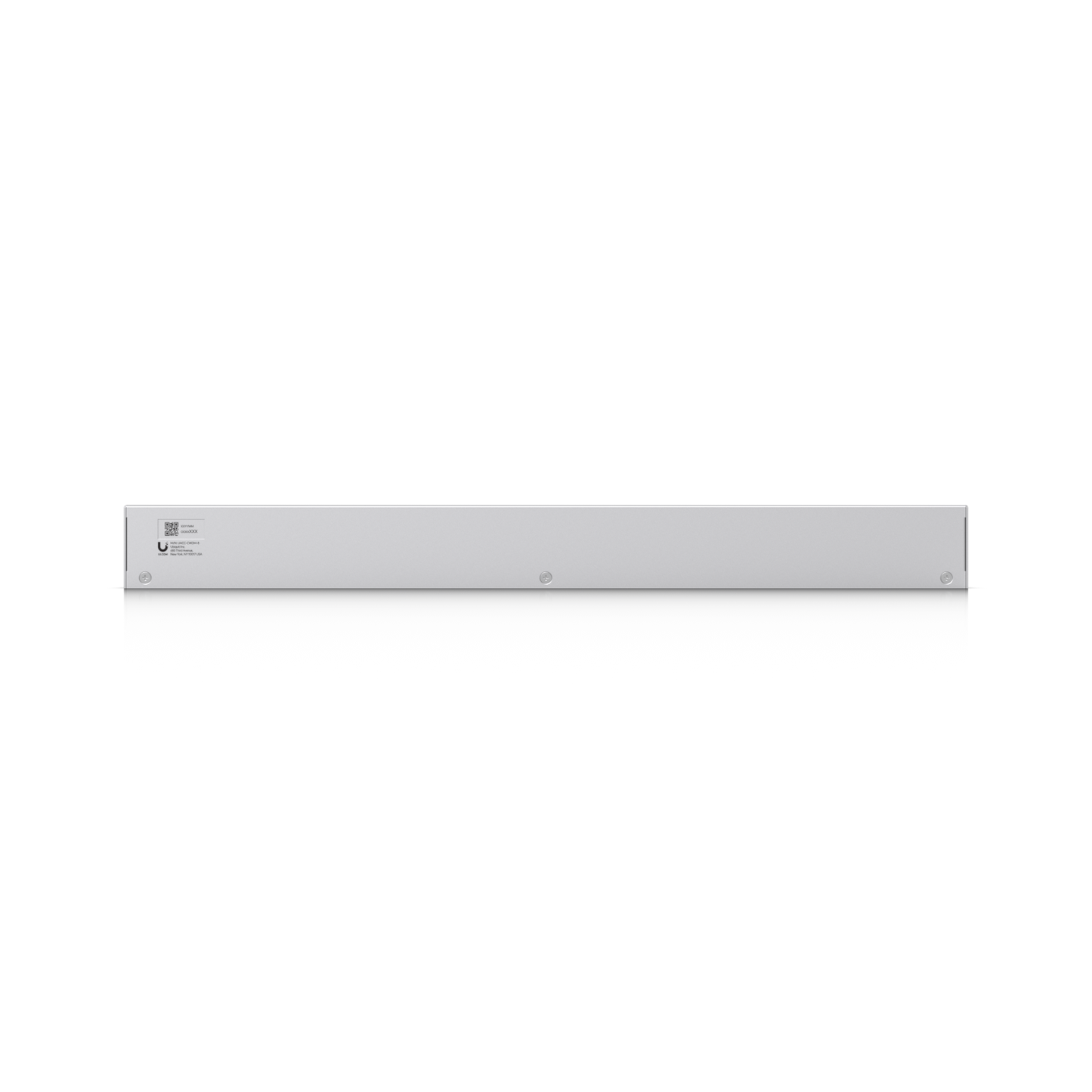

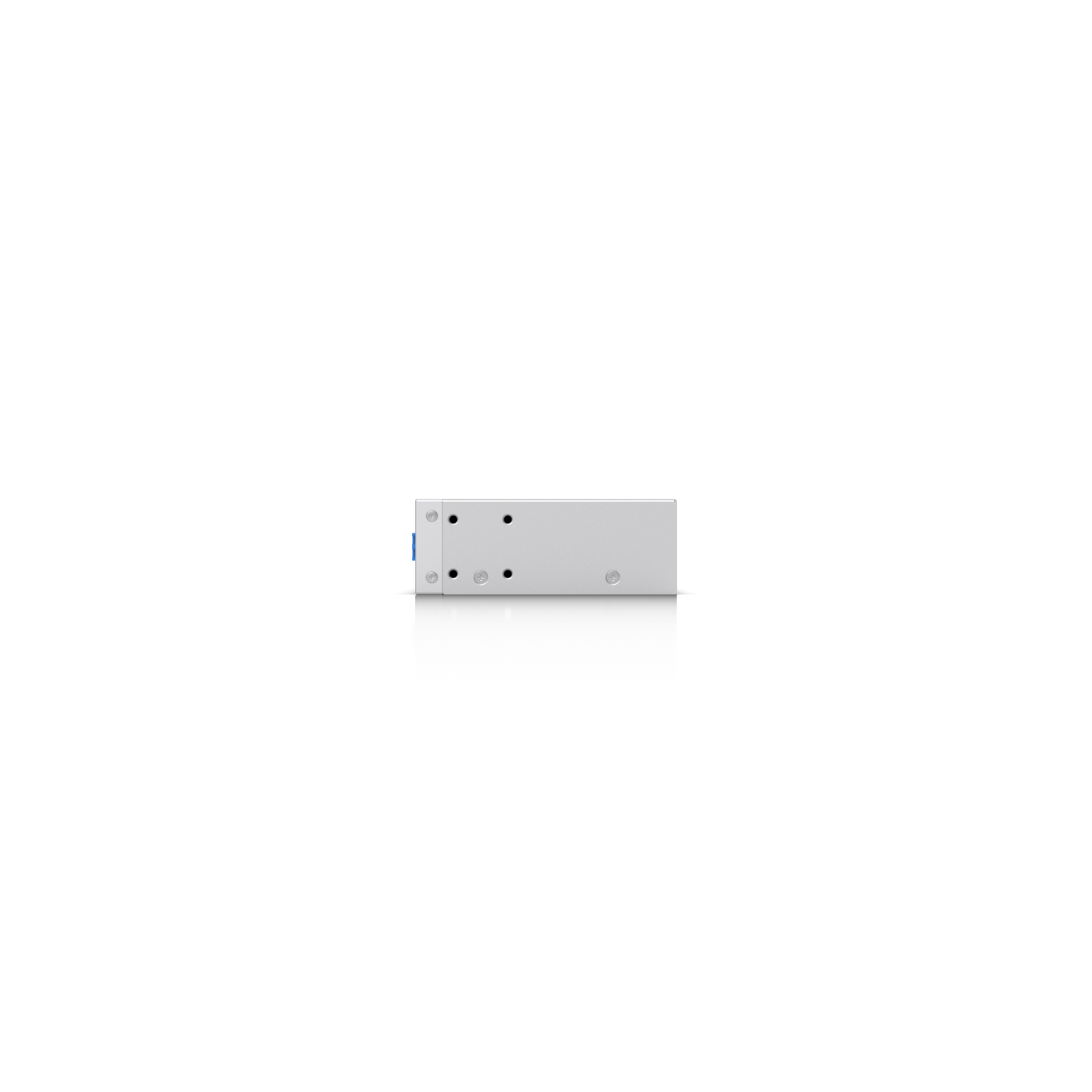

UniFi CWDM Mux Demux 8-channel
Ubiquiti UACC-CWDM-8 UniFi CWDM Mux Demux 8-channel
SKU:UACC-CWDM-8
Regular price
$699.00
Regular price
$719.00
Sale price
$699.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

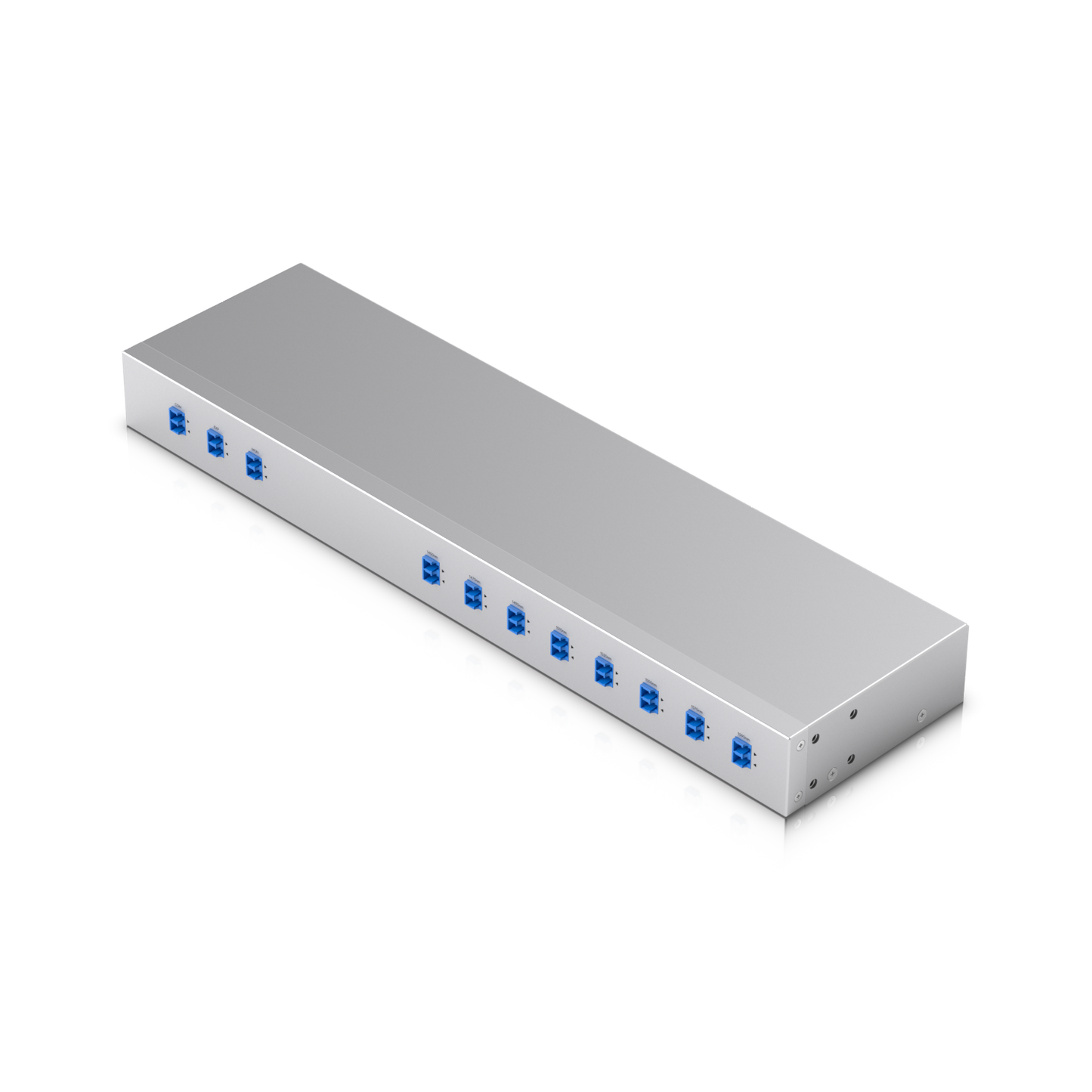

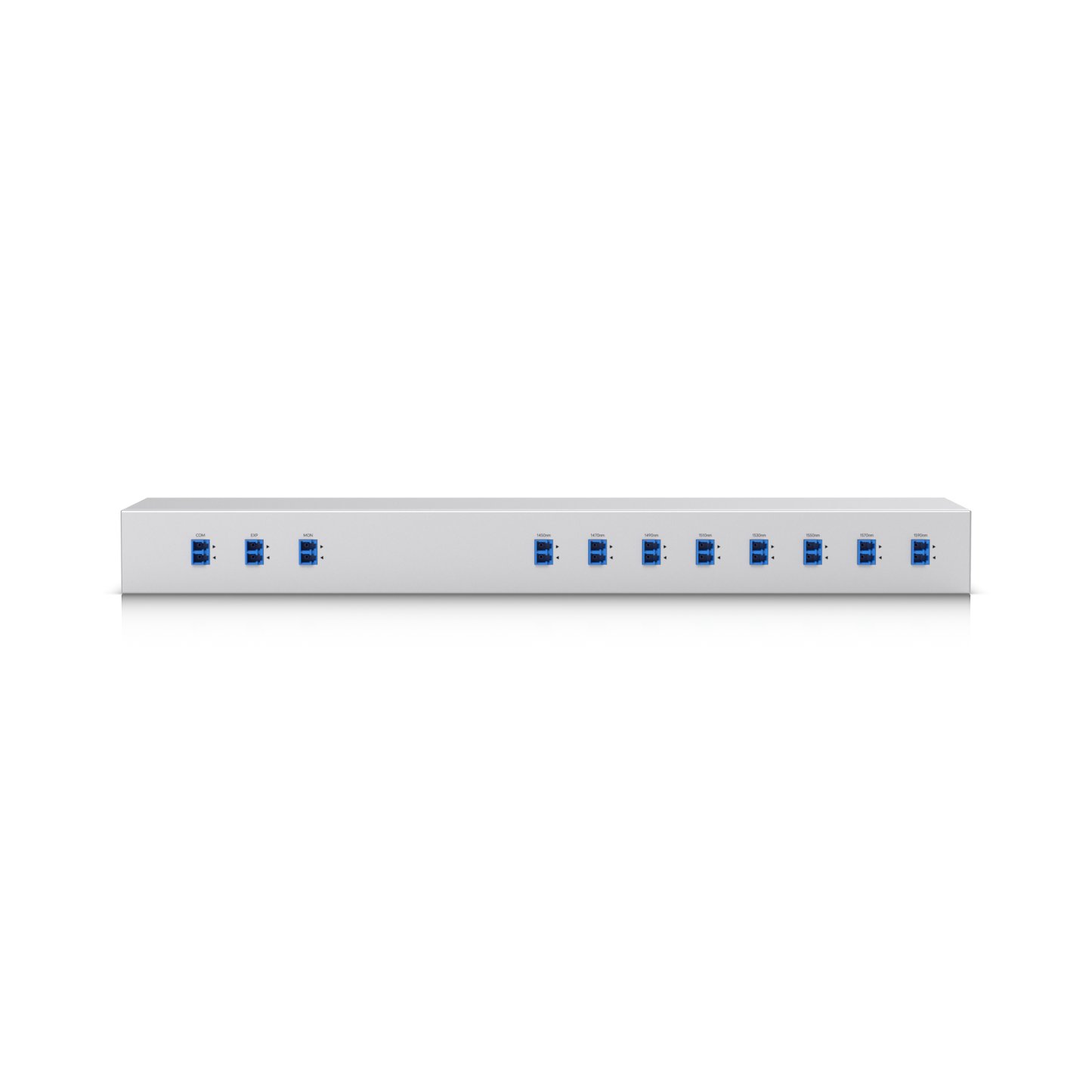

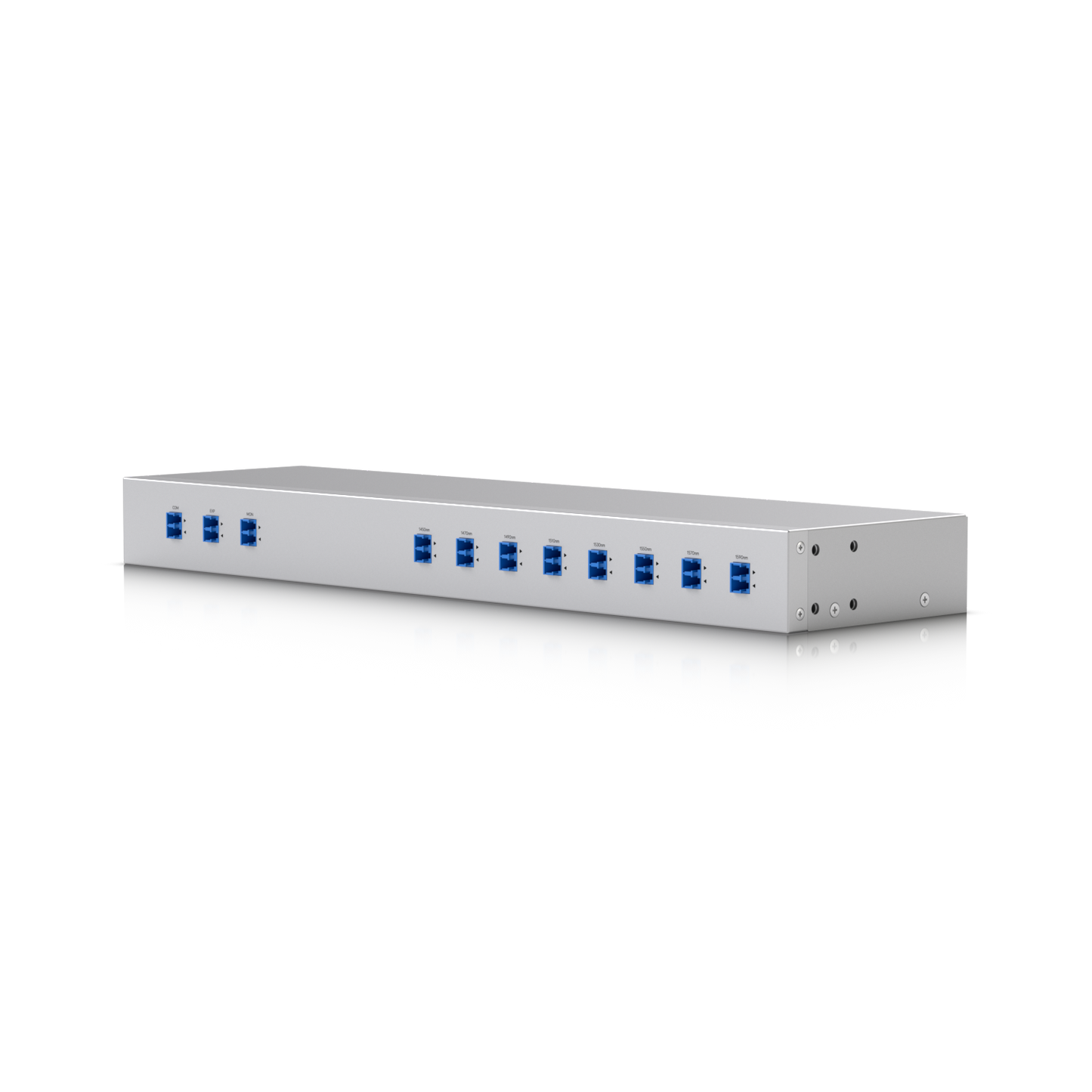

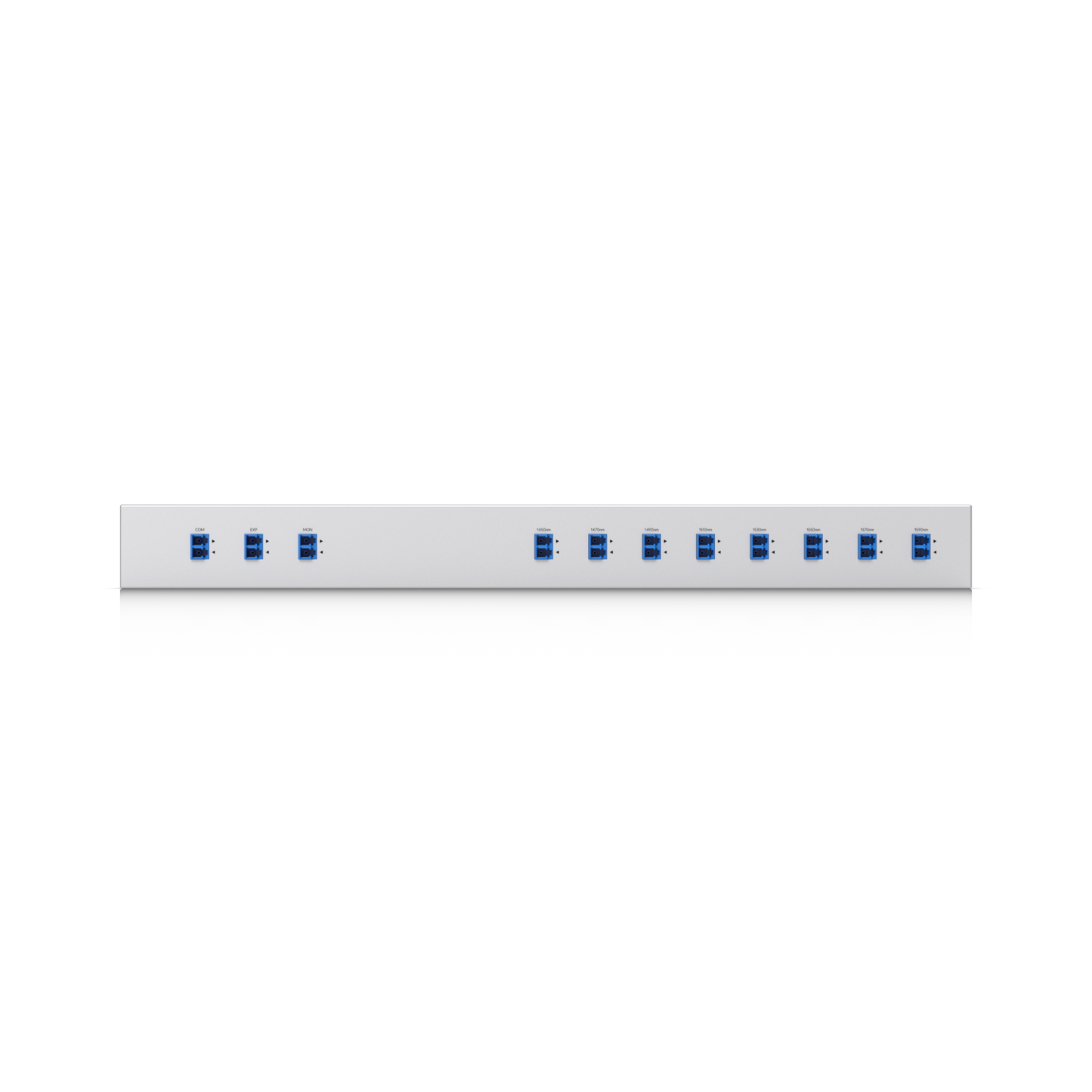

Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fibre infrastructure.
- (8) 1450 to1590 nm channel ports.
- (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fibre cables.
- (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyser.
- (1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels.
Compatibility: USW-Aggregation, USW-Pro-Aggregation.
| Mechanical | |
|---|---|
| Dimensions | 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7") |
| Weight | 1.4 kg (3.2 lb) |
| Enclosure material | Metal |
| Hardware | |
| Connector type |
(1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (1) 1450 to 1590 nm (LC/UPC) |
| Pigtail and connector type |
COM: 0.9 mm black LC/UPC Other ports: 0.9 mm white LC/UPC |
| Fiber type | SMF-28e |
| Fiber length | ≥0.5 to 1 m |
| Channel count | 8 CH Mux/Demux |
| Channel center wavelength | 1450/1470/1490/1510/1530/1550/1570/1590 nm |
| Min. channel passband | ±6.5 nm |
| Max. insertion loss | <2.5 dB |
| Isolation |
Adjacent channel: Max. 30 dB Non-Adjacent channel: Min. 40 dB |
| Max. passband ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Min. directivity | 55 dB |
| Min. return loss | 50 dB |
| Max. polarization mode dispersion | 0.1 ps |
| Max. power handling | 500 mW |
| Storage temperature | -40 to 90° C (-40 to 194° F) |
| Ambient operating temperature | -30 to 75° C (-22 to 167° F) |
Visit Ubiquiti for more information.
