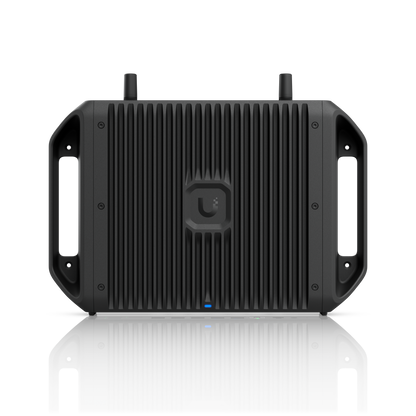

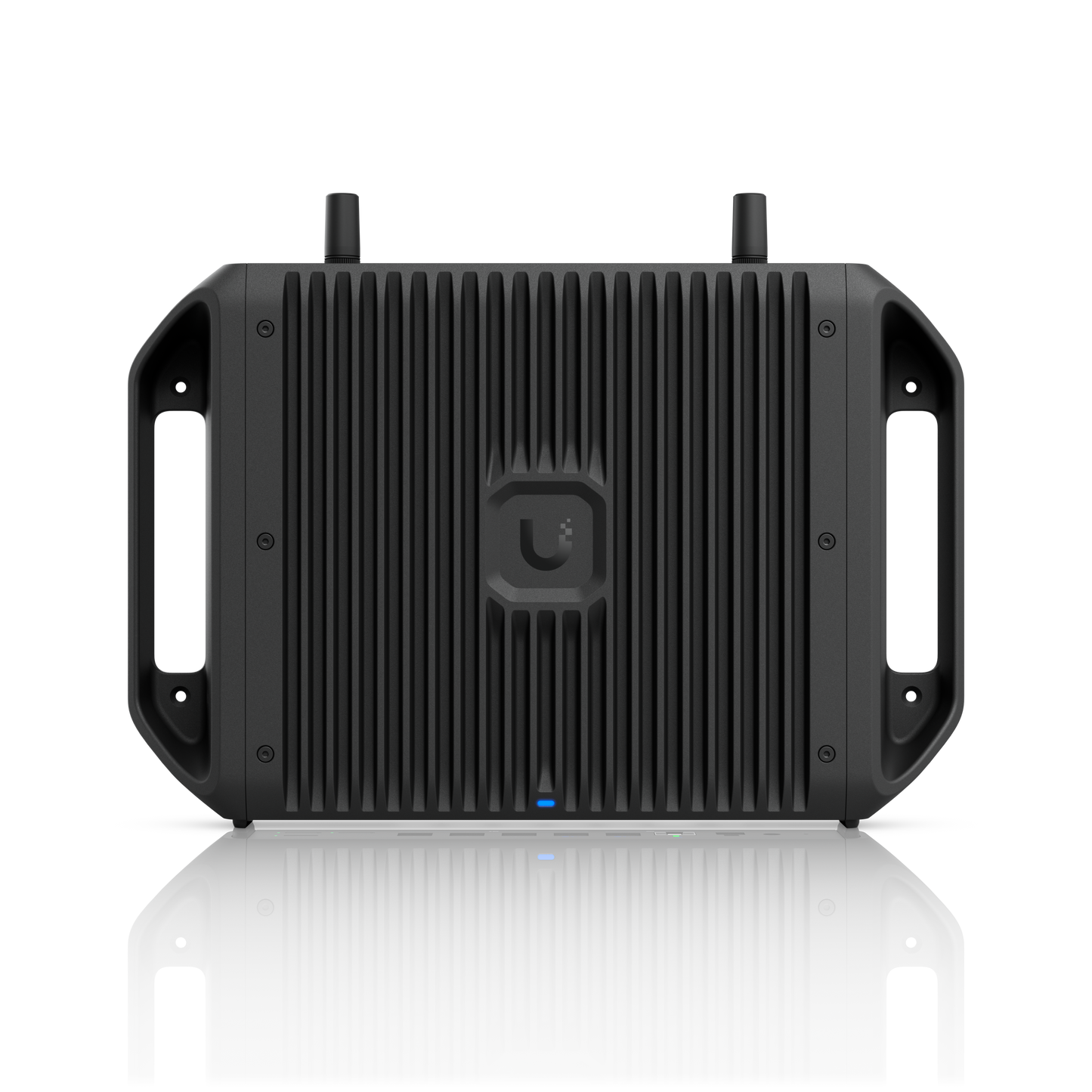

UniFi Cloud Gateway Industrial (270W)
Launched in Australia by BITSmart
SKU:UCG-Industrial
EOFY Sale. Limited promotional stock available — don’t miss out!
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
Ruggedised, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.
*The onboard SIM slots are exclusively for Remote SIM integration with the UniFi 5G Max Outdoor. Support coming soon via software update.
View Installation Guide| Overview | |

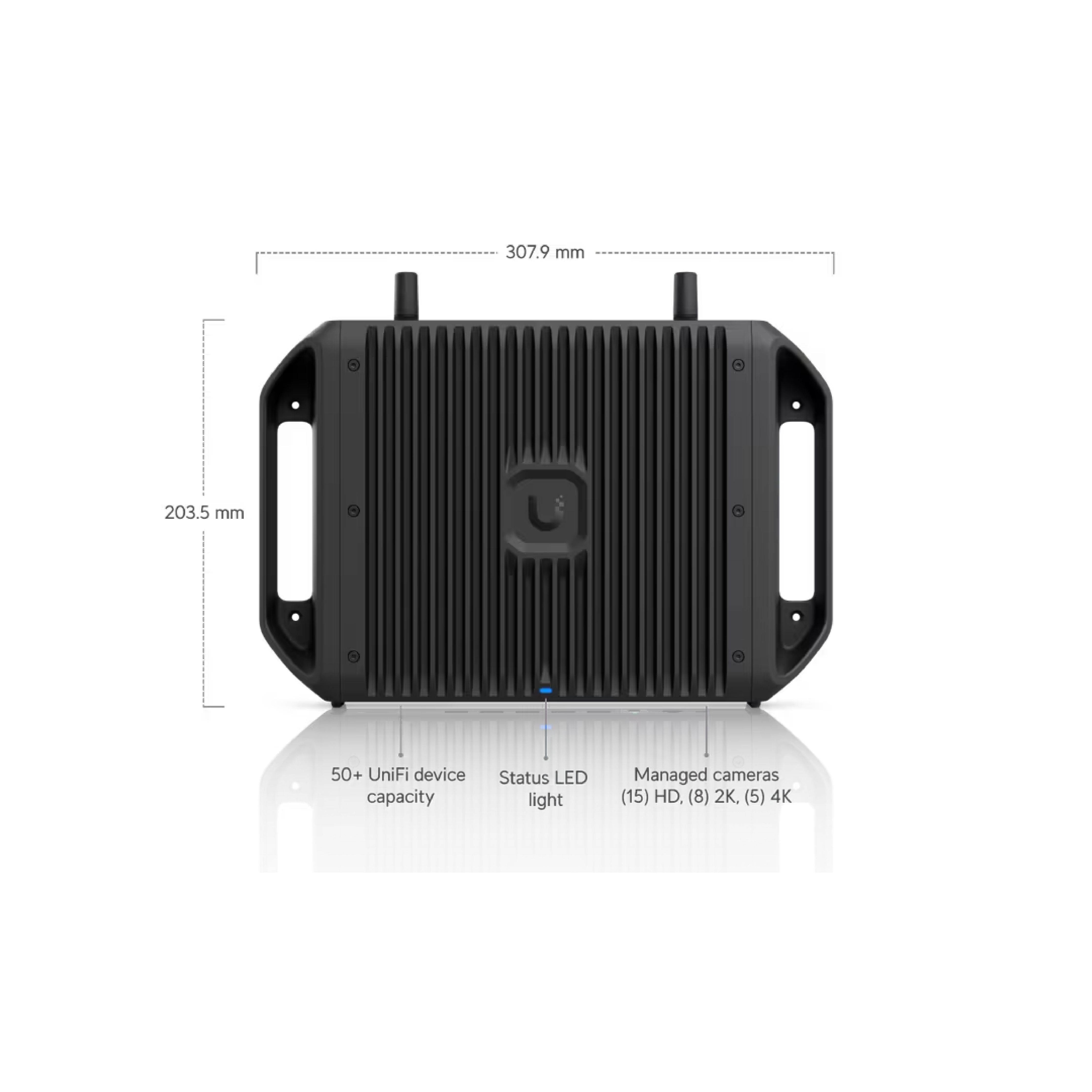

| Dimensions | Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7") Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9") |
| UniFi Application Suite | |
| Network | ✓ |
| Protect | ✓ |
| Access | ✓ |
| Talk | ✓ |
| Connect | ✓ |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD, (8) 2K, (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 500+ |
| Max. WAN Port Count | 5 |
| Default WAN Ports | (1) 10G SFP+, (1) 10 GbE RJ45, (1) 2.5 GbE RJ45 |

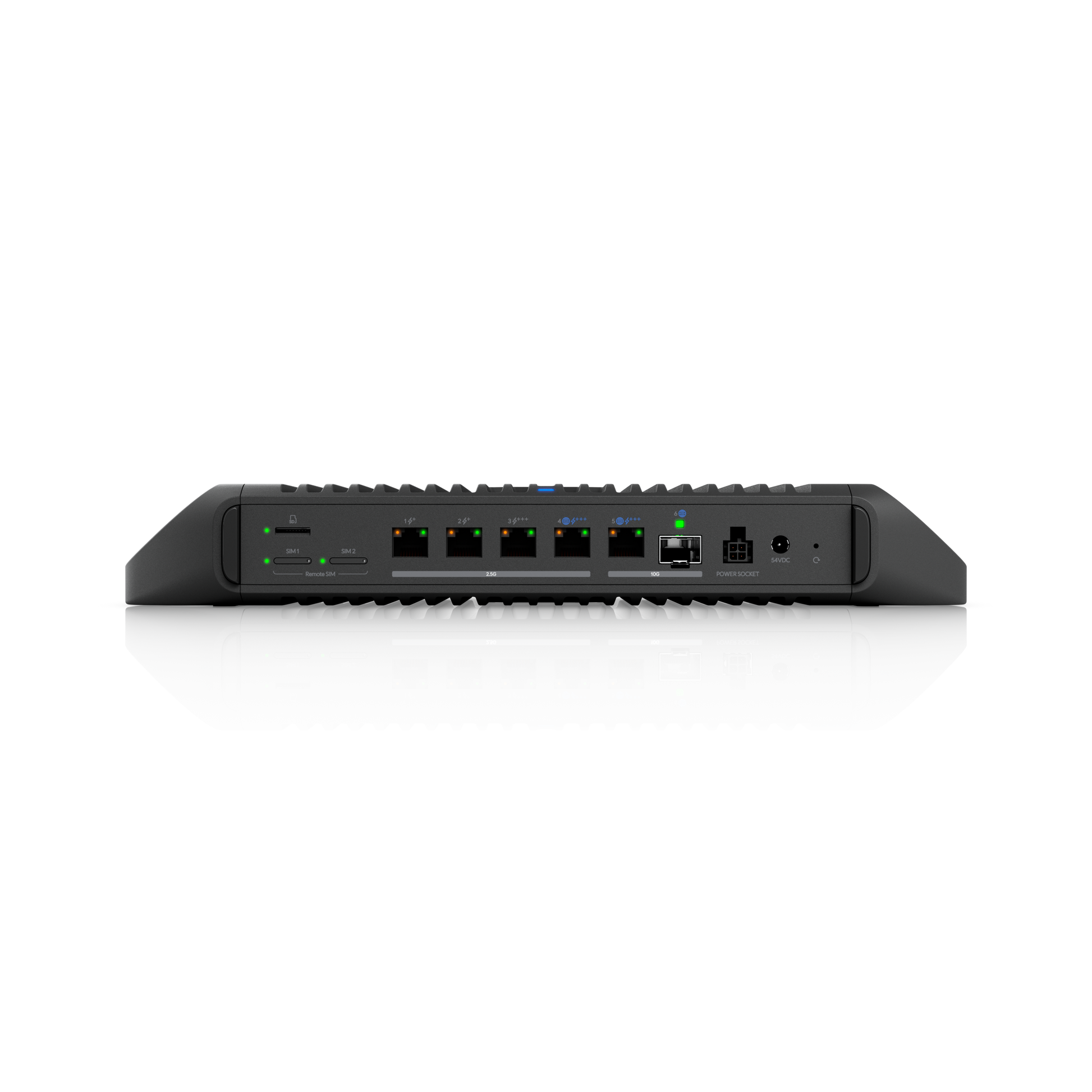

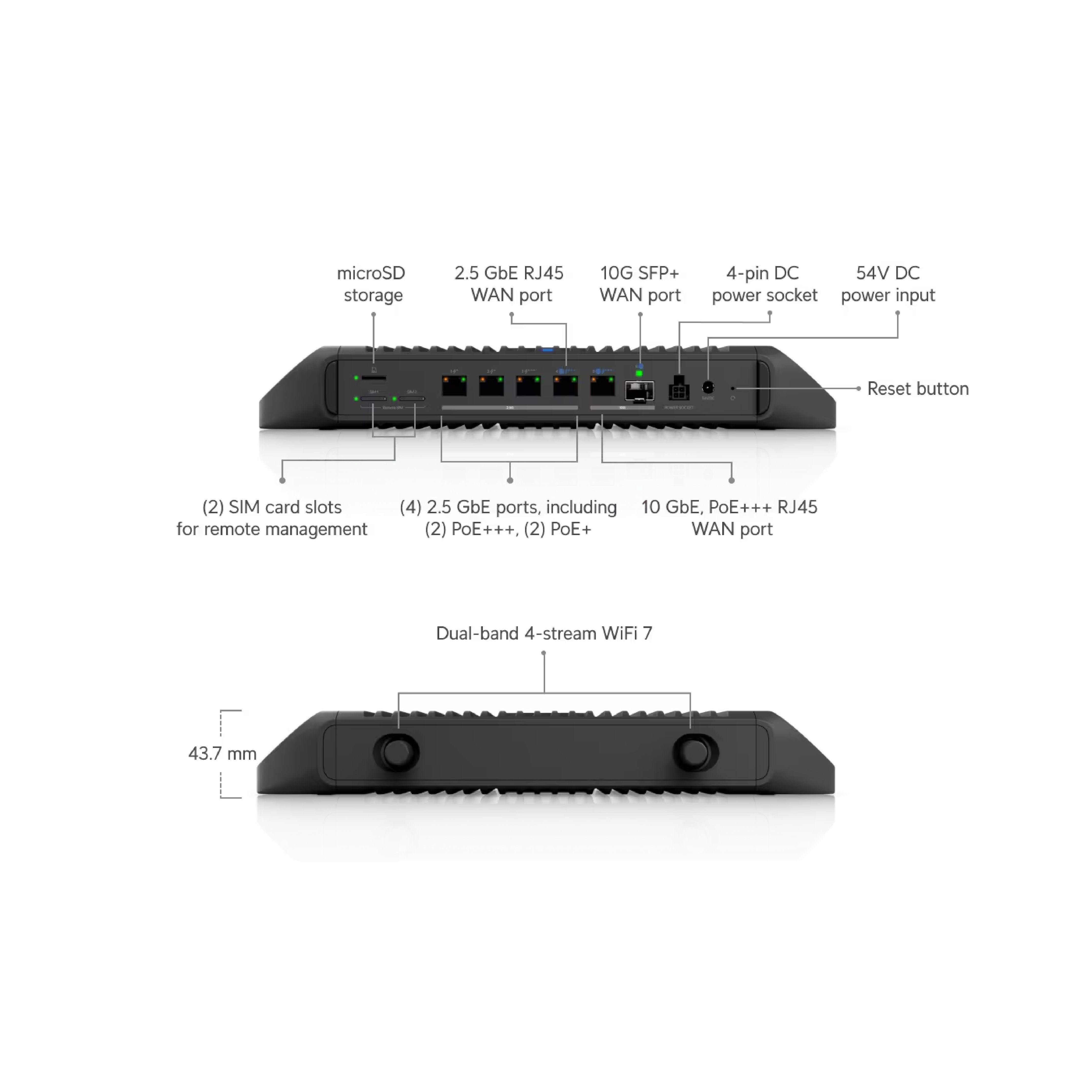

| Port Layout | |
| 2.5 GbE RJ45 | 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M) |
| 10 GbE RJ45 | 1 (PoE+++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 1 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Wall-mounted, Compact desktop (Table stand included), Rack mount (Accessory sold separately) |
| Coverage Area | 115 m² (1,250 ft²) |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | |
| Site Magic | ✓ |
| IPsec | ✓ |
| OpenVPN | ✓ |
| VPN Server | |
| Identity Endpoint One-Click VPN | ✓ |
| Teleport Zero-Configuration VPN | ✓ |
| WireGuard | ✓ |
| OpenVPN | ✓ |
| L2TP | ✓ |
| VPN Client | |
| OpenVPN | ✓ |
| WireGuard | ✓ |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | |
| OSPF | ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 4,000 |
| Virtual Network Override | ✓ |
| All Traffic Flows | — |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Throughput | |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| MIMO | |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | |
| 5 GHz | Stub antenna: 5 dBi / Terminal (Omni) antenna: 6 dBi |
| 2.4 GHz | Stub antenna: 3 dBi / Terminal (Omni) antenna: 6 dBi |
| Max. TX Power | |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Hardware | |
| NVR Storage | Pre-installed 128 GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | DC input: 270W / ATX power: 75W |
| Max. PoE Wattage per Port by PSE | |
| PoE+ | 30W |
| PoE+++ | 90W |
| Voltage Range PoE Mode | 50–57V |
| Max. Power Consumption | 28W (Excluding PoE output) |
| Power Method | (1) DC Input (350W PSU), (1) ATX power (48V) |
| Power Supply | 54V DC, 350W (Adapter included); ATX power (48V) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 95 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Device: 2.4 kg (5.3 lb); Table stand: 321 g (11.3 oz) |
| Enclosure Material | Device: Polycarbonate, aluminium alloy; Table stand: Polycarbonate, galvanized steel, silicone rubber |
| Management | Ethernet, Bluetooth |
| LEDs | |
| Ethernet | ✓ |
| SFP+ | ✓ |
| System | ✓ |
| MicroSD | ✓ |
| SIM | ✓ |
| Button | (1) Factory reset, (2) Handle release buttons |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | |
| Mobile App | UniFi iOS™: Version 10.32.0 and later; UniFi Android™: Version 10.35.0 and later |
Visit Ubiquiti for more information.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Frequently Asked Questions
How to add cellular connectivity to the Cloud Gateway Industrial?
Cellular connectivity requires a UniFi 5G Max device. Use UniFi 5G Max Outdoor for Remote SIM by inserting the SIM cards into the Cloud Gateway Industrial. Alternatively, use UniFi 5G Max for standard cellular connectivity with the SIM installed directly in the device.
What is the purpose of Remote SIM on the Cloud Gateway Industrial?
Can the Cloud Gateway Industrial be used as a UniFi Protect NVR?
What is the maximum PoE output per port?
Cloud Gateway Industrial features a mix of high power PoE+++ and standard PoE+ ports to suit different devices:
- (3) PoE+++ (Type 4): Up to 90 W per port on the 10 GbE port and two 2.5 GbE ports.
- (2) PoE+: Up to 30 W per port on two 2.5 GbE ports.
What are the PoE capabilities of Cloud Gateway Industrial?
Cloud Gateway Industrial is designed for high power deployments with 2.5 GbE PoE+ and 10G PoE+++ (Type 4).
Total PoE budget varies by input power:
- 270 W with the included 350 W AC adapter
- 75 W with an ATX power source
UCG-INDUSTRIAL
Cloud Gateway Industrial
Ruggedised, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.
-
UniFi Application Suite: Network, Protect, Access, Talk, Connect
-
Built-in WiFi 7 access point
-
Pre-installed 128 GB microSD for NVR
-
Max. WAN Port Count: 5
*The onboard SIM slots are exclusively for Remote SIM integration with the UniFi 5G Max Outdoor. Support coming soon via software update.
Overview
All-New UniFi Industrial Initiative
Industrial networks do not get second chances. They sit in wind, dust, vibration, and heat, and they are expected to perform without excuses 24/7. That is the thinking behind the new UniFi Industrial initiative. Ruggedised, fanless, and purpose built for extreme environments, the line launches with its first device: Cloud Gateway Industrial. It may look familiar at first glance, but this platform was designed to go well beyond a typical gateway, while running the UniFi applications you know and rely on.
Performance

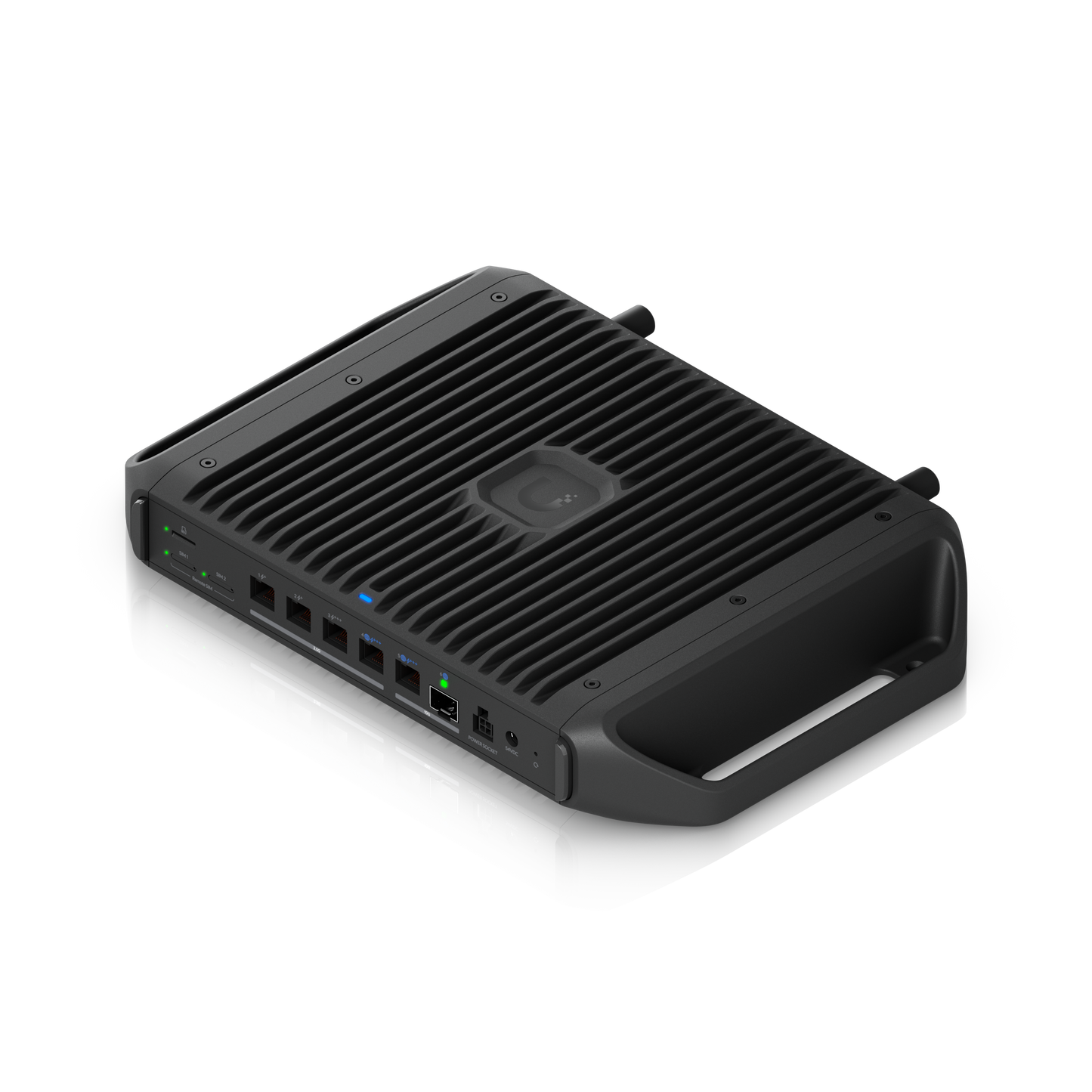

Built for Extreme Environments

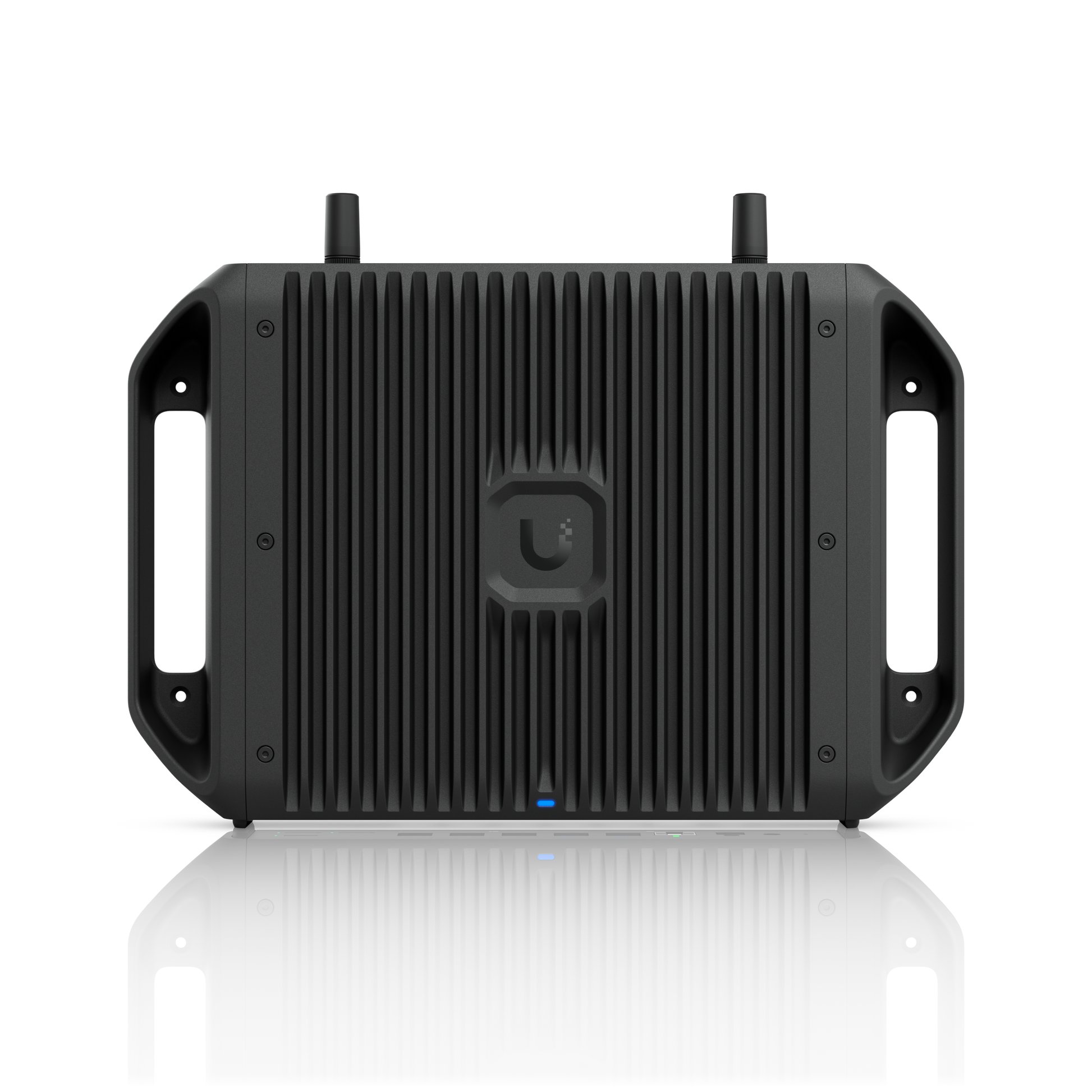

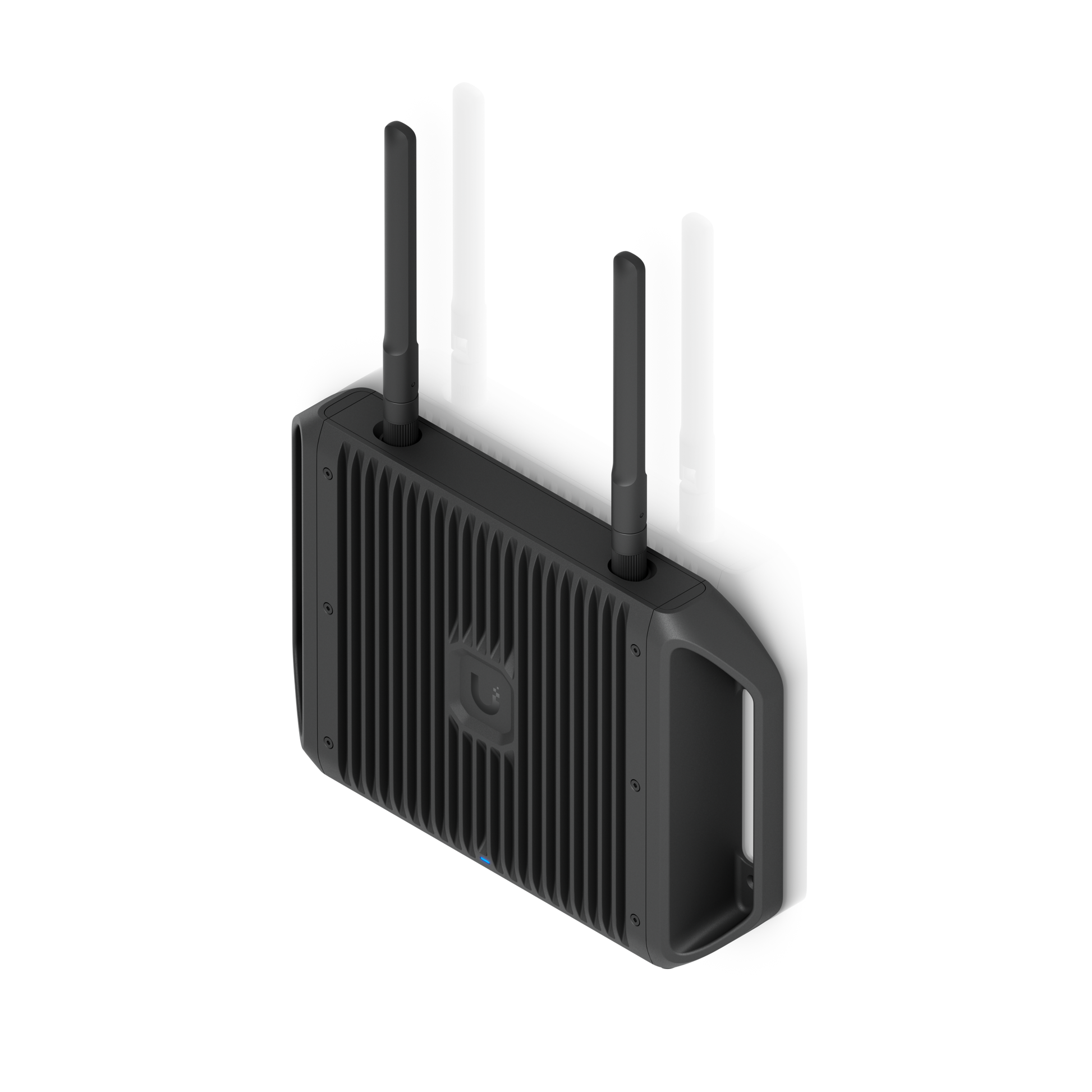

Cloud Gateway Industrial carries the DNA of our 10 Gigabit gateways and their software innovations, but it is reinforced for places where standard hardware struggles: the chassis is hardened, the design is fanless. More than just stronger physical construction, it is engineered from the ground up to operate where dust, vibration, and temperature swings are part of daily life. Integrated WiFi 7 and support for flexible external antennas ensure client connectivity, even when installations are unconventional.
Connectivity

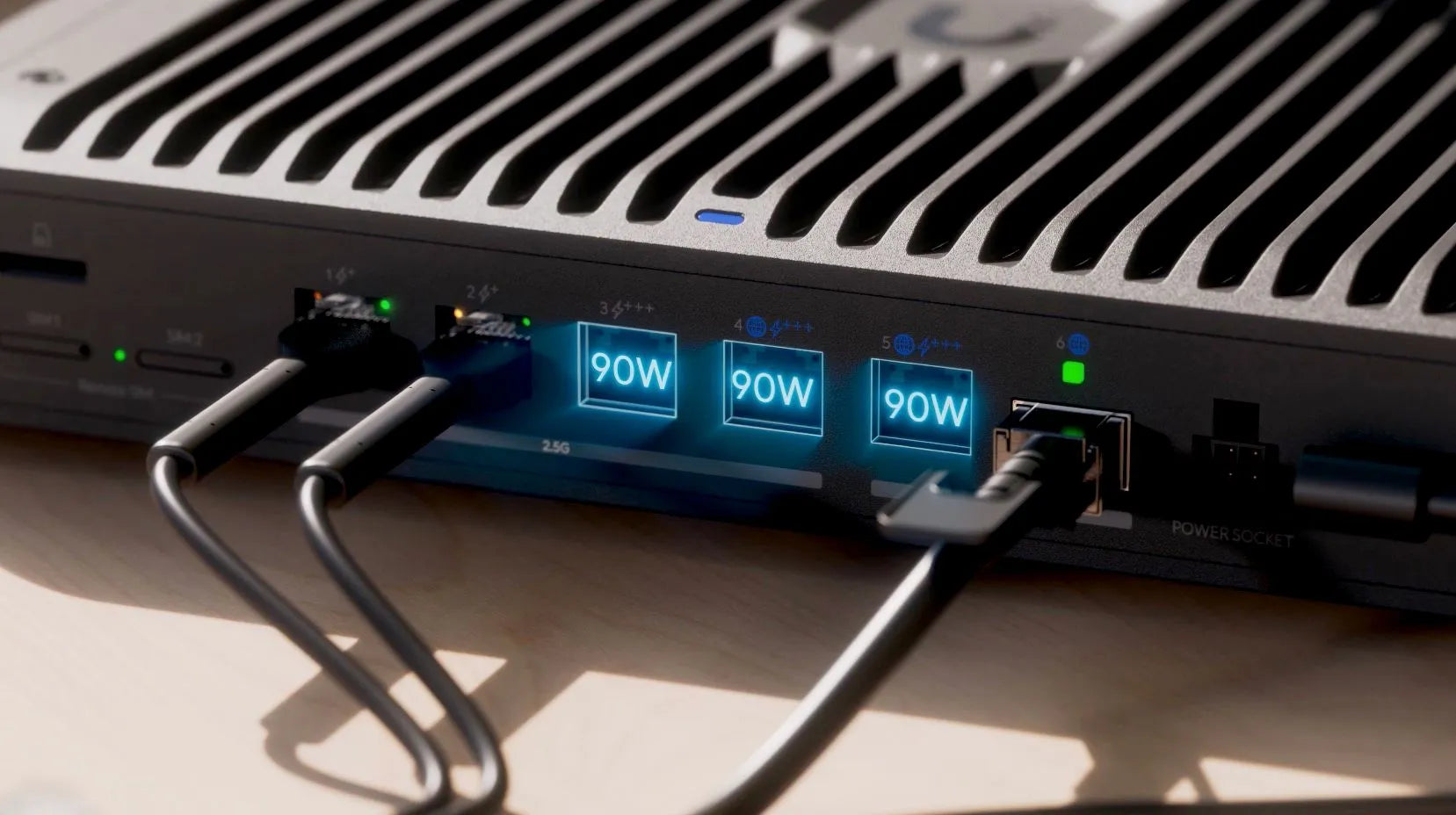

Power and Connectivity Without Compromise

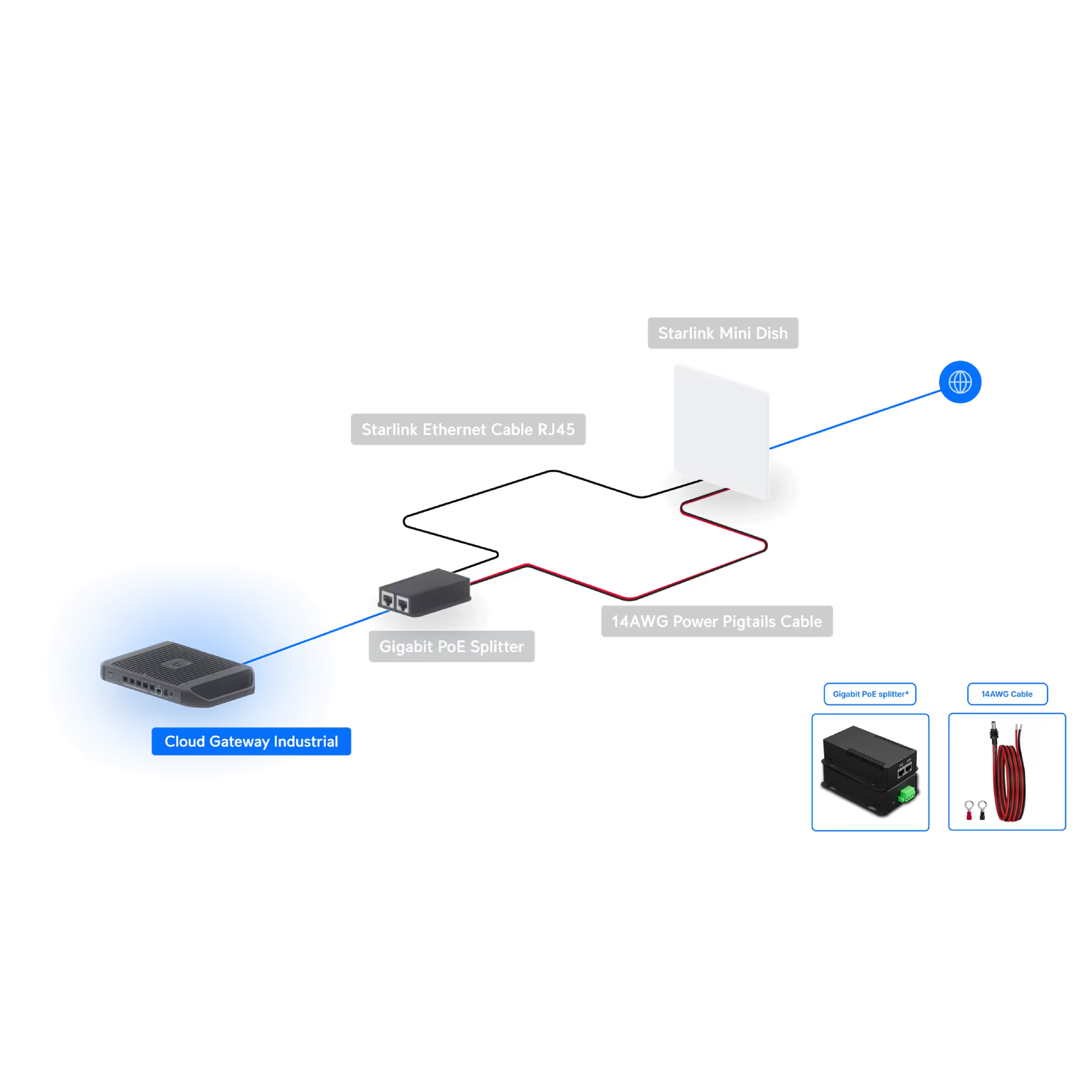

Power delivery often becomes the limiting factor in remote or edge deployments. Cloud Gateway Industrial addresses this head on with multiple PoE+++ 90 watt ports. That level of output makes it possible to directly power multi LEO satellite terminals and downstream switches without additional injectors or complex power chains. The gateway itself can be powered either via its included power supply or 48V 4-pin DC connection.
Internal SD storage allows full UniFi Application support directly on the device. Remote SIM slots simplify cellular provisioning when paired with UniFi 5G Outdoor, reducing the friction of bringing remote sites online. The result is a gateway that does more than route traffic. It becomes the operational core of the deployment.
Versatile

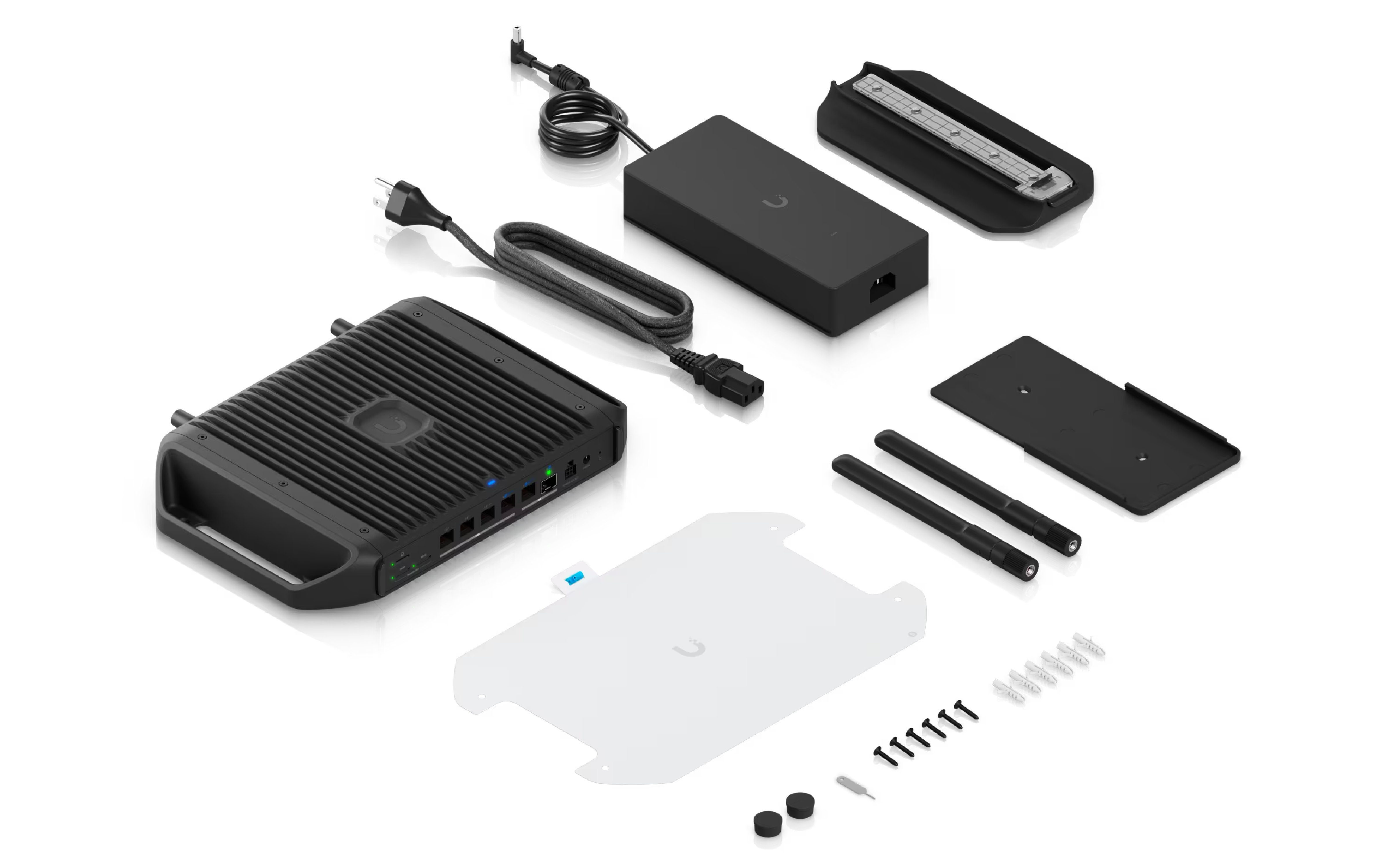

Modular Deployment, Zero Hardware Guesswork

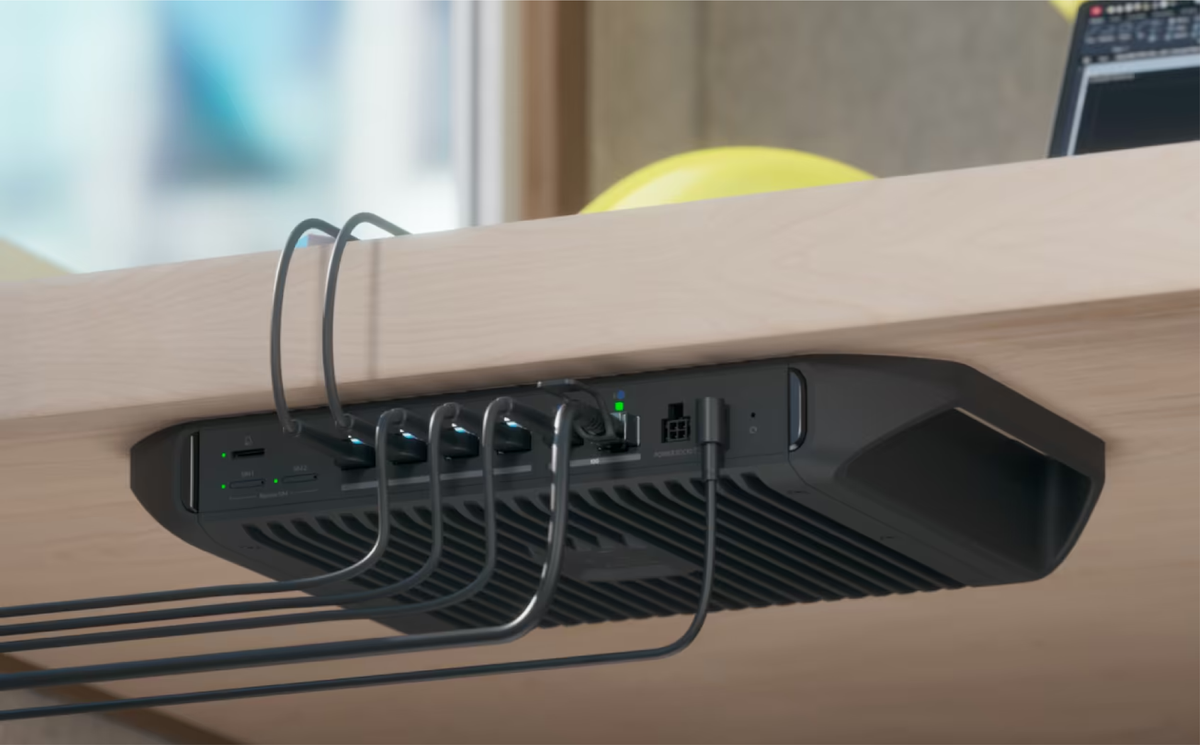

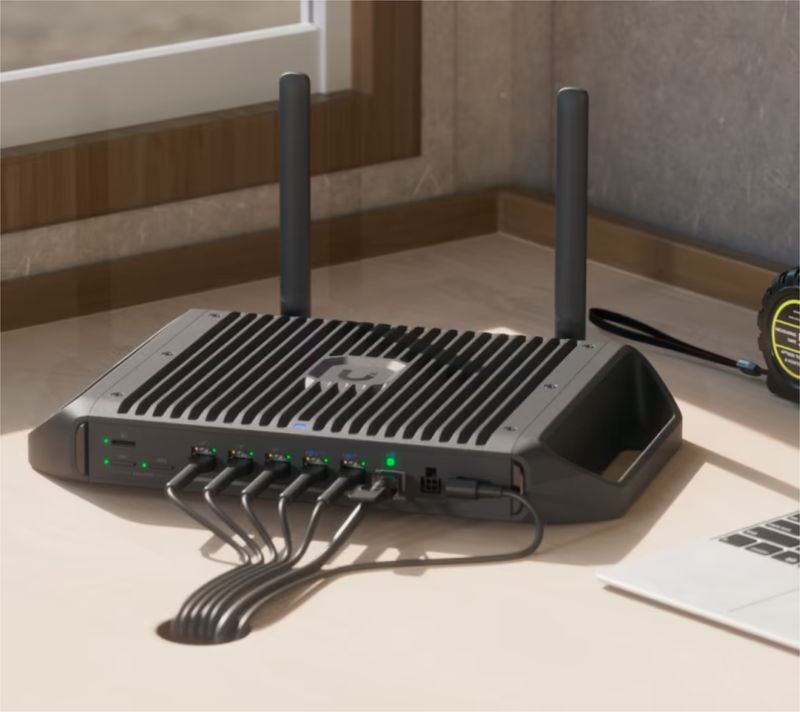

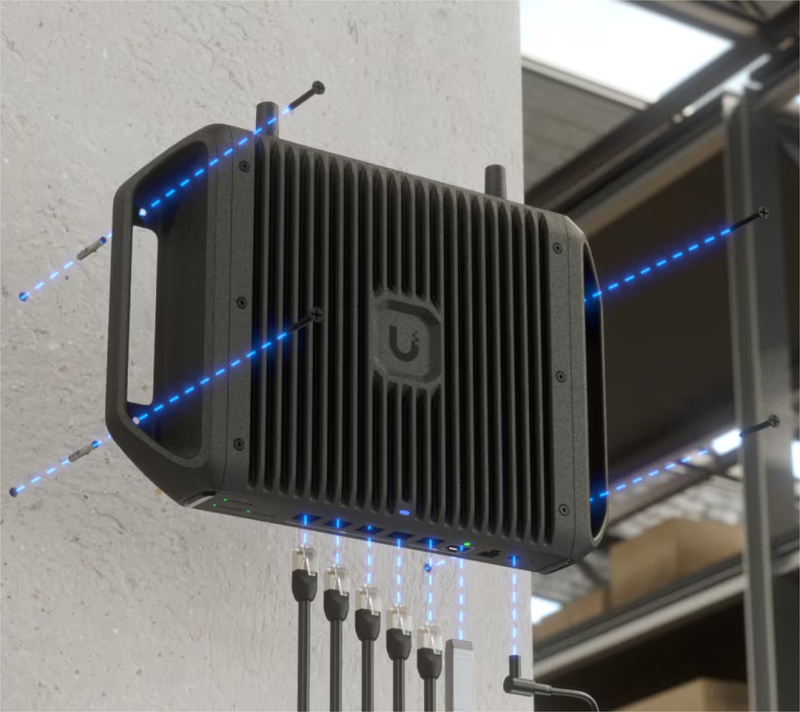

Industrial installations rarely follow a standard blueprint. One site has equipment installed under a desk. At the next site it is wall mounted or dropped into a rack. The modular enclosure of Cloud Gateway Industrial was designed with that reality in mind.

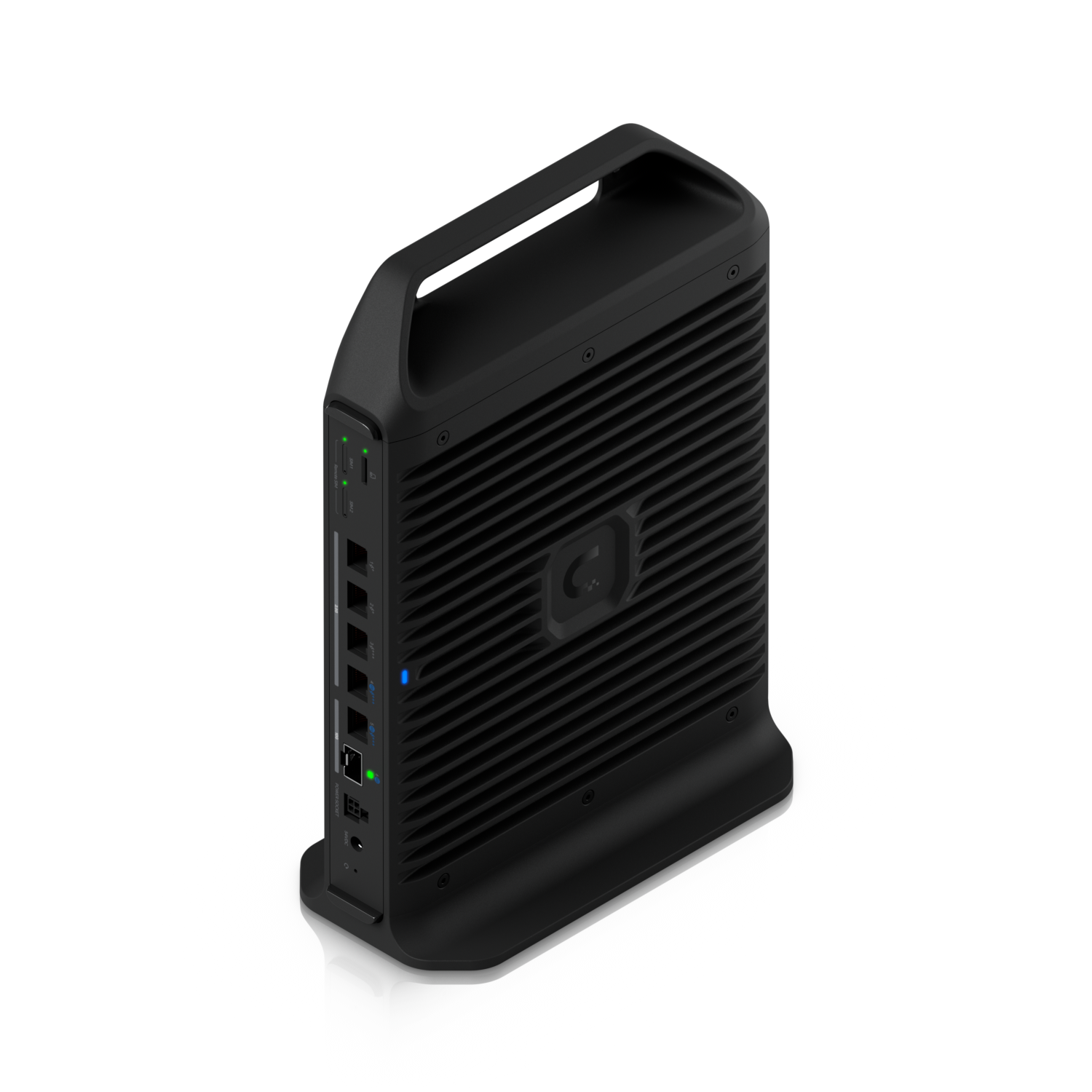

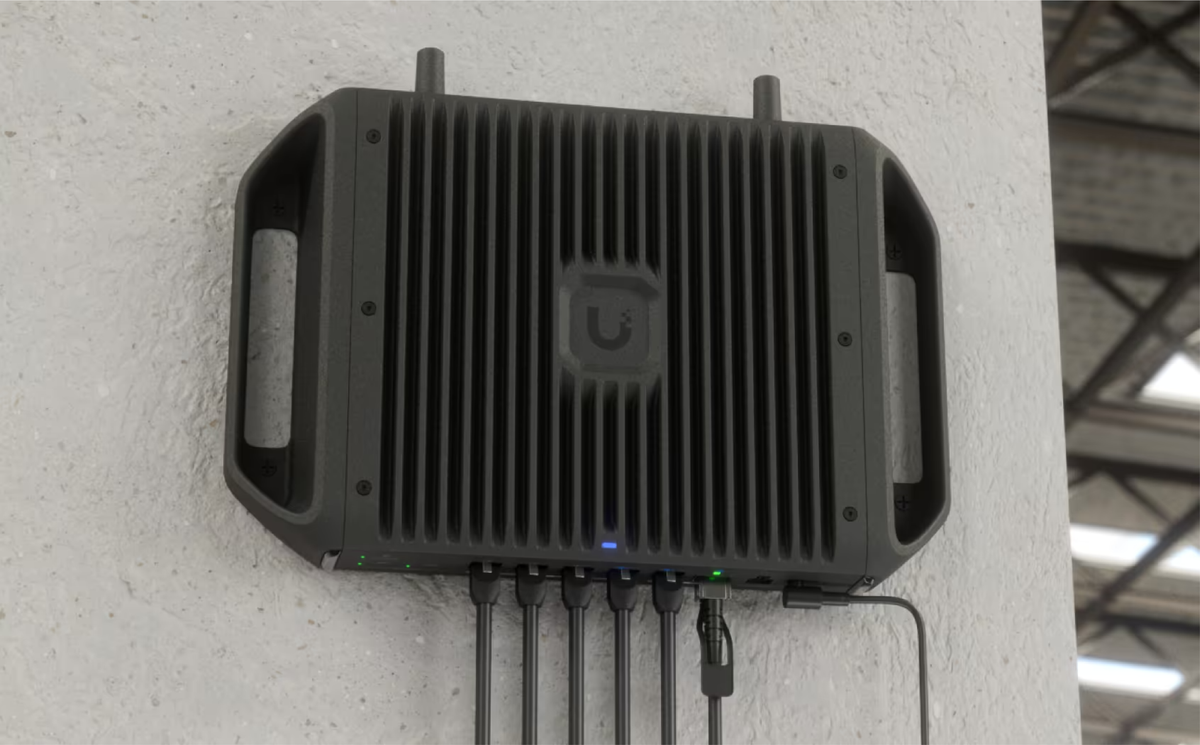

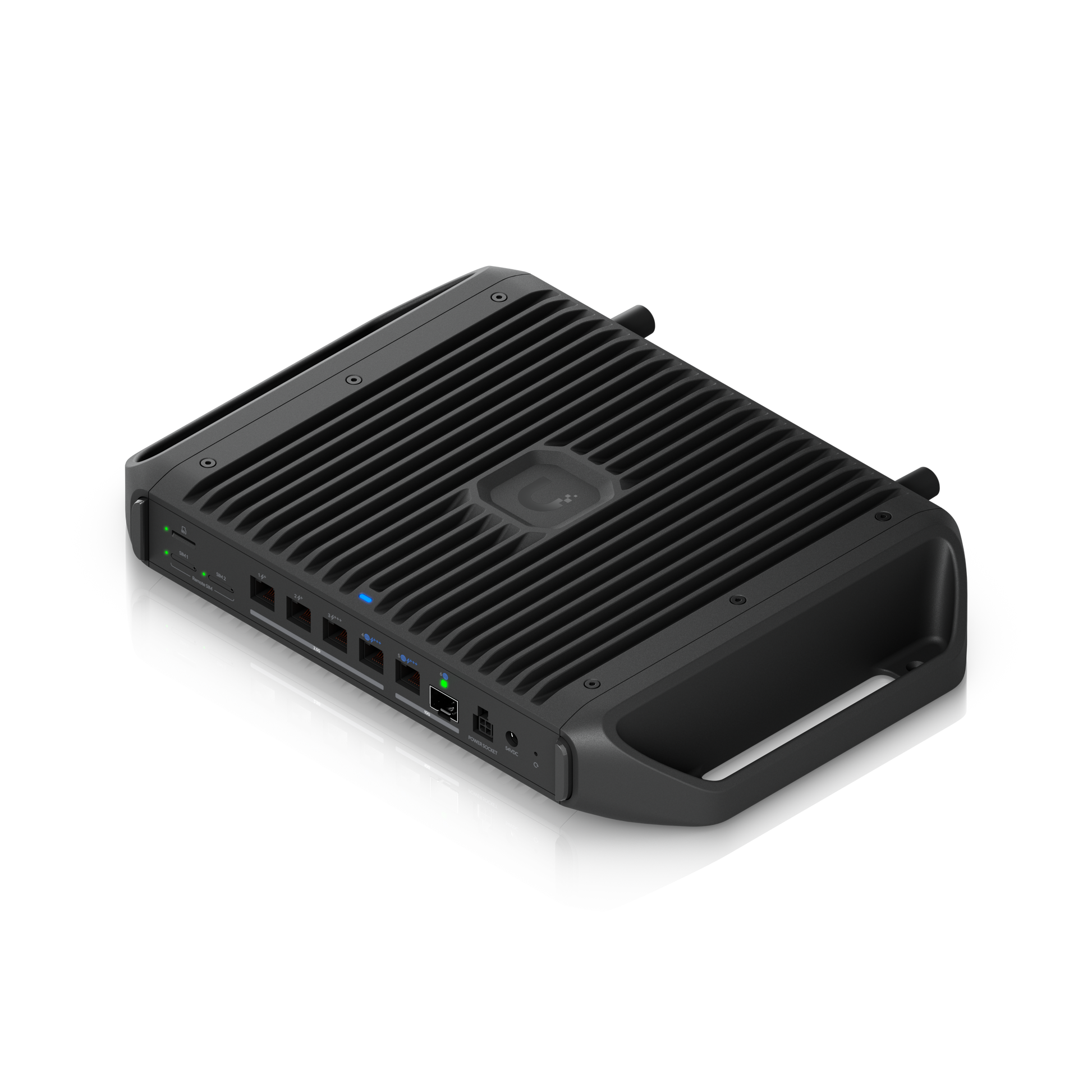

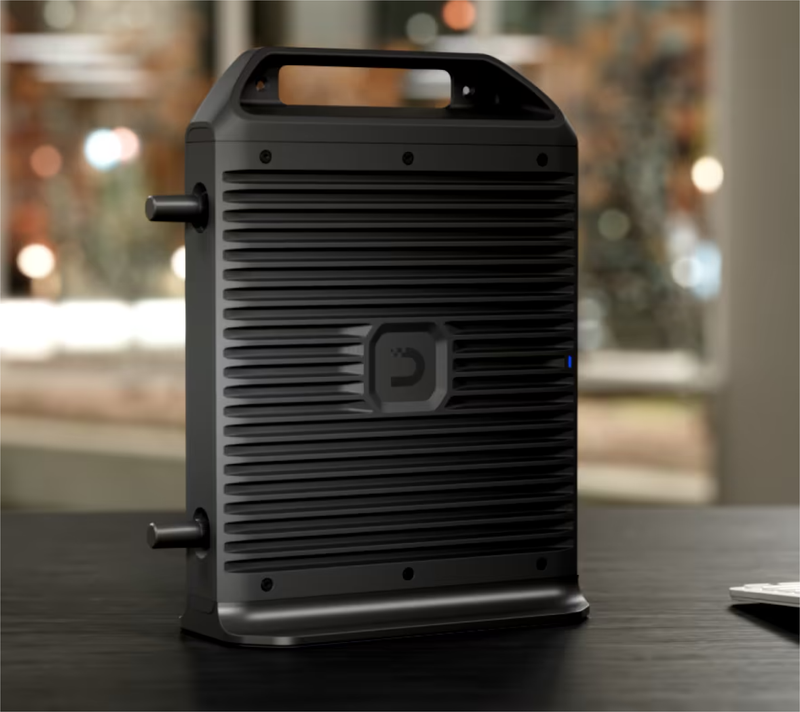

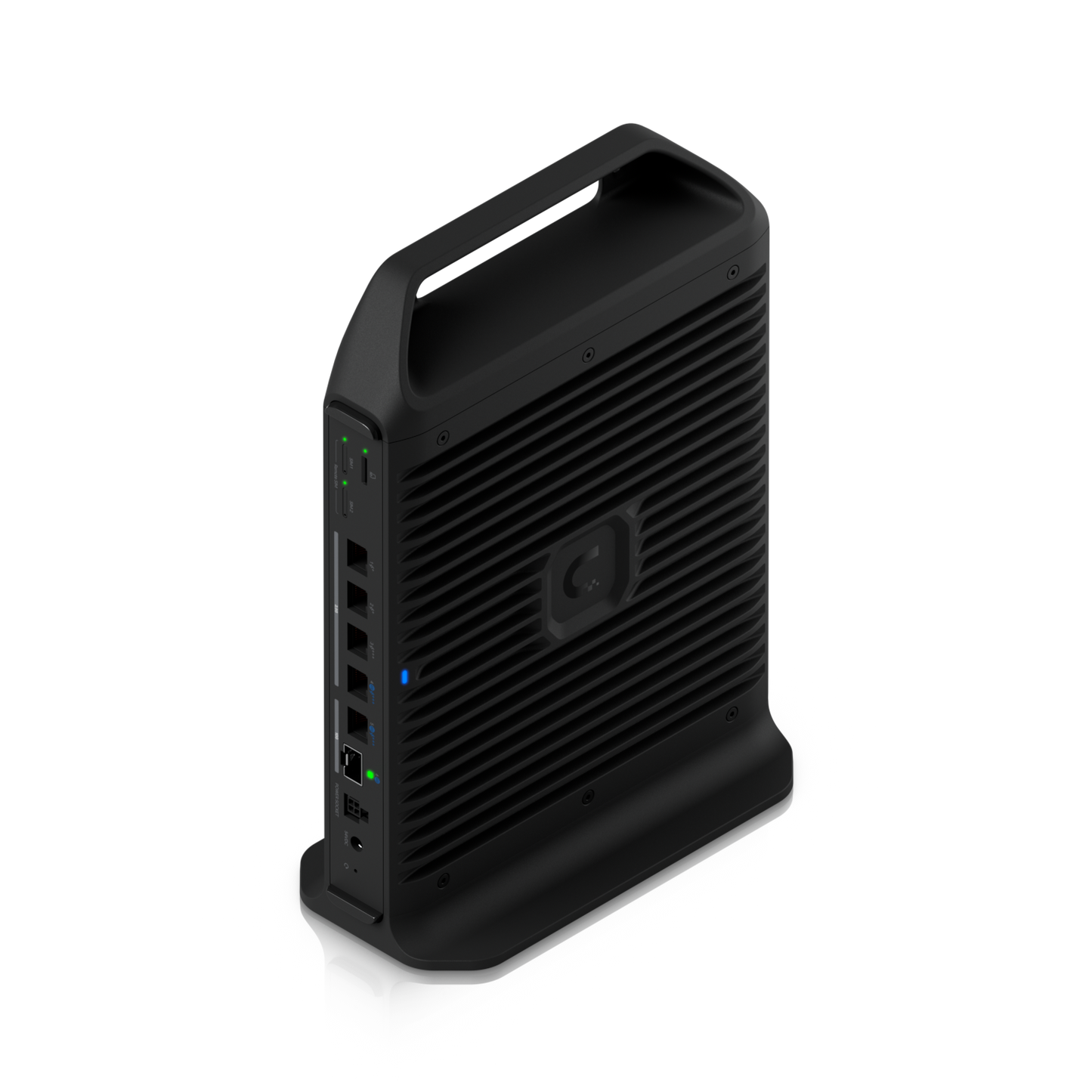

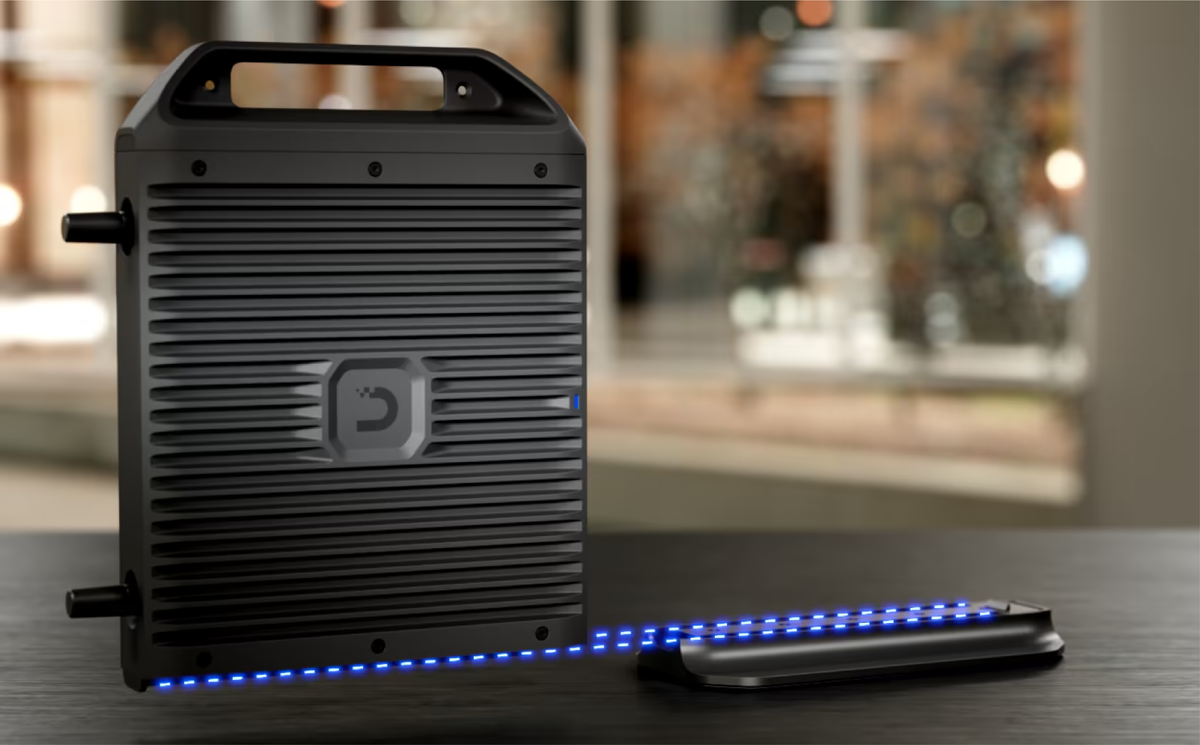

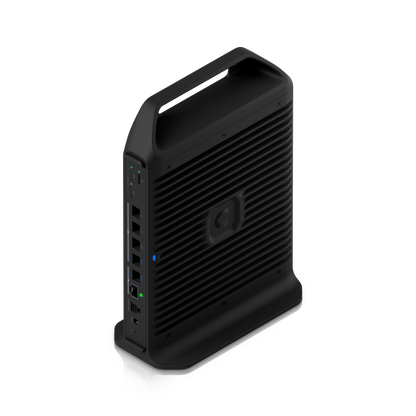

It supports flat or vertical desktop placement, under desk mounting, wall installation, and full rack deployment. The Transformable Deployment system makes reconfiguration immediate. Slide out one handle to attach the included compact vertical stand. Slide out both to insert the unit into an optional 19" rack mount, complete with its own power supply tray. No alternate SKUs, all done with a single Cloud Gateway Industrial.
* Rack mount sold separately.
Features
Centralised Control with Site Manager
Managing one industrial site is straightforward. Managing dozens is where complexity creeps in. The new Site Manager orchestration layer addresses that challenge by allowing multiple UniFi and UniFi Industrial deployments to be managed from a single interface.
There are no licensing tiers to navigate and no recurring management fees. It is centralised control designed to scale with the footprint of the deployment, whether that footprint spans a single facility or a distributed network of remote locations.
Full UniFi Suite Support

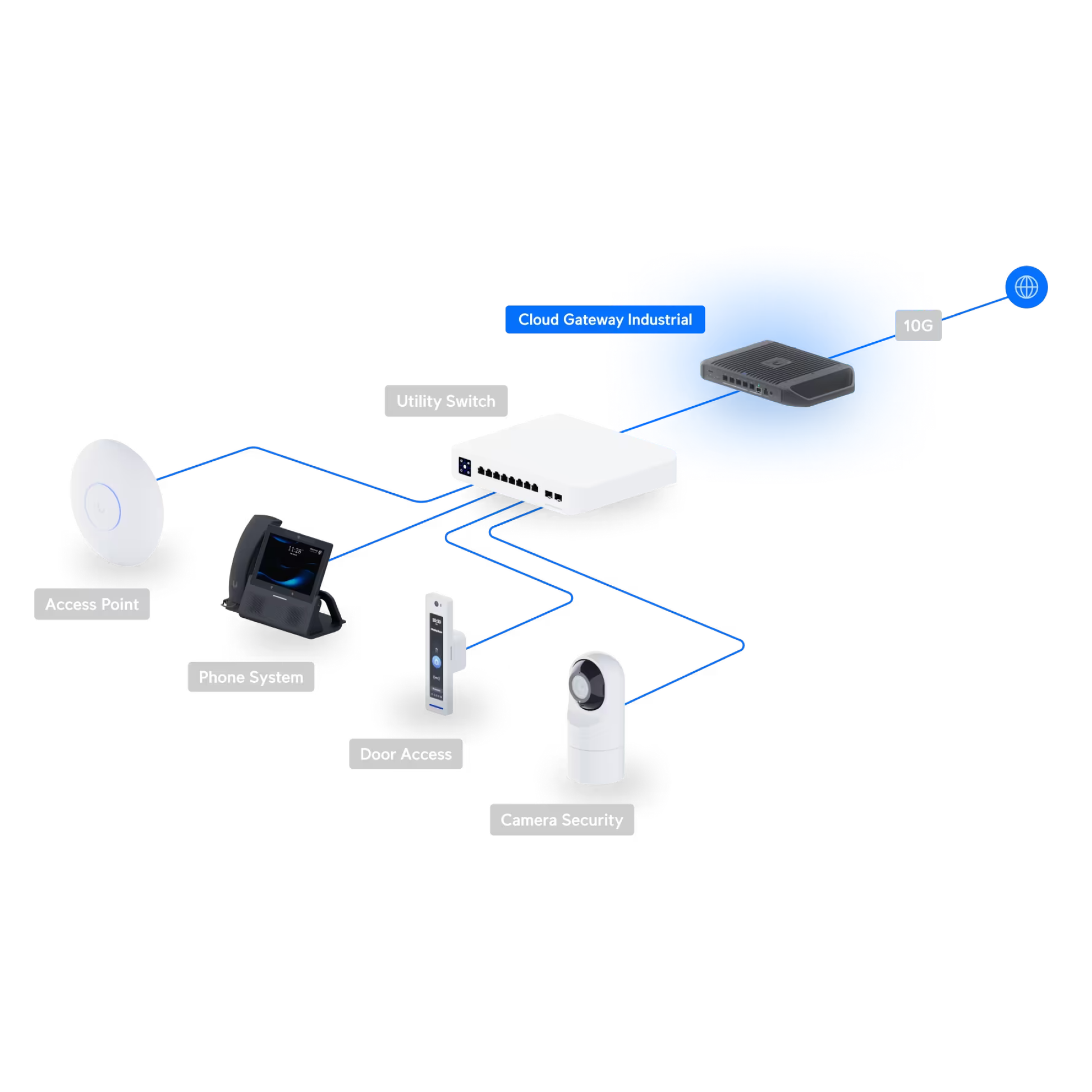

Runs the full UniFi application suite with support for 50+ managed UniFi devices and 500+ simultaneously connected users.
Multi-WAN and SLA Ready
Utilise up to 5 WAN ports with intelligent failover, traffic distribution and performance monitoring.
Integrated 10G Connectivity
Support demanding clients and high-bandwidth applications with integrated 10G ports (10G SFP+ and 10 GbE RJ45).
Dual-Radio WiFi 7

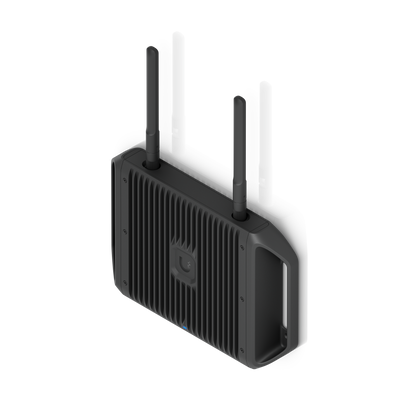

Dual-Radio WiFi 7 2.4/5 GHz with 4 spatial streams and external antennas for reliable coverage.
