UniFi Dream Router 5G Max
Ubiquiti UDR-5G-Max UniFi Dream Router 5G Max
SKU:UDR-5G-Max
EOFY Sale. Limited promotional stock available — don’t miss out!
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
View Installation Guide| Overview | |
| Dimensions | 110 x 110 x 250 mm (4.3 x 4.3 x 9.8") |
| UniFi Application Suite | |
| Network | ✓ |
| Protect | ✓ |
| Access | ✓ |
| Talk | ✓ |
| Connect | ✓ |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD, (2) 2K, (1) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| Port Layout | |
| 2.5 GbE RJ45 | 4 (1 PoE) (2.5G/1G/100M) |
| 10G SFP+ | 1 (10G/1G) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | |
| Site Magic | ✓ |
| IPsec | ✓ |
| OpenVPN | ✓ |
| VPN Server | |
| Identity Endpoint One-Click VPN | ✓ |
| Teleport Zero-Configuration VPN | ✓ |
| WireGuard | ✓ |
| OpenVPN | ✓ |
| L2TP | ✓ |
| VPN Client | |
| OpenVPN | ✓ |
| WireGuard | ✓ |
| Site-to-Site VPN Single Tunnel Throughput | |
| Site Magic | 20 |
| VPN Client Single Tunnel Throughput | |
| WireGuard | 8 |
| OpenVPN | 8 |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | |
| OSPF | ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 2,000 |
| Virtual Network Override | ✓ |
| All Traffic Flows | — |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput | |
| 6 GHz | 5.7 Gbps |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| MIMO | |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | |
| 6 GHz | 8 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 6 GHz | 22 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Cellular | |
| 5G NR | |
| Category | 5G NR Sub-6 |
| Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| Max. TX Power | HPUE power class 2: 26 dBm |
| 4G LTE | |
| Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| 3G UMTS | |
| Frequency Bands | B1, B2, B4, B5, B8, B19 |
| Peak Data Speed | |
| 5G NSA | Downlink 3.4 Gbps / Uplink 560 Mbps |
| 5G SA | Downlink 1.8 Gbps / Uplink 650 Mbps |
| 4G LTE | Downlink 1.6 Gbps / Uplink 210 Mbps |
| Antenna Gain | 617–960 MHz: 3 dBi, 1710–2700 MHz: 7 dBi, 3300–5000 MHz: 8 dBi, 5150–5925 MHz: 8 dBi |
| SIM | (2) Nano SIM, (1) Nano-SIM or eSIM |
| Hardware | |
| NVR Storage | Pre-installed 64 GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | 15.4W |
| Max. PoE Wattage per Port by PSE | |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Max. Power Consumption | 34.5W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |

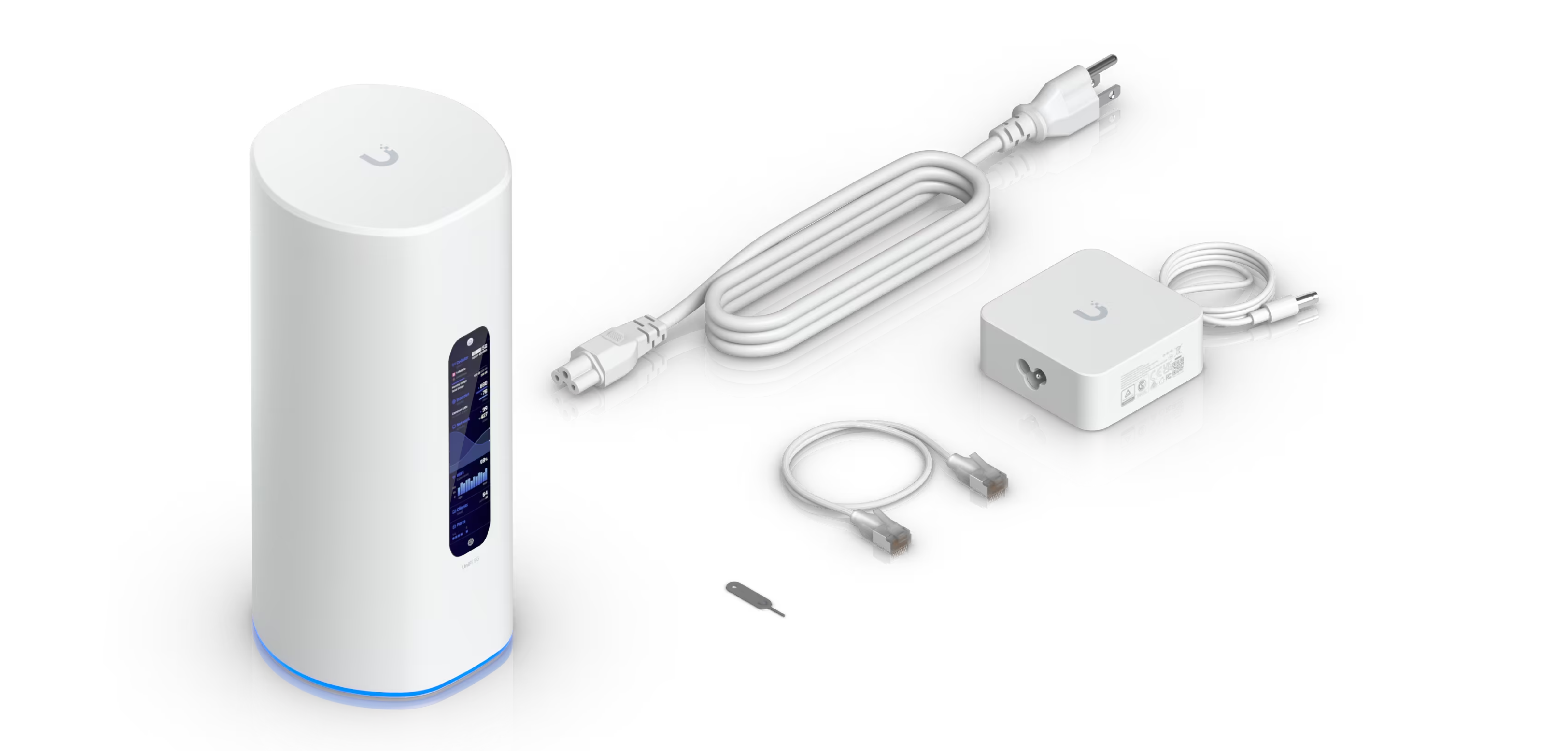

| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 115 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.4 kg (3.1 lb) |
| Enclosure Material | Polycarbonate |

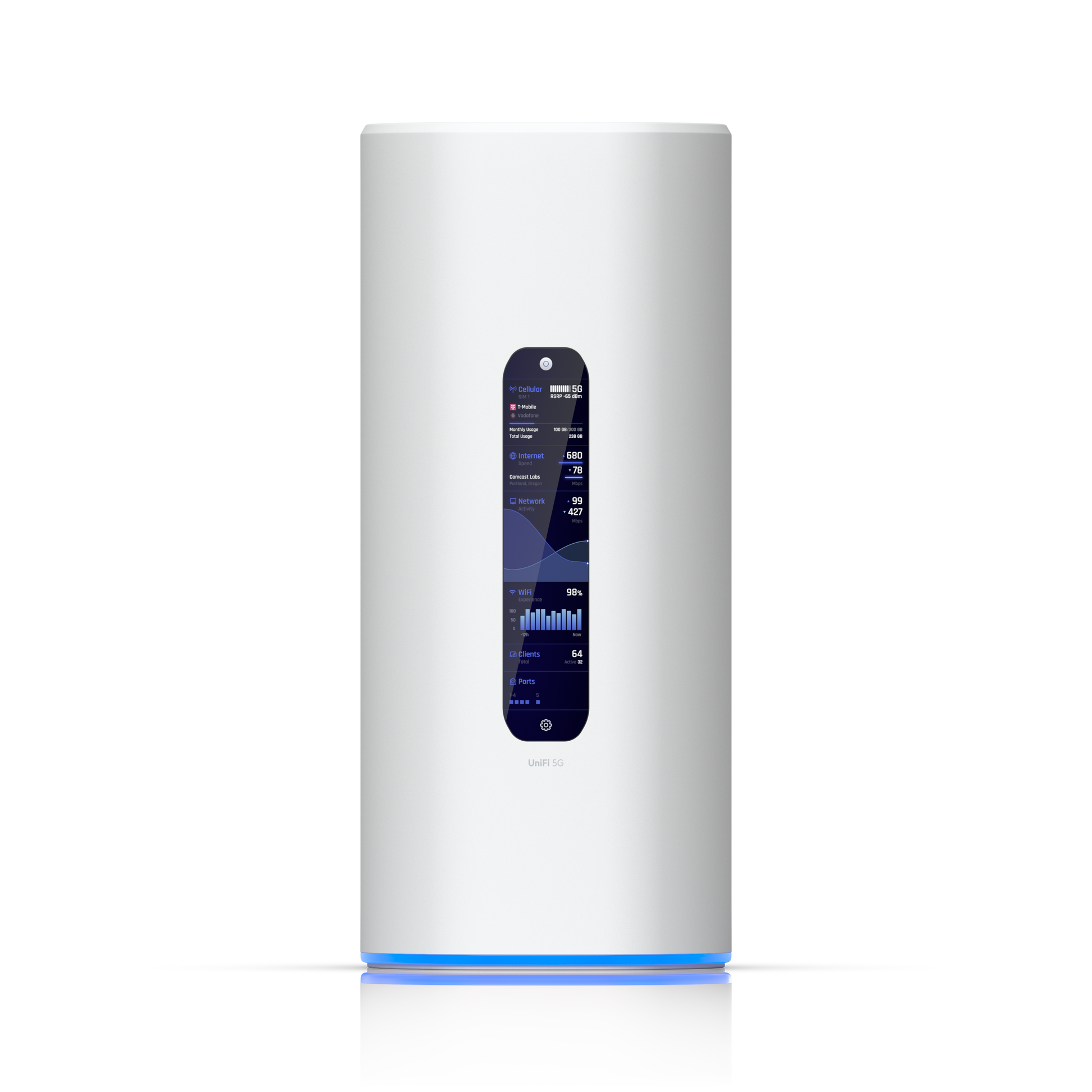

| LCM Display | 4.7" touchscreen |
| Management | Ethernet, Bluetooth |
| LEDs | |
| Ethernet | ✓ |
| SFP+ | ✓ |
| System | ✓ |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance® |
| Software | |
| Application Requirements | |
| Mobile App | UniFi iOS™: Version 10.33.0 and later; UniFi Android™: Version 10.36.1 and later |
Visit Ubiquiti for more information.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Frequently Asked Questions
What is the Dream Router 5G Max?
The Dream Router 5G Max is an all-in-one UniFi Console that combines a high-performance WiFi 7 router, PoE output, multiple high-speed WAN ports, and an integrated 5G cellular modem.
It supports the full UniFi Application Suite — including Protect, Access, Talk, and Connect — making it the ultimate solution for homes and small offices that need a powerful, unified platform for networking, video surveillance, access control, and more.
What is the purpose of the 5G connection on the Dream Router 5G Max?
The purpose of the 5G connection on the Dream Router 5G Max is to provide flexible, always-on connectivity through its built-in 5G Sub-6 GHz modem, which supports both eSIM and physical Nano-SIM cards.
You can configure the 5G connection as:
- Primary WAN: Ideal for locations without a stable wired internet connection.
- Backup WAN: If your main wired connection (such as a 10G SFP+ or 2.5 GbE port) goes offline, the Dream Router 5G Max automatically switches to the 5G network, ensuring uninterrupted connectivity.
What makes the WiFi performance of the Dream Router 5G Max stand out?
The Dream Router 5G Max stands out with next-generation WiFi 7 tri-band connectivity across 2.4 GHz, 5 GHz, and 6 GHz, delivering exceptional wireless performance. Its 6-stream design, 2×2 MIMO, and advanced technologies like Multi-Link Operation (MLO) and 4096-QAM deliver faster speeds, lower latency, and improved efficiency in high-density environments.
What is the maximum WiFi speed that the Dream Router 5G Max can deliver?
The Dream Router 5G Max delivers WiFi 7 connectivity with wireless speeds of up to 5.7 Gbps.

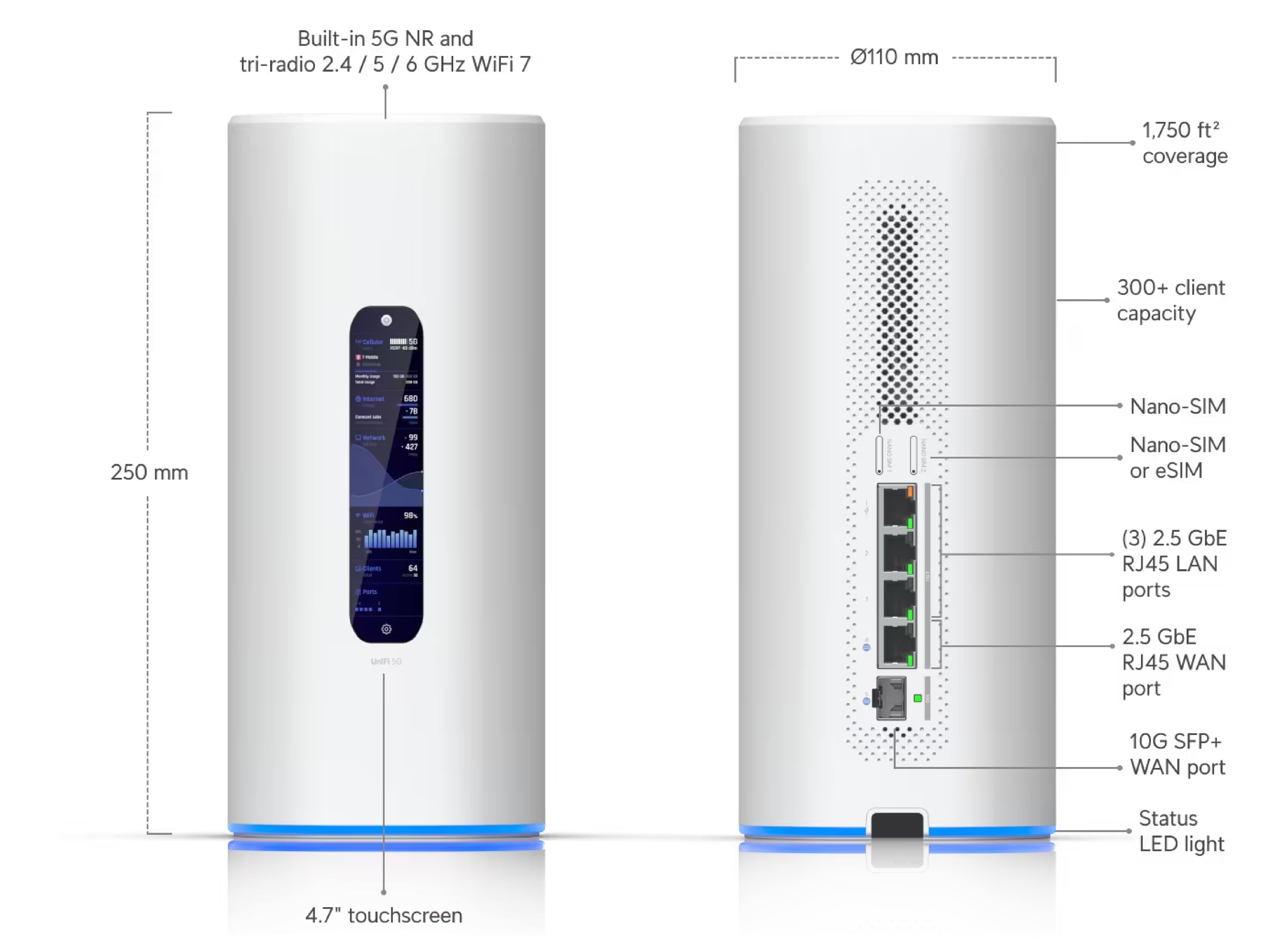

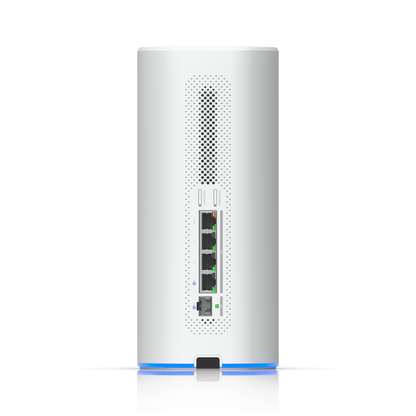

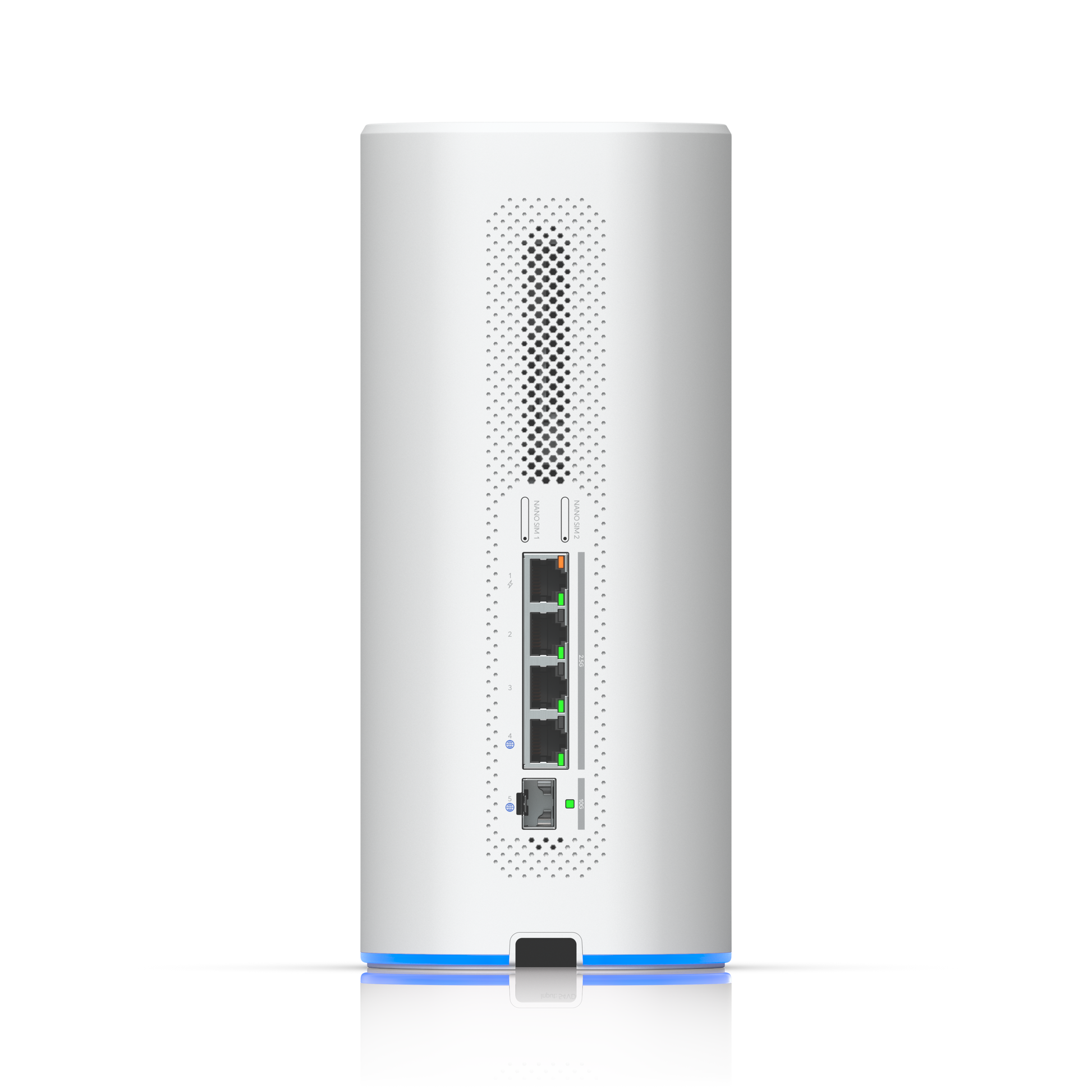

What ports and connections are available on the Dream Router 5G Max?
The Dream Router 5G Max features multiple ports and connection options for high-speed and flexible networking:
- (1) 10G SFP+ WAN port.
- (1) 2.5 GbE RJ45 WAN port.
- (3) 2.5 GbE RJ45 LAN ports, including (1) PoE port for powering compatible devices.
- (2) Nano-SIM slots (for SIM failover) and eSIM support.
Does the Dream Router 5G Max have a PoE port?
Yes. The Dream Router 5G Max has one PoE port delivering up to 15.4W of power.
Does the Dream Router 5G Max support VPN?
Yes. The Dream Router 5G Max supports WireGuard, OpenVPN, IPsec and Teleport Zero-Configuration VPN for secure remote access.
Does the Dream Router 5G Max support wireless meshing?
Yes. The Dream Router 5G Max supports wireless meshing with other UniFi access points, providing broader WiFi coverage in areas where wired connections aren't feasible.
Can the Dream Router 5G Max be used as a standalone gateway managed by a remote UniFi Network application?
No. The Dream Router 5G Max operates as an all-in-one UniFi Console, with the UniFi Network application running locally on the device. It cannot be managed by a CloudKey, Official UniFi Hosting or UniFi OS Server.
What is the difference between the Dream Router 5G Max and the Dream Router 7?
Both models share similar core capabilities, including WiFi 7, PoE, and full UniFi Application support. The key difference lies in connectivity — the Dream Router 5G Max includes a built-in 5G modem, allowing it to use 5G/LTE for primary or backup internet, while the Dream Router 7 supports only wired WAN connections through 10G SFP+ and 2.5 GbE ports.
Choose the Dream Router 5G Max if you need cellular flexibility or redundant 5G connectivity, and opt for the Dream Router 7 if your setup relies solely on high-speed wired WAN connections.
UDR-5G-MAX
Dream Router 5G Max
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
-
UniFi Application Suite: Network, Protect, Access, Talk, Connect
-
Built-in WiFi 7 access point with 6 GHz support
-
Coverage: 160 m² (1,750 ft²)
-
Pre-installed 64GB microSD for NVR
-
Max. WAN Port Count: 4
Overview
Introducing UniFi 5G
The UniFi 5G Max lineup was created with a clear goal in mind: deliver a sleek, versatile, and exceptionally powerful 5G internet experience that works effortlessly in any environment.
Performance
Dream Router 5G Max: The Fully Integrated UniFi Experience
If you want everything UniFi in one device, the Dream Router 5G Max combines 5G connectivity with WiFi 7, local storage, and full UniFi OS application support. Deploy it anywhere 5G is available and run an entire high-performance and scalable network stack instantly.
Unlocked
Fully Unlocked for Maximum Carrier Flexibility
Every device in the UniFi 5G lineup supports both physical SIMs and eSIM, giving you the freedom to choose your carrier and switch whenever needed with zero friction. All are equipped with dual SIM slots, with one SIM replaceable by eSIM, and are fully unlocked: any major carrier, any type of deployment, with one piece of hardware.
Features
Full UniFi Suite Support
Dream Router 5G Max runs the full UniFi application suite with support for 30+ managed UniFi devices and 300+ simultaneously connected users.
3.4 Gbps 5G WAN
Harness full-performance 5G connectivity with up to 4 WAN ports for primary, failover or load-balanced WAN deployments.
Integrated 10G Connectivity
Support demanding clients and high-bandwidth applications with an integrated 10G SFP+ port.
6-Stream Tri-Radio WiFi 7
Tri-radio 2.4/5/6 GHz with 6 spatial streams for consistent tri-band performance.
2.3 Gbps IDS/IPS Throughput
Identify and block threats in real time, both inbound and outbound, with 2.3 Gbps+ IDS/IPS performance.

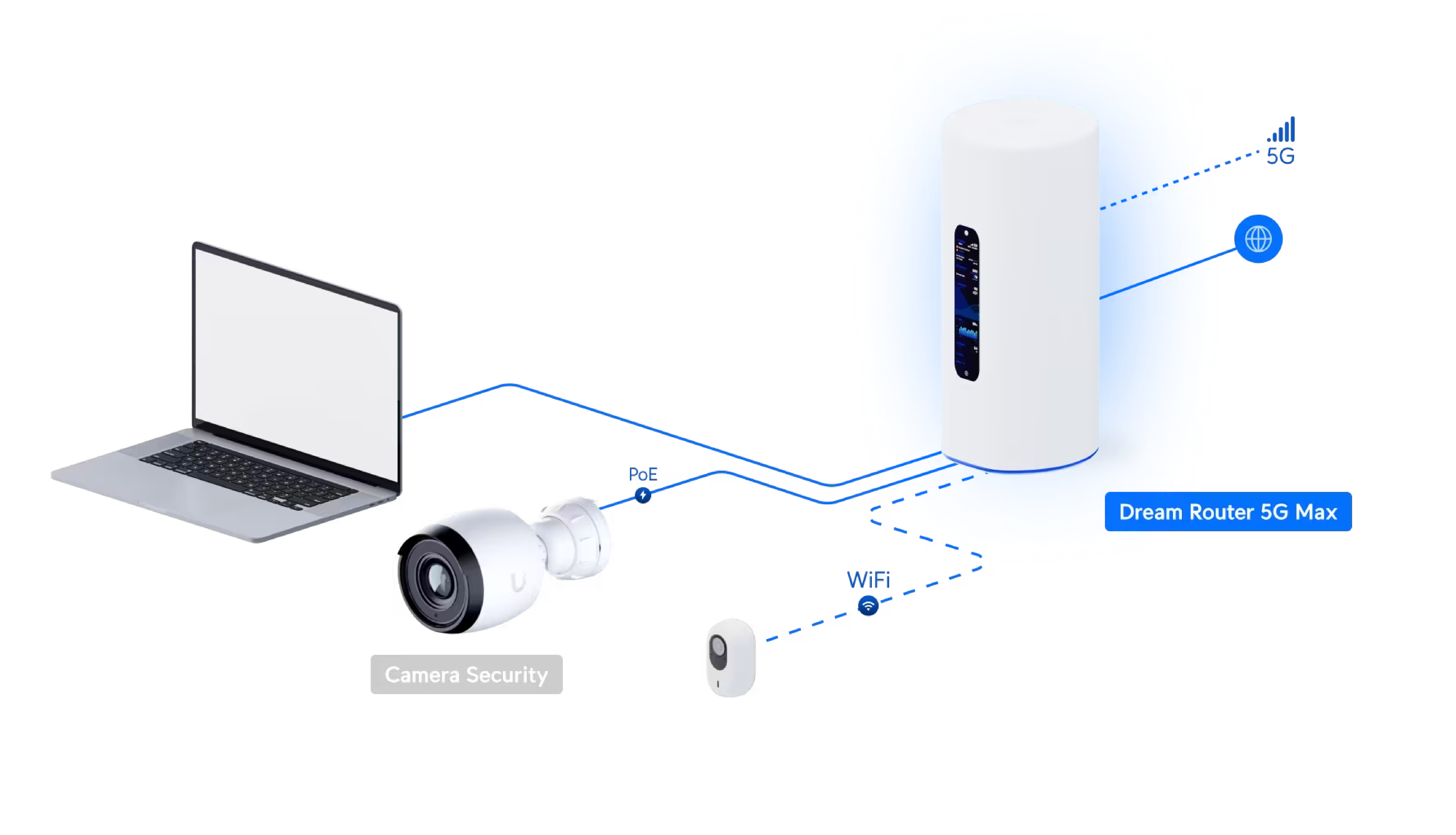

Deployment & Features
