UniFi Mobile Router Ultra
Ubiquiti UMR-Ultra UniFi Mobile Router Ultra
SKU:UMR-Ultra
Regular price
$208.00
Regular price
$239.00
Sale price
$208.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
59 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

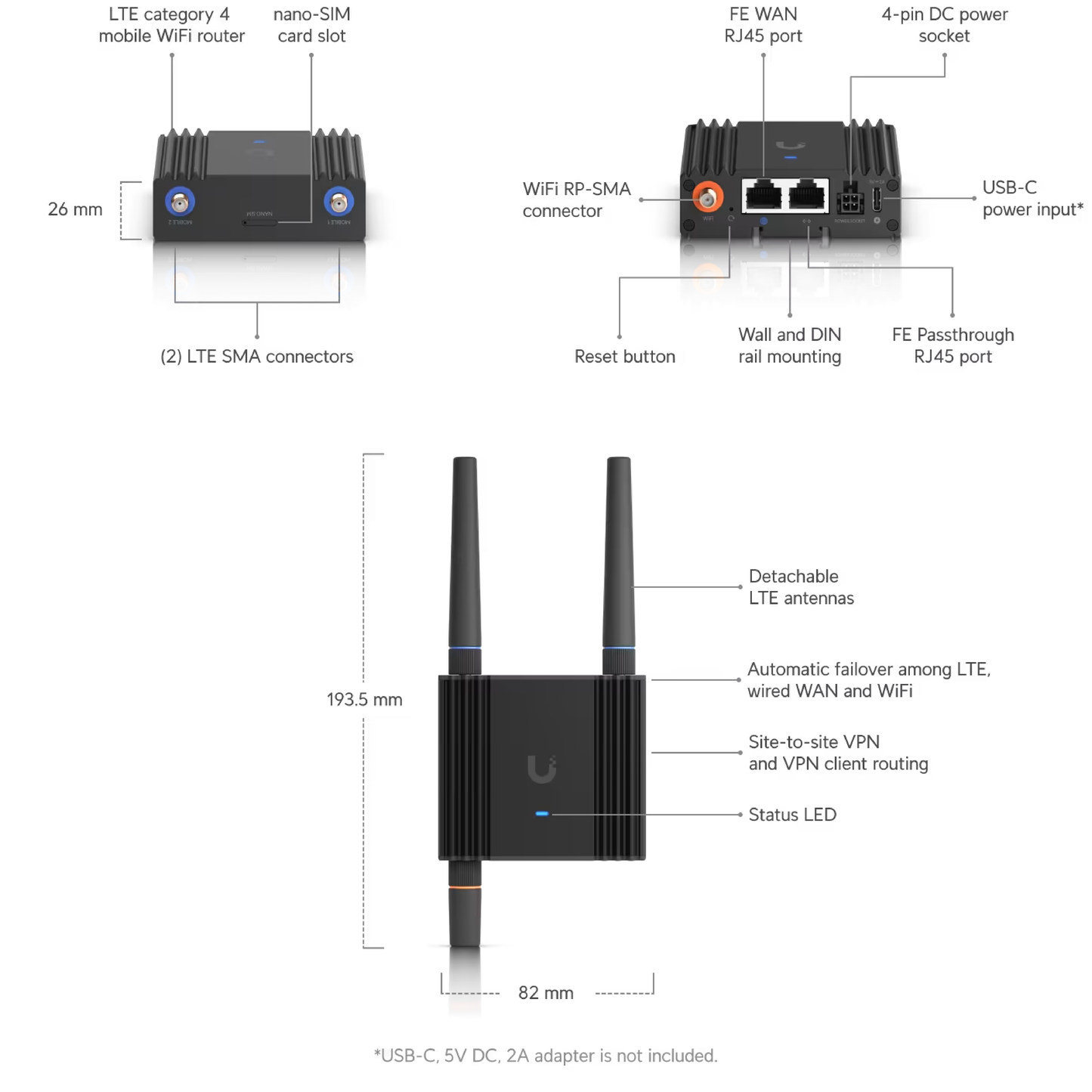

Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
- Site-to-site VPN and VPN client routing.
- (2) FE RJ45 ports.
- Automatic failover among LTE, wired WAN and WiFi.
- Powered using USB Type-C or 4-pin DC power socket.

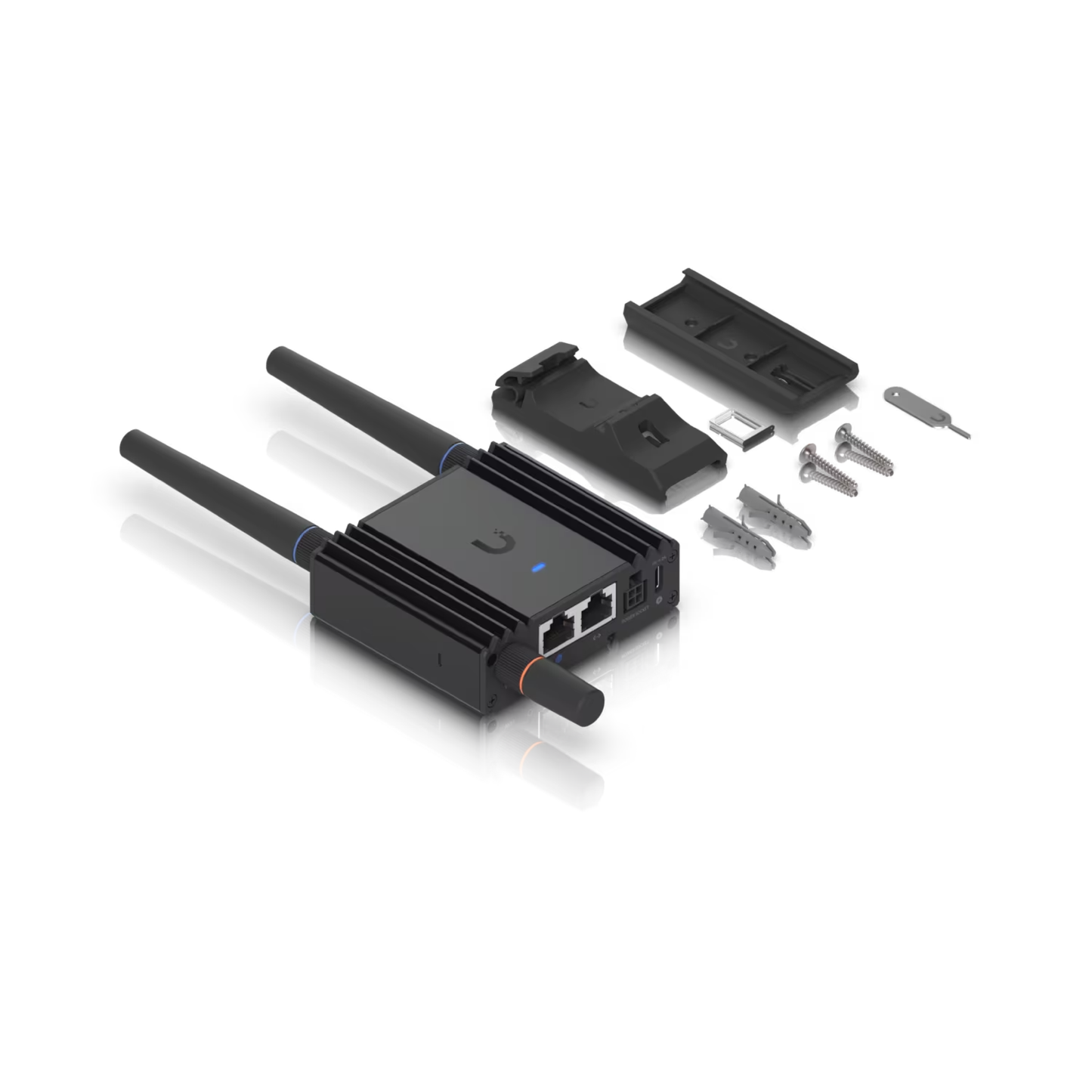

- Wall and DIN rail mount options.
- Optional Mobility Cloud Subscription.
- WiFi 4 single chain 2.4 GHz radio.
| Mechanical | |
|---|---|
| Dimensions |
Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1") With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1") |
| Weight |
Device: 200 g (7.1 oz) DIN rail/wall mounts: 20 g (0.7 oz) |
| Enclosure material | Polycarbonate, aluminum alloy |
| Mount material | Polycarbonate |
| Hardware | |
| Management interface |
Ethernet WiFi |
| Networking interface |

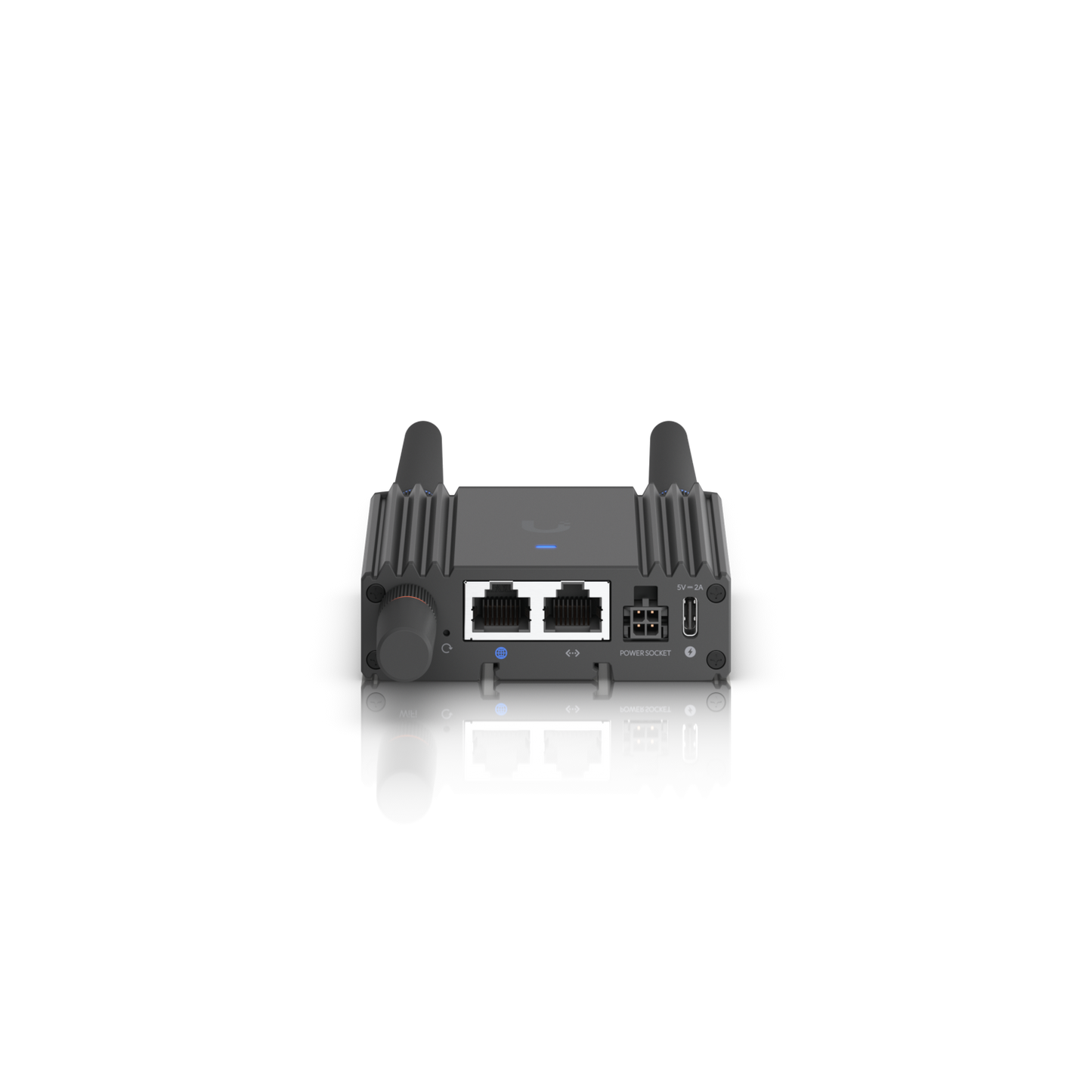

(2) FE RJ45 ports LTE Category 4 radio WiFi 4 |
| Power supply |
USB Type-C (5V DC/2A) 4-pin* ATX DC power socket (9—30V DC) *Please refer to the Installation Guide for detailed power socket pinout. |
| Max. power consumption | 5.7W |
| SIM | nano SIM |
| LTE bands | B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |
| LTE throughput speed* |
Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location. |
| WiFi standards | WiFi 4, 2.4 GHz, 20/40 MHz |
| Max. WiFi TX power | 17 dBm |
| Antenna SMA ports |

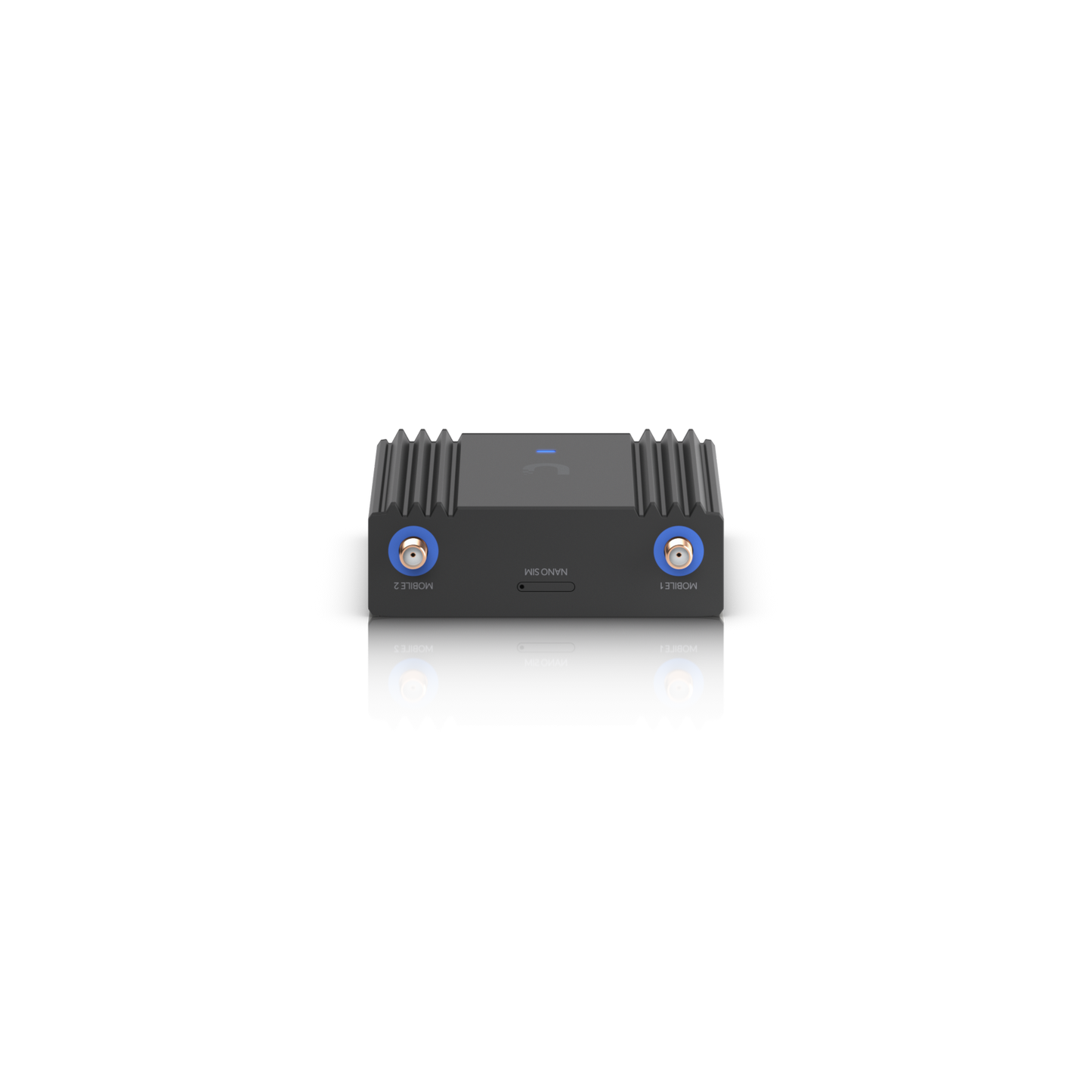

(1) Mobile 1: SMA female connector, supports 1Rx only (1) Mobile 2: SMA female connector, supports 1Tx and 1Rx (1) WiFi: RP-SMA female connector |
| External antennas |
(2) Mobile/LTE antennas with SMA male connectors (1) WiFi antenna with RP-SMA male connector |
| LED | Status: blue/white |
| Button | Factory reset |
| Mounting | DIN rail/wall mount (Included) |
| Ambient operating temperature | -30 to 70° C (-22 to 158° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
| Supported WiFi Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40) |
Note: Power adapter and cable not included; please use a 10W USB-C or ATX power supply.
UMR-Ultra comes with a 180 days mobility cloud free trial and is available for purchase.
Visit Ubiquiti for more information.
