Ubiquiti

UniFi WiFi BaseStation XG Access Point

Ubiquiti UWB-XG UniFi WiFi BaseStation XG Access Point

SKU:UWB-XG

Regular price $2,572.00
Regular price $3,084.00 Sale price $2,572.00
17% Off | Save $512.00 Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 6 left

Authorised Reseller | Australian Stock | Australian Warranty

View full details

Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.

  • WiFi 5 (5 GHz only).
  • 12 spatial streams.
  • 465+ m² (5,000+ ft²) open space coverage.
  • 1,500+ connected devices.
  • Powered using PoE++.
  • (1) GbE and (1) 10 GbE uplink.
  • Versatile wall and pole mounting.
  • Phased array antenna system with software-adjustable coverage (50° or 90°).
  • Weatherproof (outdoor exposed).
Mechanical
Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7")
Weight 3.2 kg (7.1 lb)
Weatherproofing IP67
Hardware
Networking interface (1) GbE RJ45 port
(1) 1/10 GbE ICM Ethernet port
Management interface Ethernet
Bluetooth
Power method PoE++
Power supply Gigabit PoE++ adapter 50V DC, 1.2A (Included)
Max. power consumption 31W
Supported voltage range 44—57V DC
Max. TX power
2.4 GHz
5 GHz
6 GHz


25 dBm
MIMO
2.4 GHz
5 GHz
6 GHz


Low/Mid/High-band: 4 x 4 (DL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz


Low/Mid/High-band: 1.7 Gbps (BW80)
Antenna gain
2.4 GHz
5 GHz
6 GHz


Small cell: 15 dBi / Large cell: 10 dBi
Antenna Integrated dual-mode antenna array
Operating frequency
5 GHz low-band radio
5 GHz mid-band radio
5 GHz high-band radio

Ch 36-64
Ch 100-132
Ch 149-165
Antenna beamwidth
Small cell
Large cell

50°
90°
LEDs R/G/B
Button Factory reset

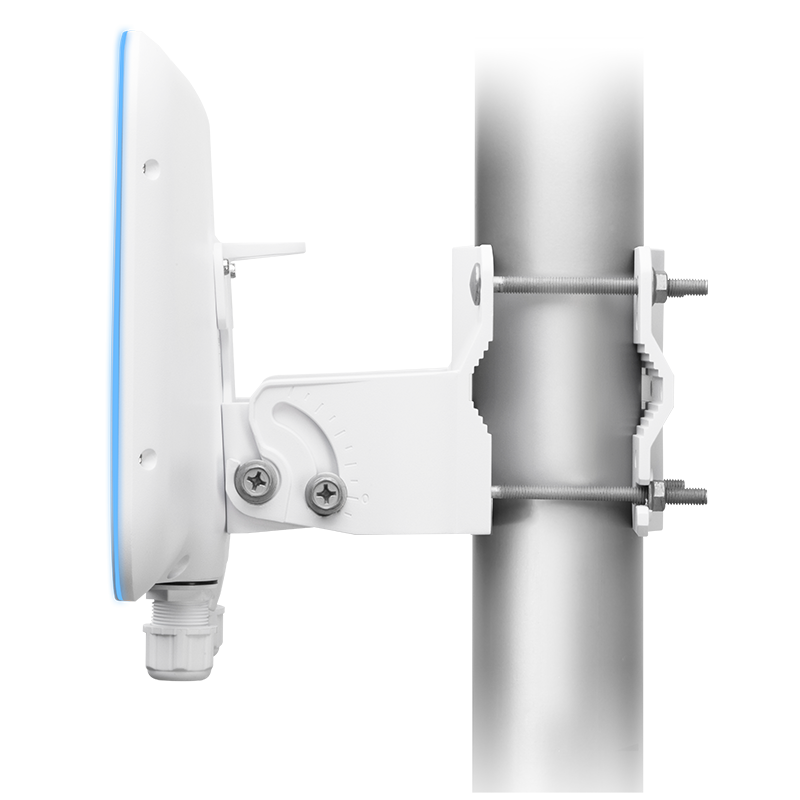

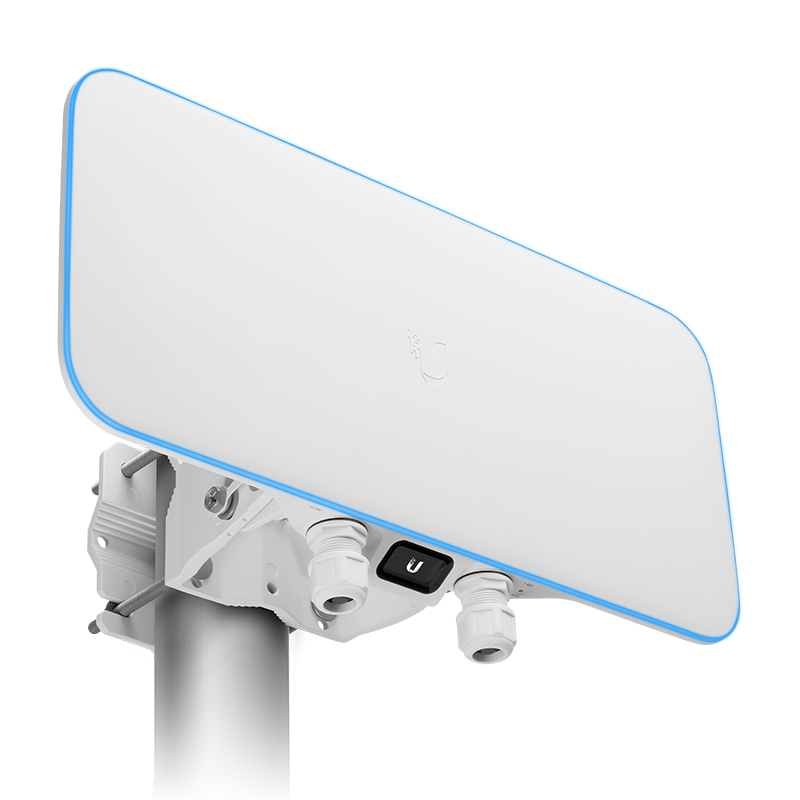

Mounting VESA-compatible mount, pole/wall (Brackets included)
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11 a/b/g/n/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
Beamforming Supported
WMM Voice, video, best effort, and background
Concurrent clients 1500+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)

Visit Ubiquiti for more information.
