Ubiquiti

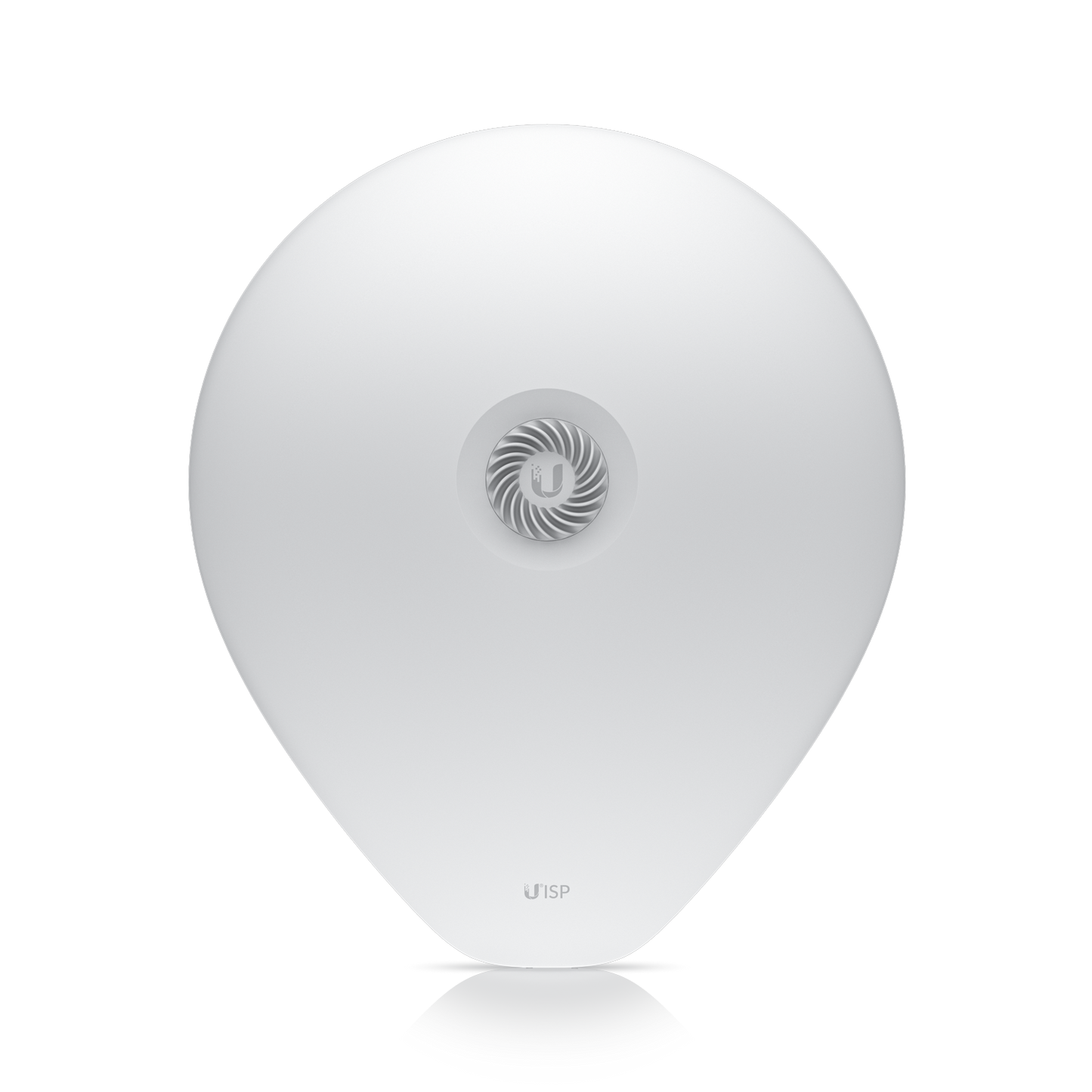

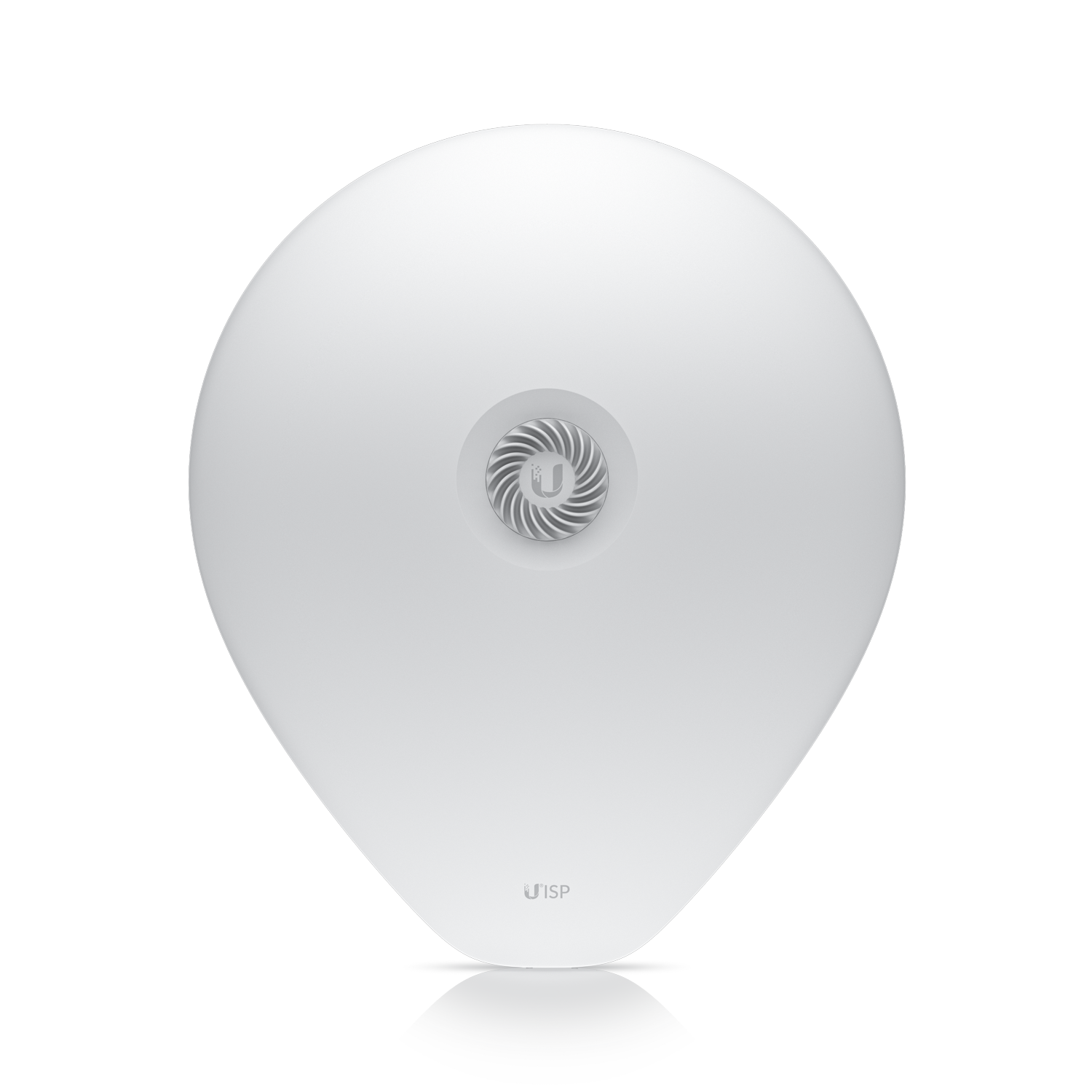

airFiber 60 Xtreme-Range — UISP 60 GHz Wireless

airFiber 60 Xtreme-Range — UISP 60 GHz Wireless

Regular price $2,396.00
Regular price $2,418.00 Sale price $2,396.00
0% Off | Save $22.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:AF60-XR

Out of stock

View full details

Experience cutting-edge, multi-gigabit connectivity with the Ubiquiti airFiber 60 Xtreme-Range. This 60 GHz bridge is expertly engineered to establish long-haul links, boasting an impressive 5.4 Gbps total throughput (2.7 Gbps duplex) across extensive distances.

  • Over 15 km link range for far-reaching connectivity
  • Robust 2.7 Gbps duplex performance
  • 5 GHz backup radio with over 800 Mbps, resilient in adverse weather

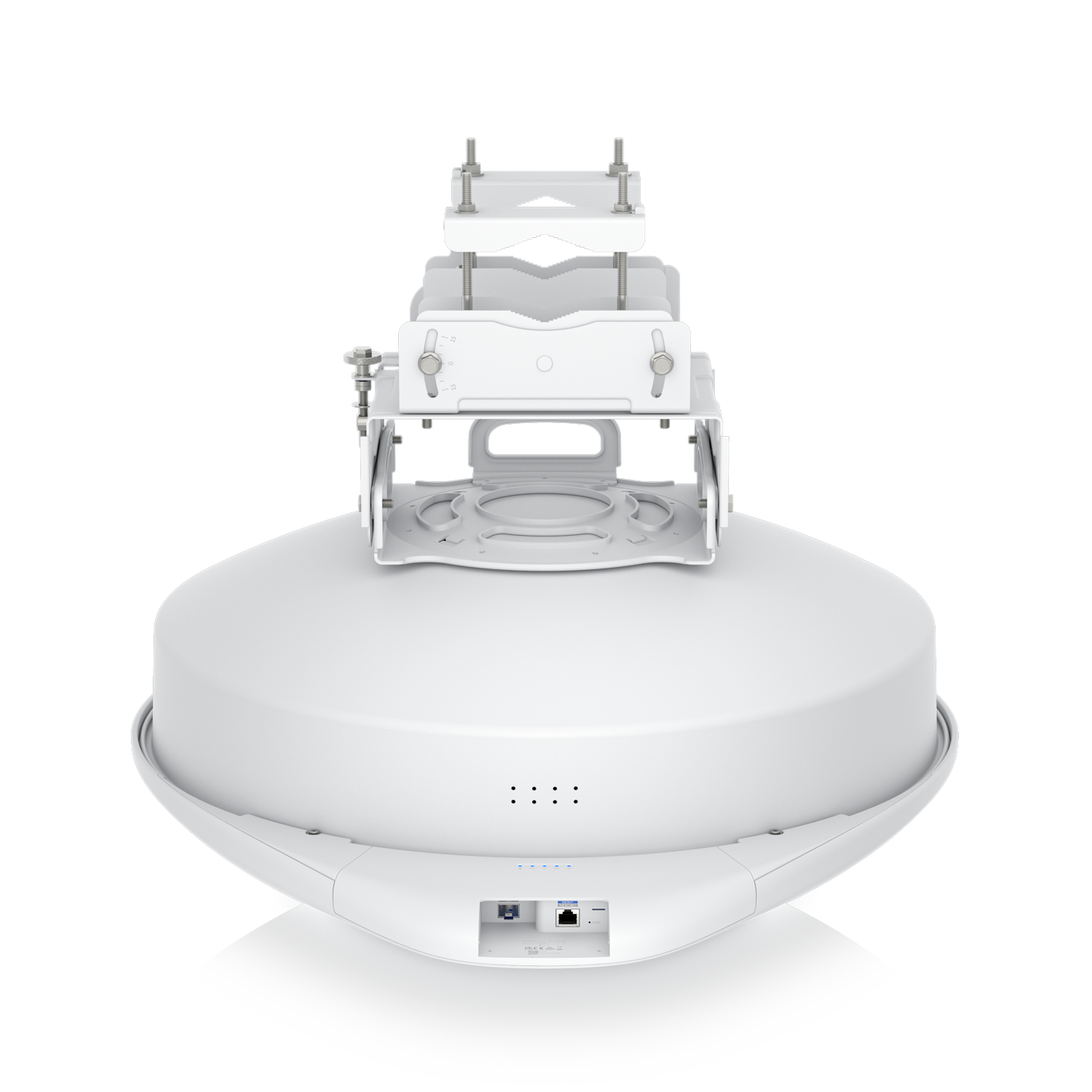

  • Dual ports: (1) GbE and (1) 10G SFP+ for versatile connectivity

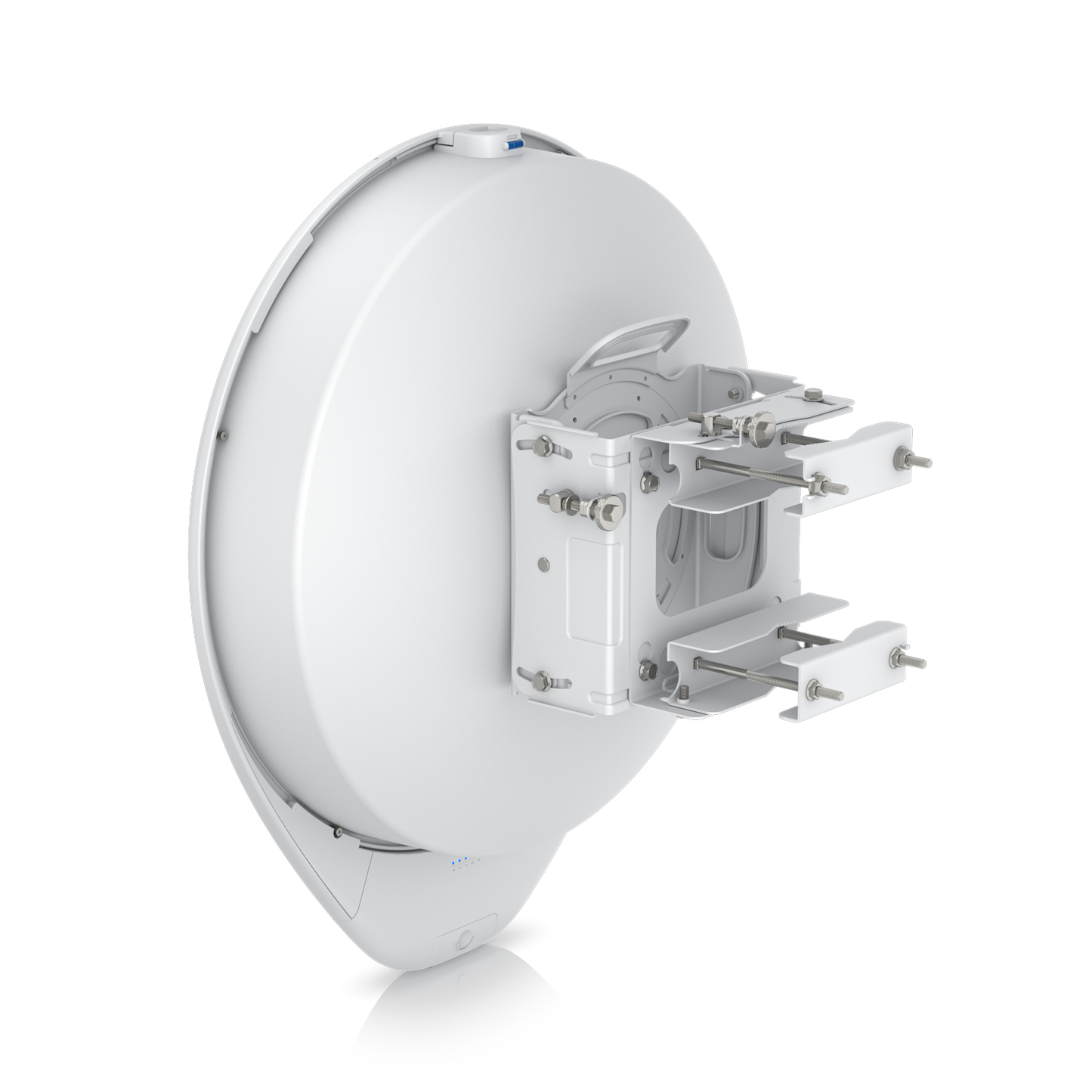

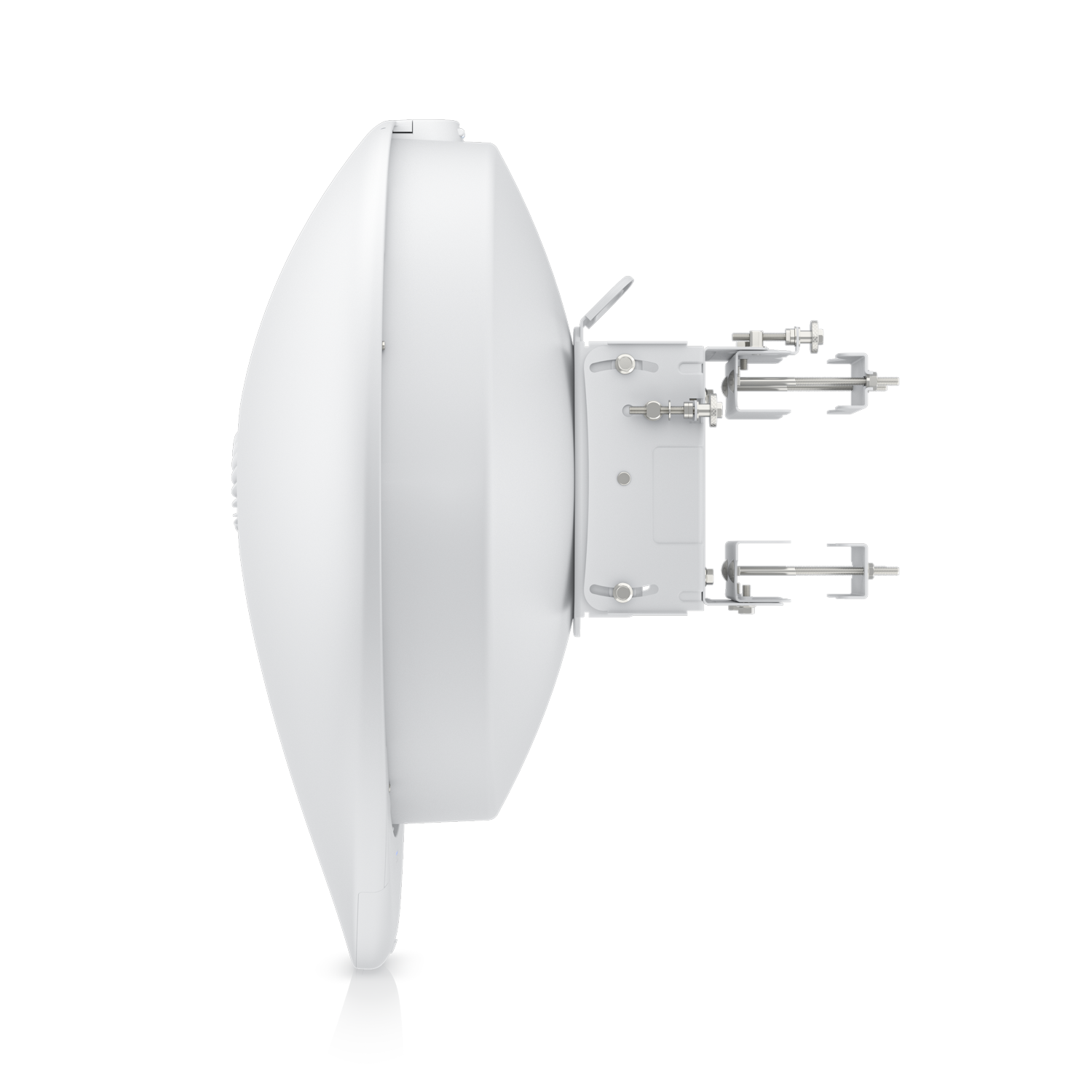

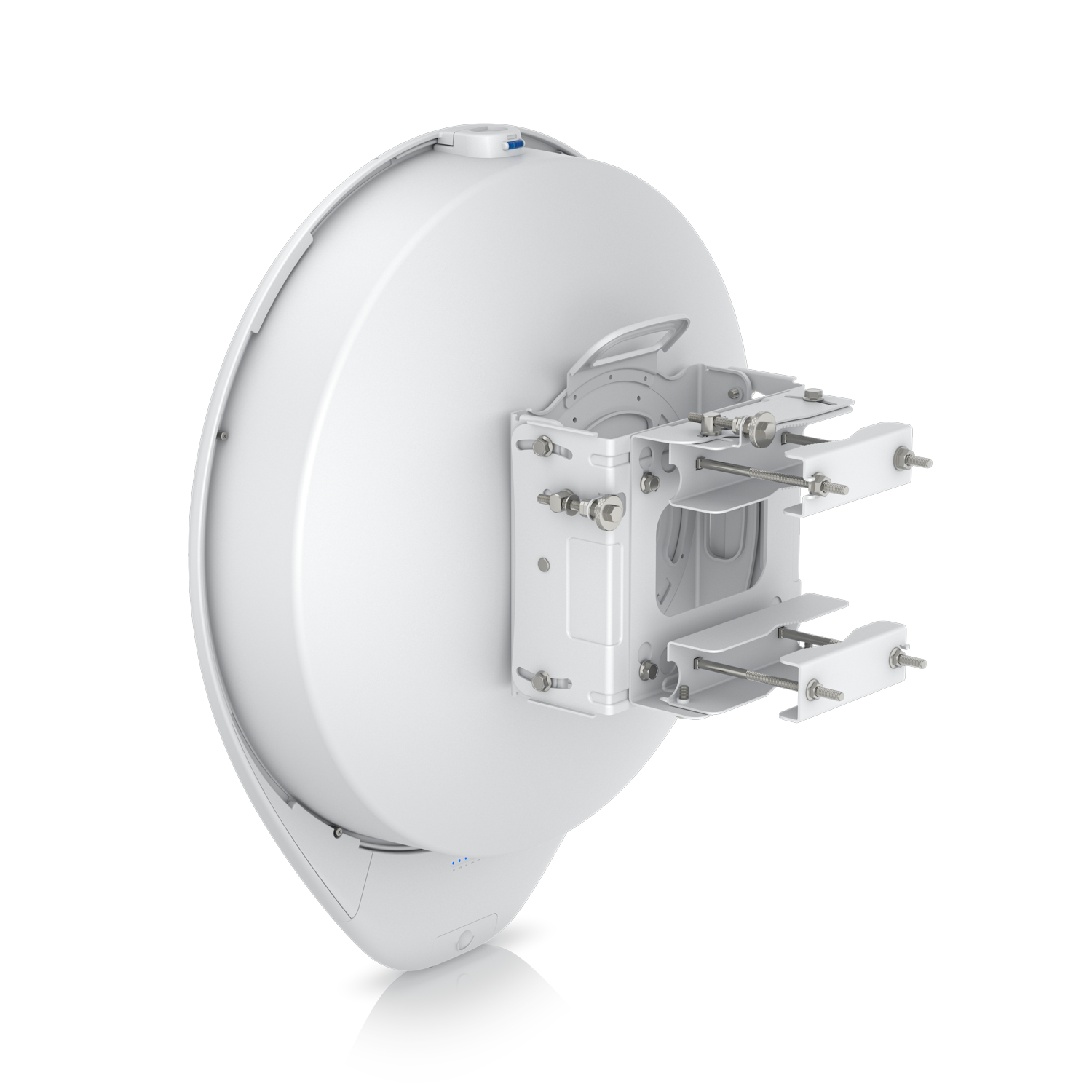

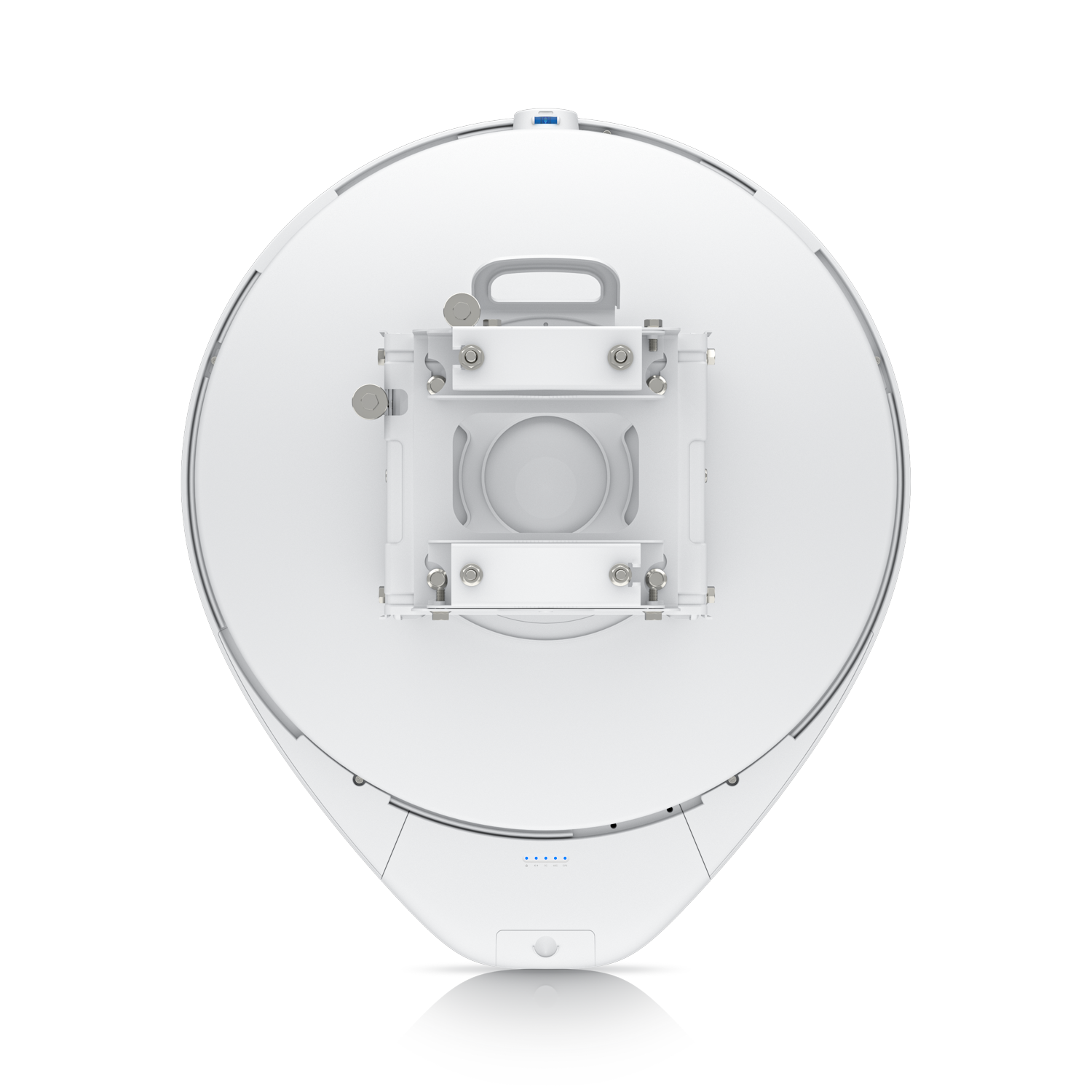

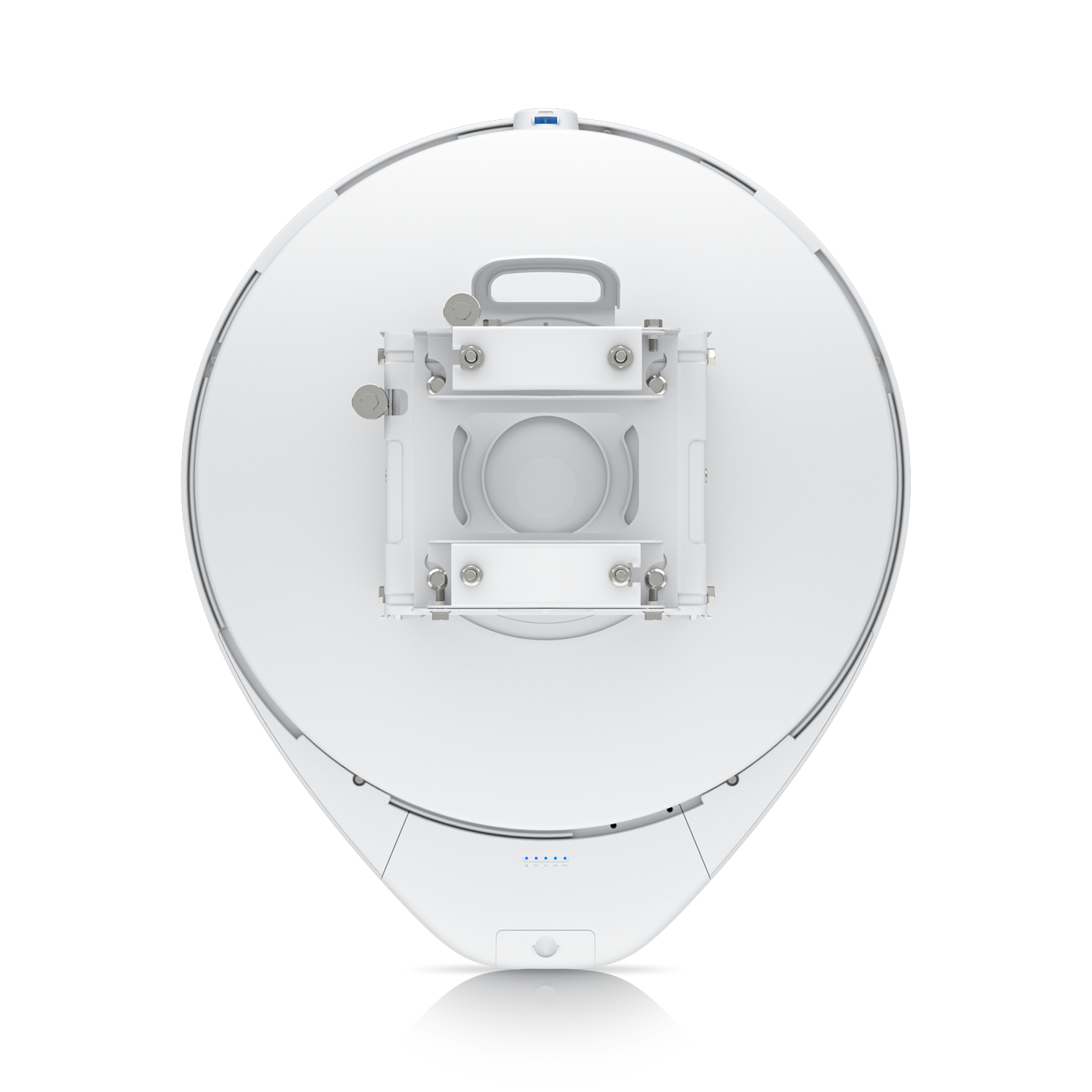

  • High-precision alignment mount for optimal positioning
  • Built-in GPS & Bluetooth for enhanced functionality

Note: This product is ideally purchased in pairs to effectively form links.

Mechanical

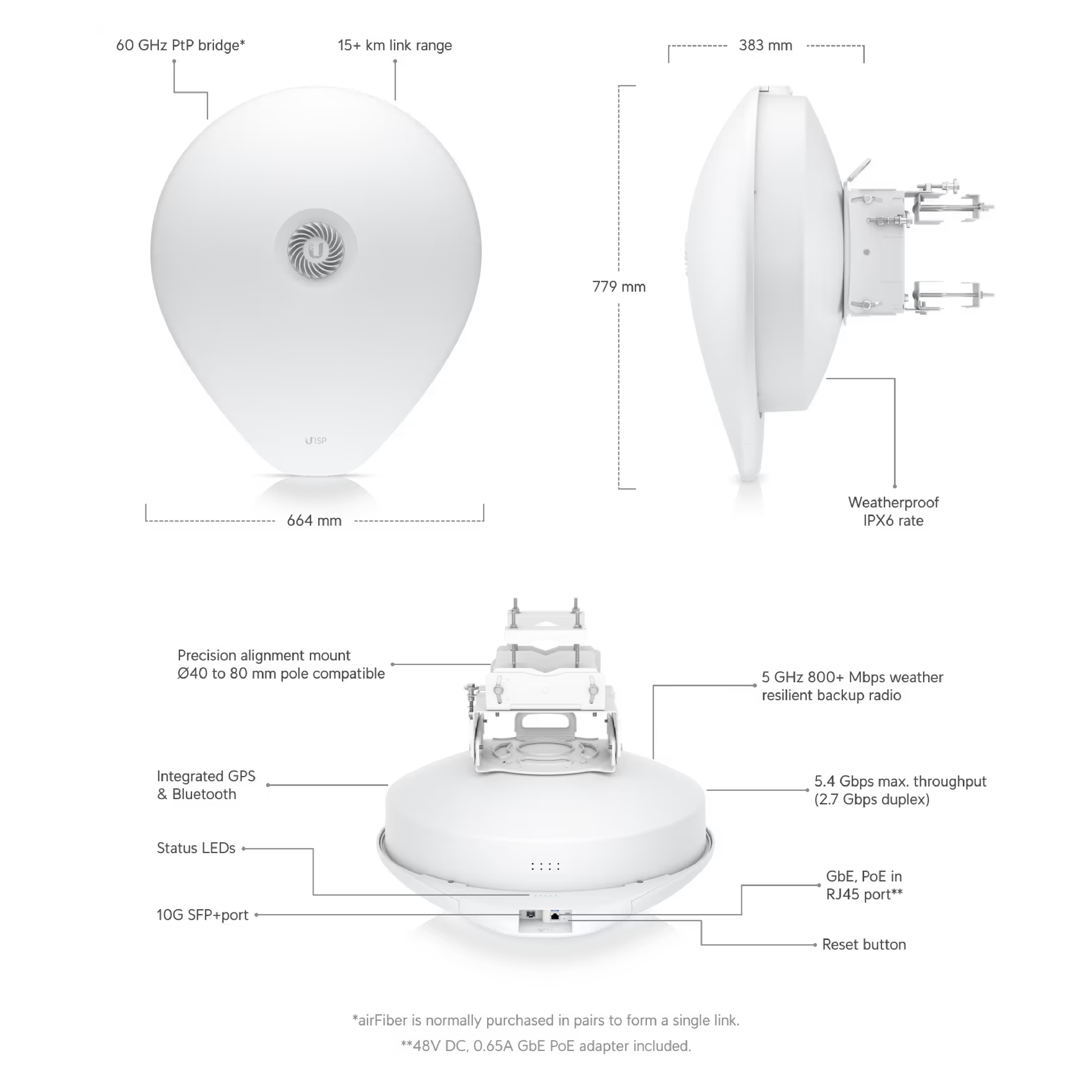

Dimensions 779 x 664 x 383 mm (30.7 x 26.1 x 15.1")
Weight Without mount: 8.6 kg (19 lb)
With mount: 13 kg (28.7 lb)
Enclosure materials UV stabilized polycarbonate, steel
Mount material Galvanized steel

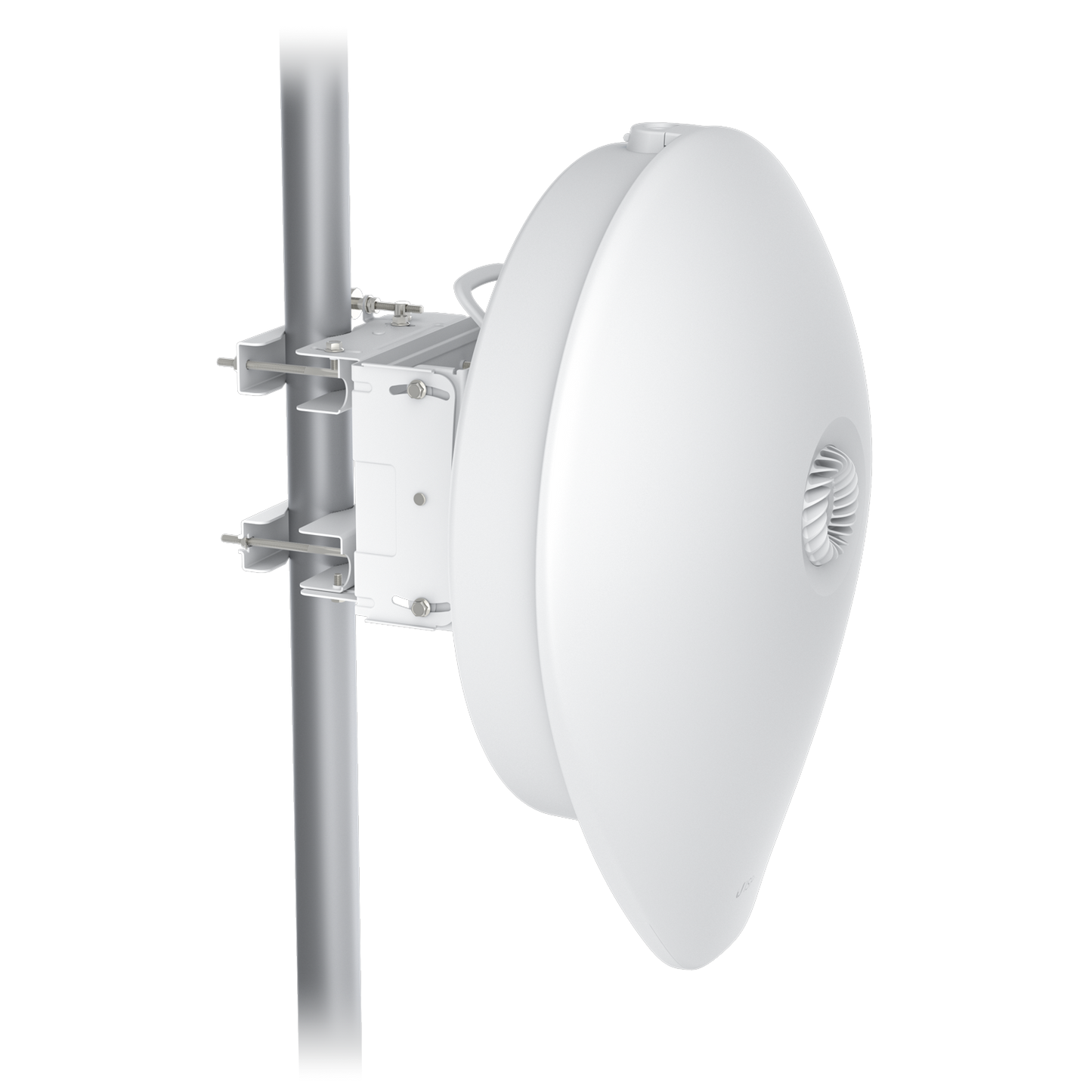

Mounting Precision alignment kit (included)
Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter
Wind loading 422 N at 200 km/h (94.86 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory DDR3L1 GB
Networking interface (1) GbE RJ45 port
(1) 1/10G SFP+port
Max. power consumption 24W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A gigabit PoE adapter (included)
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
RF connections Internal
Button Factory reset
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtP only
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology
Services UISP, ping watchdog, NTP client, device discovery
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Network Bridge mode
Management application UISP web: Version 1.4.3 and later
UISP iOS™: Version 2.20 and later
UISP Android™: Version 2.21.5 and later
System
Max. throughput 2.7 Gbps
Max. range 15+ km
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57–71 Ghz
* Depends on regulatory region.
Channel bandwidth 2160, 1080 MHz
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz
* Depends on regulatory region.
Management radio 2400–2483.5 MHz
Modulation 16QAM, BPSK, QPSK
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.4°
Elevation: 3 dB 1.4°
Electrical downtilt
Back-Up RF
Operating frequency*
US/CA




Worldwide

U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
Antenna gain 26 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 5°
Elevation: 3 dB 5°
Cross-pol isolation 14 dB
Electrical downtilt
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Ethernet Flashing blue: Ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
Link Blue: 5GHz link
Blue: 60GHz link
