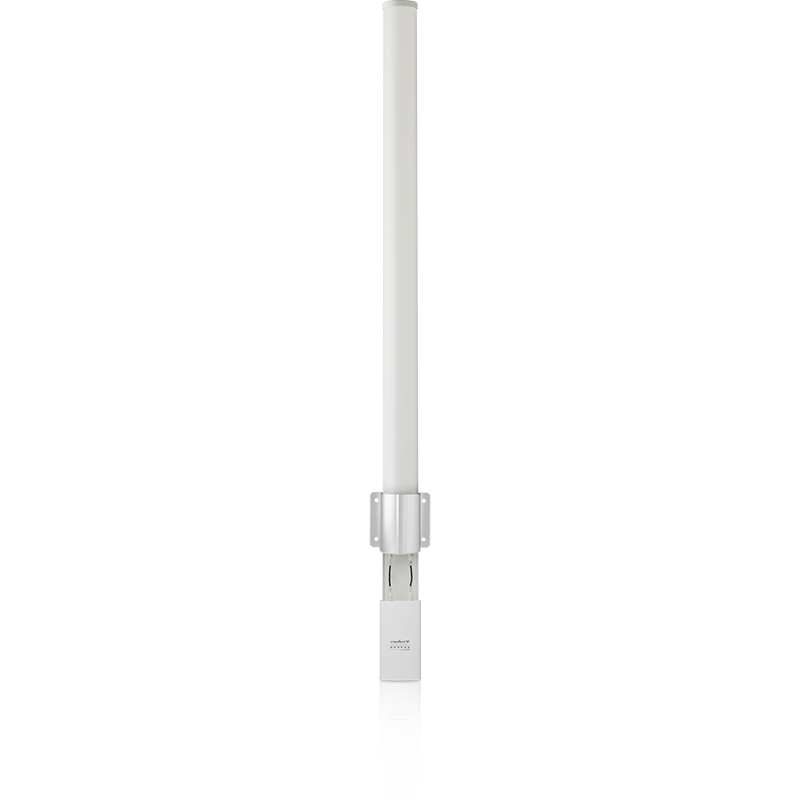

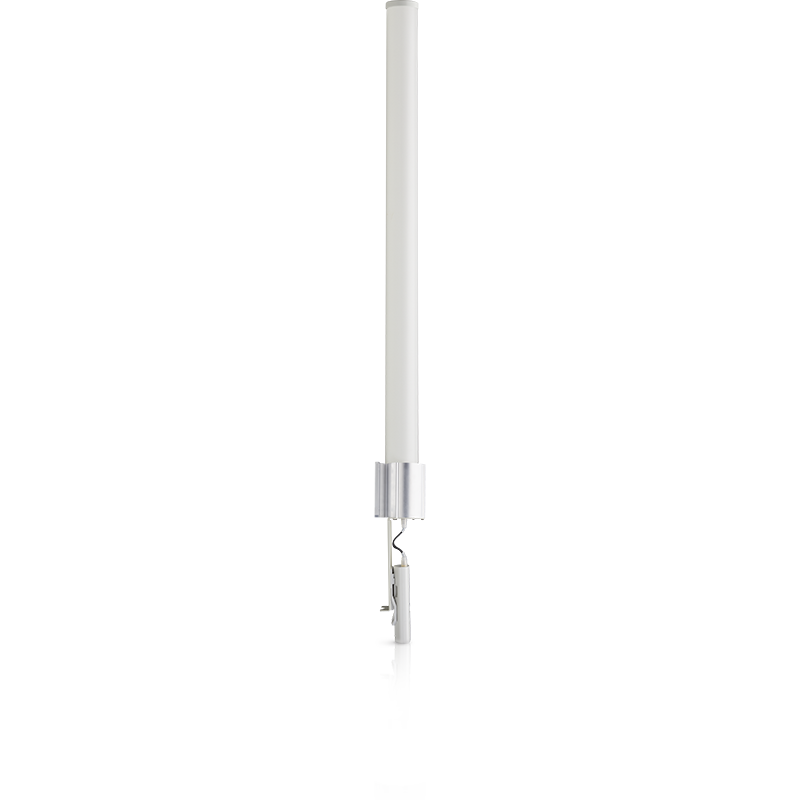

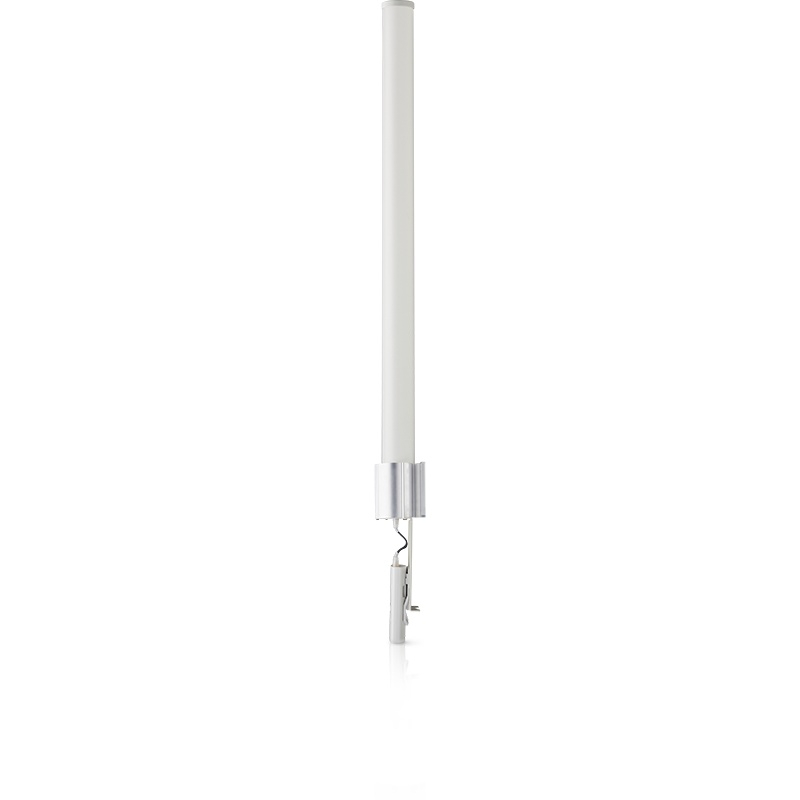

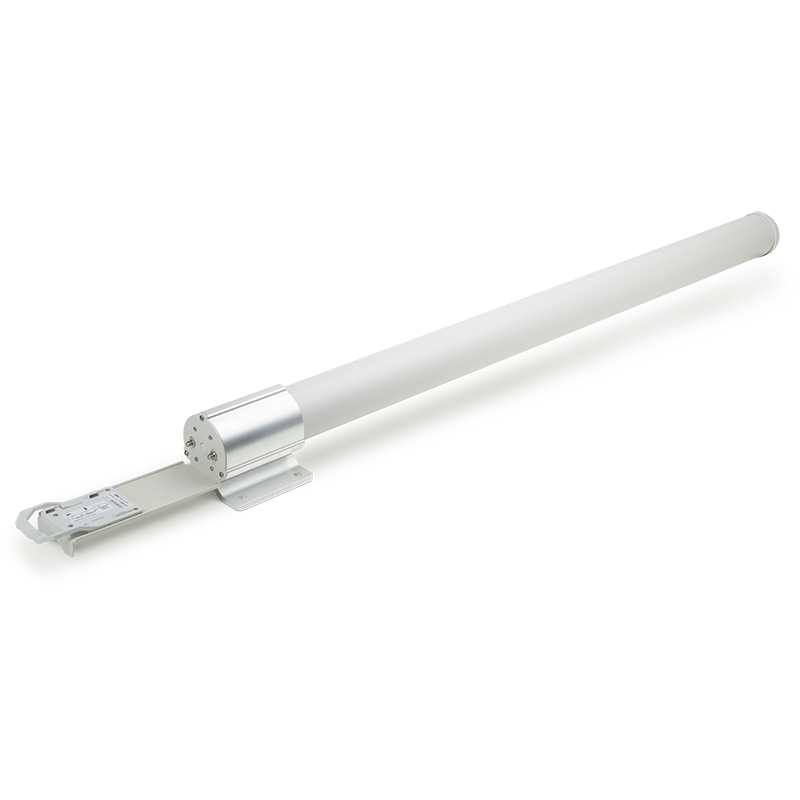

airMAX 2.4 GHz 13 dBi Omni Antenna
Ubiquiti AMO-2G13 airMAX 2.4 GHz 13 dBi Omni Antenna
SKU:AMO-2G13
Regular price
$468.00
Regular price
$496.00
Sale price
$468.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
2.4 GHz, 13 dBi carrier-class 2x2 MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios.
- 2x2 dual-polarity MIMO.
- 360° coverage.
- Easy to assemble.
- Compatible with Rocket Prism.
| AMO-2G13 | |
|---|---|
| Dimensions | 1390 x 122 x 105 mm (54.2 x 4.8 x 4.1") |
| Weight | 2.4 kg (5.3 lb) |
| Frequency Range | 2.35 - 2.55 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.7:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 71.2 N @ 160 km/h (16 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 E |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Visit Ubiquiti for more information.
