airMAX NanoBeam 2AC — UISP 2.4 GHz Wireless
airMAX NanoBeam 2AC — UISP 2.4 GHz Wireless
Regular price
$178.00
Regular price
$208.00
Sale price
$178.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
SKU:NBE-2AC-13
In stock
Couldn't load pickup availability
![Ubiquiti airMAX NanoBeam 2AC](http://bits-mart.com/cdn/shop/files/ubiquiti-airmax-nanobeam-2ac-uisp-wireless-1.png?v=1702177970&width=1445)
![Ubiquiti airMAX NanoBeam 2AC](http://bits-mart.com/cdn/shop/files/ubiquiti-airmax-nanobeam-2ac-uisp-wireless-2.png?v=1702177969&width=1445)
![Ubiquiti airMAX NanoBeam 2AC](http://bits-mart.com/cdn/shop/files/ubiquiti-airmax-nanobeam-2ac-uisp-wireless-3.png?v=1702177969&width=1445)
![Ubiquiti airMAX NanoBeam 2AC](http://bits-mart.com/cdn/shop/files/ubiquiti-airmax-nanobeam-2ac-uisp-wireless-4.png?v=1702177969&width=1445)
![Ubiquiti airMAX NanoBeam 2AC](http://bits-mart.com/cdn/shop/files/ubiquiti-airmax-nanobeam-2ac-uisp-wireless-5.png?v=1702284989&width=1445)
Ready for UISP, this 2.4 GHz WiFi radio is ideal for point-to-multipoint connections in Australia.
- 2.4 GHz frequency with over 15 kilometres link range
- Impressive throughput of over 150 Mbps
- Simple installation process
- Specialised spectral analysis radio
- Exclusive WiFi management radio
Mechanical | |
---|---|

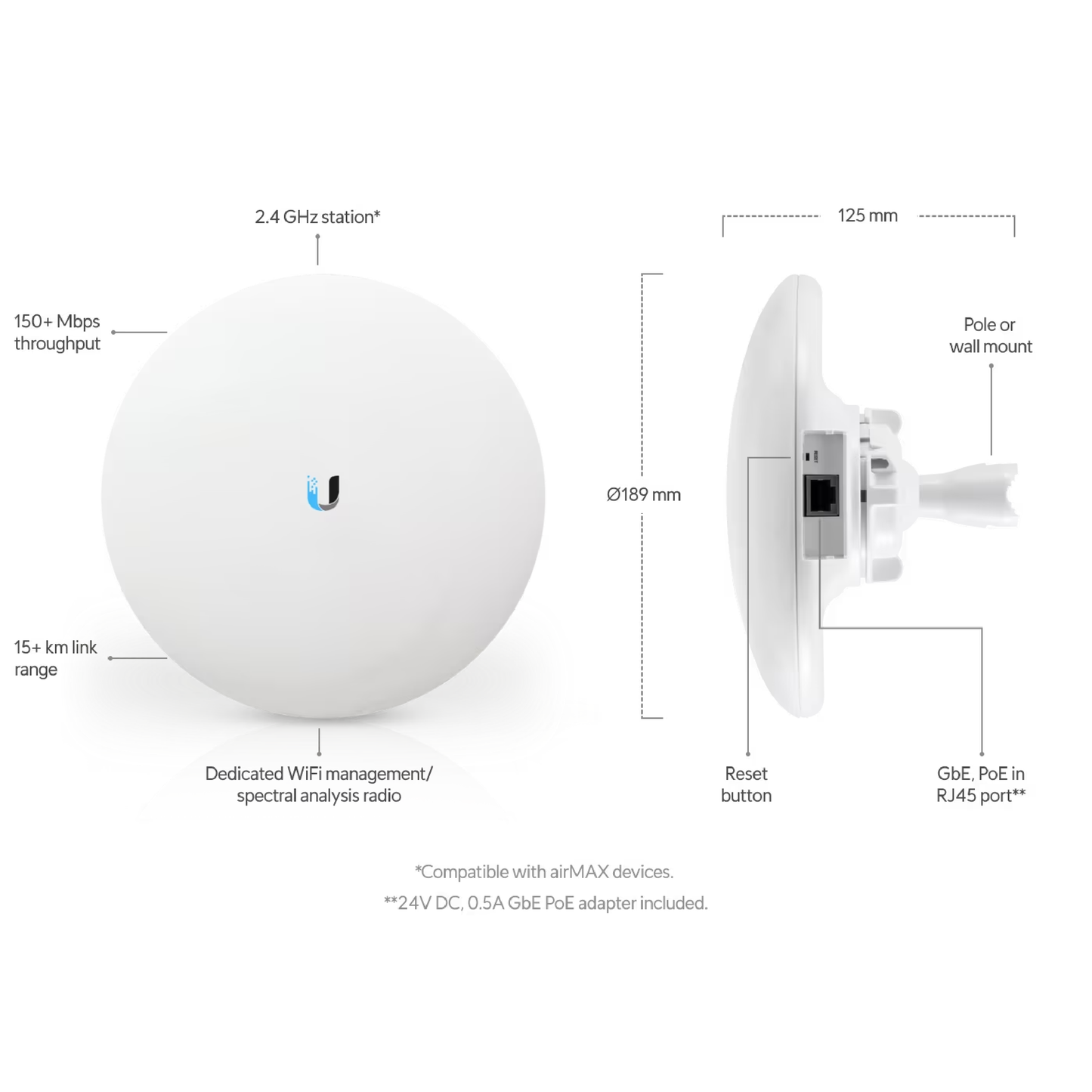

Dimensions | 189 x 189 x 125 mm (7.4 x 7.4 x 4.9") |
Weight | 530 g (1.2 lb) |
Enclosure material | UV-stabilized plastic |
Mounting | Pole mount kit (Included) Wall mount (Not included) Window mount (Not included) |
Wind loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
Wind survivability | 200 km/h (125 mph) |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Power Supply | 24V, 0.5A Gigabit PoE adapter (Included) |
Max. power consumption | 7.5W |
ESD/EMP protection | Air/contact: ± 24kV |
LEDs | Power, Ethernet, (4) signal strength |
Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
Vibration test | IEC 68-2-6 |
Temperature shock test | IEC 68-2-14 |
UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
Operating temperature | -40 to 80° C (-40 to 176° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
System | |
Gain | 13 dBi |
Channel sizes PtP Mode PtPM Mode |
10/20/40 MHz 10/20/40 MHz |
Max. VSWR | 1.5:1 |
Polarization | Dual linear |
Operating Frequency (MHz) | |
Worldwide | 2412 - 2472 MHz |
USA | 2412 - 2462 MHz |
Management Radio (MHz) | |
Worldwide | 5150 - 5250 MHz |
US/CA | U-NII-3: 5725 - 5850 MHz |
