airMAX NanoStation 5AC — UISP 5 GHz Wireless
airMAX NanoStation 5AC — UISP 5 GHz Wireless
SKU:NS-5AC
Regular price
$238.00
Regular price
$262.00
Sale price
$238.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Business purchase? Contact us below for bulk discounts!
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
Discover the Ubiquiti airMAX NanoStation 5AC, a leading UISP-compatible WiFi radio, ideally suited for point-to-point connections and client premises applications across Australia.
- Operates in the 5 GHz frequency band, boasting a link range exceeding 15 kilometres
- Impressive data throughput of over 450 Mbps, ensuring high-speed internet connectivity
- Includes a secondary LAN port with Power over Ethernet (PoE) output support for enhanced versatility
- Equipped with a dedicated spectral analysis radio for optimised network performance
- Features a dedicated WiFi management radio for streamlined network setup and maintenance
| Mechanical | |
|---|---|

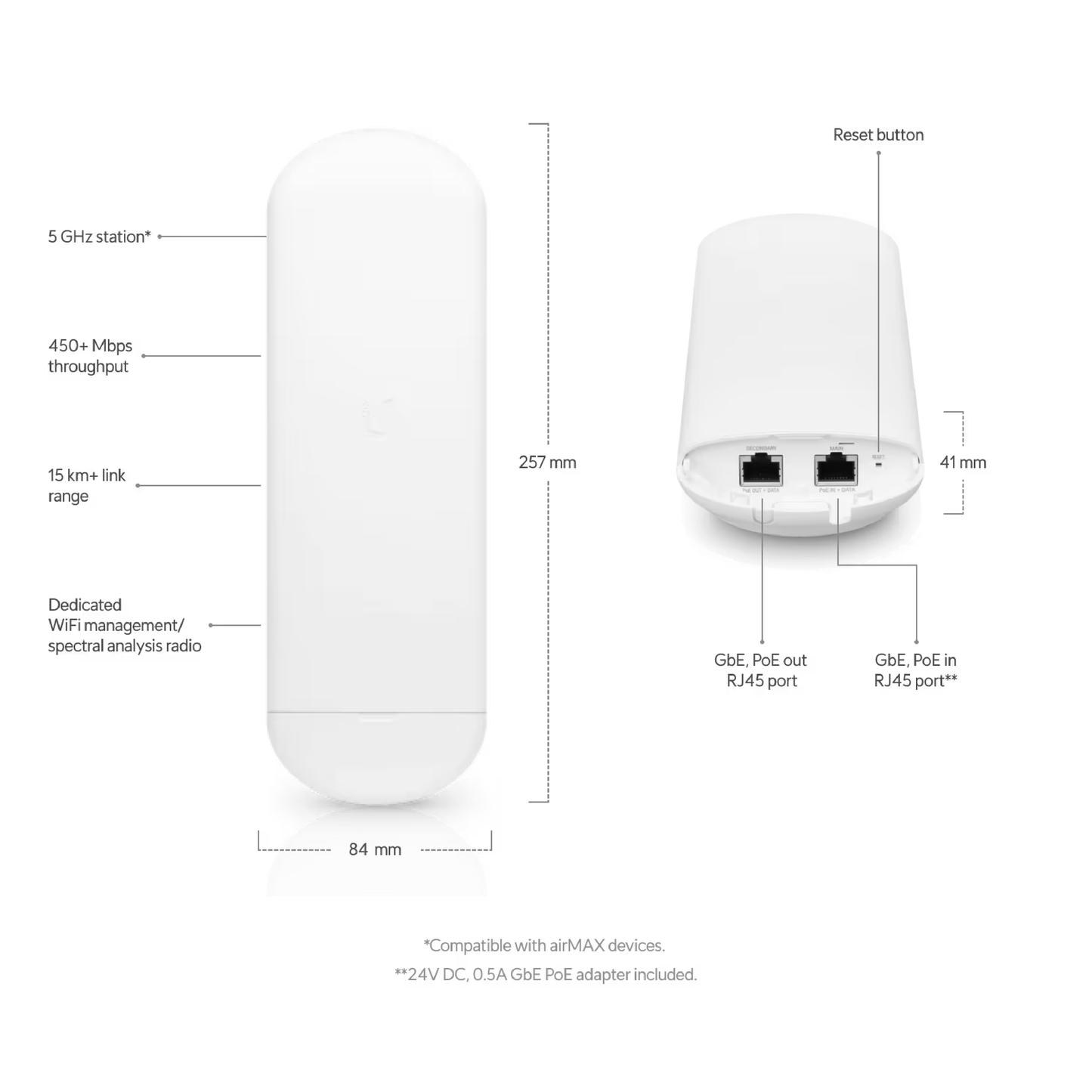

| Dimensions | Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
| Weight | 233 g (8.2 oz) |
| Enclosure material | UV-resistant plastic |
| Mounting | Pole and wall mounting kits (Included) |
| Hardware | |

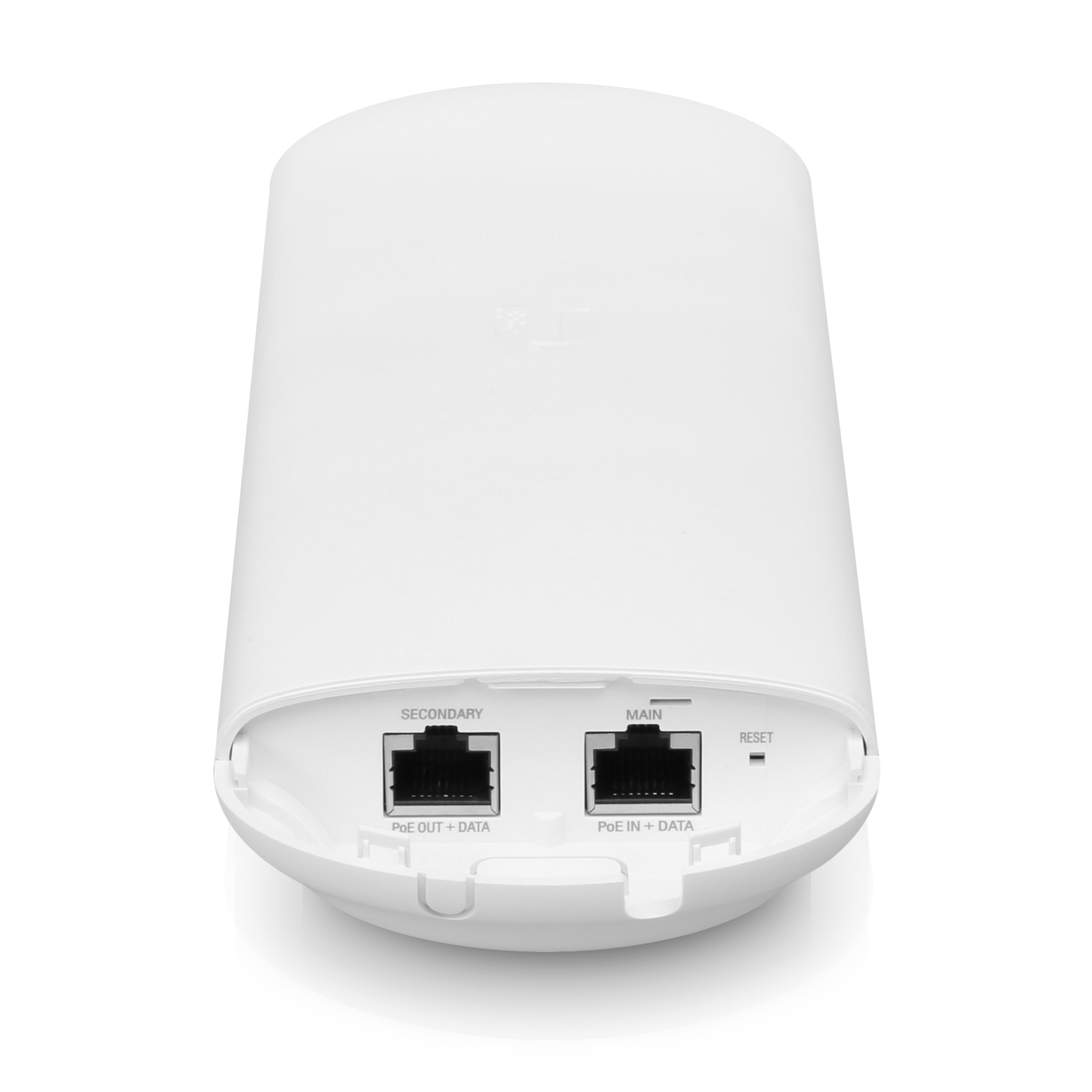

| Networking interface | (2) 10/100/1000 MbE ports |
| Power method | PoE Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.5A Gigabit PoE supply (Included) |
| Supported voltage range | 24V ±10% |
| Max. power consumption | 9W |
| ESD/EMP protection | Air/contact: ±24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 16 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.6:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
