UISP airMAX PowerBeam 2AC 400 Bridge
Ubiquiti PBE-2AC-400 UISP airMAX PowerBeam 2AC 400 Bridge
SKU:PBE-2AC-400
Regular price
$196.00
Regular price
$254.00
Sale price
$196.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
28 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
2.4 GHz WiFi antenna with a 450+ Mbps real TCP/IP throughput rate.
- 2.4 GHz, 25+ km link range.
- 450+ Mbps throughput.
- Improved mounting.
- Dedicated spectral analysis radio.
| Mechanical | |
|---|---|

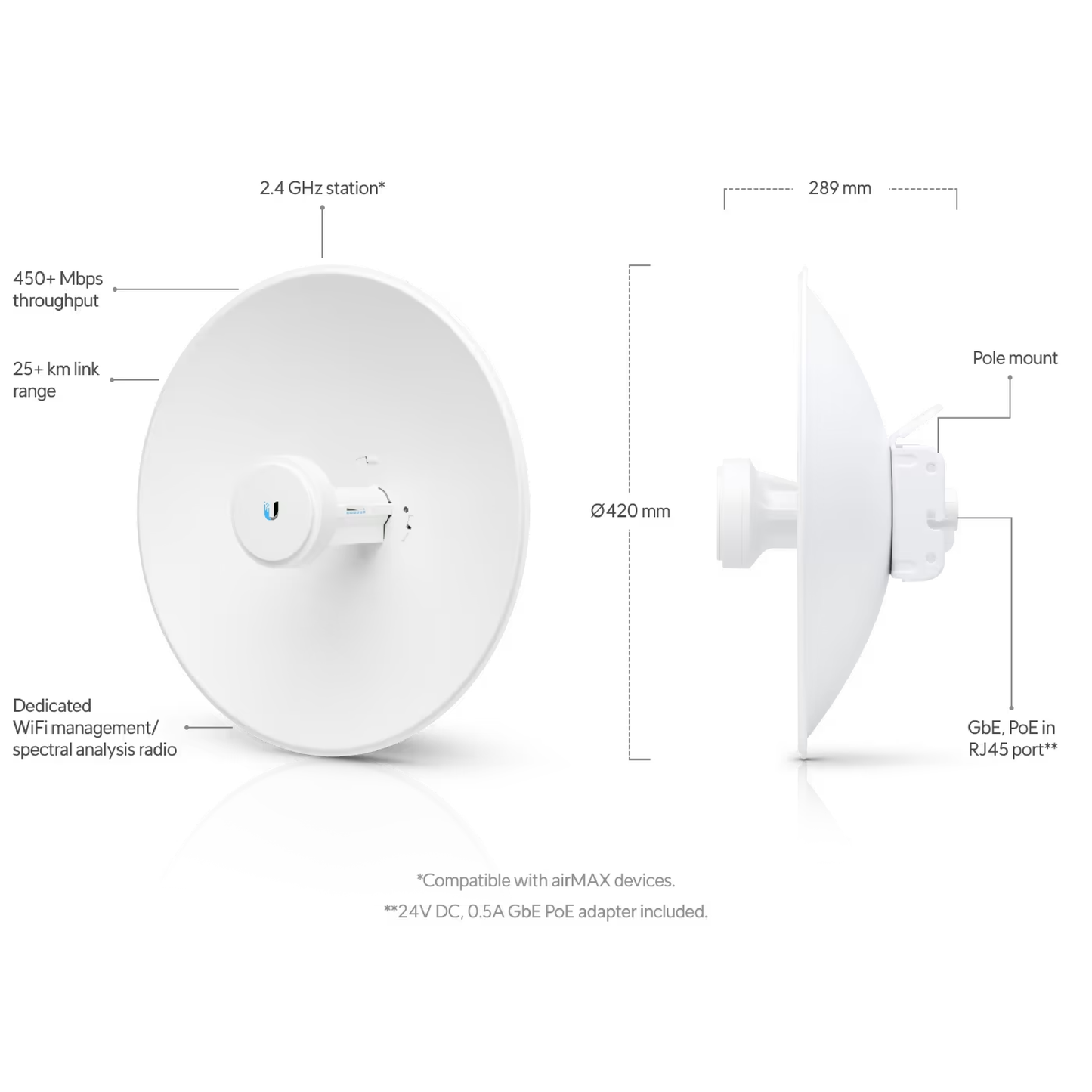

| Dimensions | 420 x 420 x 289 mm (16.5 x 16.5 x 11.4") |
| Weigh | 1.8 kg (4 lb) |
| Enclosure material | UV-stabilized plastic, powder-coated SPCC |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 342.5 N at 200 km/h (77 lbf at125 mph) |
| Mounting | Pole mount kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. power consumption | 7.5W |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| RoHS compliance | Yes |
| Salt fog test |
IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test |
IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test |
ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating temperature | -40 to 70 C (-40 to 158 F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 18 dBi |
|
Channel sizes PtP Mode PtMP Mode |
10/20/40 MHz 10/20/40 MHz |
| Operating Frequency (MHz) | |
| Worldwide | 2412-2472 MHz |
| USA | 2412-2462 MHz |
| Management Radio (MHz) | |
| Worldwide | 5150-5250 MHz |
| USA | U-NII-3: 5725-5850 MHz |
Visit Ubiquiti for more information.
