Ubiquiti

UISP airMAX PowerBeam 5AC 500 Bridge

Ubiquiti PBE-5AC-500 UISP airMAX PowerBeam 5AC 500 Bridge

PBE-5AC-500

$308.00
$340.00 $308.00
9% Off | Save $32.00 Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.

  • 5 GHz, 25+ km link range.
  • 450+ Mbps throughput.
  • Improved mounting.
  • Dedicated spectral analysis radio.
  • Dedicated WiFi management radio.

This product should be purchased in pairs in order to form links.

Mechanical

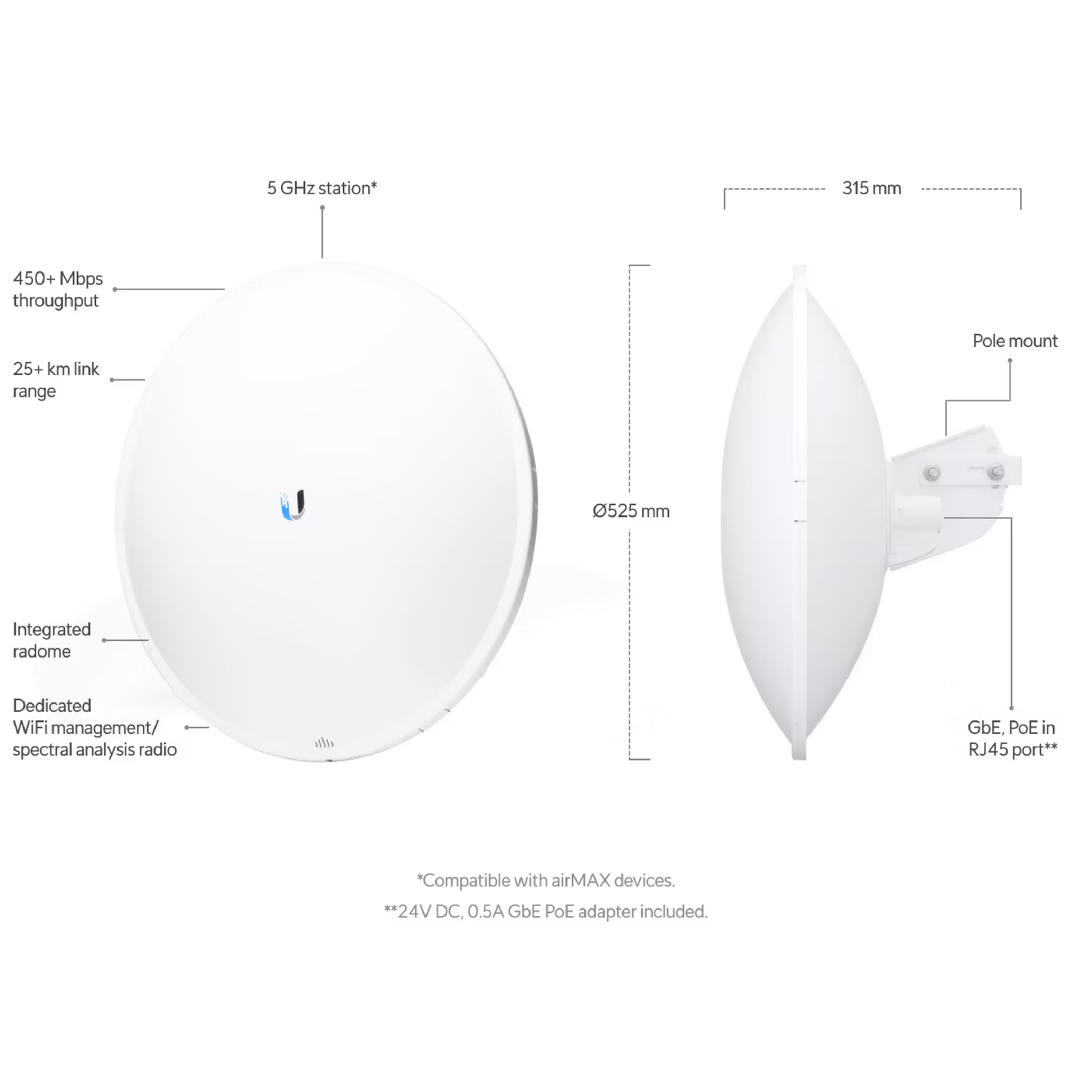

Dimensions Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1")
With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4"
Weight Without radome: 2.35 kg (5.18 lb)
With radome: 3.2 kg (7 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wind loading 264.6 N at 96 km/h (60 lbf at 60 mph)
Wind survivability 96 km/h (60 mph)
Hardware

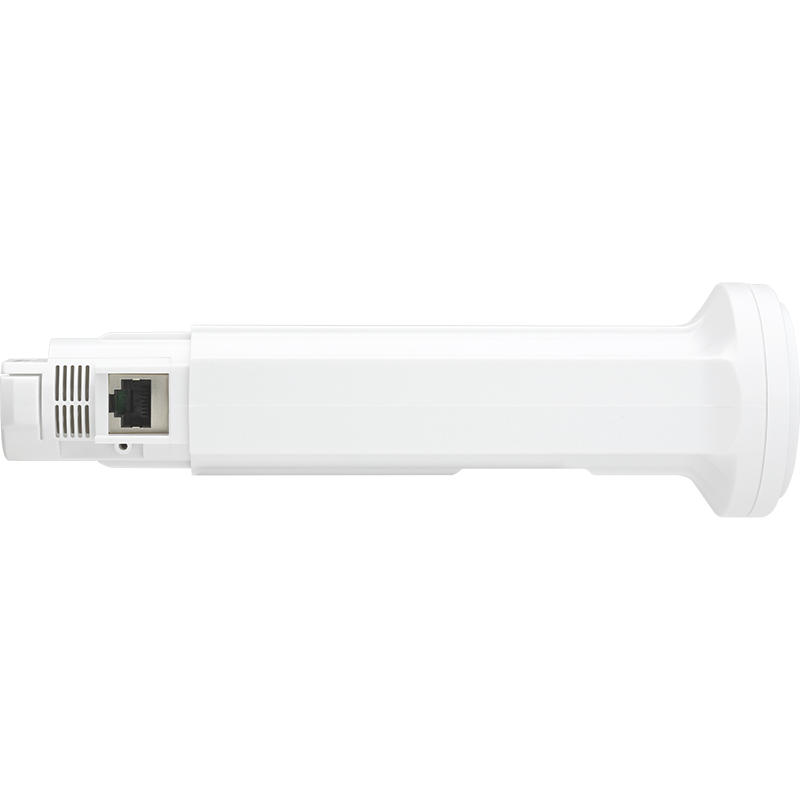

Networking interface (1) GbE RJ45 port
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE
Max. power consumption 8.5W
Supported voltage range 20-26V DC
ESD/EMP protection Air/contact: ± 24 kV
LEDs (1) Power, (1) LAN, (4) WLAN
Signal strength LEDs Software-adjustable to correspond to custom RSSI levels
RoHS compliance Yes
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
System
Gain 27 dBi
Max. VSWR 1.5:1
Channel sizes
PtP Mode
PtMP Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150 - 5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz

Visit Ubiquiti for more information.
