Ubiquiti

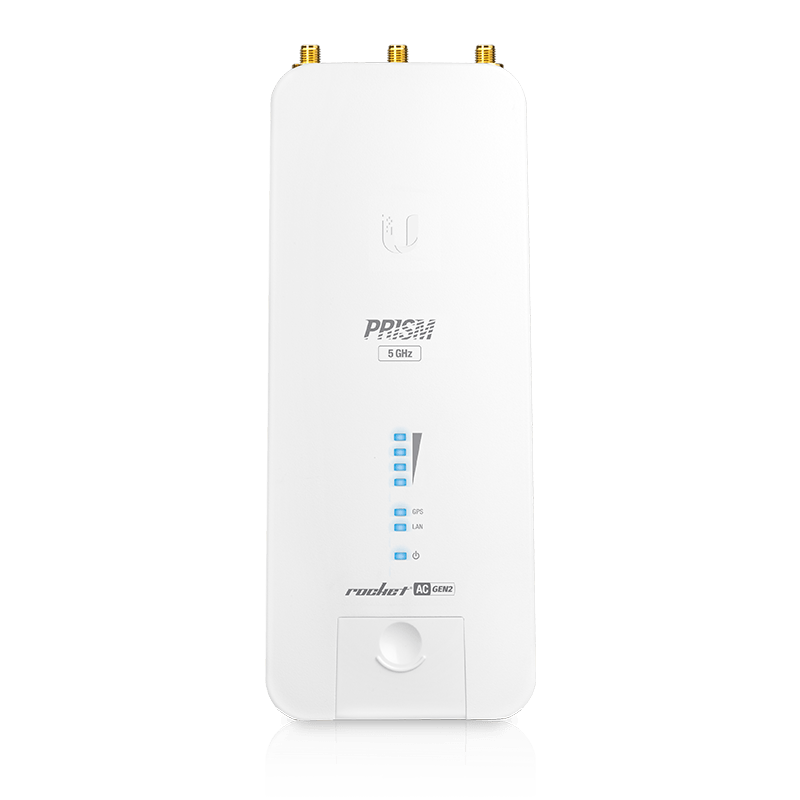

airMAX Rocket Prism 5AC — UISP 5 GHz Wireless

airMAX Rocket Prism 5AC — UISP 5 GHz Wireless

Regular price $404.00
Regular price $504.00 Sale price $404.00
19% Off | Save $100.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:RP-5AC-Gen2

In stock

View full details

Discover unparalleled performance with the Ubiquiti airMAX Rocket Prism 5AC, a leading 5 GHz base station perfect for Point-to-Multi-Point (PtMP) or Point-to-Point (PtP) links. Experience lightning-fast data transfer speeds of over 500 Mbps.

  • Advanced 5 GHz airPrism Active RF Filtering Technology
  • Impressive throughput exceeding 450 Mbps
  • Capacity to support over 50 clients simultaneously
  • Specialised radio for dedicated spectral analysis
  • Seamless integration with GPS synchronisation

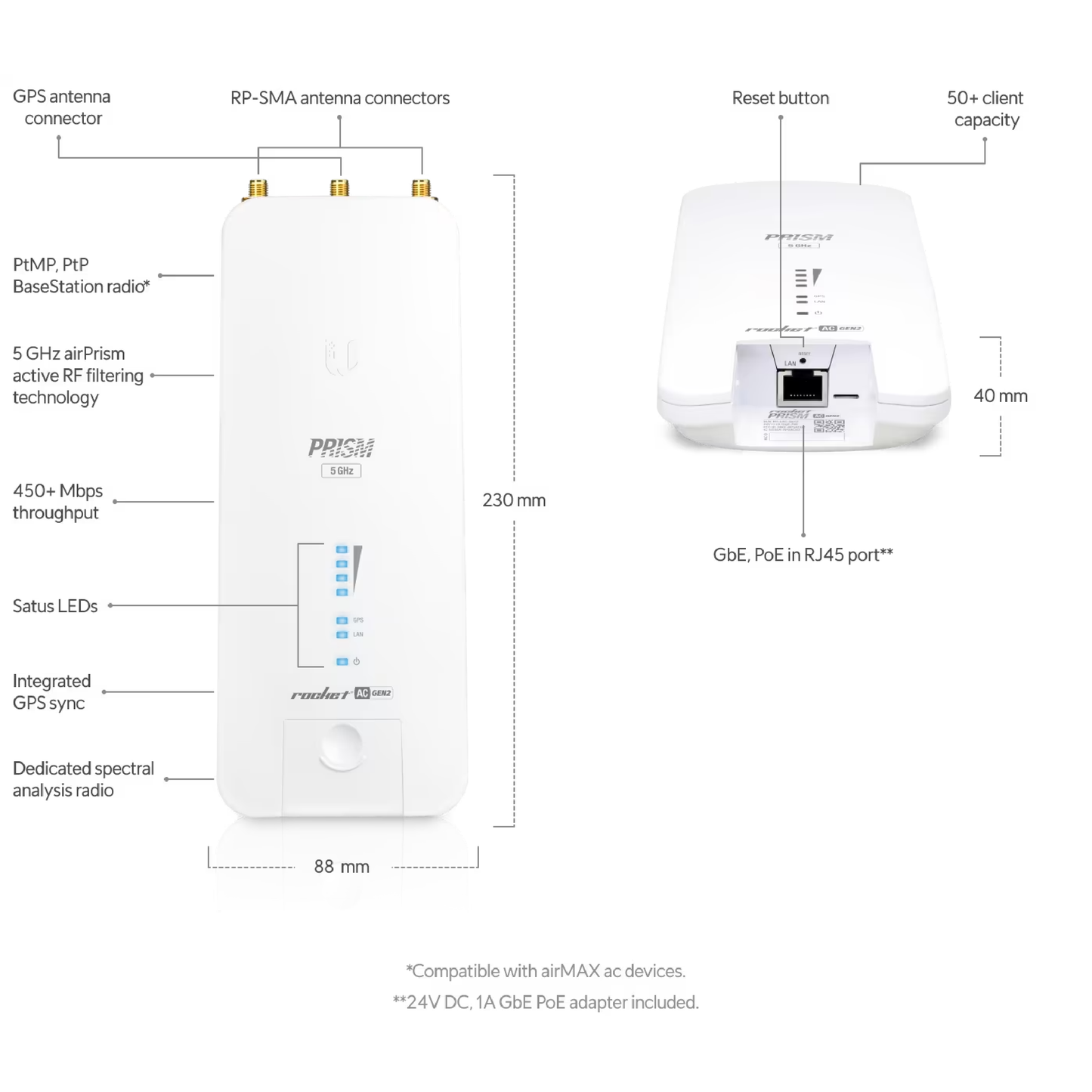

Mechanical
Dimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight 400 g (14.11 oz)
Enclosure material Die-cast aluminum
Mounting Pole mounting (kit Included)
Wind loading 342.5 N at 200 km/h (77 lbf at 125 mph)
Hardware
Networking interface (1) GbE RJ45 port
RF Connectors (2) RP-SMA (Waterproof)
(1) GPS (Waterproof)
Power method Passive PoE (pairs 4, 5+; 7, 8 return)
Power supply 24V, 1A Gigabit PoE adapter (Included)
Supported voltage range 18—26V DC
Max. power consumption 9.5W

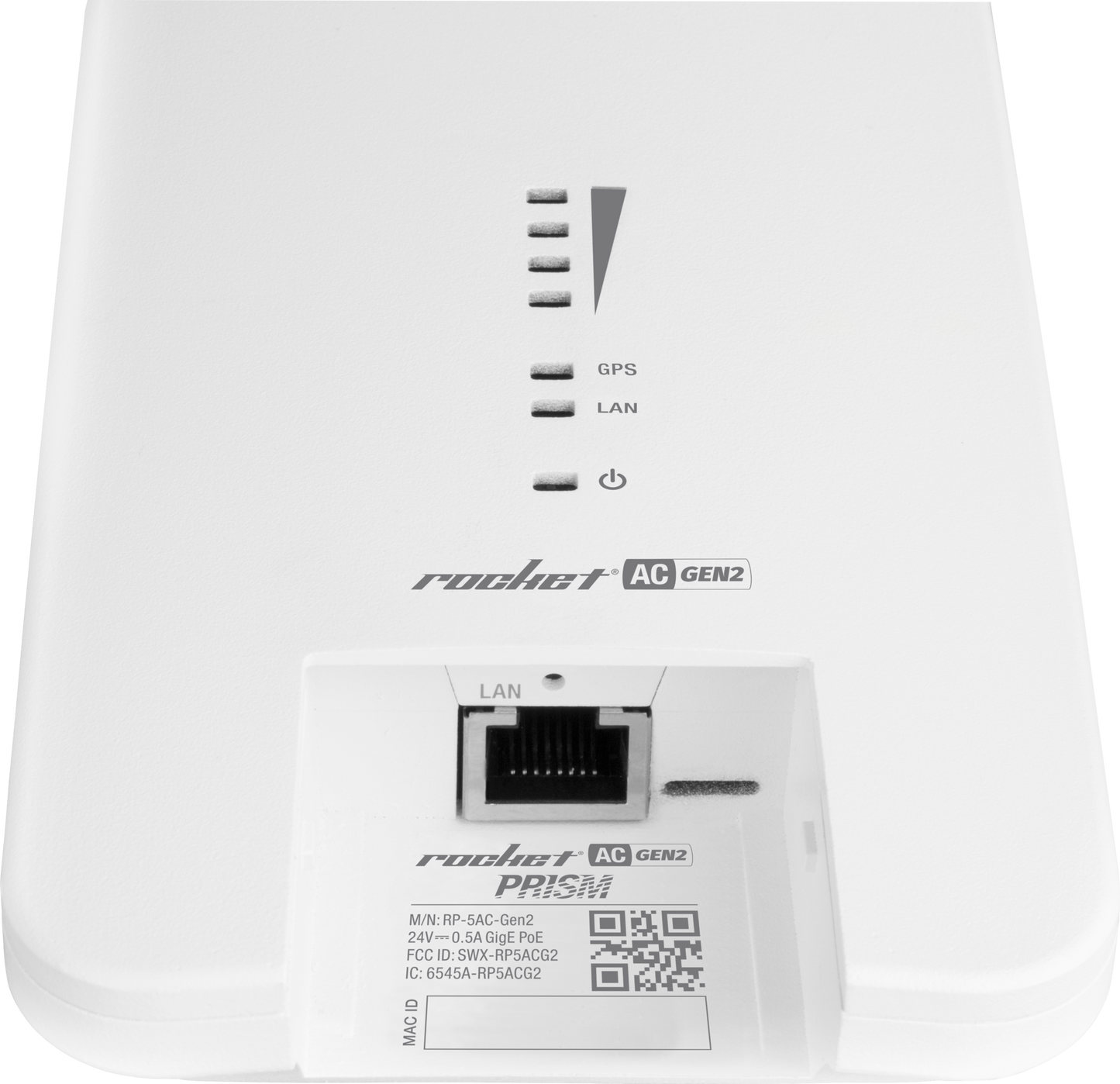

LEDs (4) Signal strength: software_adjustable to correspond to custom RSSI levels
GPS, LAN, power
RoHS compliance Yes
Shock and vibrations ETSI300-019-1.4
Operating temperature -40 to 80° C (-40 to 176° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
Modes Access Point, station
Channel sizes
PtP mode
PtMP mode

10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Services Web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing
Utilities airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test
Distance adjustment Dynamic Ack and Ackless mode
Power adjustment Software adjustable UI or CLI
Security
WPA2 AES only
QoS
Supports packet level classification WMM and user customer level: High/Medium/Low
Statistical reporting
Up time, packet errors, data rates, wireless distance, Ethernet link rate
Ubiquiti specific features
30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode
Operating Frequency (MHz)
Worldwide 5150–5875 MHz
USA
U-NII-1:
U-NII-2A:
U-NII-2C:
U-NII-3

5150–5250 MHz
5250–5350 MHz
5470–5725 MHz
5725–5850 MHz
Management Radio (MHz)
Worldwide 2412–2472 MHz
USA 2412–2462 MHz
